Category
Milling machine
Type
Bed type
Made
Model
LEM936
Capacity
3000x1500x1200 mm118,11x59,06x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1500 mm59,06 in
Cross RAM (Z)
1200 mm47,24 in
Axes support
Y/Z idrostatico+turcite, X pneumostatico
CNC

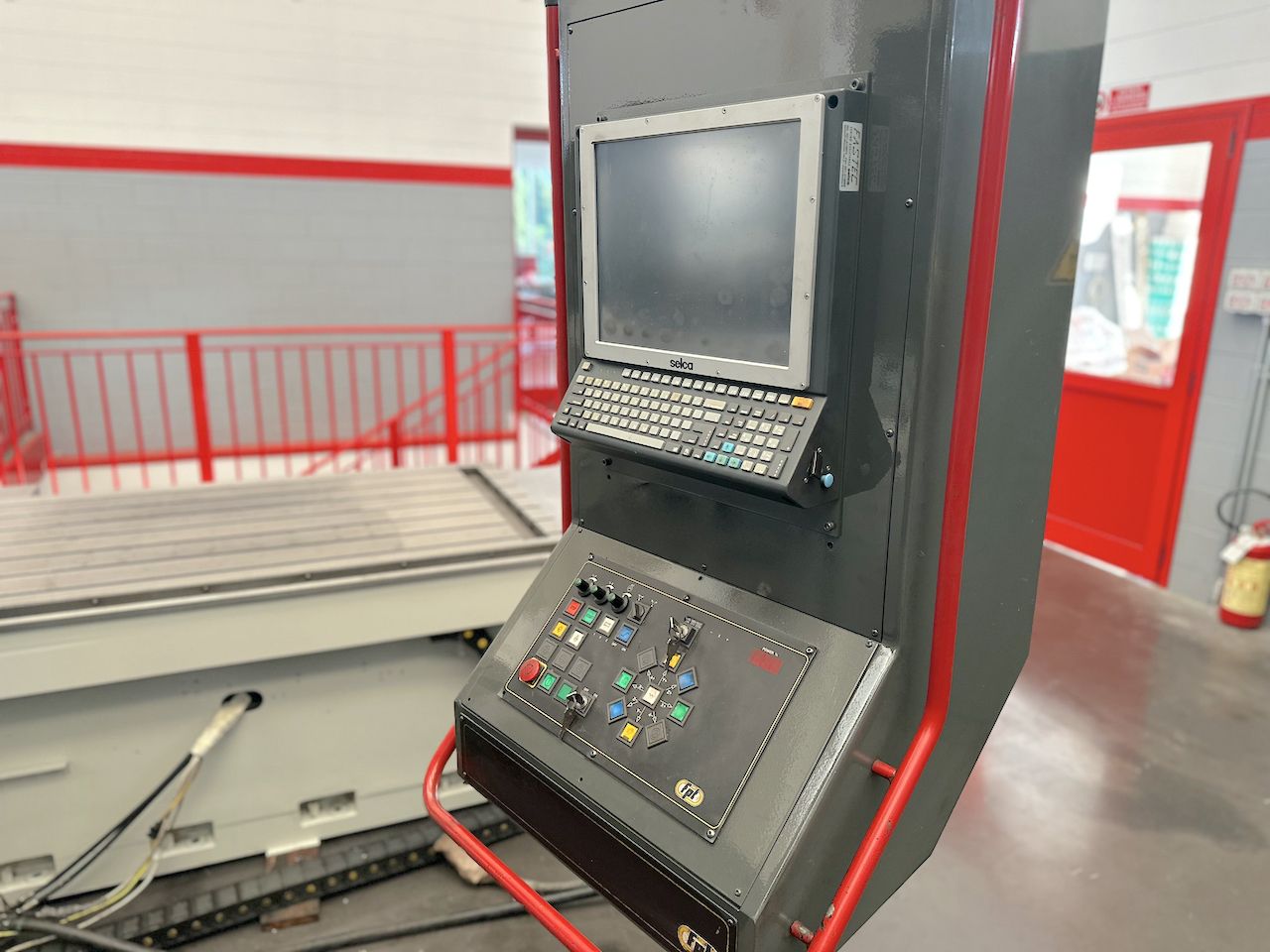

CNC
SELCA S4045PD
Drives
Siemens
SPINDLE
Spindle power
28/35 Kw
Rotating speed
5000 Rpm
Torque
1070 Nm
Gearbox
2 gamme
Taper
ISO50
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm

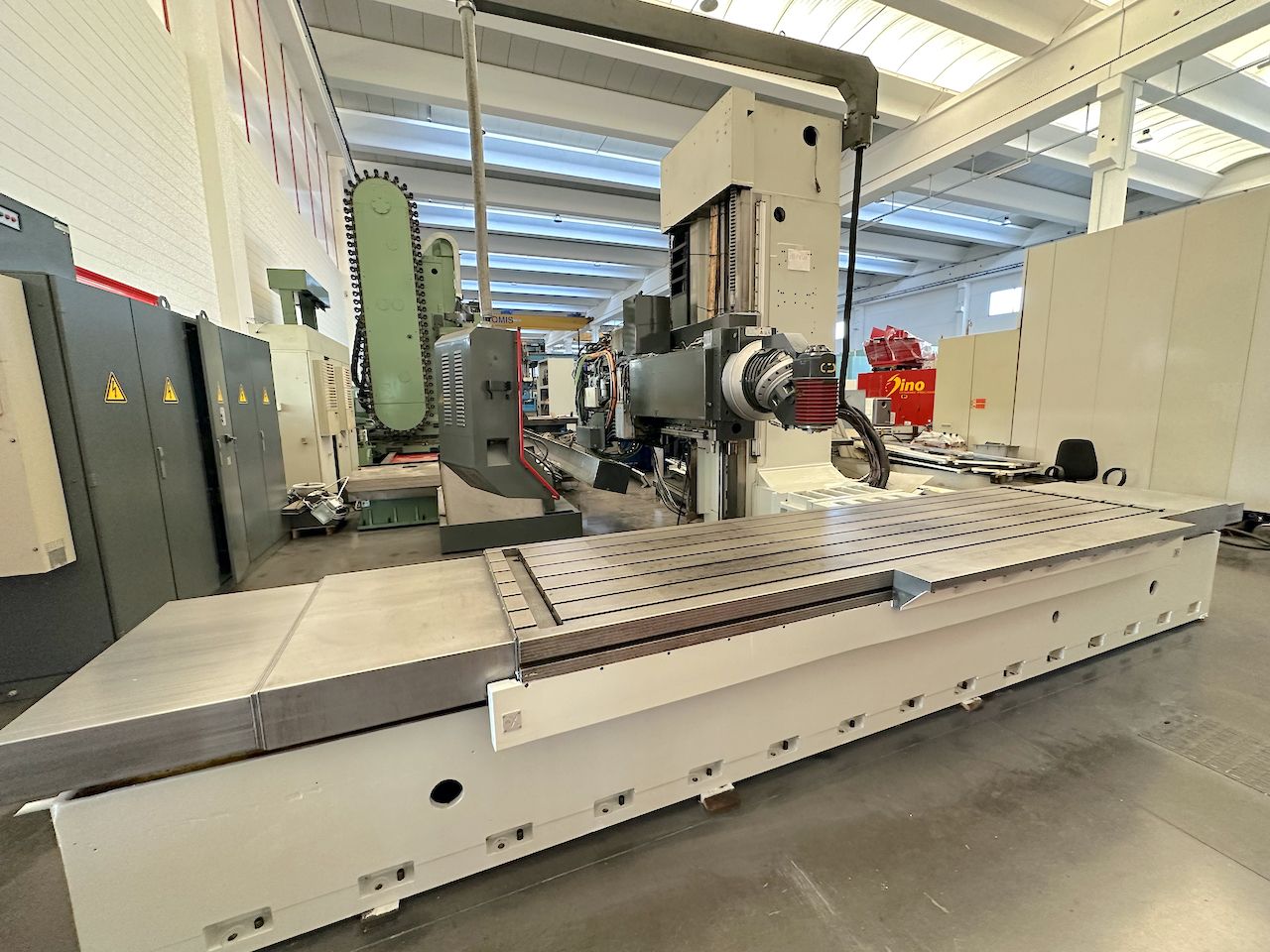

TABLE 1
Surface
3500x920 mm137,80x36,22 in
Capacity
8000 Kg
Translation
3000 mm118,11 in

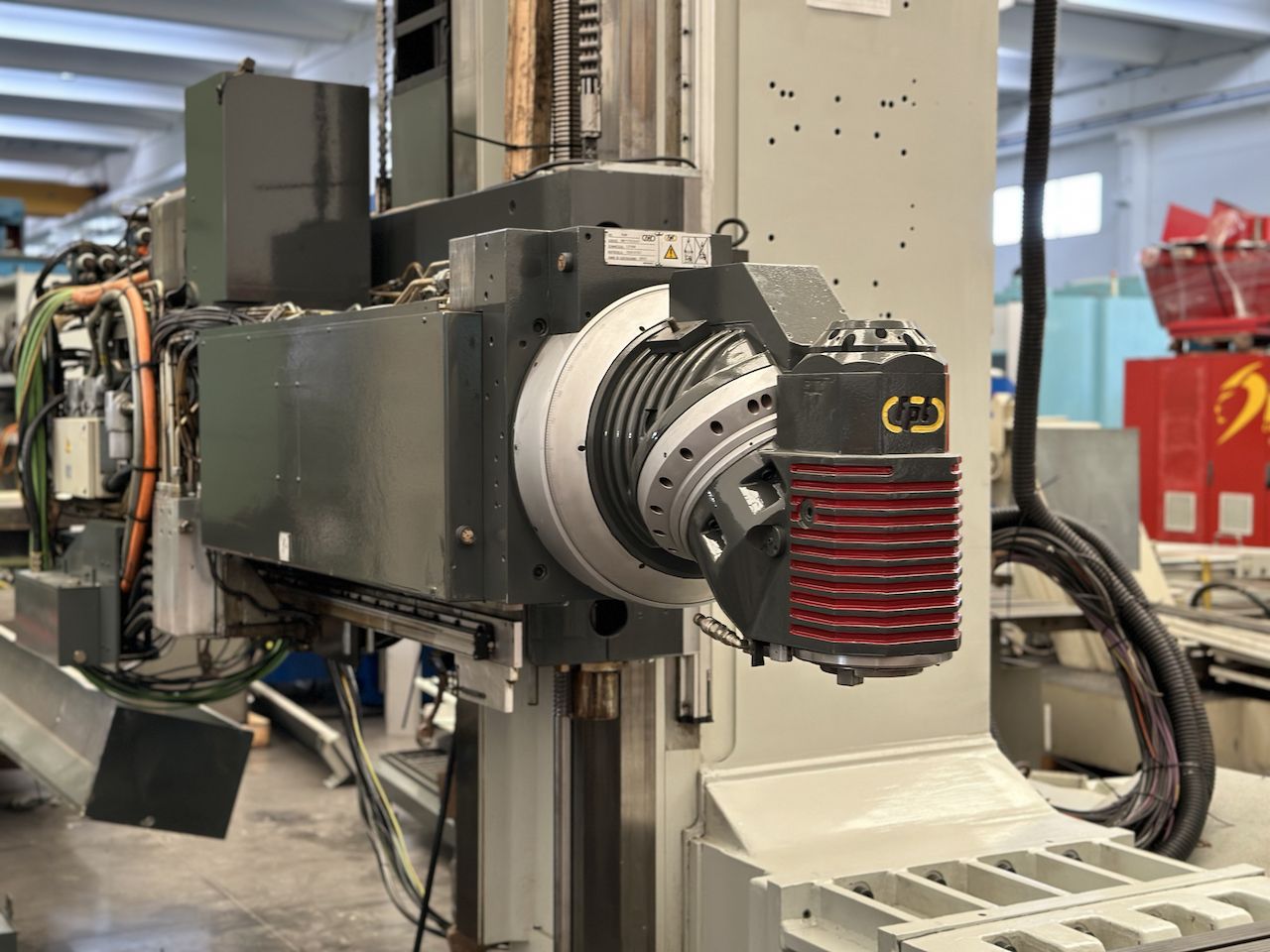

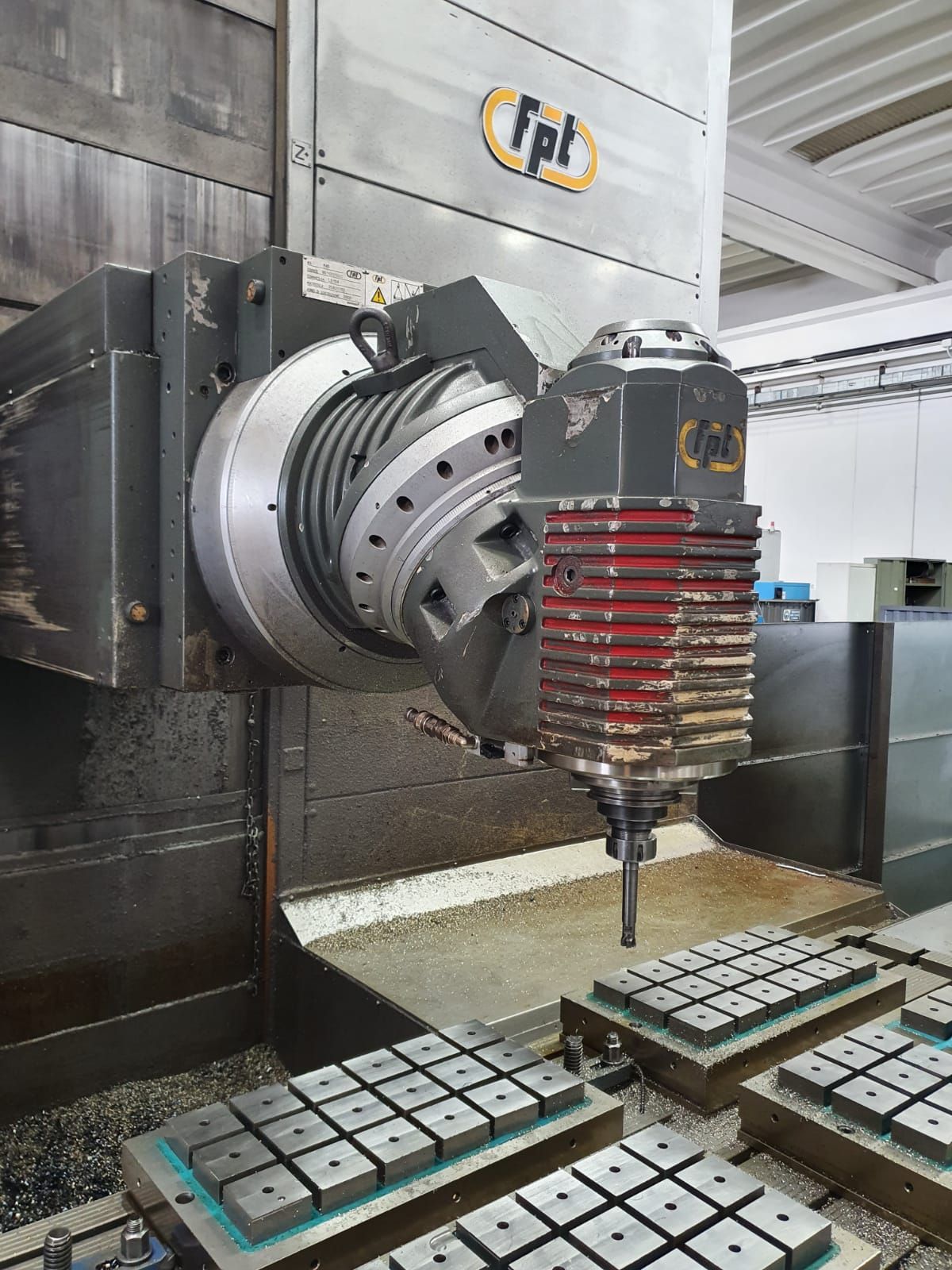

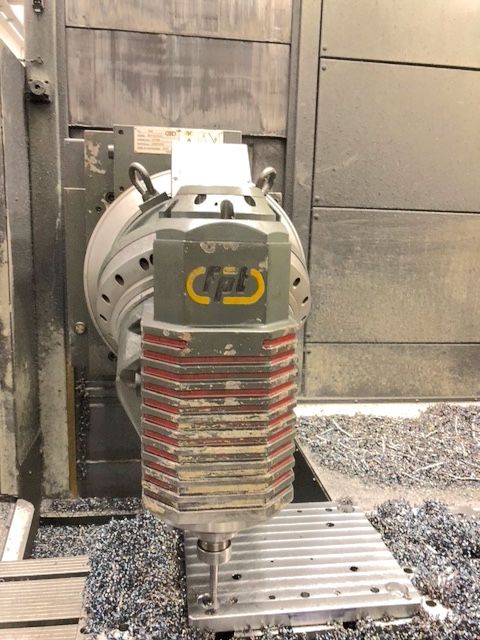

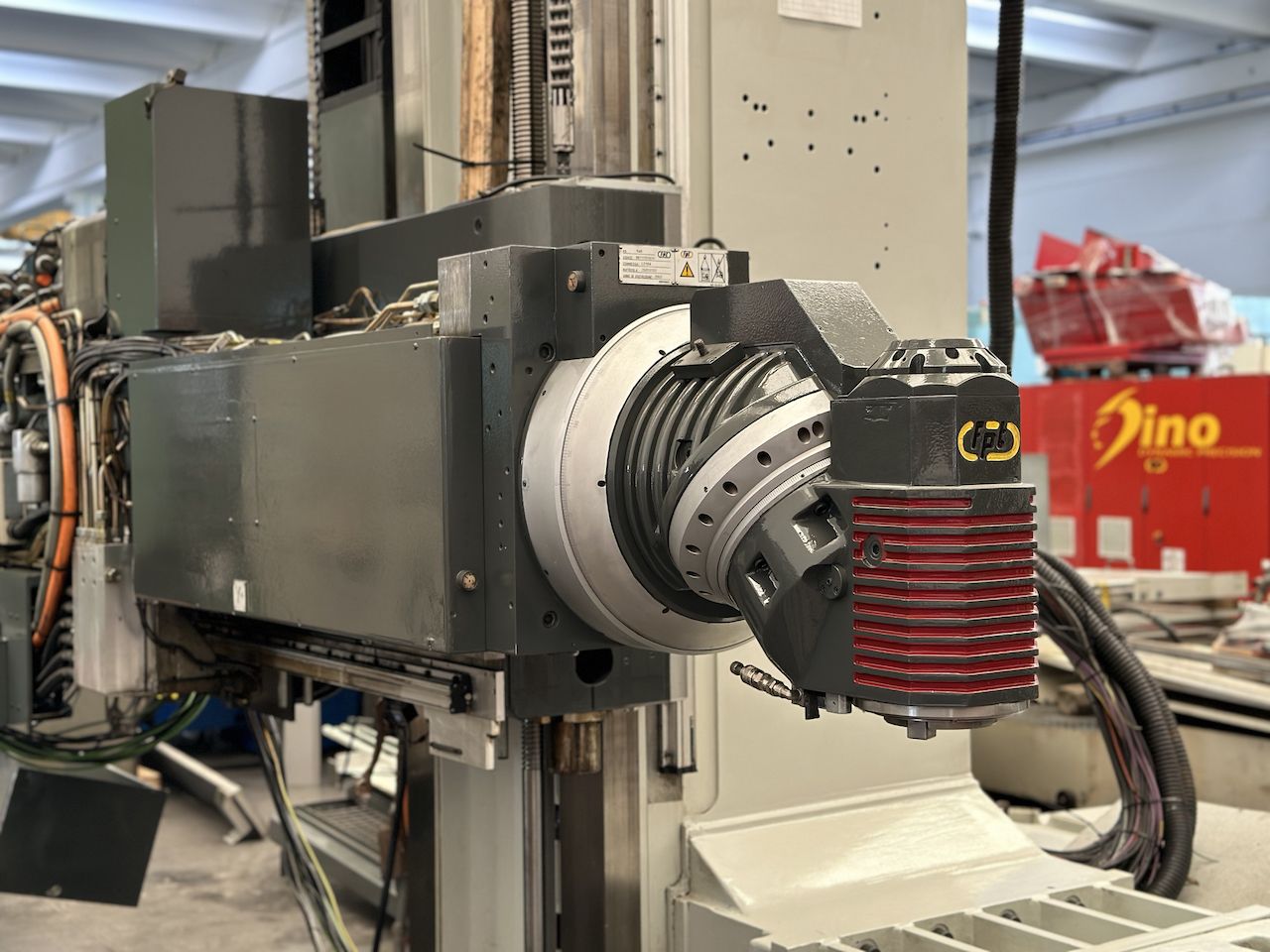

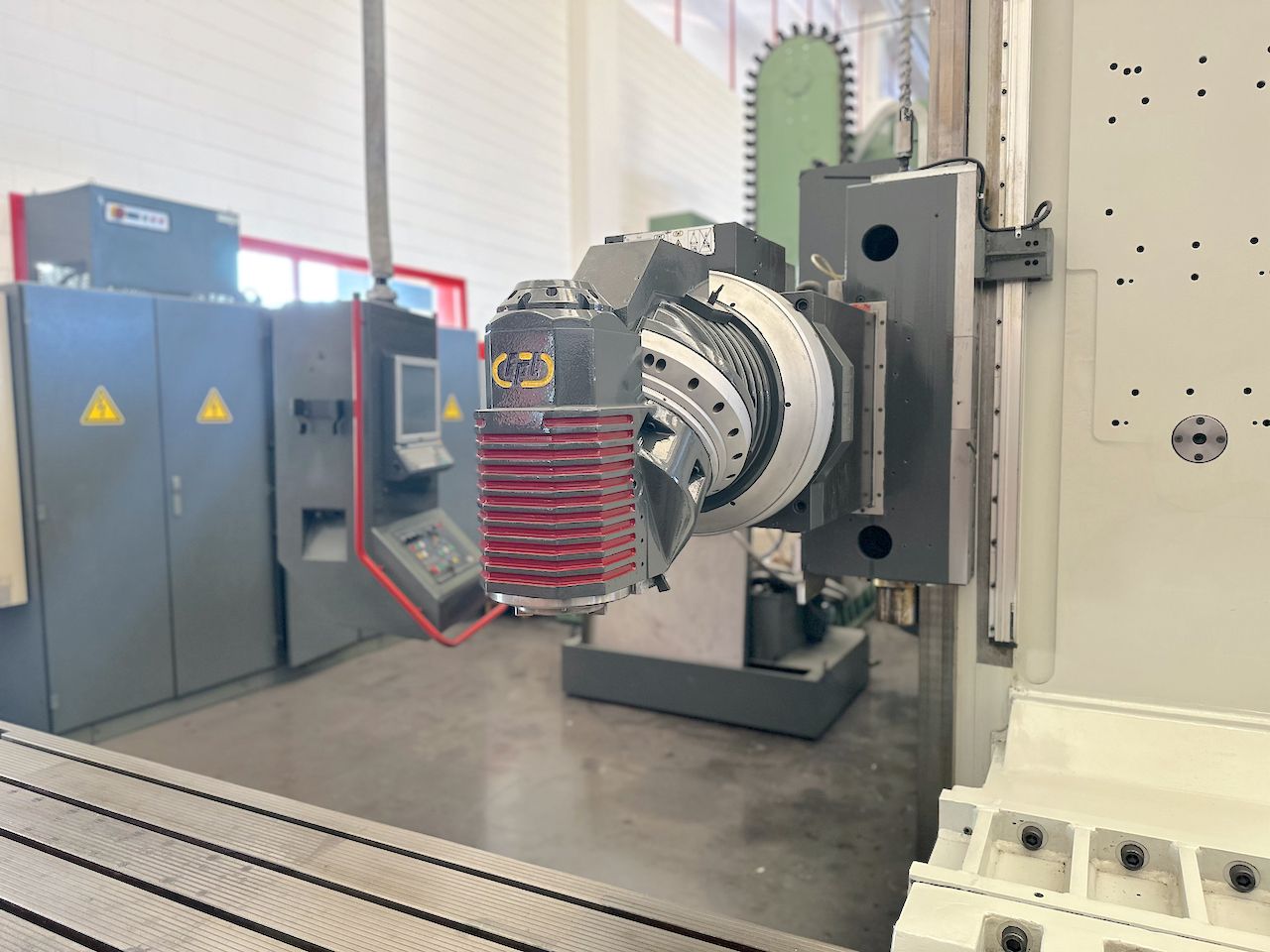

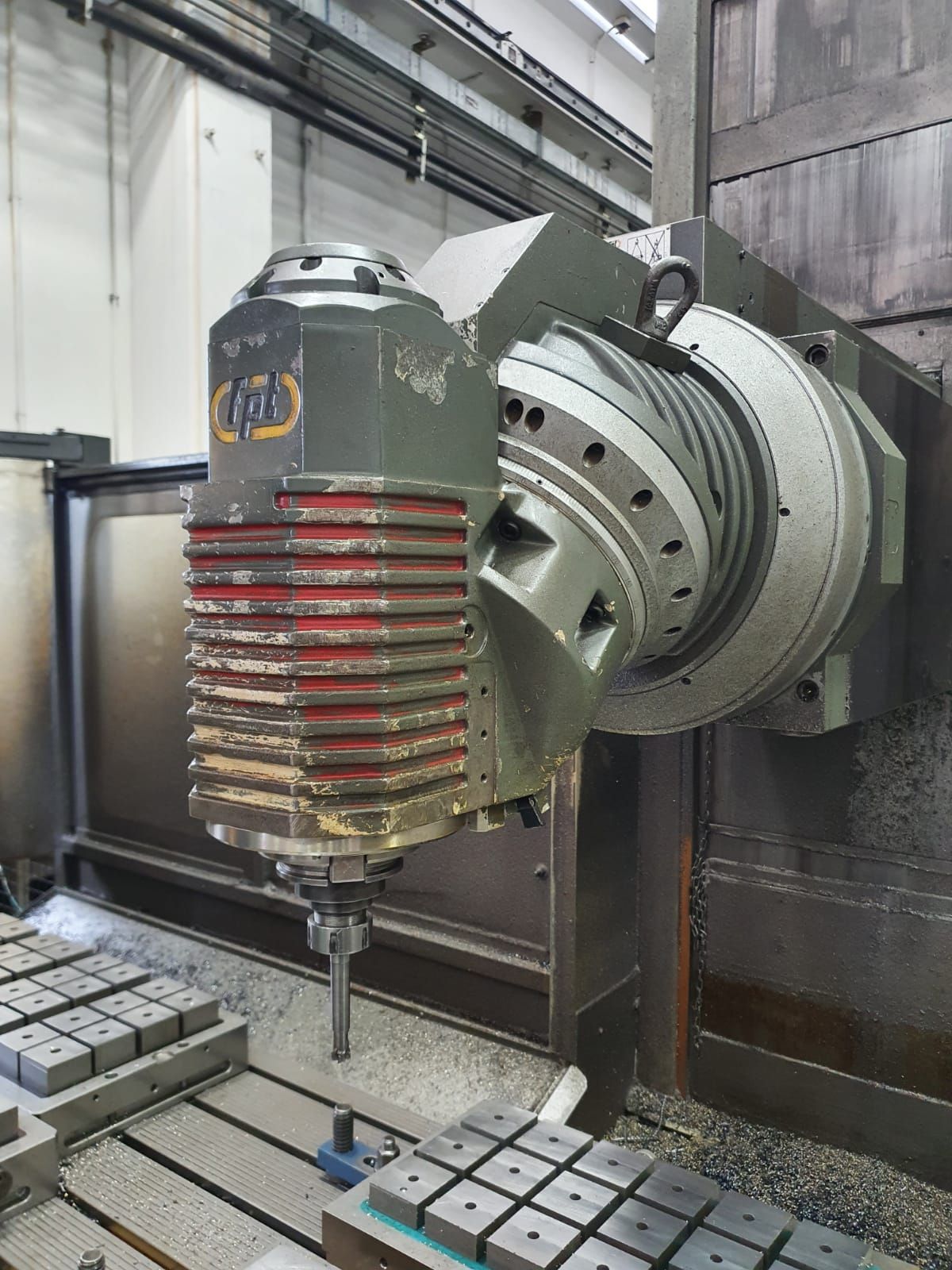

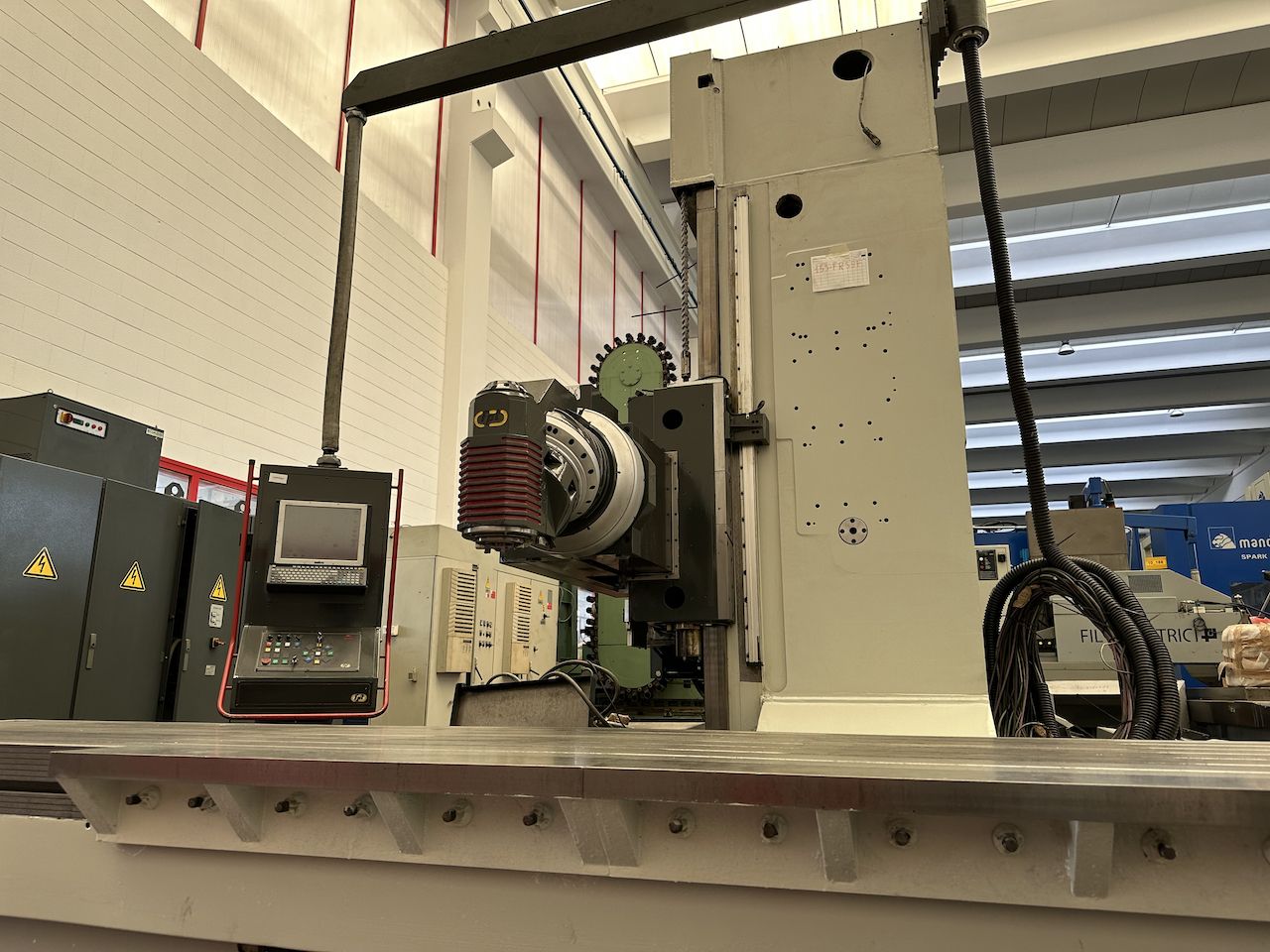

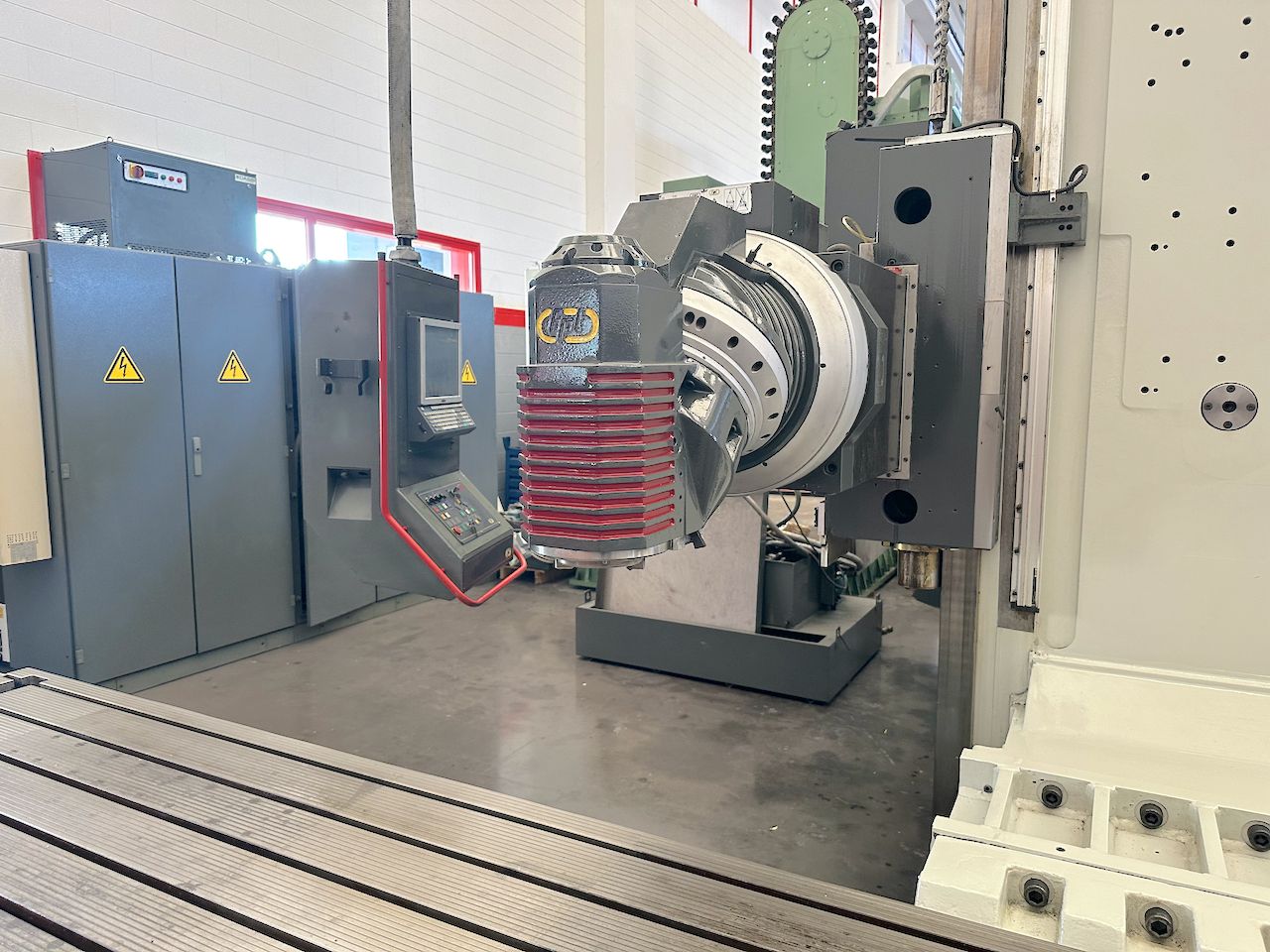

HEAD 1
Type
TUPCG
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max torque
1070 Nm
Max speed
5000 Rpm
Max power
35 Kw
EXTRA
Total power supply
46 Kw
Tooling included
RS422 per Selca, Interfaccia Etherneth-IPX per Selca, Maschiatura rigida, distanziale montante/tavola 360mm (anzi che 240mm)
