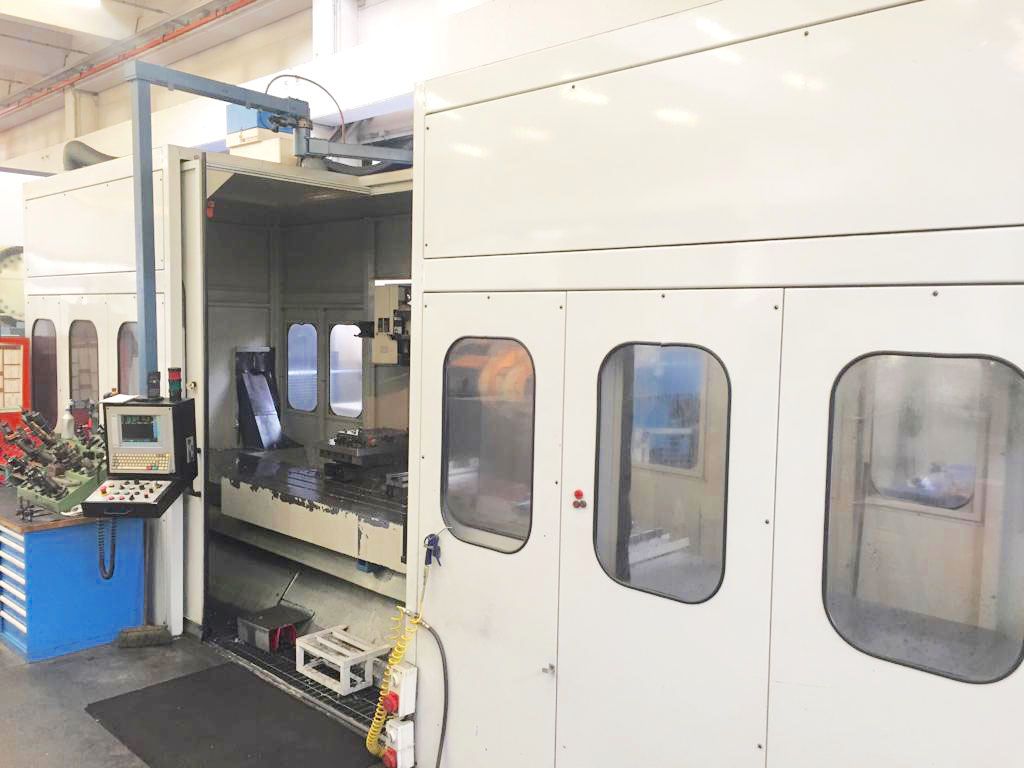

Category
Milling machine
Type
Bed type
Made
Model
FSQ100 KR/A3
Capacity
3000x1500x1000 mm118,11x59,06x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
1500 mm59,06 in
Cross RAM (Z)
1000 mm39,37 in
CNC
CNC

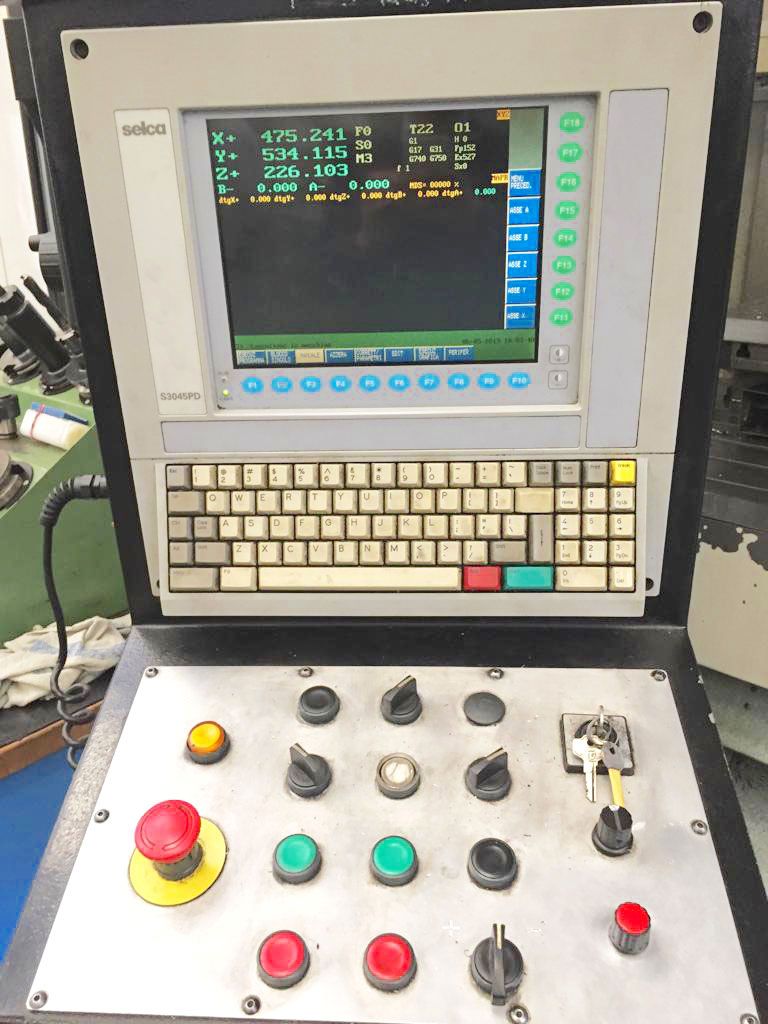

SELCA 3045PD
Measuring system
Righe ottiche Heidenhain + Sonde temperatura
Drives
Siemens
SPINDLE
Rotating speed
3500 Rpm
Taper
ISO50

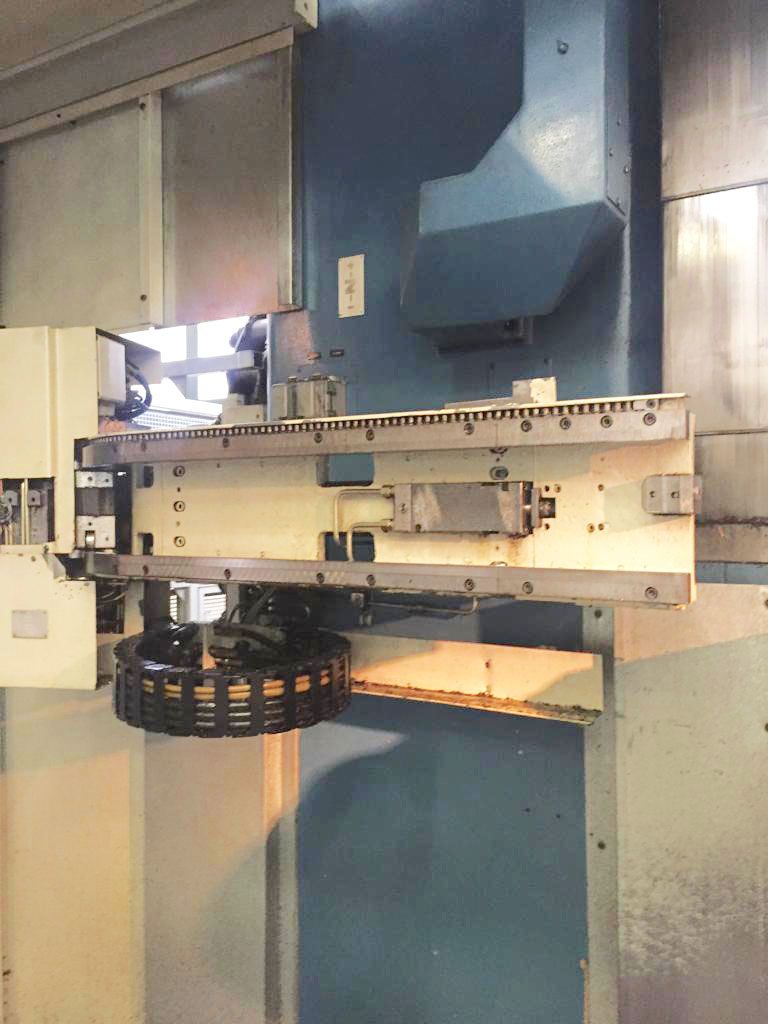

ATC
Positions
40
Tool taper
ISO50

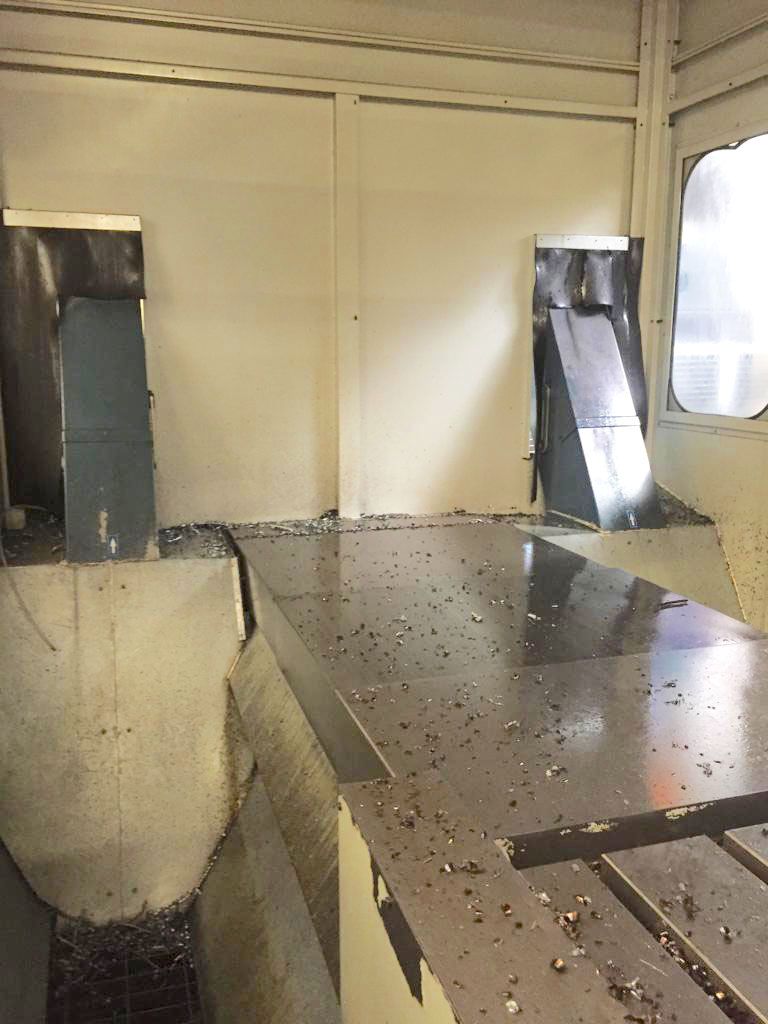

TABLE 1
Surface
3000x1000 mm118,11x39,37 in

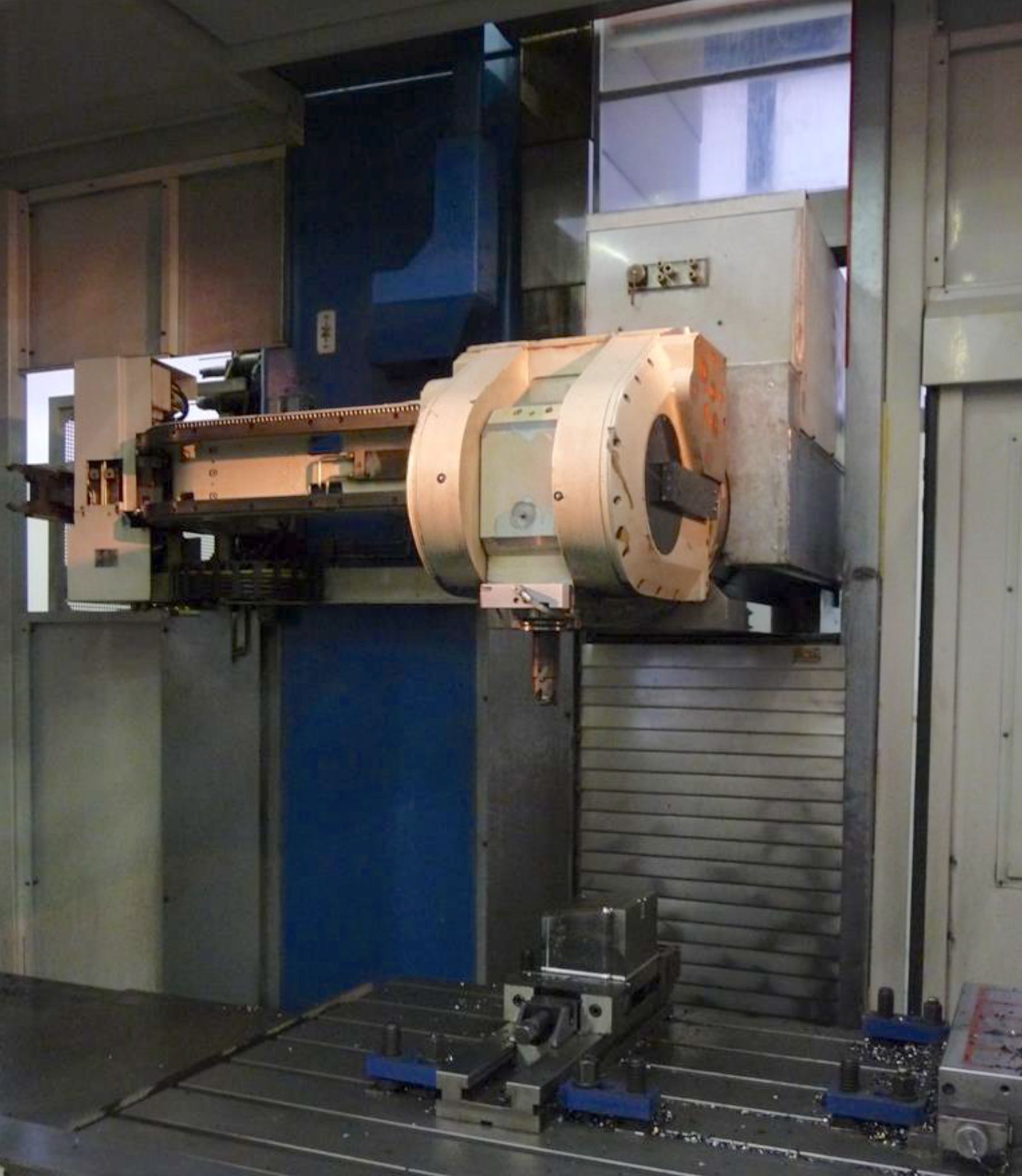

HEAD 1
Type
Birotativa Millesimale
Spindle taper
ISO50
A axis
360.000x0,001 °
C axis
360.000x0,001 °
Max speed
3500 Rpm
EXTRA
Relevant updates made on the machine
Luglio 2010 sostituite viti e righe ottiche Gennaio 2018 Sostituzione cuscinetti ed ingranaggi testa Gennaio 2014 Aggiornamento controllo numerico

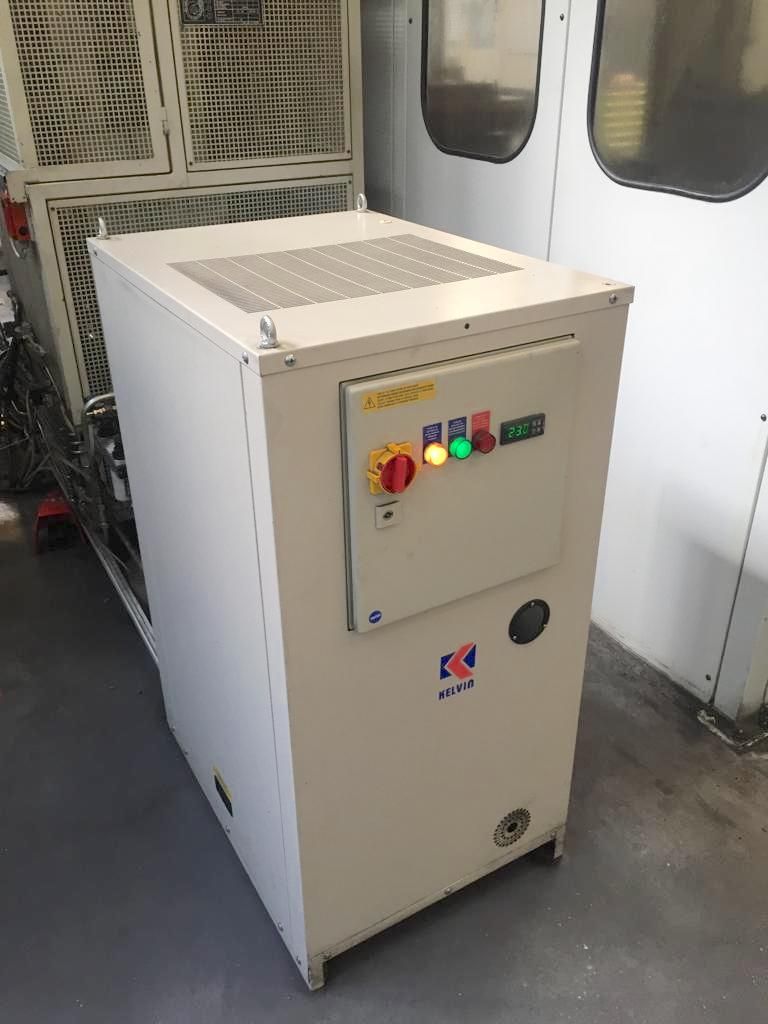

Chiller
si

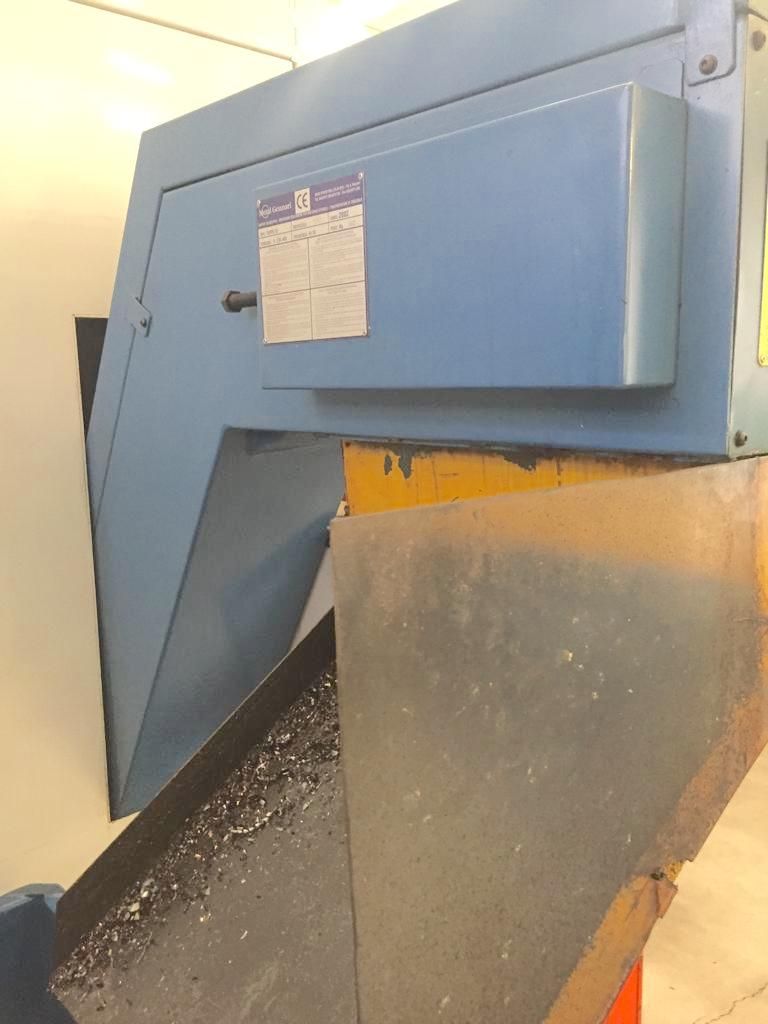

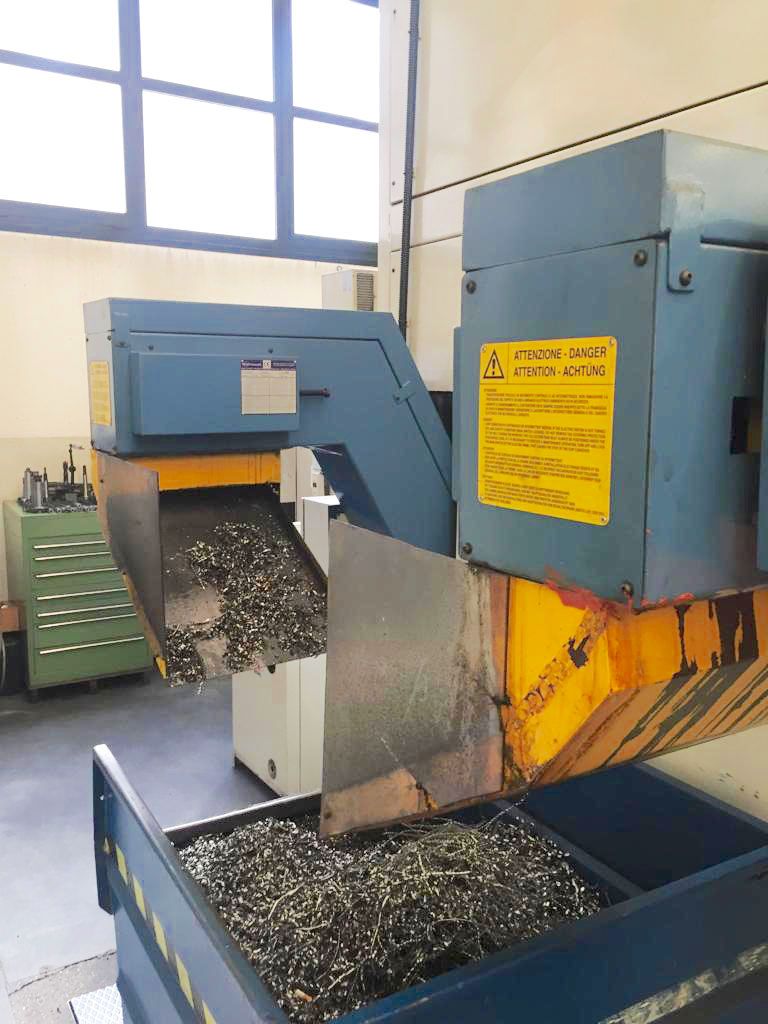

Chip conveyor
2
Housing
integrale
Mist extractor
si
Availability
pronta
