Category

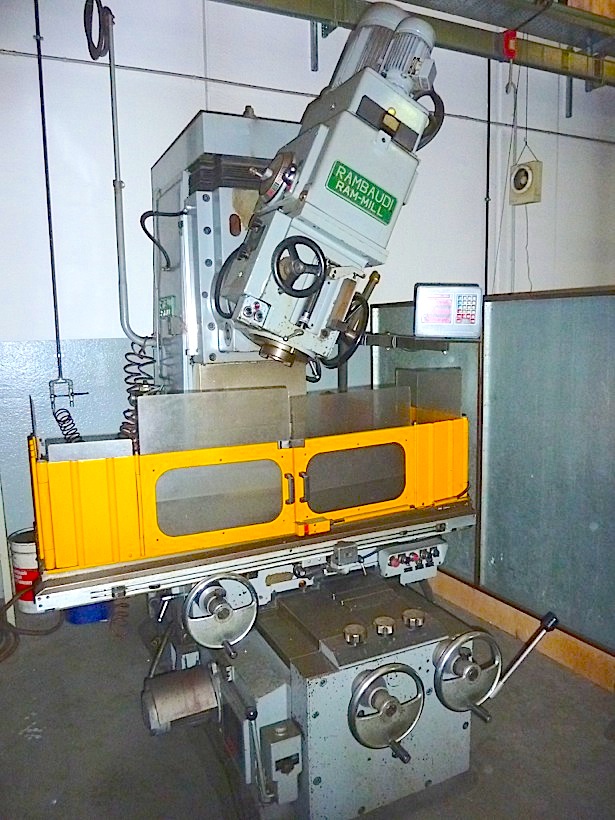

Milling machine
Type
Bed type
Made
Model

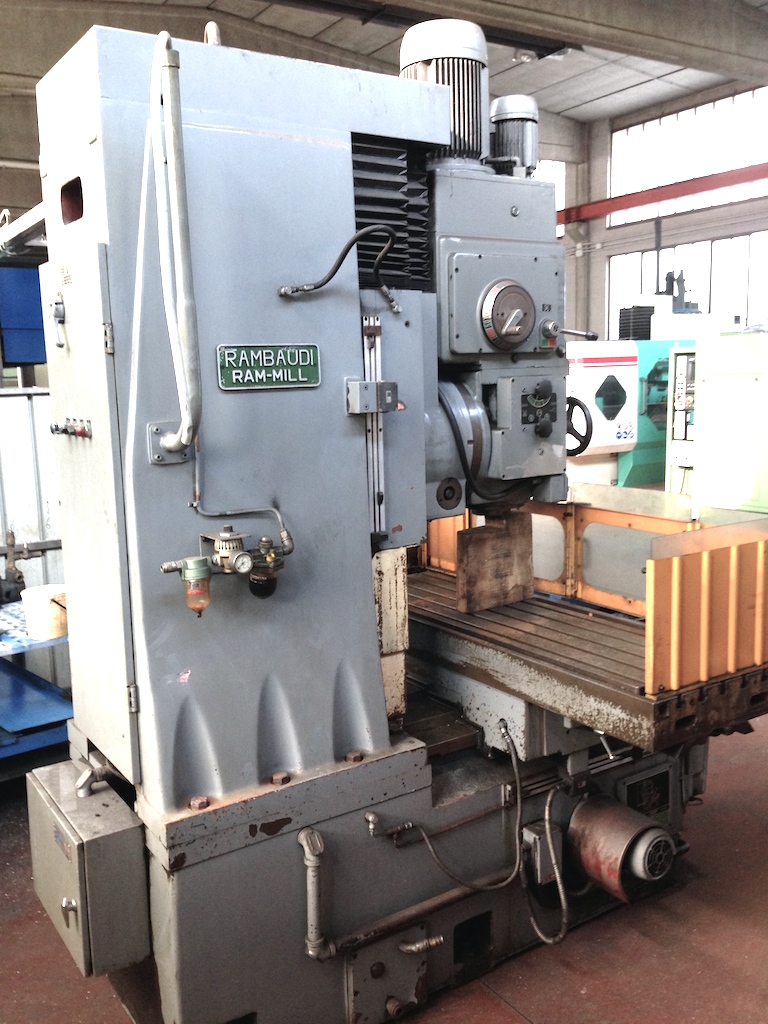

RAMMILL
Capacity
1200x510x550 mm47,24x20,08x21,65 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
1200 mm47,24 in
Vertical (Y)
570 mm22,44 in
Table (V)
500 mm19,69 in

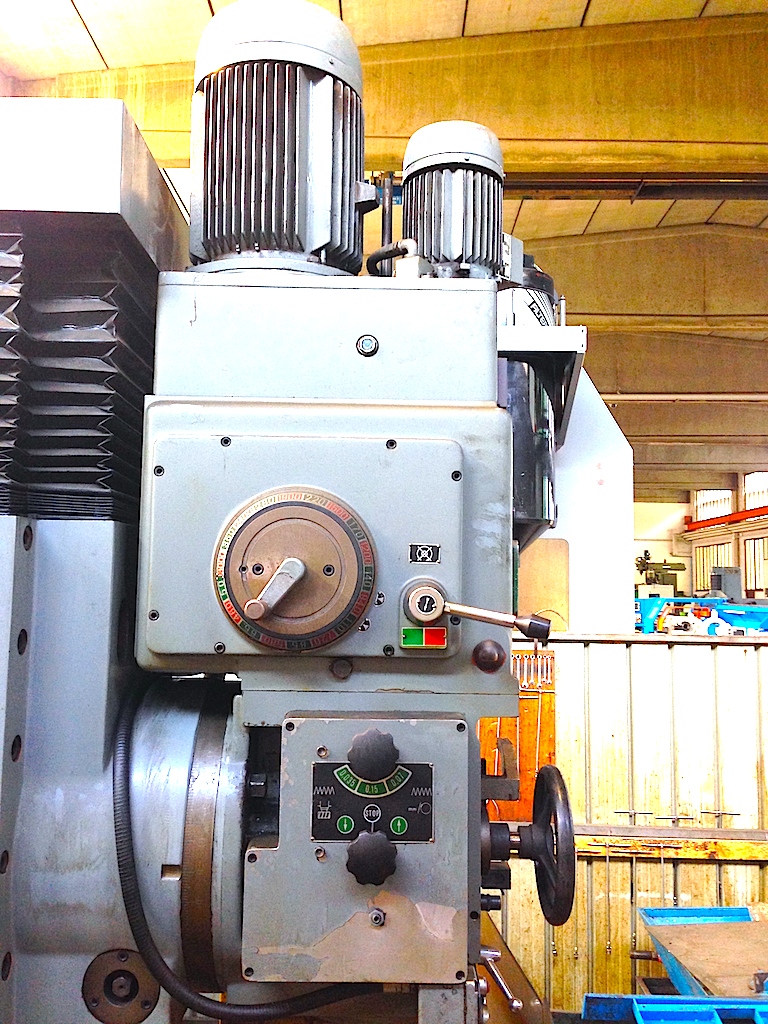

SPINDLE
Spindle power
10 Kw
Rotating speed
40-3000 Rpm
Taper
ISO50
FEEDS
Rapid X
2,5 m/min98,43 ipm
Rapid Z
0,500 m/min19,69 ipm
Rapid Y
1,25 m/min49,21 ipm
Rapid V
2,5 m/min98,43 ipm
FIXING TABLE
Floorspace (LxWxH)
1600x510 mm62,99x20,08 in
T slots number
5x18mm
EXTRA
Total power supply
10 Kw
Machine total weight
5000 Kg
Floor space
2415x2400x2915 mm95,08x94,49x114,76 in

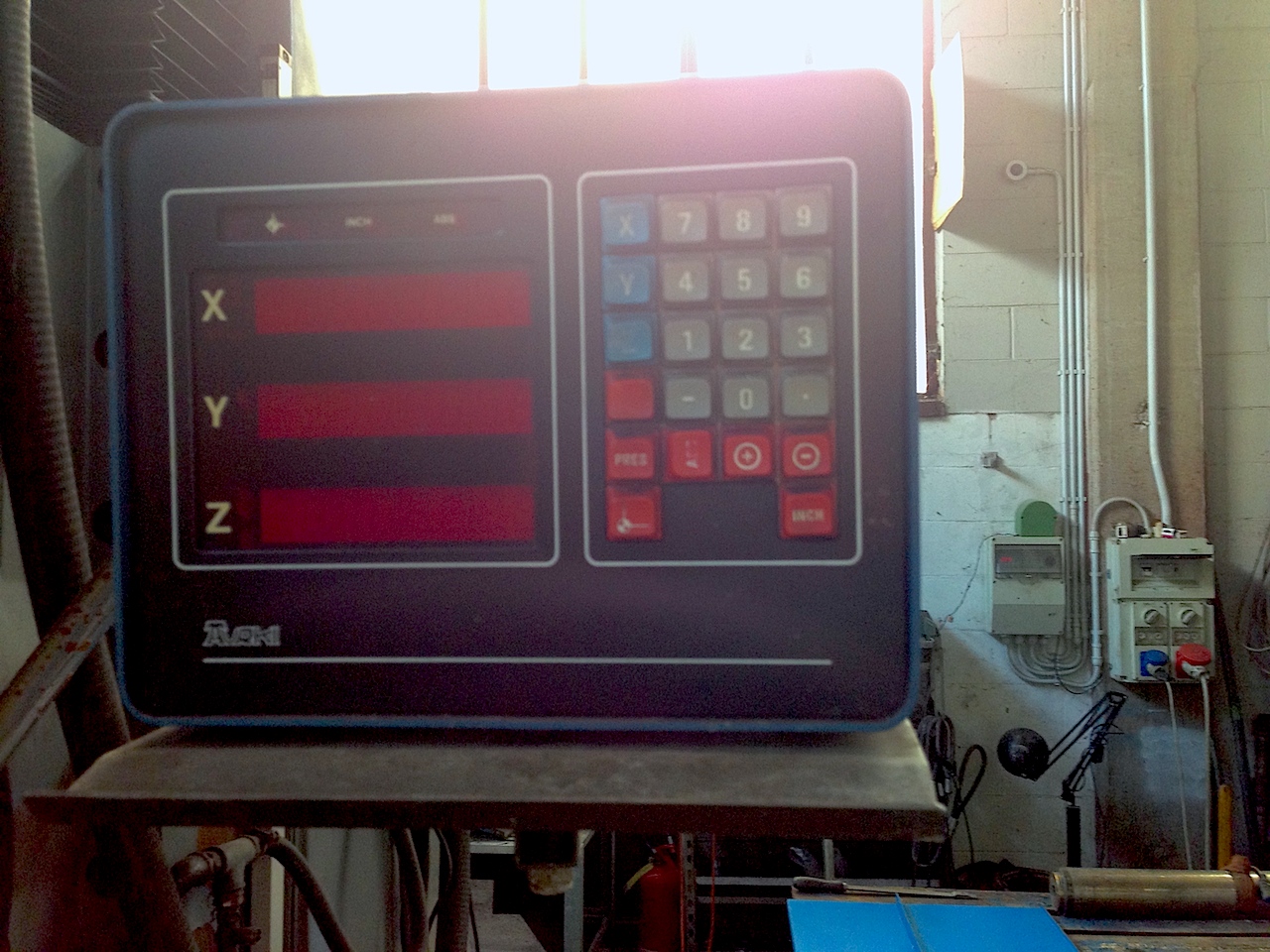

Digital read out (DRO)
DRO 3 assi
Maintenance & Use books
Yes
Electrical drawings
Yes
Available in stock
si
Availability
pronta
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
