Category
Milling machine
Type
Bed type
Made
Model
LEM 936
Capacity
3000x2000x1200 mm118,11x78,74x47,24 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3000 mm118,11 in
Vertical (Y)
2000 mm78,74 in
Cross RAM (Z)
1200 mm47,24 in
CNC
CNC

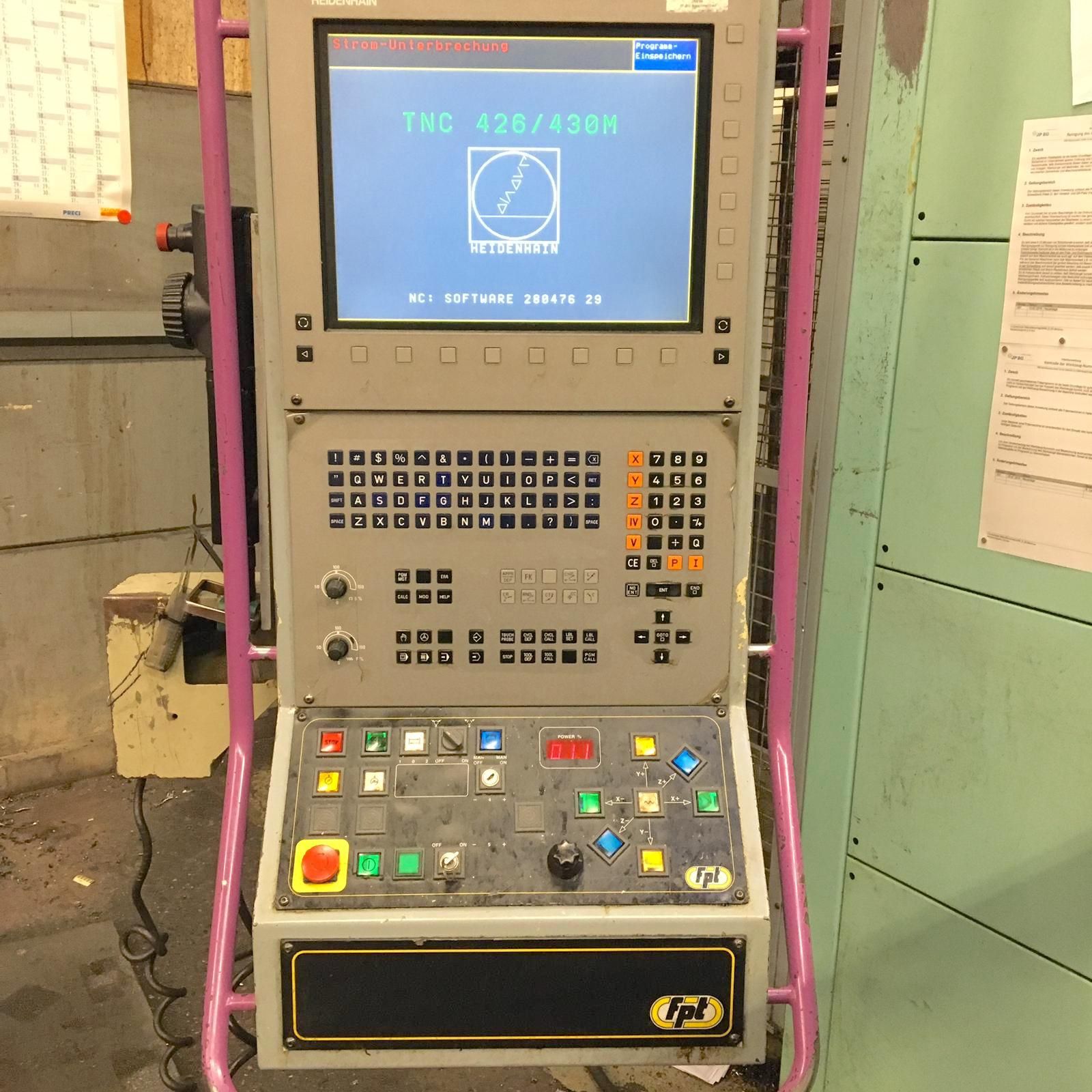

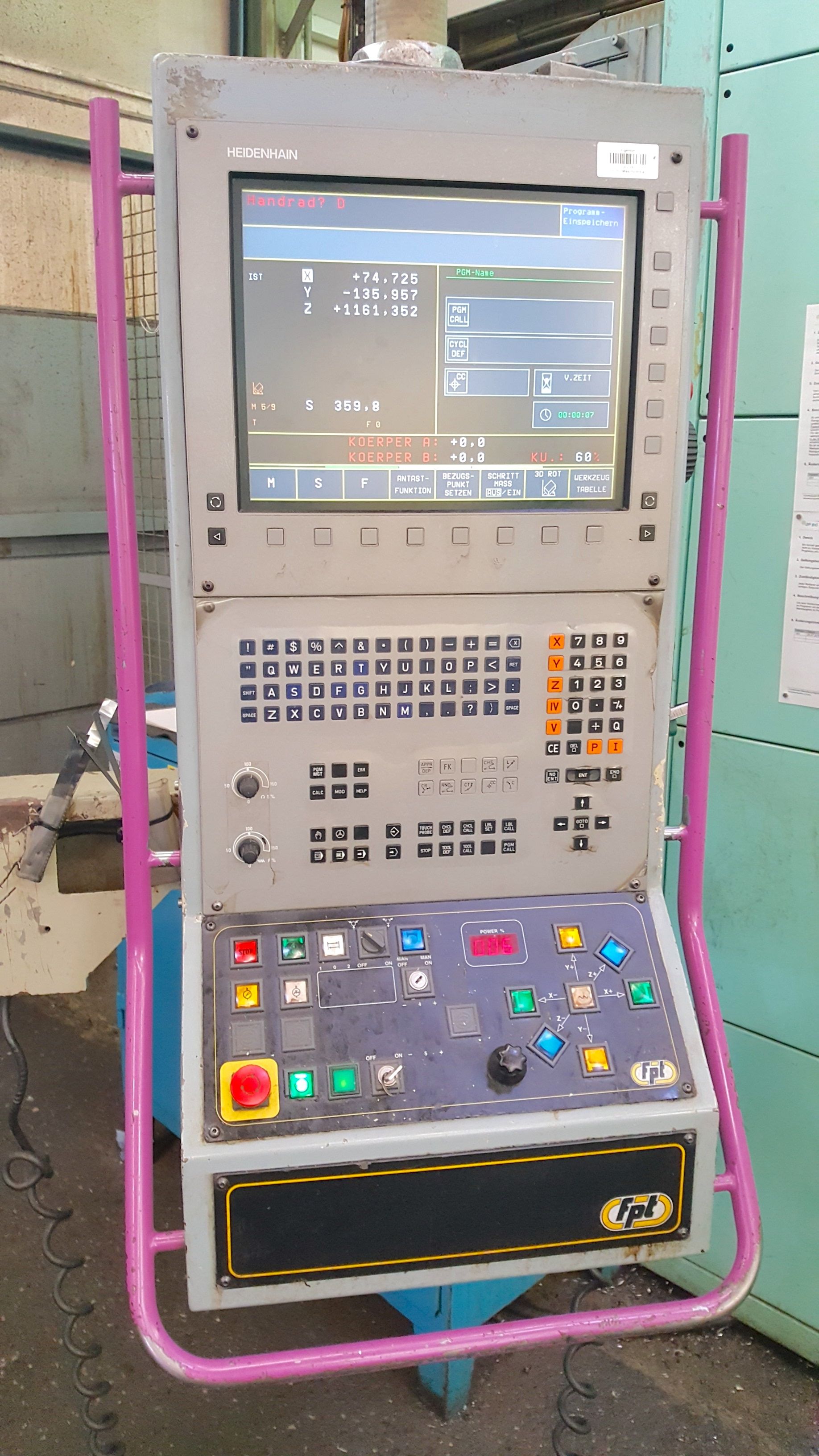

Heidenhain TNC430M
Notes
Remote Handwheel HR410
Drives
SIEMENS SIMODRIVE
Measuring system
Righe ottiche Heidenhain
SPINDLE
Spindle power
22/27,5 Kw
Gearbox
I: 0-235 Rpm / II: 235-5000 Rpm
Rotating speed
5000 Rpm
Torque
1120 Nm
Taper
ISO50
FEEDS
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm
X
4 m/min157,48 ipm
Y
4 m/min157,48 ipm
Z
4 m/min157,48 ipm

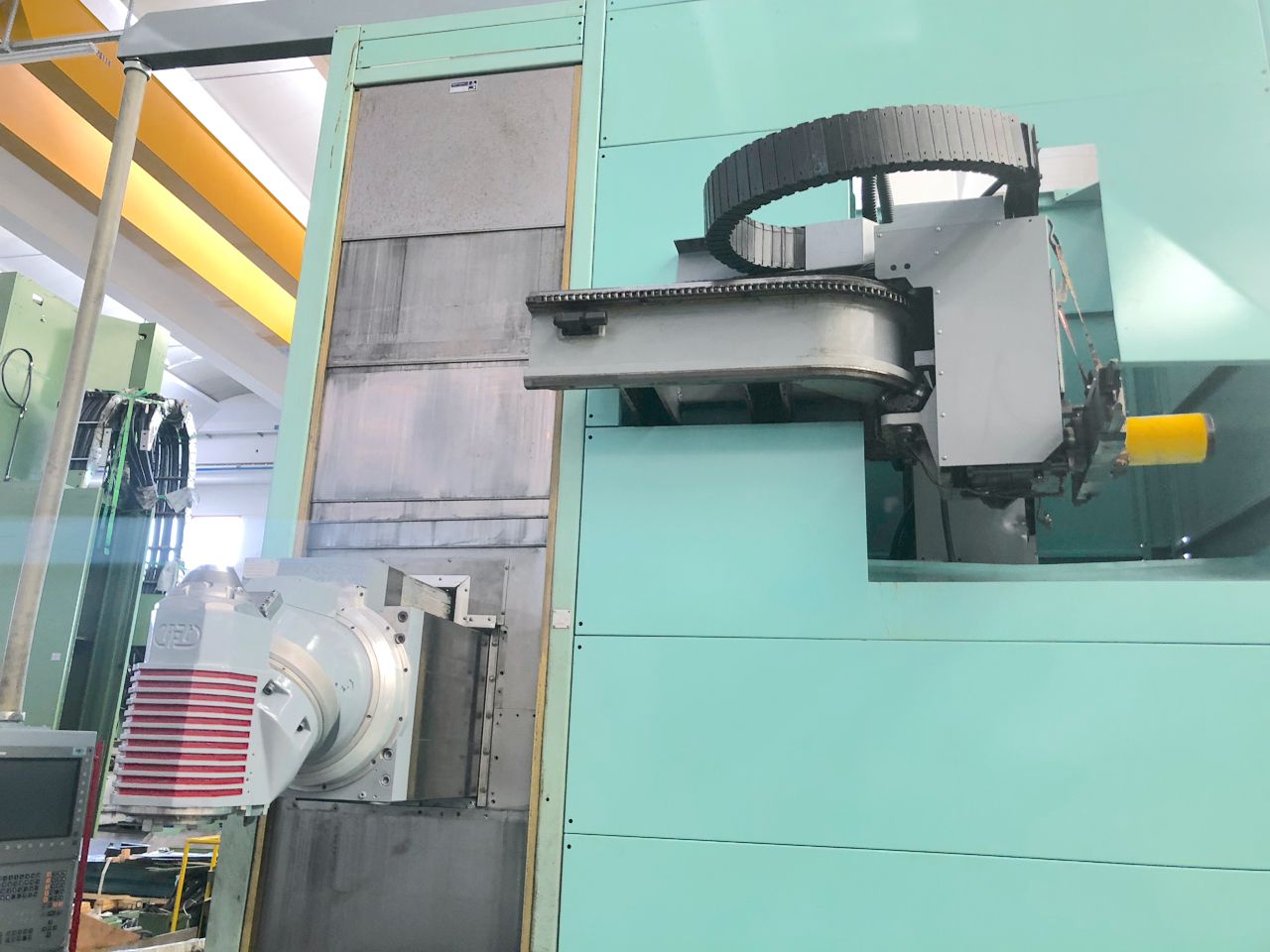

ATC
Positions
40
Tool taper
ISO50

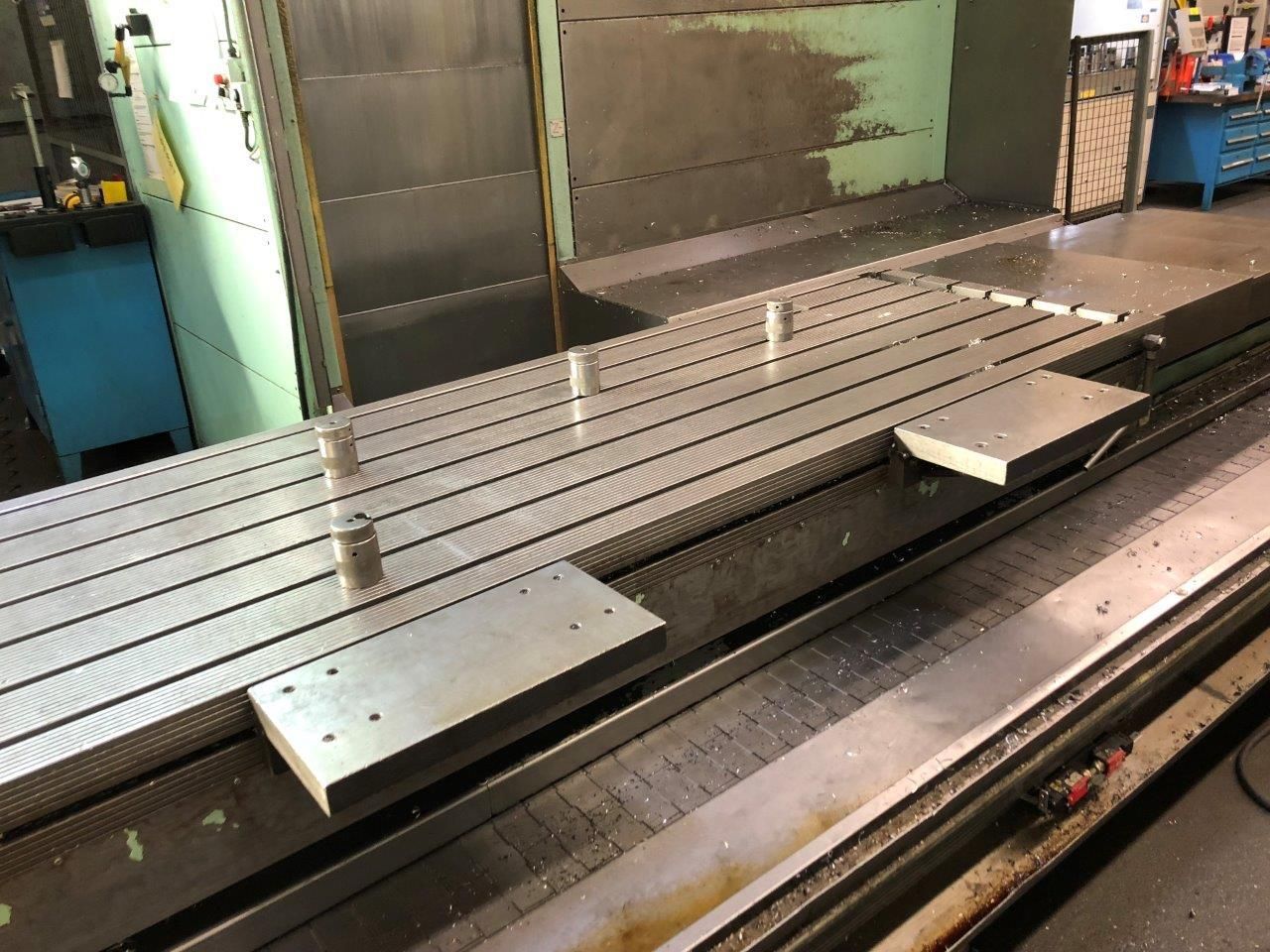

FIXING TABLE
Floorspace (LxWxH)
3500x920 mm137,80x36,22 in
T slots number
7

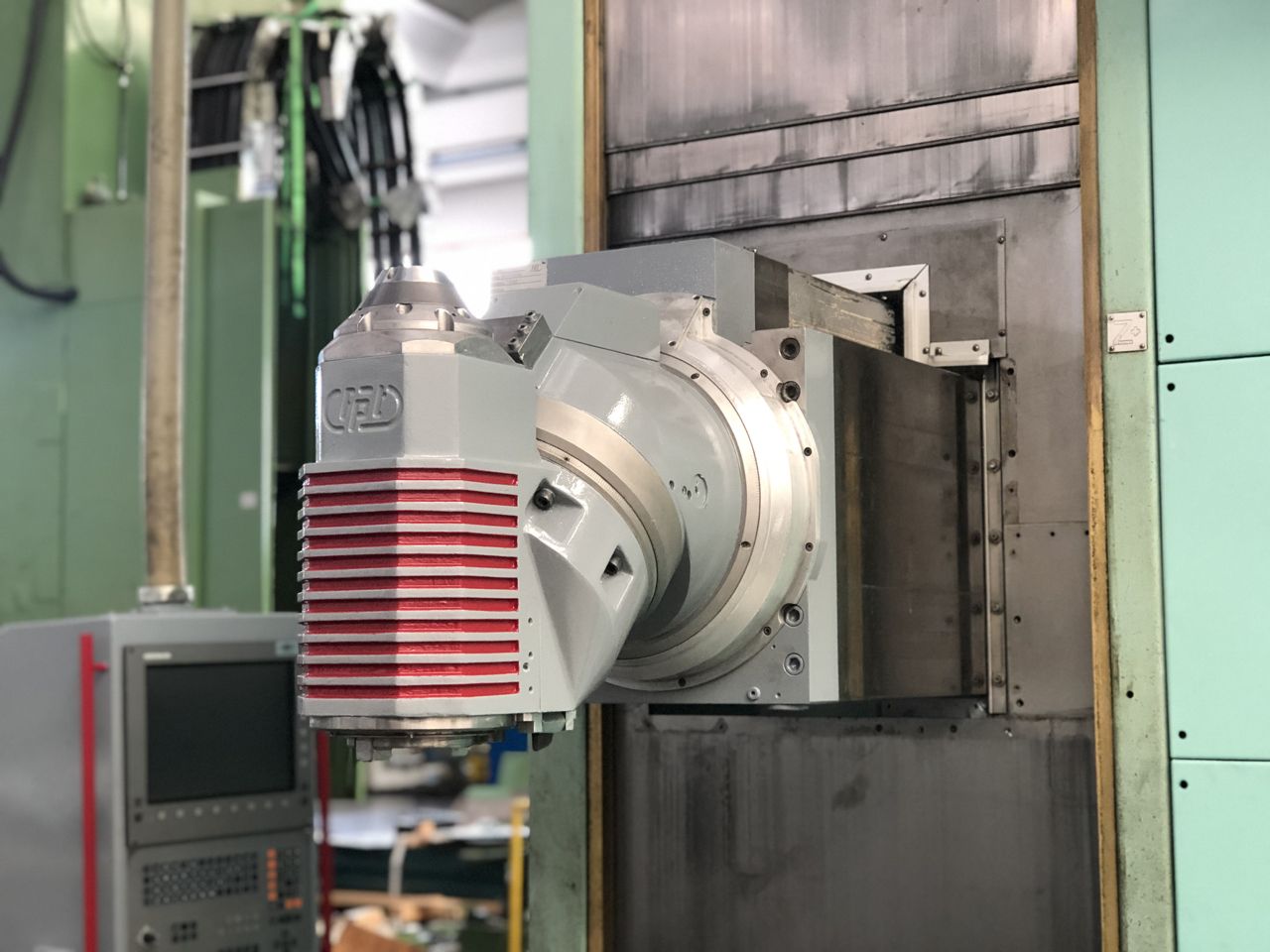

HEAD 1
Type
TU144G
Spindle taper
ISO50
A axis
144x2,5 °
C axis
144x2,5 °
Max torque
1120 Nm
Max speed
5000 Rpm
Max power
27,5 Kw
Coolant
Int 20 Bar / Ext 10 Bar + soffio aria
EXTRA
Total power supply
51,6 Kw
Floor space
7300x5990x4405 mm287,40x235,83x173,42 in
Chip conveyor
si
CE Certification
Yes
Availability
pronta
Chiller
si
Filtration unit
Vasca filtro carta
High Pressure
10 bar esterni / 10 bar interni
