Category
Milling machine
Type
Bed type
Made
Model
LEM 934
Capacity
2000x1620x1200 mm78,74x63,78x47,24 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical (Y)
1620 mm63,78 in
Cross RAM (Z)
1200 mm47,24 in
Axes support
turcite

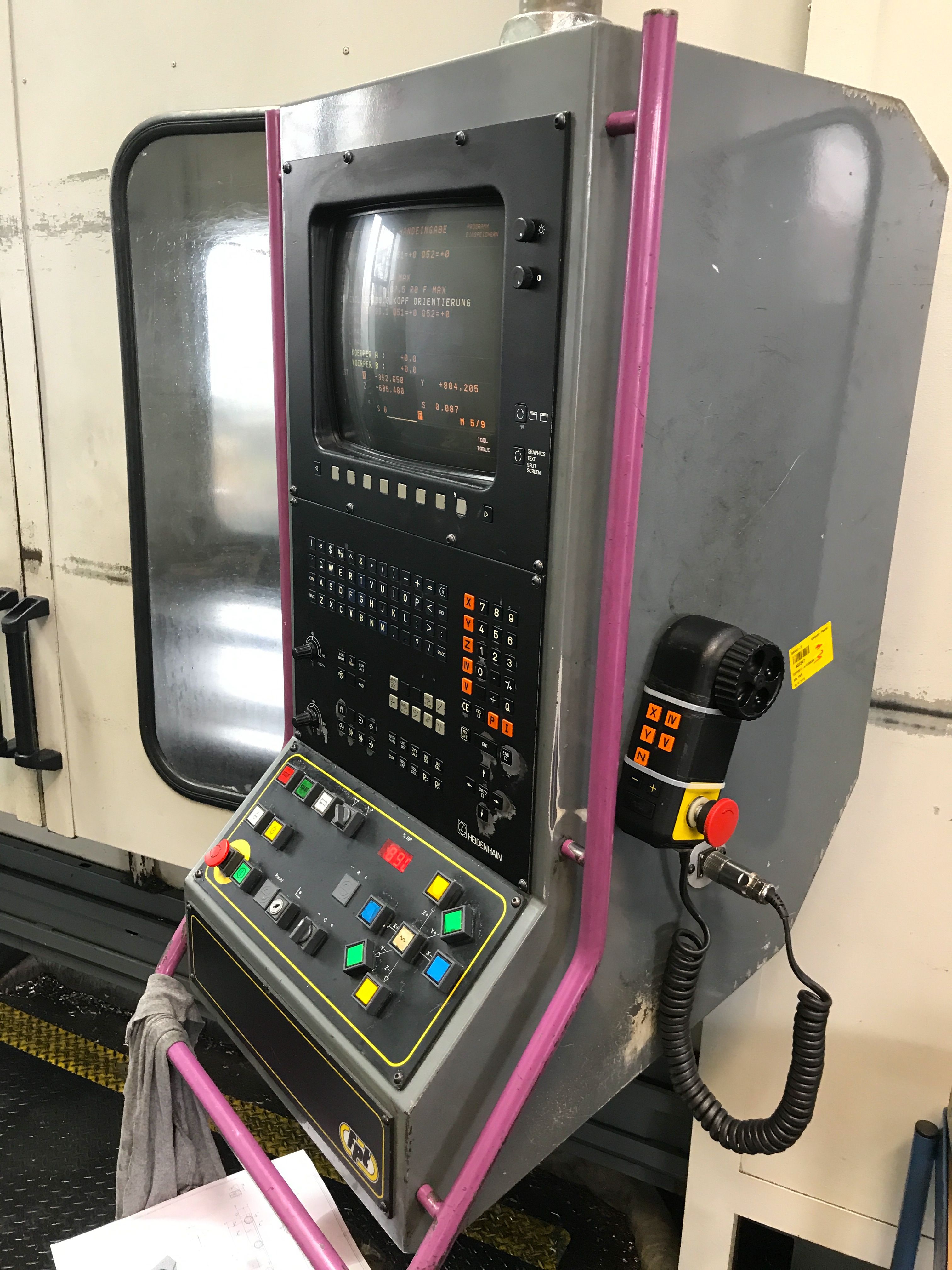

CNC
CNC
Heidenhain TNC425

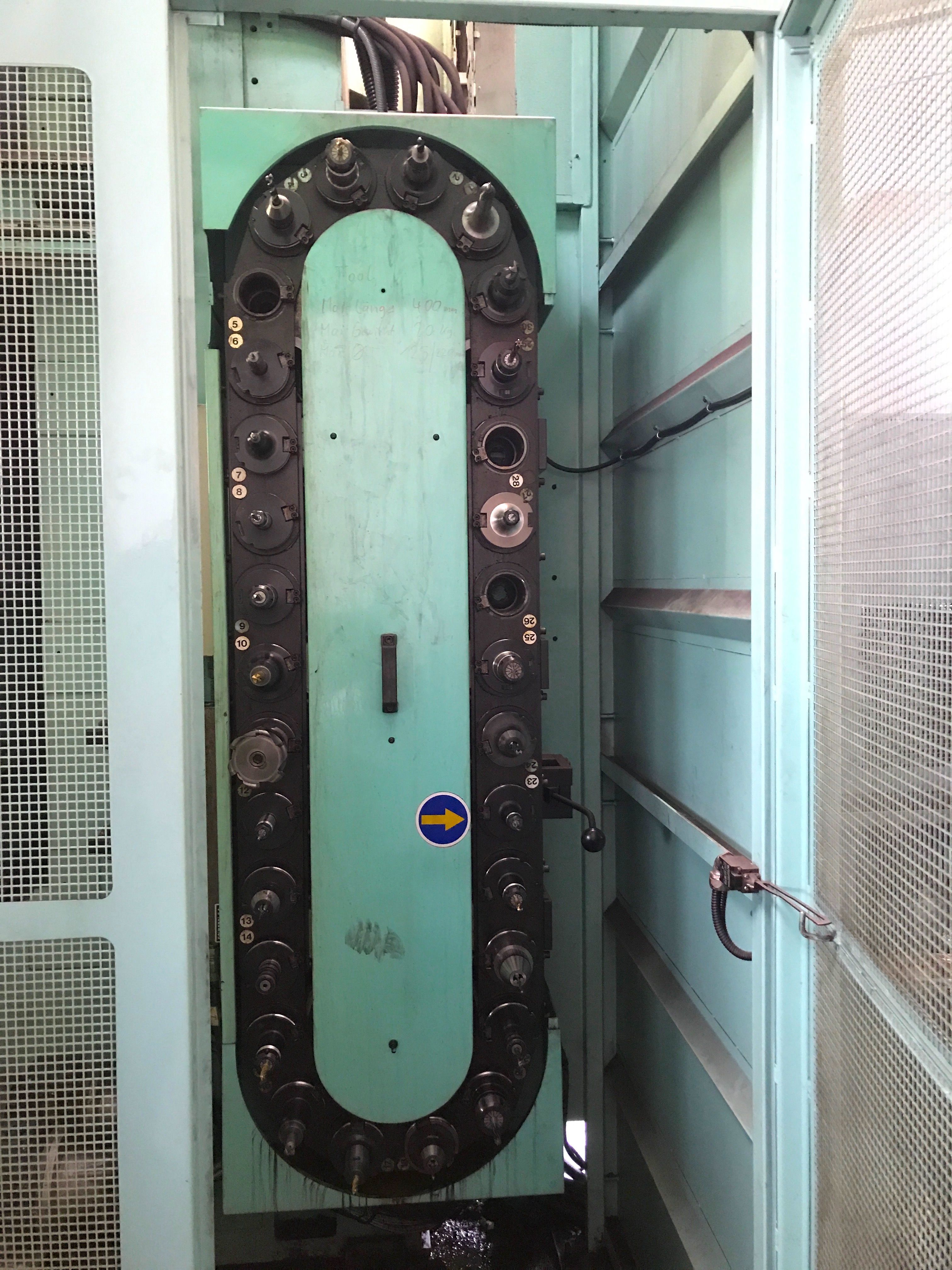

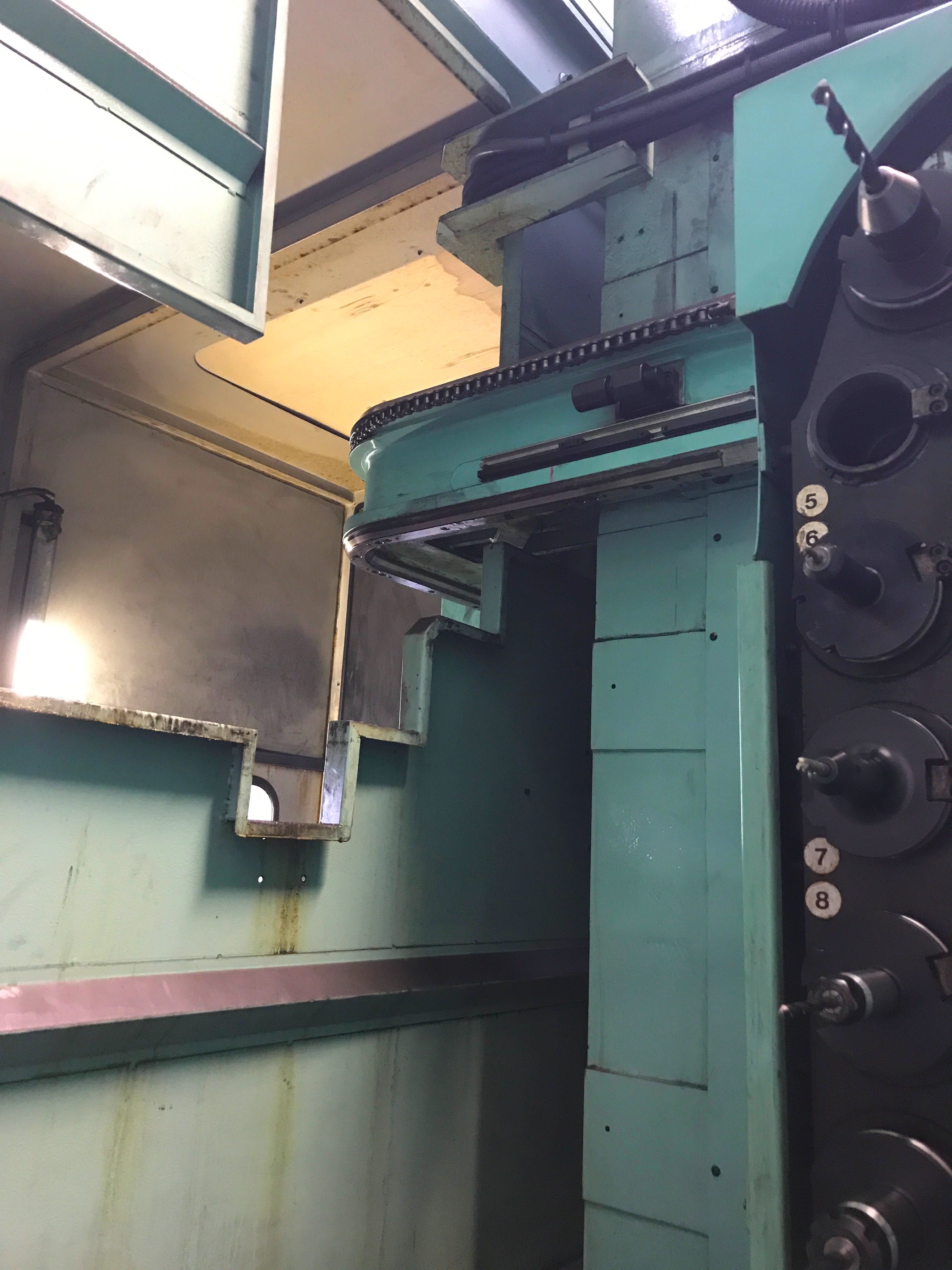

ATC
Positions
30
Tool taper
ISO50
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
220 mm8,66 in
Max tool lenght
400 mm15,75 in
Max tool weight
20 Kg
Position
sulla colonna
SPINDLE
Rotating speed
4000 Rpm
Taper
ISO50
TABLE 1
Surface
1000x1000 mm39,37x39,37 in
Accuracy (B axis)
0,001 °
Capacity
5000 Kg
FIXING TABLE
Floorspace (LxWxH)
2500x920 mm98,43x36,22 in

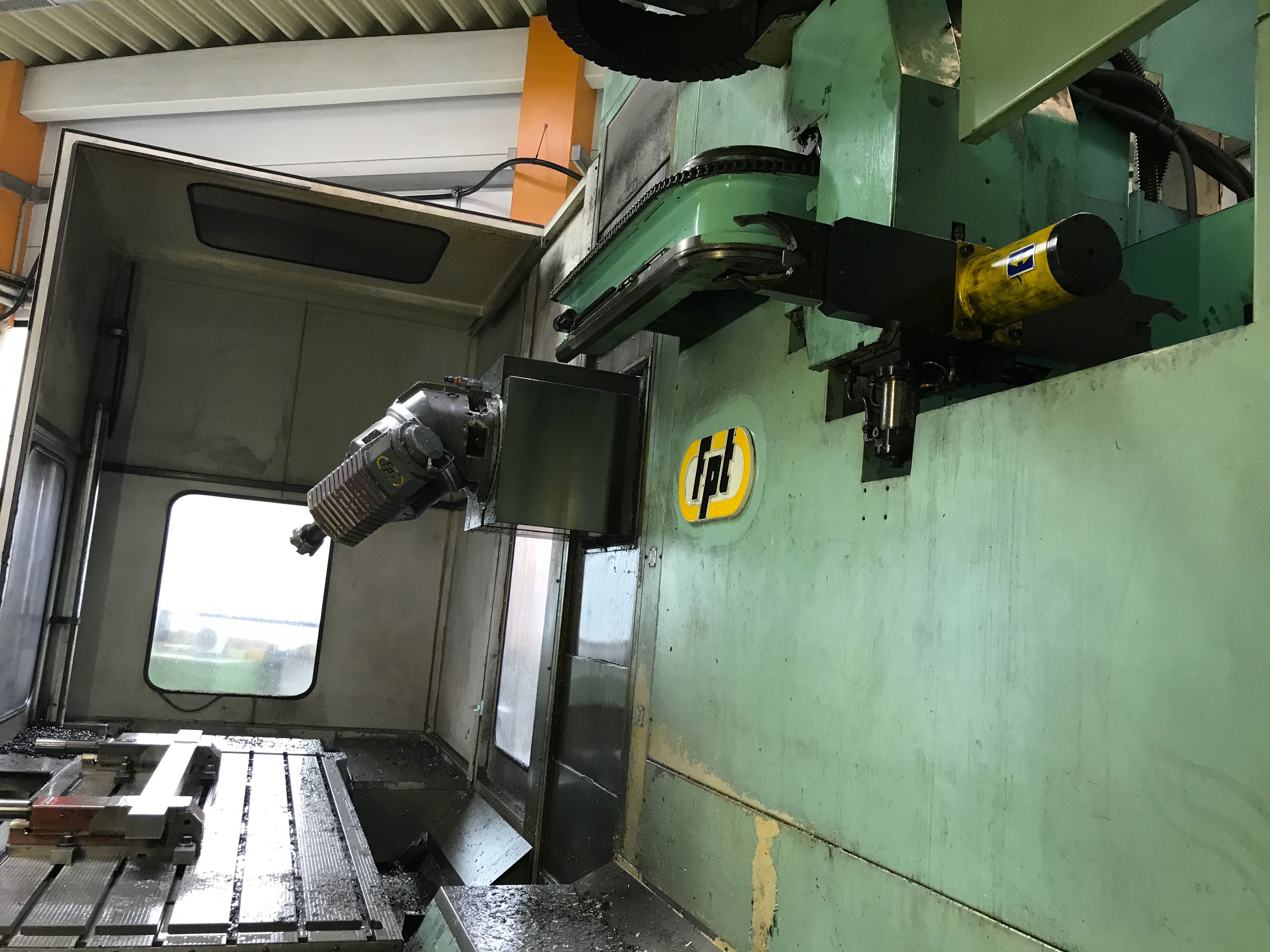

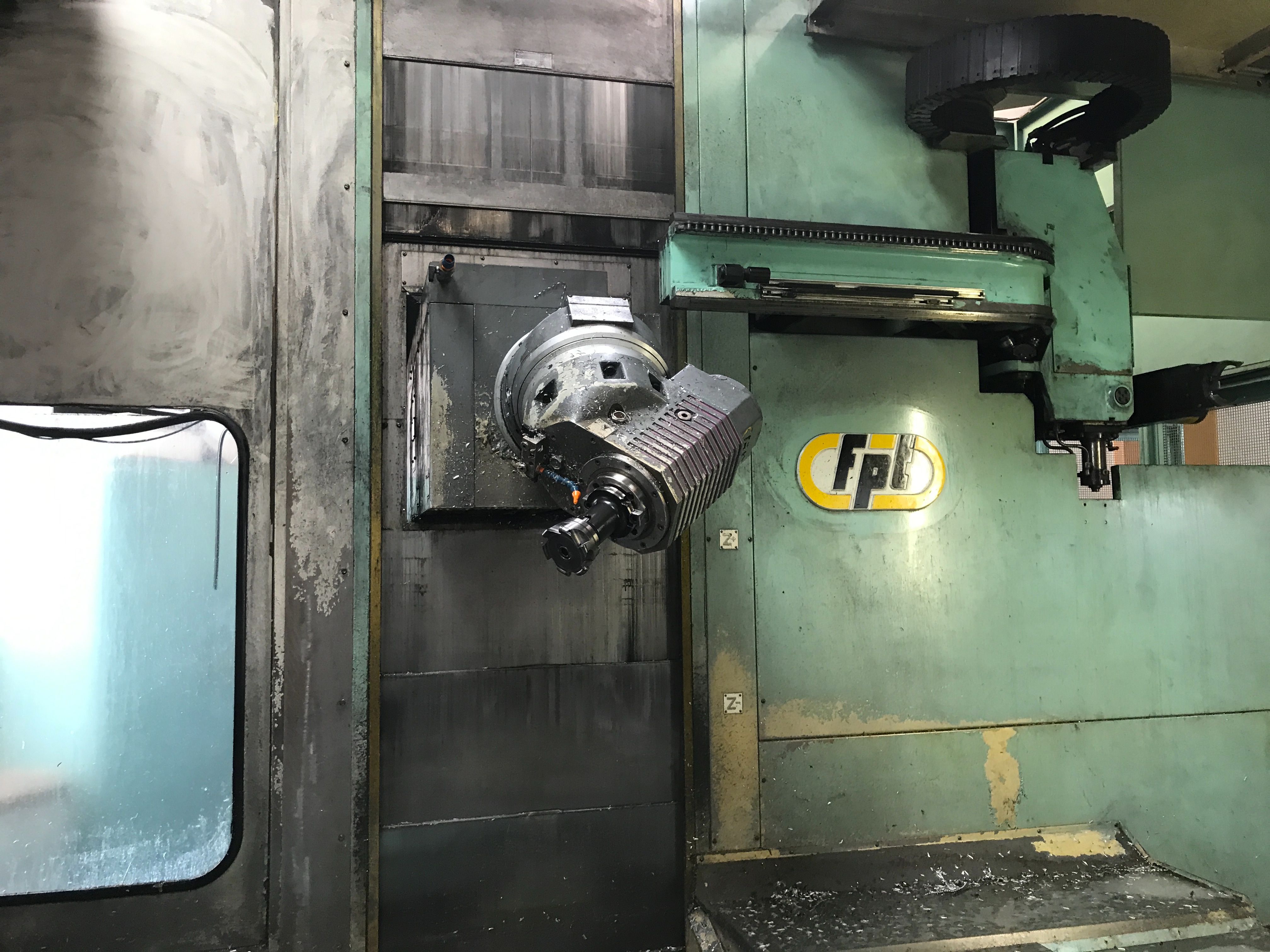

HEAD 1
A axis
144x2,5 °
C axis
144x2,5 °
Max speed
4000 Rpm
Max power
22 Kw
FEEDS
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm
EXTRA

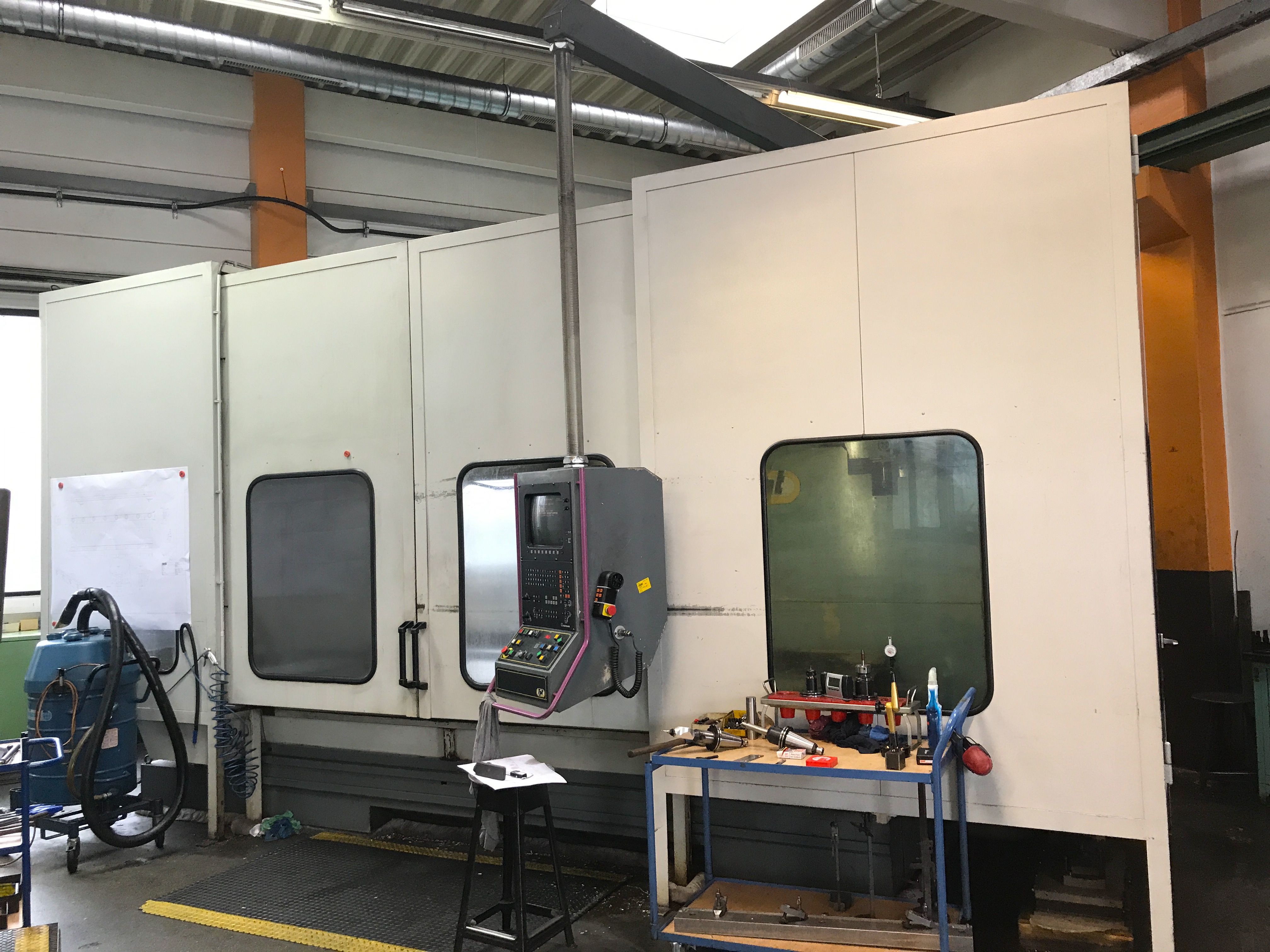

Housing
ful
Machine total weight
11000 Kg
Floor space
6100x3295 mm240,16x129,72 in
Maintenance & Use books
Yes

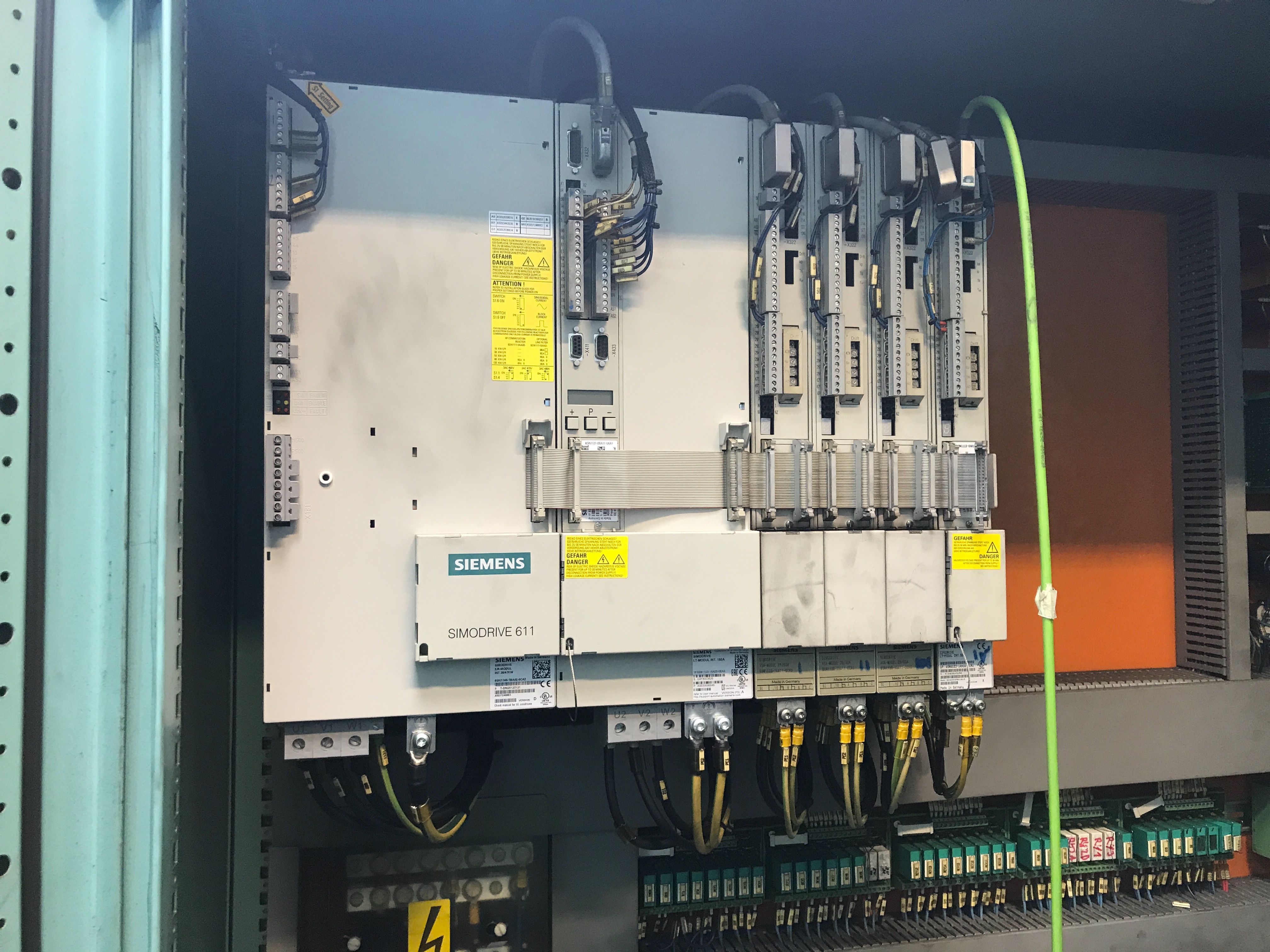

Electrical drawings
Yes
Availability
pronta
Available in stock
si
