Category
Machining Centre
Type
portal
Made
Model

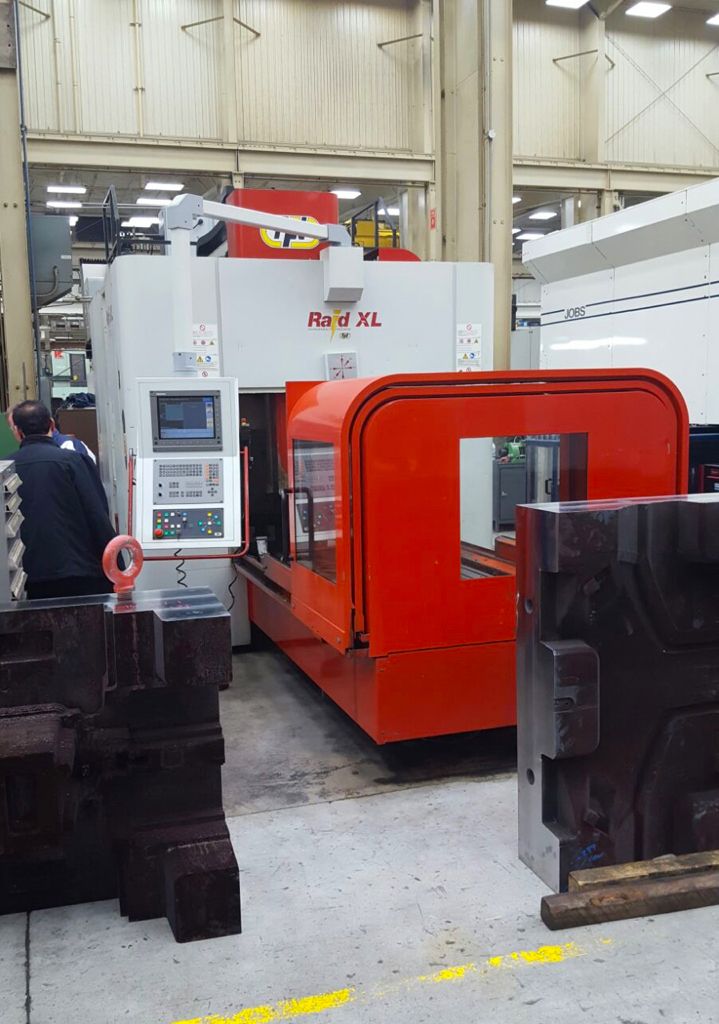

RAID XL
Capacity
2000x1600x800 mm78,74x62,99x31,50 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2000 mm78,74 in
Vertical RAM (Y)
800 mm31,50 in
Cross Ram (Z)
1600 mm62,99 in
Table max load
3300 Kg
Table size
2000x1100 mm78,74x43,31 in
Spindle nose - table distance
100-900 mm3,94-35,43 in

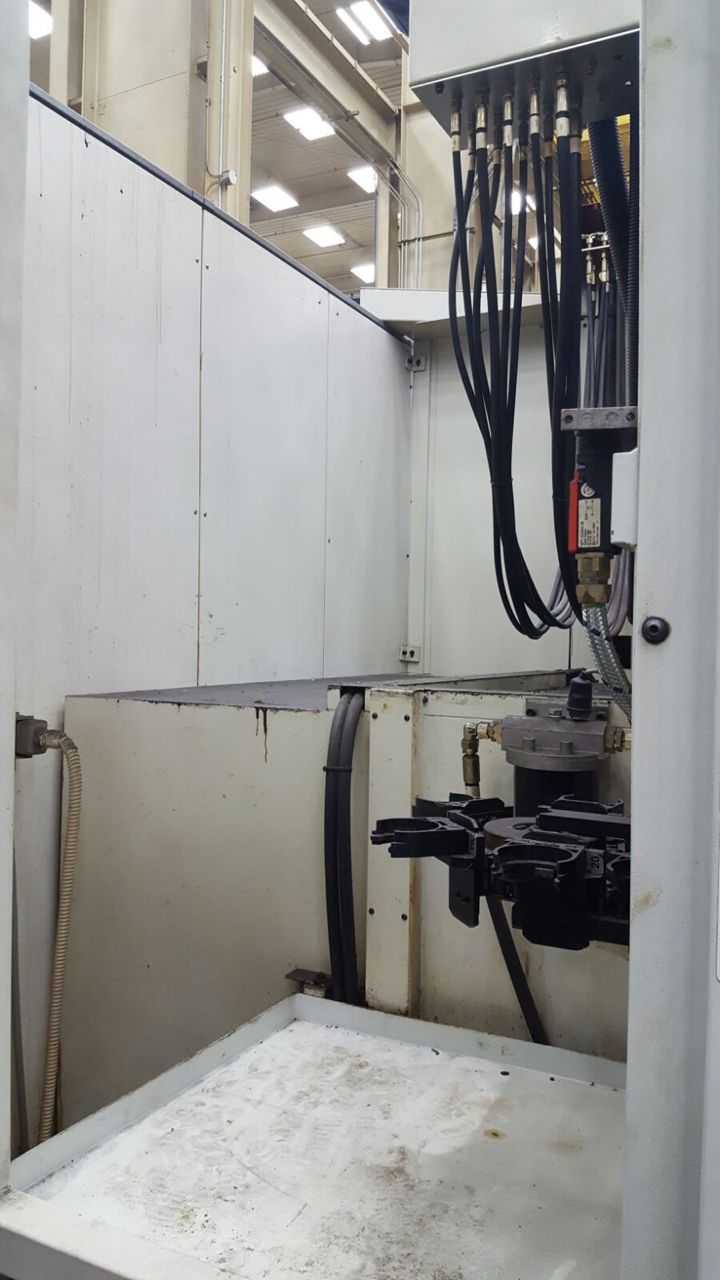

ATC
Max tool lenght
300 mm11,81 in
Max tool weight
10 Kg
Tool taper
HSK63/40
Max tool diameter
70 mm2,76 in
Positions
30
CNC
CNC
Heidenhain iTNC530
SPINDLE
Spindle power
18,5/26 Kw
Rotating speed
18000 Rpm
Torque
105 Nm
Taper
HSK A63
FEEDS
Rapid X
35 m/min1.377,95 ipm
Rapid Y
35 m/min1.377,95 ipm
Rapid Z
35 m/min1.377,95 ipm
Notes
Accelerazione 4m/s2
EXTRA
Floor space
5850x2650x3800 mm230,31x104,33x149,61 in
Electrical drawings
Yes
Maintenance & Use books
Yes
CE Certification
Yes
Housing
integrale
