Category
Machining Centre
Type
portal
Made
Model

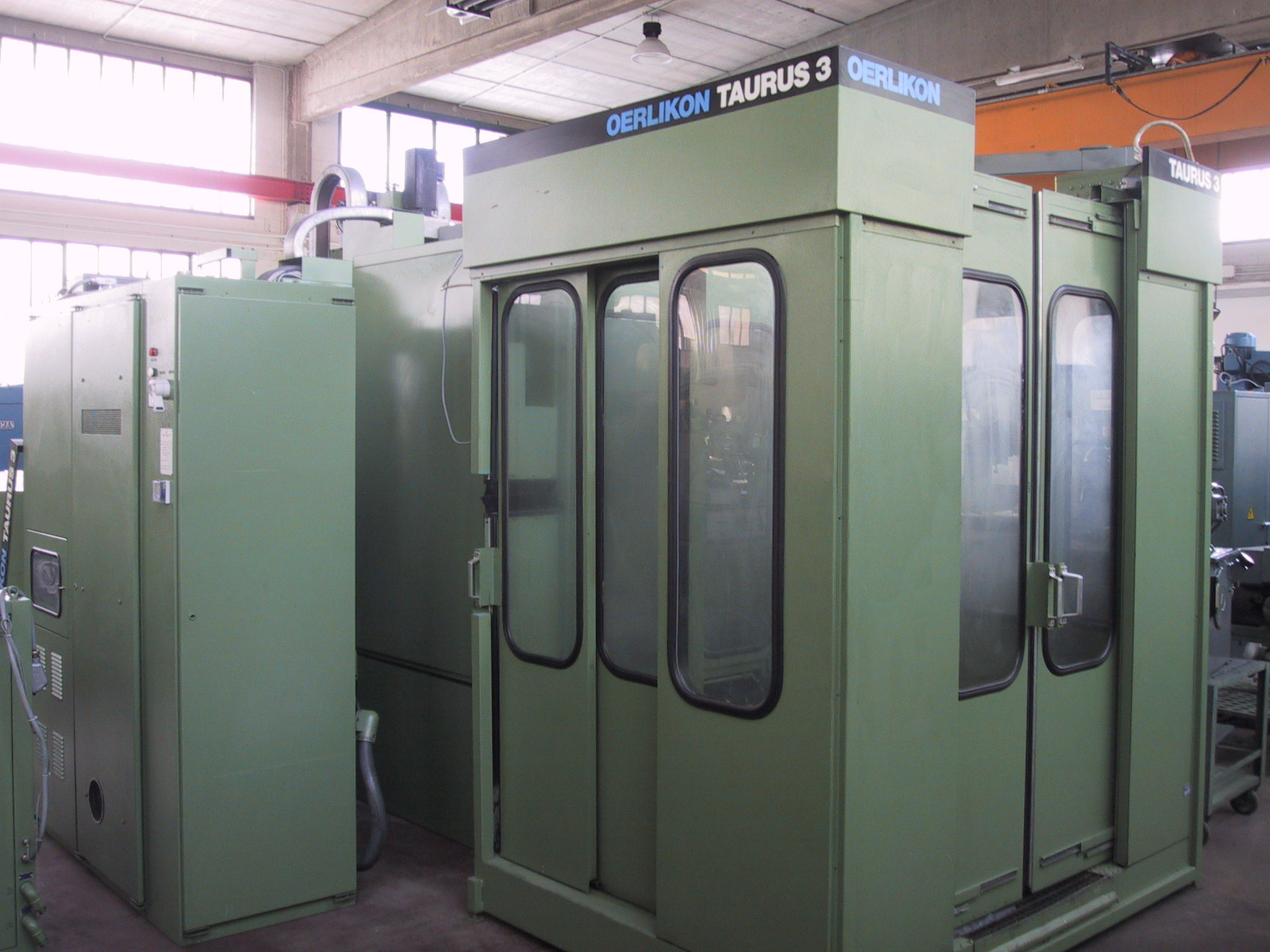

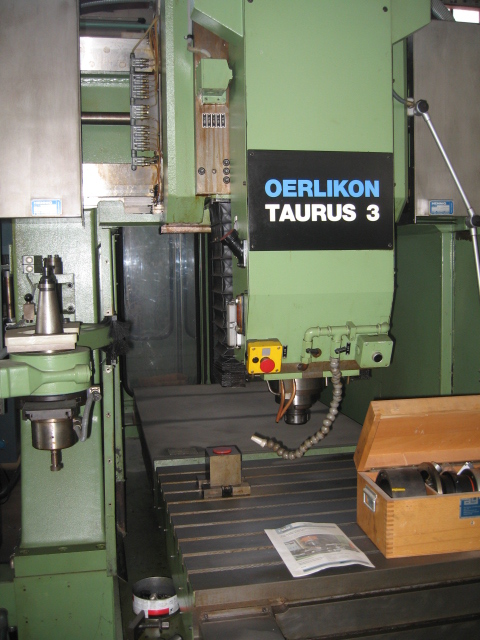

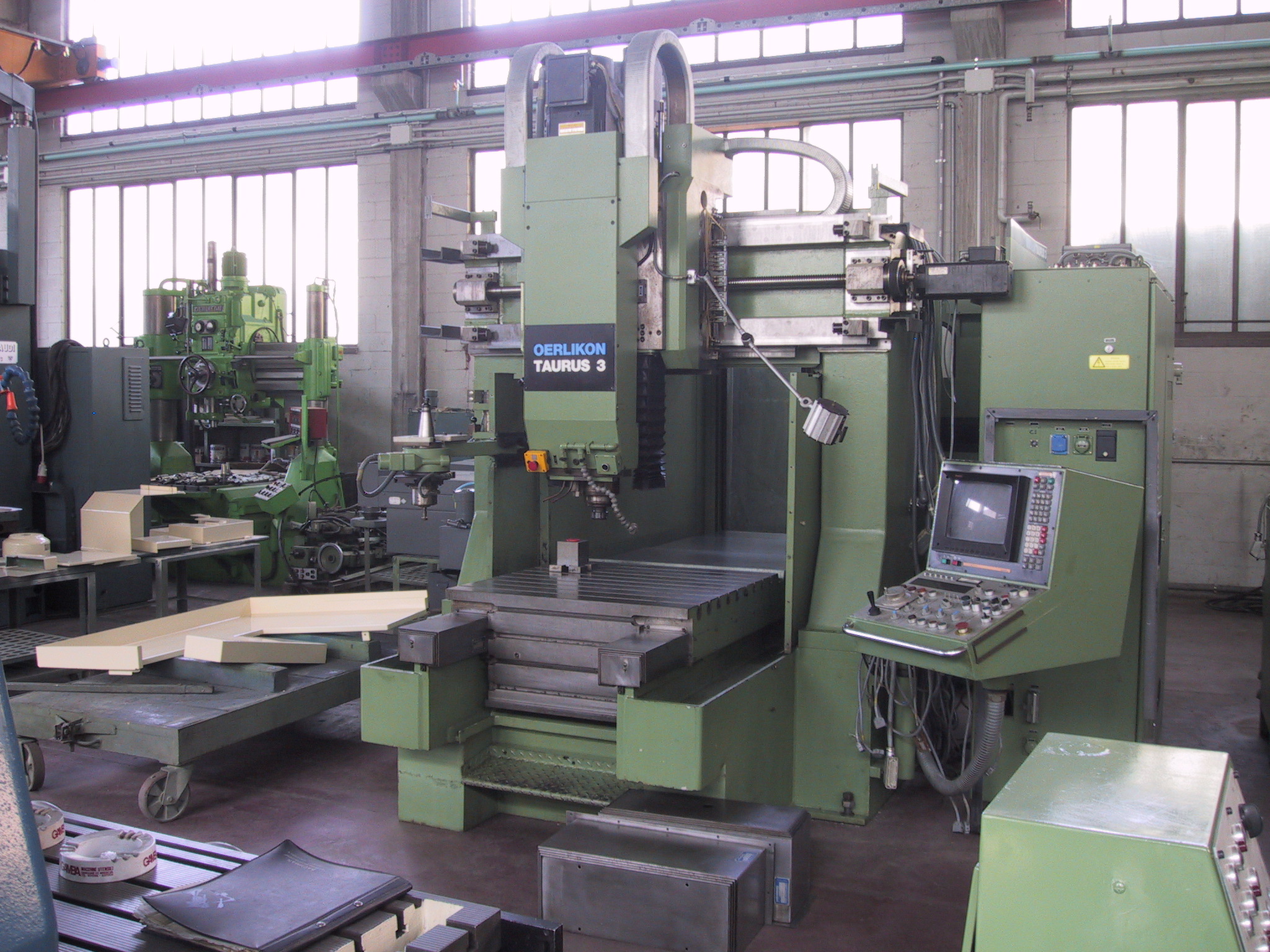

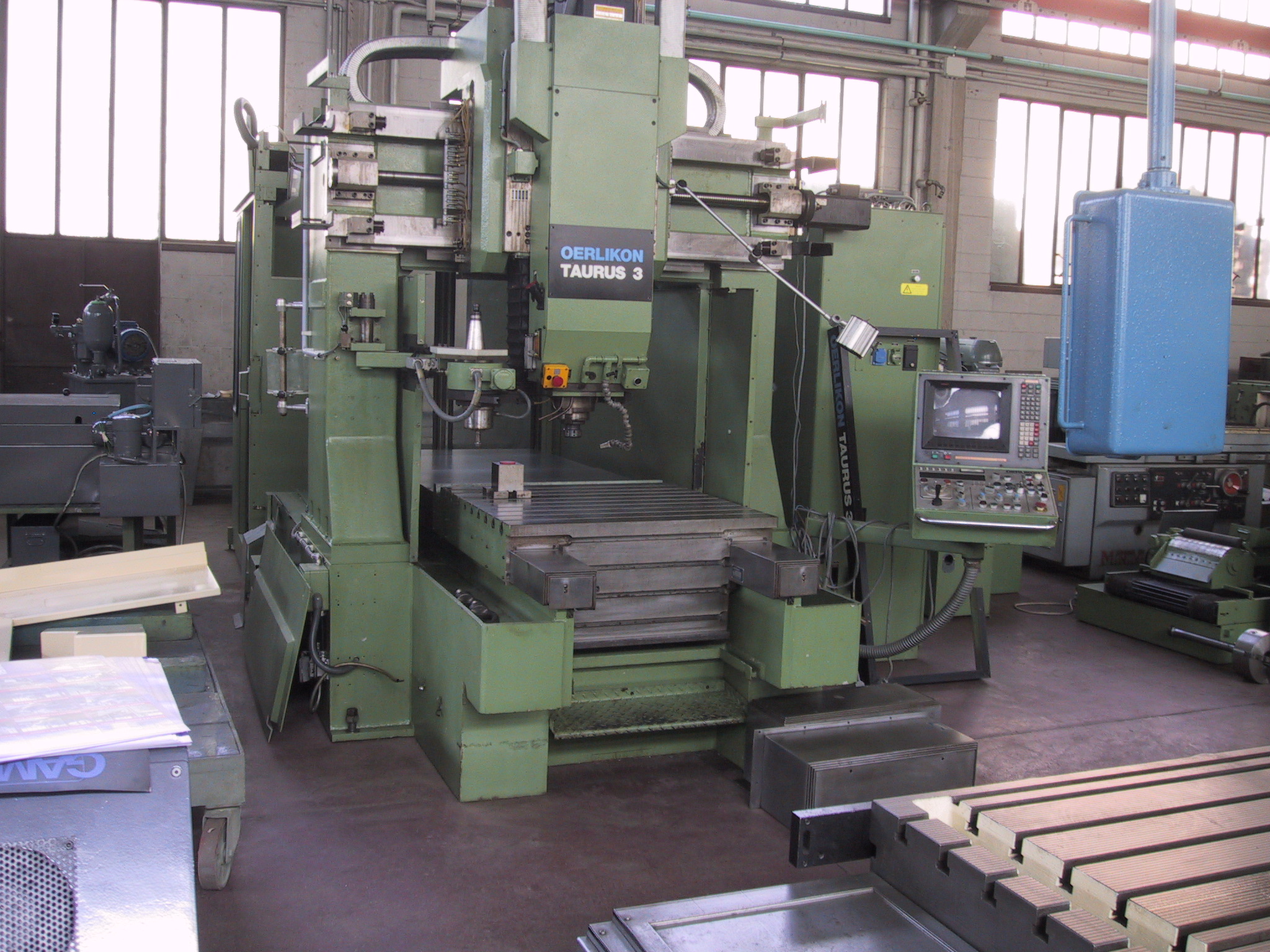

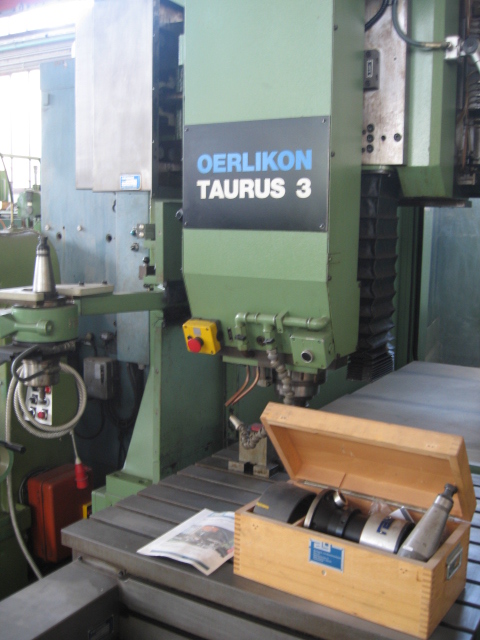

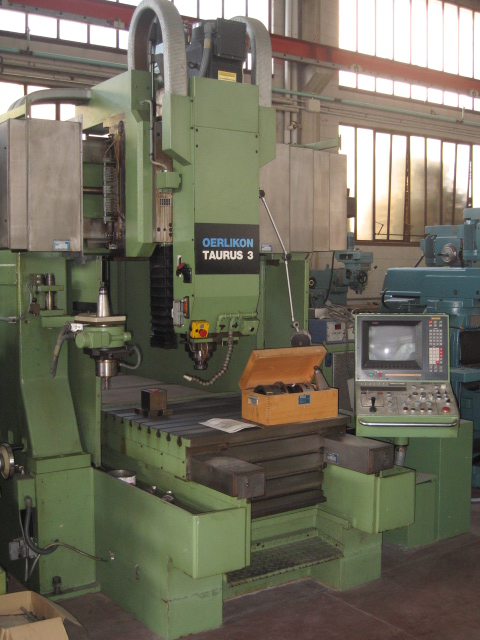

TAURUS 3
Capacity
1220x820x610 mm48,03x32,28x24,02 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
1220 mm48,03 in
Vertical RAM (Y)
820 mm32,28 in
Cross Ram (Z)
610 mm24,02 in
Column distance
1400 mm55,12 in
Spindle nose - table distance
90-700 mm3,54-27,56 in
Axes support
tucite
CNC
CNC
Siemens-Fanuc
Drives
Siemens
SPINDLE
Spindle power
22 Kw
Rotating speed
20-5600 Rpm
Taper
ISO50
FEEDS
X
0,001-5 m/min0,04-196,85 ipm
Y
0,001-5 m/min0,04-196,85 ipm
Z
0,001-5 m/min0,04-196,85 ipm
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm
EXTRA
Total power supply
45 Kw
Machine total weight
22000 Kg
Availability
pronta
Available in stock
si
Housing
integrale
Maintenance & Use books
Yes
Electrical drawings
Yes
Tooling included
apparecchio rettifica fori RAY
Relevant updates made on the machine
macchina seminuova
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
