Category
Machining Centre
Type
portal
Made
Model
DM3000
Capacity
3000x1800x900 mm118,11x70,87x35,43 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3200 mm125,98 in
Vertical RAM (Y)
900 mm35,43 in
Cross Ram (Z)
1800 mm70,87 in
Column distance
2000 mm78,74 in
Spindle nose - table distance
270-1170 mm10,63-46,06 in
Table size
3000x1700 mm118,11x66,93 in
Table max load
8000 Kg

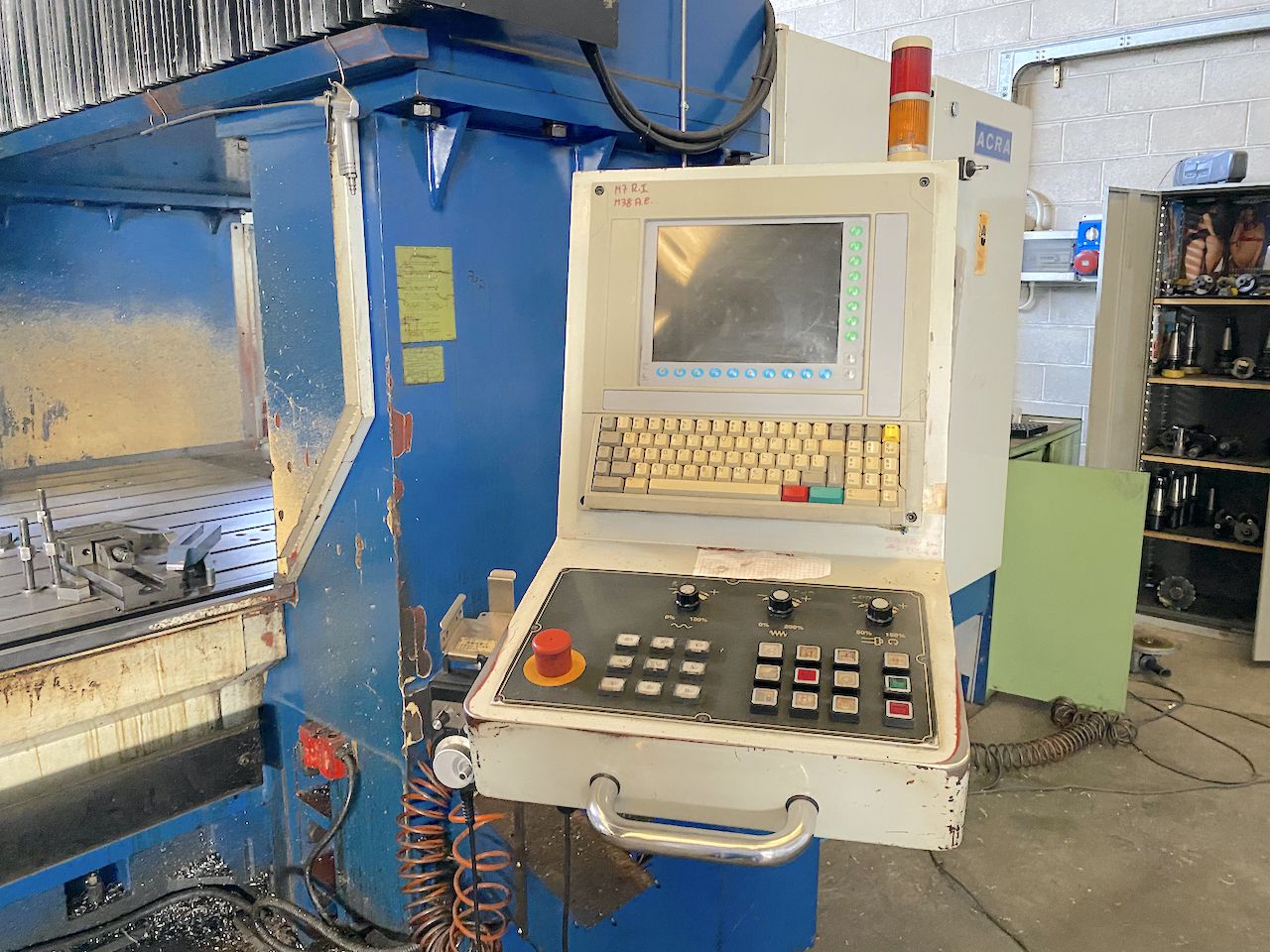

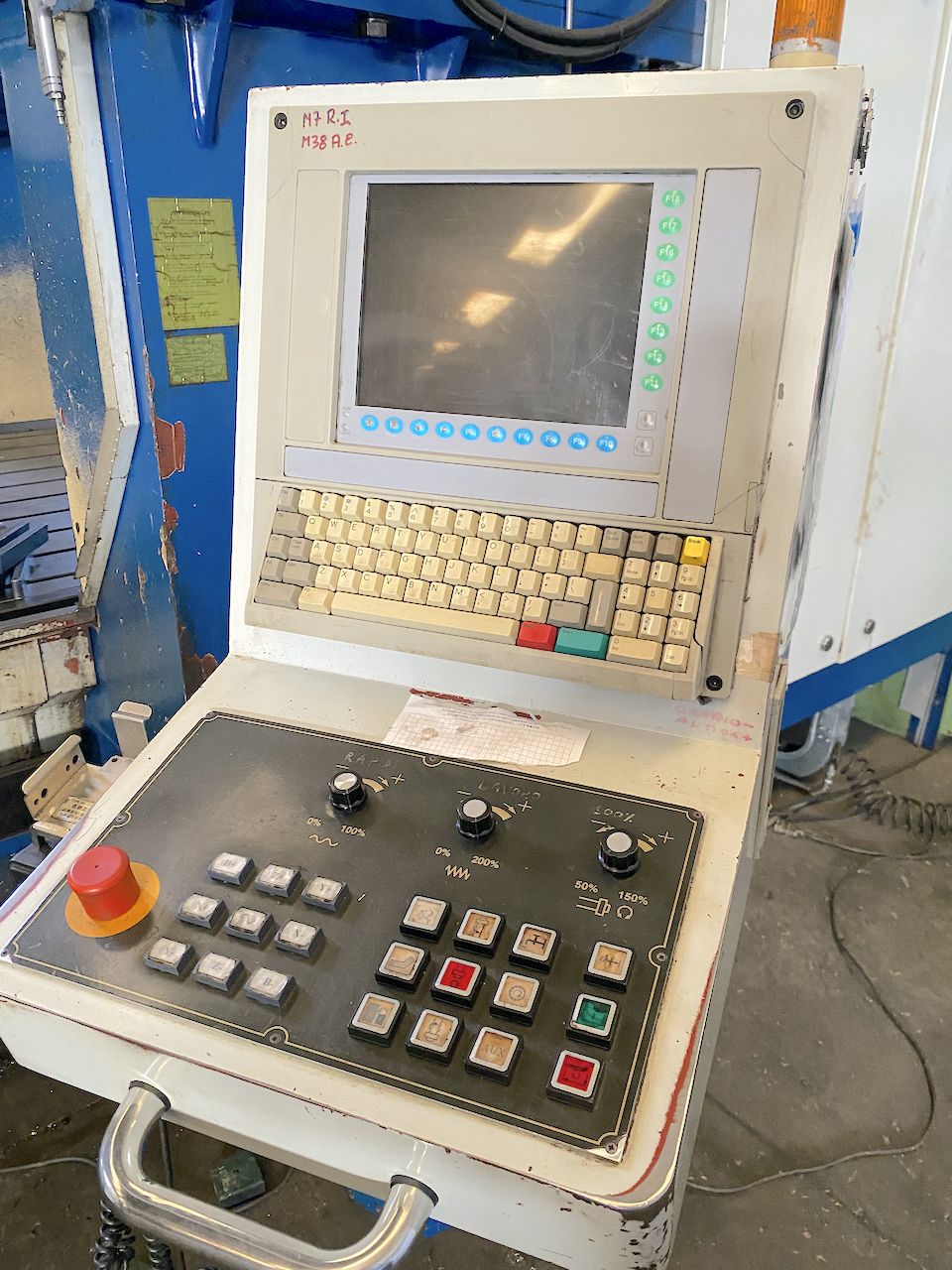

CNC
CNC
SELCA 3045

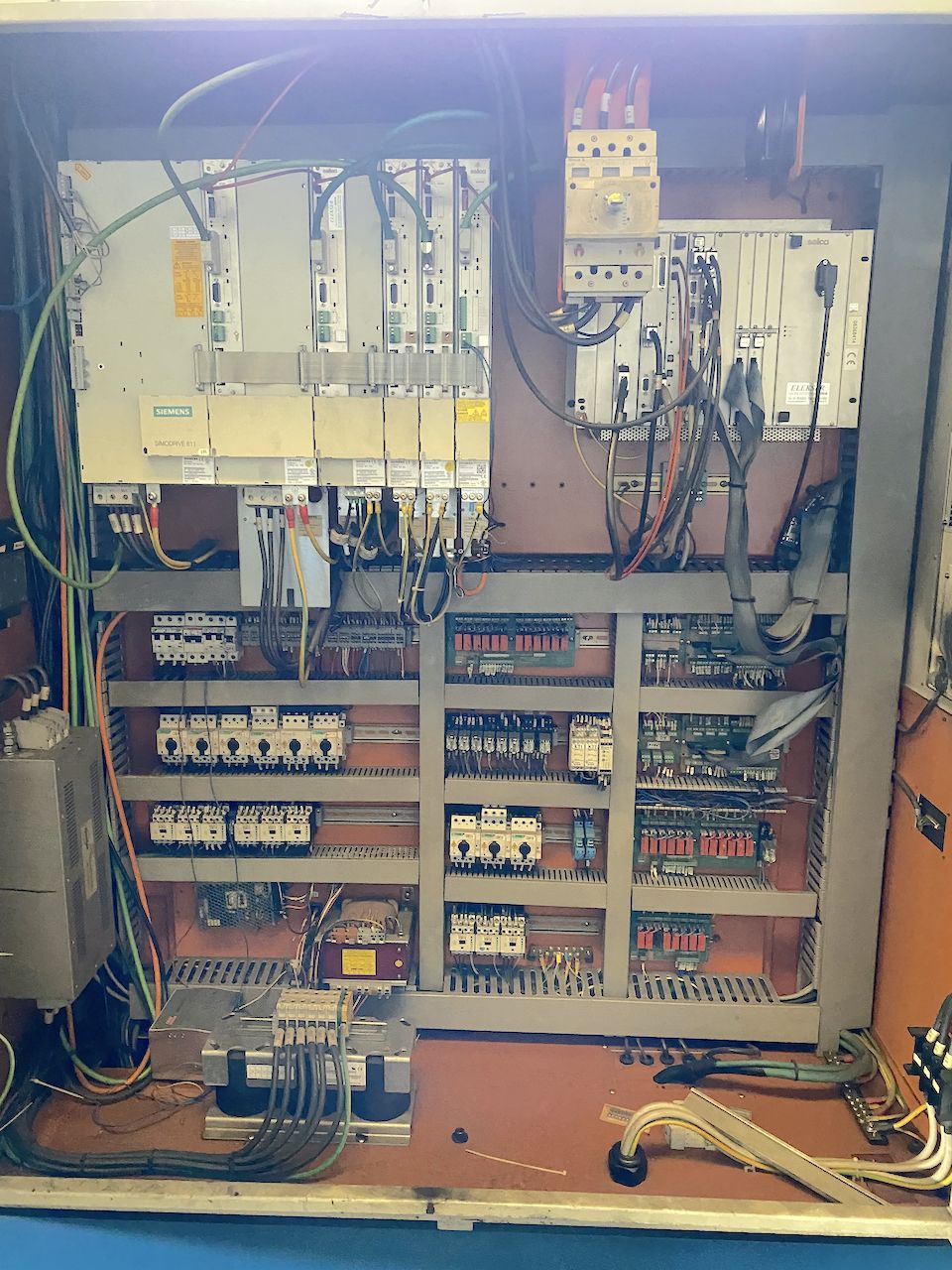

Drives
Siemens
SPINDLE
Spindle power
25 Kw
Rotating speed
6000 Rpm
Taper
ISO50
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
10 m/min393,70 ipm

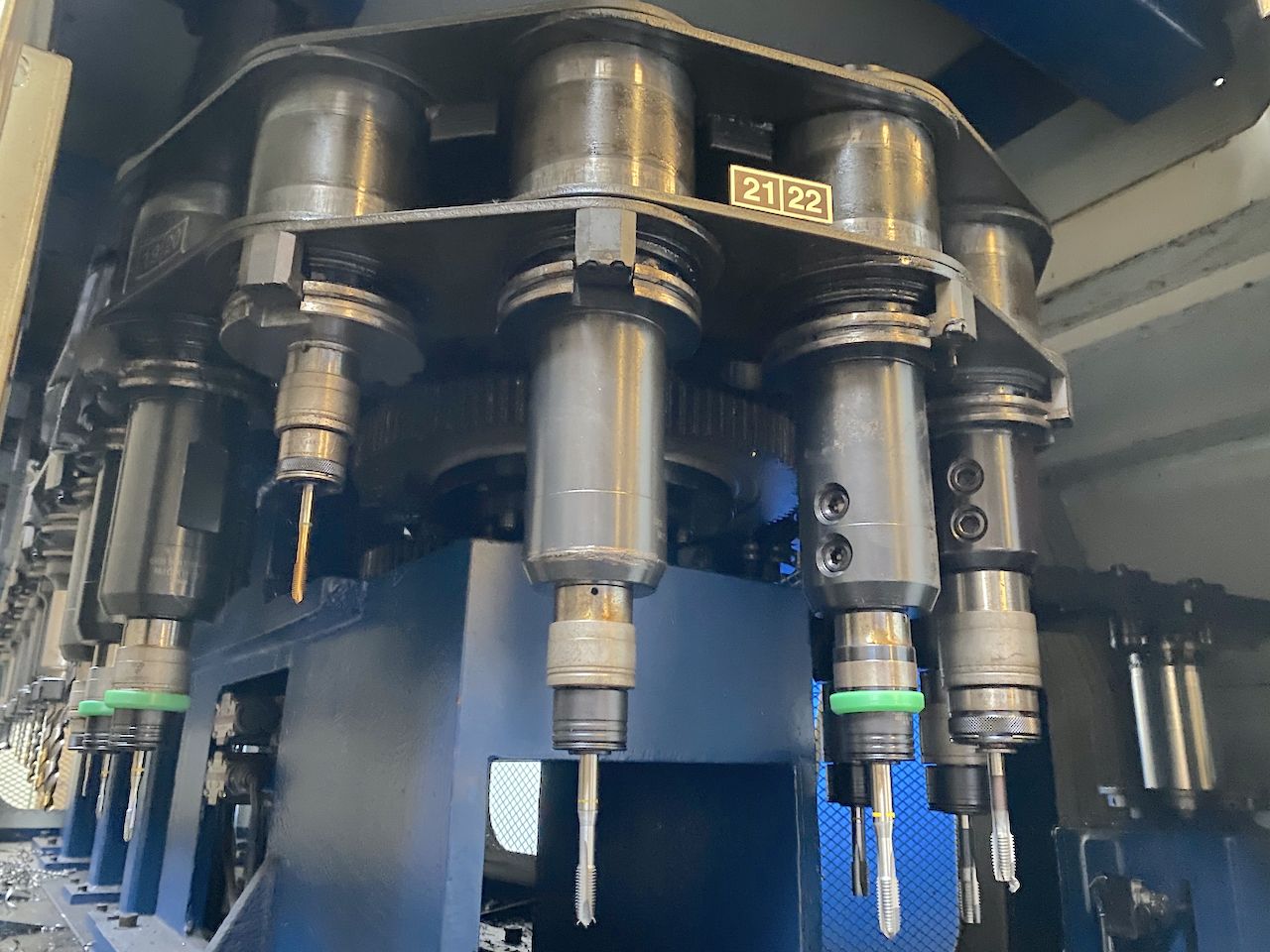

ATC
Positions
40
Max tool diameter
130 mm5,12 in
Max diam with free adiacent space
200 mm7,87 in
Max tool lenght
350 mm13,78 in
Max tool weight
20 Kg
Tool taper
ISO50
EXTRA
Machine total weight
25000 Kg
