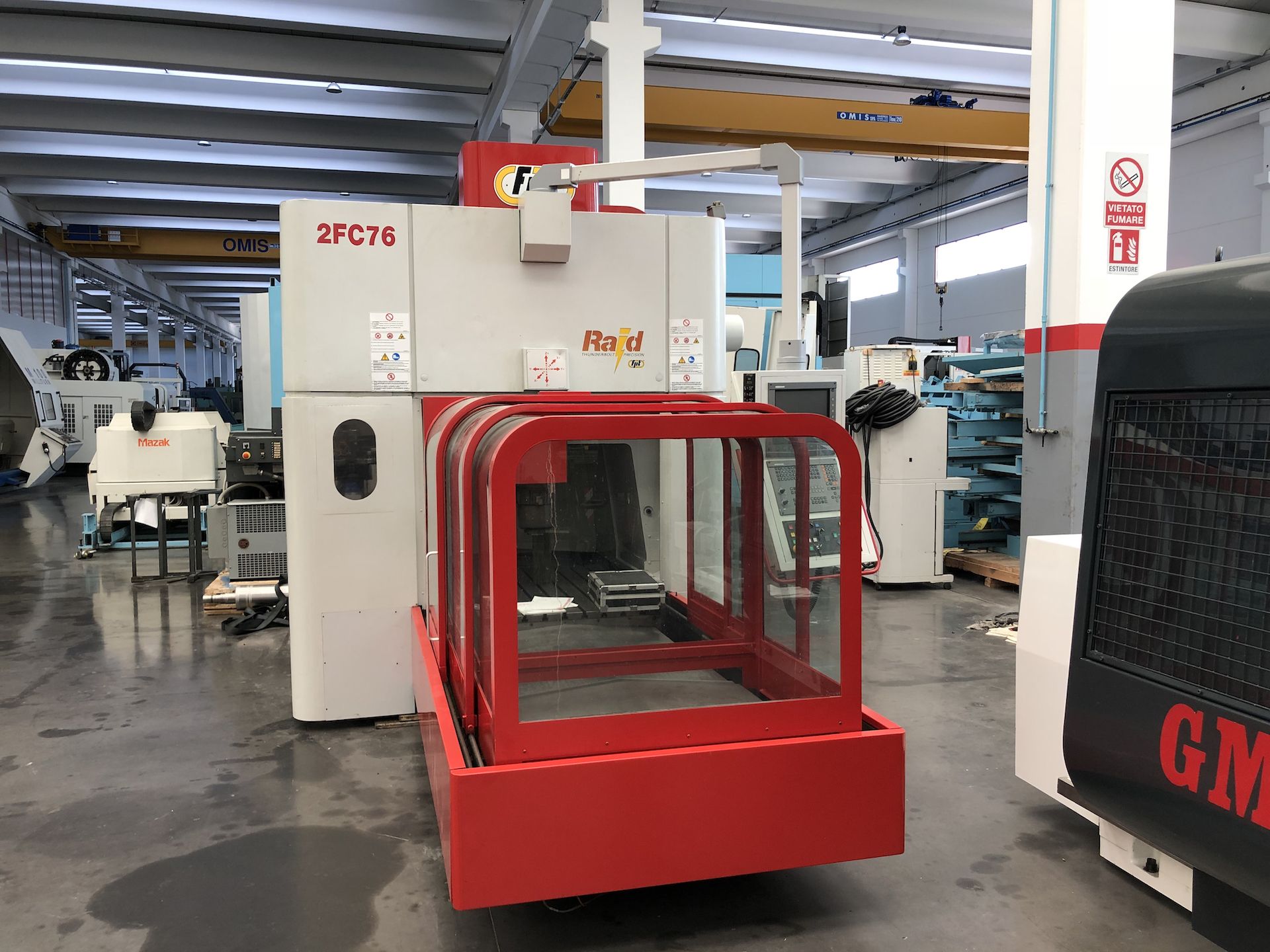

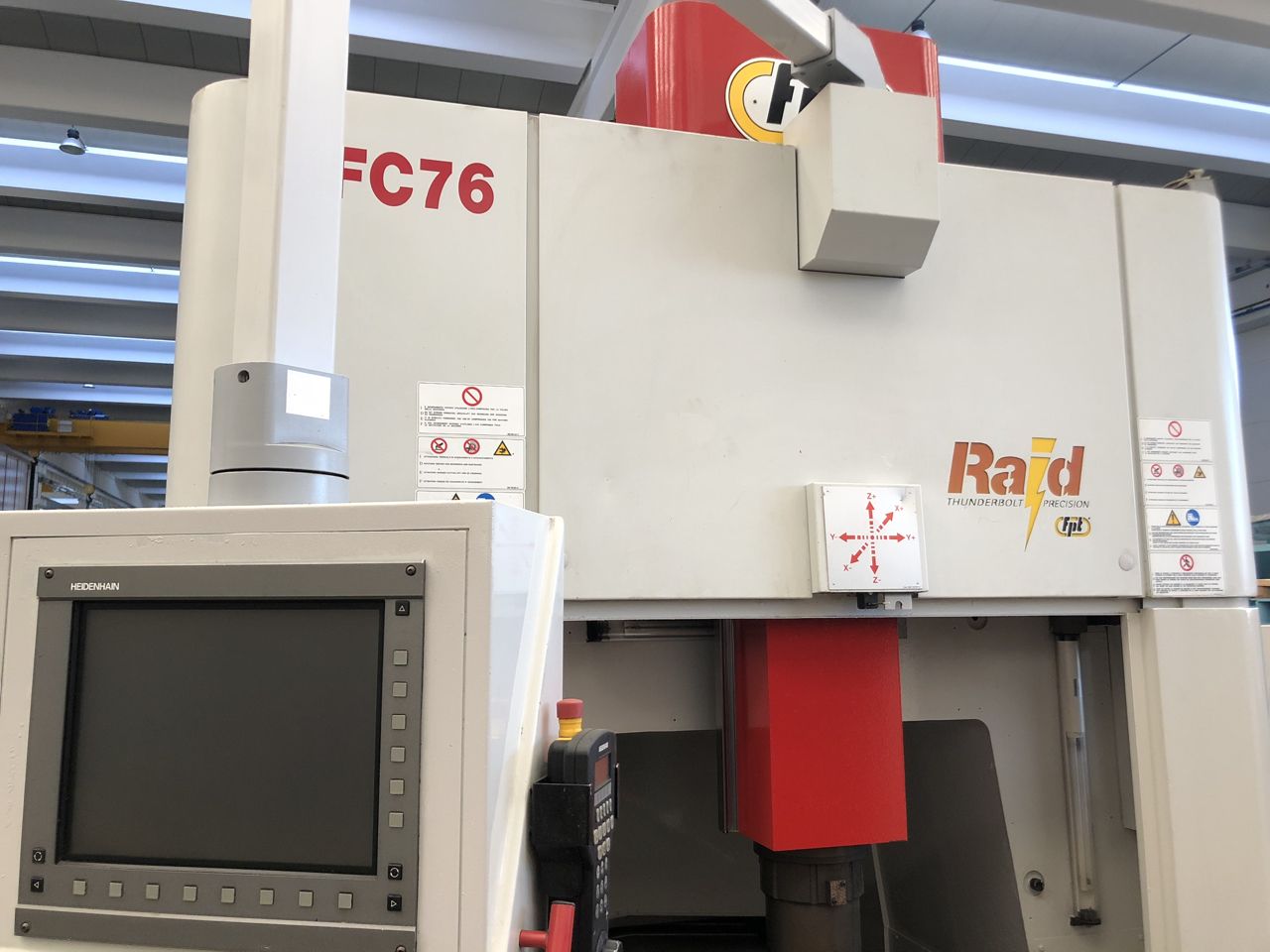

Category
Machining Centre
Type
portal
Made
Model
RAID
Capacity
1500x1100x600 mm59,06x43,31x23,62 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1500 mm59,06 in
Vertical RAM (Y)
600 mm23,62 in
Cross Ram (Z)
1100 mm43,31 in
Spindle nose - table distance
200-800 mm7,87-31,50 in

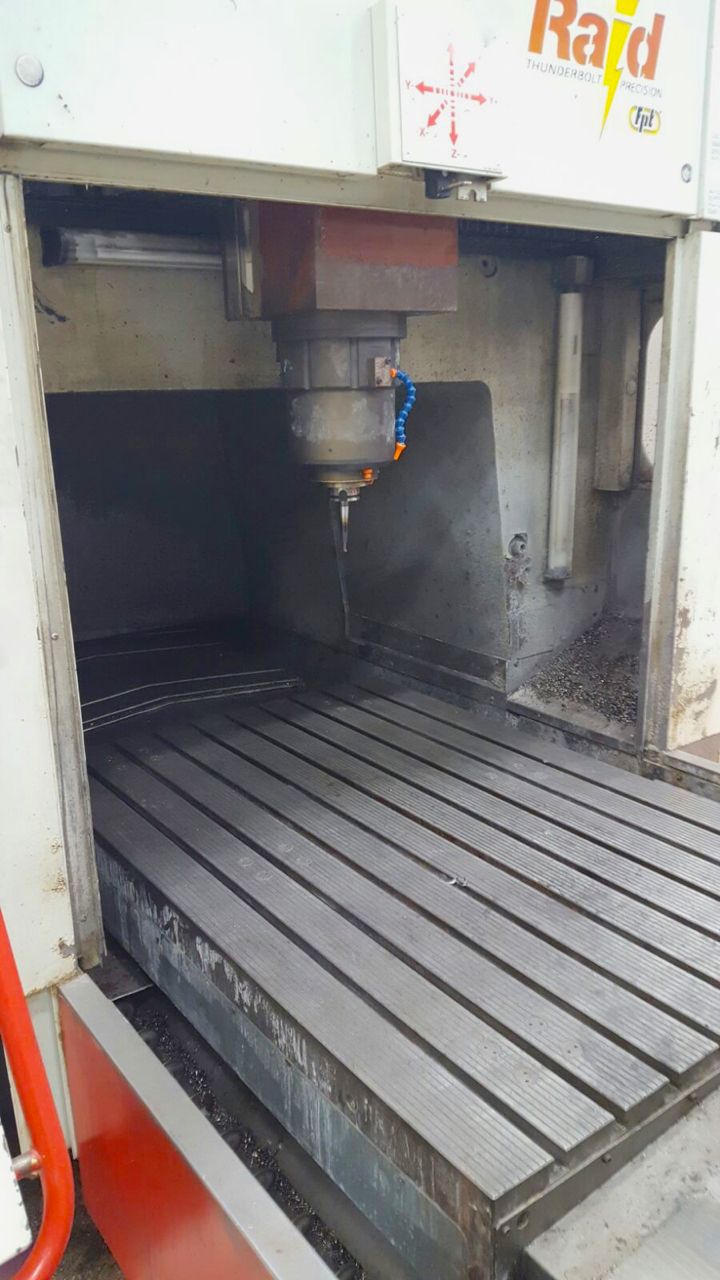

Table size
1500x1000 mm59,06x39,37 in
Table max load
2500 Kg
CNC
CNC

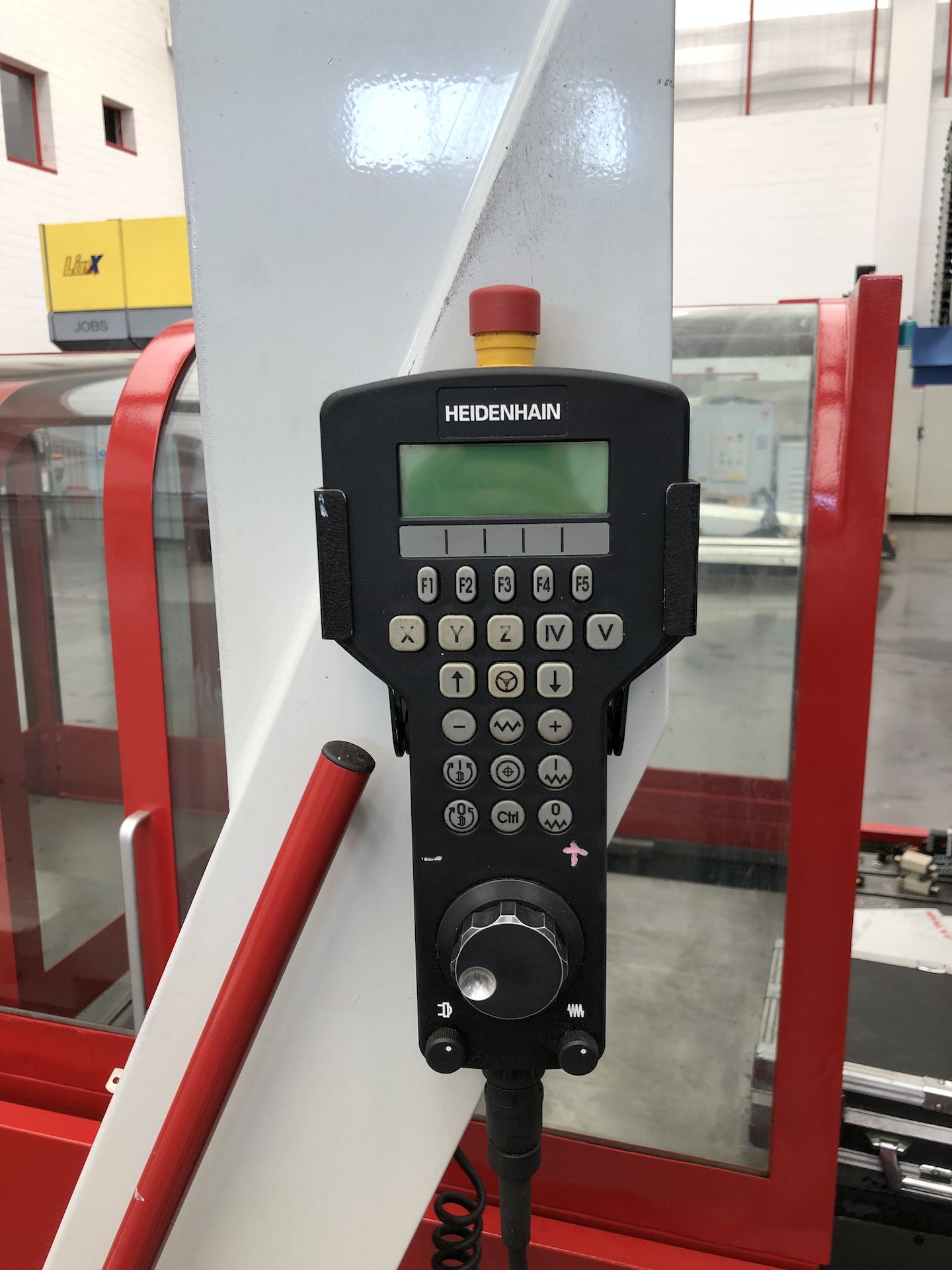

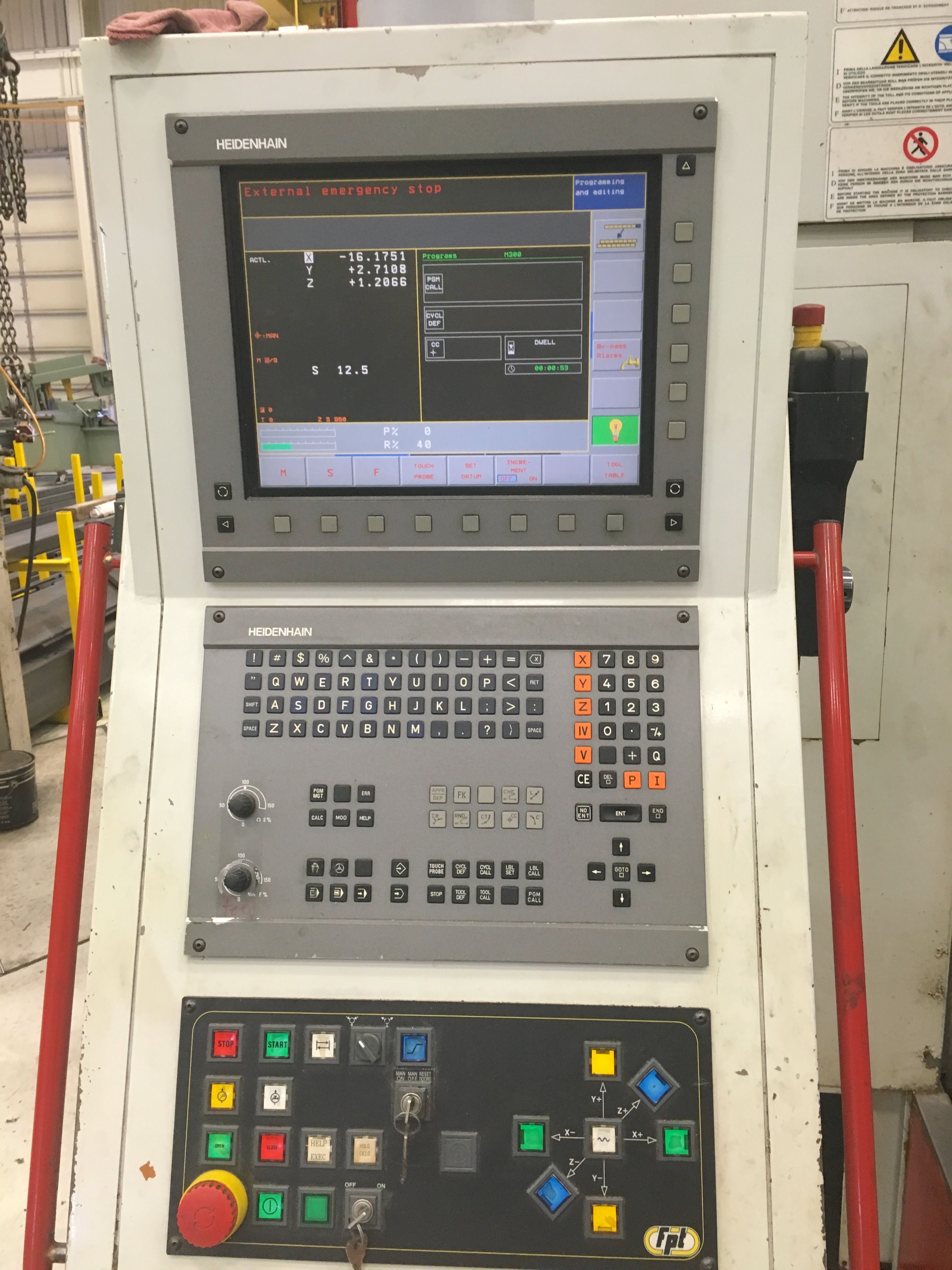

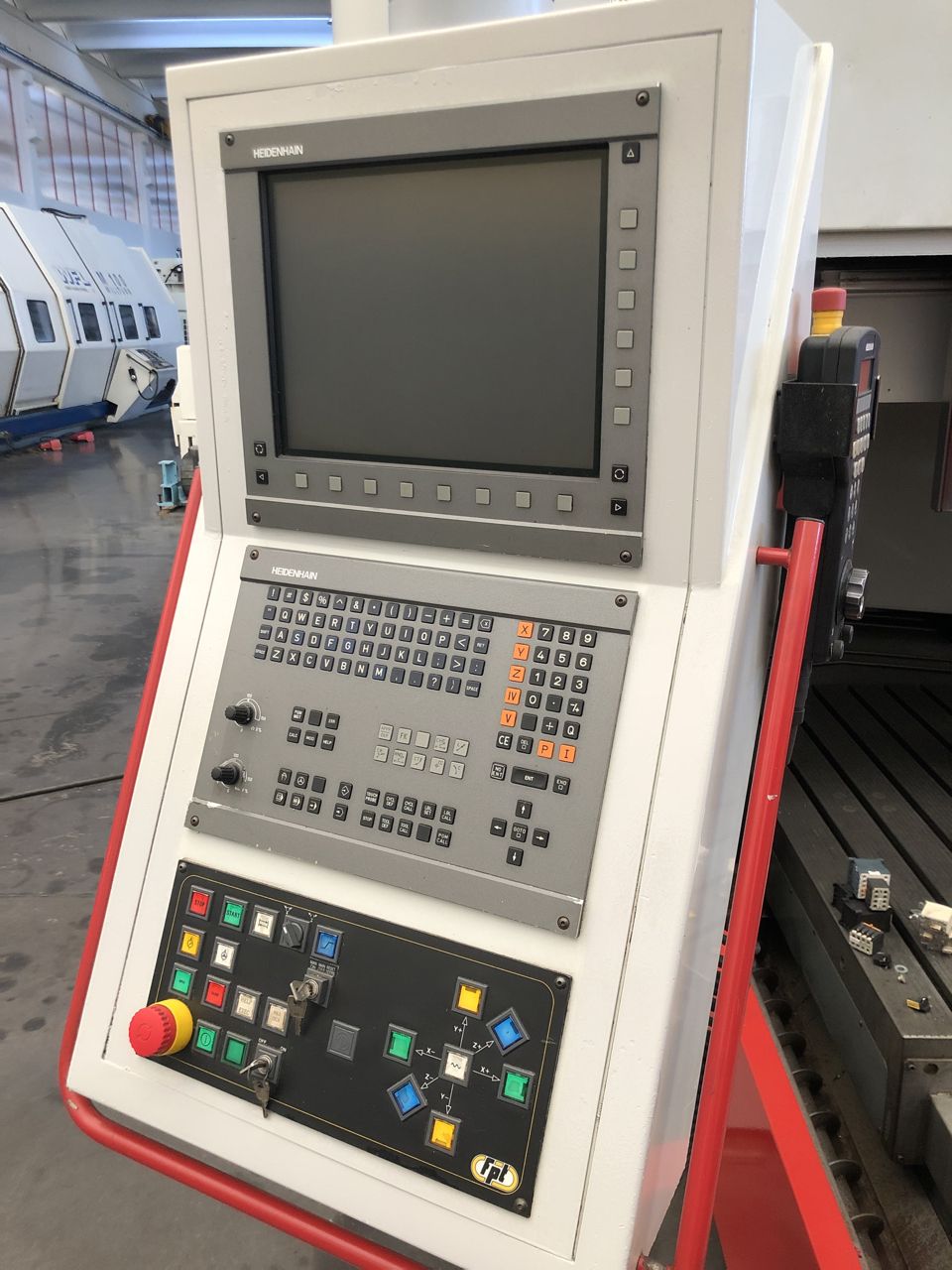

Heidenhain TNC530
SPINDLE
Spindle power
18,5/26 Kw
Rotating speed
15.000 Rpm
Torque
105 Nm
Taper
HSK A63
FEEDS
Rapid X
35 m/min1.377,95 ipm
Rapid Y
35 m/min1.377,95 ipm
Rapid Z
35 m/min1.377,95 ipm
Notes
Accelerazione 4 m/s2
ATC
Positions
30
Max tool diameter
70 mm2,76 in
Max tool lenght
300 mm11,81 in
Max tool weight
10 Kg
EXTRA
Floor space
5000x2400x3550 mm196,85x94,49x139,76 in
Maintenance & Use books
Yes
Electrical drawings
Yes
Housing
integrale

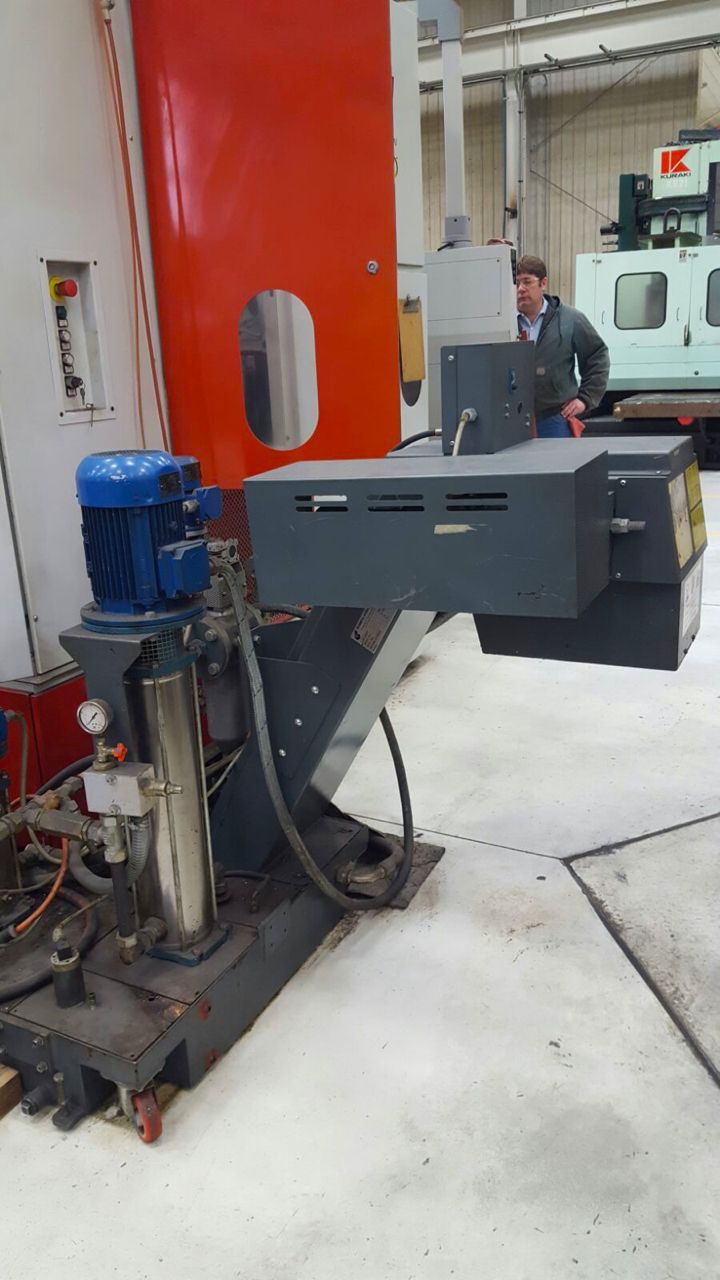

Chip conveyor
si
