Category
Grinding Machine
Type
Surface
Made
Model
STP 1834
Capacity
820x460x500 mm32,28x18,11x19,69 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
850 mm33,46 in
Vertical (Z)
510 mm20,08 in
Cross Table (Y)
410 mm16,14 in
Max grinding lenght
850 mm33,46 in
Max grinding width
460 mm18,11 in
Max grinding thickness
400 mm15,75 in
Spindle nose axis - table distance
510 mm20,08 in
TABLE
Surface
800x400 mm31,50x15,75 in
Stroke
960 mm37,80 in
Cross speed
3-25 m/min
Capacity
580 Kg

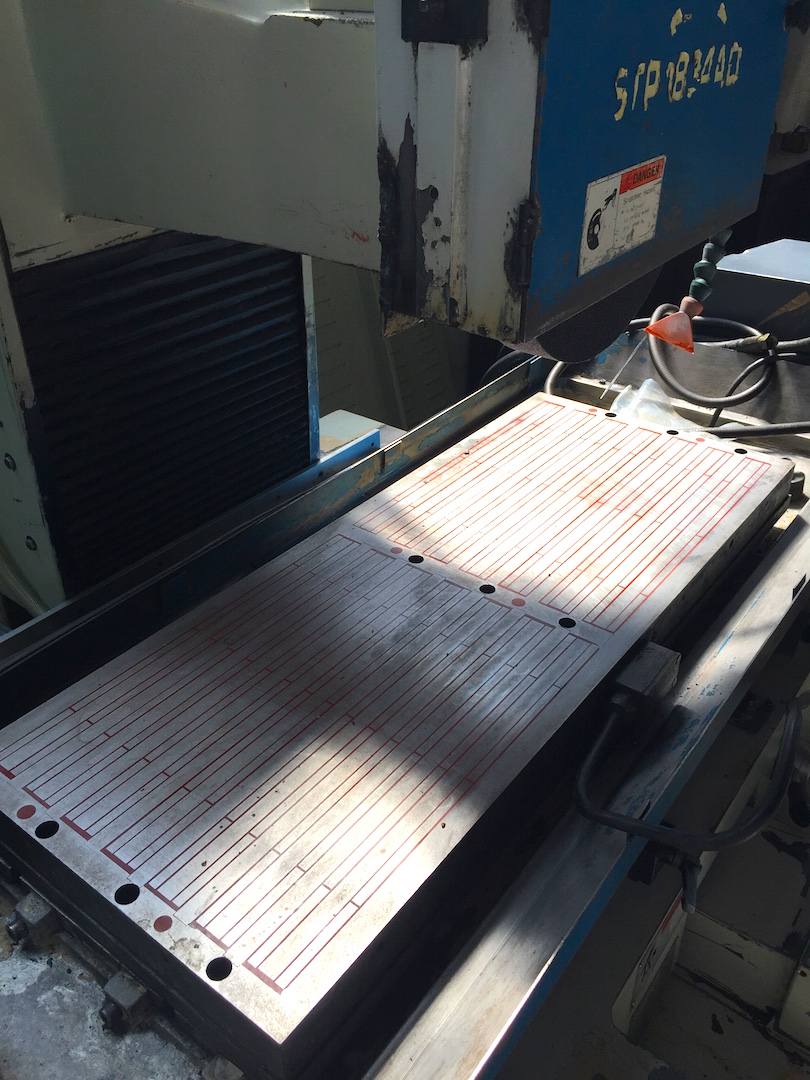

MAGNETIC TABLE
Surface
800x400 mm31,50x15,75 in
FEEDS
Automatic Vertical
0,001-0,1 mm/min0,0000-0,0039 ipm
WHEEL SPINDLE
Spindle power
3,75 Kw
Rotating speed
1425/1710 Rpm
WHEEL
Wheel band thickness
50 mm1,97 in
Max wheel diameter
355 mm13,98 in
Hole diameter
127 mm5,00 in
EXTRA
Total power supply
5,5 Kw
Machine total weight
3800 Kg
Floor space
2730x2250x2250 mm107,48x88,58x88,58 in
CE Certification
Yes
Availability
pronta consegna
Available in stock
si
