Category

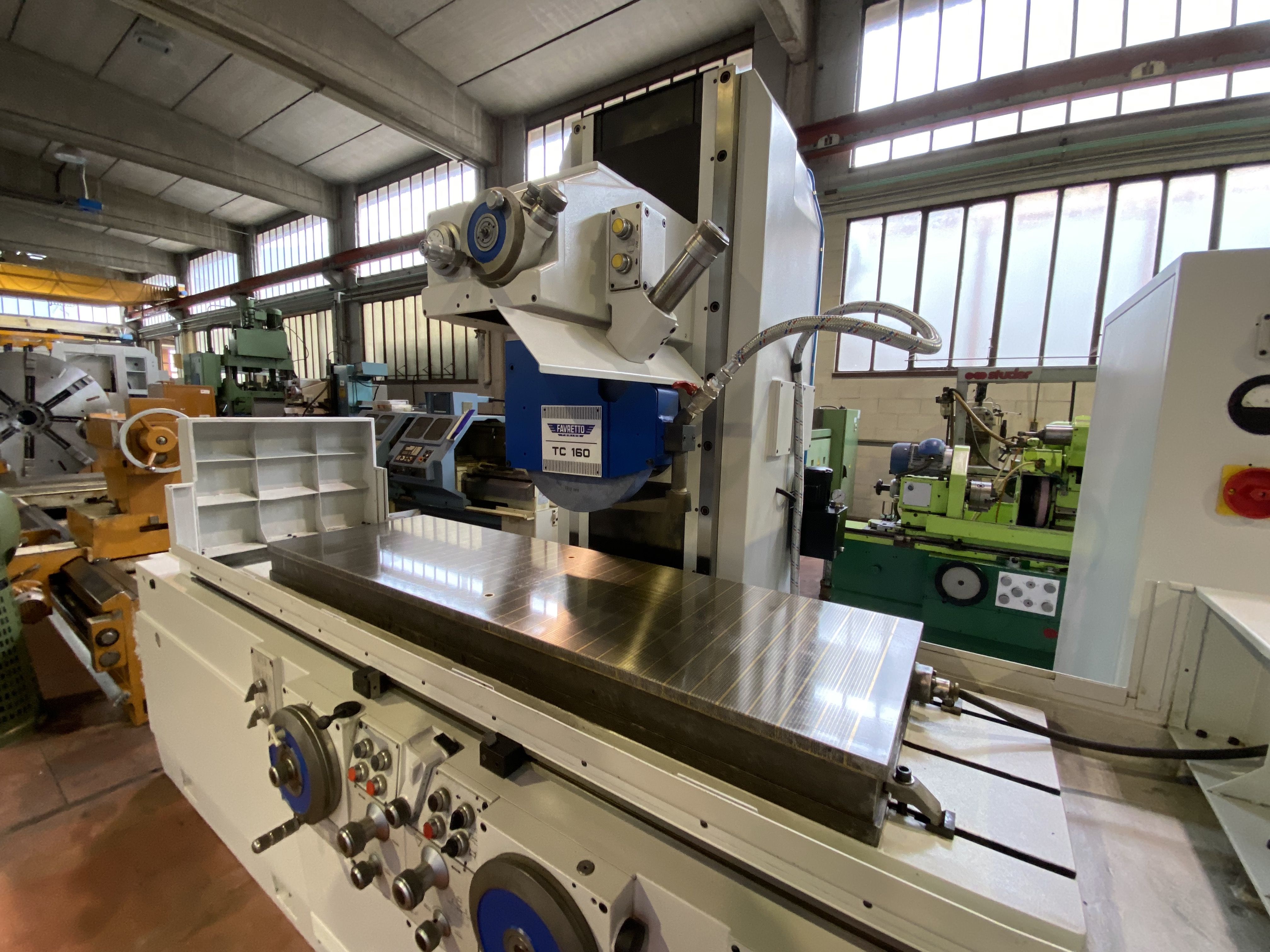

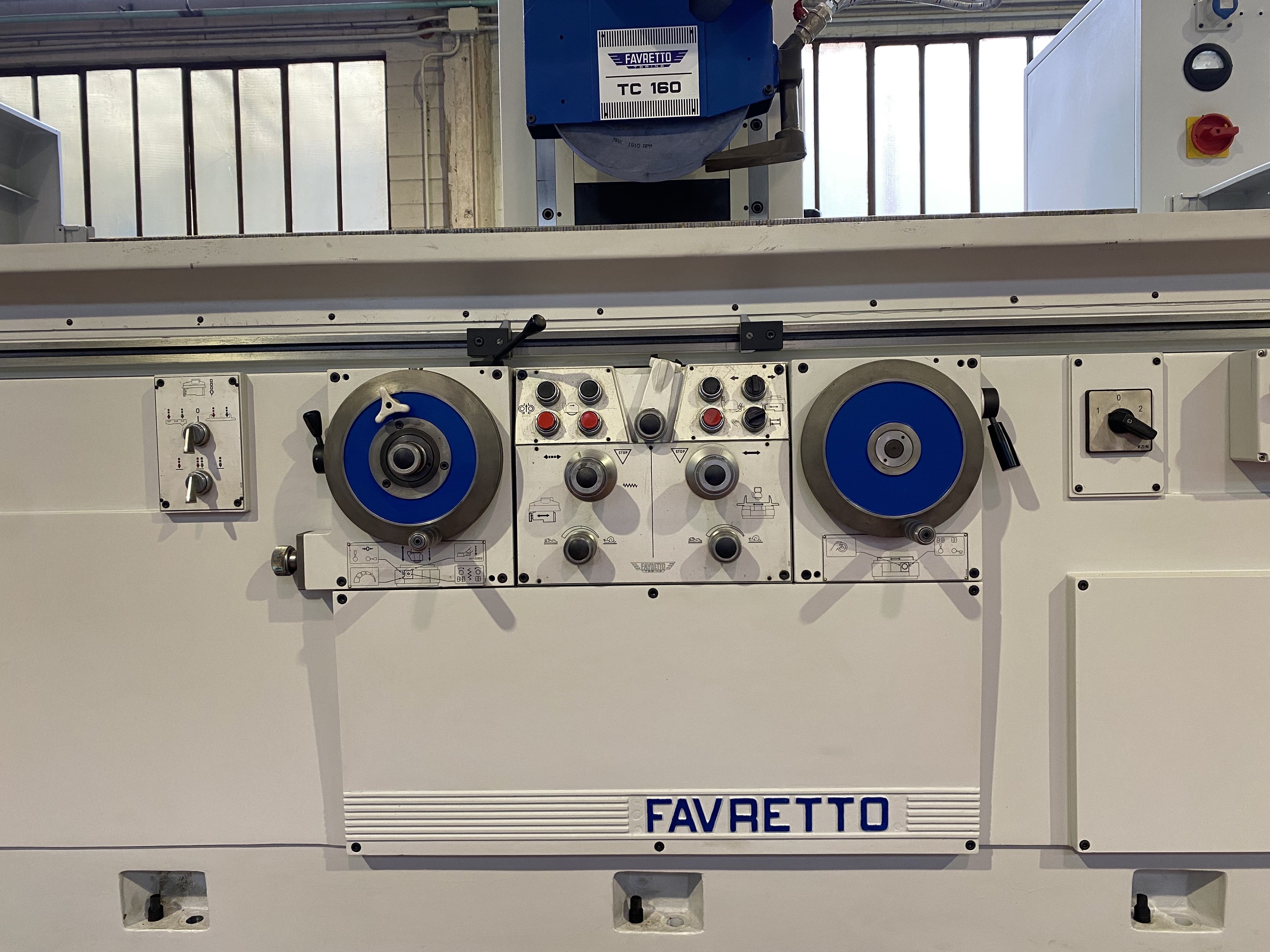

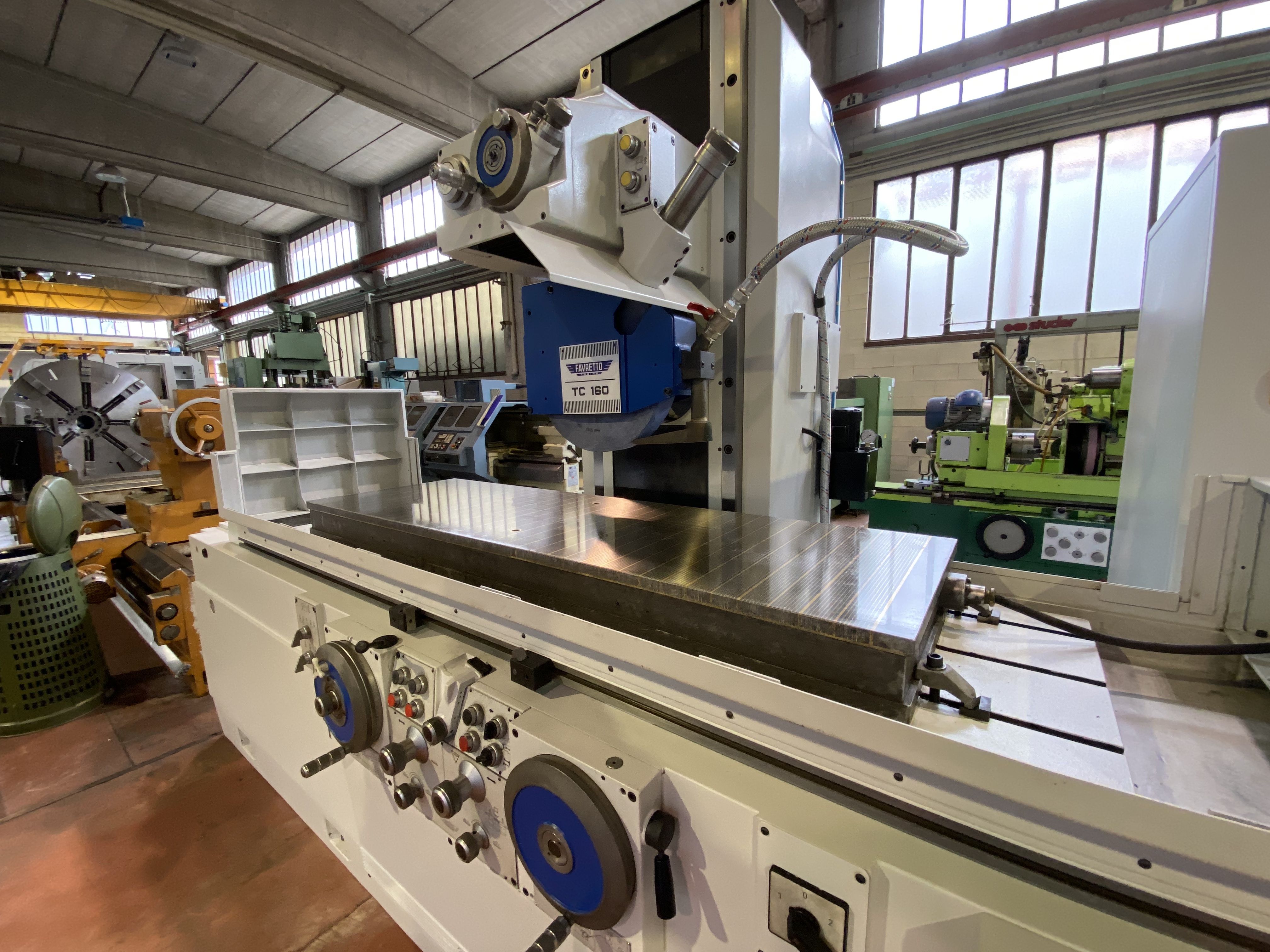

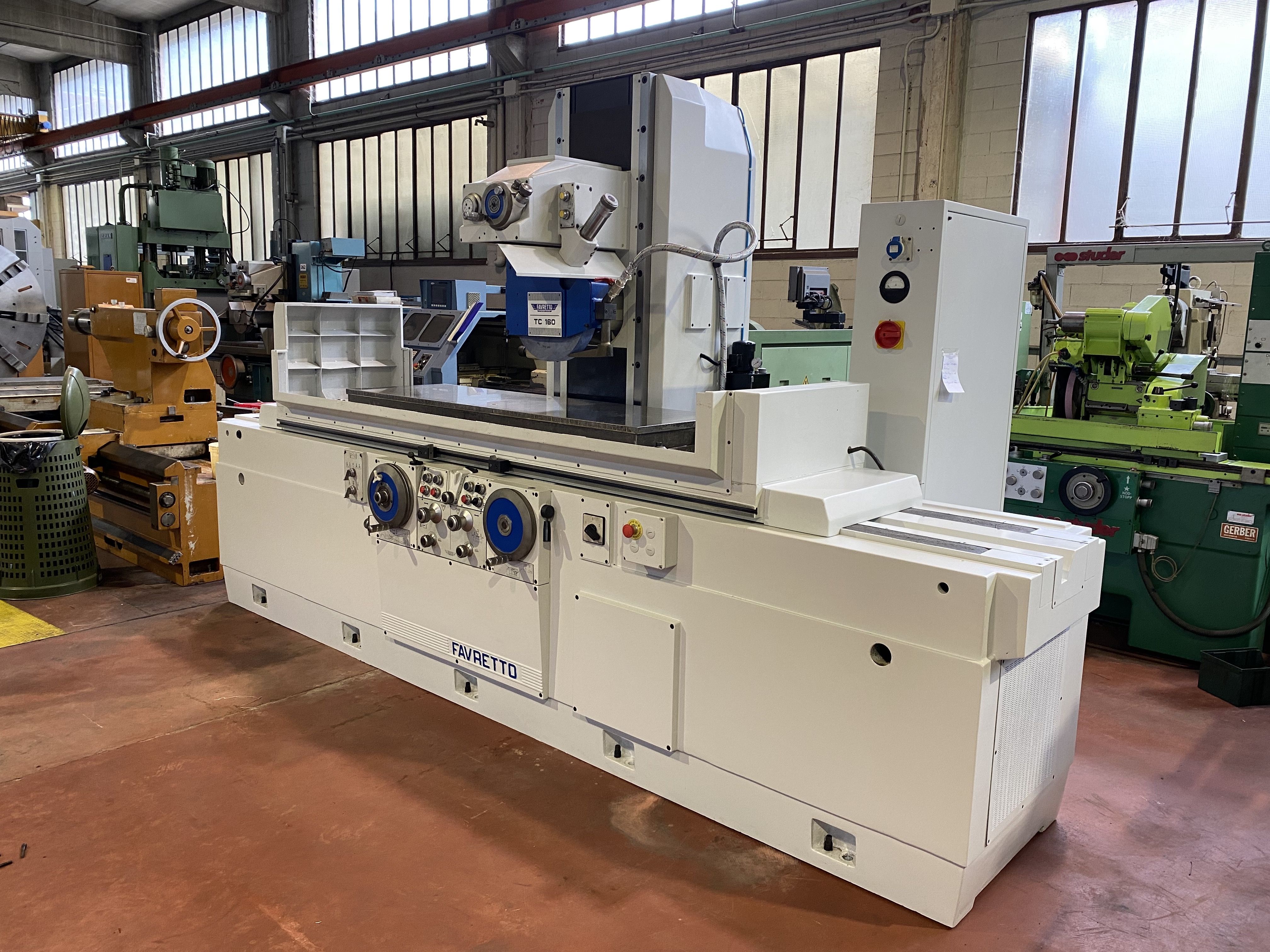

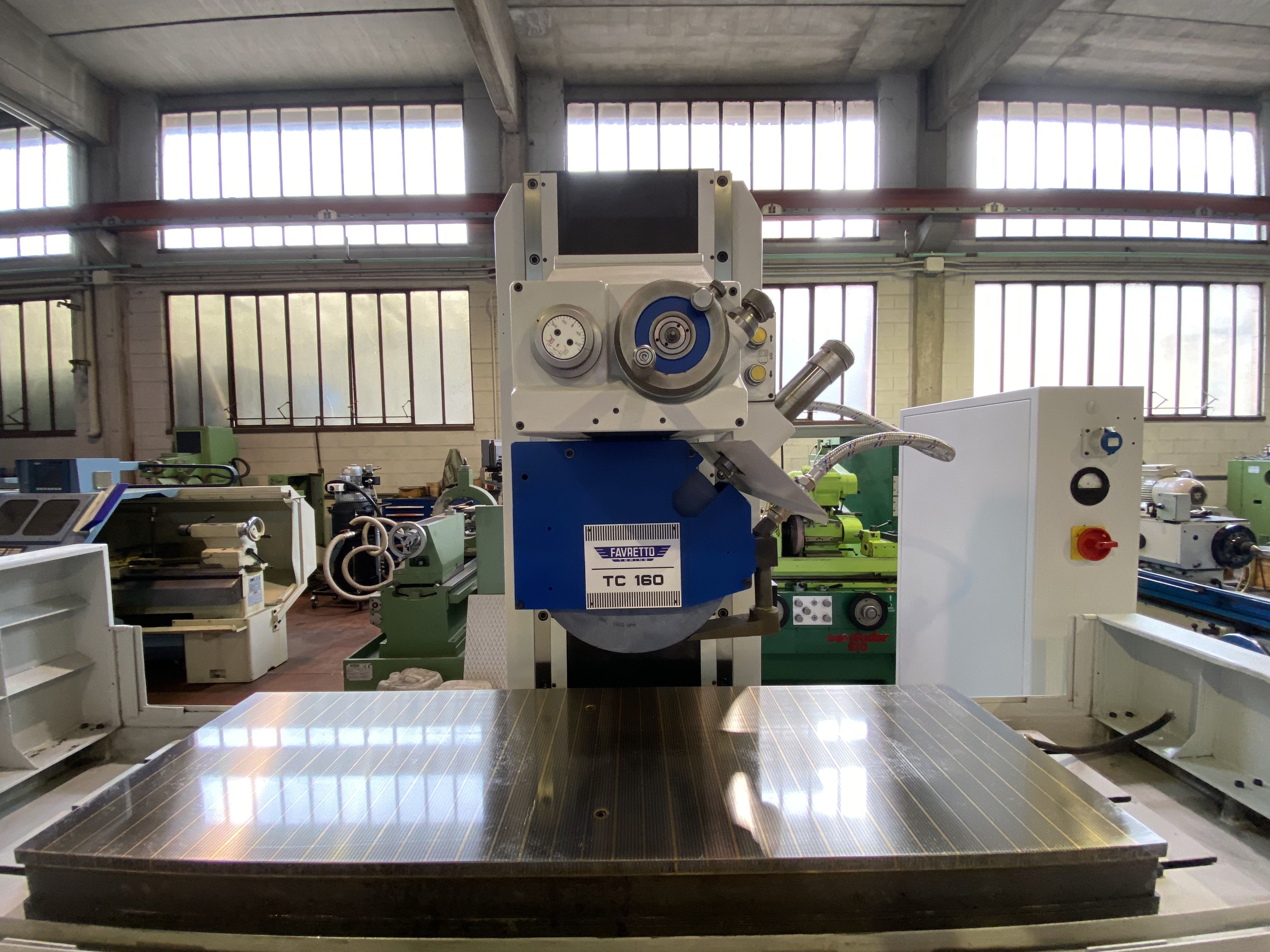

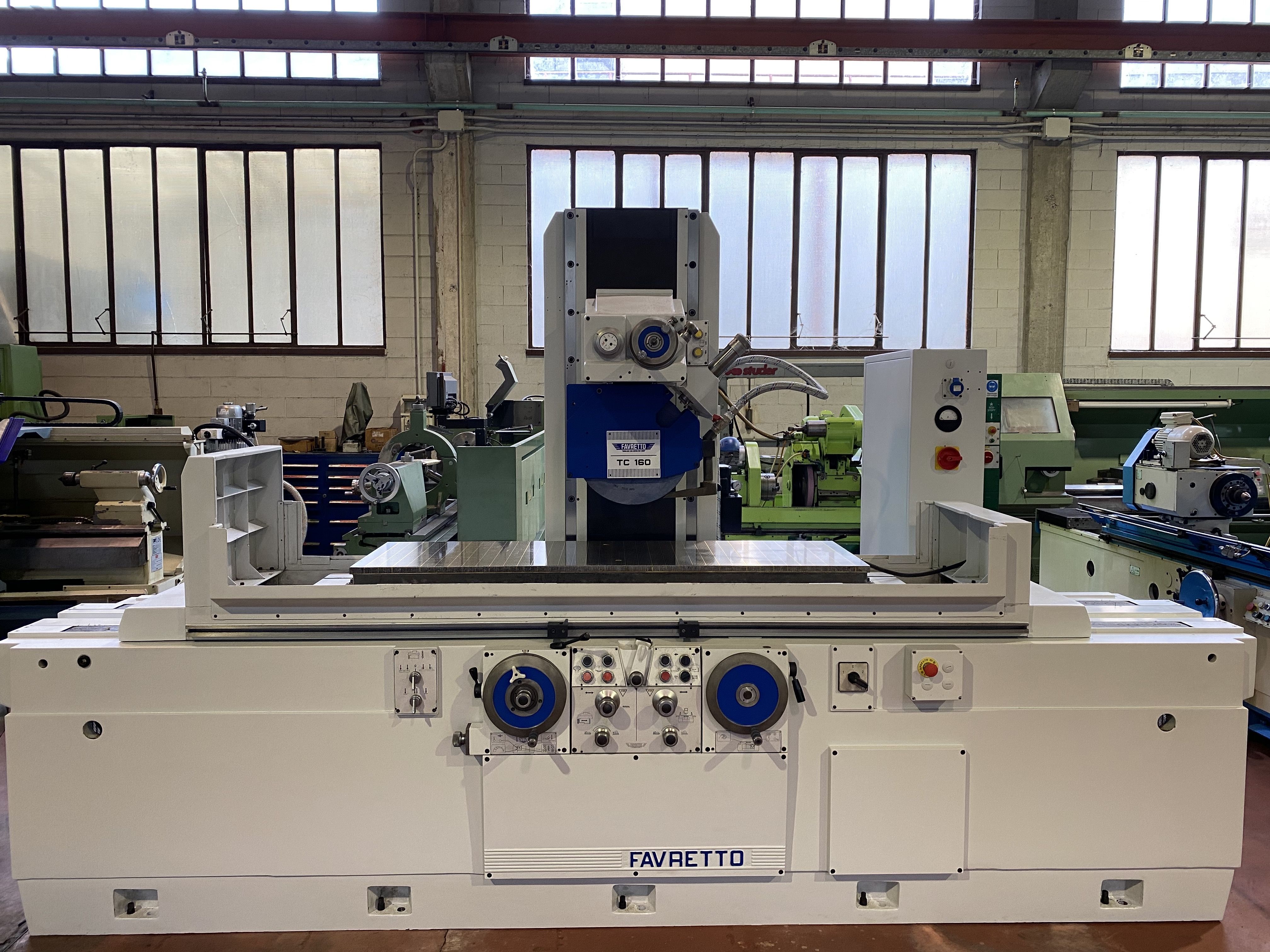

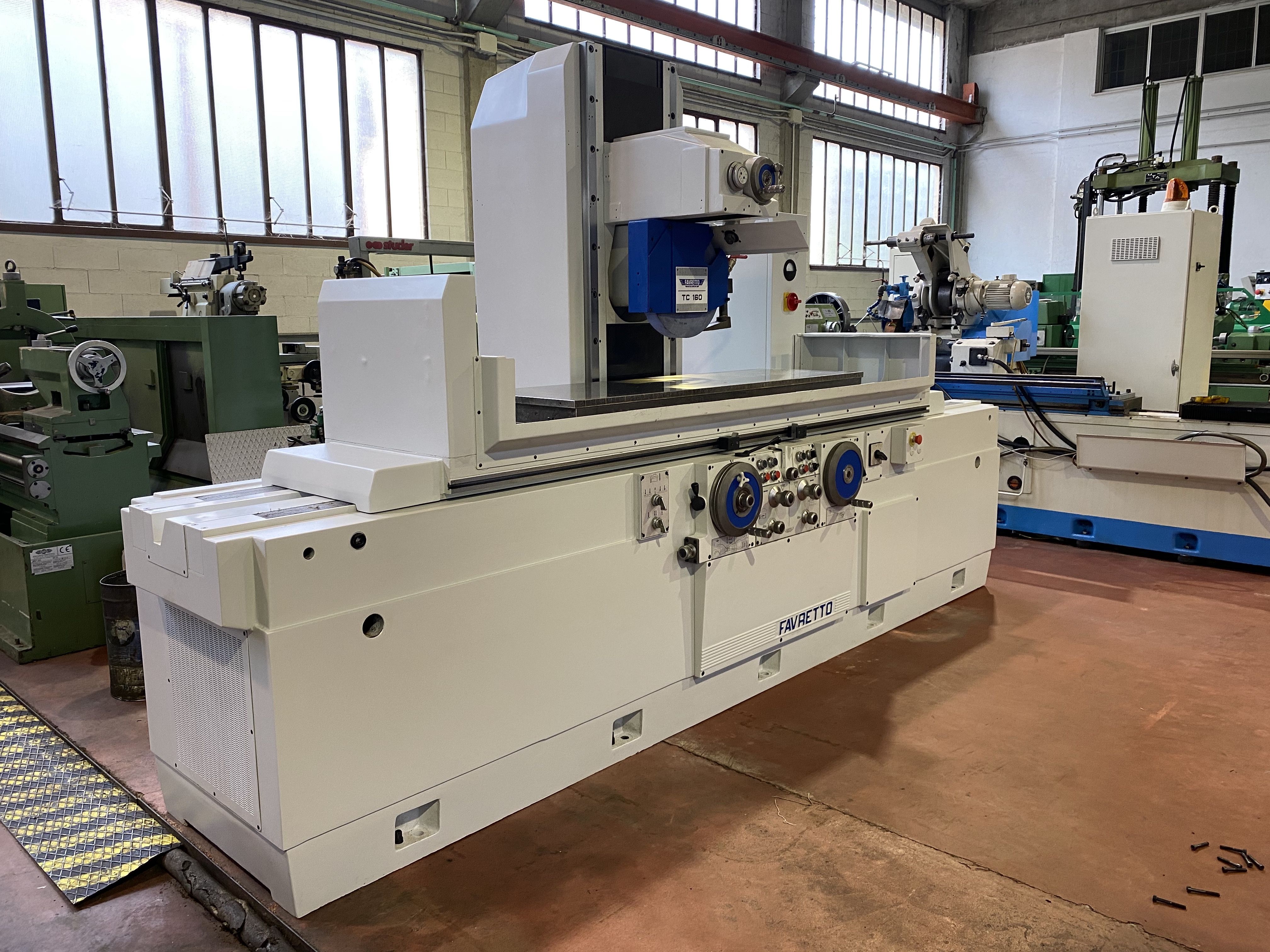

Grinding Machine
Type
Surface
Made
Model

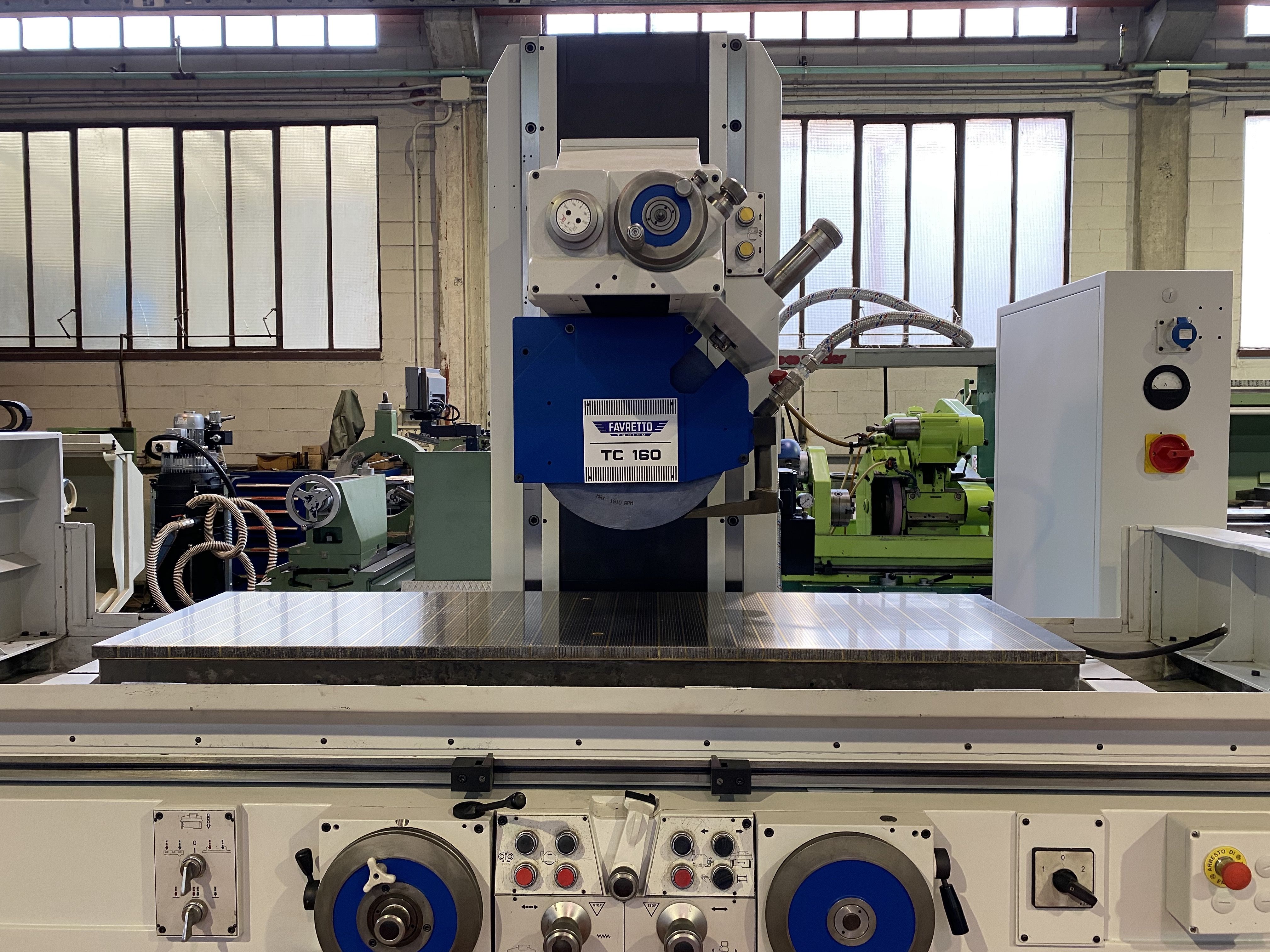

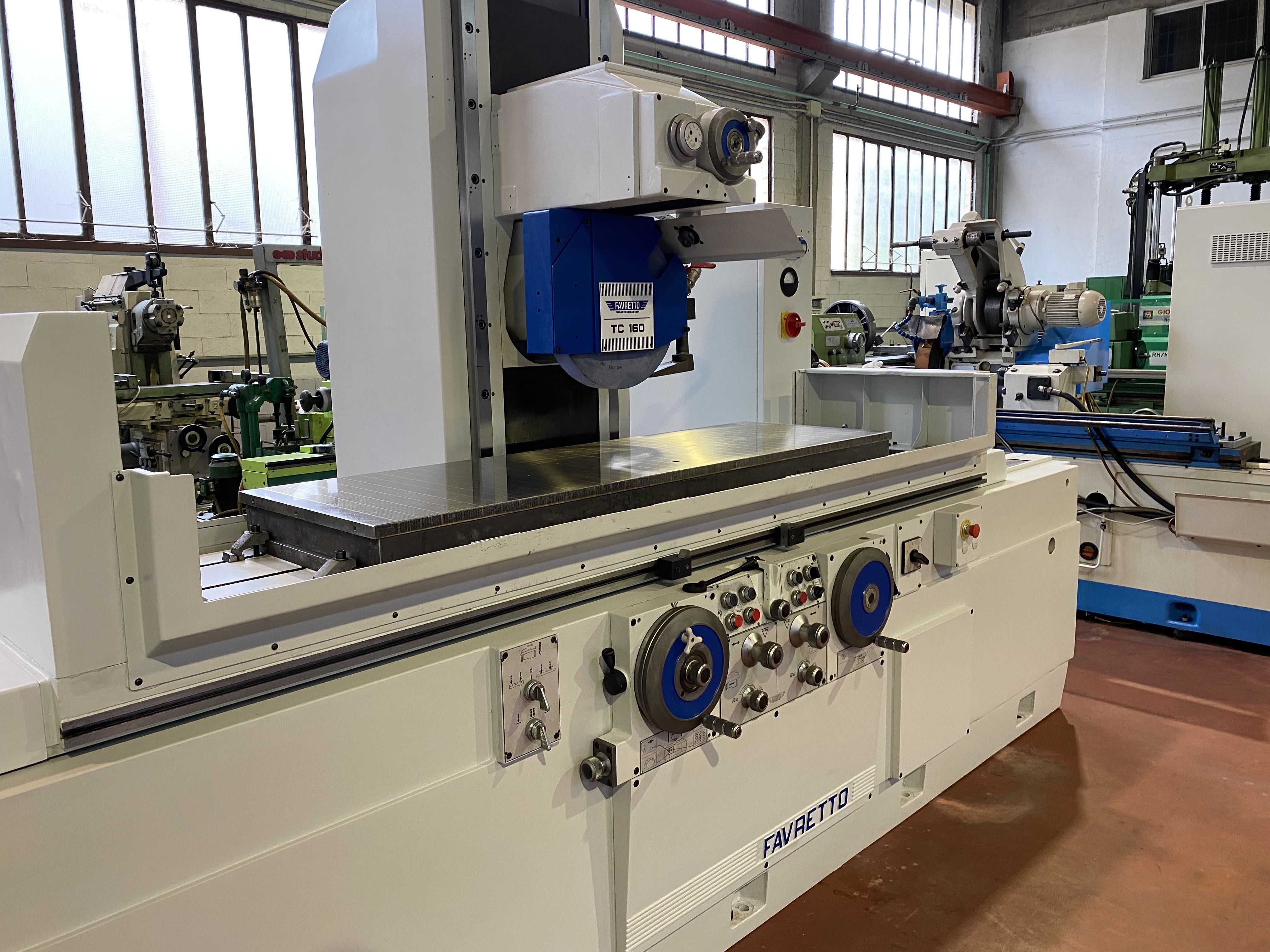

TC 160
Capacity
1600x575 mm62,99x22,64 in

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
1600 mm62,99 in
Cross Table (Y)
575 mm22,64 in
Vertical (Z)
650 mm25,59 in

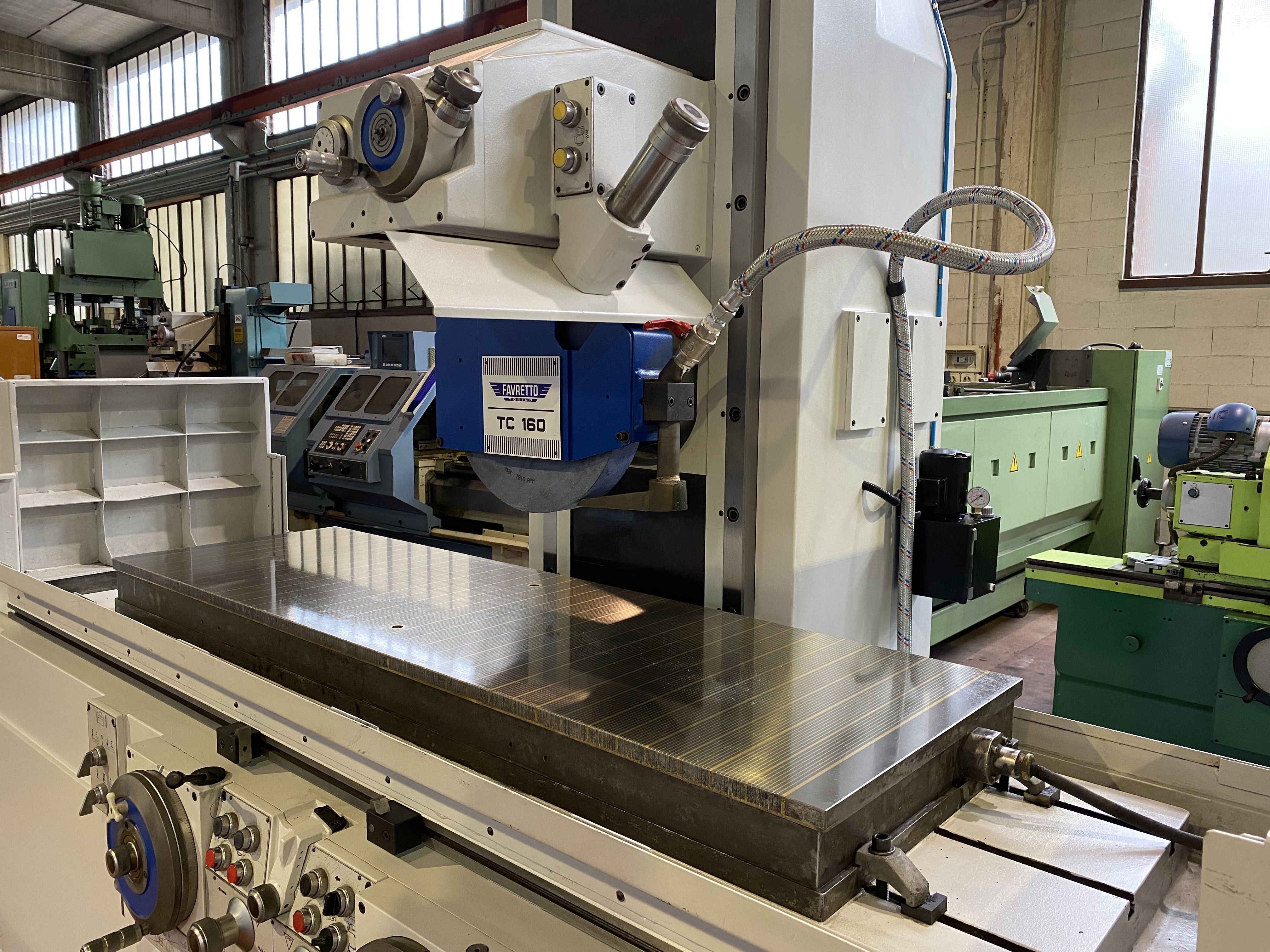

MAGNETIC TABLE
Available upon request
Yes
WHEEL
Wheel band thickness
75 mm2,95 in
Max wheel diameter
406 mm15,98 in
Hole diameter
127 mm5,00 in
TABLE
Surface
1600x500 mm62,99x19,69 in
Cross speed
2-40
FEEDS
Automatic Vertical
0.005 - 0.05 mm/min0,0002 - 0,0020 ipm

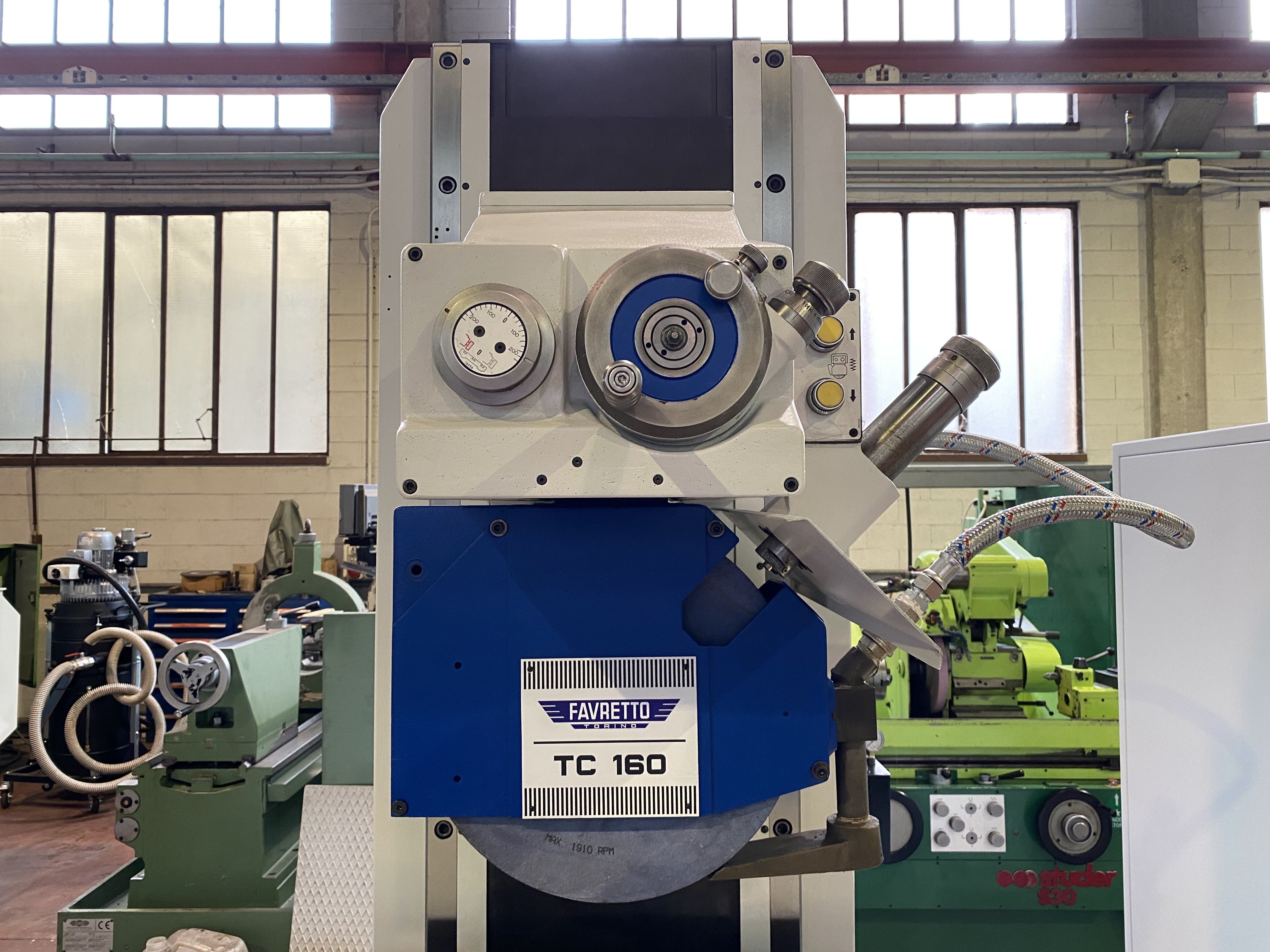

WHEEL SPINDLE
Spindle power
11 Kw
Rotating speed
1700 Rpm
EXTRA
Machine total weight
6800 Kg
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
