Category
Grinding Machine
Type
Surface
Made
Model

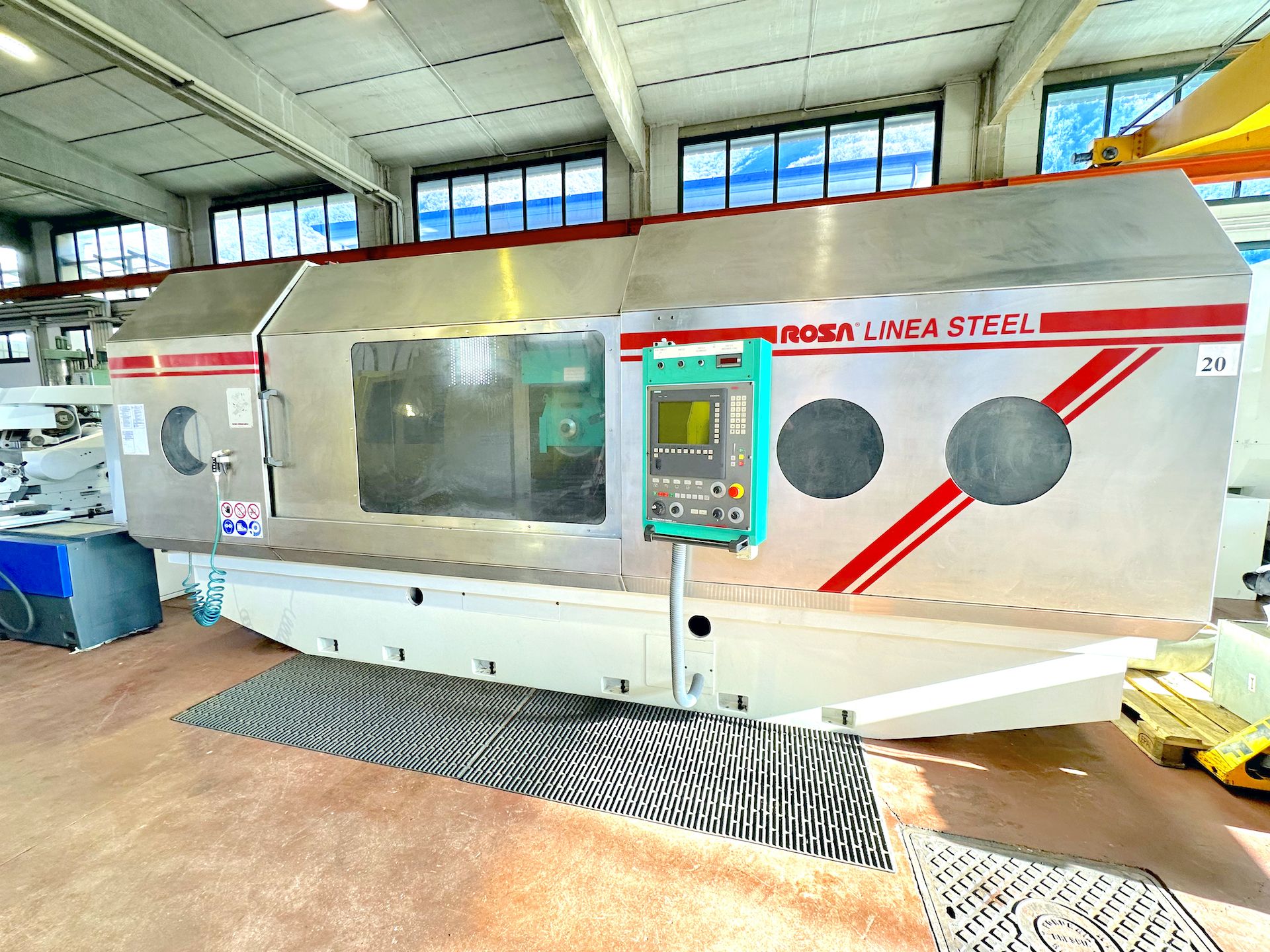

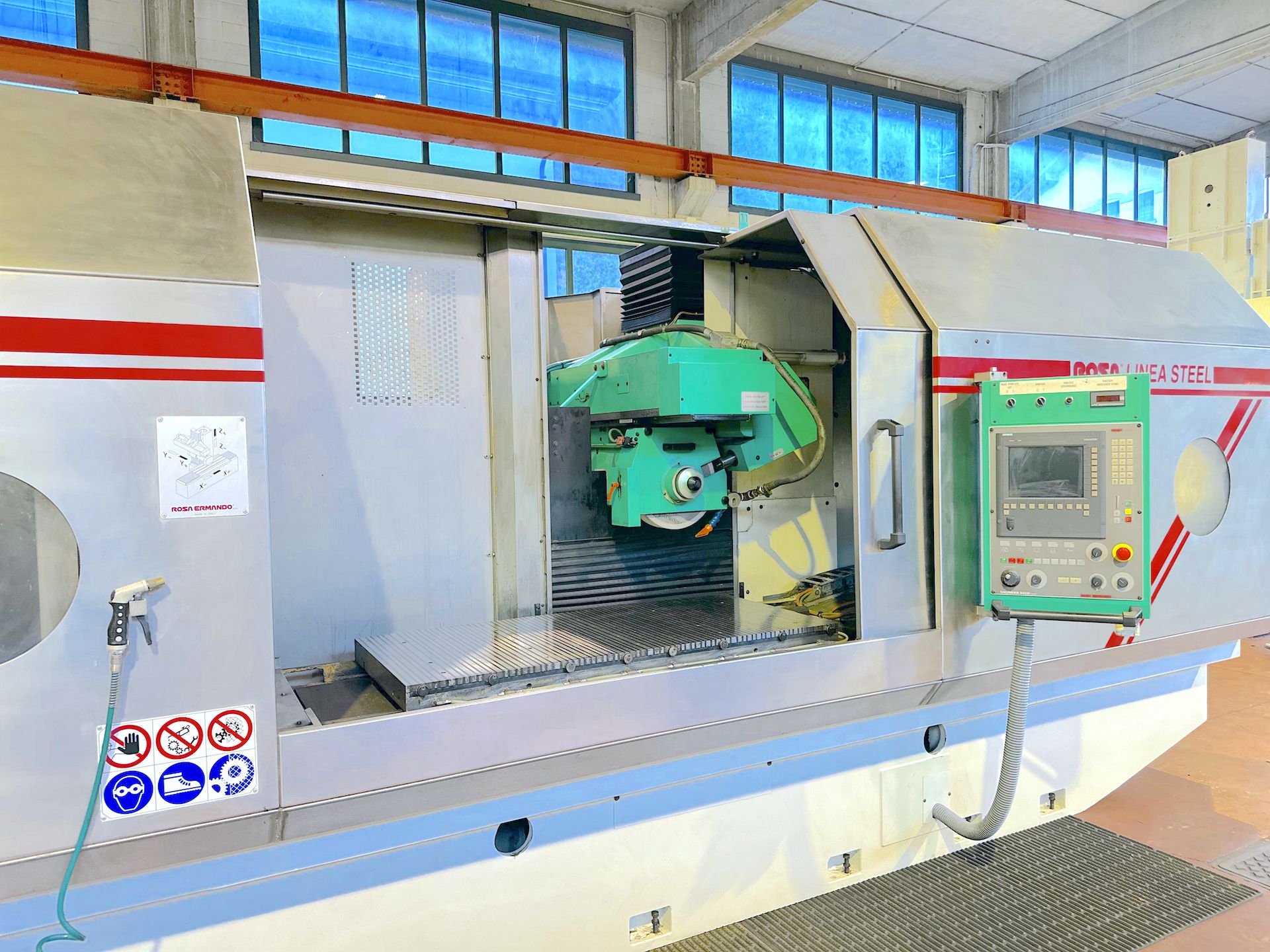

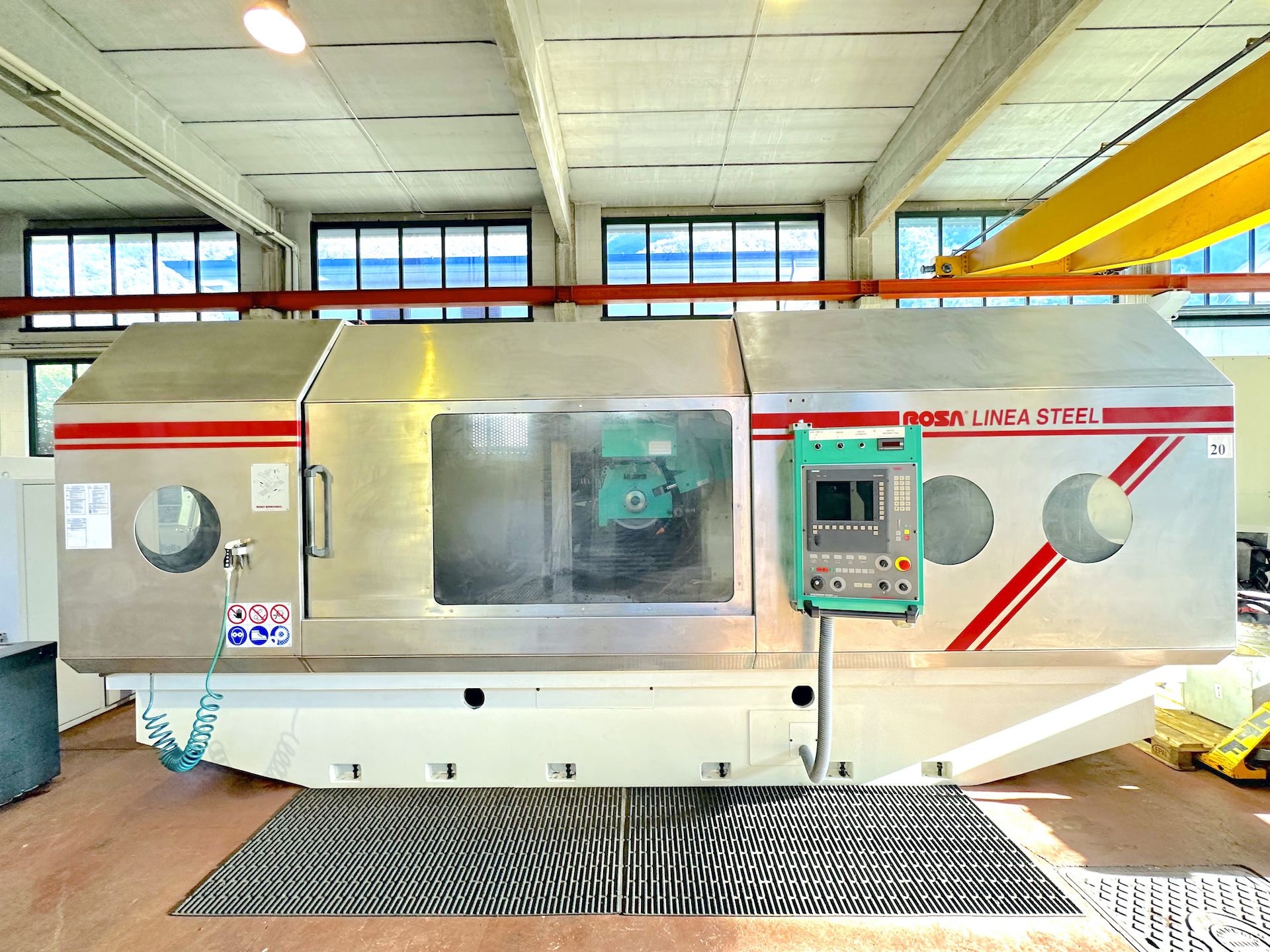

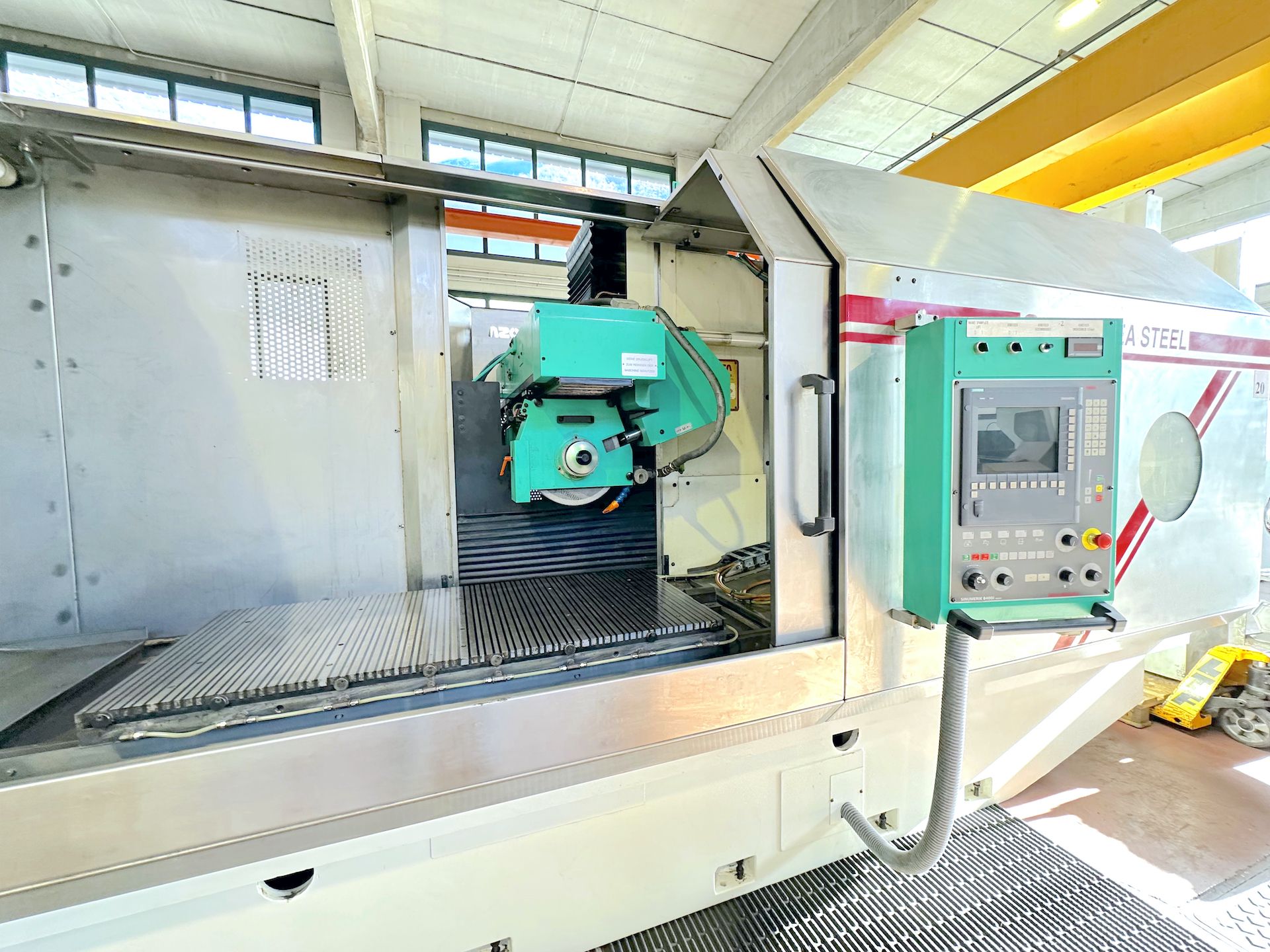

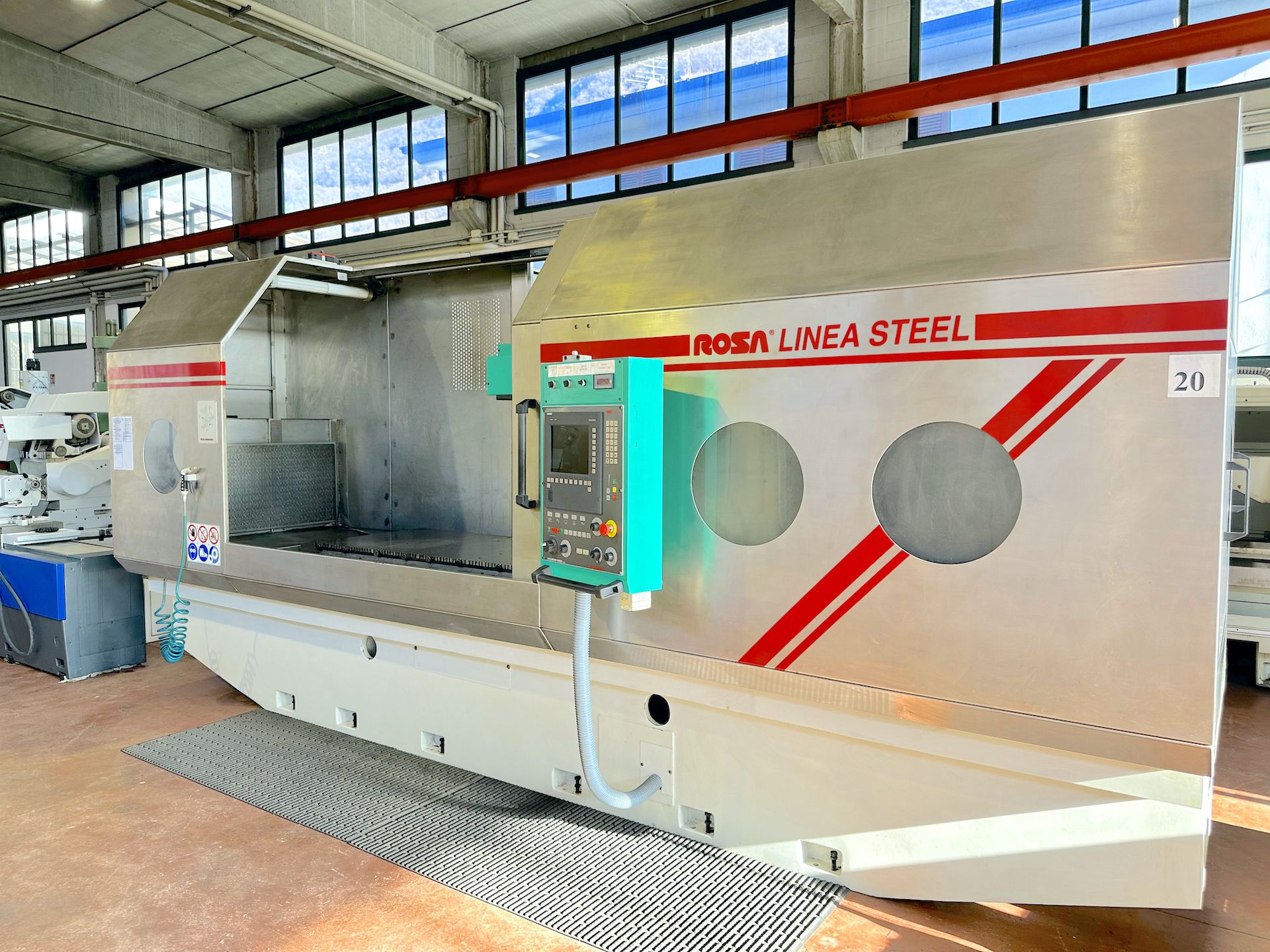

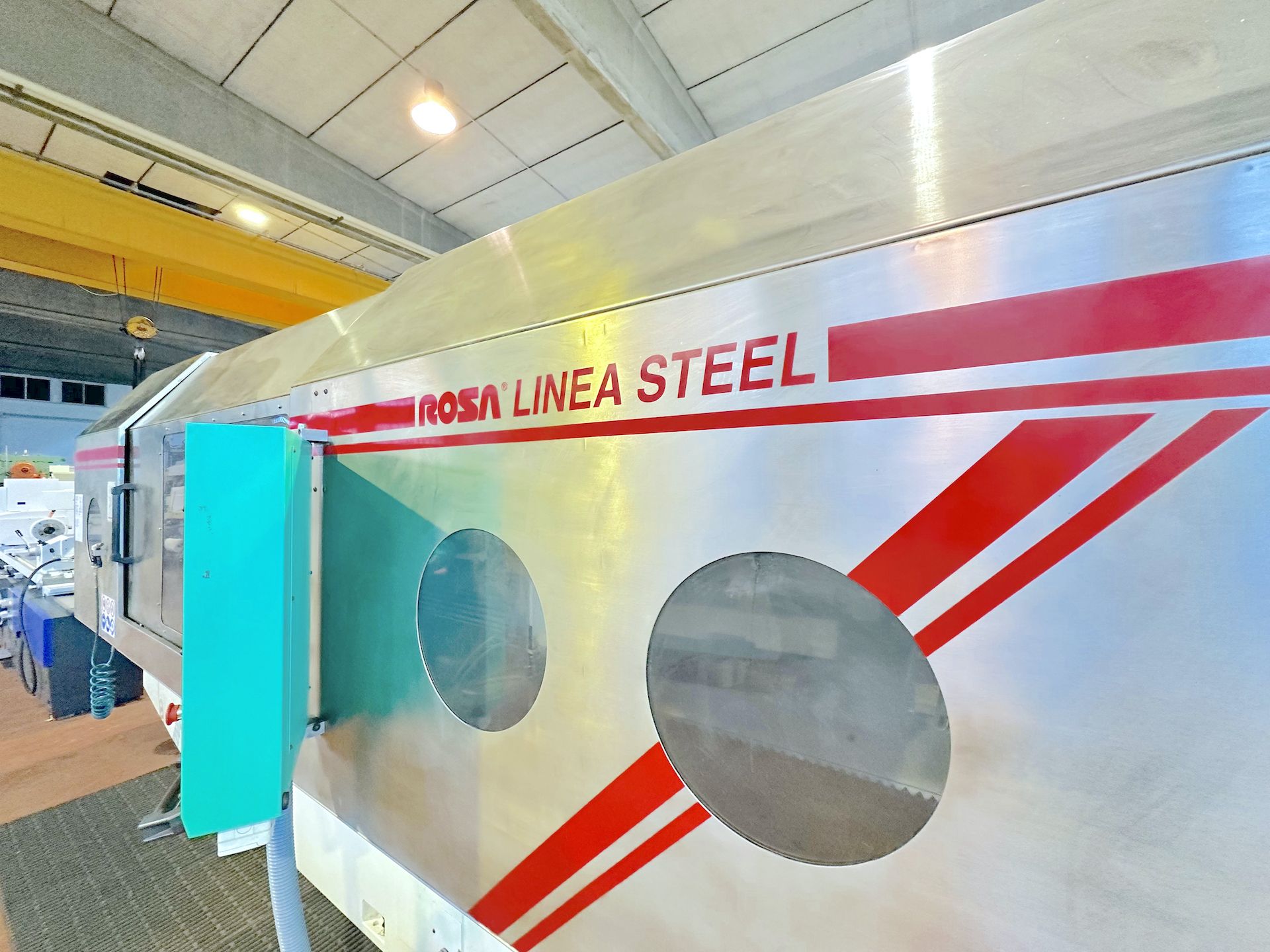

LINEA STEEL 13.7 CN
Capacity
1500x750x800 mm59,06x29,53x31,50 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1650 mm64,96 in
Vertical (Z)
800 mm31,50 in
Cross RAM (Y)
650 mm25,59 in
Max grinding lenght
1500 mm59,06 in
Max grinding width
750 mm29,53 in
Max grinding thickness
800 mm31,50 in
Spindle nose axis - table distance
1000 mm39,37 in
TABLE
Surface
1400x500 mm55,12x19,69 in
Stroke
1650 mm64,96 in
Cross speed
0-8 m/min
Capacity
1700 Kg
MAGNETIC TABLE
Surface
1500x700 mm59,06x27,56 in

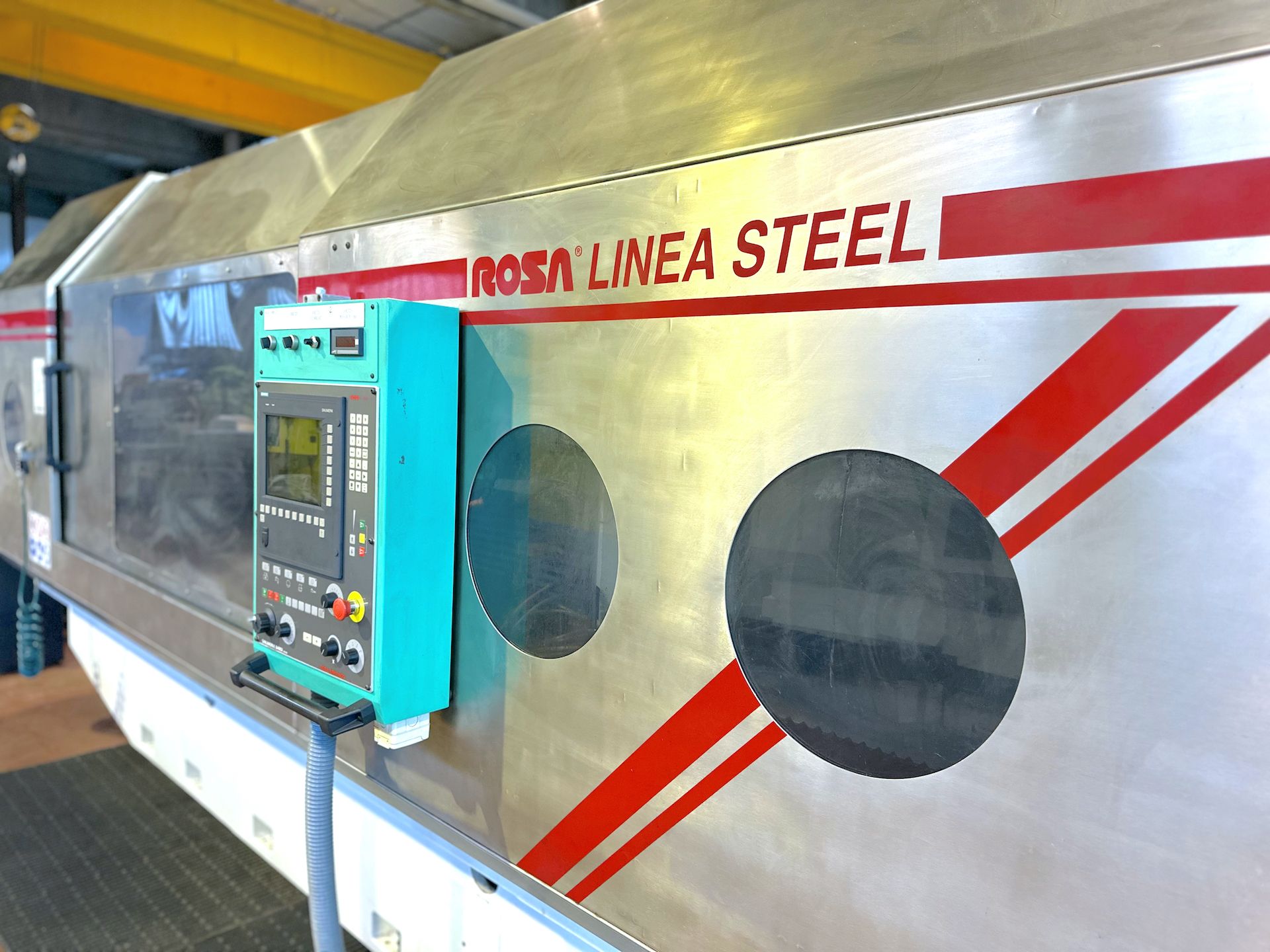

CNC
CNC

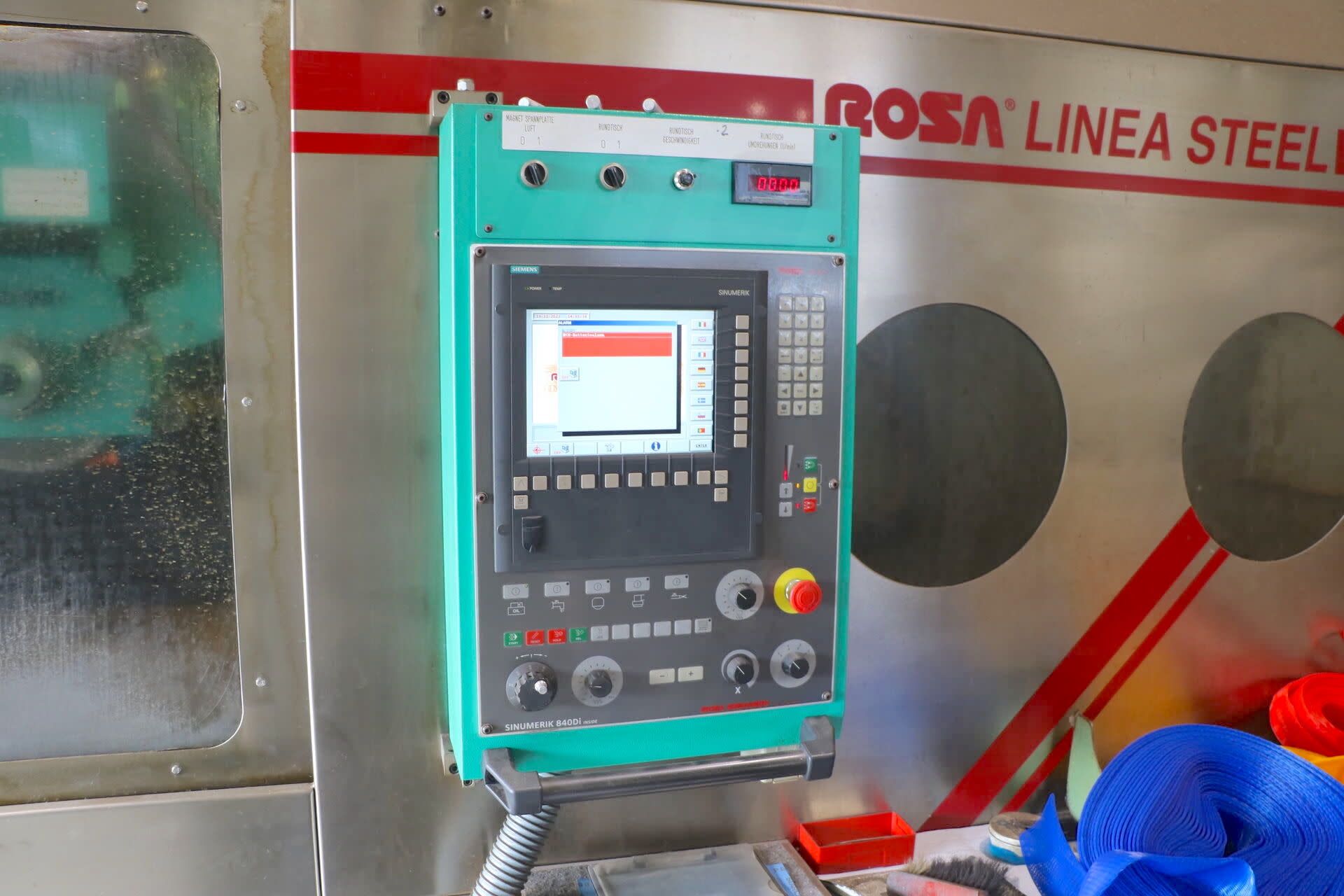

SIEMENS 840Di

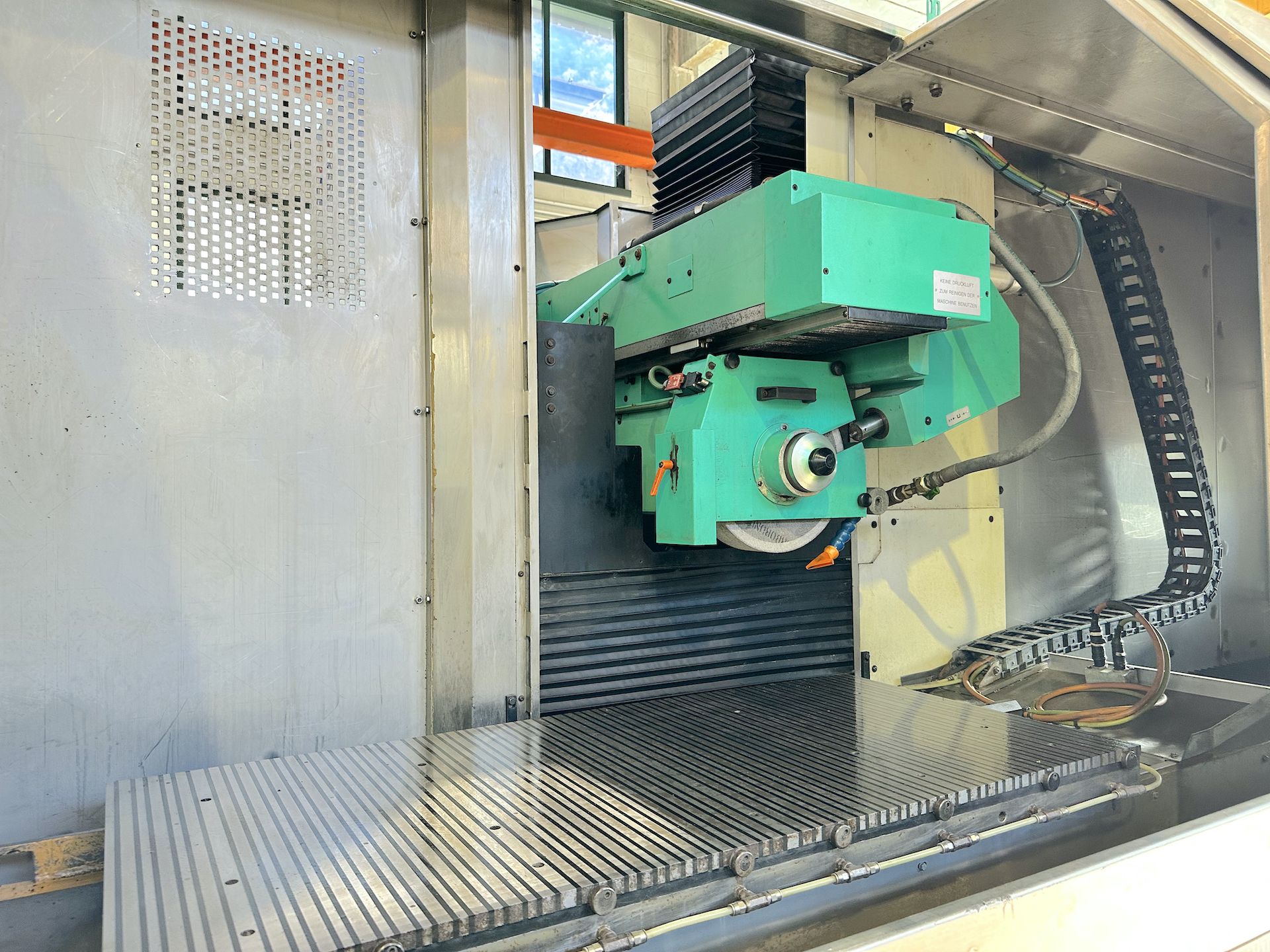

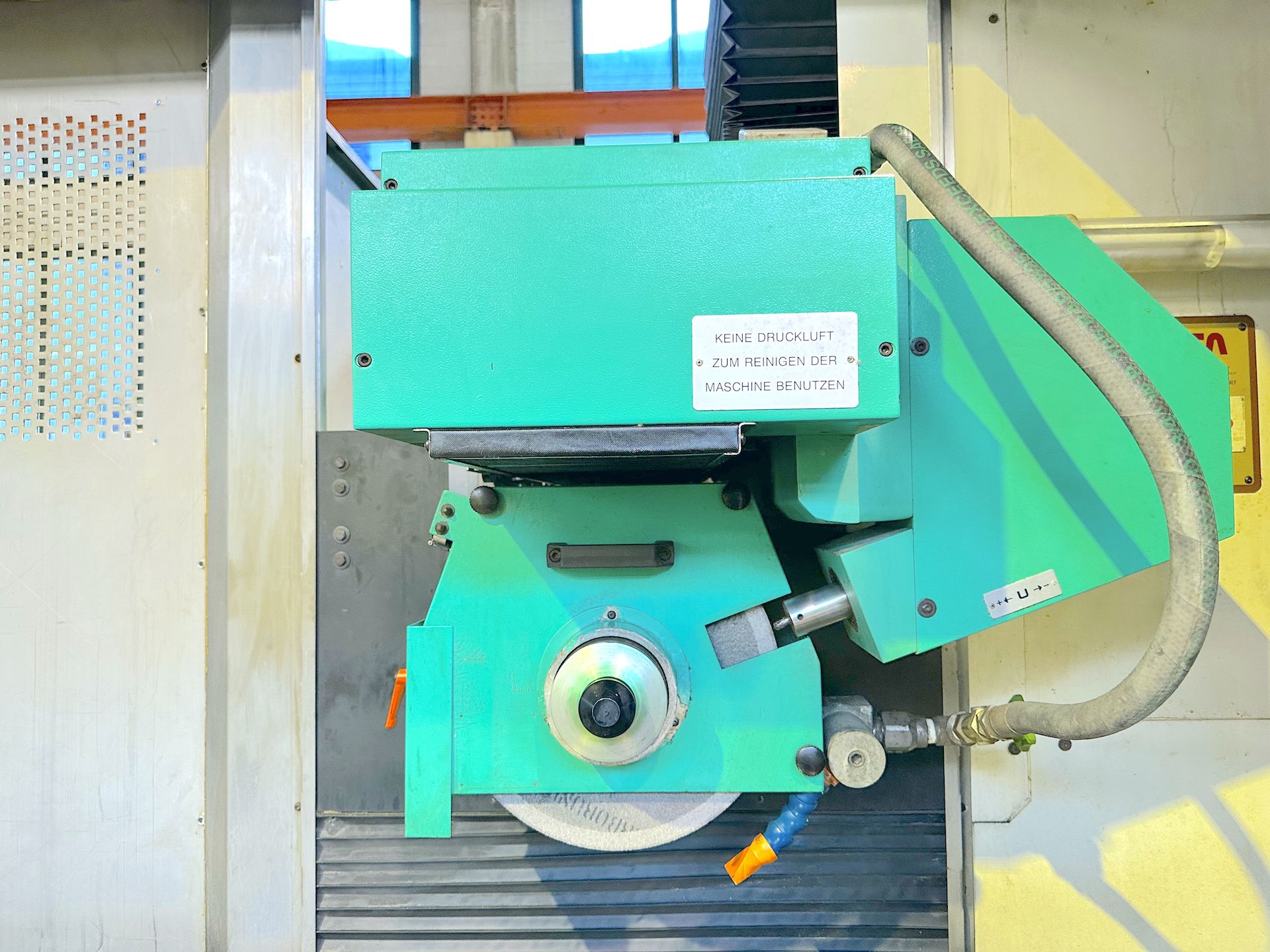

WHEEL SPINDLE
Rotating speed
1500 Rpm
Spindle power
15/22 Kw
WHEEL
Wheel band thickness
100 mm3,94 in
Max wheel diameter
400 mm15,75 in
Hole diameter
127 mm5,00 in
EXTRA
Total power supply
28 Kw
Machine total weight
9700 Kg
Floor space
5400x2550x2750 mm212,60x100,39x108,27 in
Housing
completa in acciaio INOX
