Category
Grinding Machine
Type
Surface
Made

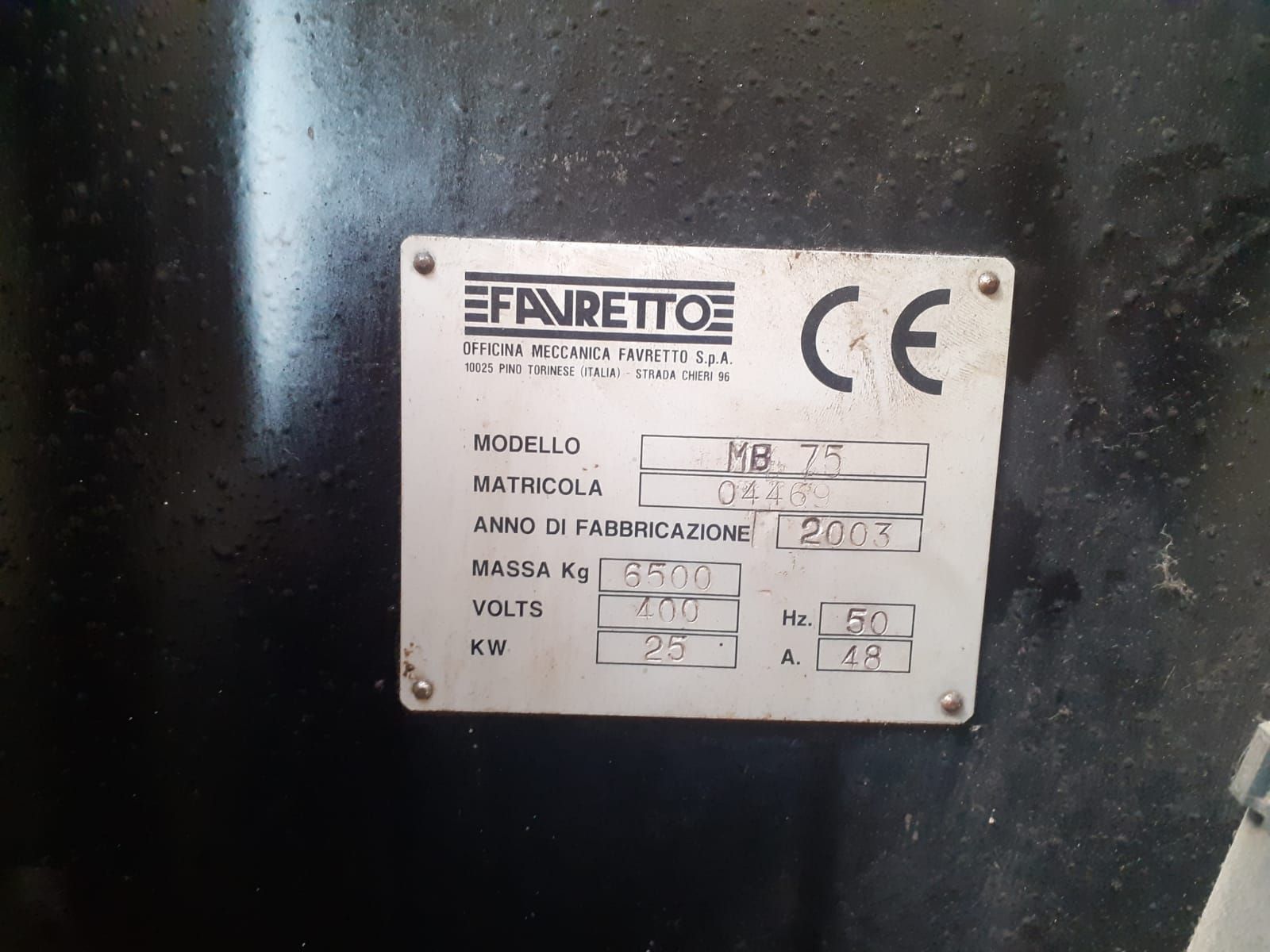

Model
MB 75
Capacity
750 x 550 mm29,53 x 21,65 in

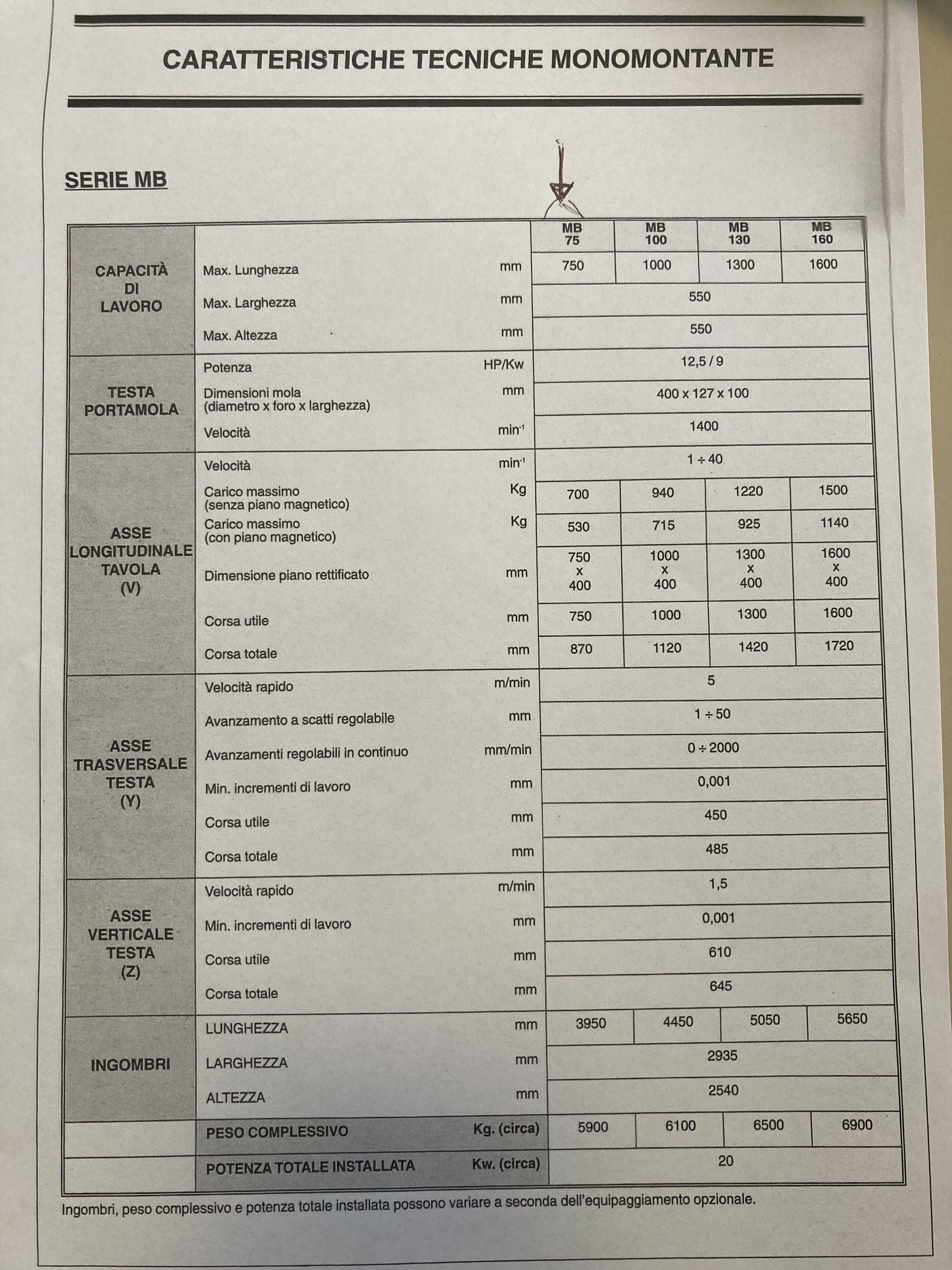

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
750 mm29,53 in
Vertical (Z)
550 mm21,65 in
Cross RAM (Y)
485 mm19,09 in
TABLE
Surface
750 x 400 mm29,53 x 15,75 in
Cross speed
1-40
WHEEL SPINDLE
Spindle power
12,5 Kw
Rotating speed
1400 Rpm
WHEEL
Max wheel diameter
400 mm15,75 in
Wheel band thickness
100 mm3,94 in
Hole diameter
127 mm5,00 in
FEEDS
Automatic Vertical
0,001 mm/min0,0000 ipm
Cross
0,001 mm/min0,0000 ipm

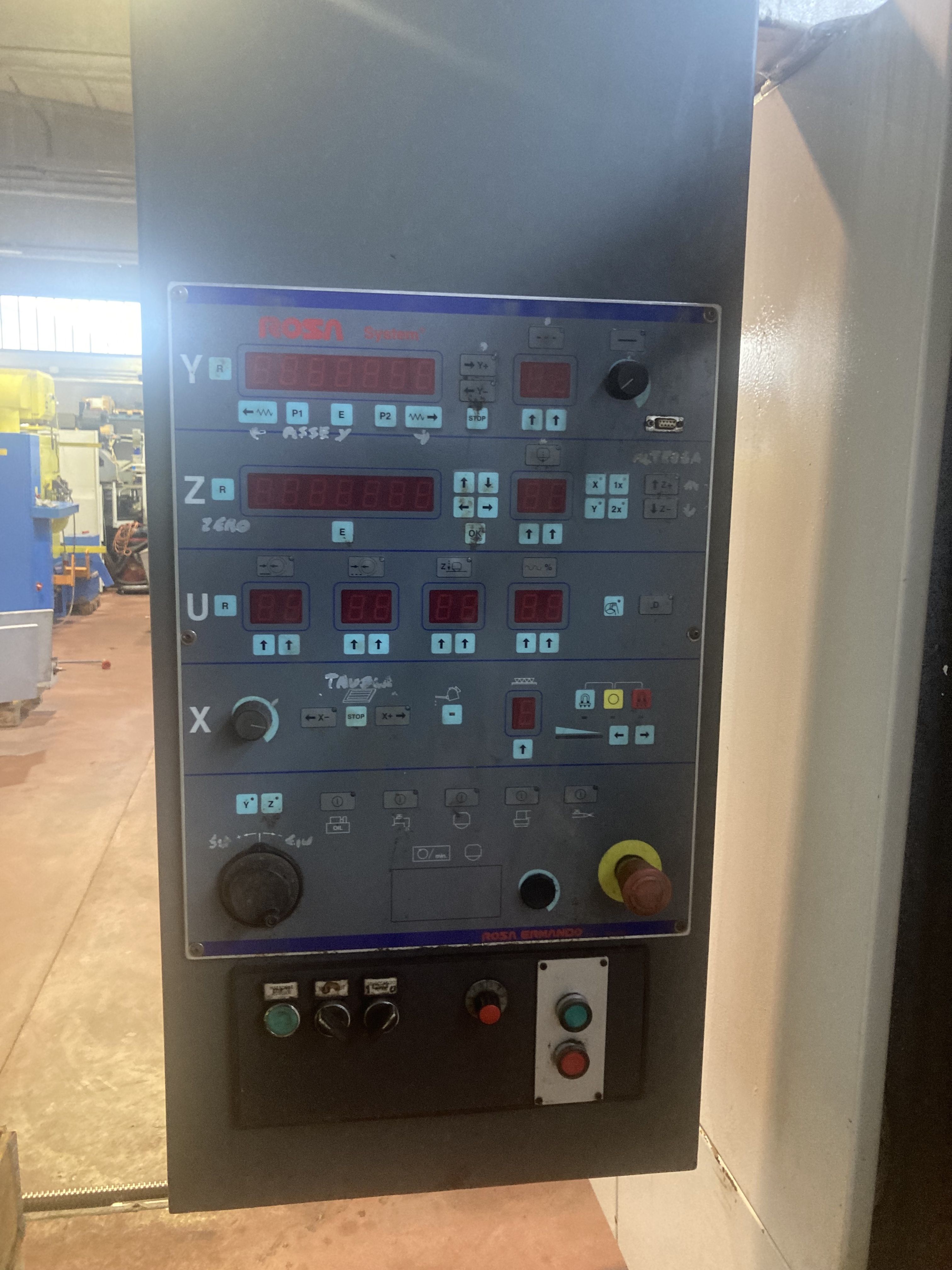

CNC
Measuring system
unita’ di governo ROSA SYSTEM 10 N
MAGNETIC TABLE
Available upon request
Yes
EXTRA
Filtration unit
si
Maintenance & Use books
Yes

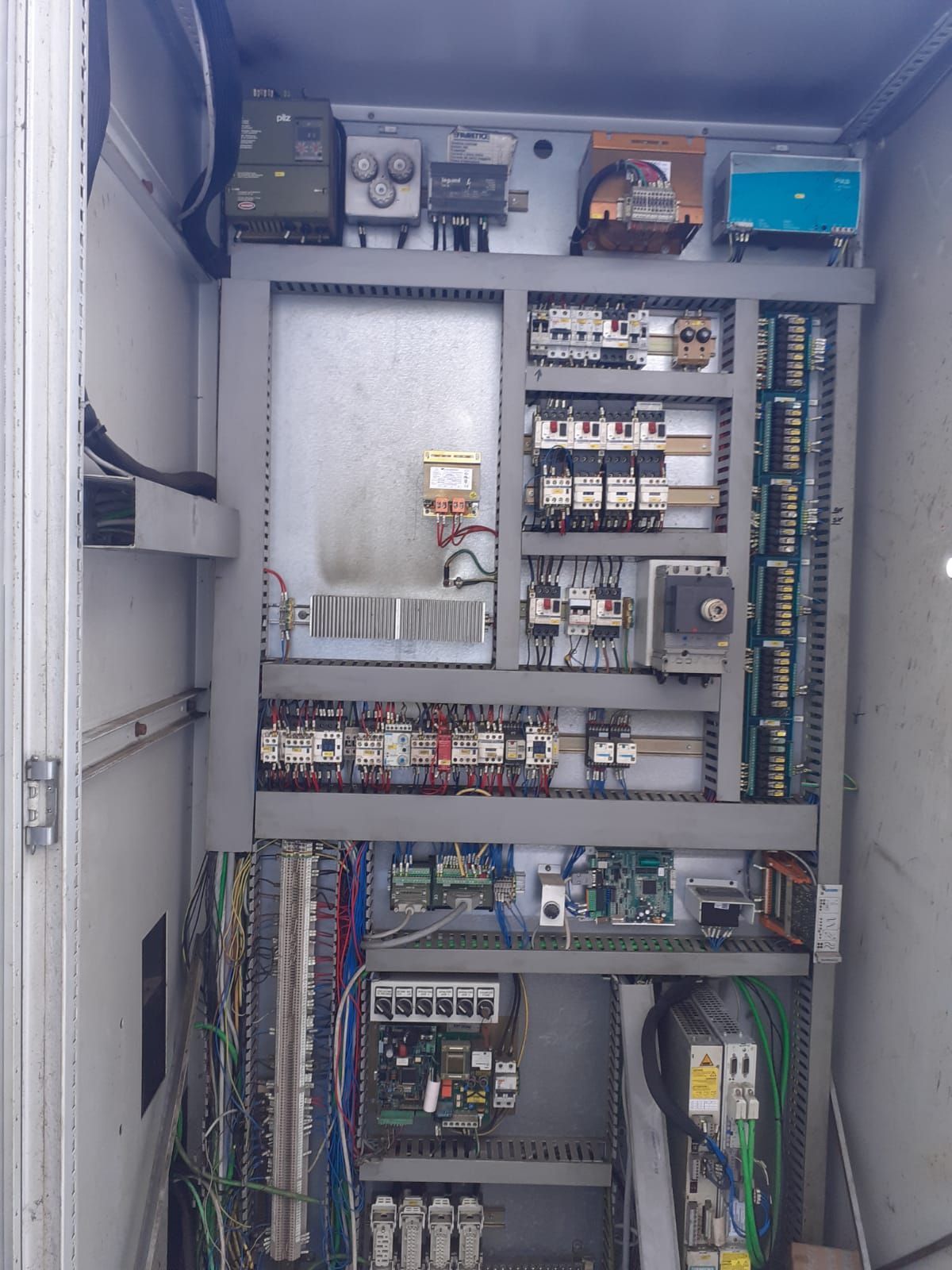

Electrical drawings
Yes
CE Certification
Yes
Housing
completa
Availability
pronta
Available in stock
si
Floor space
3950x2935x2540 mm155,51x115,55x100,00 in
Machine total weight
5900 Kg
