Category
Grinding Machine
Type
Surface
Made
Model

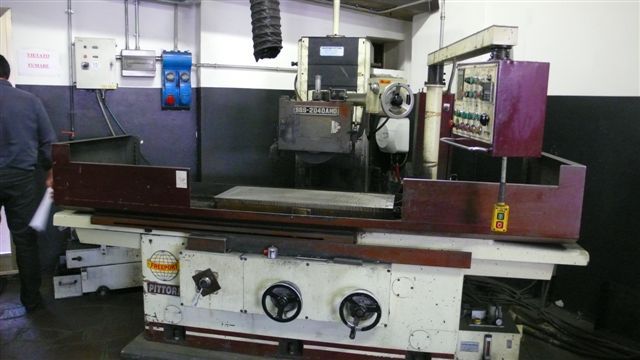

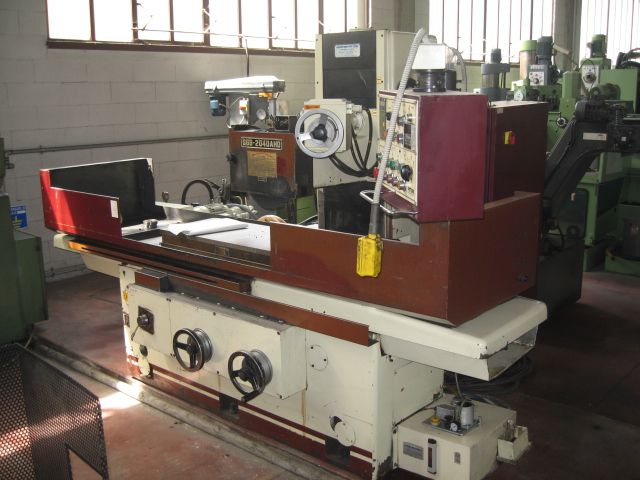

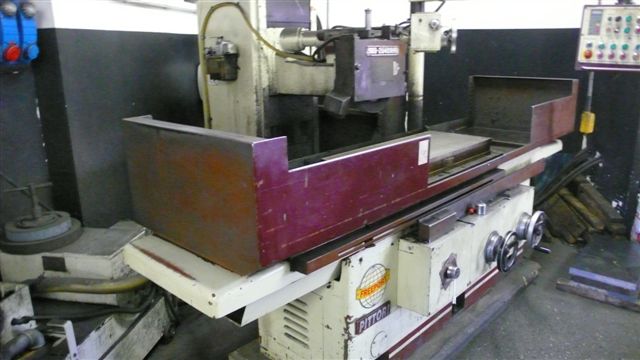

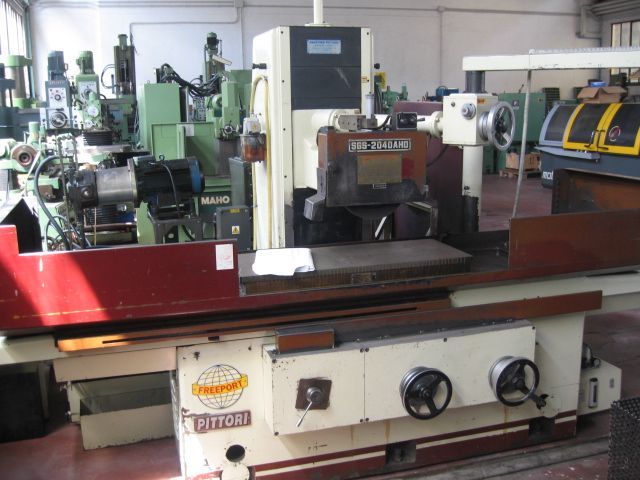

SGS 2040 AHD
Capacity
1000 x 550 mm39,37 x 21,65 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1100 mm43,31 in
Vertical (Z)
600 mm23,62 in
Cross RAM (Y)
550 mm21,65 in
Max grinding lenght
1000 mm39,37 in
Max grinding width
550 mm21,65 in
Max grinding thickness
600 mm23,62 in
Spindle nose axis - table distance
730 mm28,74 in
TABLE
Surface
1000x500 mm39,37x19,69 in
Stroke
1100 mm43,31 in
Cross speed
30
MAGNETIC TABLE
Surface
1000x500 mm39,37x19,69 in
Available upon request
Yes
FEEDS
Automatic Vertical
0,005 - 0,01 mm/min0,0002 - 0,0004 ipm
WHEEL
Wheel band thickness
50 mm1,97 in
Max wheel diameter
355 mm13,98 in
Hole diameter
127 mm5,00 in
EXTRA
Filtration unit
si
Relevant updates made on the machine
sostituzione cuscinetti mandrino
Available in stock
si
Availability
pronta
CE Certification
Yes
Maintenance & Use books
Yes
Electrical drawings
Yes
