Category
Grinding Machine
Type
Surface
Made
Model

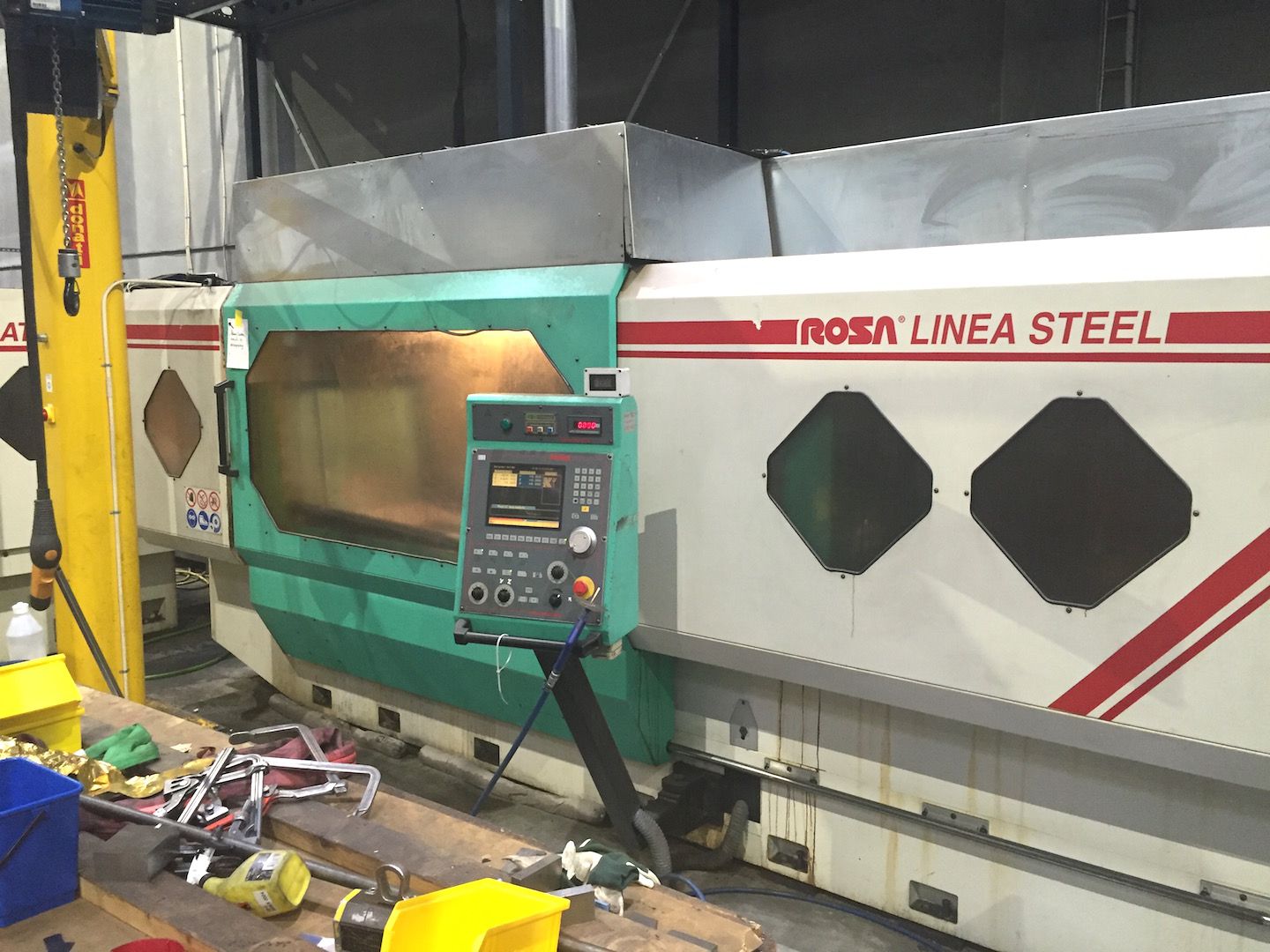

LINEA STEEL 13.7 CN
Capacity
1600x750x600 mm62,99x29,53x23,62 in
Technical specifications
Metric
Imperial

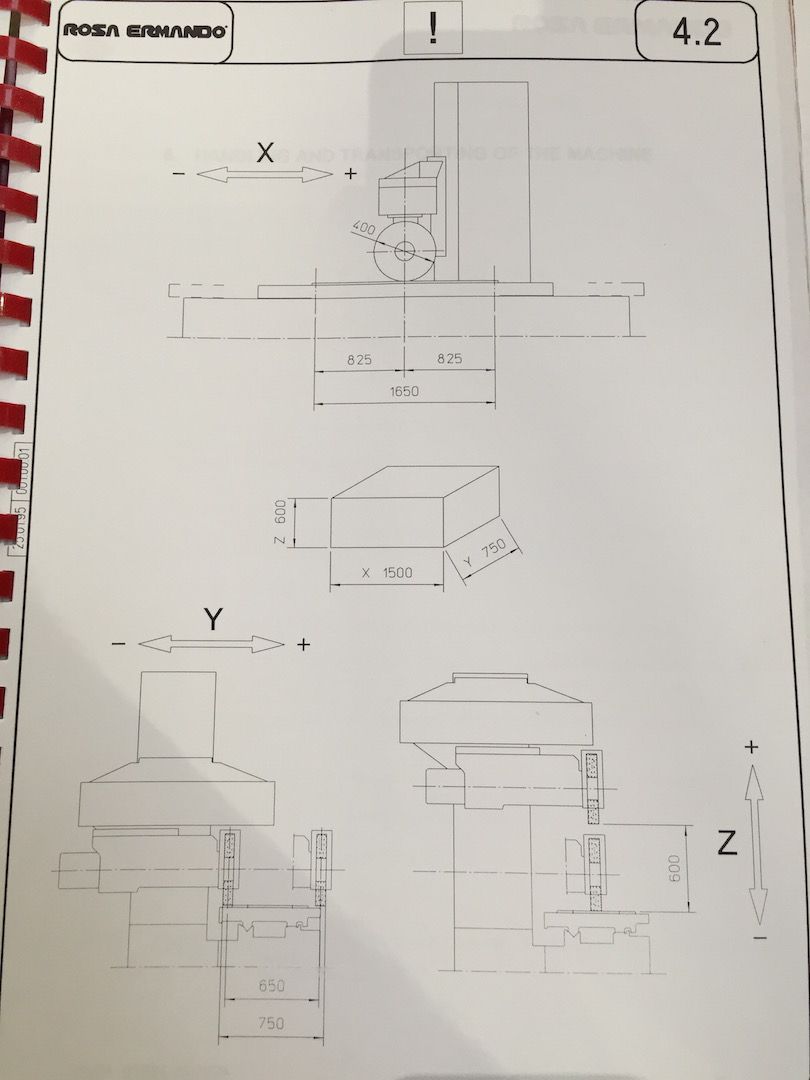

WORKING CAPACITY
Longitudinal (X)
1650 mm64,96 in
Vertical (Z)
600 mm23,62 in
Cross RAM (Y)
650 mm25,59 in
Max grinding lenght
1500 mm59,06 in
Max grinding width
750 mm29,53 in
Max grinding thickness
600 mm23,62 in

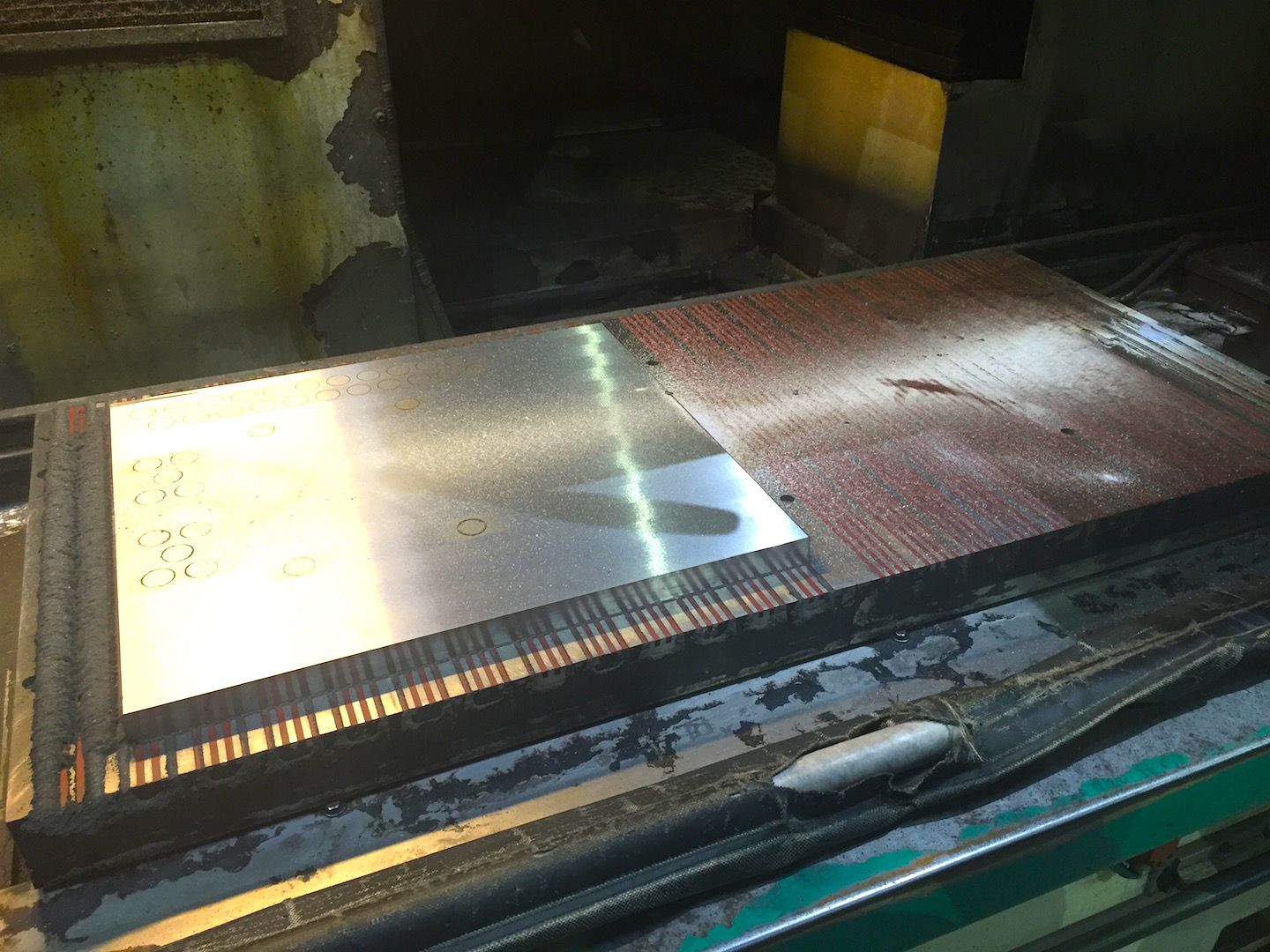

TABLE
Surface
1400x500 mm55,12x19,69 in
Stroke
1650 mm64,96 in
Cross speed
1-40 m/min
Capacity
1700 Kg
FEEDS
Cross
0-4000 mm/min0,0000-157,4800 ipm
CNC
CNC
ECS 2401 - Rosa System IV 3 axis

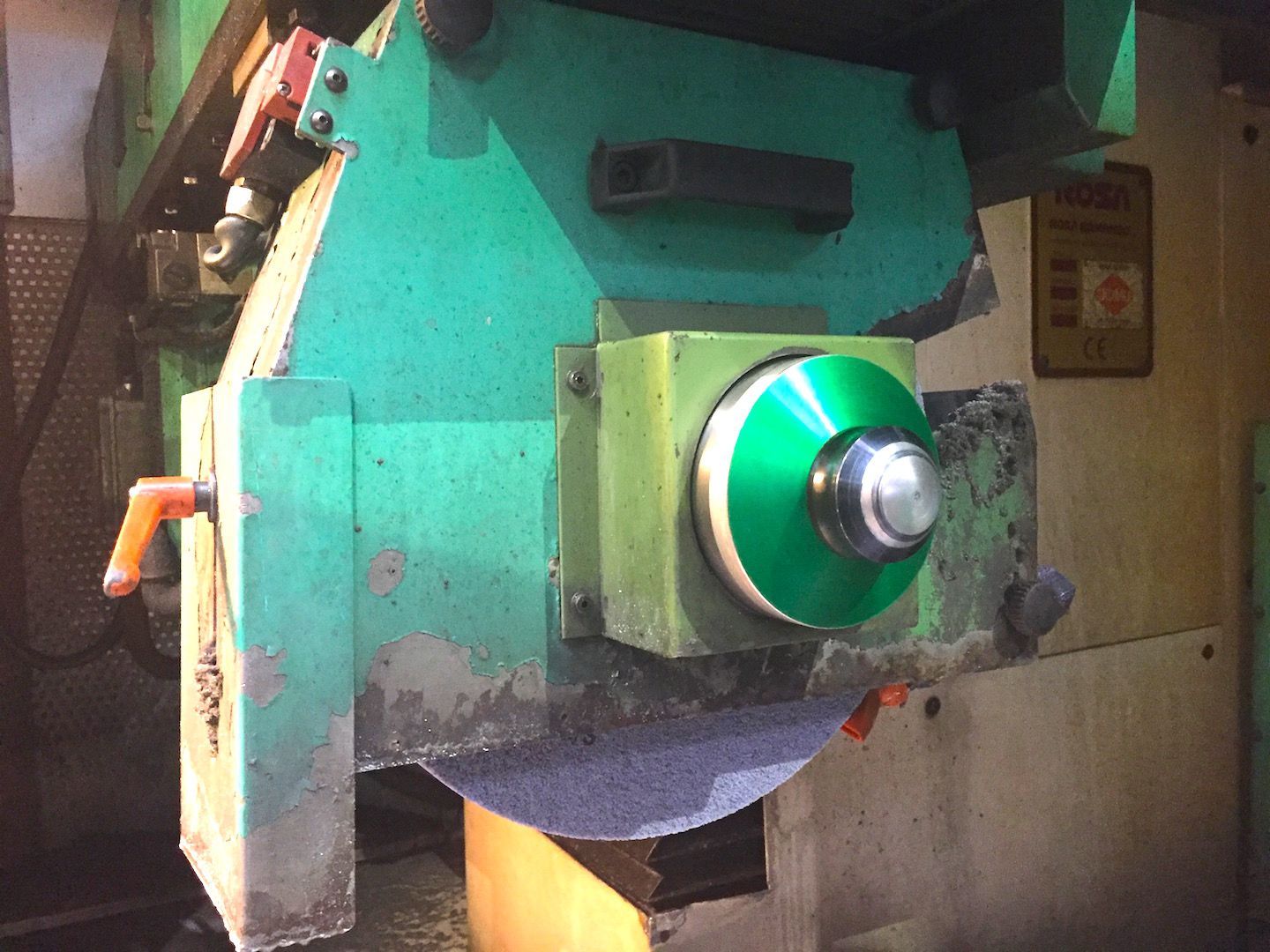

WHEEL SPINDLE
Spindle power
11 Kw
Rotating speed
1450 Rpm
WHEEL
Wheel band thickness
100 mm3,94 in
Max wheel diameter
406 mm15,98 in
Hole diameter
127 mm5,00 in
EXTRA
Tooling included
diamantatore sulla tavola, equilibratore mola, 2 piani magnetici, carenatura completa
Filtration unit
vasca filtro a carta con separatore magnetico
Availability
pronta
Available in stock
da 02/2015
Total power supply
16 Kw
Machine total weight
7800 Kg
Floor space
6000x3100x2560 mm236,22x122,05x100,79 in
Automatic dresser
Yes
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
integrale
Available under power
si
