Category
Grinding Machine
Type
Surface
Made
Model

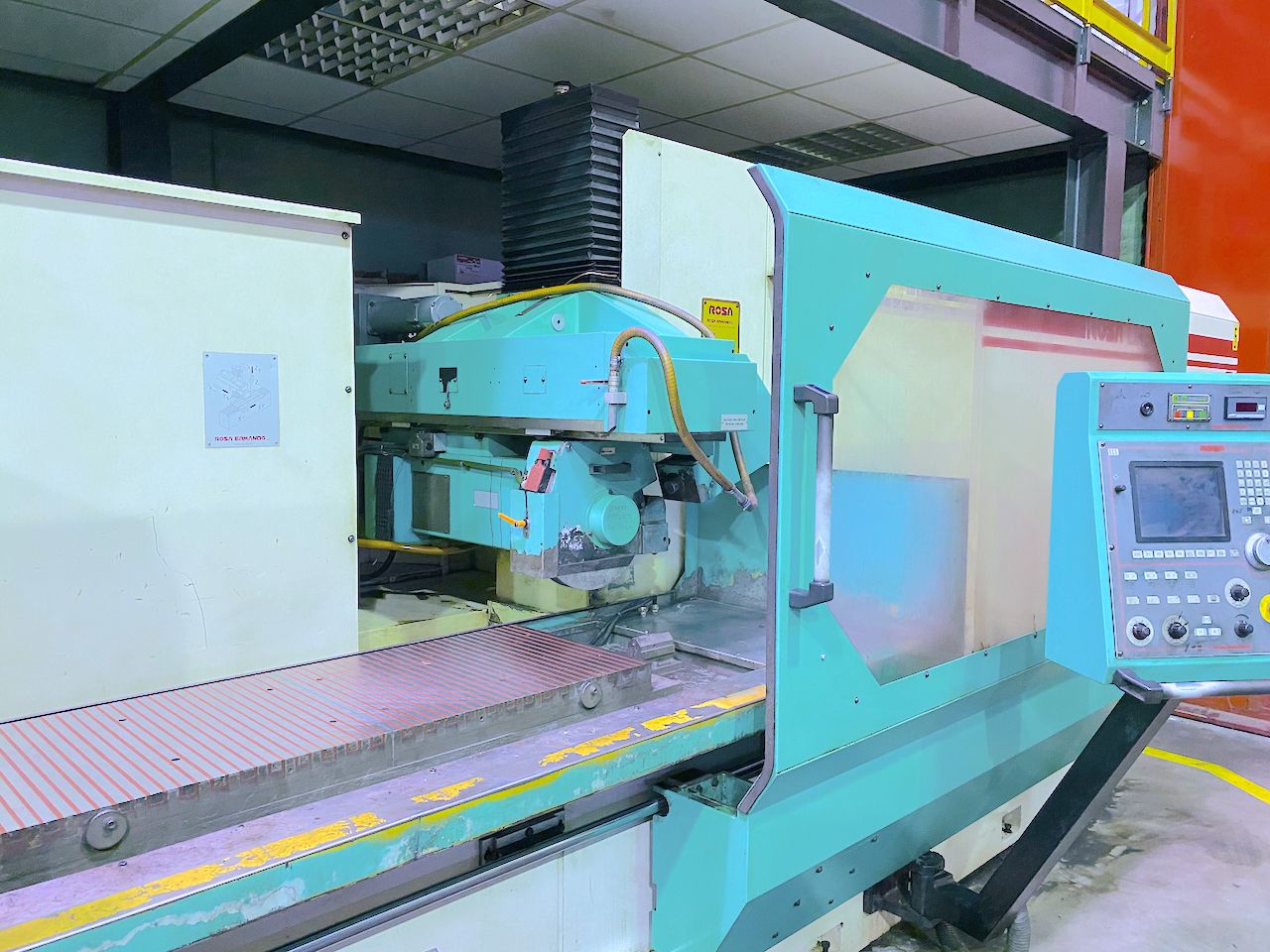

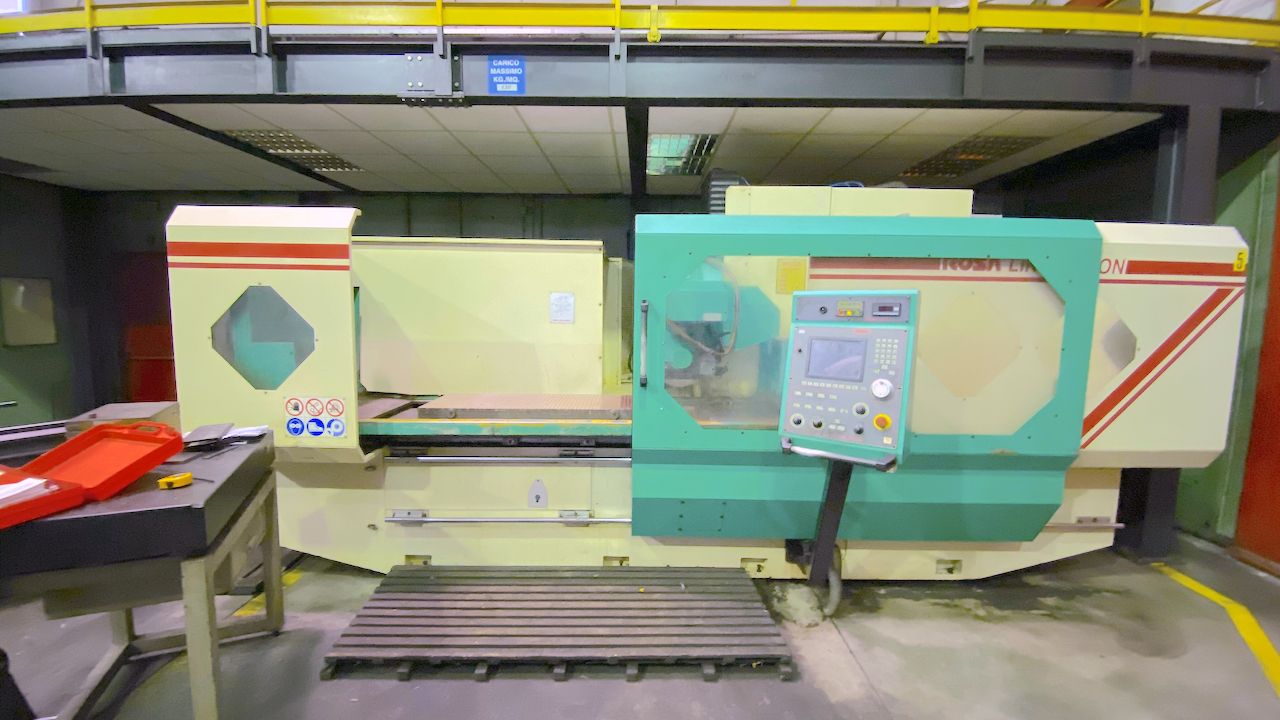

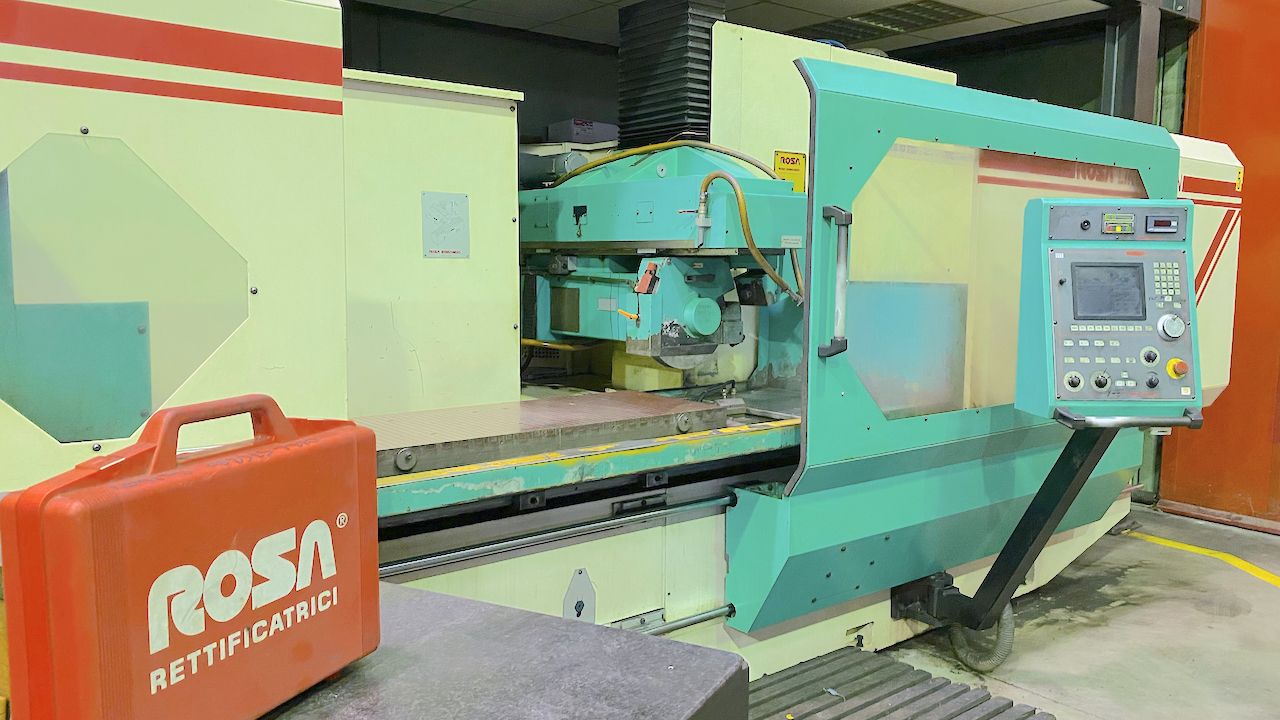

LINEA AVION 13.7 CN
Capacity
1500x750x600 mm59,06x29,53x23,62 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1650 mm64,96 in
Cross RAM (Y)
650 mm25,59 in
Max grinding lenght
1500 mm59,06 in
Max grinding width
750 mm29,53 in
Spindle nose axis - table distance
780 mm30,71 in
Max grinding thickness
600 mm23,62 in
Vertical (Z)
600 mm23,62 in

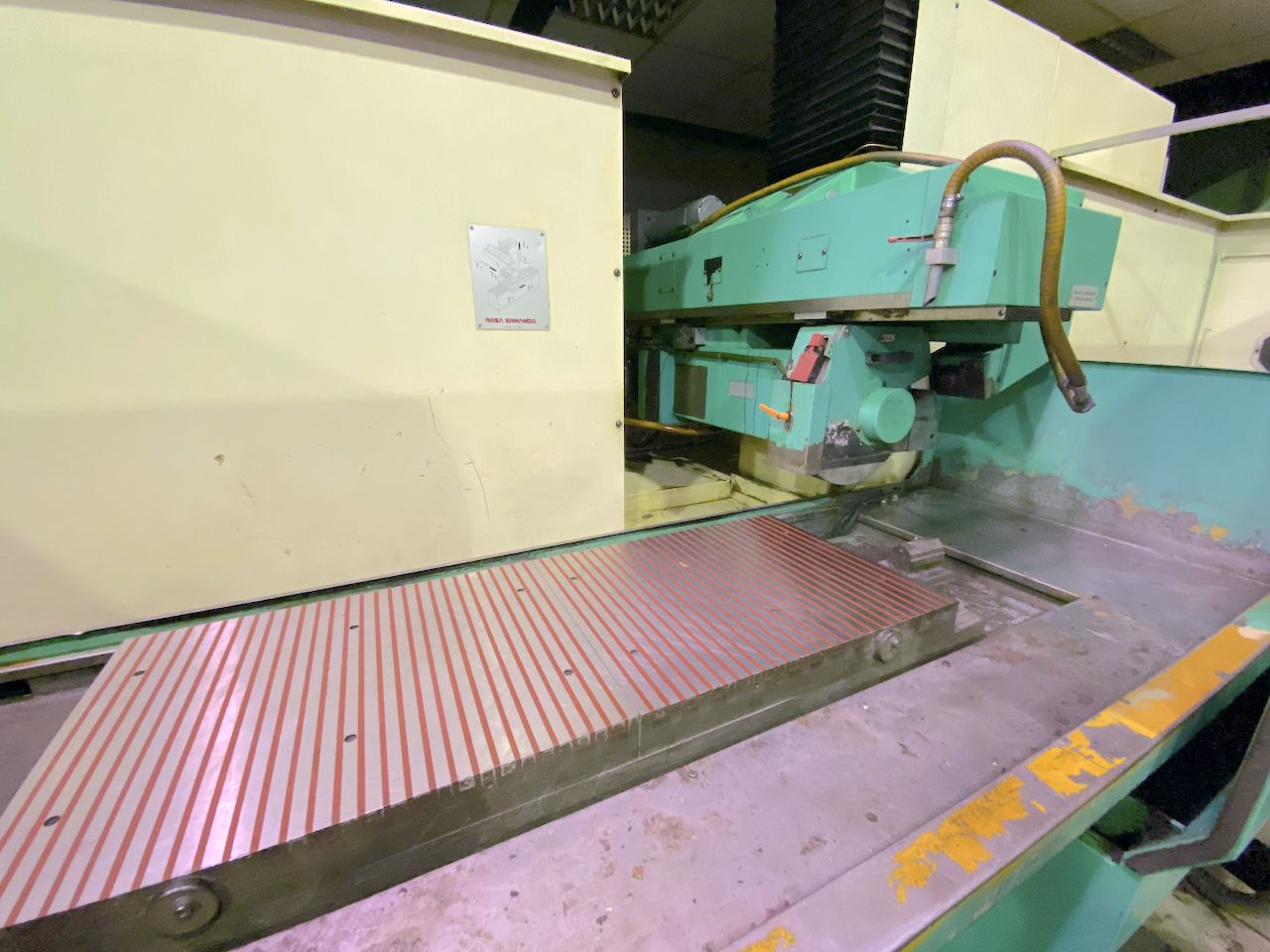

TABLE
Surface
1400x500 mm55,12x19,69 in
Stroke
1650 mm64,96 in
Cross speed
1-40 m/min
Capacity
1700 Kg

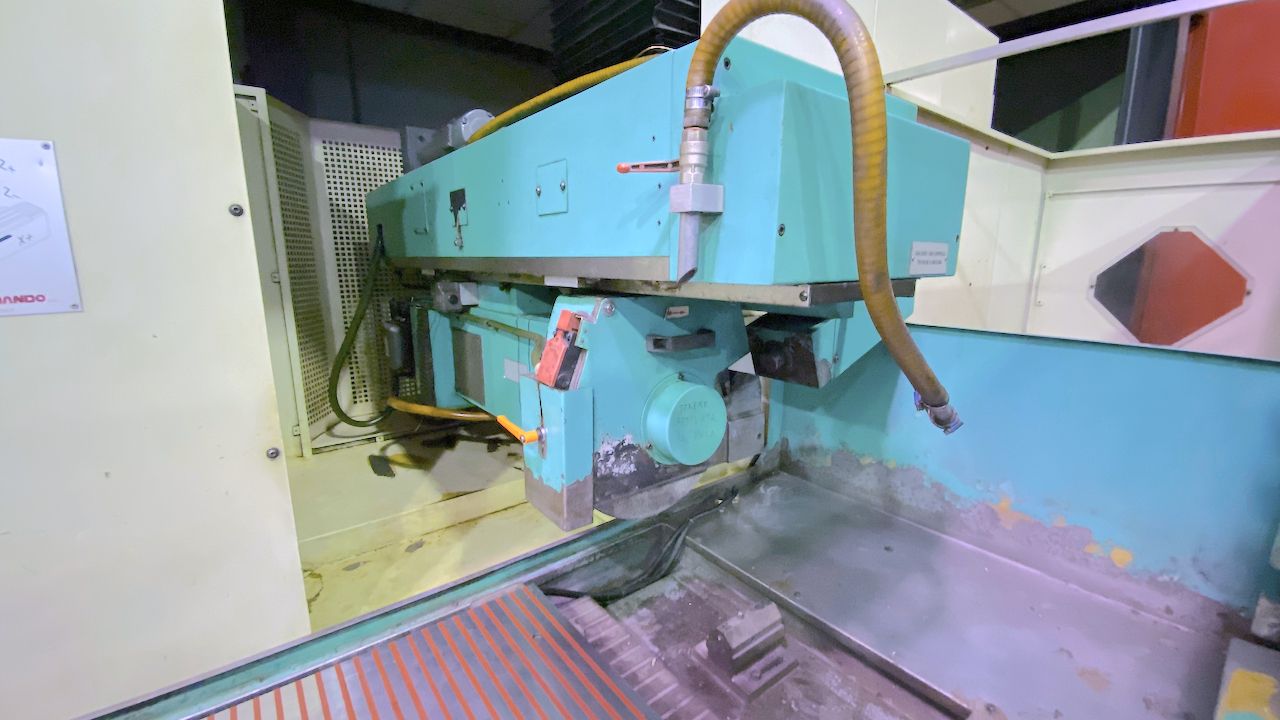

WHEEL SPINDLE
Spindle power
11 Kw
Rotating speed
1450 Rpm

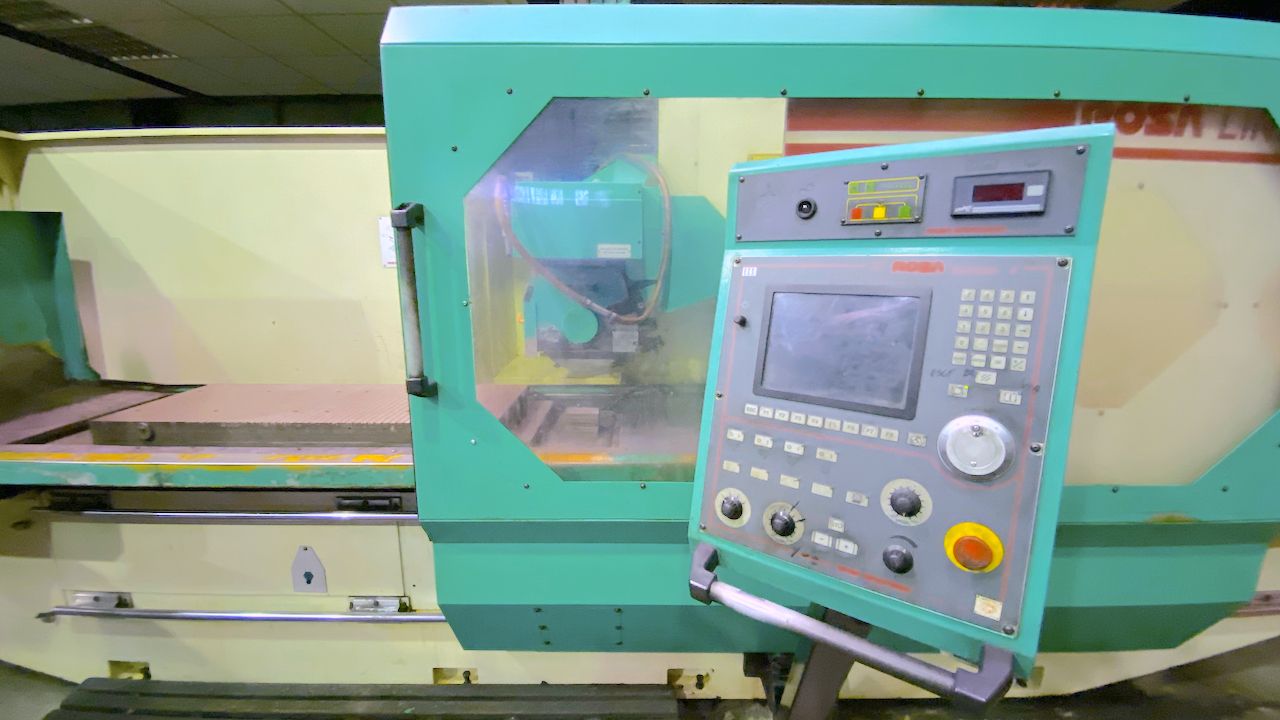

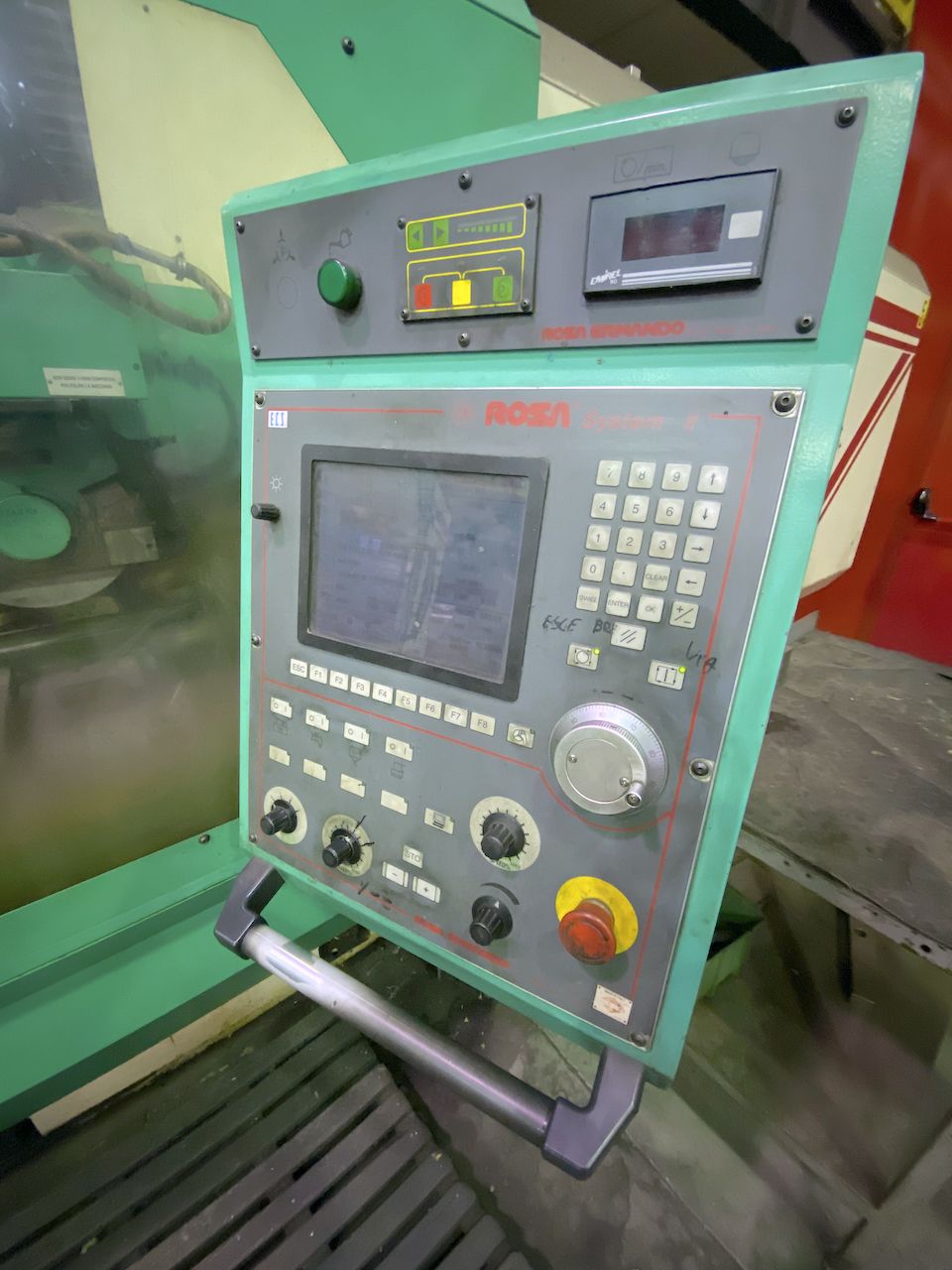

CNC
CNC
ECS ROSA System 2
WHEEL
Wheel band thickness
30-100 mm1,18-3,94 in
Max wheel diameter
400 mm15,75 in
Hole diameter
127 mm5,00 in
FEEDS
Cross
0-4000 mm/min0,0000-157,4800 ipm
EXTRA
Floor space
5200x2995x2560 mm204,72x117,91x100,79 in
Machine total weight
9500 Kg
Filtration unit
SI
Total power supply
15 Kw
Automatic dresser
Yes
CE Certification
Yes
Availability
Pronta
