Category
Grinding Machine
Type
Surface
Made
Model

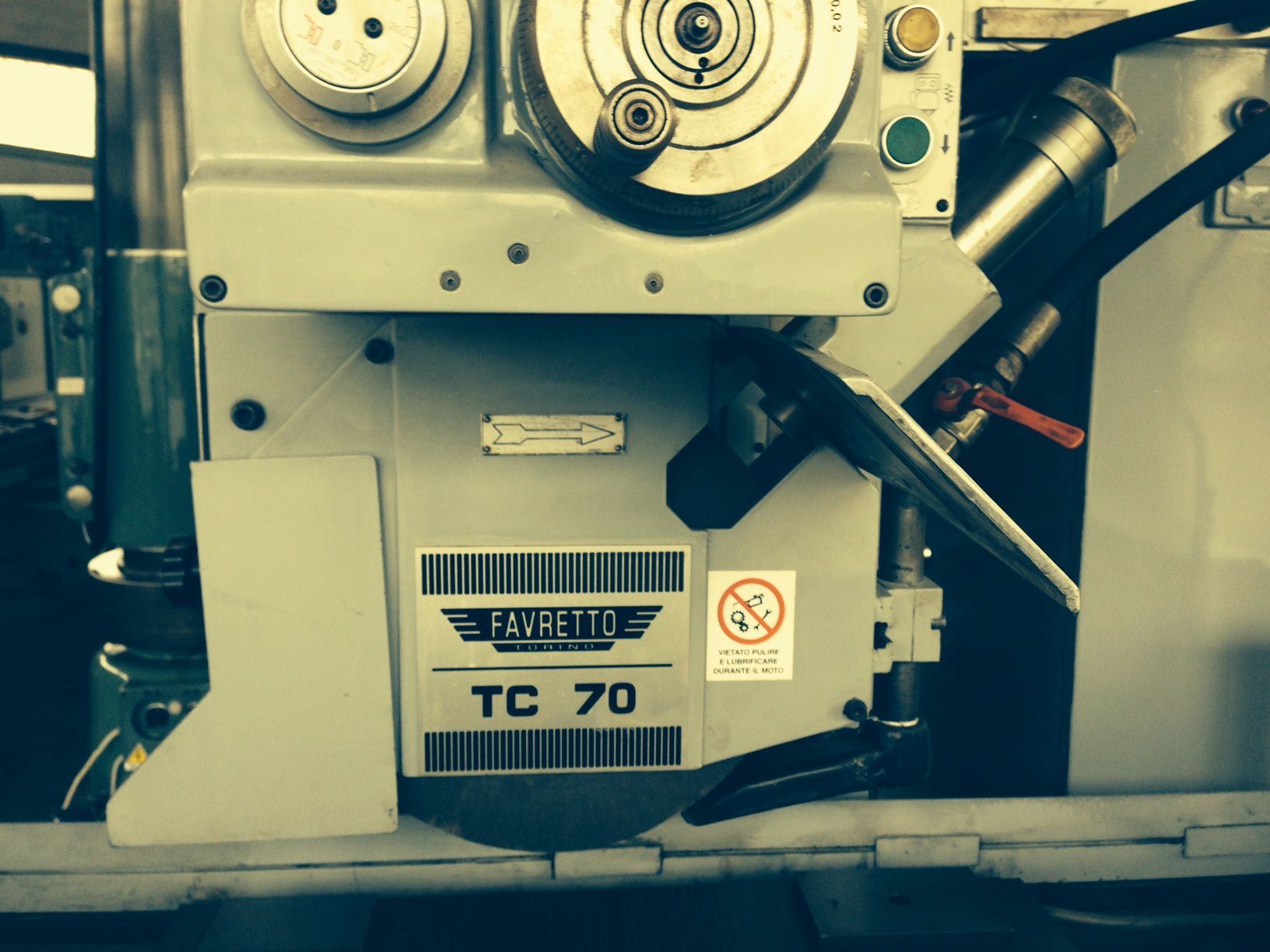

TC70
Capacity
700x575x450 mm27,56x22,64x17,72 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
700 mm27,56 in
Vertical (Z)
450 mm17,72 in
Cross RAM (Y)
575 mm22,64 in
Max grinding lenght
700 mm27,56 in
Max grinding width
575 mm22,64 in
Max grinding thickness
400 mm15,75 in
TABLE
Surface
700x500 mm27,56x19,69 in
Stroke
700 mm27,56 in
Cross speed
2-35
Rotating speed
1450 Rpm
FEEDS
Automatic Vertical
0,005-0,05 mm/min0,0002-0,0020 ipm
Cross
AUTOMATICI mm/minAUTOMATICI ipm
WHEEL SPINDLE
Spindle power
12 Kw
Rotating speed
1450 Rpm
WHEEL
Wheel band thickness
75 mm2,95 in
Max wheel diameter
406 mm15,98 in
Hole diameter
127 mm5,00 in
MAGNETIC TABLE
Available upon request
Yes
Surface
1000X500 mm39,37X19,69 in
EXTRA
Total power supply
18 Kw
Machine total weight
4500 Kg
Floor space
3400x1800x2200 mm133,86x70,87x86,61 in
Tooling included
Diaform
Manual dresser
Yes
Housing
riparo frontale
Availability
pronta
Available in stock
si
Available under power
SI
Relevant updates made on the machine
ricondizionata
Maintenance & Use books
Yes
