Category
Grinding Machine
Type
Surface
Made
Model

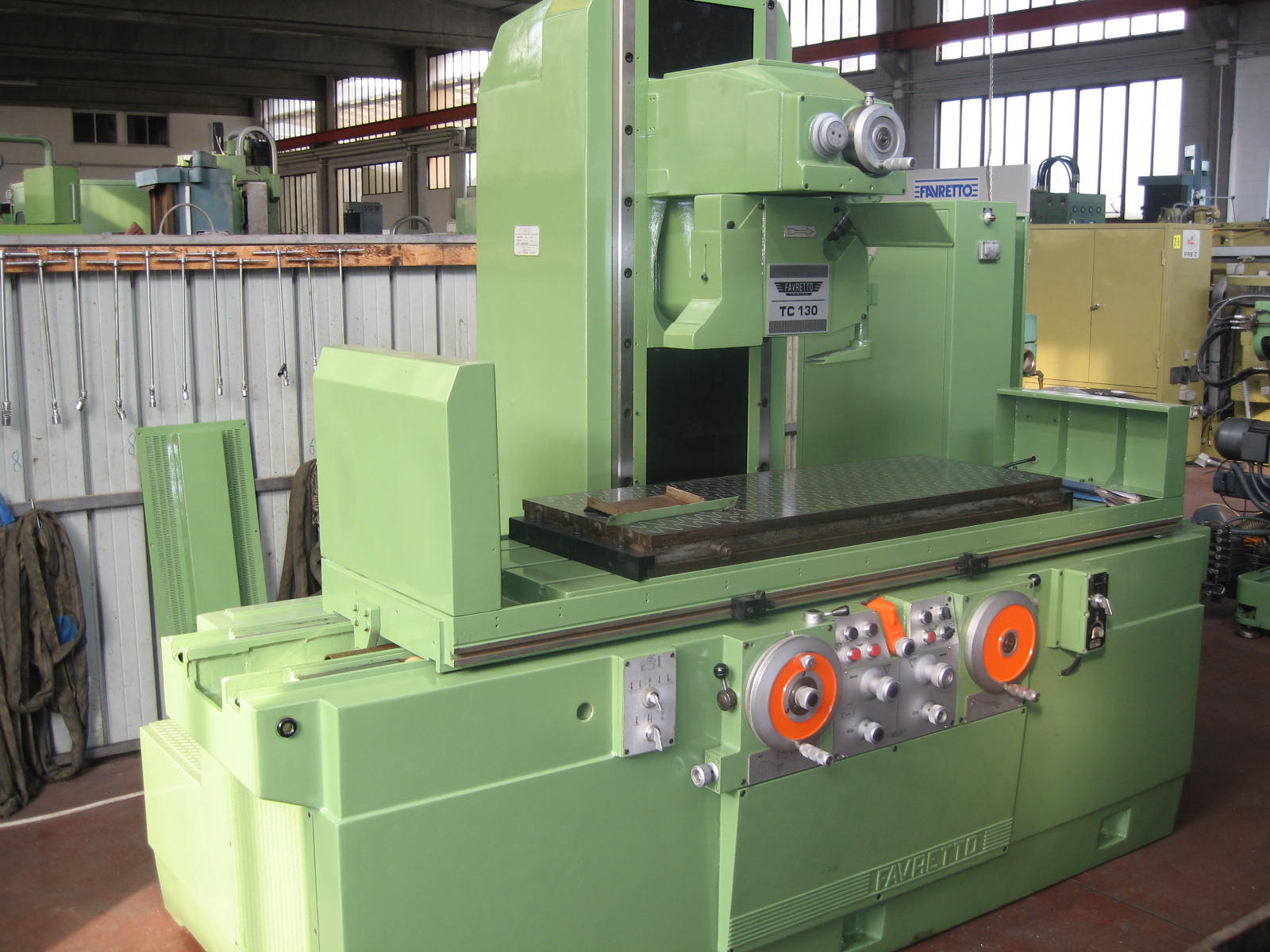

TC 130
Capacity
1300x575x450 mm51,18x22,64x17,72 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
1380 mm54,33 in
Vertical (Z)
450 mm17,72 in
Cross RAM (Y)
500 mm19,69 in
Max grinding lenght
1300 mm51,18 in
Max grinding width
575 mm22,64 in
Max grinding thickness
450 mm17,72 in
TABLE
Surface
1300x500 mm51,18x19,69 in
Stroke
1380 mm54,33 in
Cross speed
2-40 m/min
FEEDS
Automatic Vertical
0,005-0,05 mm/min0,0002-0,0020 ipm
WHEEL SPINDLE
Rotating speed
1750 Rpm
Spindle power
11 Kw
WHEEL
Wheel band thickness
50 mm1,97 in
Max wheel diameter
406 mm15,98 in
Hole diameter
127 mm5,00 in
MAGNETIC TABLE
Surface
1300x500 mm51,18x19,69 in
EXTRA
Machine total weight
6000 Kg
Floor space
4080x2000x2480 mm160,63x78,74x97,64 in
Tooling included
piano magnetico 1300x400
Availability
pronta
Available in stock
si
