Category
Grinding Machine
Type
Surface
Made
Model

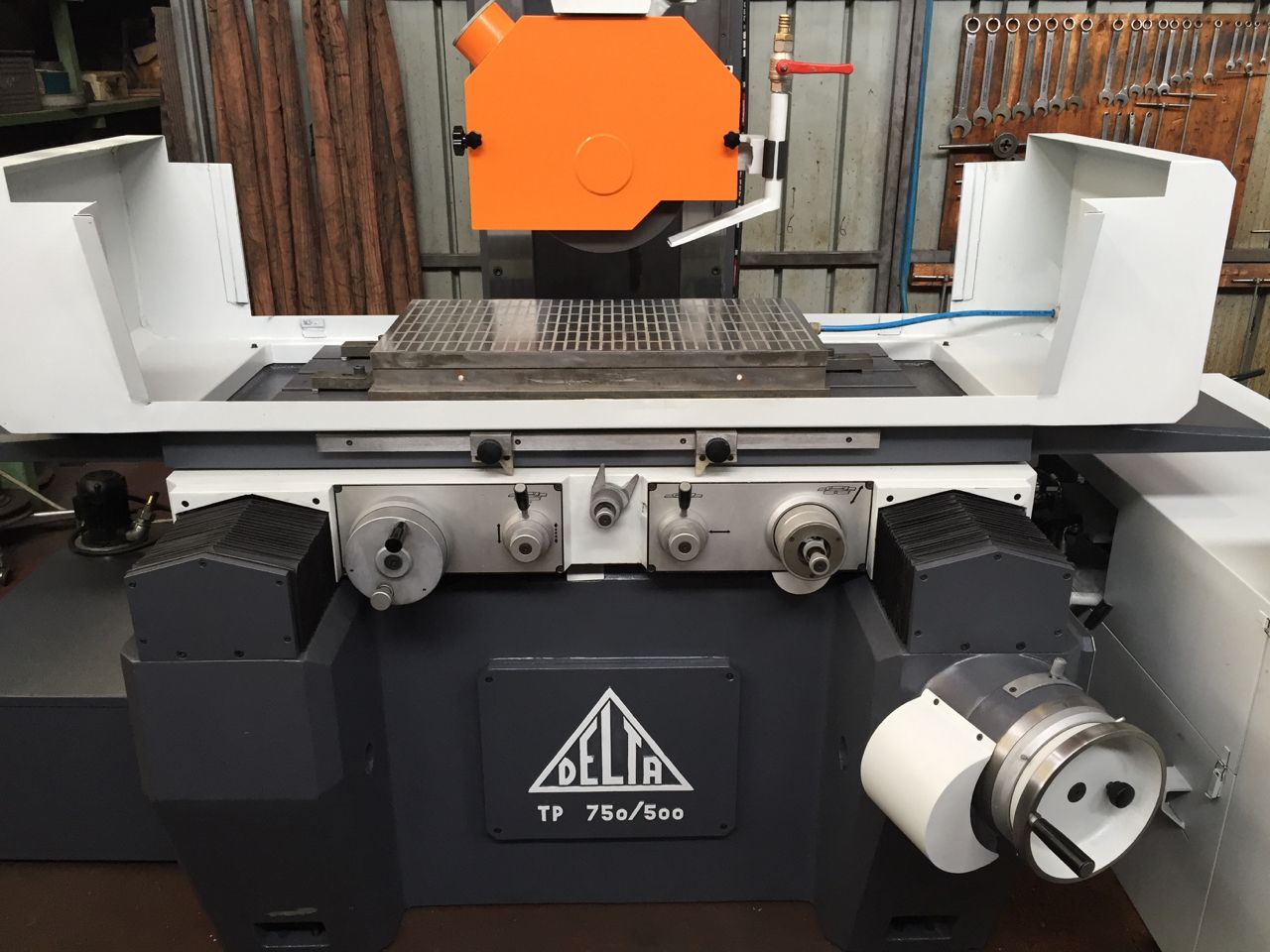

TP 750/500
Capacity
750x500 mm29,53x19,69 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
800 mm31,50 in
Vertical (Z)
600 mm23,62 in
Cross Table (Y)
450 mm17,72 in
Max grinding width
500 mm19,69 in
Max grinding lenght
800 mm31,50 in
TABLE
Rotating speed
1400 Rpm
Surface
700x400 mm27,56x15,75 in
Cross speed
0-30
FEEDS
Automatic Vertical
si 0,005-0,03 mm/minsi 0,0002-0,0012 ipm
Manual Vertical
si mm/minsi ipm
Cross
si mm/minsi ipm
WHEEL
Wheel band thickness
40 mm1,57 in
Max wheel diameter
350 mm13,78 in
Hole diameter
127 mm5,00 in
PIANO MAGNETICO
Available upon request
No

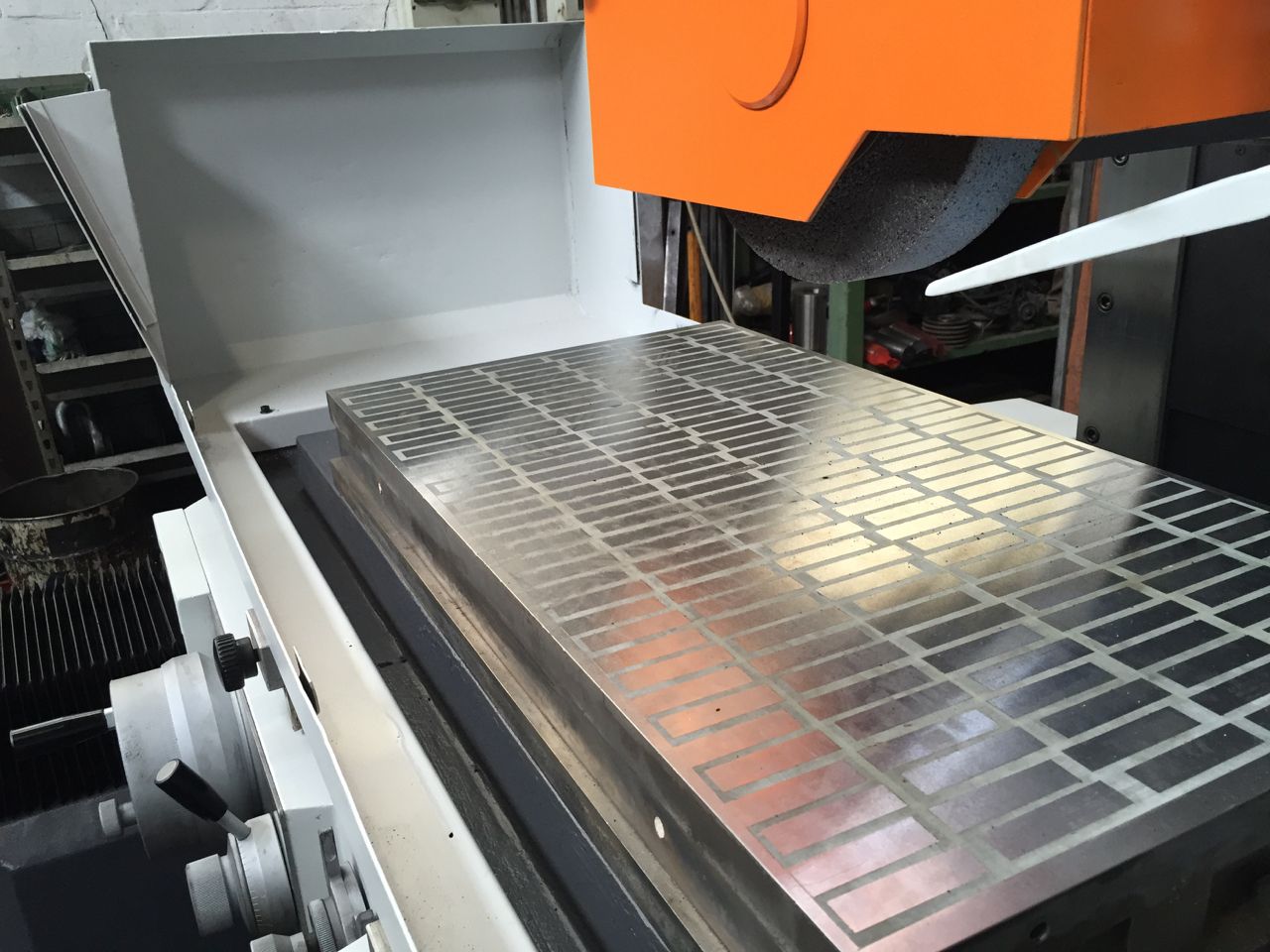

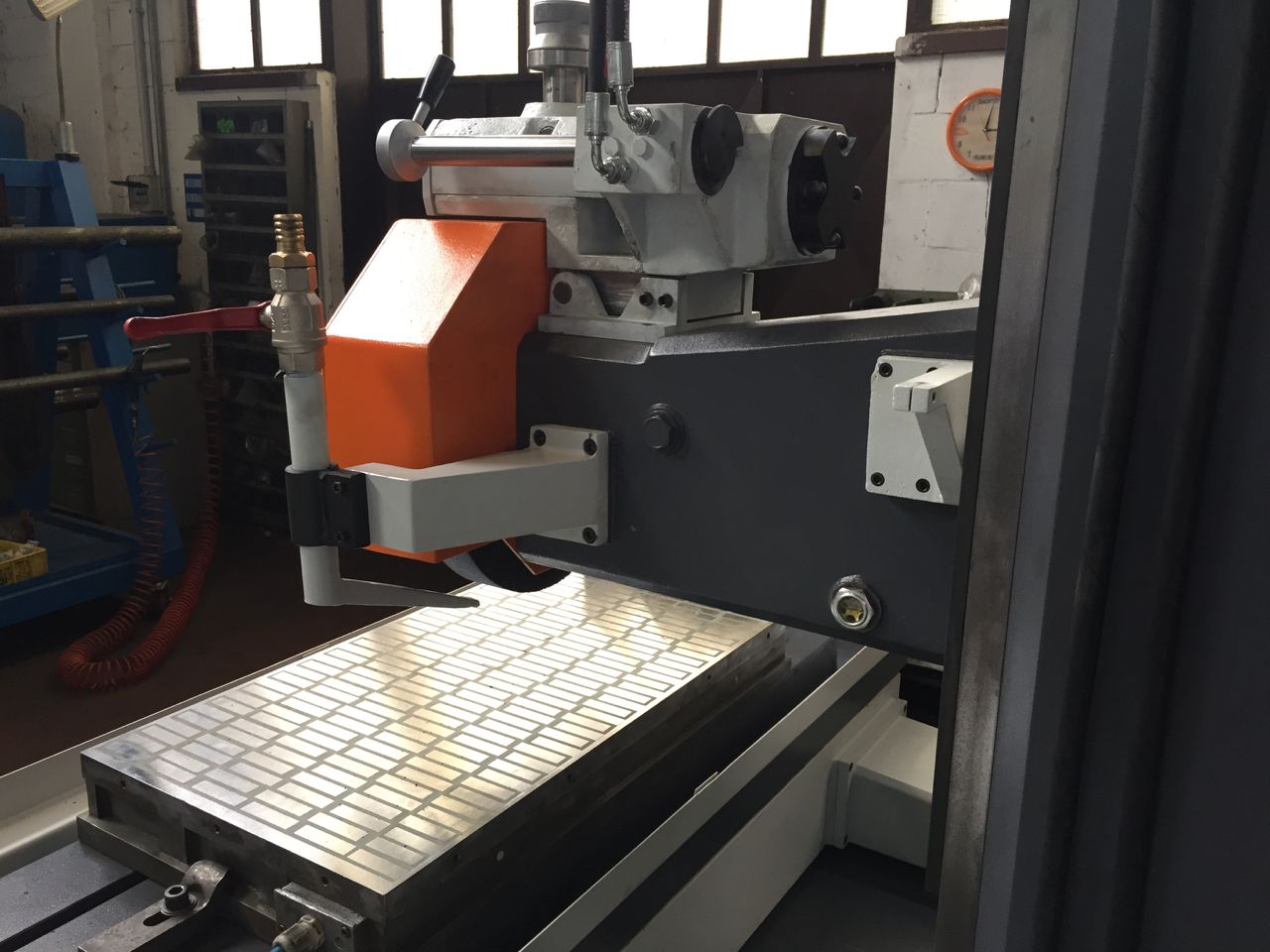

MAGNETIC TABLE
Surface
700x400 mm27,56x15,75 in
WHEEL SPINDLE
Spindle power
10hp Kw
Rotating speed
1400 Rpm
EXTRA
Tooling included
piano magnetico
Filtration unit
si
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Available in stock
si
Available under power
si
