Category
Grinding Machine
Type
Surface
Made

DELTA

Model
TP 700 X 400
Capacity
700X400 mm27,56X15,75 in

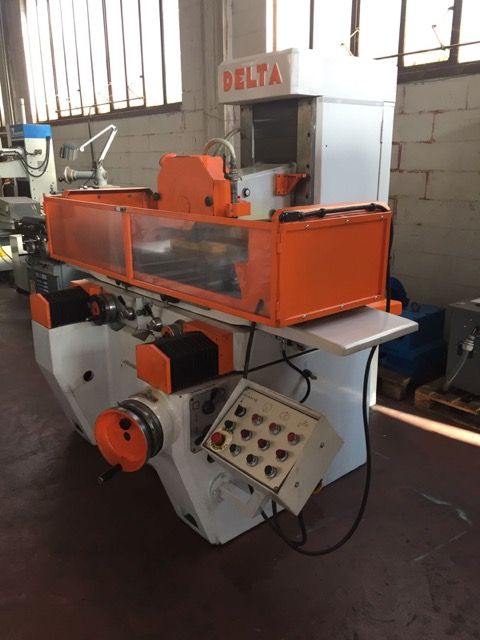

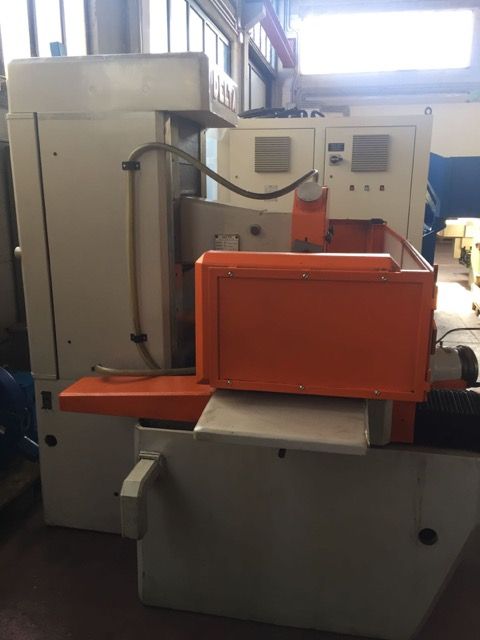

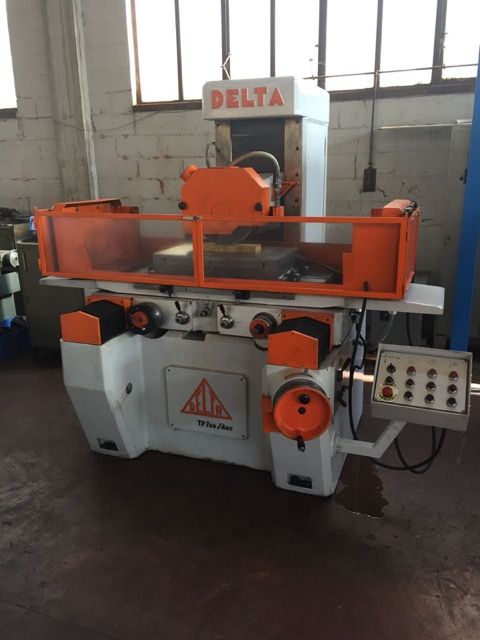

DELTA TP 700 X 400
All the machines are available subject to prior sale
Gallery - 3 photos
Gallery - 3 photos
Gallery - 3 photos
Data sheet

Technical specifications

Metric Imperial
WORKING CAPACITY
Longitudinal (X)
700 mm27,56 in
Cross Table (Y)
450 mm17,72 in
Vertical (Z)
550 mm21,65 in
Max grinding lenght
750 mm29,53 in
Max grinding width
400 mm15,75 in
Spindle nose axis - table distance
550 mm21,65 in
MAGNETIC TABLE
Available upon request
Yes
FEEDS
Automatic Vertical
SI mm/minSI ipm
Cross
SI mm/minSI ipm
TABLE
Cross speed
0-30 MILL/MIN
WHEEL SPINDLE
Spindle power
10 HP Kw
Rotating speed
1400 Rpm
WHEEL
Wheel band thickness
50 mm1,97 in
Max wheel diameter
400 mm15,75 in
Hole diameter
127 mm5,00 in
EXTRA
Housing
SI
Availability
PRONTA
Available under power
SI
Machine total weight
4000 Kg
Filtration unit
SI
Maintenance & Use books
Yes
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
