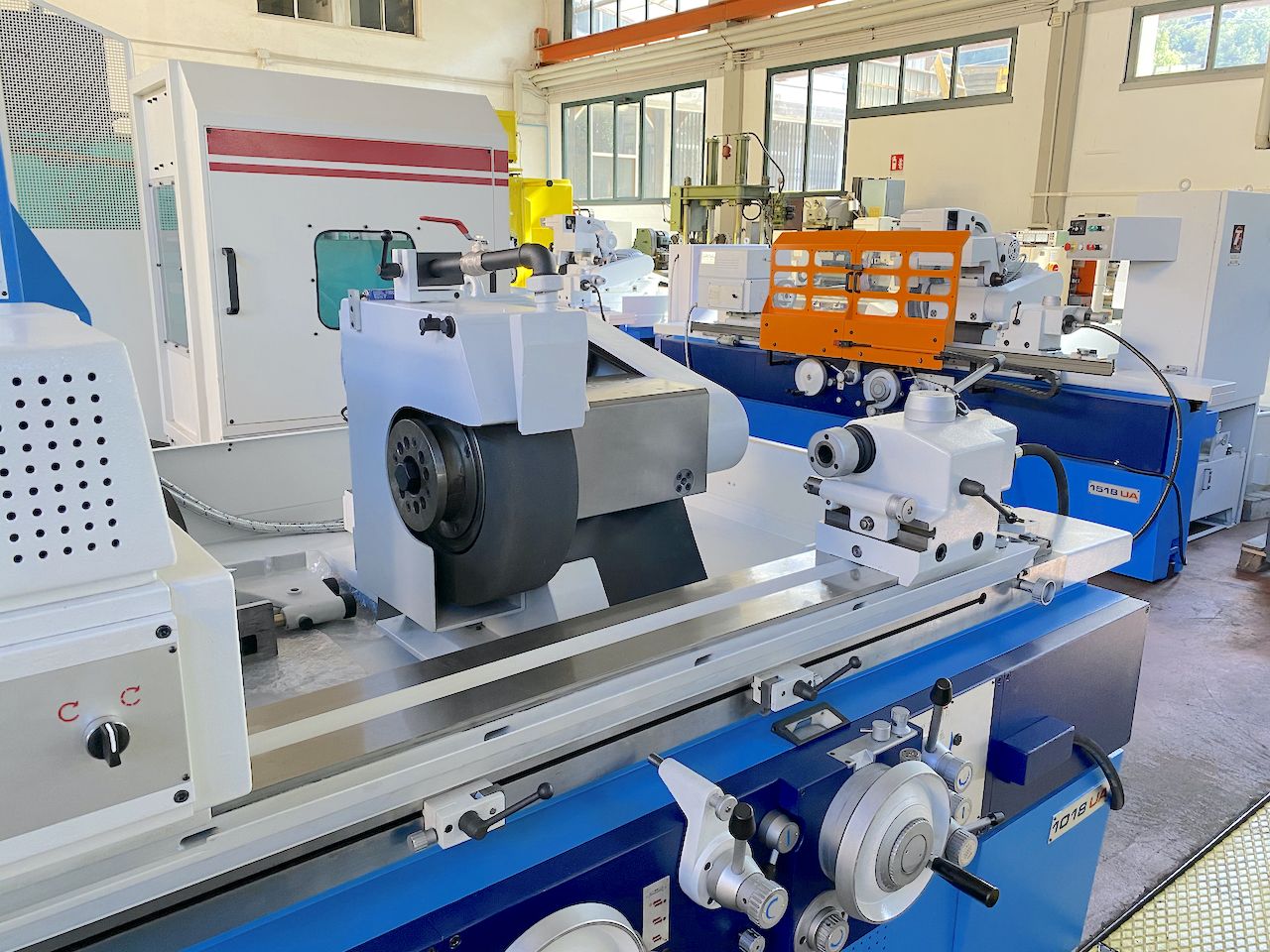

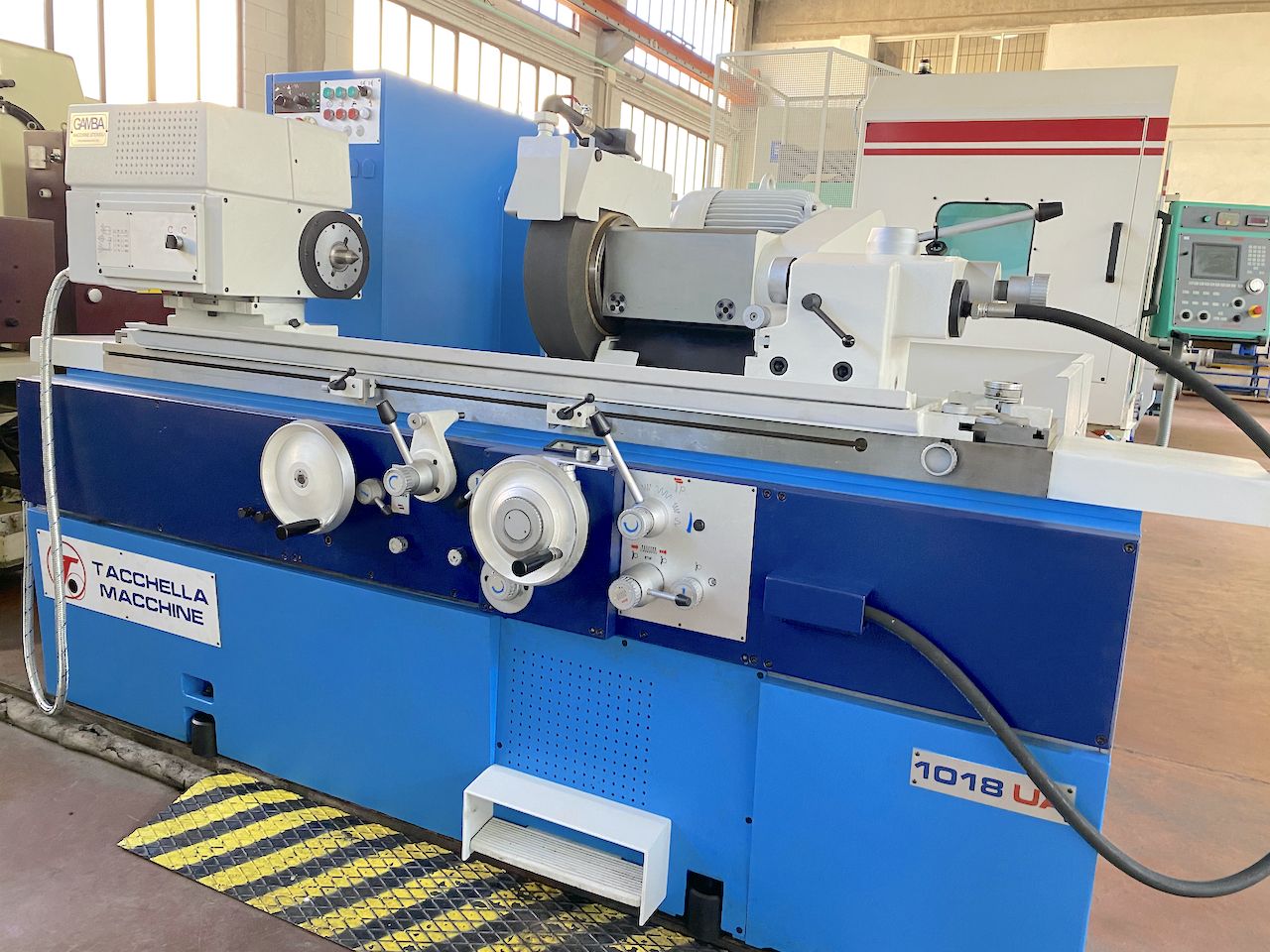

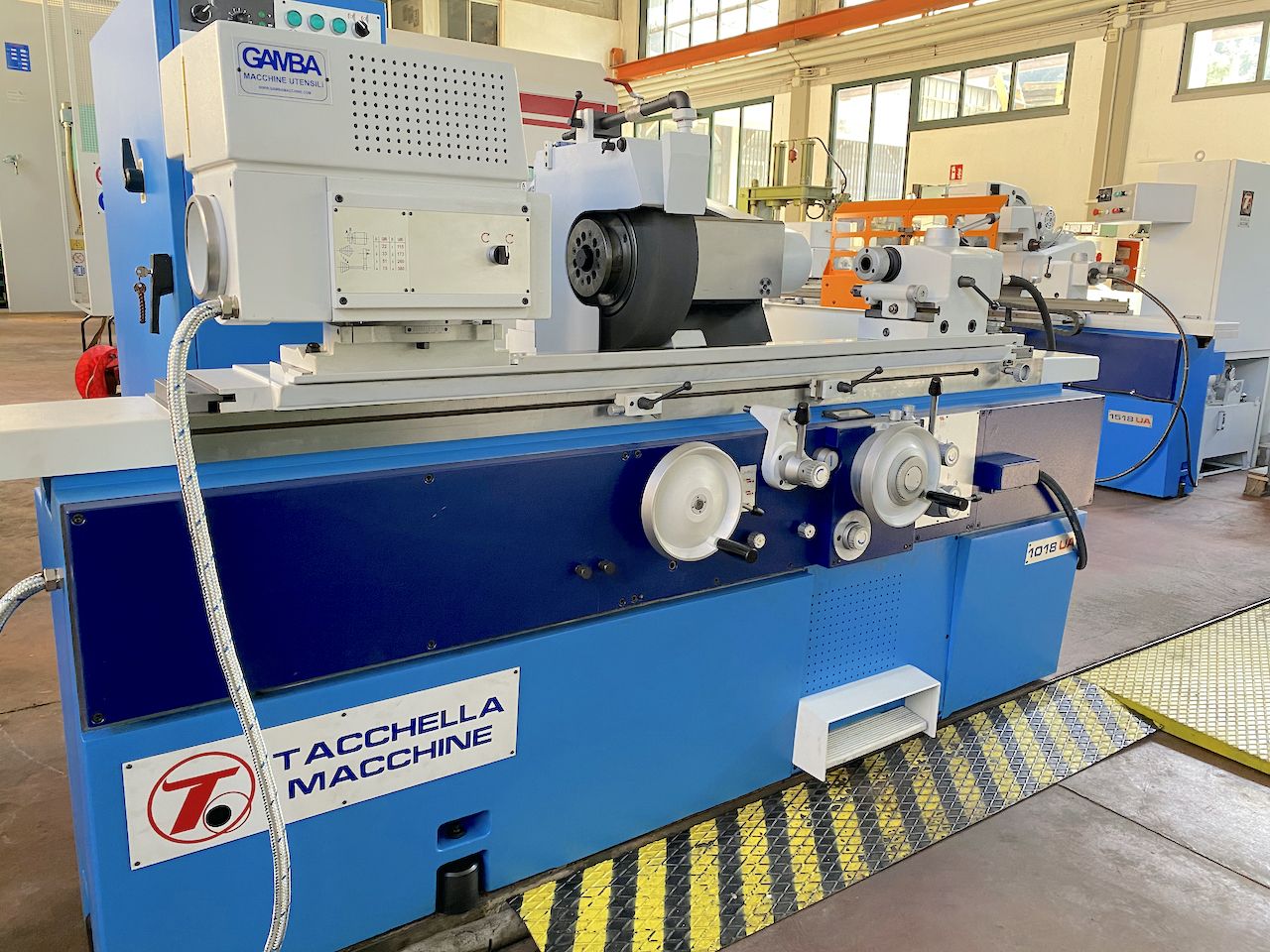

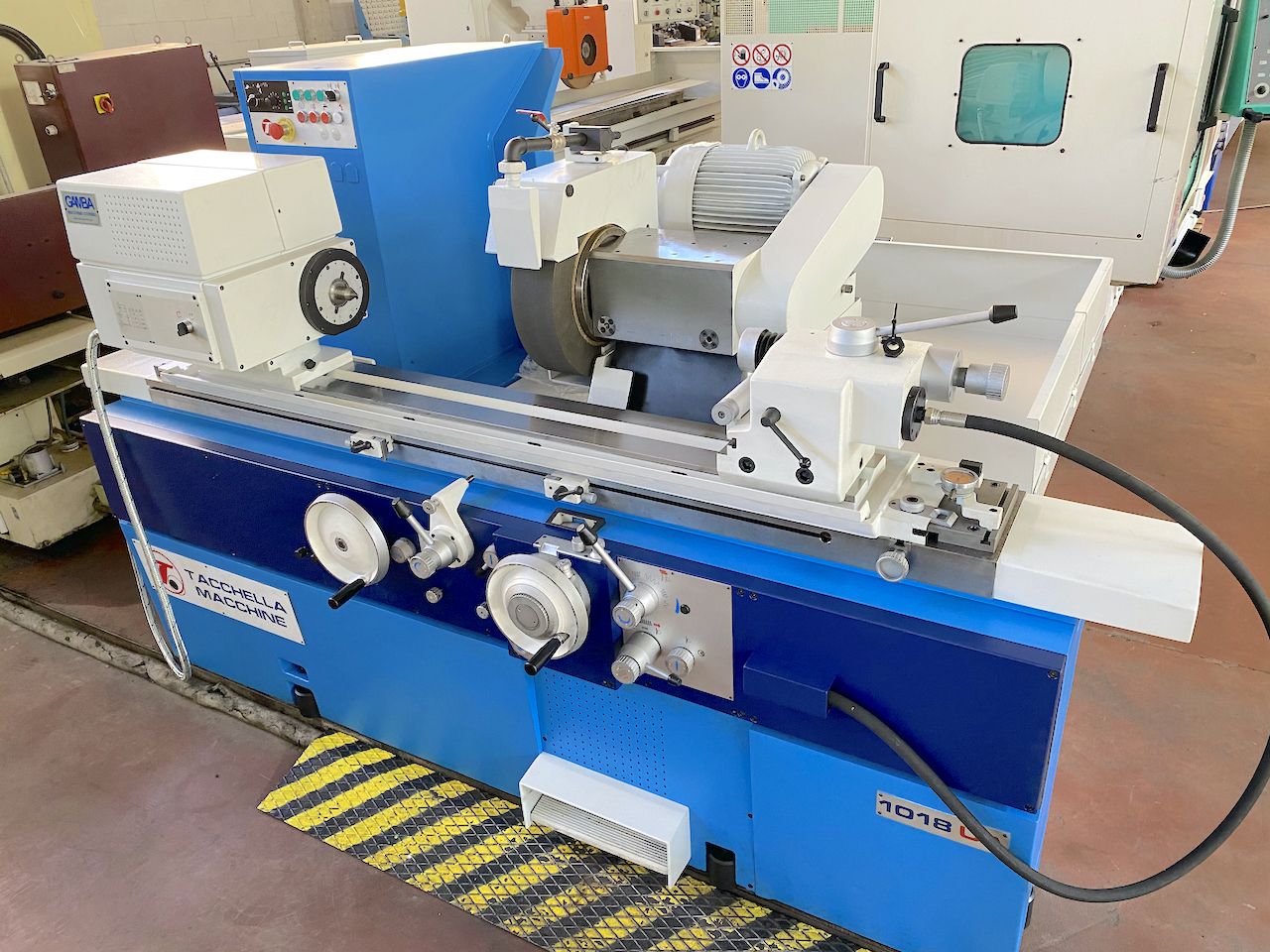

Category
Grinding Machine
Type
ID/OD
Made
Model
1018 UA
Capacity
ø355x1000 mmø13,98x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
180 mm7,09 in
Max grinding lenght
1000 mm39,37 in
Max grinding diameter
360 mm14,17 in
Max internal diameter
75/270 mm2,95/10,63 in
Max internal depth
380 mm14,96 in

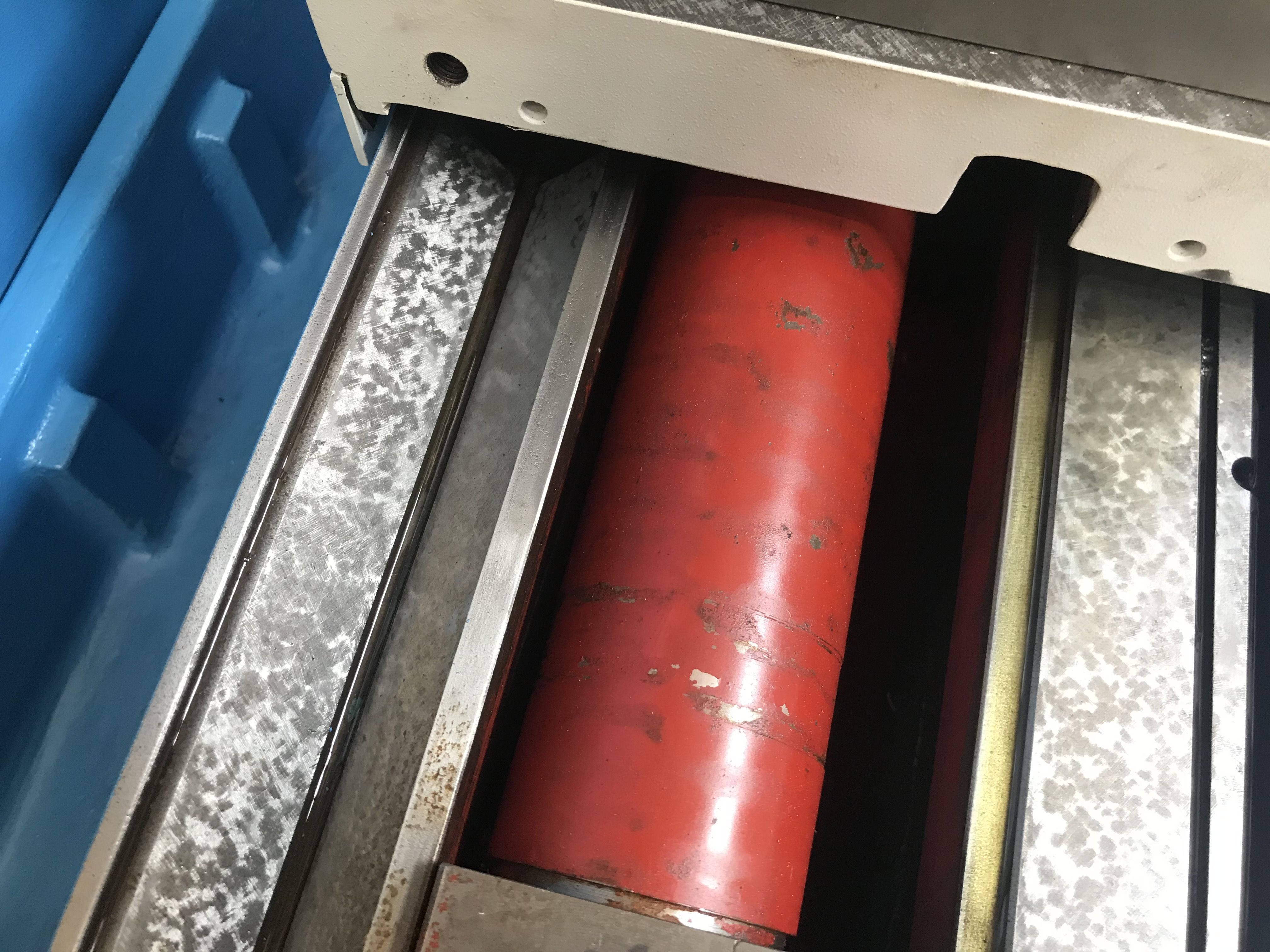

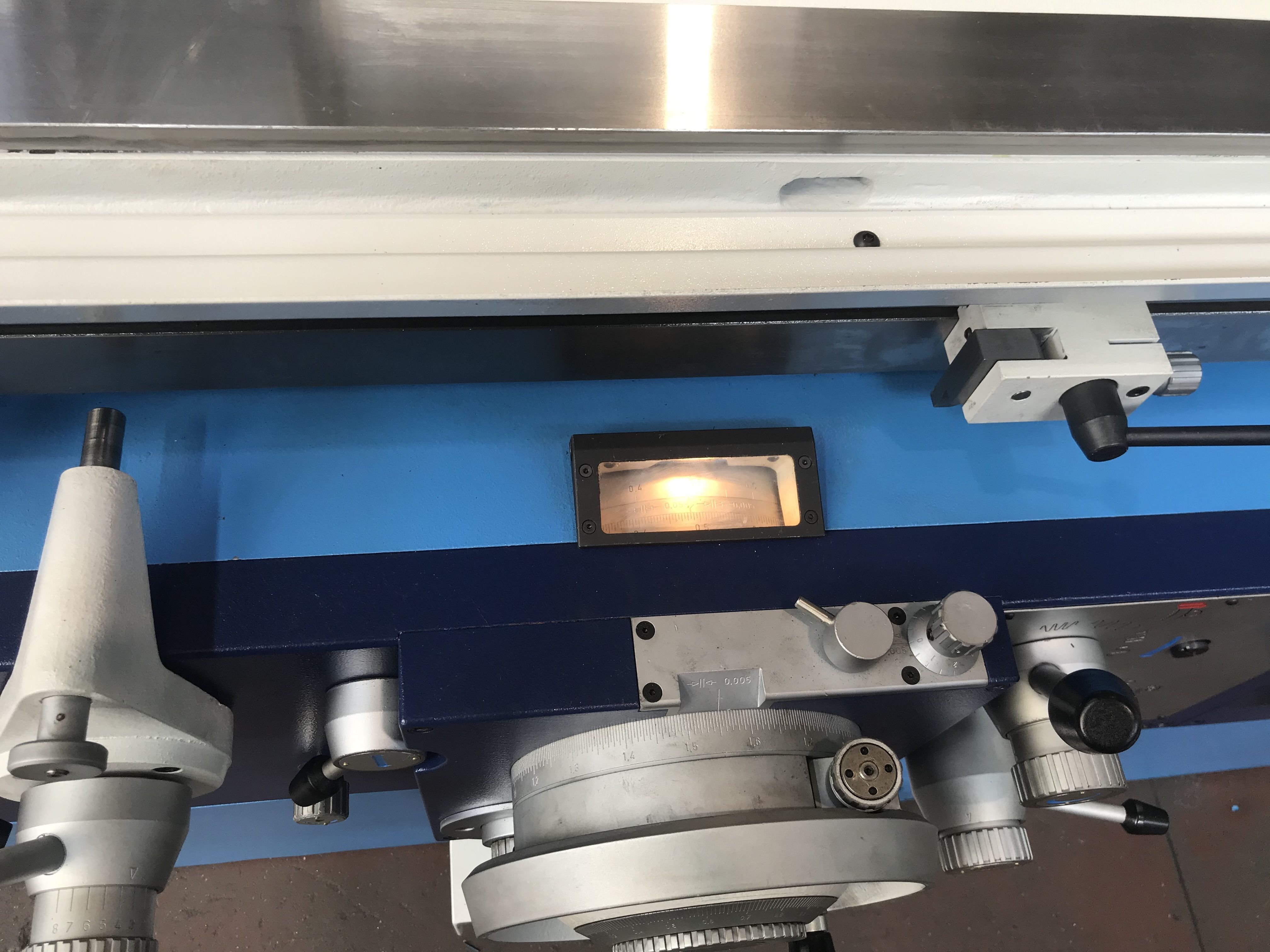

TABLE
Cross speed
0,1-5 mm/min0,0039-0,1969 ipm
Max workpiece weight
250 Kg
Tilt
0/7 °
FEEDS
Cross
automatici con plungé ritorno automatico mm/minautomatici con plungé ritorno automatico ipm

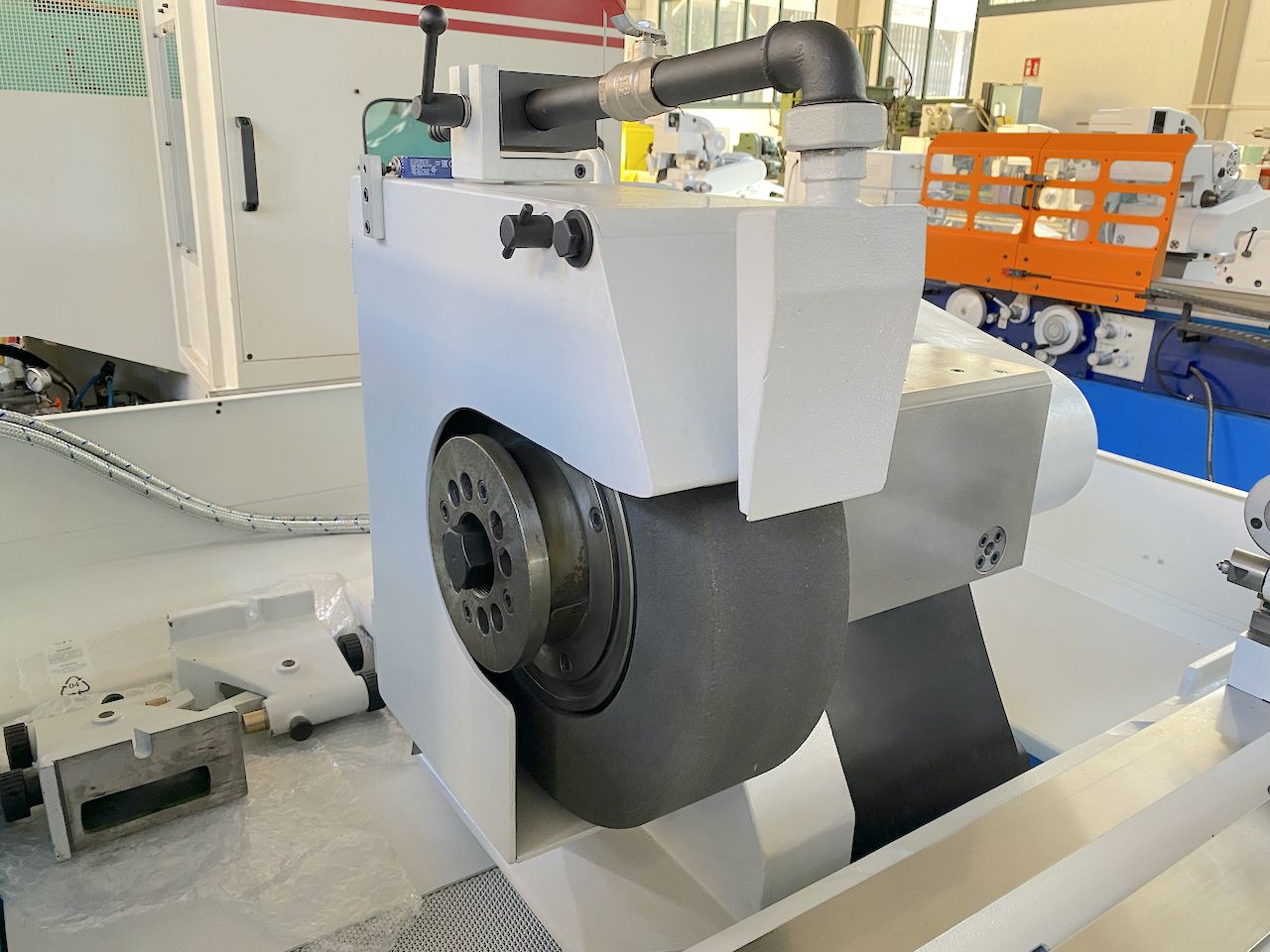

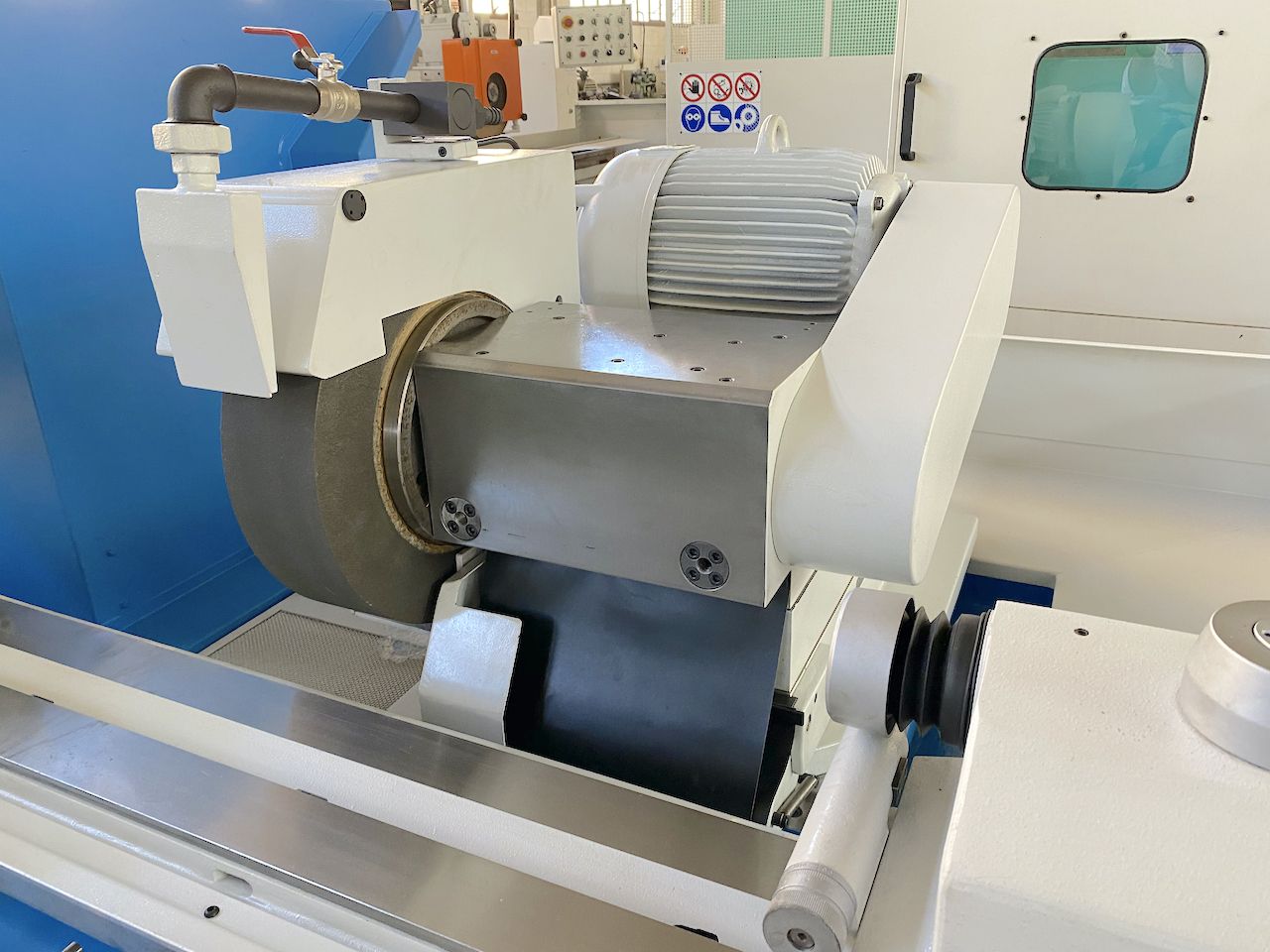

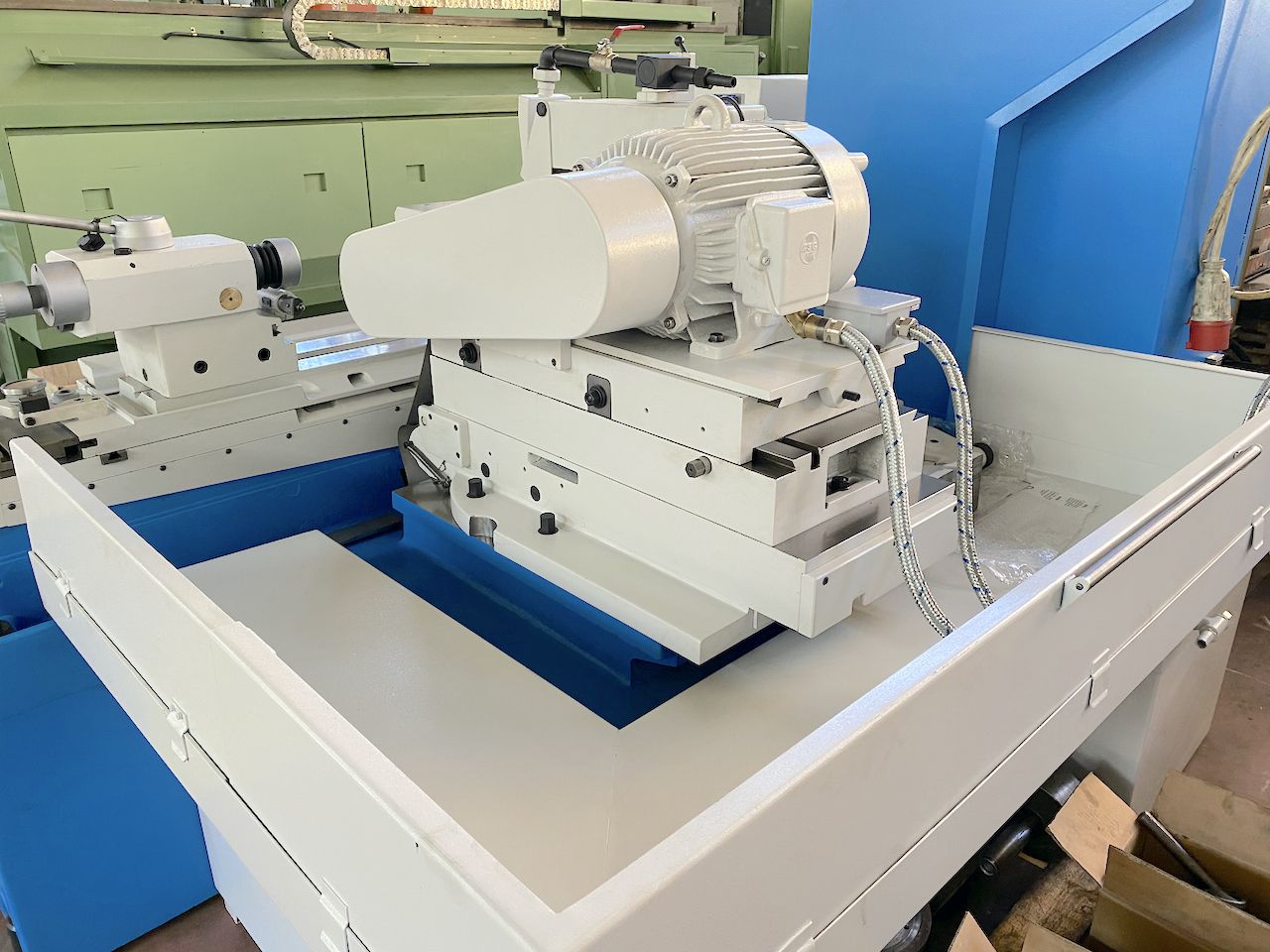

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1275-1450 Rpm

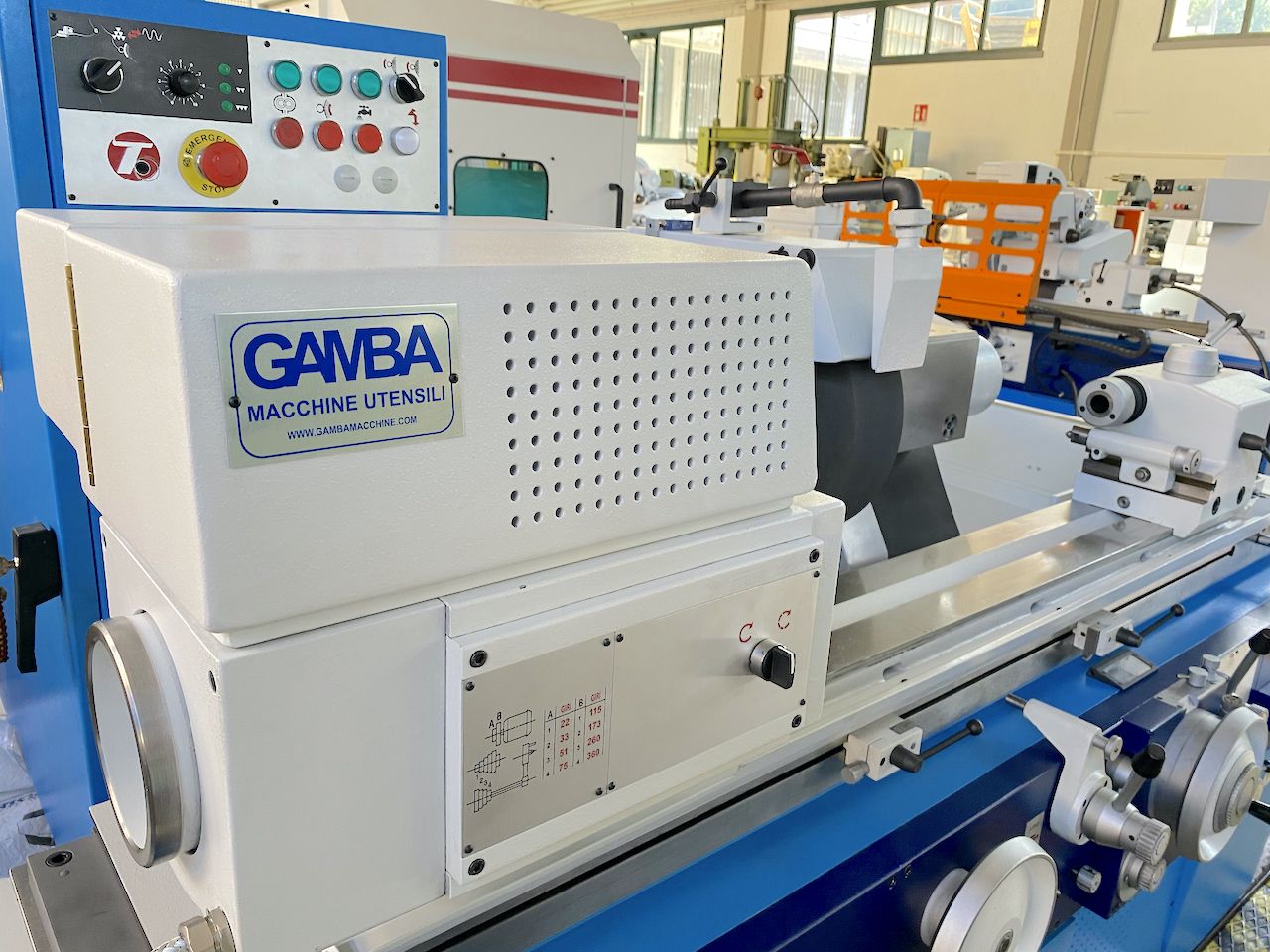

WORKPIECE HEAD
Rotating speed
28-550 Rpm
Tilt
90 °
Taper
CM5

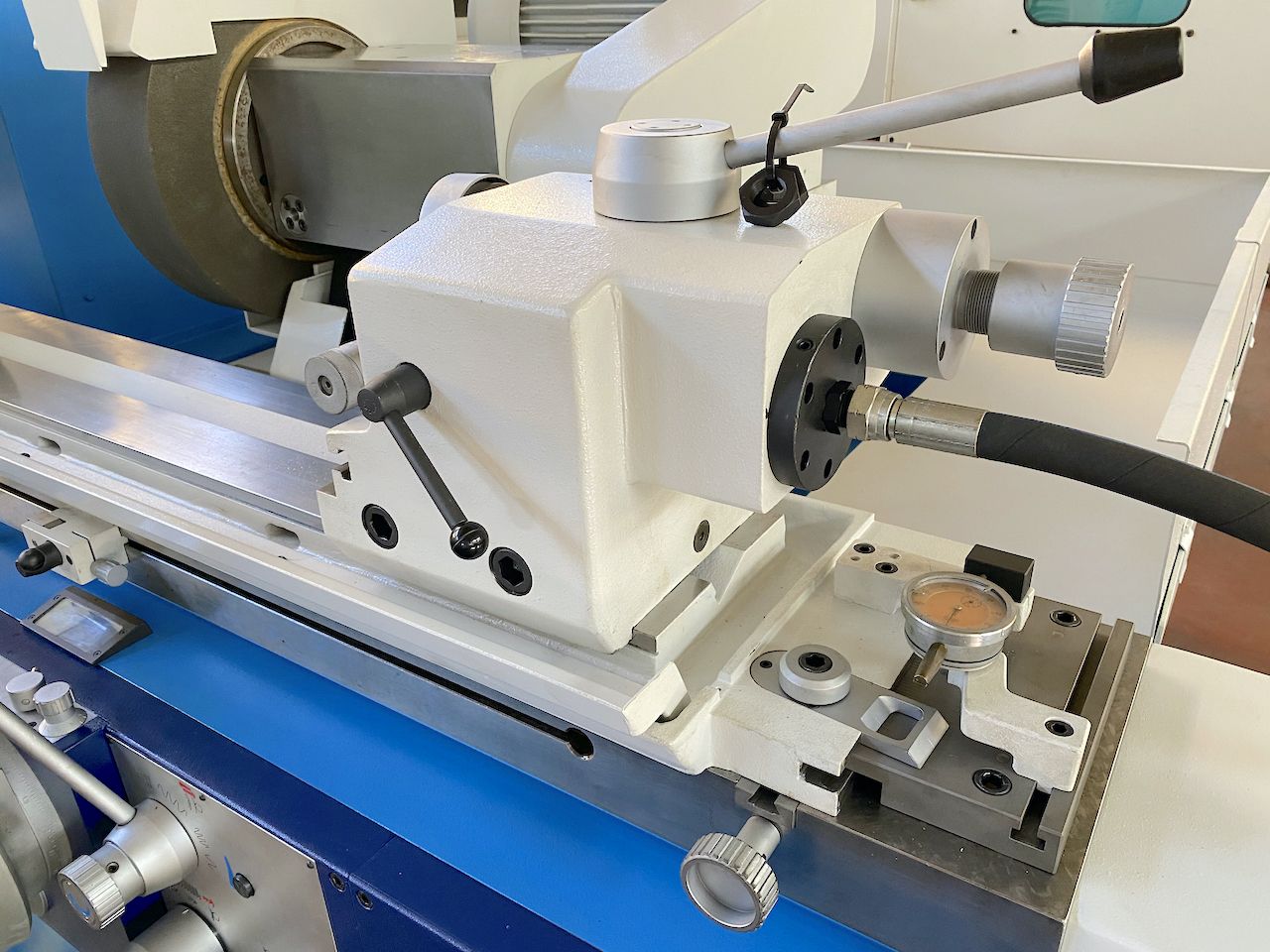

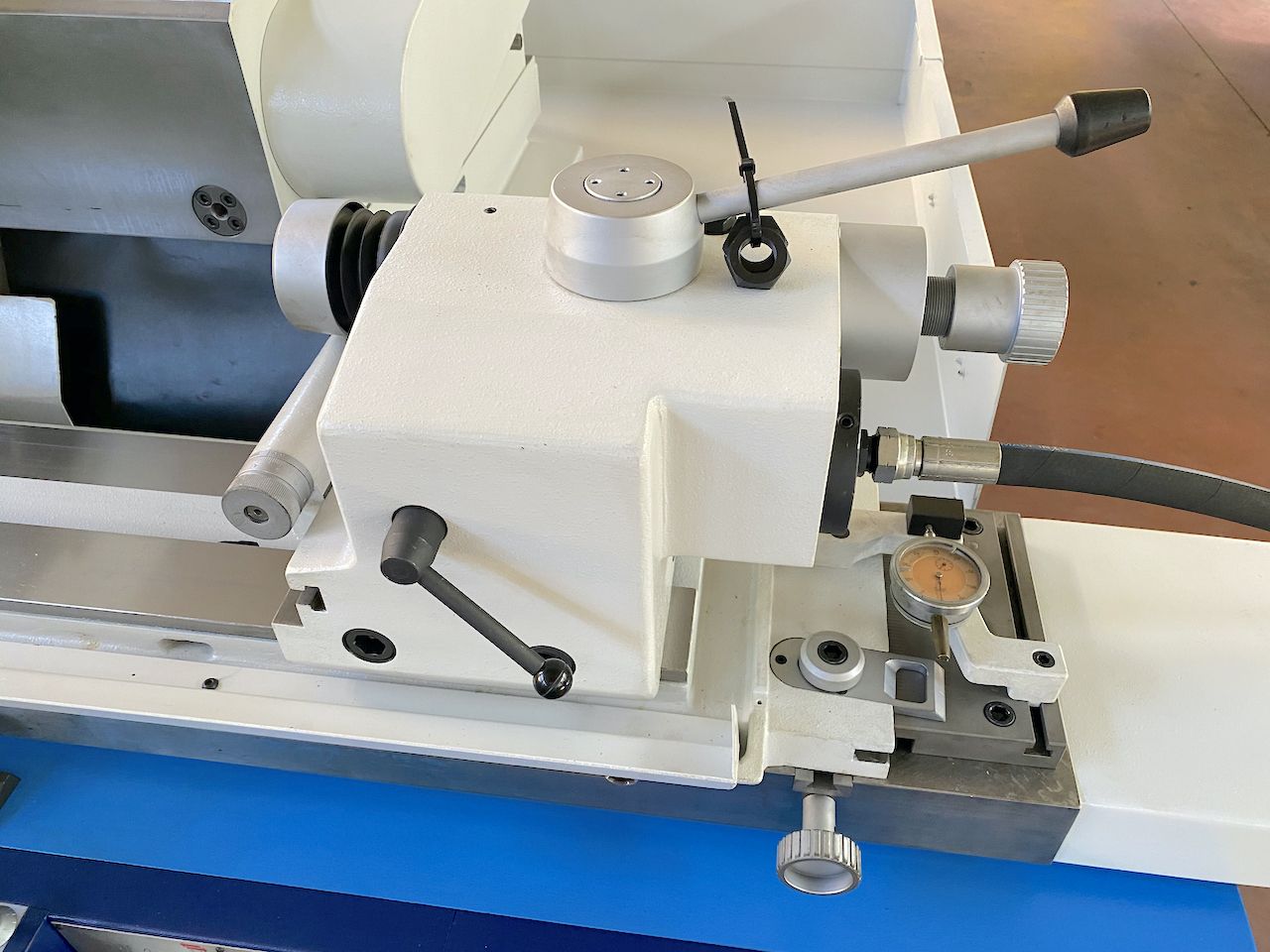

TAILSTOCK
Drive
manuale/idraulico
LEFT WHEEL
Wheel band thickness
150 mm5,91 in
Max wheel diameter
500 mm19,69 in

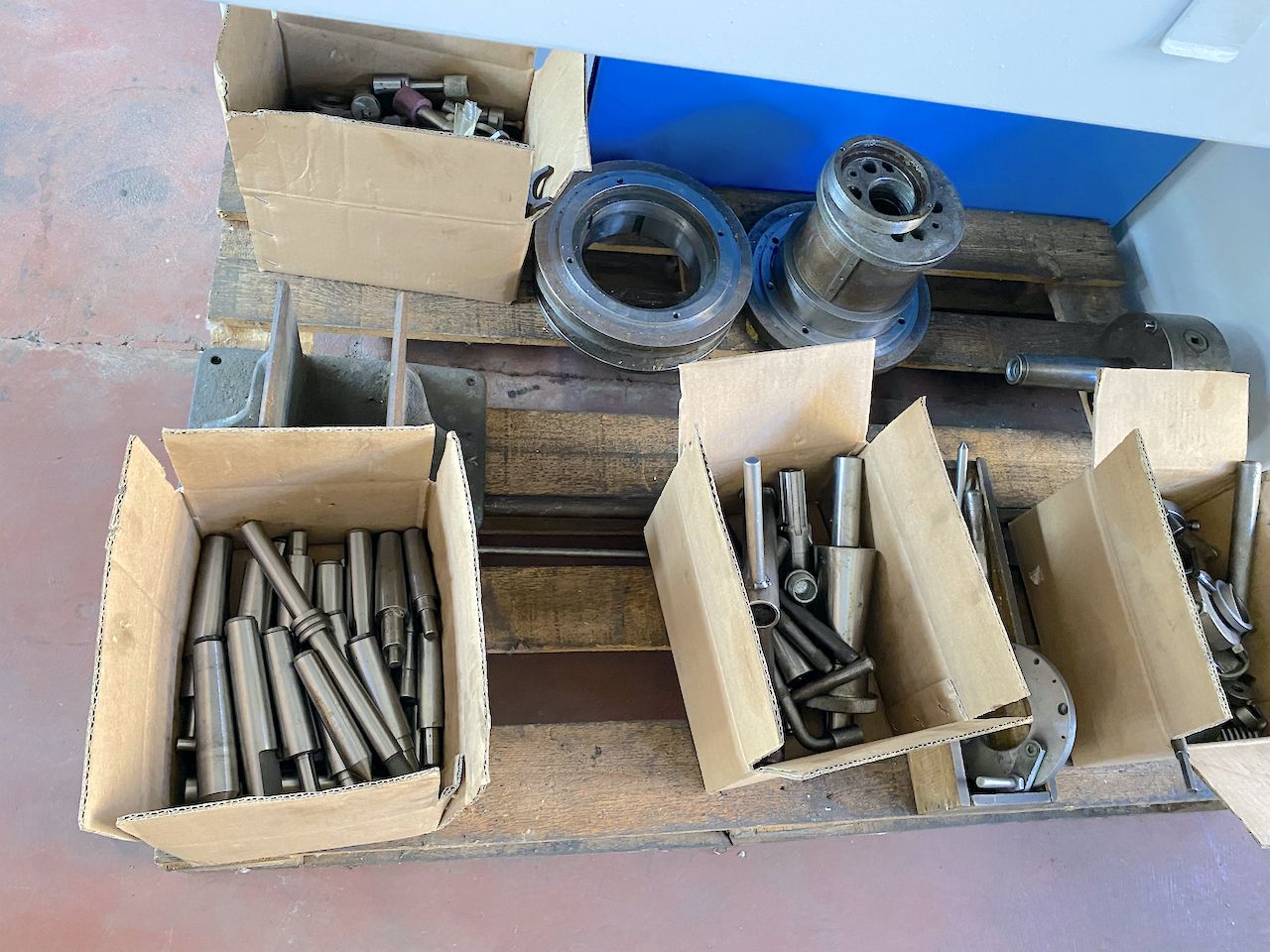

EXTRA

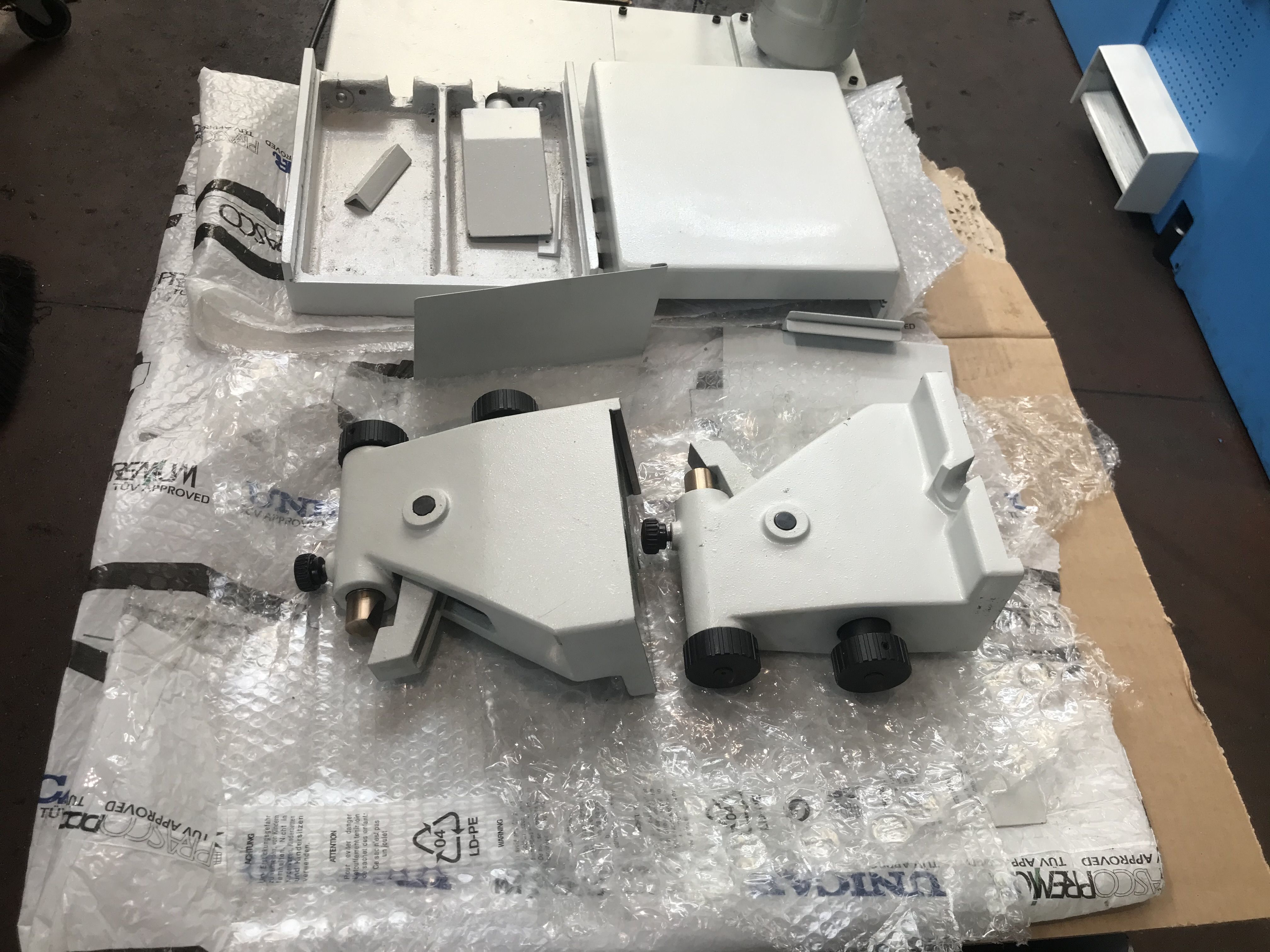

Open steadies
si
Manual dresser
Yes

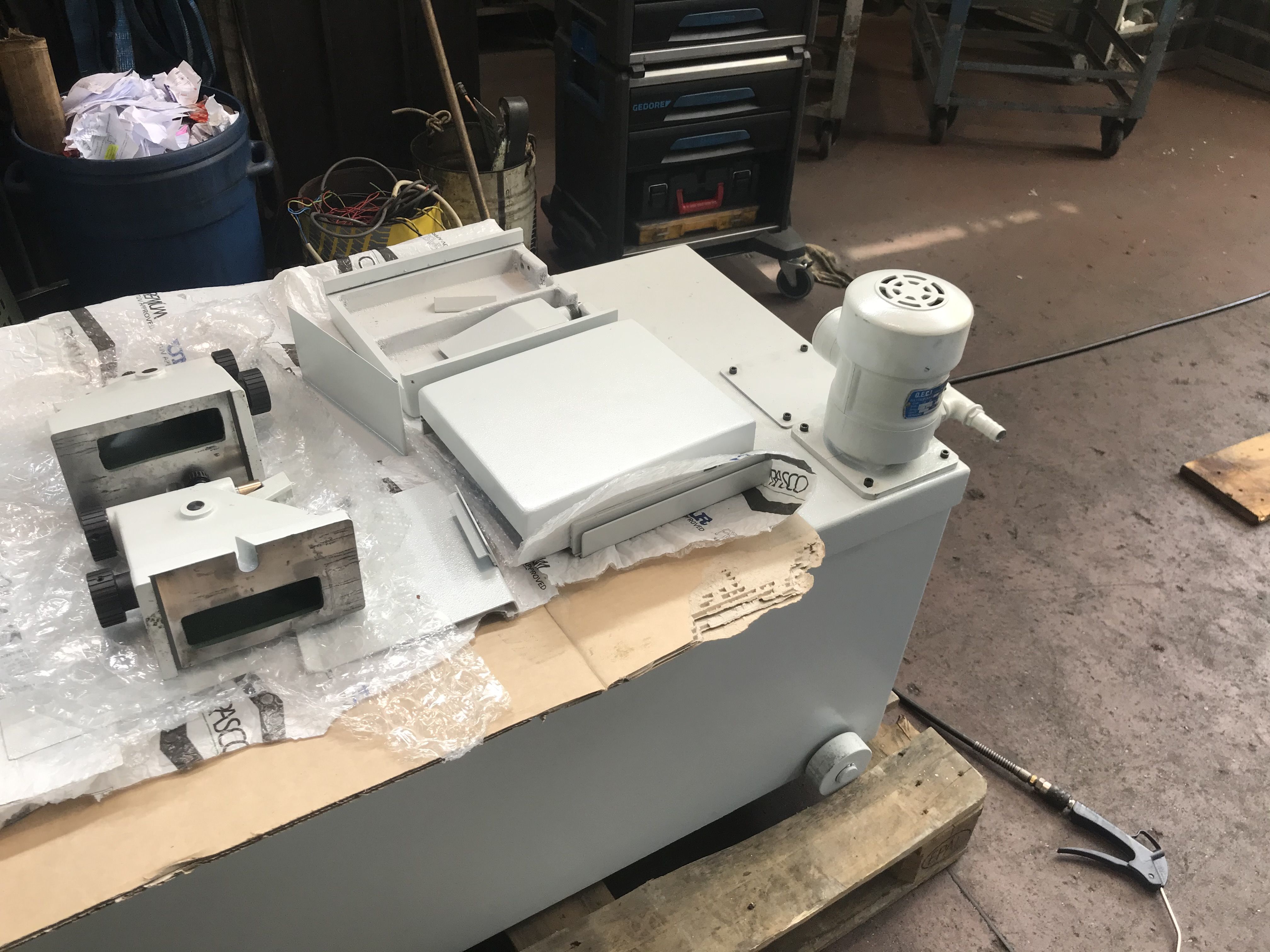

Filtration unit
si
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Wheel balancer
Yes
Available in stock
si
