Category
Grinding Machine
Type
ID/OD
Made
Model

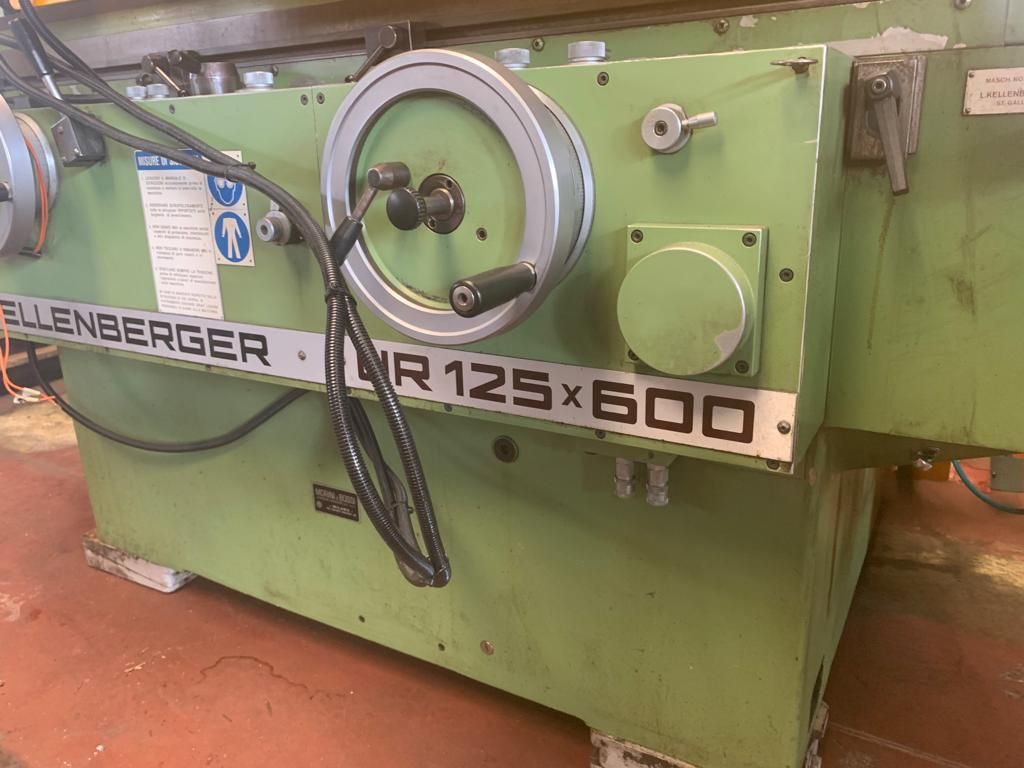

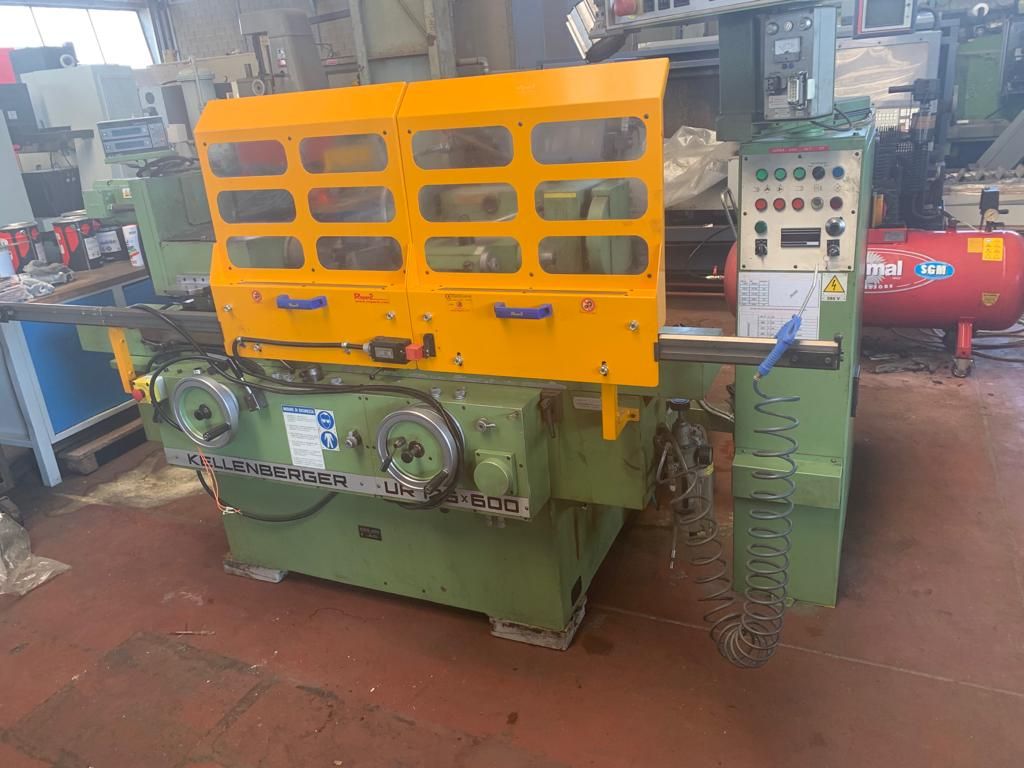

UR125/600
Capacity
ø250x600 mmø9,84x23,62 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
600 mm23,62 in
Centres height
125 mm4,92 in
WHEELHEAD
External spindle power
4,4 Kw
External spindle speed
1530-2450 Rpm
Internal spindle speed
16000 Rpm
LEFT WHEEL
Wheel band thickness
63 mm2,48 in
Max wheel diameter
400 mm15,75 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Spindle power
2,4 Kw
Rotating speed
10-400 Rpm
Speed regulation
continua
Tilt
360 °
Taper
MK5
TAILSTOCK
Quill stroke
30 mm1,18 in
Taper
MK4
TABLE
Stroke
700 mm27,56 in
Cross speed
20-6000 mm/min0,7874-236,2200 ipm
Tilt
11 °
RIGHT WHEEL
Wheel band thickness
20 mm0,79 in
Max wheel diameter
225 mm8,86 in
Hole diameter
76,2 mm3,00 in
EXTRA
Total power supply
8,5 Kw
Machine total weight
3300 Kg
Floor space
3320x2000 mm130,71x78,74 in
Open steadies
SI
Closed steadies
SI
Wheel balancer
Yes
Manual dresser
Yes
Filtration unit
SI
Maintenance & Use books
Yes
Electrical drawings
Yes
Housing
SI
Availability
PRONTA
Available in stock
SI
