Category
Grinding Machine
Type
ID/OD
Made
Model
1300 EIT
Capacity
ø254x685 mmø10,00x26,97 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
685 mm26,97 in
Centres height
127 mm5,00 in
Max grinding lenght
685 mm26,97 in
Max grinding diameter
254 mm10,00 in
Max internal diameter
19-50 mm0,75-1,97 in
WHEELHEAD
External spindle speed
1750 Rpm
External spindle power
2 Kw
Internal spindle power
2 Kw
Internal spindle speed
2300 Rpm
Notes
girevole 360°
LEFT WHEEL
Wheel band thickness
25 mm0,98 in
Max wheel diameter
300 mm11,81 in
Hole diameter
127 mm5,00 in
TABLE
Cross speed
76-3660 mm/min2,9921-144,0942 ipm
Stroke
686 mm27,01 in
WORKPIECE HEAD
Rotating speed
40-320 Rpm
Tilt
90 °
EXTRA
Machine total weight
2400 Kg
Floor space
3100x1500 mm122,05x59,06 in

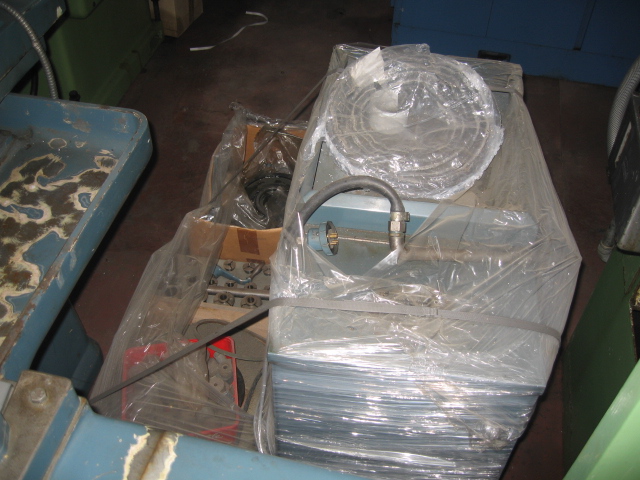

Tooling included
apparecchio per interni
Availability
pronta
Available in stock
si
