Category
Grinding Machine
Type
ID/OD
Made
Model
MODULE 1 AUT
Capacity
360x600 mm14,17x23,62 in

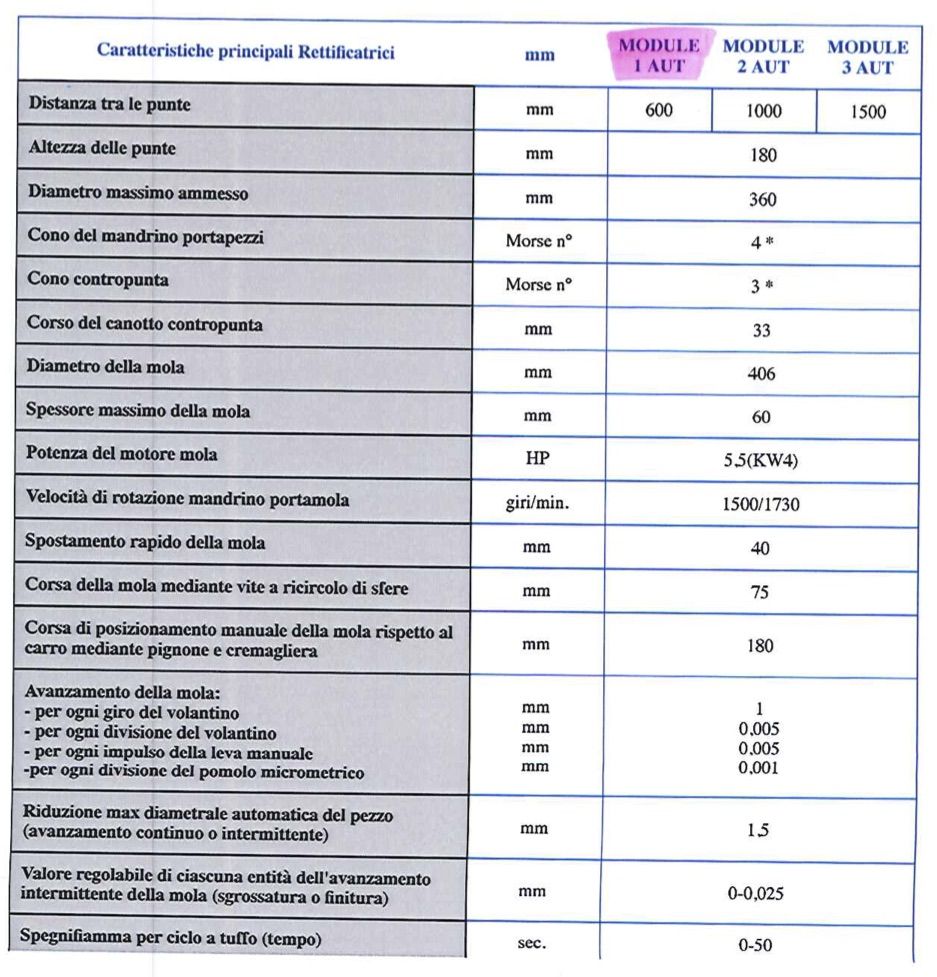

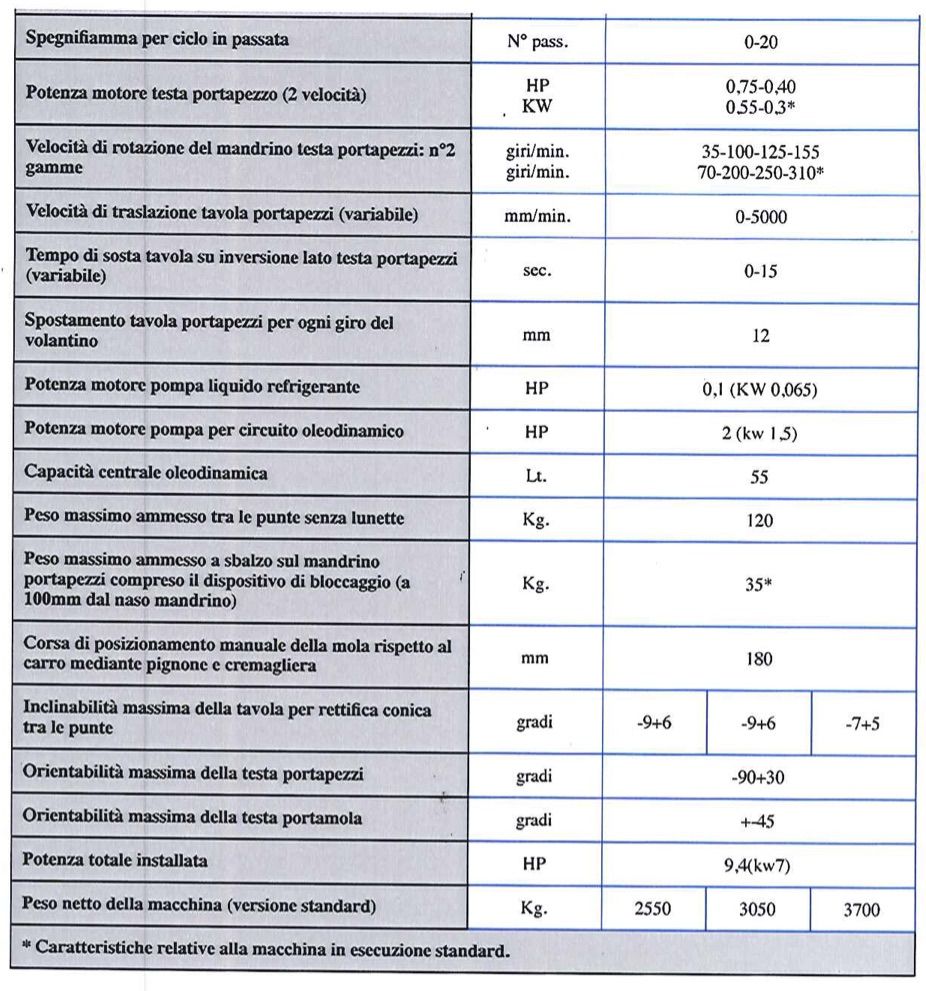

Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
600 mm23,62 in
Centres height
180 mm7,09 in
Max grinding diameter
360 mm14,17 in
WORKPIECE HEAD
Taper
4
Spindle power
0,55 Kw
Rotating speed
35/310 Rpm
TAILSTOCK
Taper
3
Quill stroke
33 mm1,30 in
TABLE
Cross speed
0-500 mm/min0,0000-19,6850 ipm
FEEDS
Cross
0-0,025 mm/min0,0000-0,0010 ipm
LEFT WHEEL
Wheel band thickness
60 mm2,36 in
Max wheel diameter
406 mm15,98 in
WHEELHEAD
External spindle power
4 Kw
External spindle speed
1500/1750 Rpm
CNC
Measuring system
visualizzatore
EXTRA
Total power supply
9,4 Kw
Machine total weight
2550 Kg

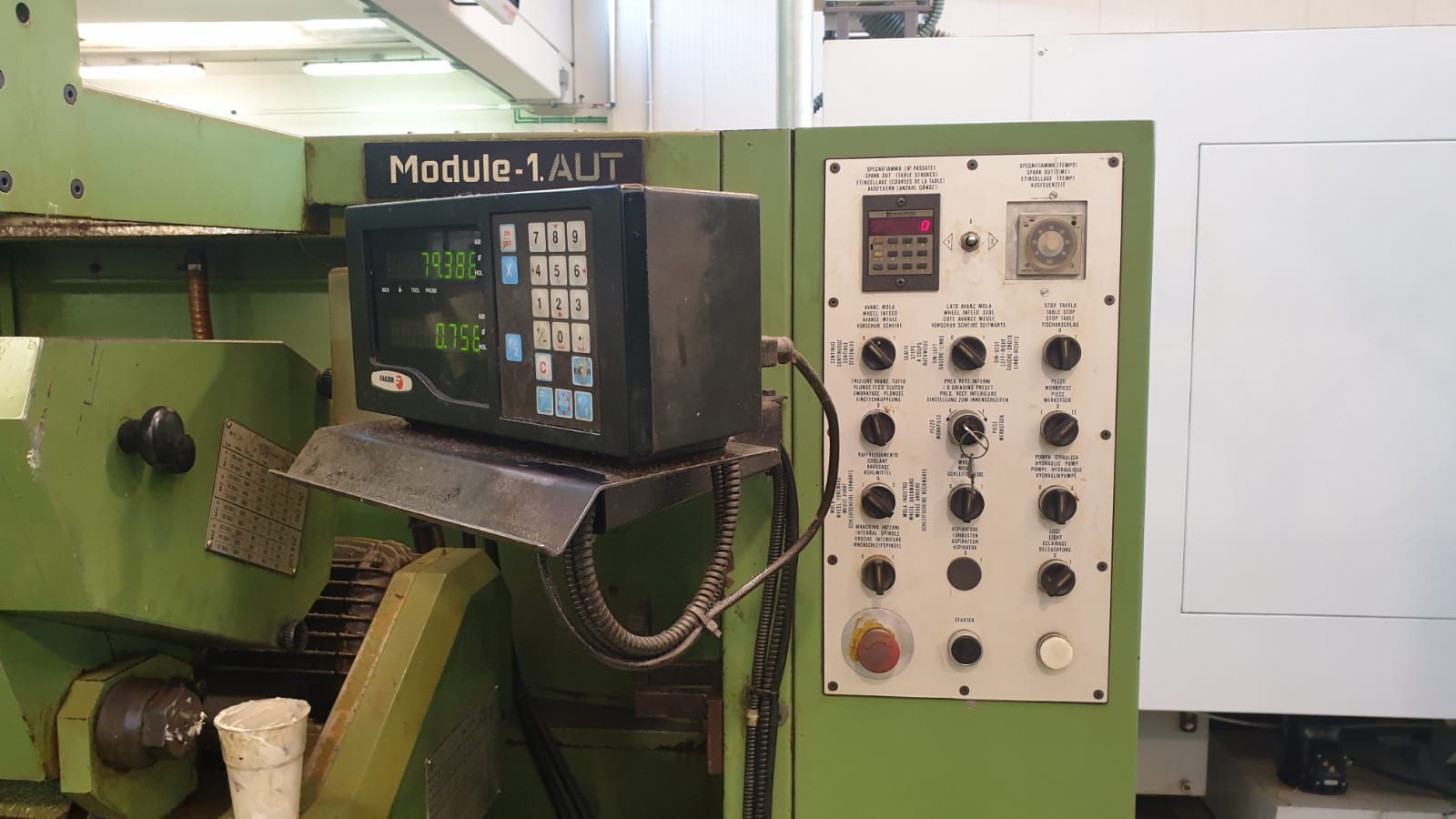

Digital read out (DRO)
Si
