Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
600 mm23,62 in
Centres height
175 mm6,89 in
Longitudinal (Z)
900 mm35,43 in
Cross (X)
220 mm8,66 in
Max grinding lenght
600 mm23,62 in
Max grinding diameter
350 mm13,78 in
Max internal diameter
187,5 mm7,38 in
Max internal depth
500 mm19,69 in
TABLE
Stroke
900 mm35,43 in
Cross speed
continuo 20-6000 mm/mincontinuo 0,7874-236,2200 ipm
Tilt
11 °

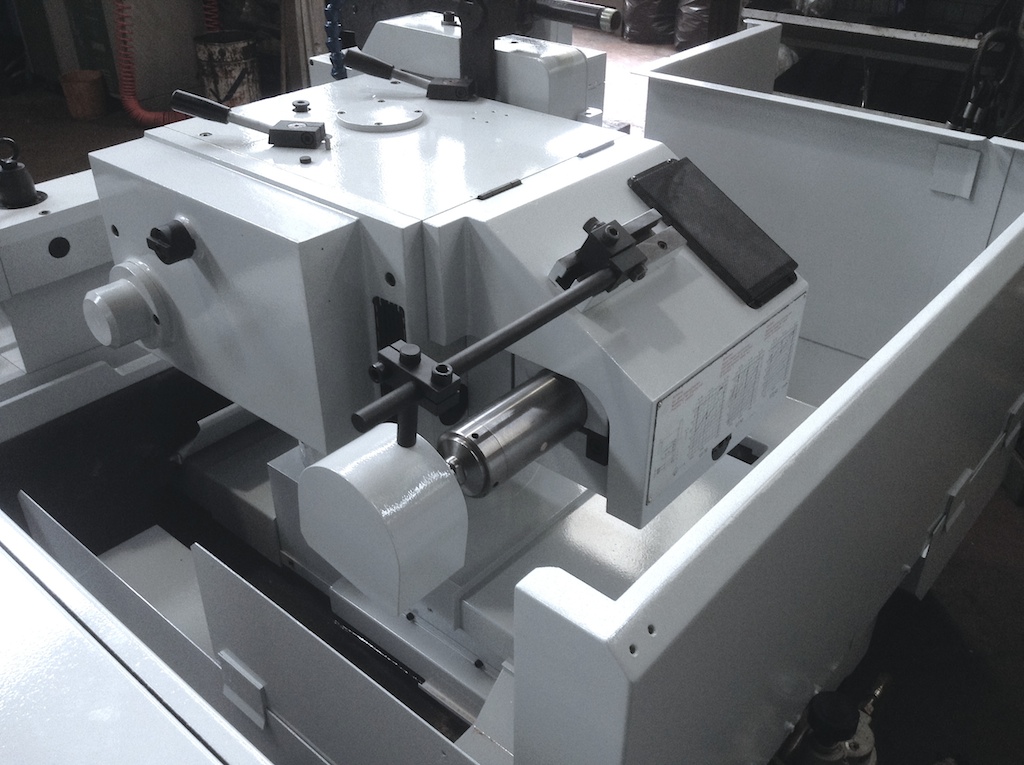

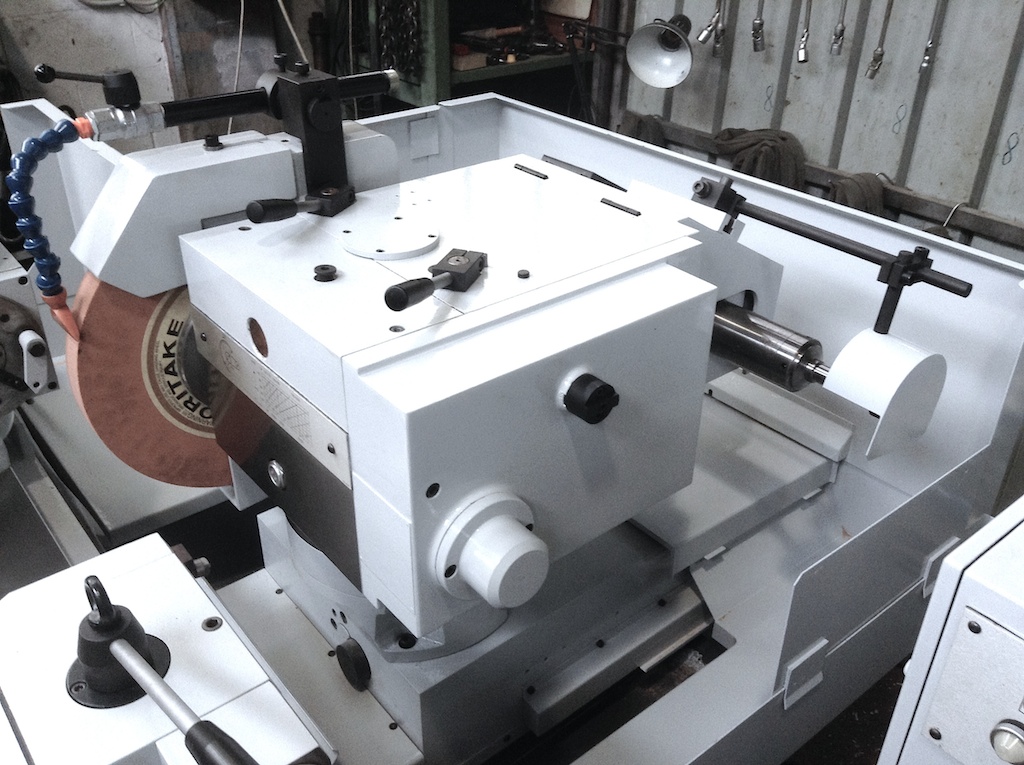

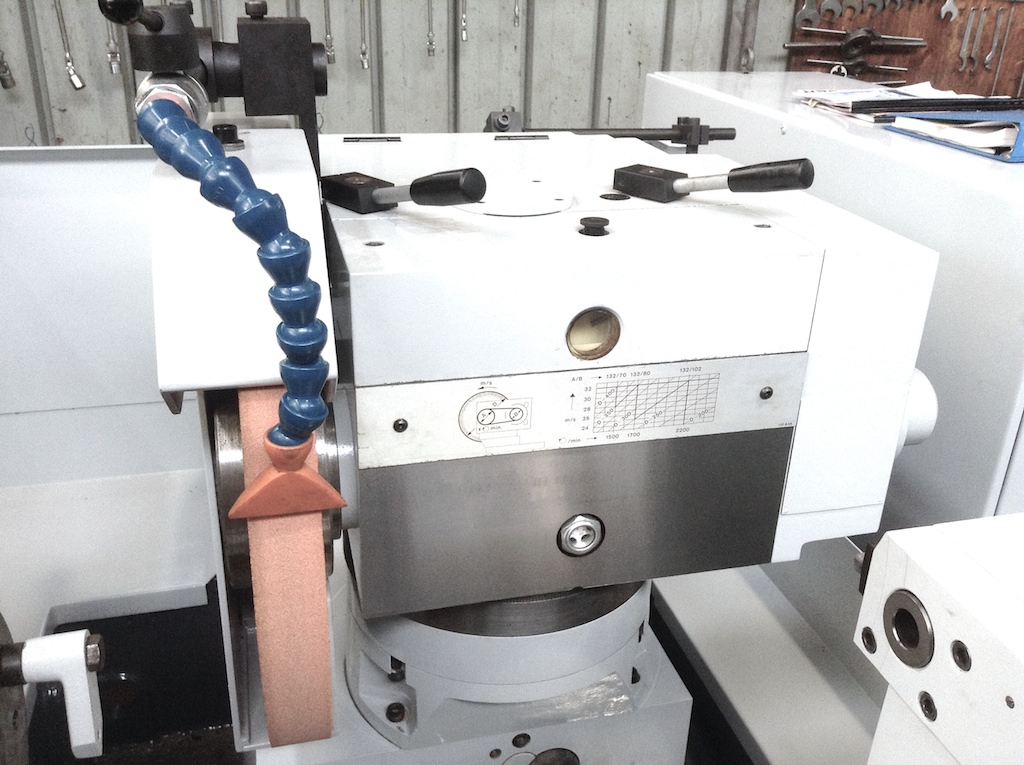

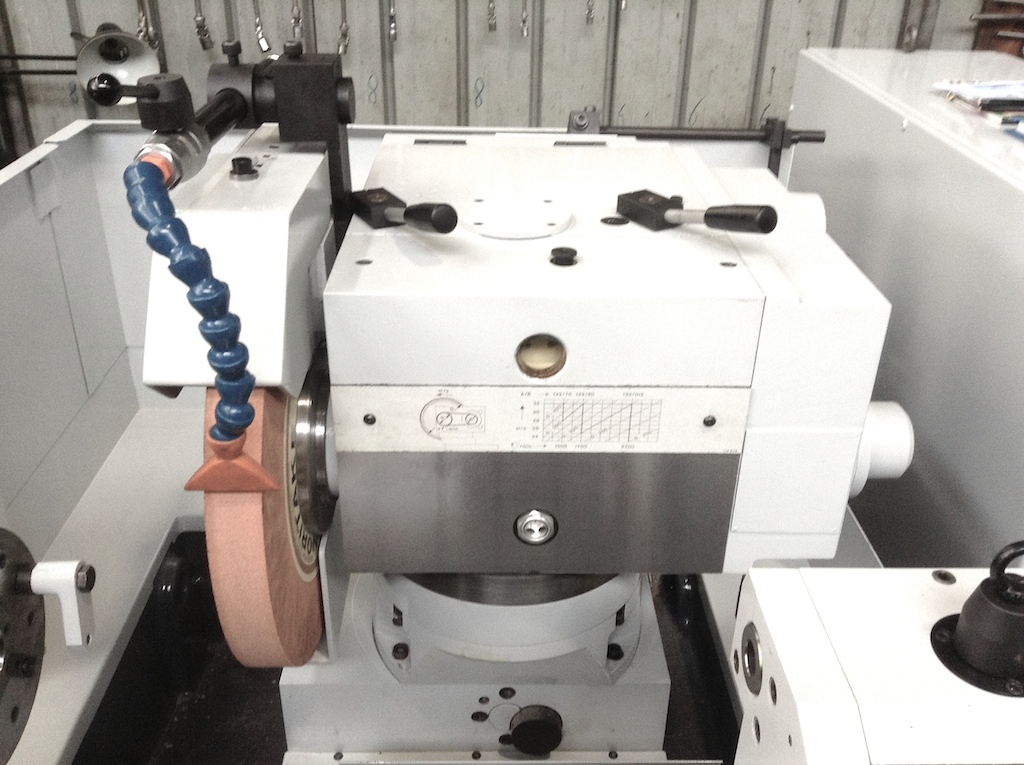

WHEELHEAD
External spindle power
3,7 Kw
External spindle speed
1500/1700/2200 Rpm
Internal spindle speed
16000 / 40000 Rpm
RIGHT WHEEL
Wheel band thickness
50 mm1,97 in
Max wheel diameter
300 mm11,81 in
Hole diameter
127 mm5,00 in
LEFT WHEEL
Wheel band thickness
50 mm1,97 in
Max wheel diameter
400 mm15,75 in
Hole diameter
127 mm5,00 in

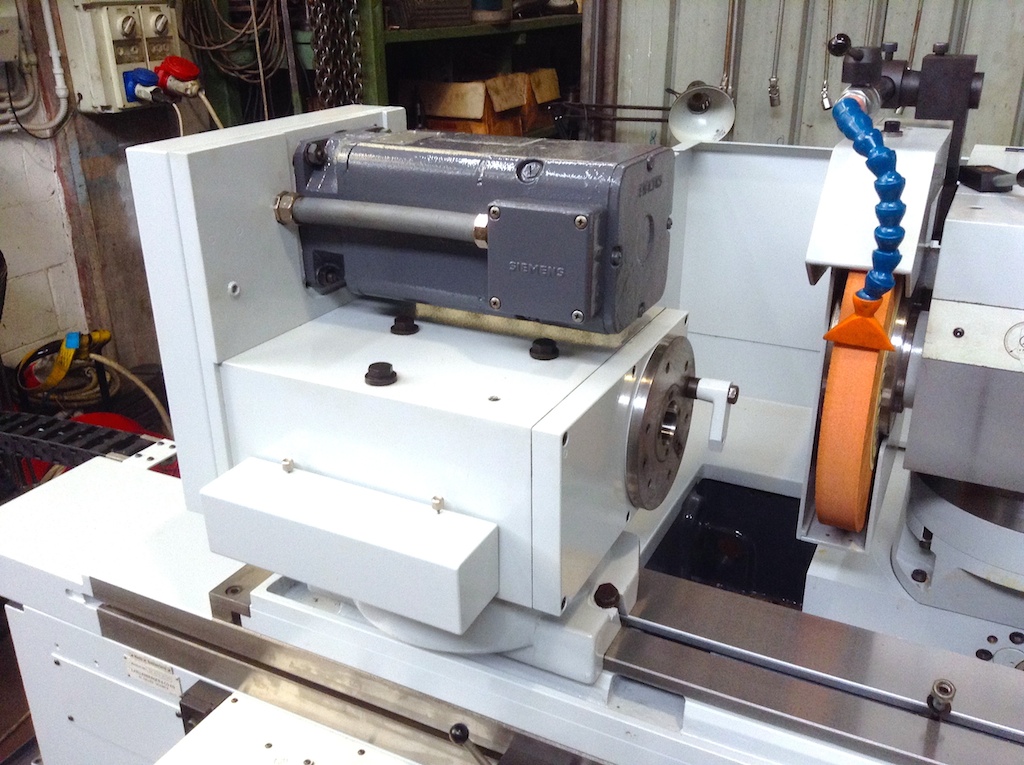

WORKPIECE HEAD
Spindle power
2,4 Kw
Rotating speed
continuo 6-600 Rpm
Speed regulation
continua
Tilt
+120/-30 °
Taper
MK5

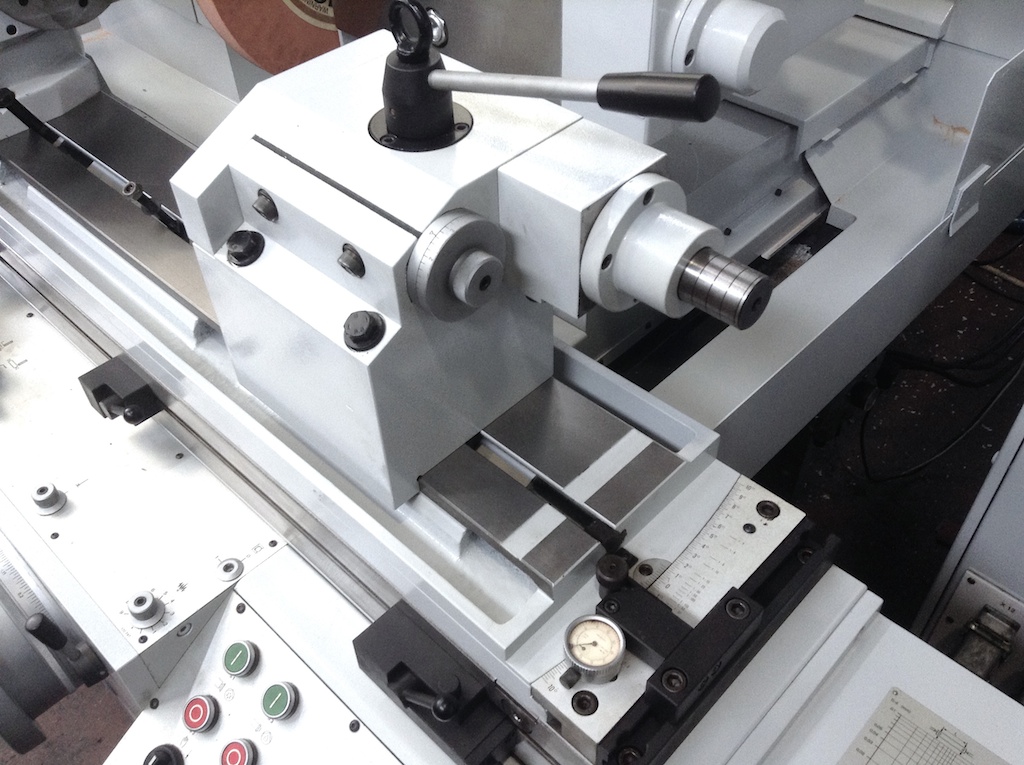

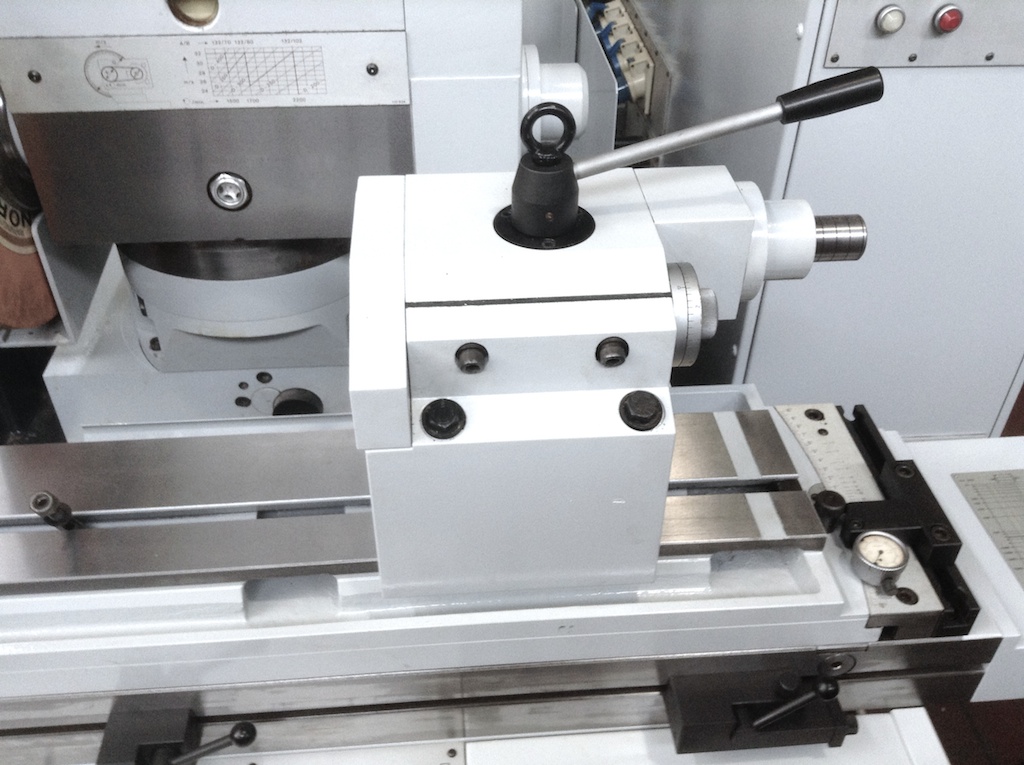

TAILSTOCK
Quill stroke
30 mm1,18 in
Taper
MK4
EXTRA
Total power supply
6,5 Kw
Machine total weight
3300 Kg
Floor space
3210x2100 mm126,38x82,68 in
Tooling included
2 mandrini per interni 16000/40000Rpm, 2 supporti, flange, mole
Maintenance & Use books
Yes

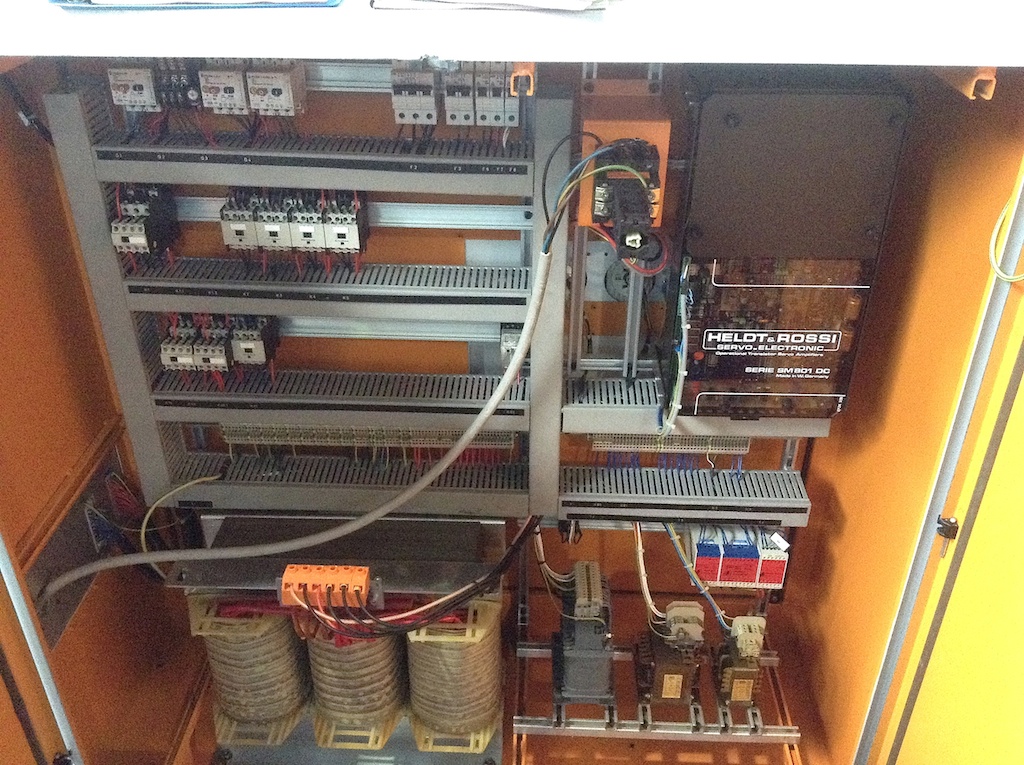

Electrical drawings
Yes
Available in stock
si
Available under power
si
Relevant updates made on the machine
revisione totale meccanica, riverniciatura completa a spruzzo, collaudo geometrico
