Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
600 mm23,62 in
Centres height
120 mm4,72 in
Cross (X)
250 mm9,84 in
Max grinding diameter
240 mm9,45 in
Max internal diameter
10/270 mm0,39/10,63 in
Max internal depth
440 mm17,32 in
TABLE
Stroke
600 mm23,62 in
Cross speed
100/7000 mm/min3,9370/275,5900 ipm
Max workpiece weight
100 Kg
Tilt
10 °

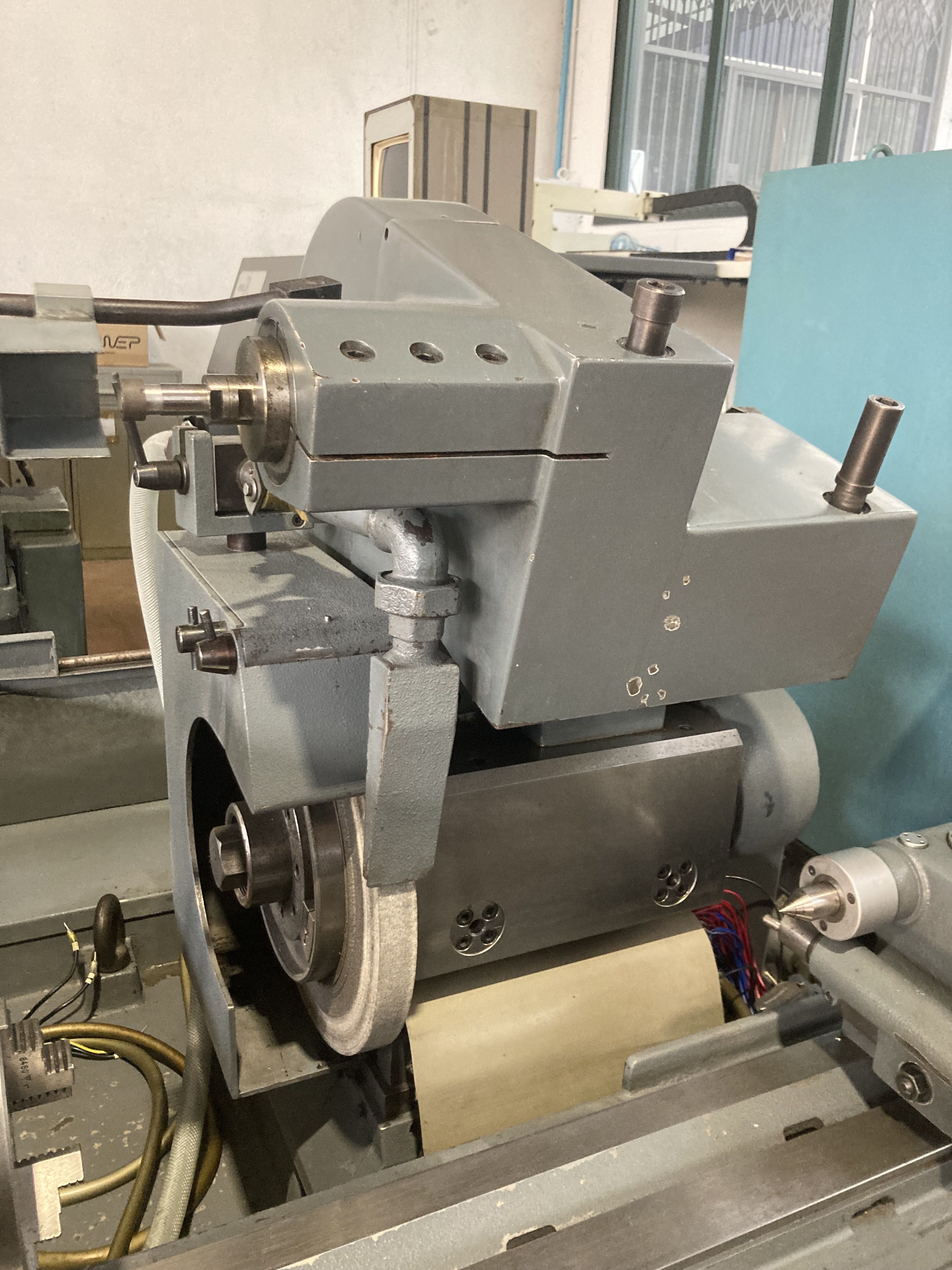

WHEELHEAD
External spindle power
4 Kw
Internal spindle power
1,1 Kw
External spindle speed
1640/1900 Rpm
LEFT WHEEL
Wheel band thickness
70 mm2,76 in
Max wheel diameter
355 mm13,98 in
Hole diameter
127 mm5,00 in

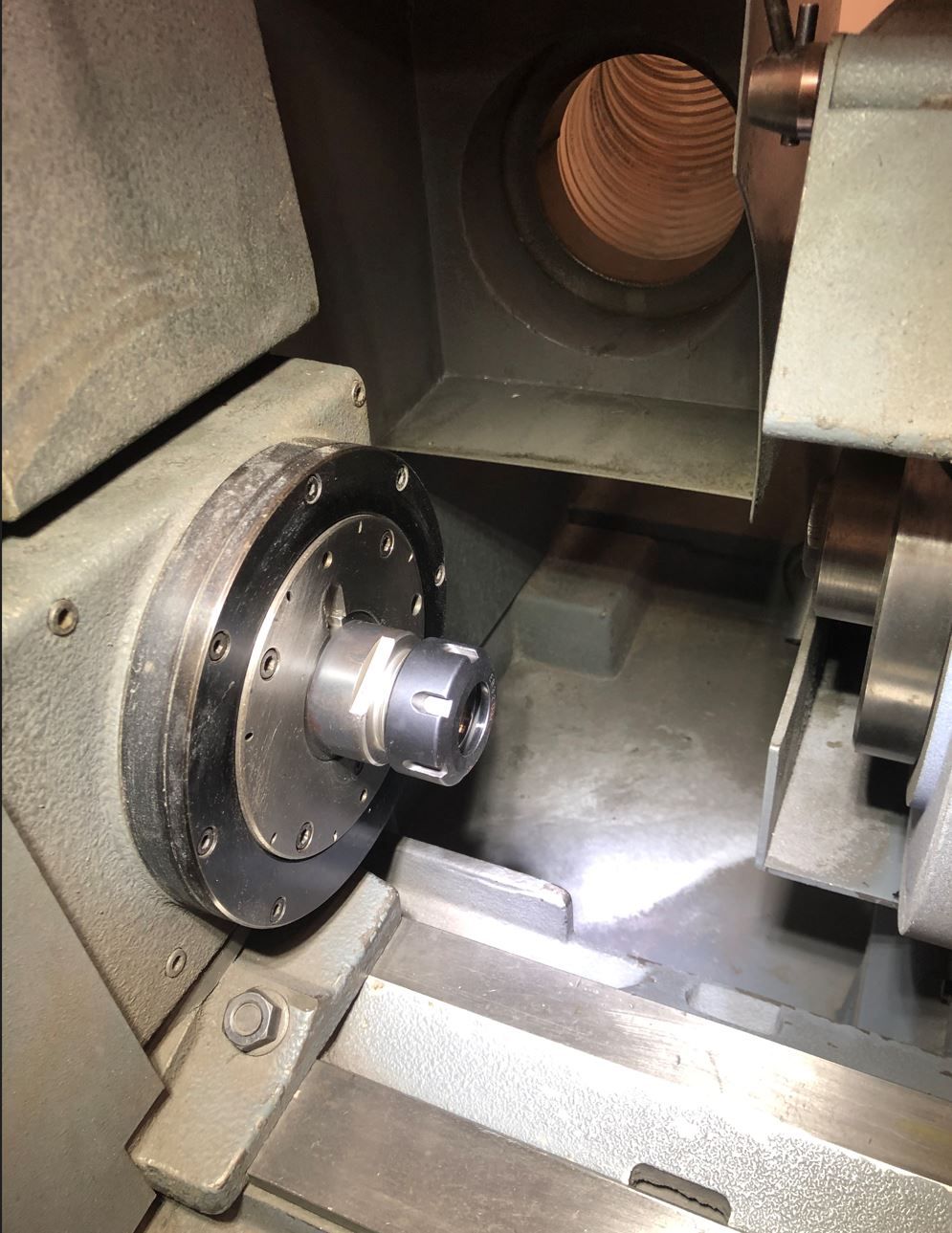

WORKPIECE HEAD
Rotating speed
22/580 Rpm
Tilt
90 °
Taper
mk3
EXTRA
Total power supply
6,45 Kw
Machine total weight
2400 Kg

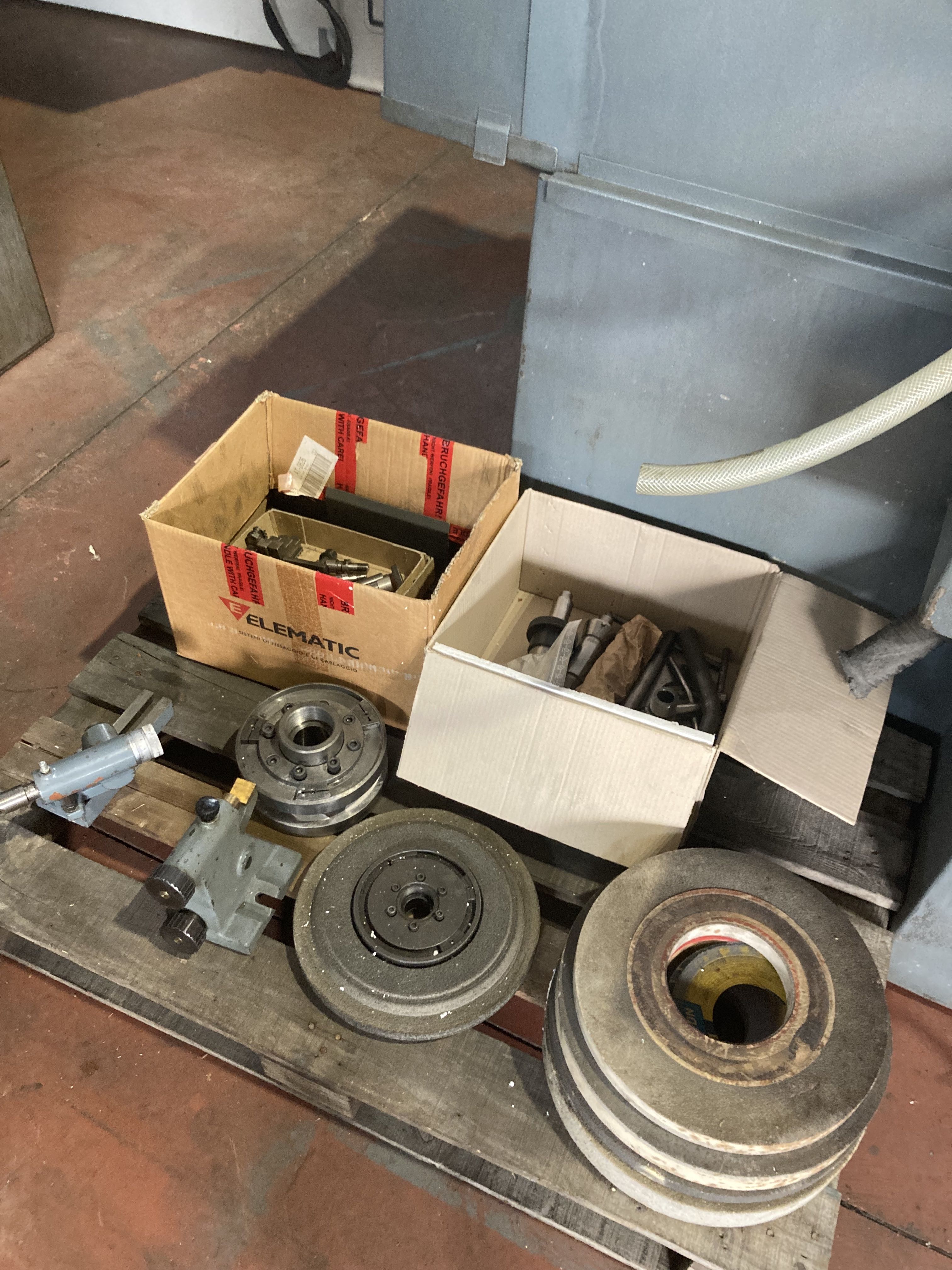

Tooling included
apparecchio per interni
Open steadies
si
Availability
pronta
Available in stock
si
Available under power
si
