Category
Grinding Machine
Type
ID/OD
Made
Model

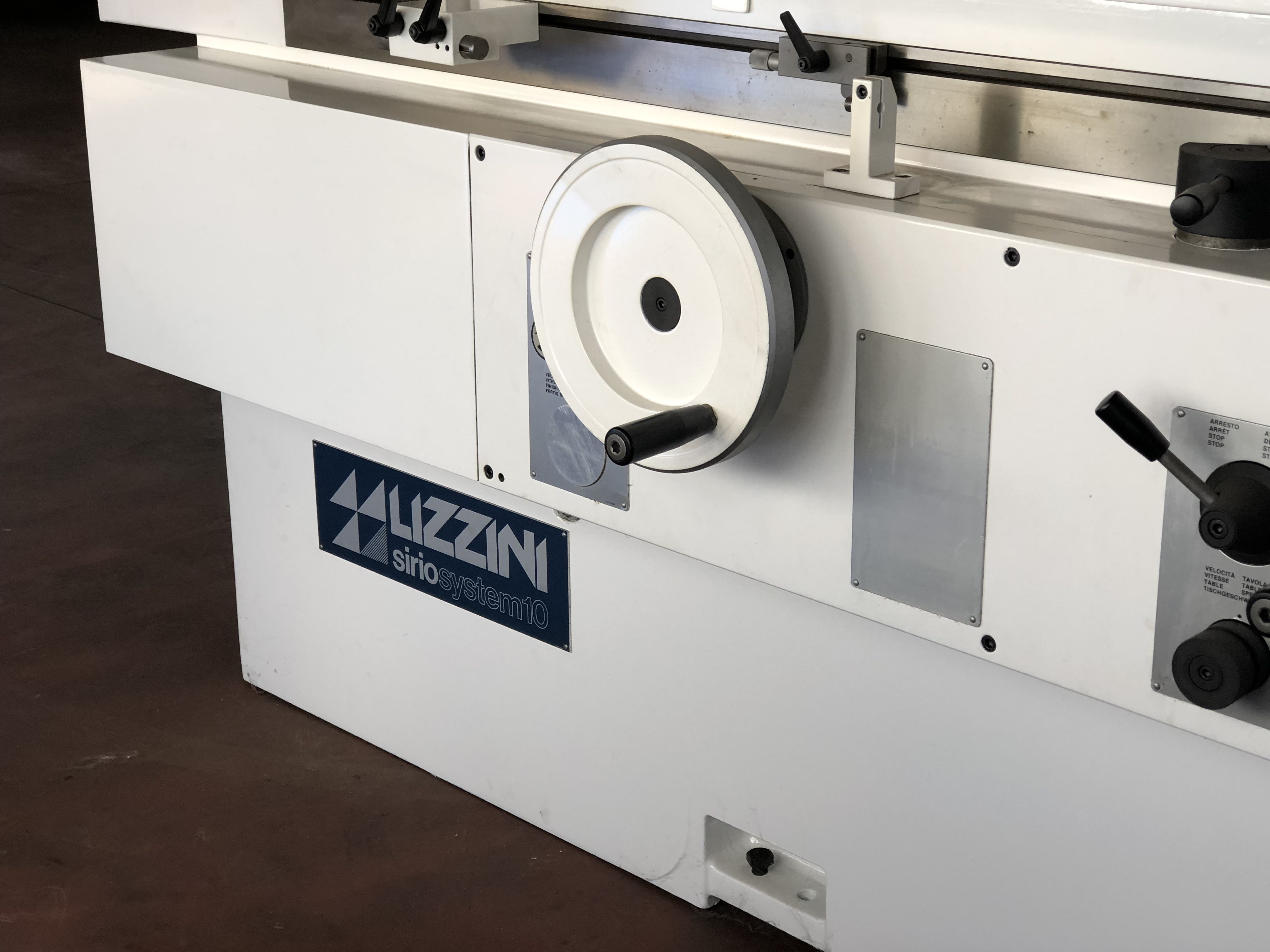

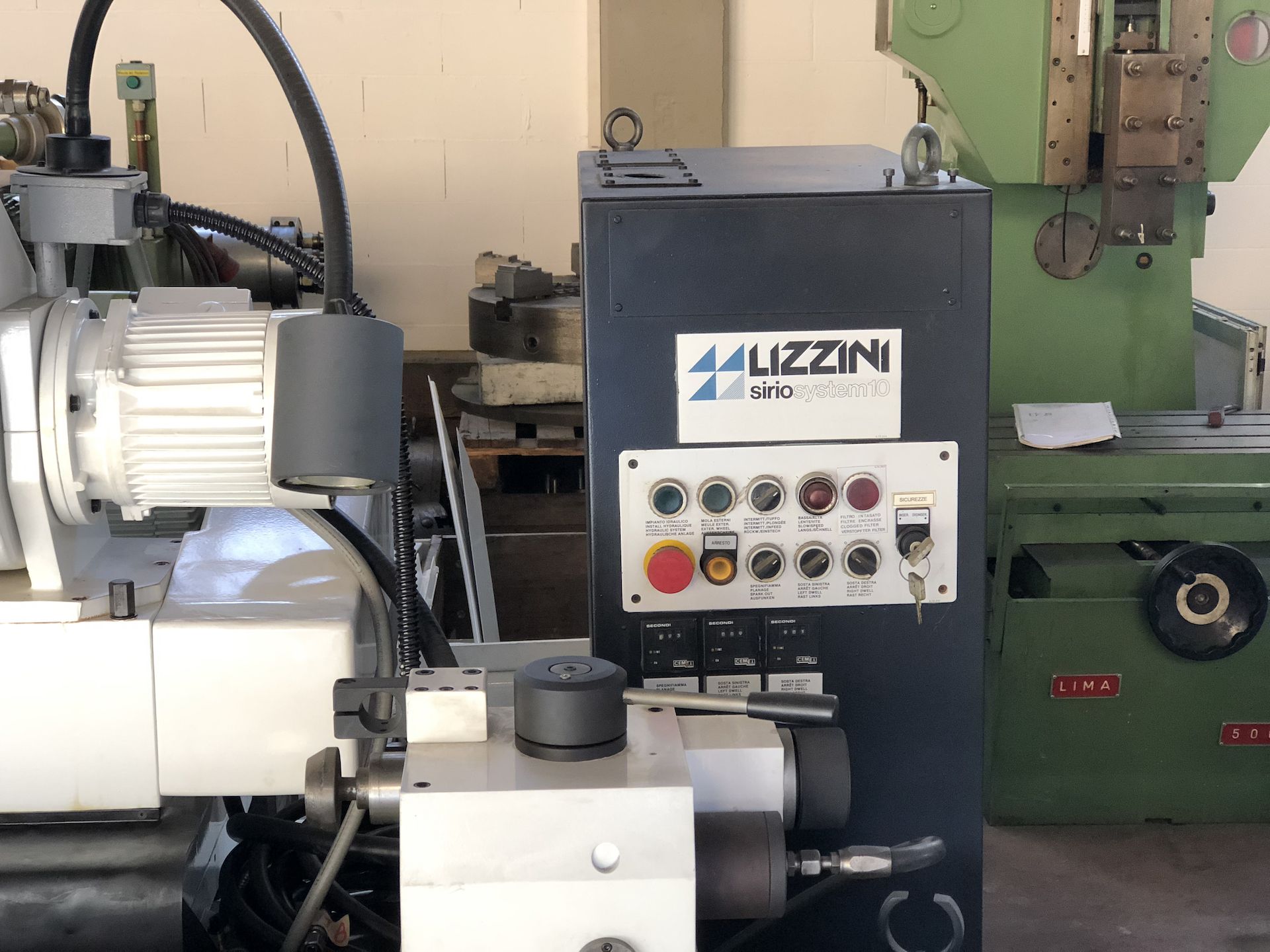

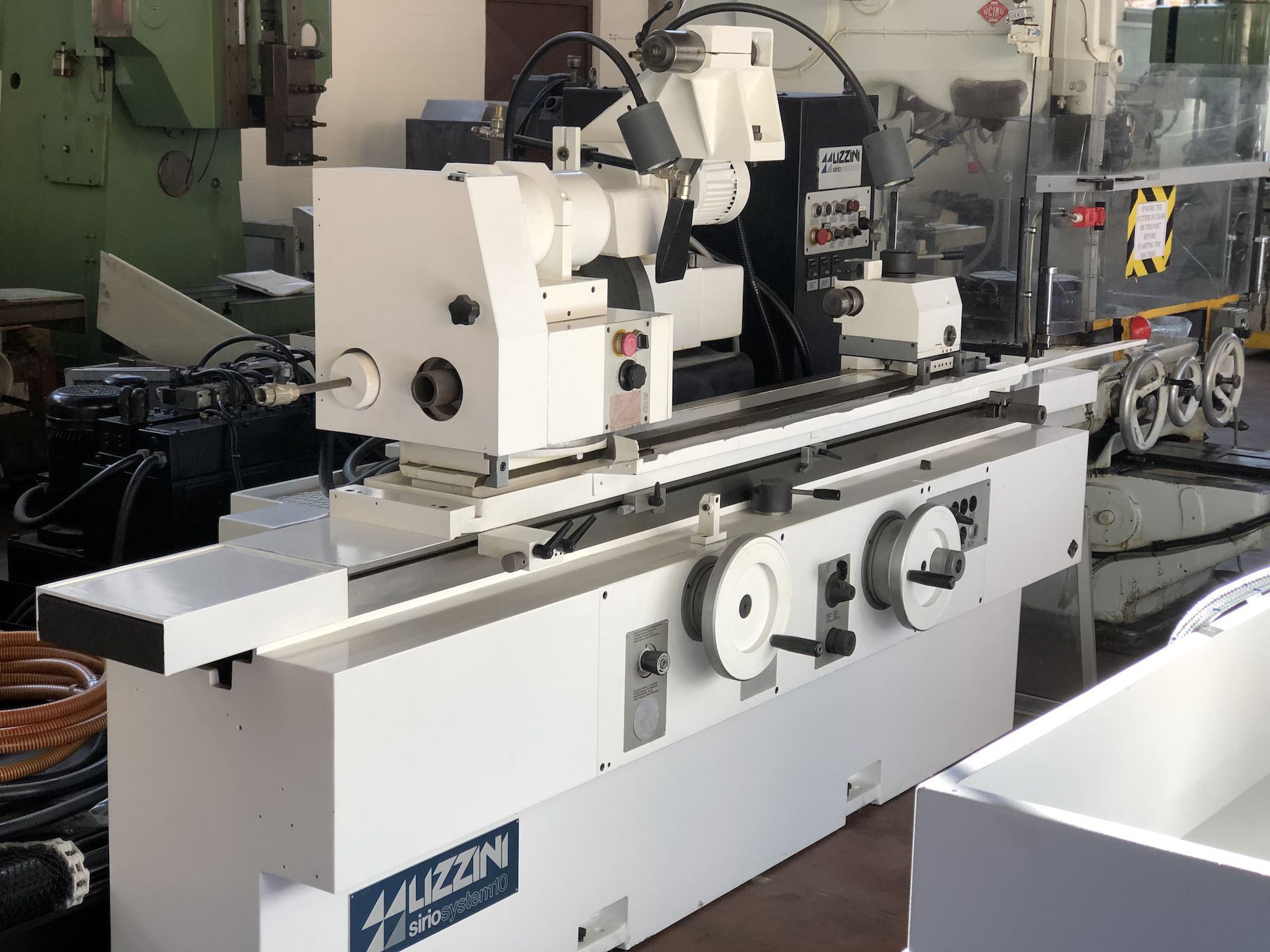

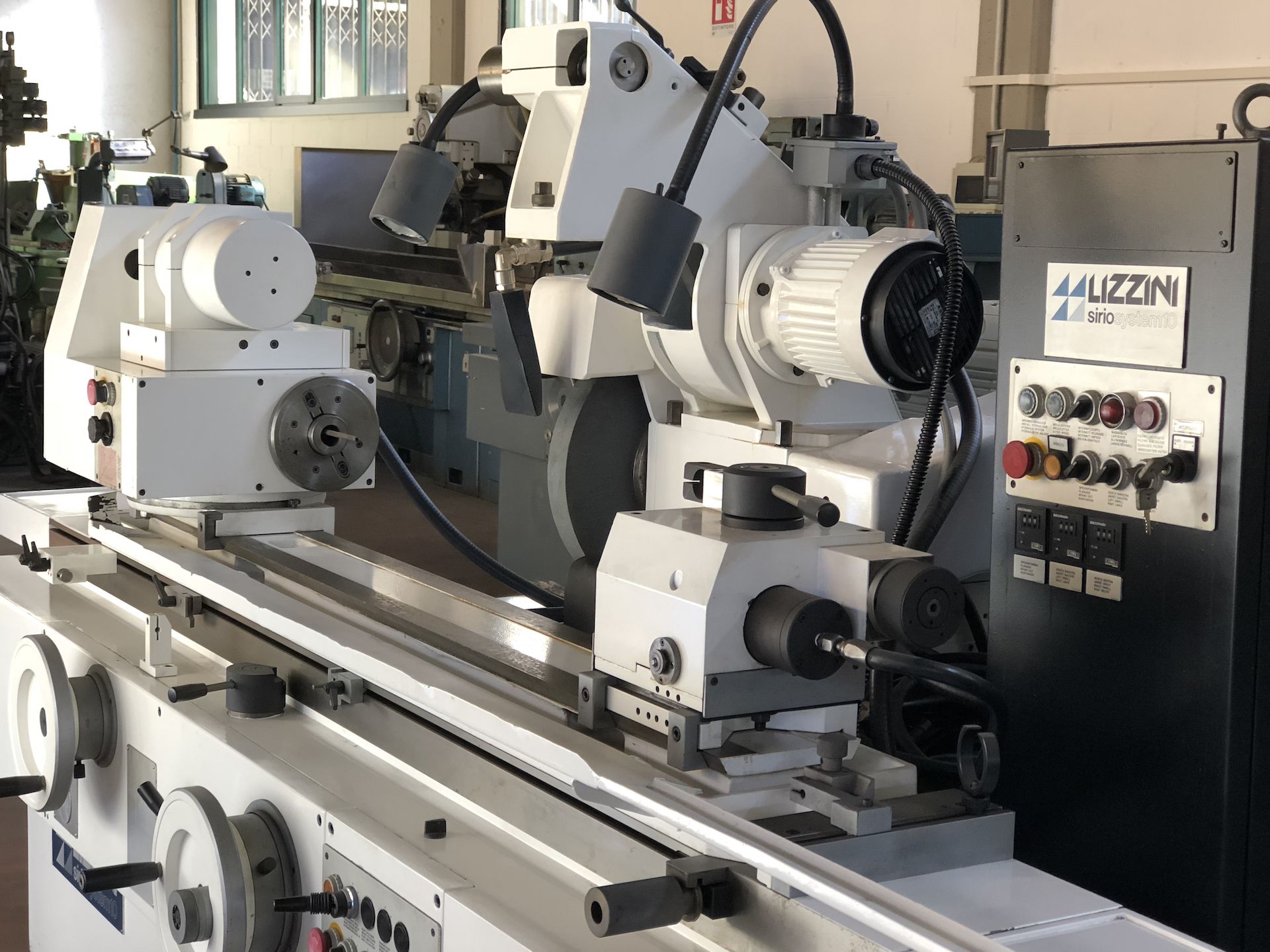

SIRIO SYSTEM 10
Capacity
300x1000 mm11,81x39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
150 mm5,91 in
Max grinding lenght
1000 mm39,37 in
Max grinding diameter
300 mm11,81 in
Max internal diameter
150 mm5,91 in
TABLE
Stroke
1070 mm42,13 in
Cross speed
0,1 - 6 mm/min0,0039 - 0,2362 ipm
Tilt
9 °
FEEDS
Cross
0,0025 - 0,025 mm/min0,0001 - 0,0010 ipm
WHEELHEAD
External spindle power
5,5 Kw
Notes
orientabile 90°
LEFT WHEEL
Wheel band thickness
70 mm2,76 in
Max wheel diameter
450 mm17,72 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Rotating speed
650 Rpm
Tilt
90 °
EXTRA
Total power supply
15 Kw
Machine total weight
4800 Kg
Floor space
4160x1600 mm163,78x62,99 in

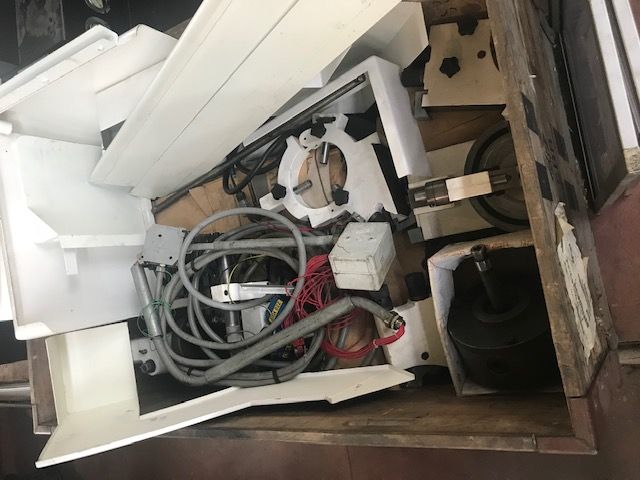

Tooling included
vasca filtro a carta, apparecchio per interni, flange, mole

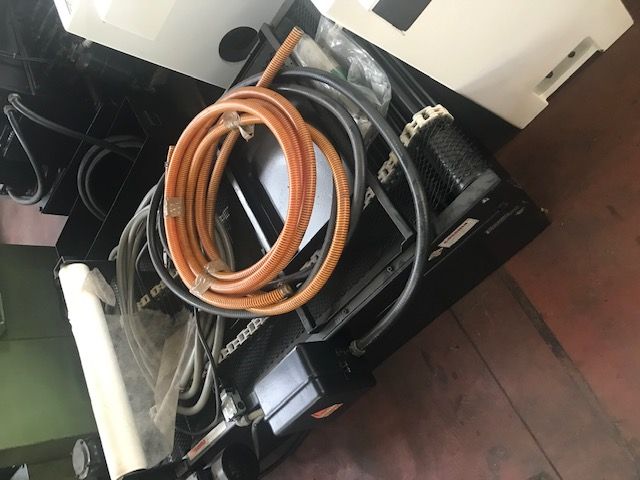

Filtration unit
vasca filtro a carta
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
pronta
Available in stock
si
Relevant updates made on the machine
ricondizionamento generale, verniciatura completa a spruzzo
