Category
Grinding Machine
Type
Cylindrical
Made
Model
1133 UMP
Capacity
ø660x1100 mmø25,98x43,31 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1100 mm43,31 in
Centres height
330 mm12,99 in
Longitudinal (Z)
1100 mm43,31 in
Cross (X)
300 mm11,81 in
Max grinding lenght
1100 mm43,31 in
Max grinding diameter
660 mm25,98 in
FEEDS
Cross
sgrossatura 0,01-0,05 / finitura 0,005-0,01 mm/minsgrossatura 0,0004-0,0020 / finitura 0,0002-0,0004 ipm
WHEELHEAD
Air cut
0,1-10 mm/min
External spindle power
11,33 Kw
External spindle speed
1030/1260 Rpm
Support
IDRODINAMICO
Accuracy (B axis)
+/- 45 °
WORKPIECE HEAD
Taper
MK5
Rotating speed
10-500 Rpm
Tilt
0-90 °

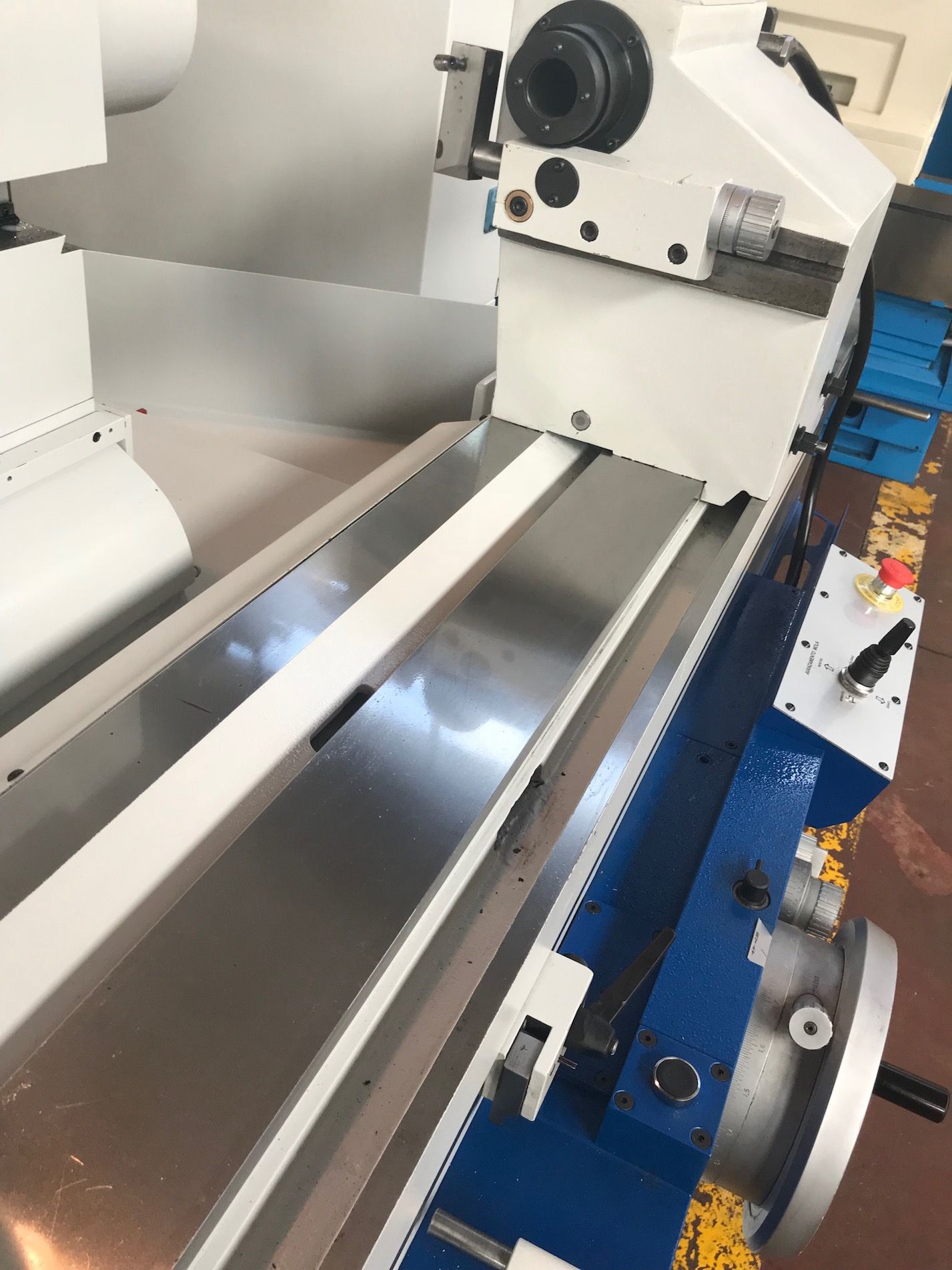

TABLE
Stroke
4-1100 mm0,16-43,31 in
Cross speed
100-4000 mm/min3,9370-157,4800 ipm
Max workpiece weight
700 Kg
Tilt
+9 / -3 °
LEFT WHEEL
Wheel band thickness
100 mm3,94 in
Max wheel diameter
610 mm24,02 in
Hole diameter
203,2 mm8,00 in
TAILSTOCK
Quill stroke
40 mm1,57 in
Taper
MORSE 5
EXTRA
Total power supply
14 Kw
Floor space
4000x2300x1850 mm157,48x90,55x72,83 in
Machine total weight
6700 Kg
Manual dresser
Yes
Wheel balancer
Yes

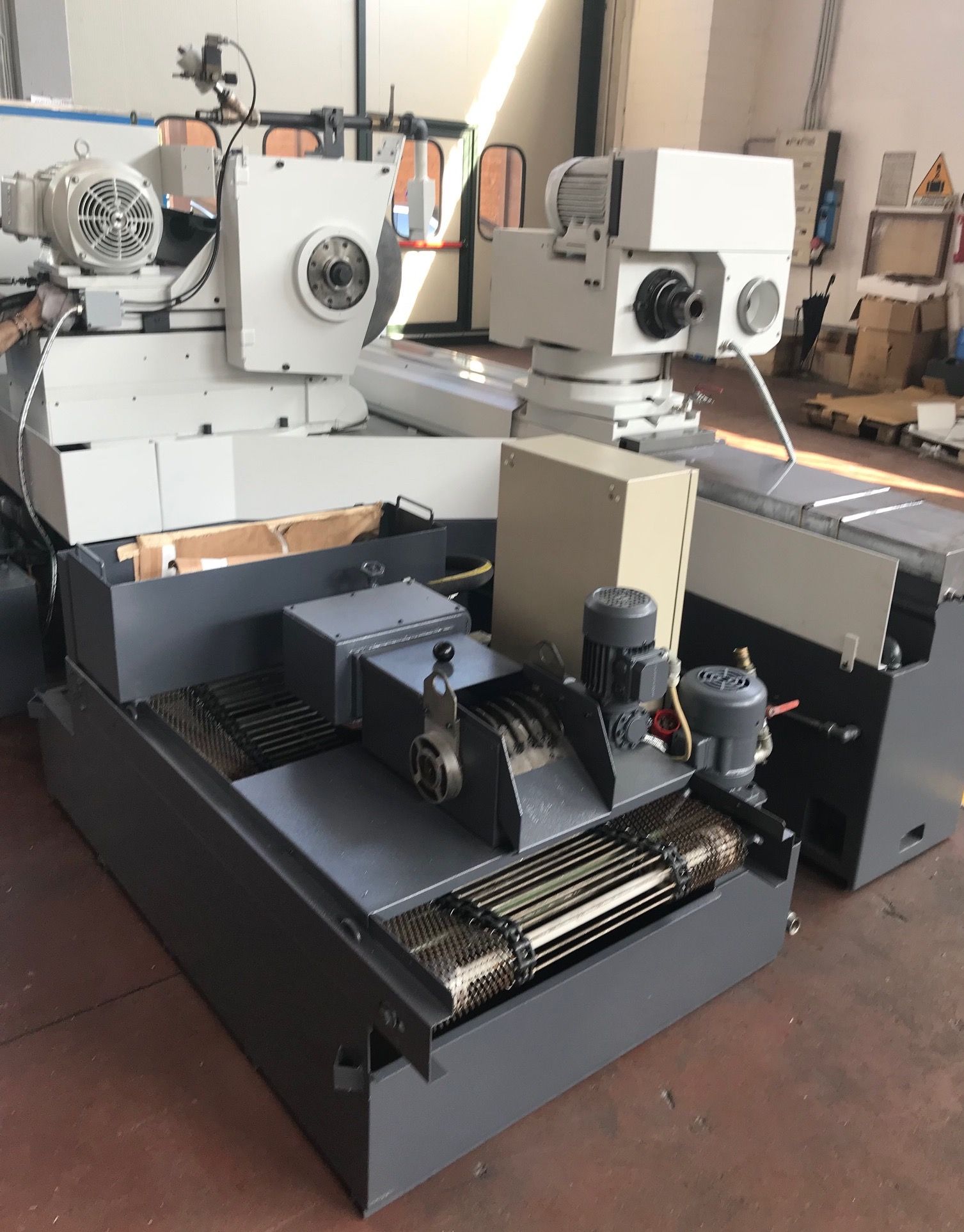

Filtration unit
A FILTRO CARTA
Maintenance & Use books
Yes
Electrical drawings
Yes
Availability
PRONTA
Available in stock
SI
Available under power
SI
Tooling included
VARIE
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
