Category
Grinding Machine
Type
Cylindrical
Made
Model
BUAJ 30 CNC
Capacity
ø300x800 mmø11,81x31,50 in

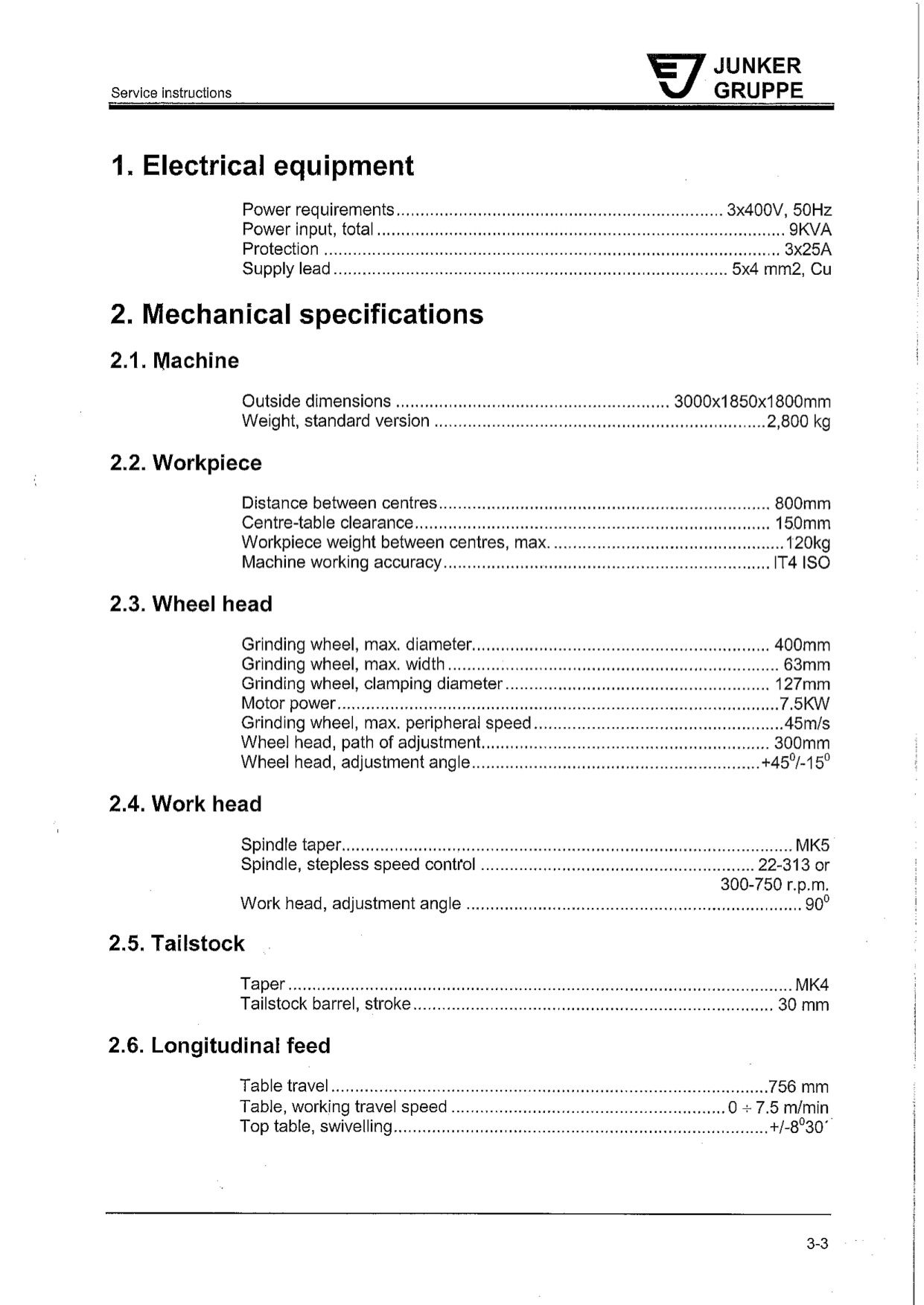

Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
800 mm31,50 in
Centres height
150 mm5,91 in
Max grinding diameter
300 mm11,81 in
Max grinding lenght
800 mm31,50 in
Longitudinal (Z)
756 mm29,76 in
TABLE
Max workpiece weight
120 Kg
Cross speed
0 - 7,5 mm/min0,0000 - 0,2953 ipm
Stroke
756 mm29,76 in
Tilt
+/- 8,30 °

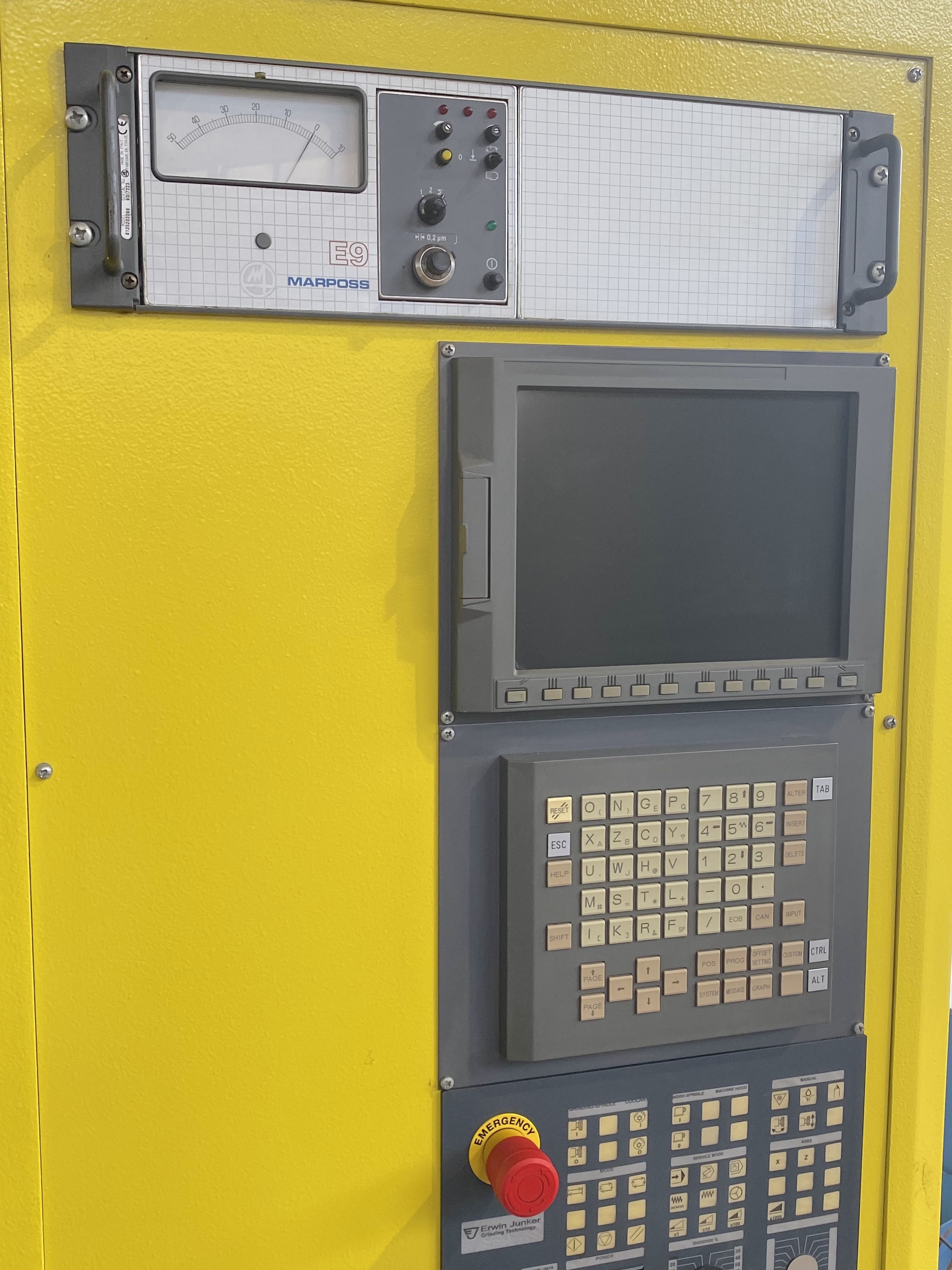

CNC
CNC
FANUC 210i

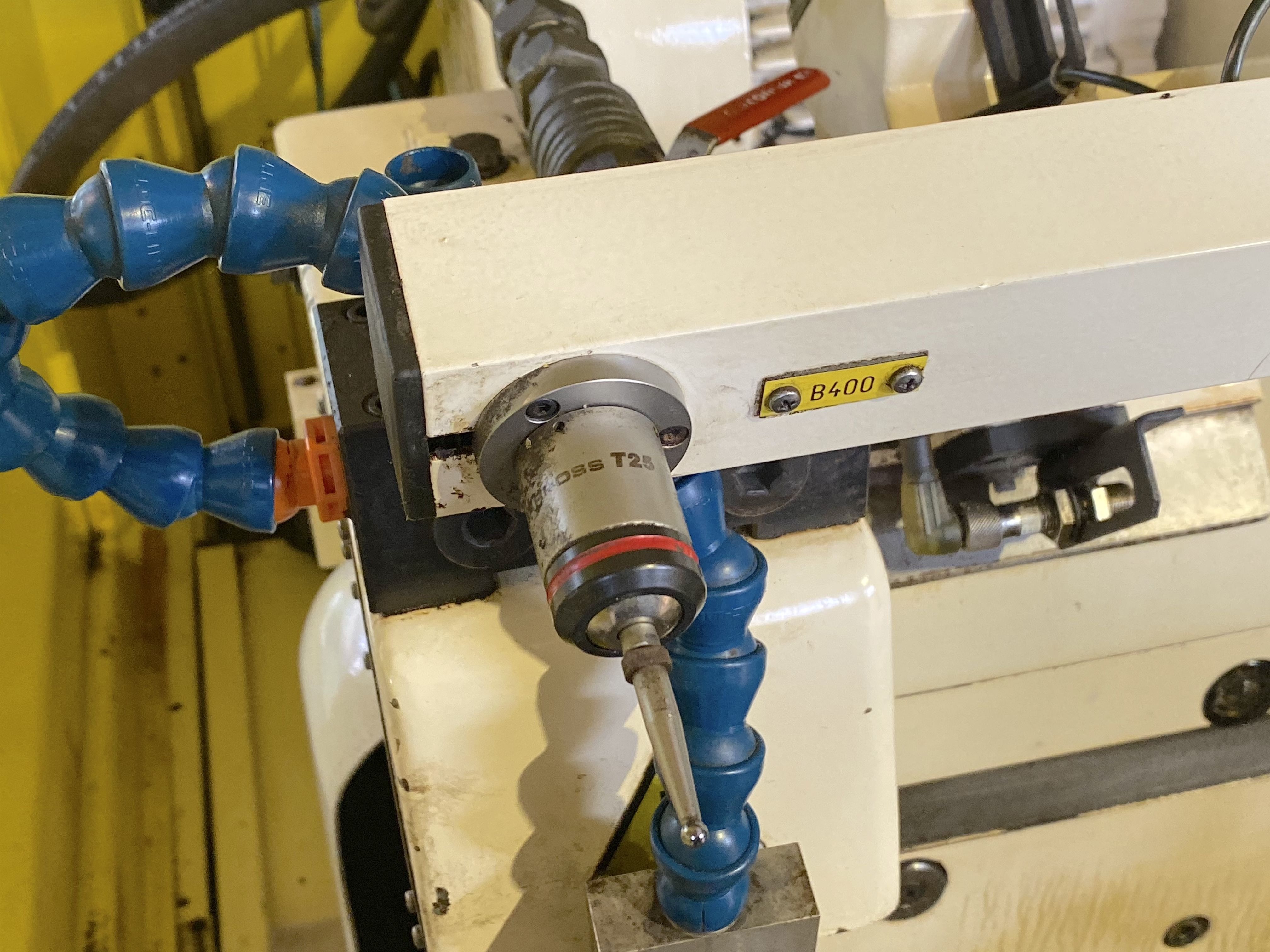

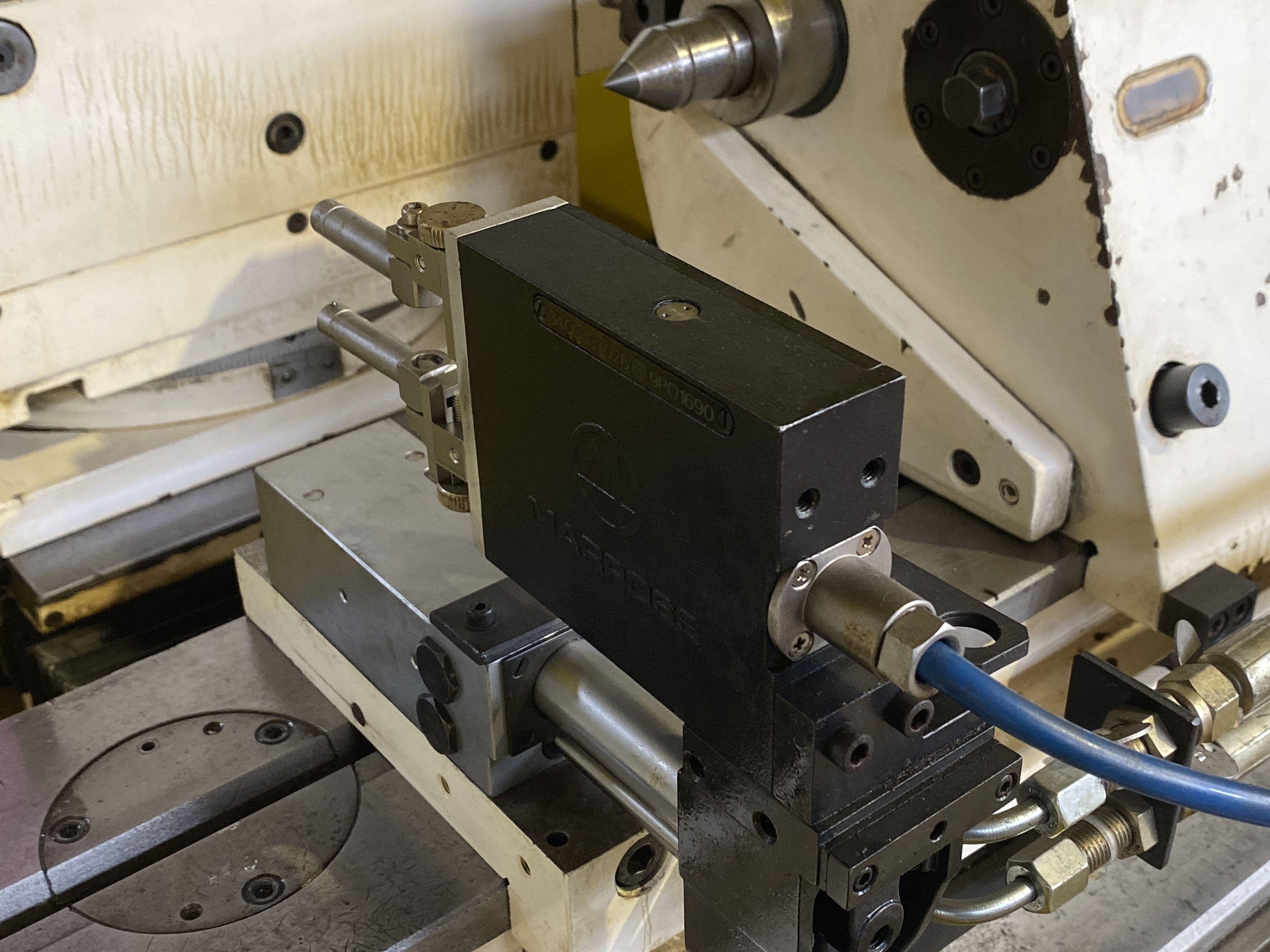

Measuring system
MARPOSS E9
Drives
FANUC

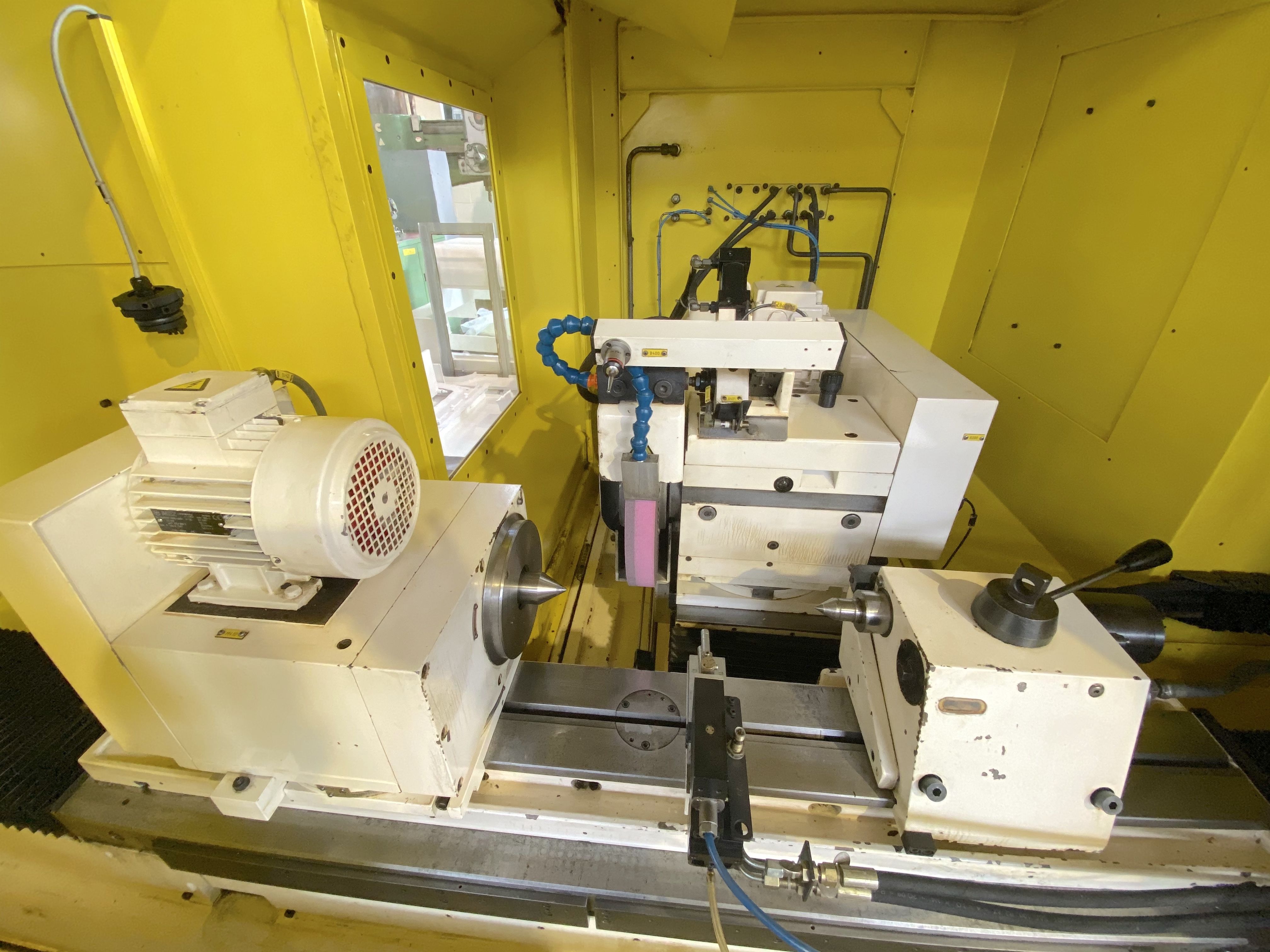

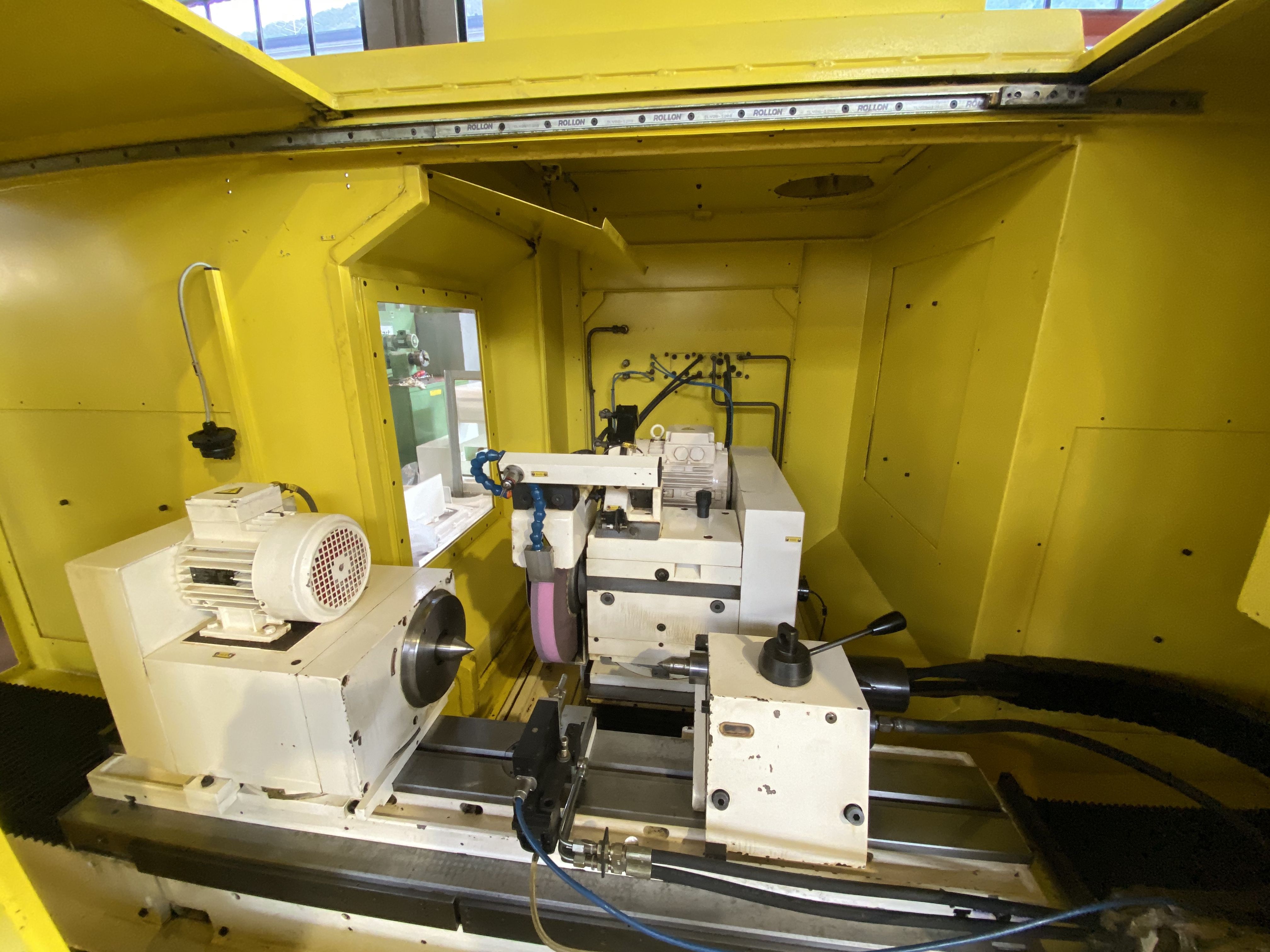

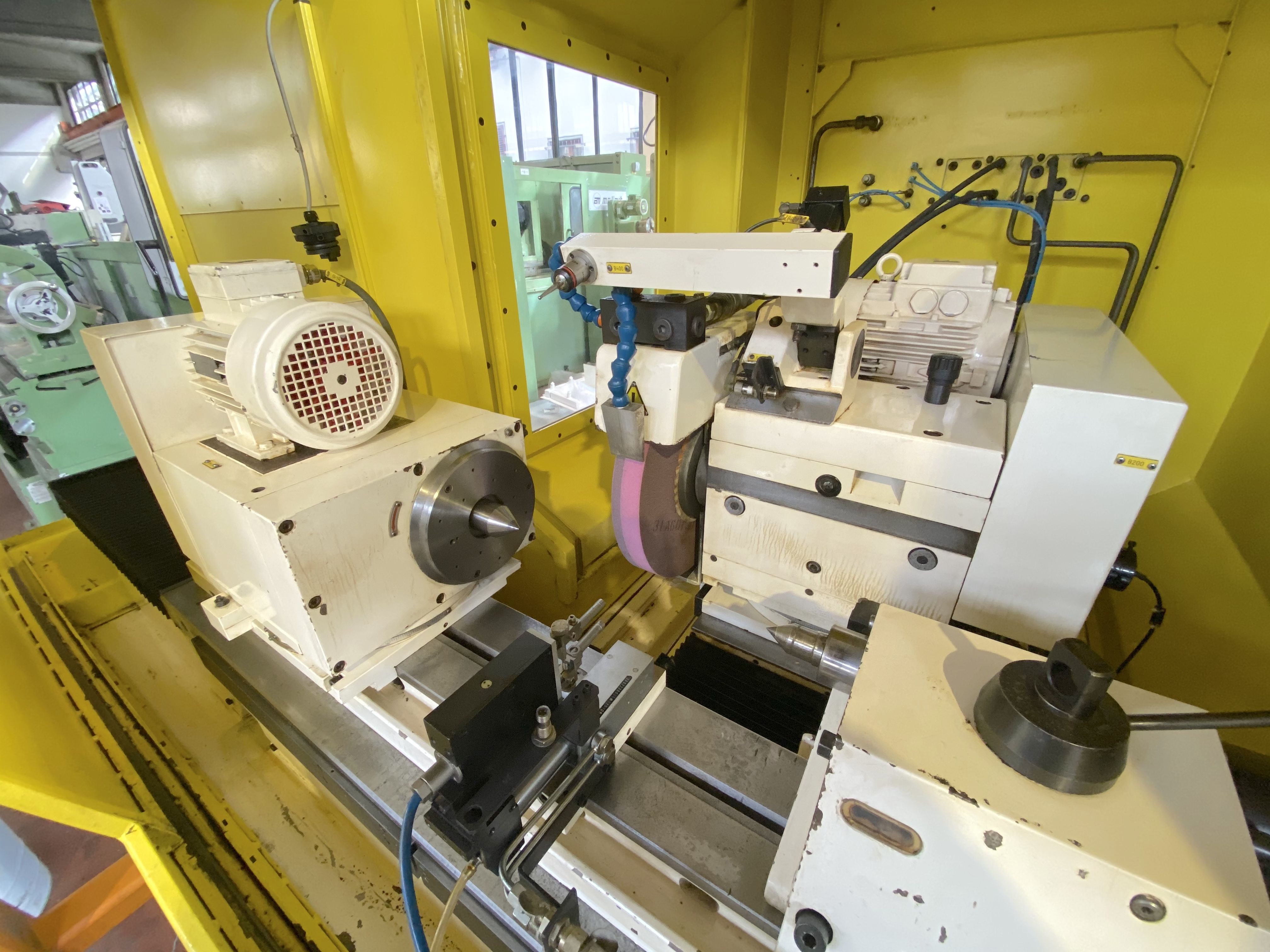

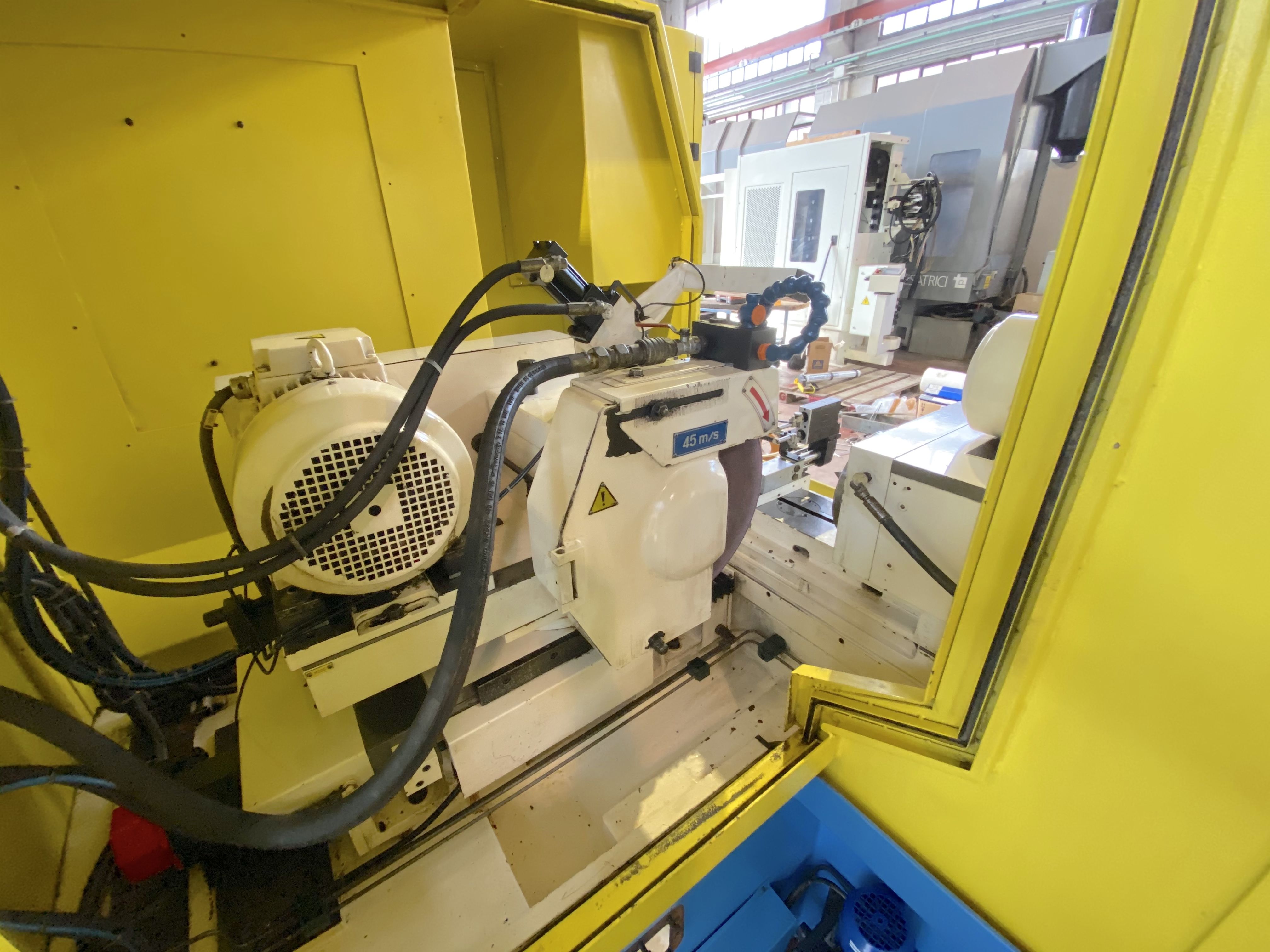

WHEELHEAD
External spindle power
7,5 Kw
External spindle speed
300 Rpm
Accuracy (B axis)
+45/-15 °
LEFT WHEEL
Wheel band thickness
63 mm2,48 in
Max wheel diameter
400 mm15,75 in
Hole diameter
127 mm5,00 in
WORKPIECE HEAD
Rotating speed
22/313 - 300/750 Rpm
Tilt
90 °
Taper
MK4

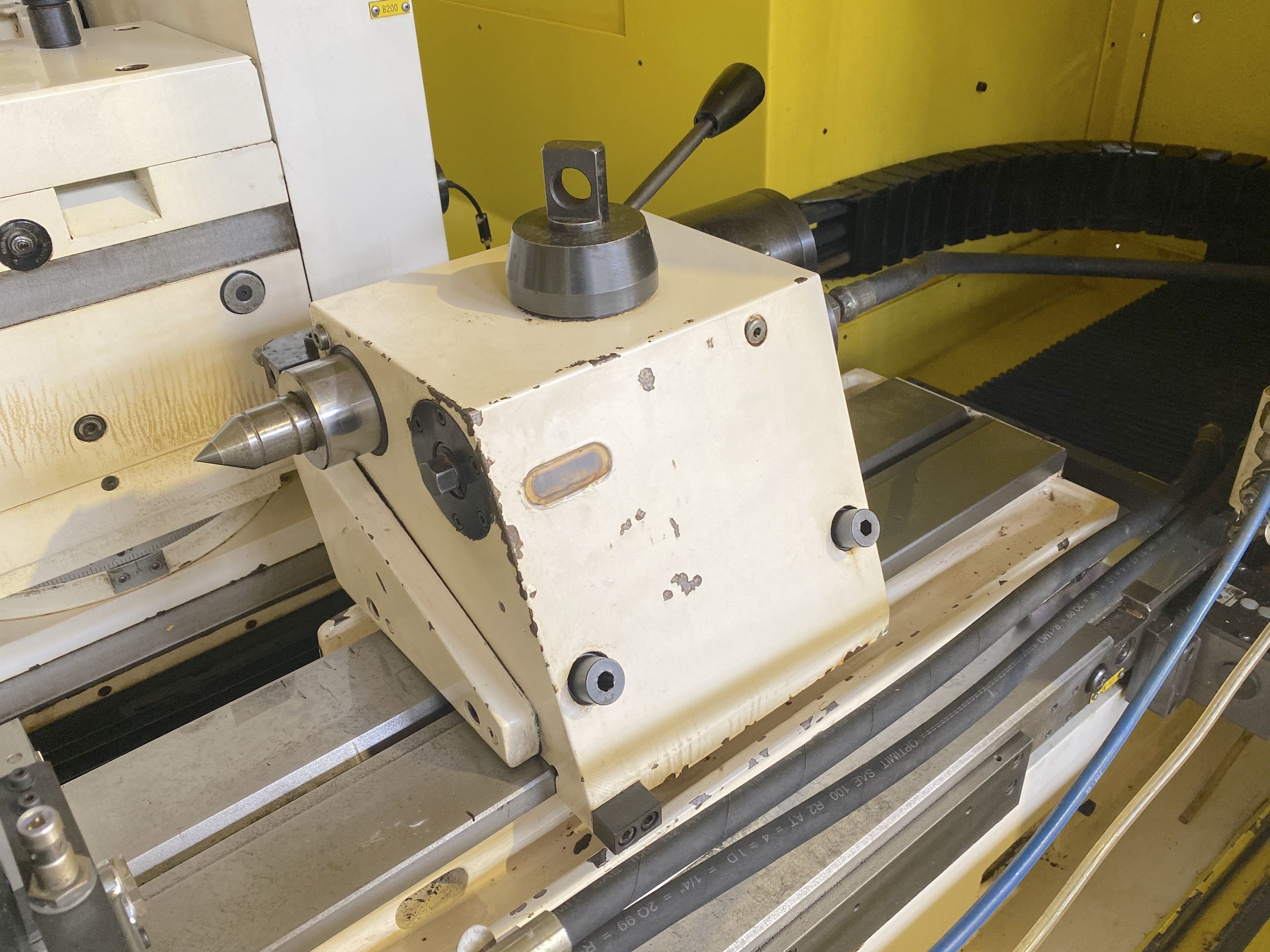

TAILSTOCK
Quill stroke
30 mm1,18 in
Taper
MK4
EXTRA
Machine total weight
2800 Kg
Floor space
300X1850X1800 mm11,81X72,83X70,87 in
Tooling included
Diamantatore
Automatic dresser
No
Maintenance & Use books
Yes

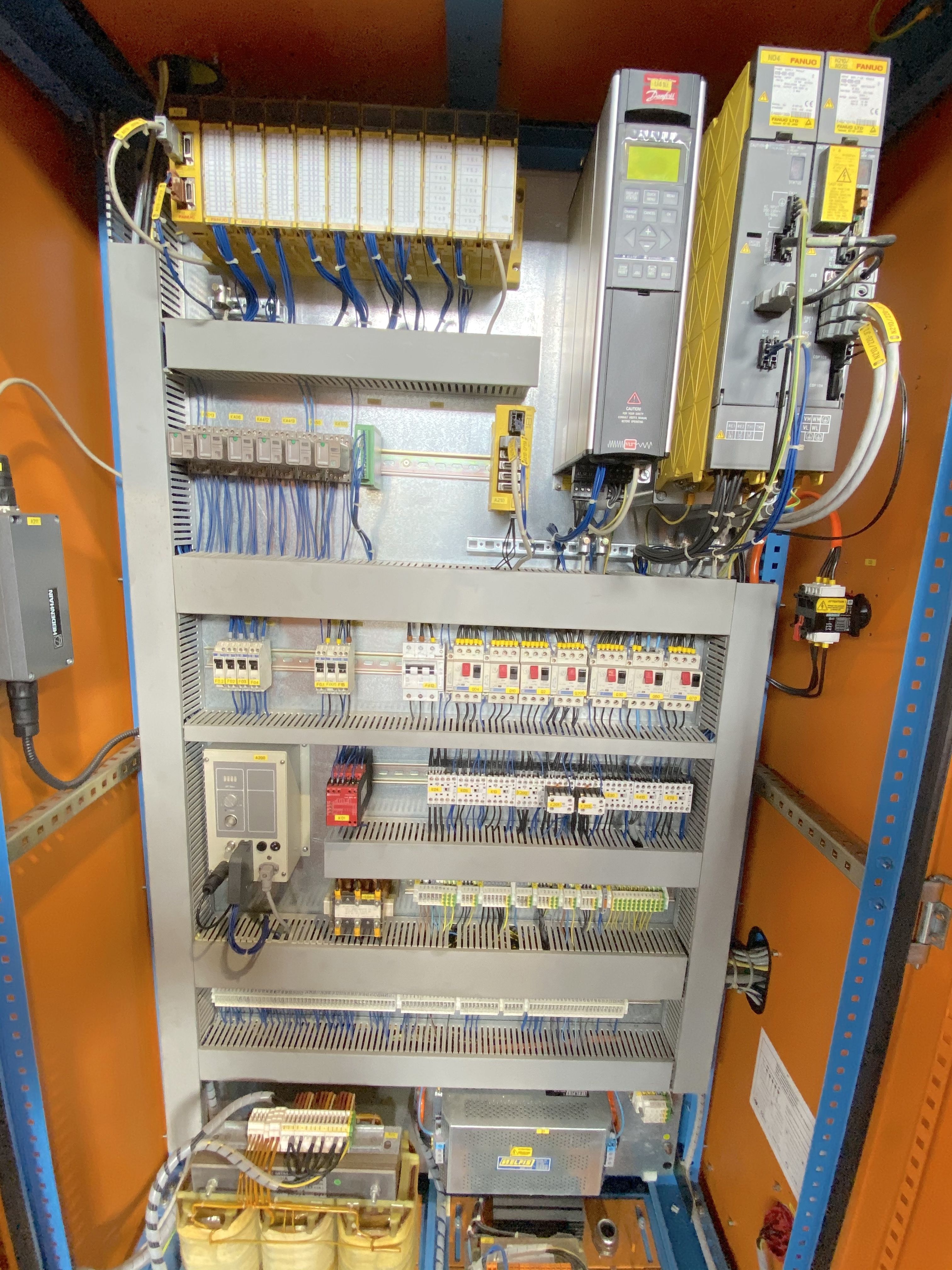

Electrical drawings
Yes
CE Certification
Yes

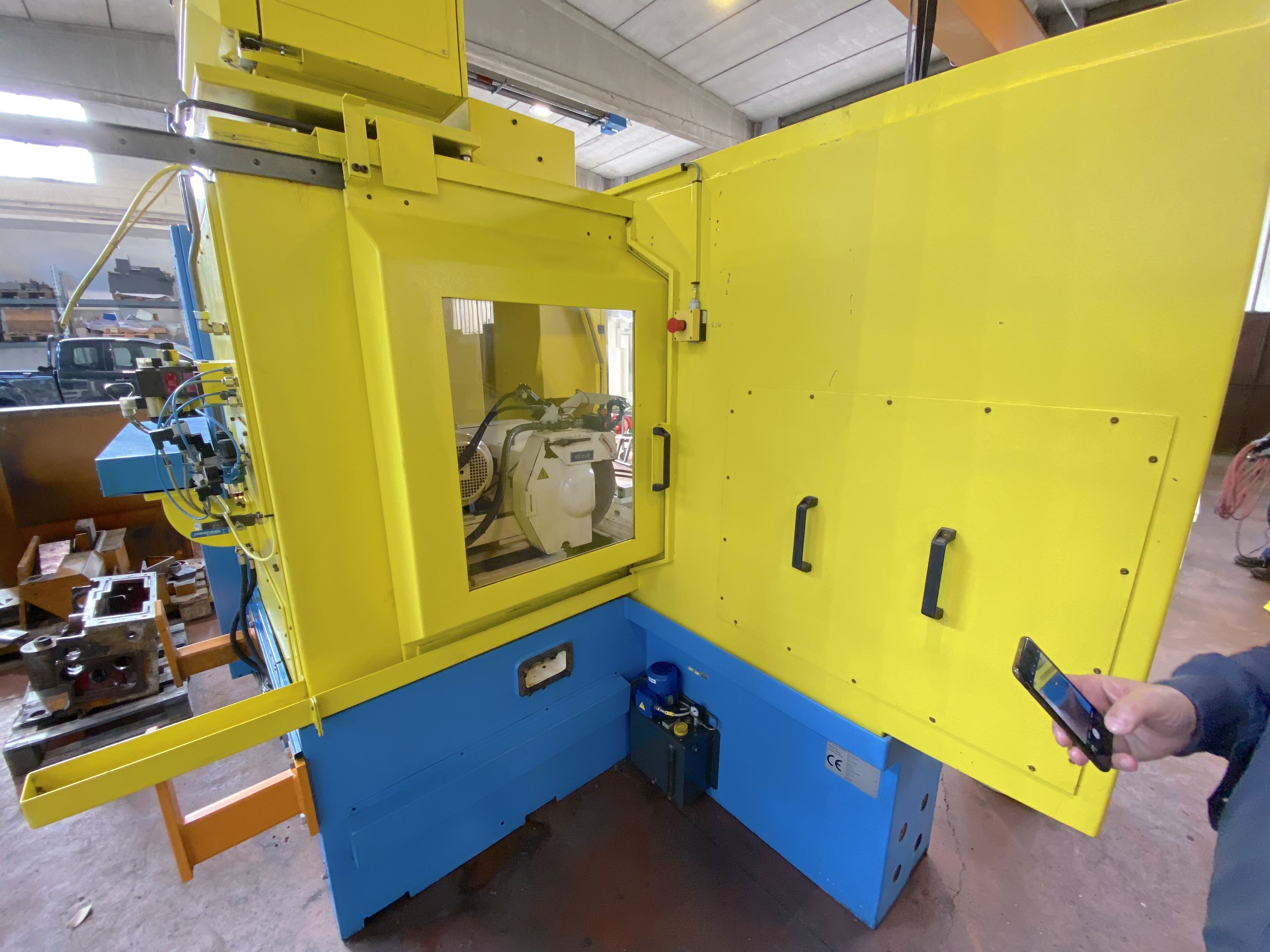

Housing
COMPLETA
Mist extractor
SI
Availability
PRONTA
Available in stock
SI
Filtration unit
filtro a carta 250lt.
