Category
Grinding Machine
Type
Cylindrical
Made

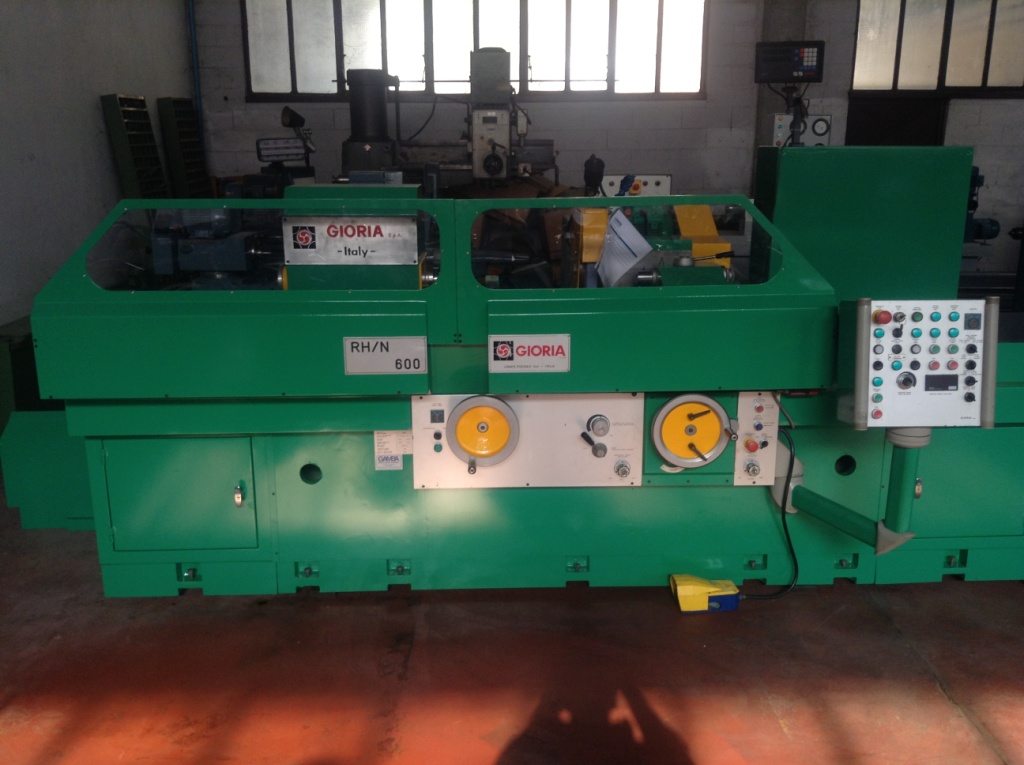

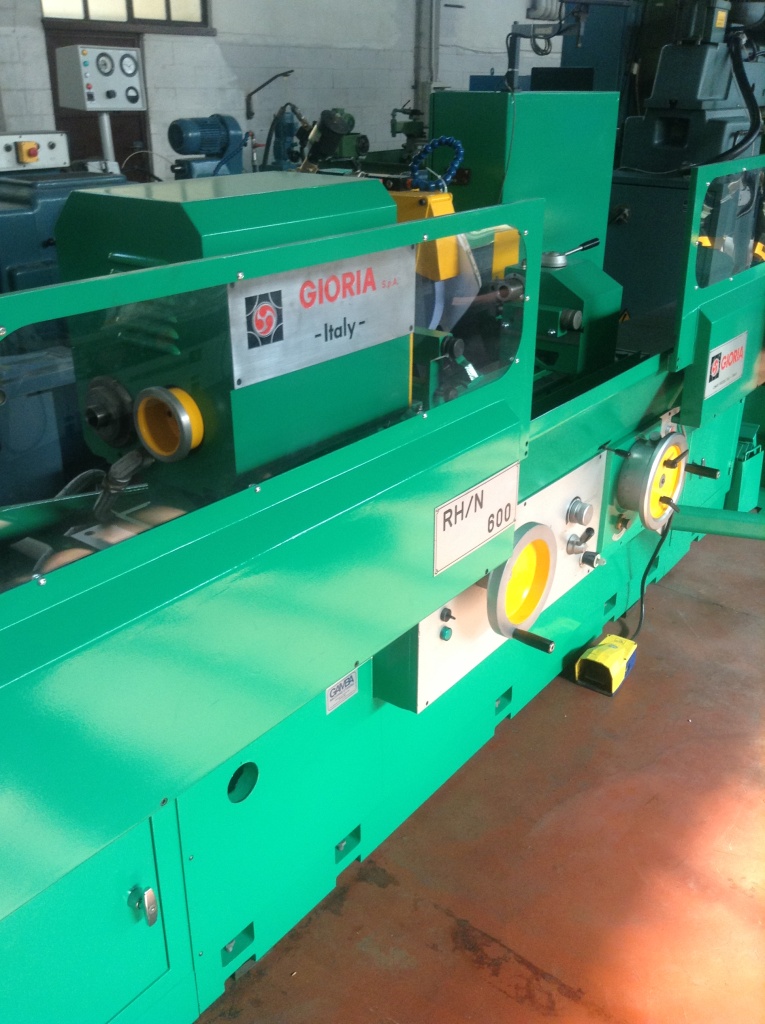

Model

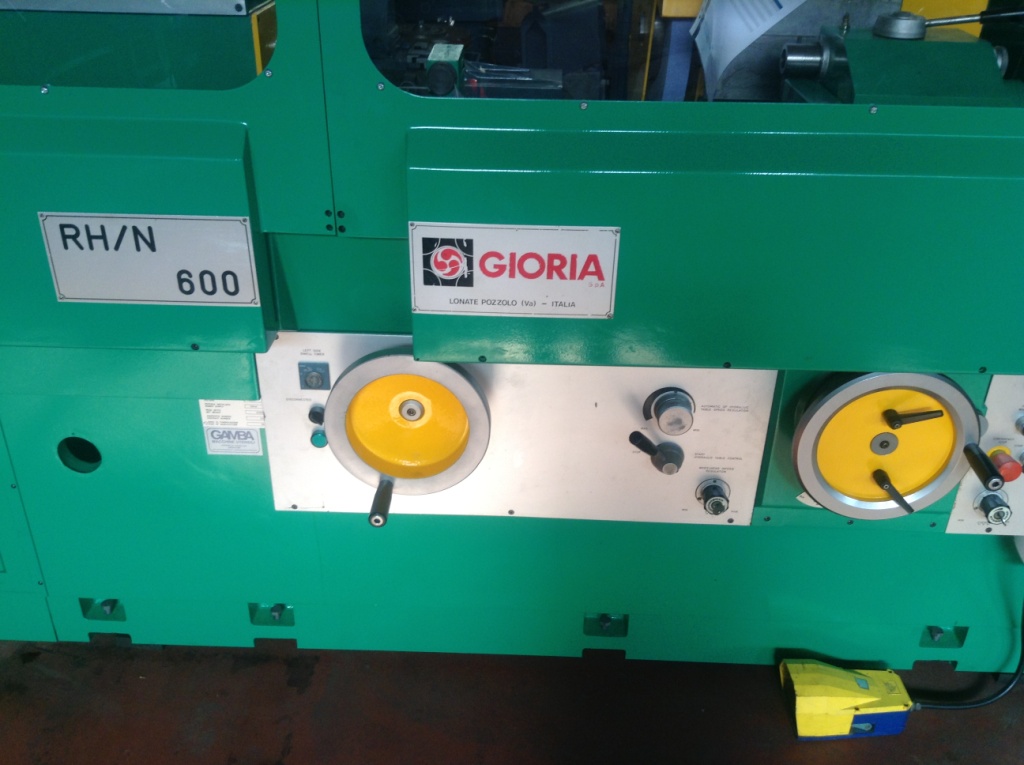

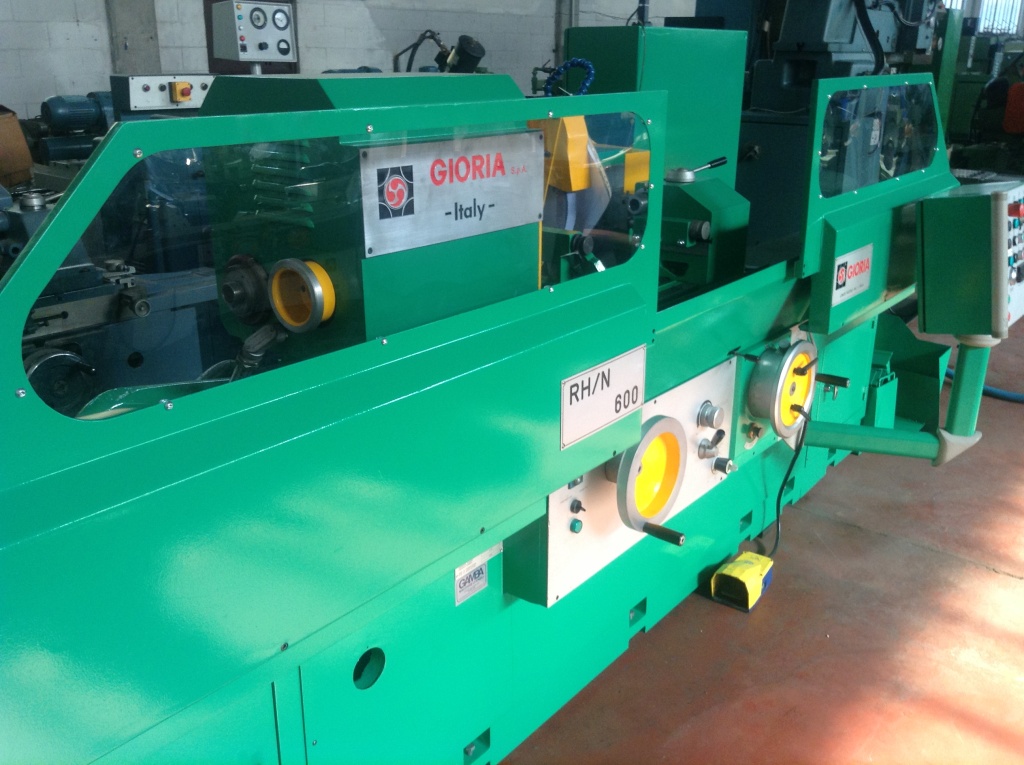

RH/N 600
Capacity
200x600 mm7,87x23,62 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
600 mm23,62 in
Centres height
200 mm7,87 in
Longitudinal (Z)
600 mm23,62 in
Max grinding diameter
400 mm15,75 in
TABLE
Stroke
600 mm23,62 in

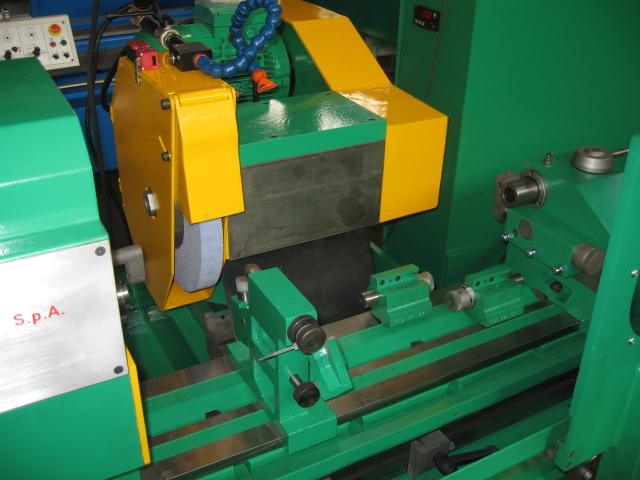

WHEELHEAD
External spindle power
5,5 Kw

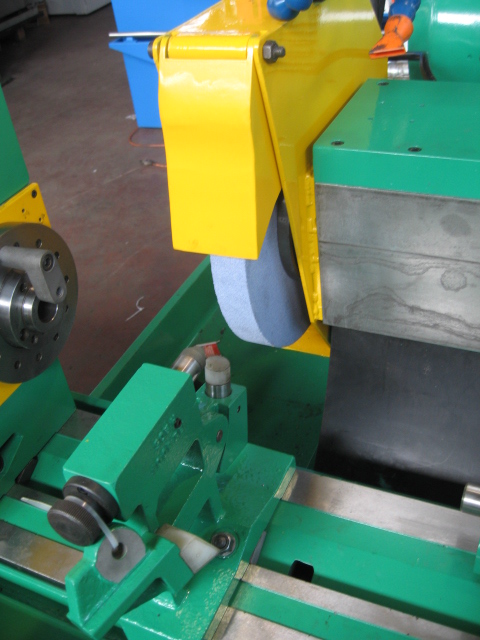

LEFT WHEEL
Wheel band thickness
60 mm2,36 in
Max wheel diameter
400 mm15,75 in
Hole diameter
127 mm5,00 in
EXTRA
CE Certification
Yes
Machine total weight
3500 Kg
Tooling included

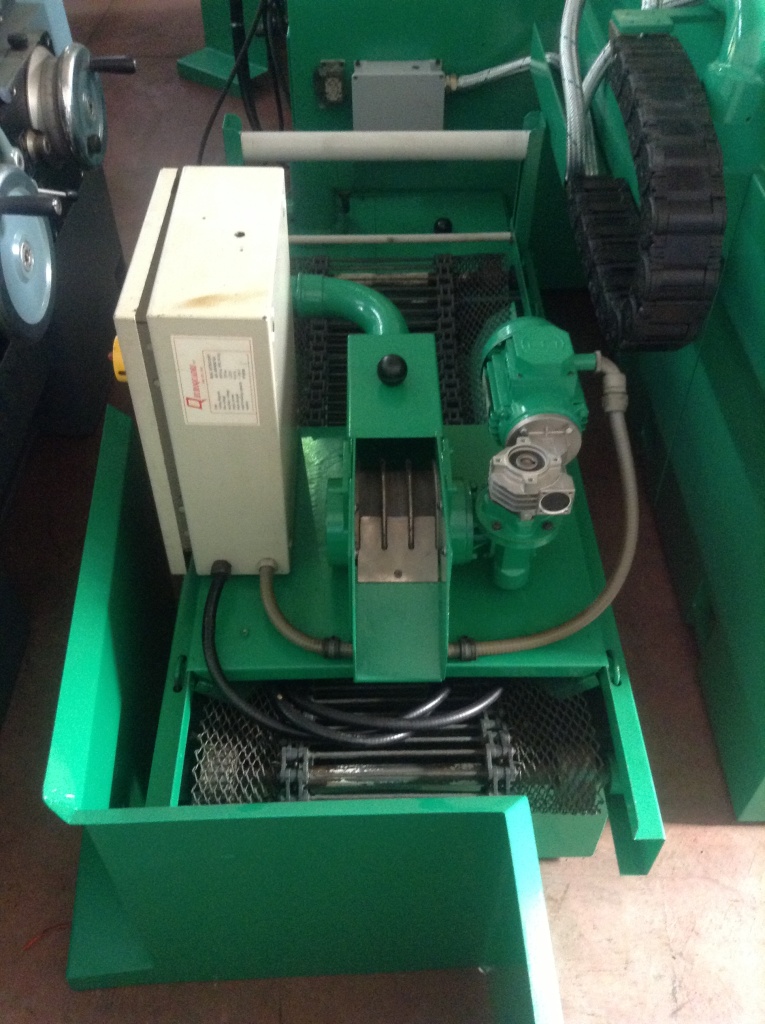

vasca filtro, lunette, visualizzatore
Open steadies
2

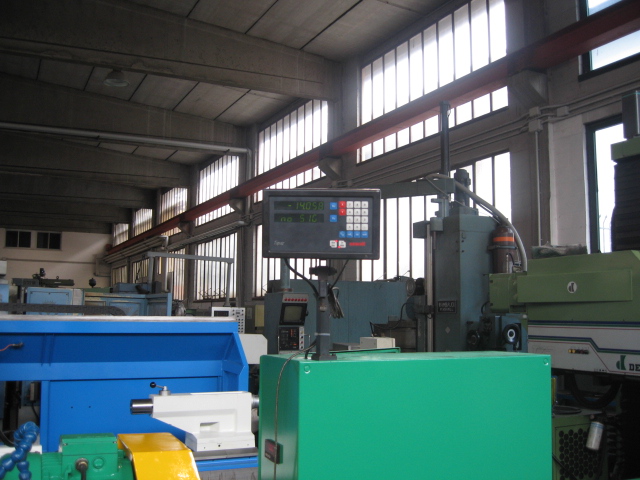

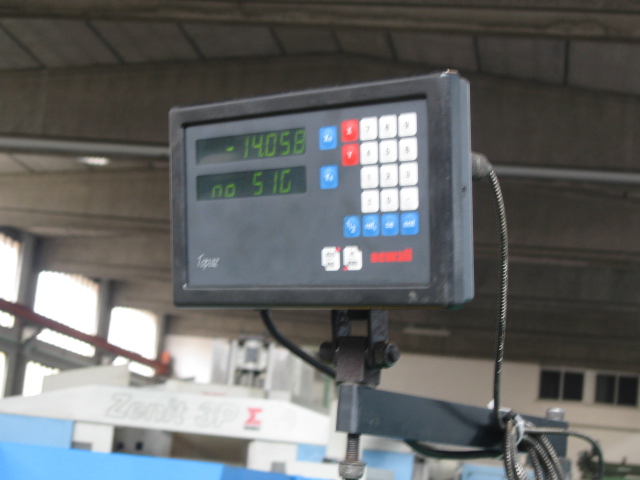

Digital read out (DRO)
2 assi
Housing
frontale con micro di emergenza
Availability
pronta
Available in stock
si
Available under power
si
Relevant updates made on the machine
riverniciatura completa a spruzzo, ricondizionata
