Category
Grinding Machine
Type
Cylindrical
Made
Model
1018 UA
Capacity
360 X 1000 mm14,17 X 39,37 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1000 mm39,37 in
Centres height
180 mm7,09 in
Max grinding diameter
360 mm14,17 in
Notes
MARPOSS
TABLE
Max workpiece weight
250 Kg
Tilt
0-7 °

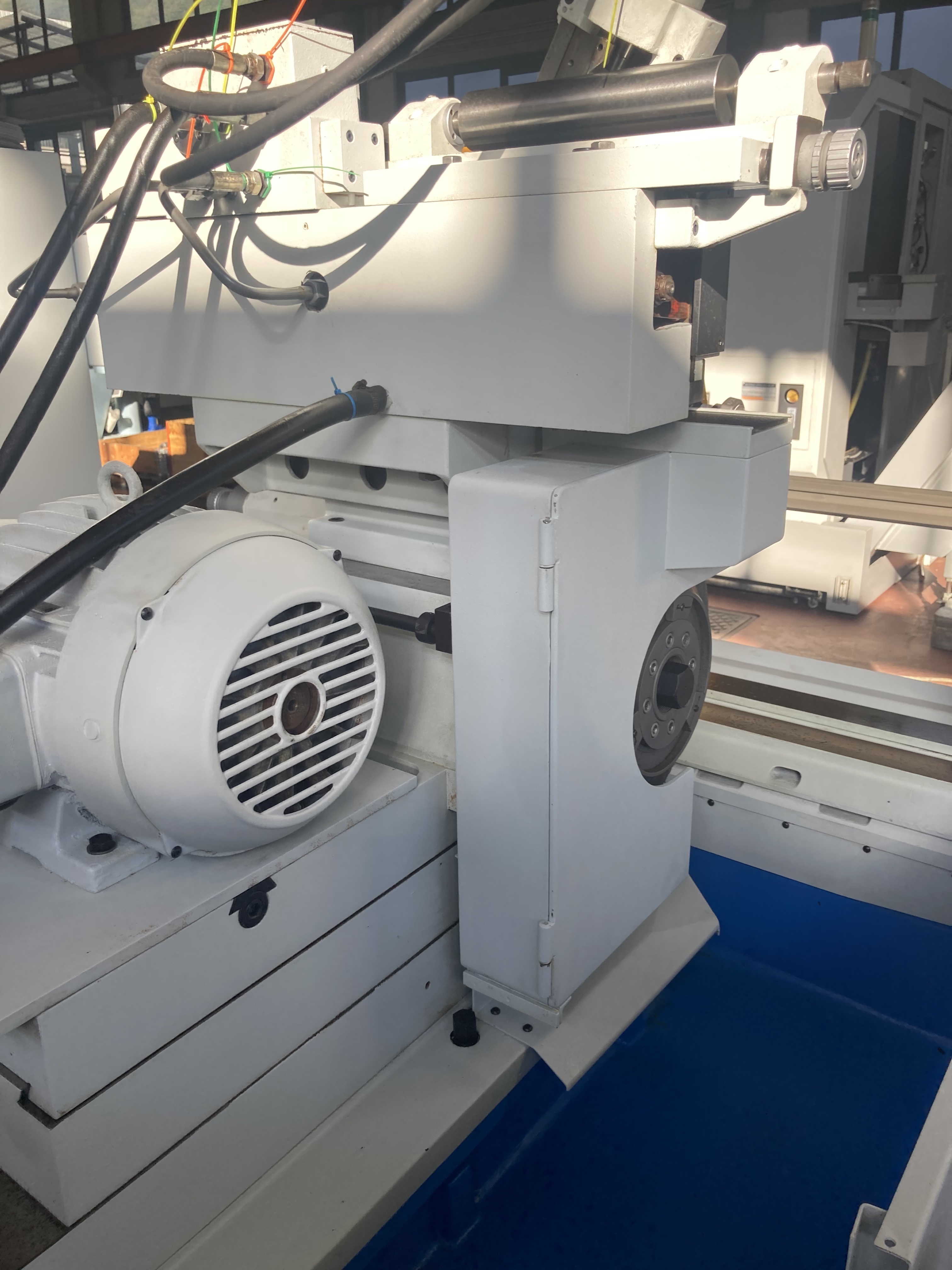

WHEELHEAD
External spindle power
5,5 Kw
External spindle speed
1450 Rpm
LEFT WHEEL
Wheel band thickness
100 mm3,94 in
Max wheel diameter
450 mm17,72 in
Hole diameter
127 mm5,00 in
TAILSTOCK
Drive
IDRAULICO E MANUALE

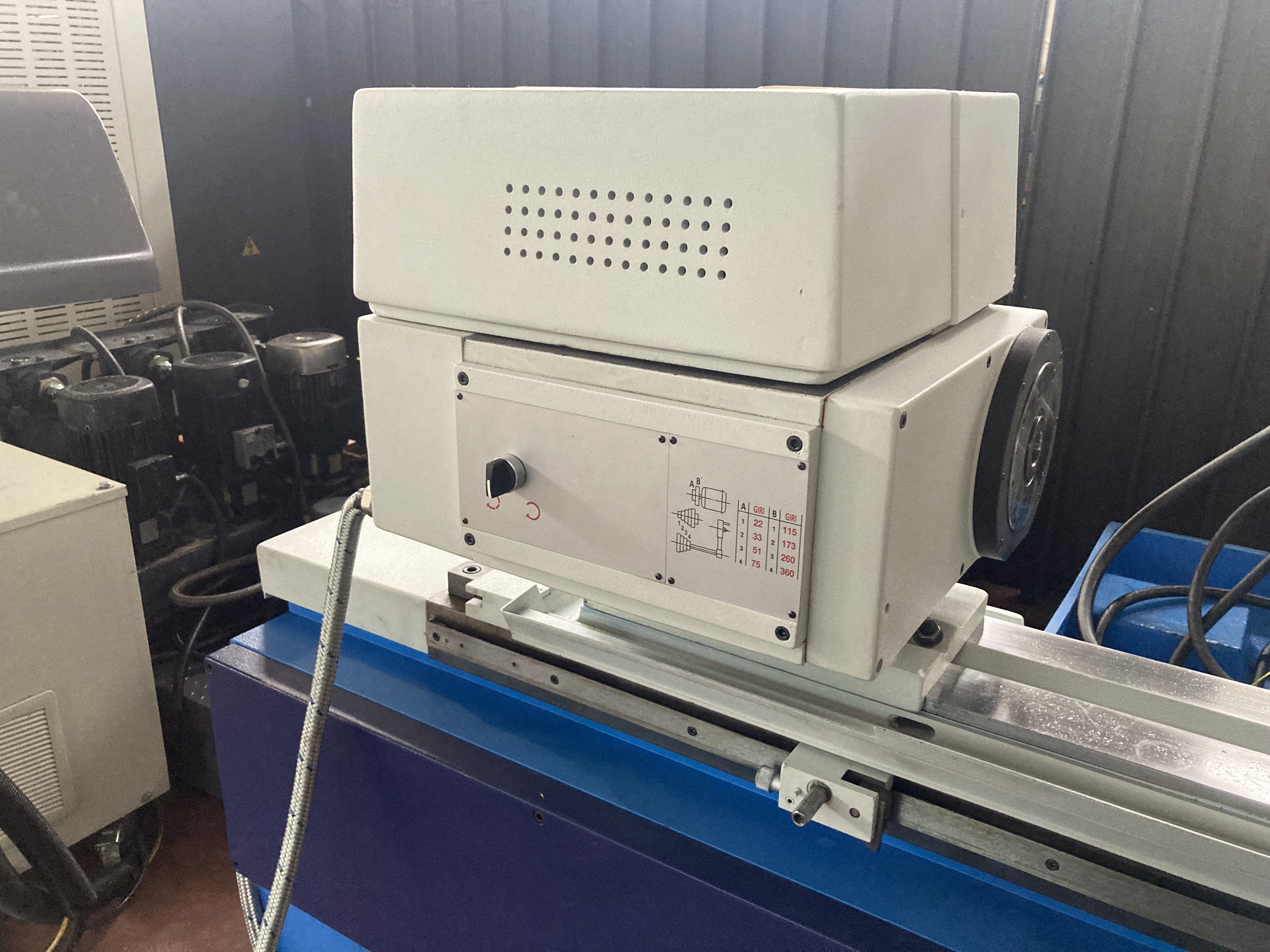

WORKPIECE HEAD
Speed regulation
VARIABILE
FEEDS
Automatic Vertical
SI CON PLONGE AUTOMATICO mm/minSI CON PLONGE AUTOMATICO ipm
Cross
SI-PLONGE AUTOMATICO mm/minSI-PLONGE AUTOMATICO ipm
EXTRA
Tooling included
COPIATORE MOLA
Closed steadies
SI
Diametral probe
Yes
Maintenance & Use books
Yes
Electrical drawings
Yes
Housing
FRONTALE CON MICRO BLOCCAGGIO
Availability
PRONTA
Available in stock
SI
Available under power
SI
Relevant updates made on the machine
MANUTENZIONE ORDINARIA CAMBIO CUSCINETTI
