Category
Grinding Machine
Type
Cylindrical
Made
Model

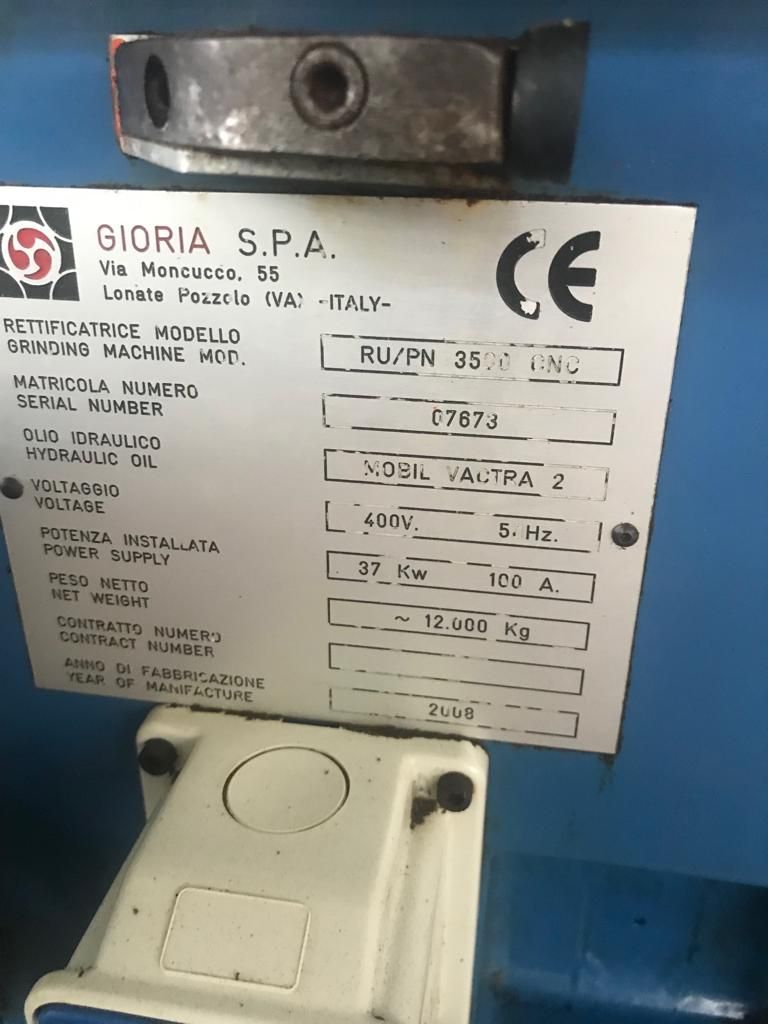

RU/PN 3500 CNC
Capacity
ø500x3500 mmø19,69x137,80 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
3500 mm137,80 in
Centres height
250 mm9,84 in
Longitudinal (Z)
3645 mm143,50 in
Max grinding lenght
3500 mm137,80 in
Max grinding diameter
500 mm19,69 in
TABLE
Stroke
3645 mm143,50 in
Cross speed
0-6000 mm/min0,0000-236,2200 ipm
Max workpiece weight
1000 Kg
Tilt
+/-4 °

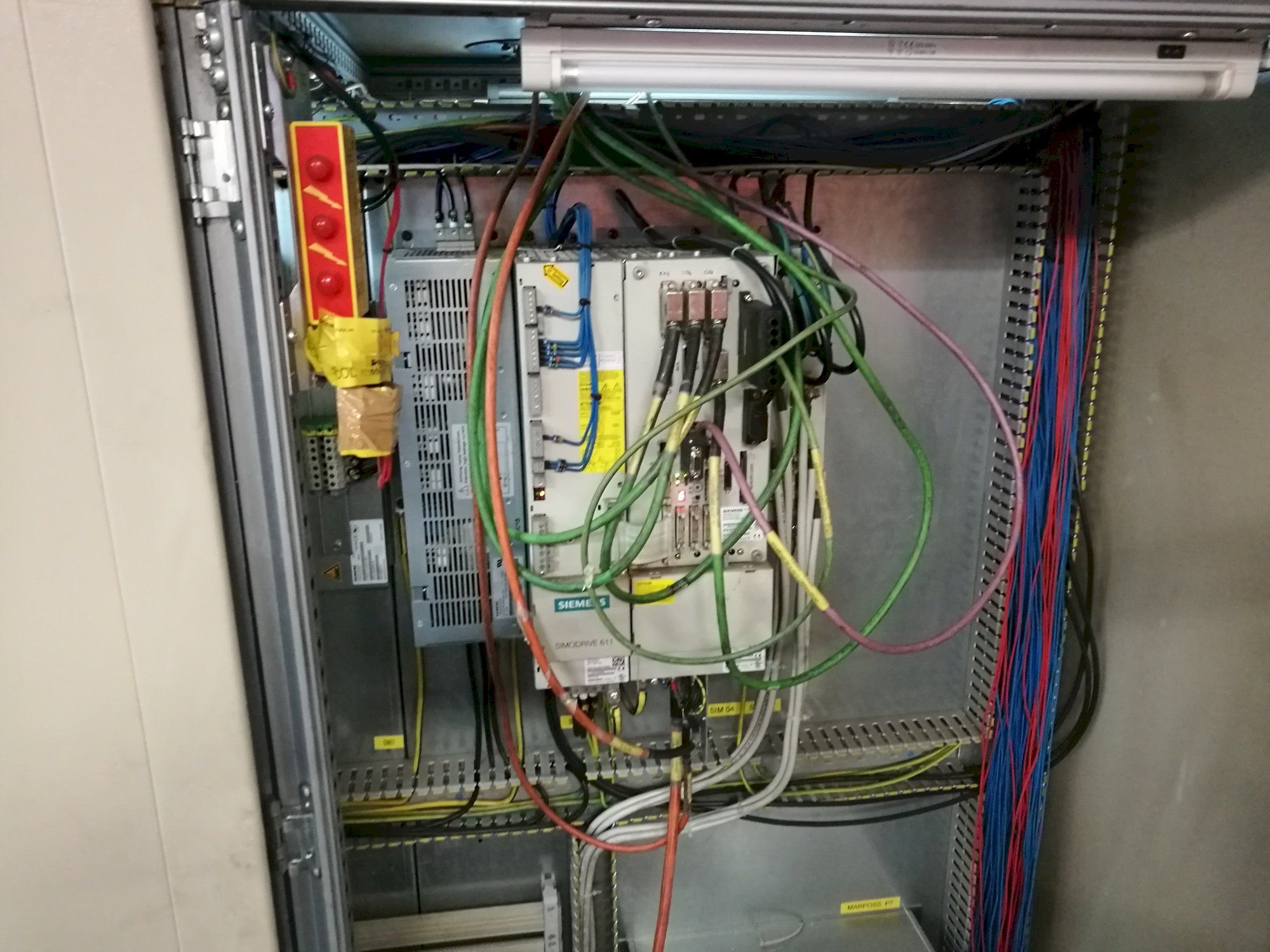

CNC
CNC
SIEMENS 810D
Drives
SIEMENS Simodrive
Measuring system
Marposs E20N
WHEELHEAD
External spindle power
11 Kw
External spindle speed
1100-1300 Rpm
Notes
+/-45°
LEFT WHEEL
Wheel band thickness
100 mm3,94 in
Max wheel diameter
600 mm23,62 in
Hole diameter
203 mm7,99 in
WORKPIECE HEAD
Spindle power
3,32 Kw
Rotating speed
15-300 Rpm
Tilt
+/-90 °
Taper
ASA4”
TAILSTOCK
Quill stroke
40 mm1,57 in
Taper
CM5
EXTRA
Machine total weight
11500 Kg
Floor space
10900x2000x1650 mm429,13x78,74x64,96 in
Wheel balancer
Yes
Electrical drawings
Yes
CE Certification
Yes
Maintenance & Use books
Yes
Availability
Pronta
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
