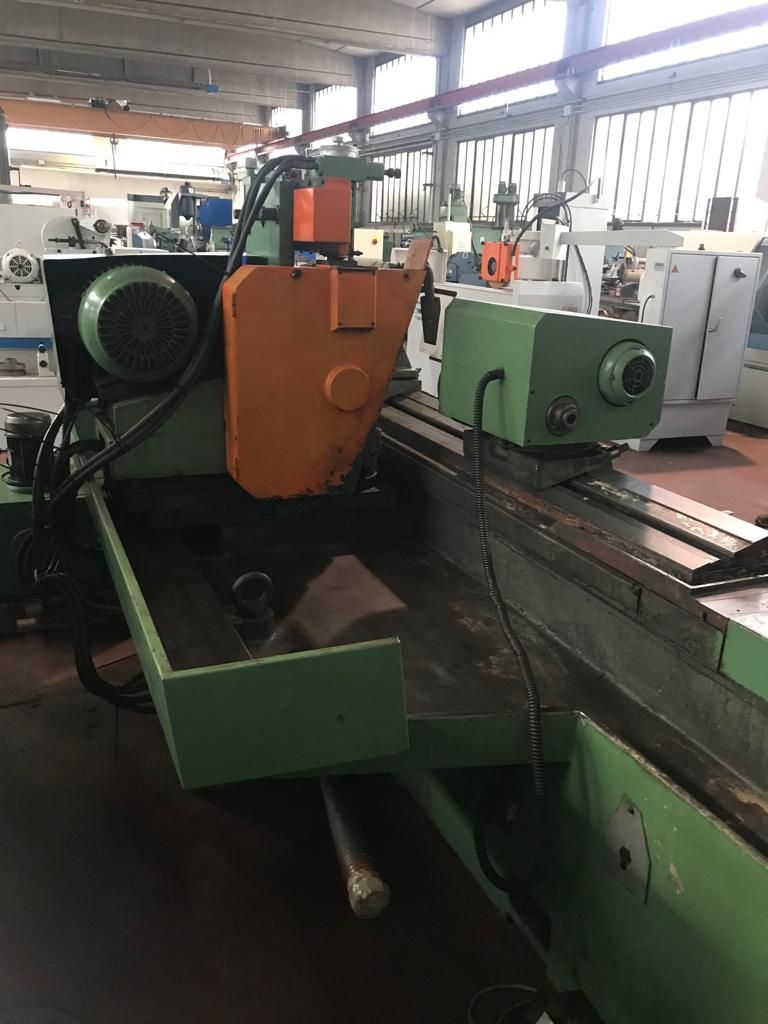

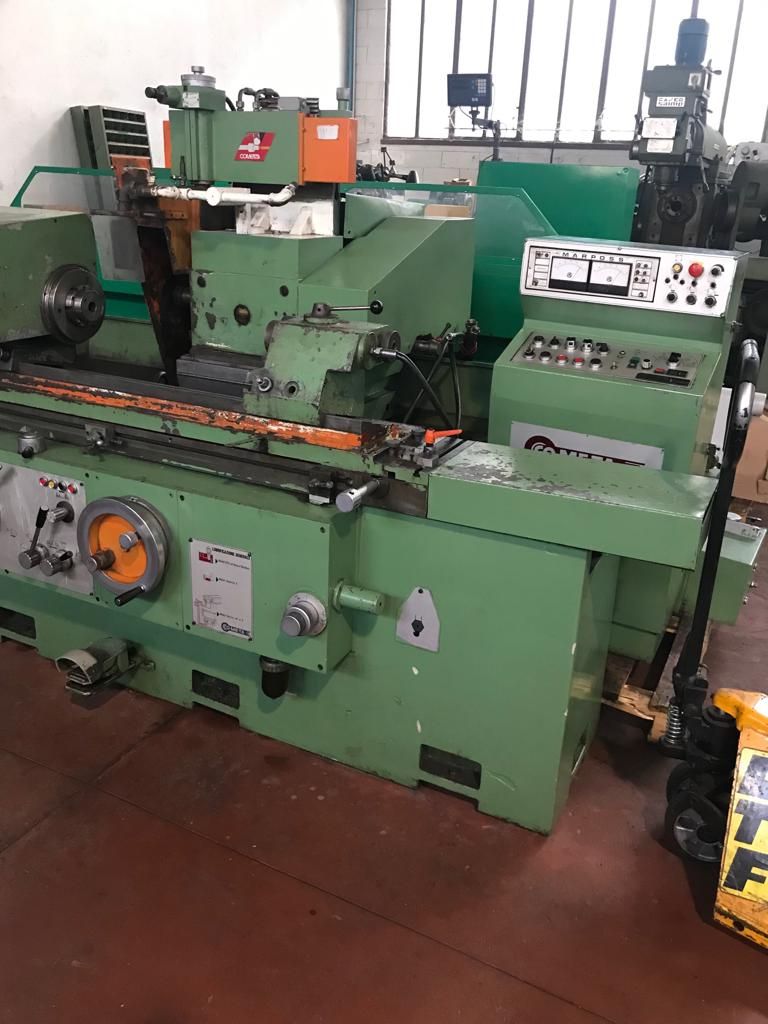

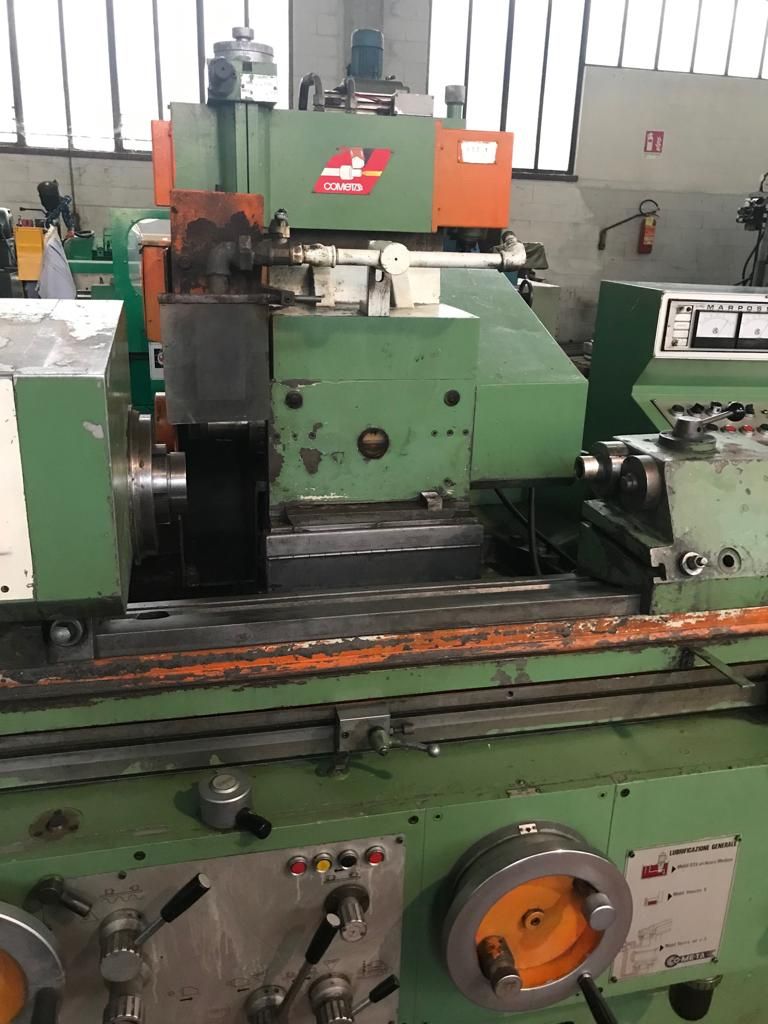

Category
Grinding Machine
Type
Cylindrical
Made
Model
HM 1200/360
Capacity
1200X400 mm47,24X15,75 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
1200 mm47,24 in
Centres height
200 mm7,87 in
Max grinding diameter
400 mm15,75 in
TABLE
Max workpiece weight
350 Kg
Cross speed
0,03-10 mm/min0,0012-0,3937 ipm
LEFT WHEEL
Max wheel diameter
600 mm23,62 in
Hole diameter
127 mm5,00 in
Wheel band thickness
80 mm3,15 in
TAILSTOCK
Taper
CM4
Quill stroke
40 mm1,57 in
Drive
IDRAULICO
FEEDS
Cross
0,05-2 mm/min0,0020-0,0787 ipm
EXTRA
Automatic dresser
Yes
Maintenance & Use books
Yes
Electrical drawings
Yes
Open steadies
SI
