Category
Drilling machine
Type
for deep holes for moulds
Made
Model
MF1500 B2
Capacity
ø5-30x1500mm mmø0,20-1,18x59,06mm in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2350 mm92,52 in
Vertical (Y)
1000 mm39,37 in
Profondità di foratura (V)
1500 mm59,06 in
Piece approchement (W)
650 mm25,59 in
Table rotation (B)
360.000x0,001 °
Cross (Z)
300 mm11,81 in
CNC
CNC

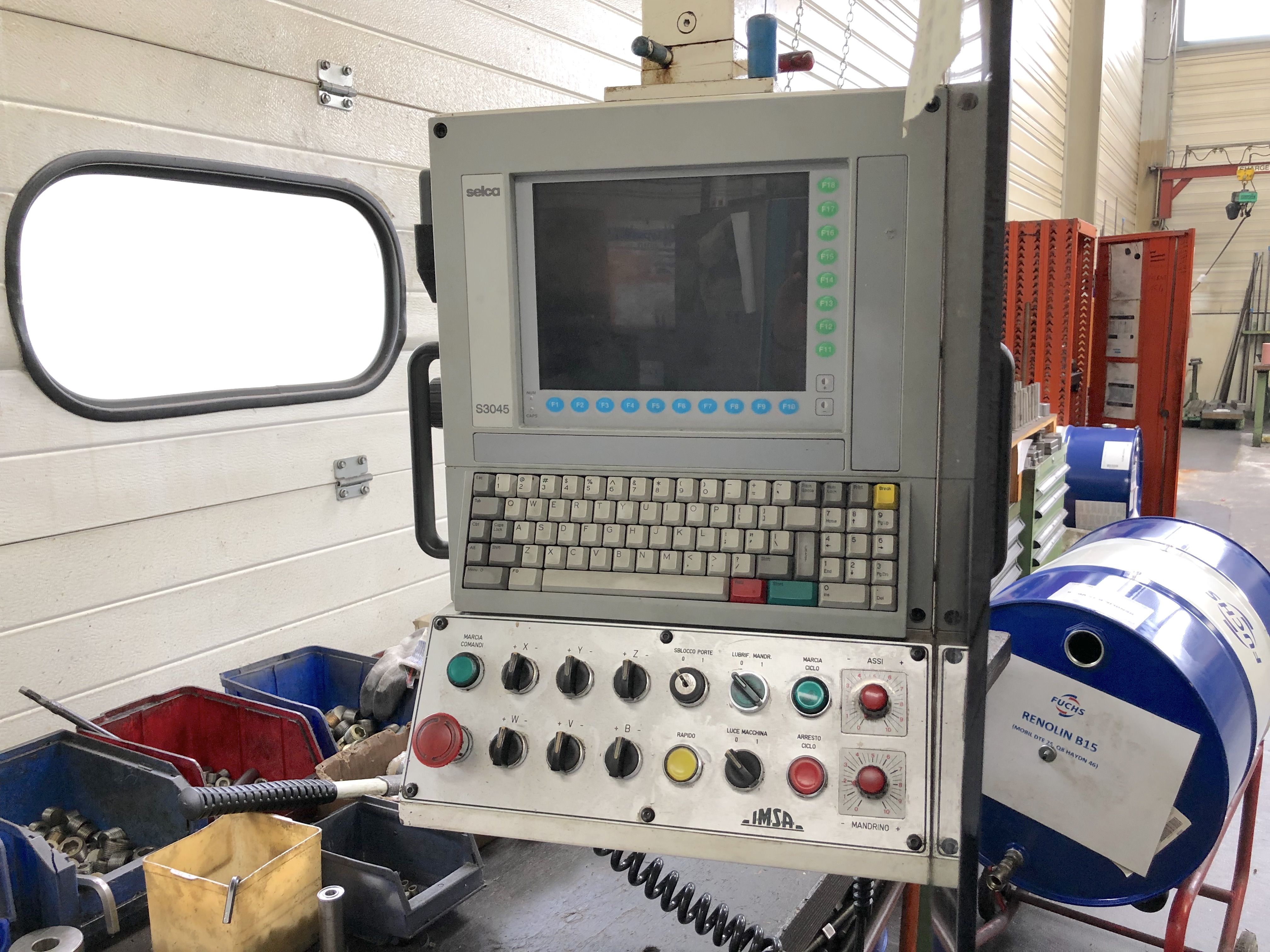

SELCA 3045

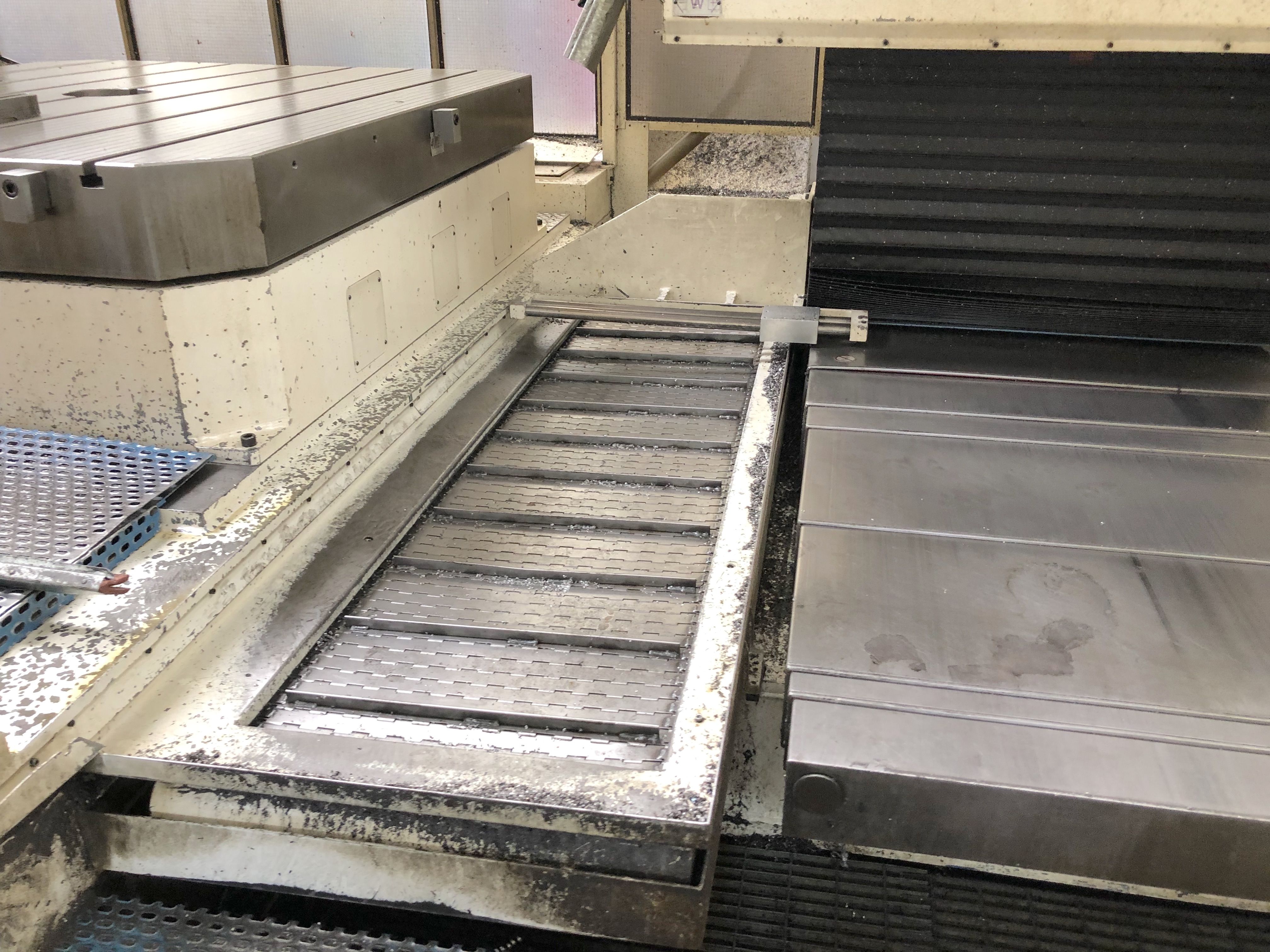

TABLE
Surface
1800x1600 mm70,87x62,99 in
Capacity
20.000 Kg
Rotating speed
2000 Rpm

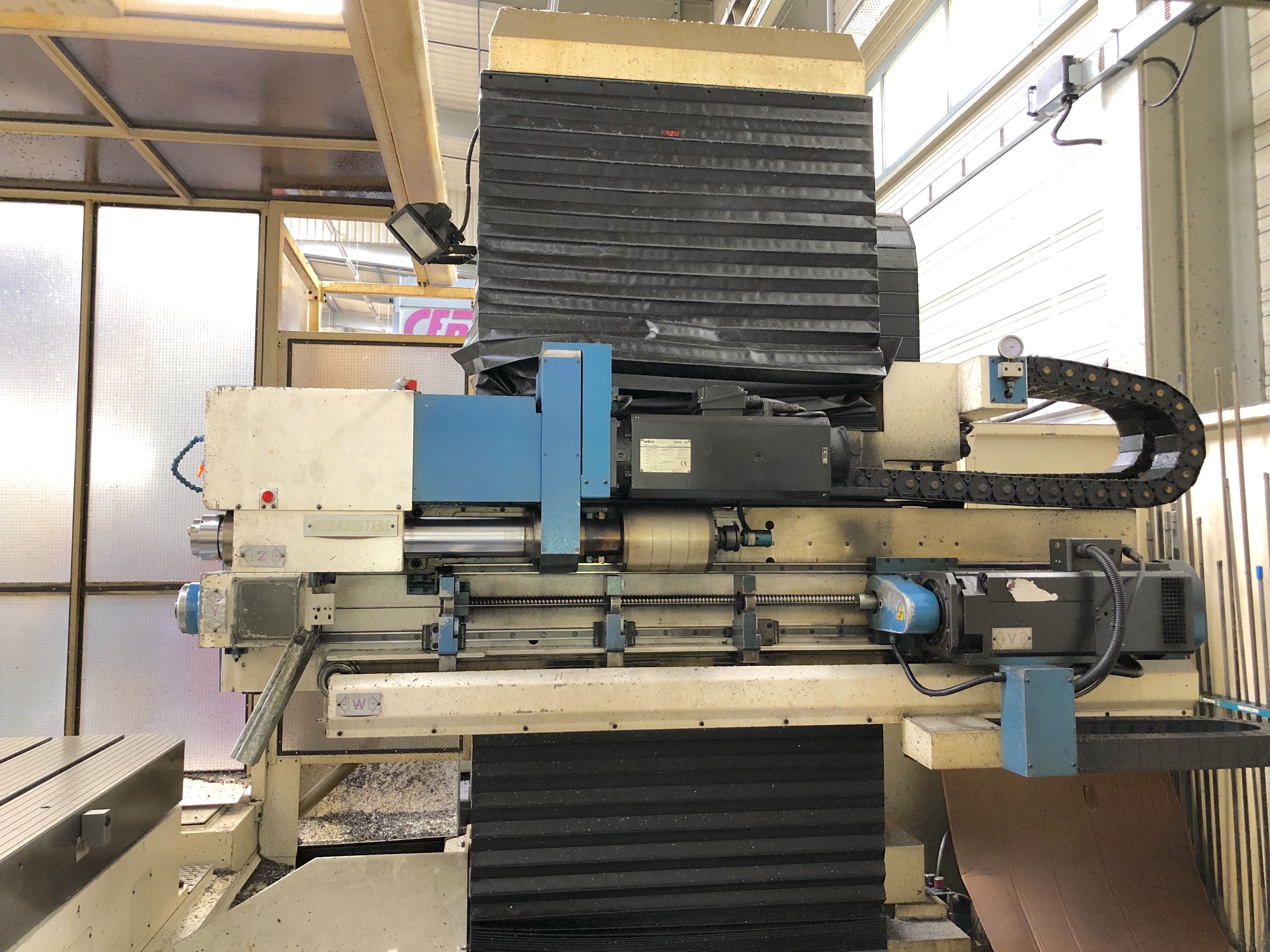

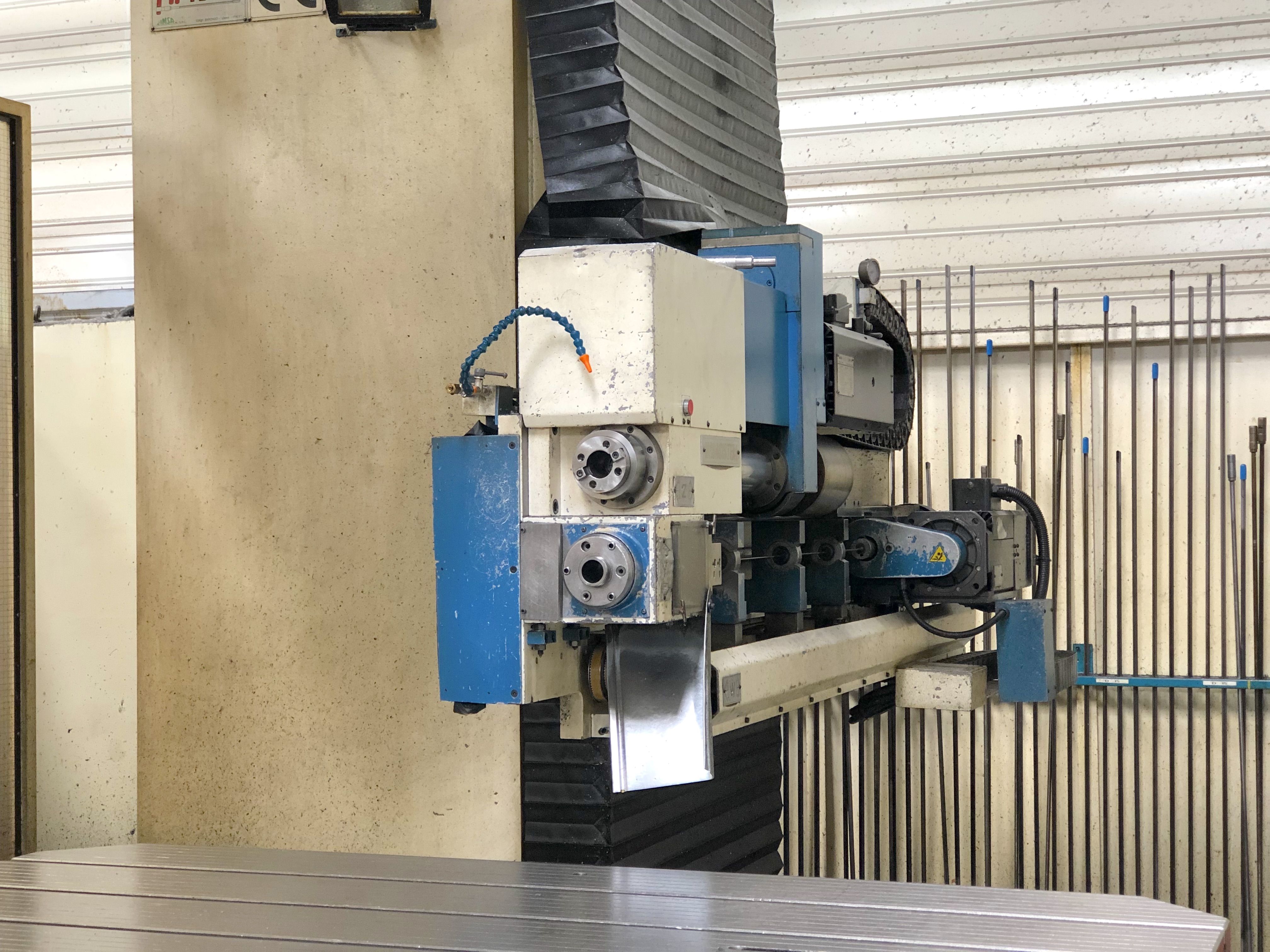

UNITà DI FORATURA
Diametro min-max dal pieno
5-30 mm0,20-1,18 in
Rotating speed
4200 Rpm
Spindle power
7,5 Kw
FEEDS
Rapid X
8 m/min314,96 ipm
Rapid Y
8 m/min314,96 ipm
Rapid Z
8 m/min314,96 ipm
ATC FRESATURA
Max tool diameter
60 mm2,36 in
EXTRA
Floor space
5500x6000x3200 mm216,54x236,22x125,98 in
Total power supply
25 Kw
Unità di fresatura
Yes
Note
TESTA FRESATURA RPM 2000-
