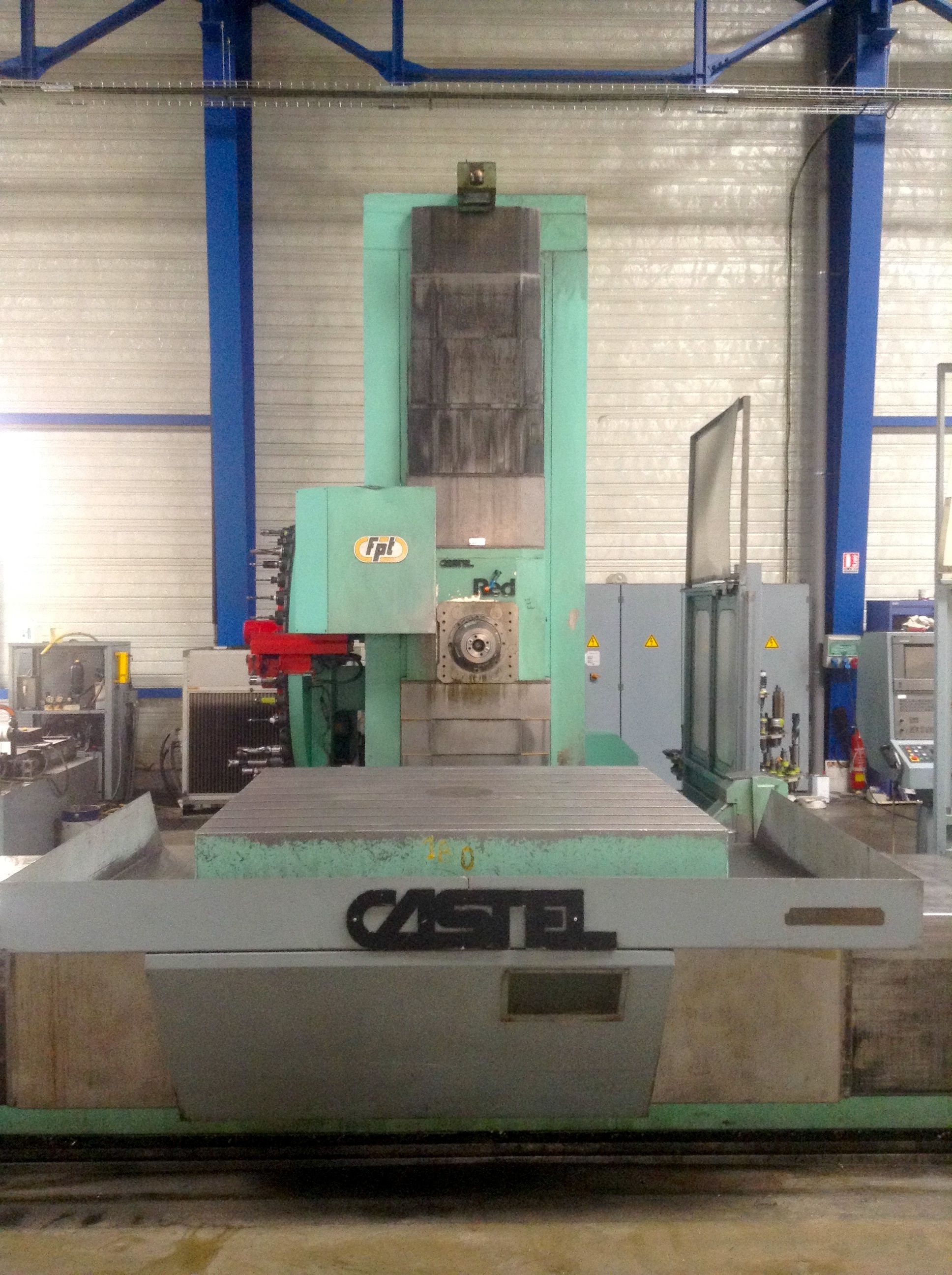

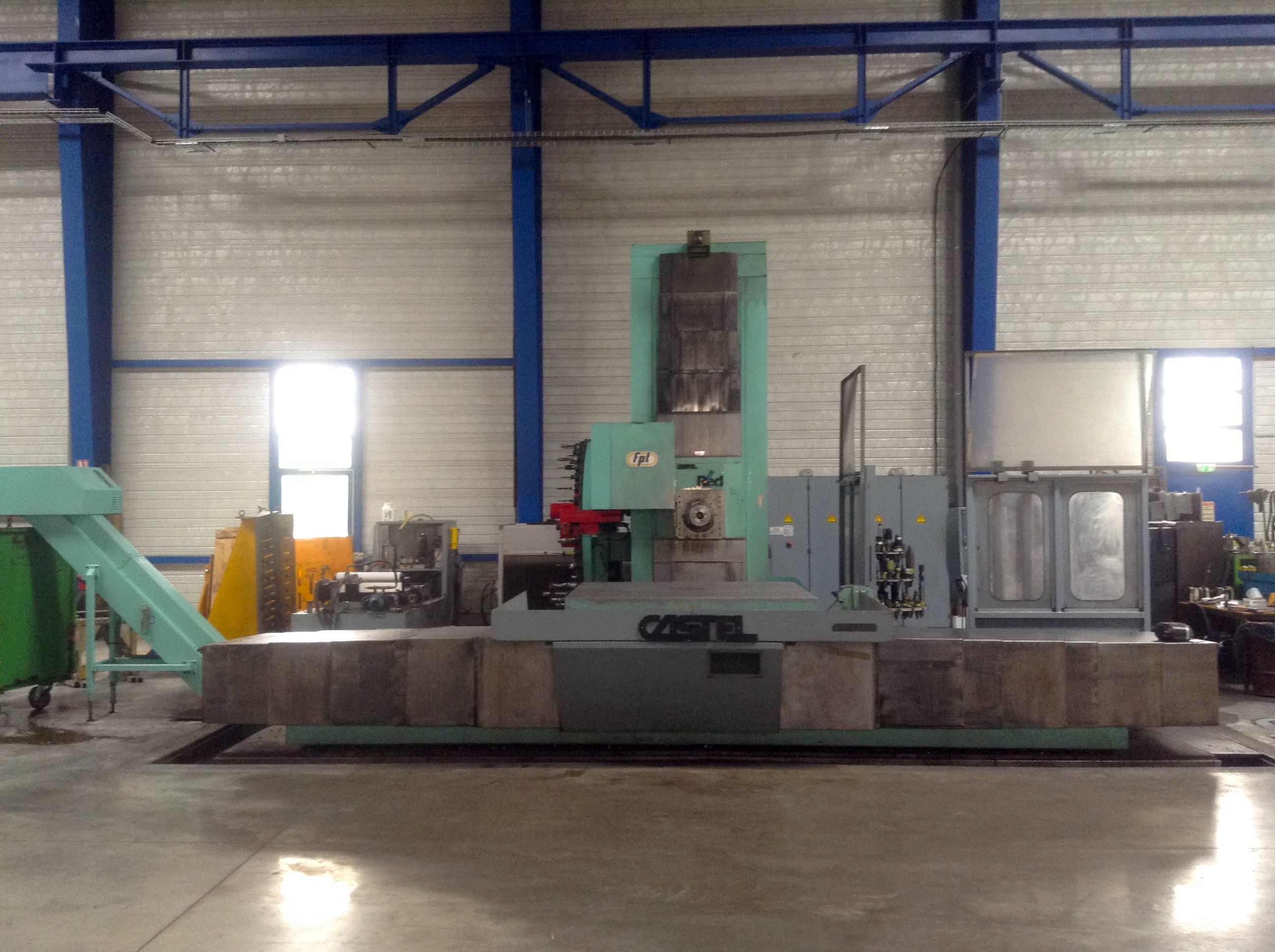

Category
Boring Machine
Type
T-Type
Made
Model
CASTEL RED
Capacity
4100x2000x1500+800 mm161,42x78,74x59,06+31,50 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
4100 mm161,42 in
Vertical (Y)
2000 mm78,74 in
Cross column (Z)
1500 mm59,06 in
Quill (W)
800 mm31,50 in
Axes support
liner guideways

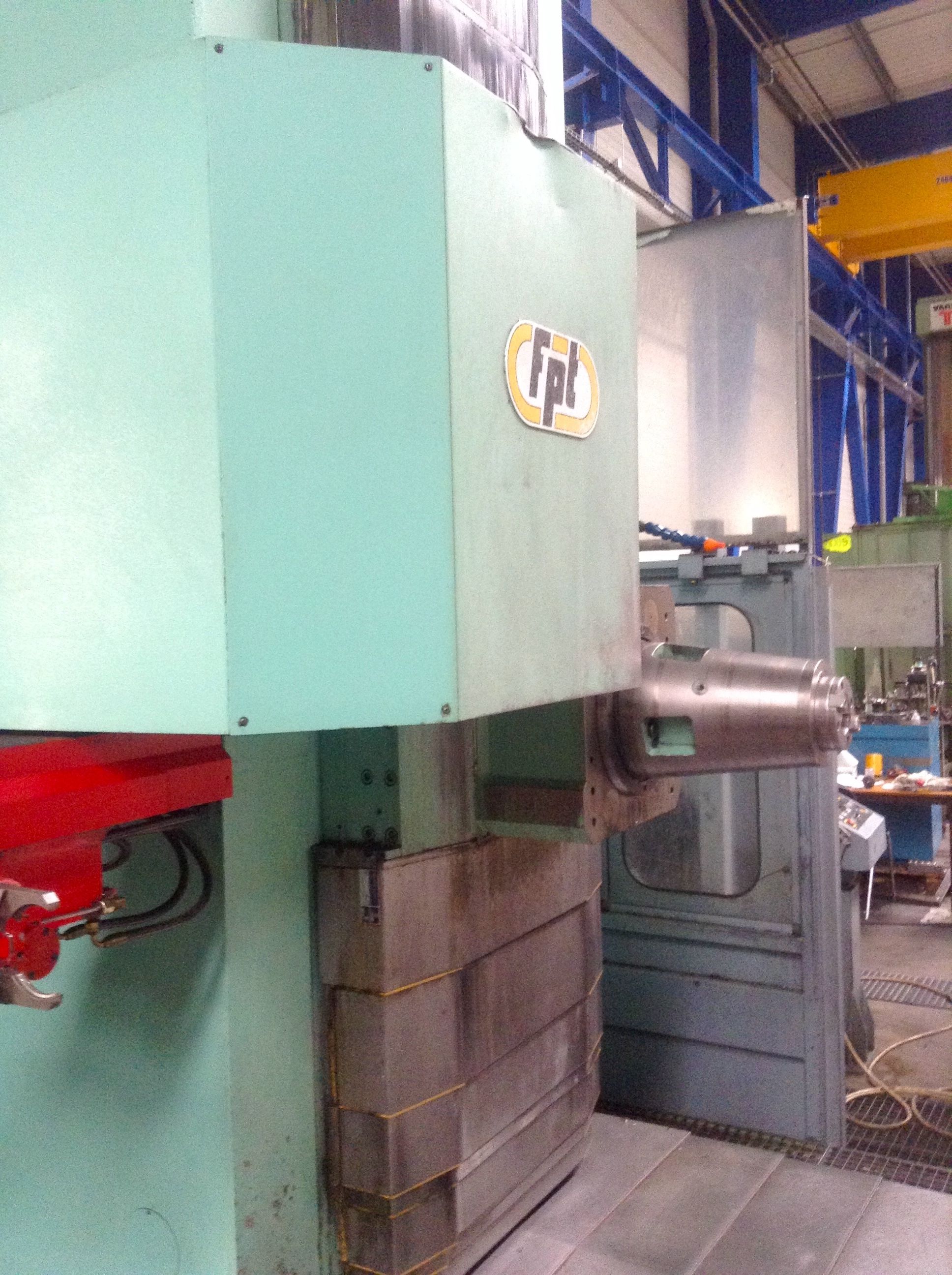

SPINDLE
Quill diameter
130 mm5,12 in
Spindle power
37 Kw
Rotating speed
2500 Rpm
Taper
ISO50
Support
4 guide lineari
CNC
CNC
Heidenhain iTNC530 HSCI
Notes
remote handwheel HR520

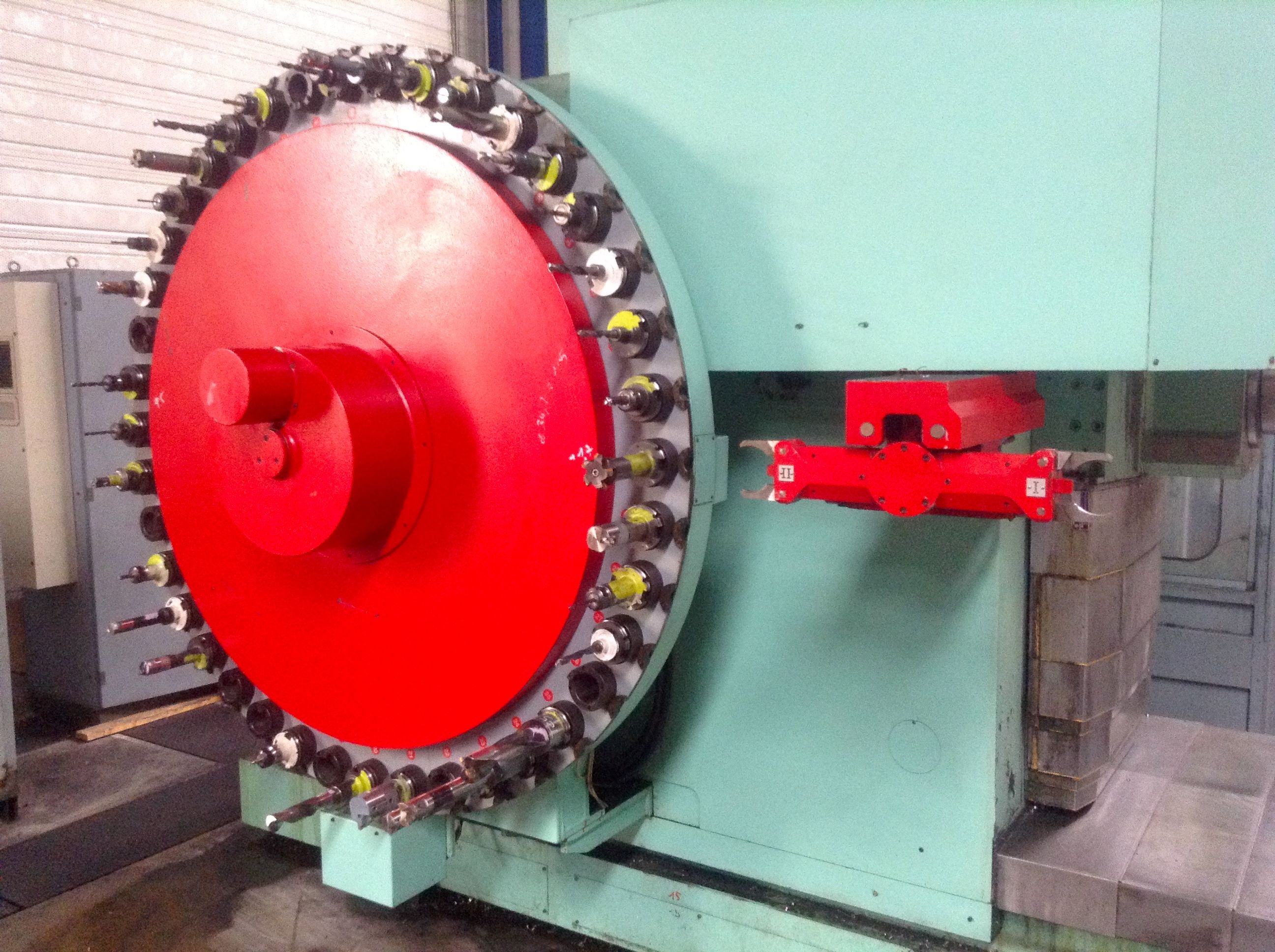

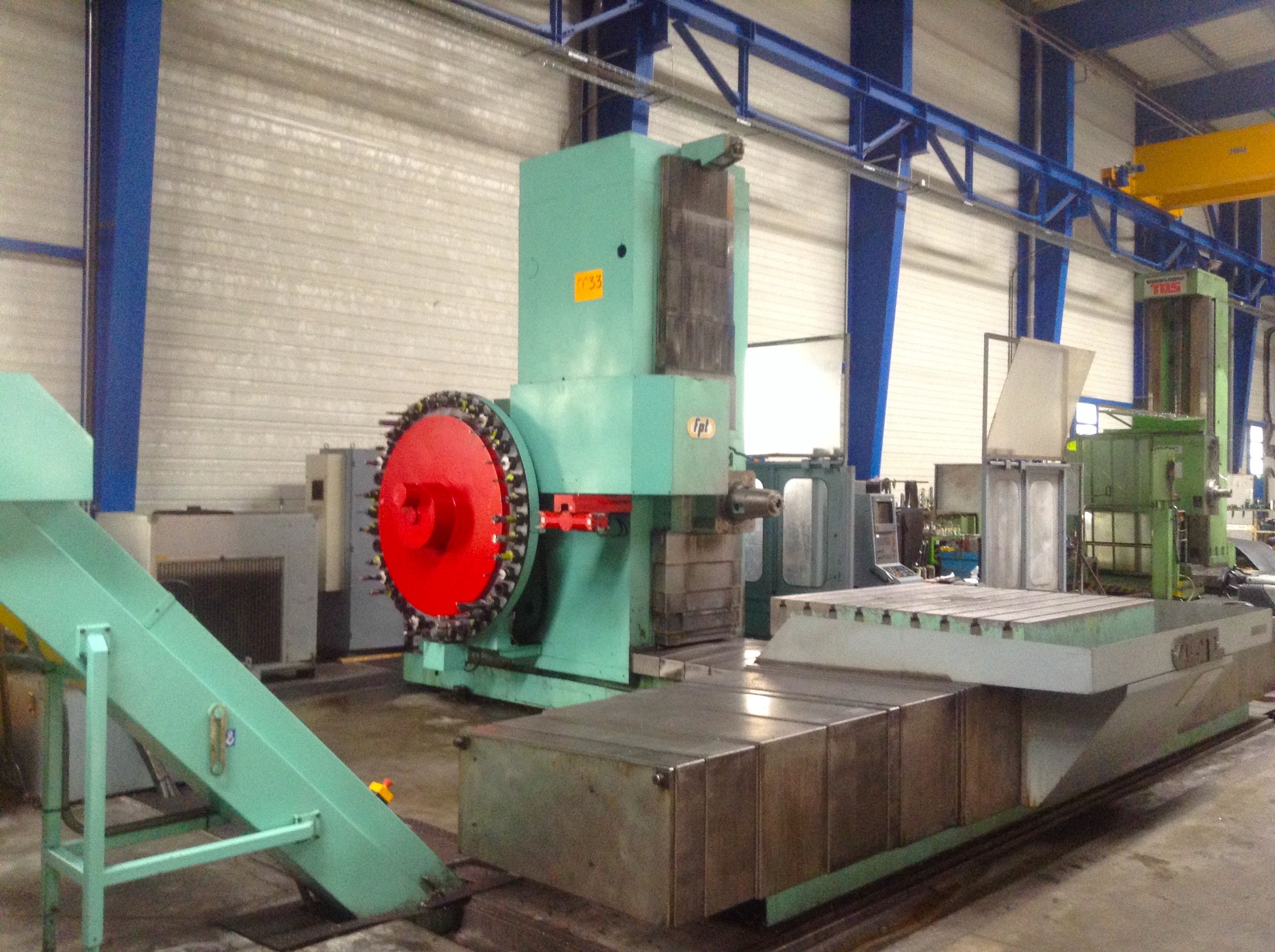

ATC
Positions
60
Max tool diameter
125 mm4,92 in
Max diam with free adiacent space
230 mm9,06 in
Max tool lenght
400 mm15,75 in
Max tool weight
25 Kg
Tool taper
ISO50

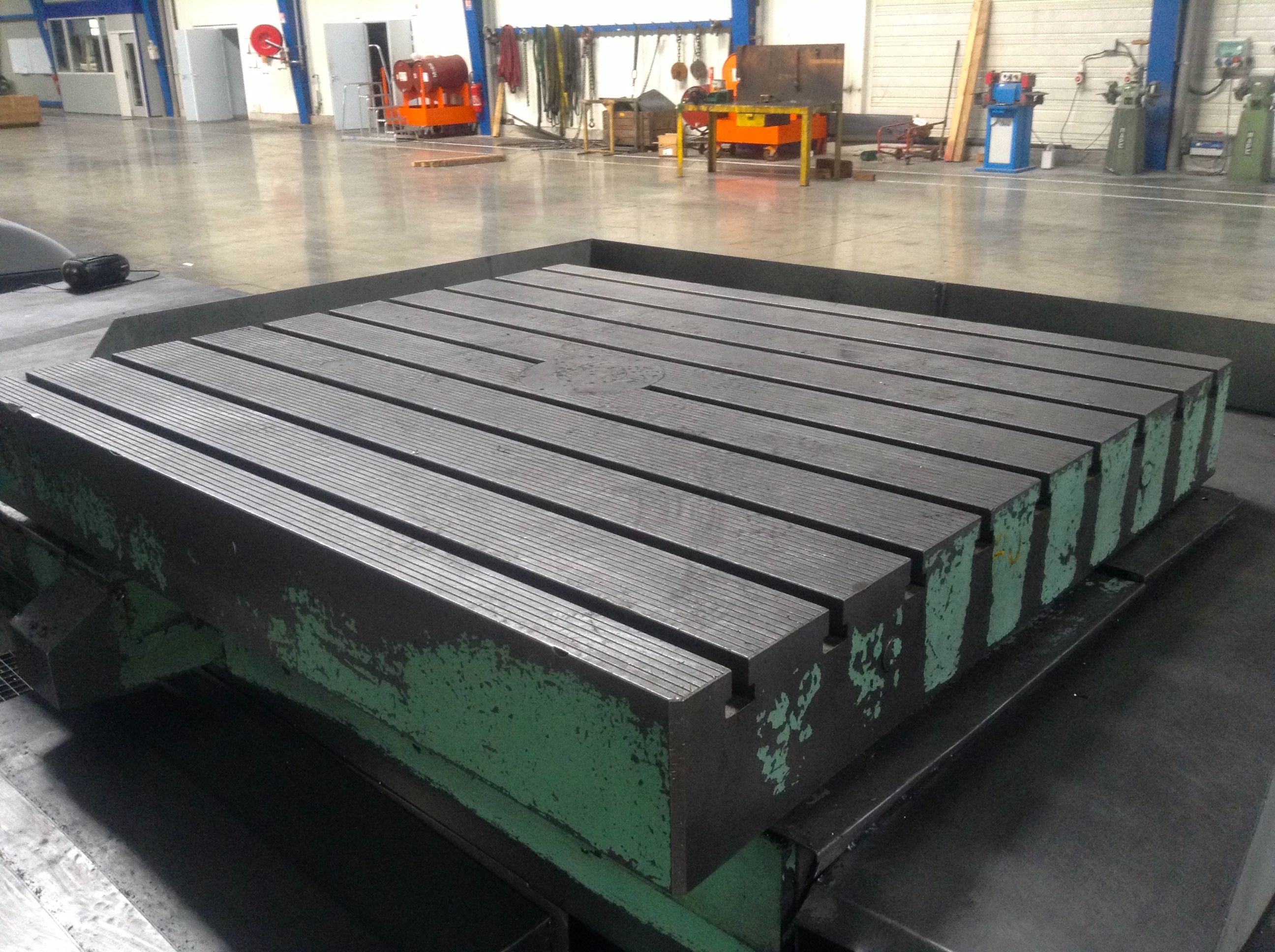

TABLE 1
Surface
1800x1600 mm70,87x62,99 in
Accuracy (B axis)
0,001 °
Capacity
10000 Kg
Notes
dual drive with dual motor and dual pinion
Support
Hydrostatic
HEAD 1
Type
D’Andrea UT5-500
Notes
max machining ø1000mm, fully controlled by U axis
Available upon request
No
EXTRA
Tooling included
Pick up heads, UT5-500, Cogsdill
High Pressure
4-70Bar, 28L/min, 1200L tank

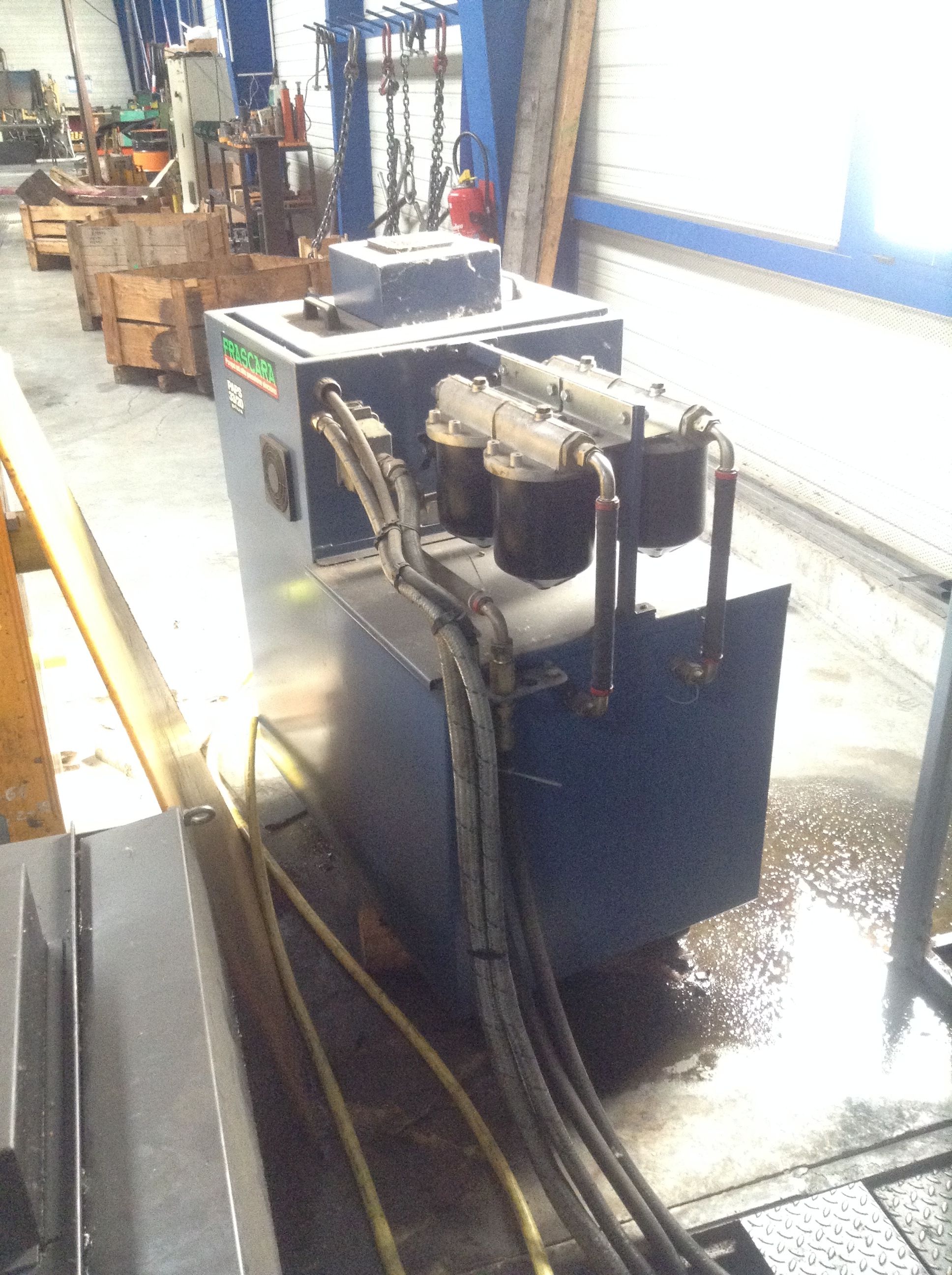

Filtration unit
60µ filter

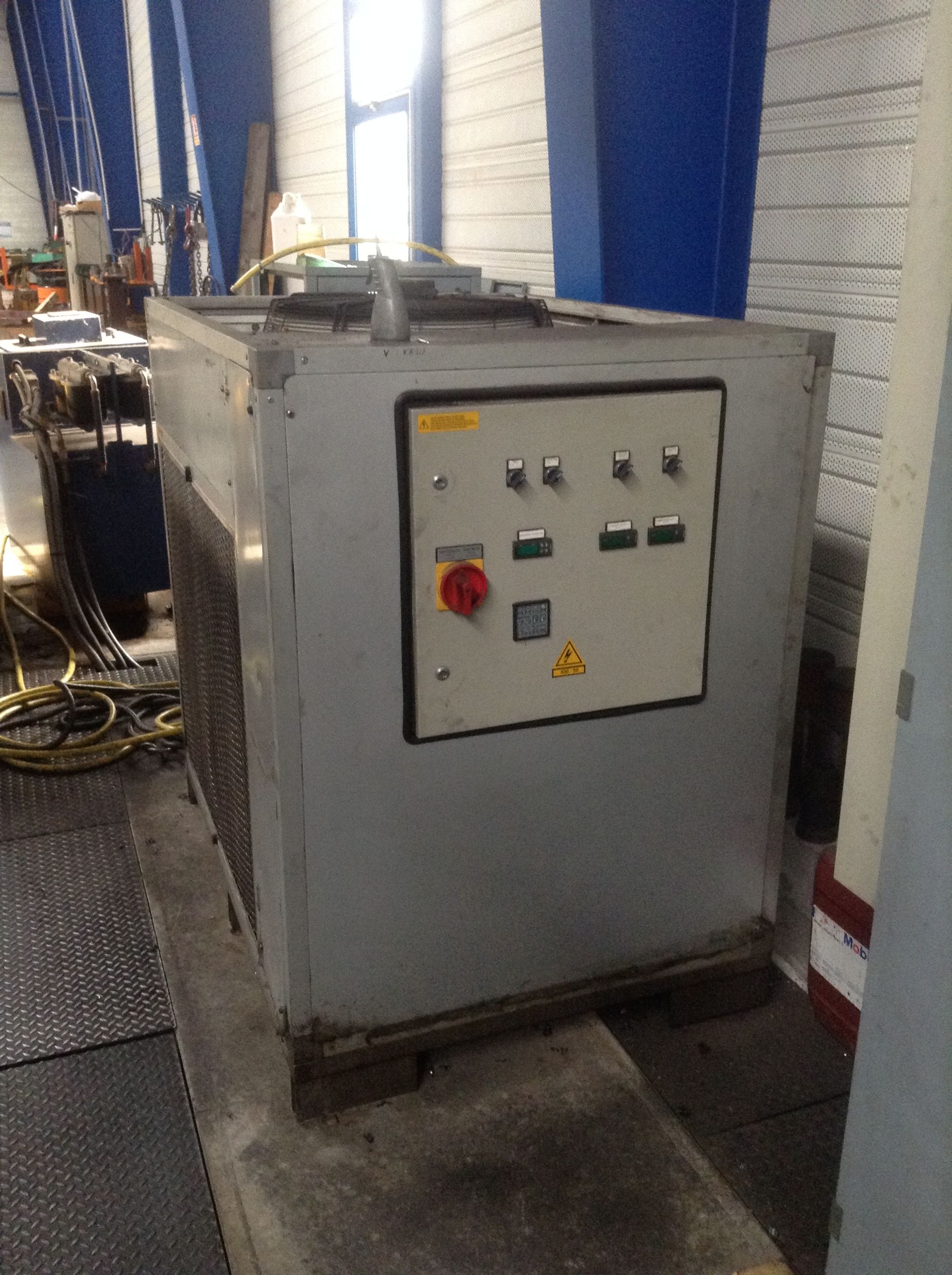

Chiller
si
Tool presetter
Blum laser
Workpiece touch probe
Renishaw touch probe
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Housing
full housing
Chip conveyor
con uscita a sinistra
Mist extractor
si, capacità 2x2300m3/h, 76dBA
Availability
Pronta
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
