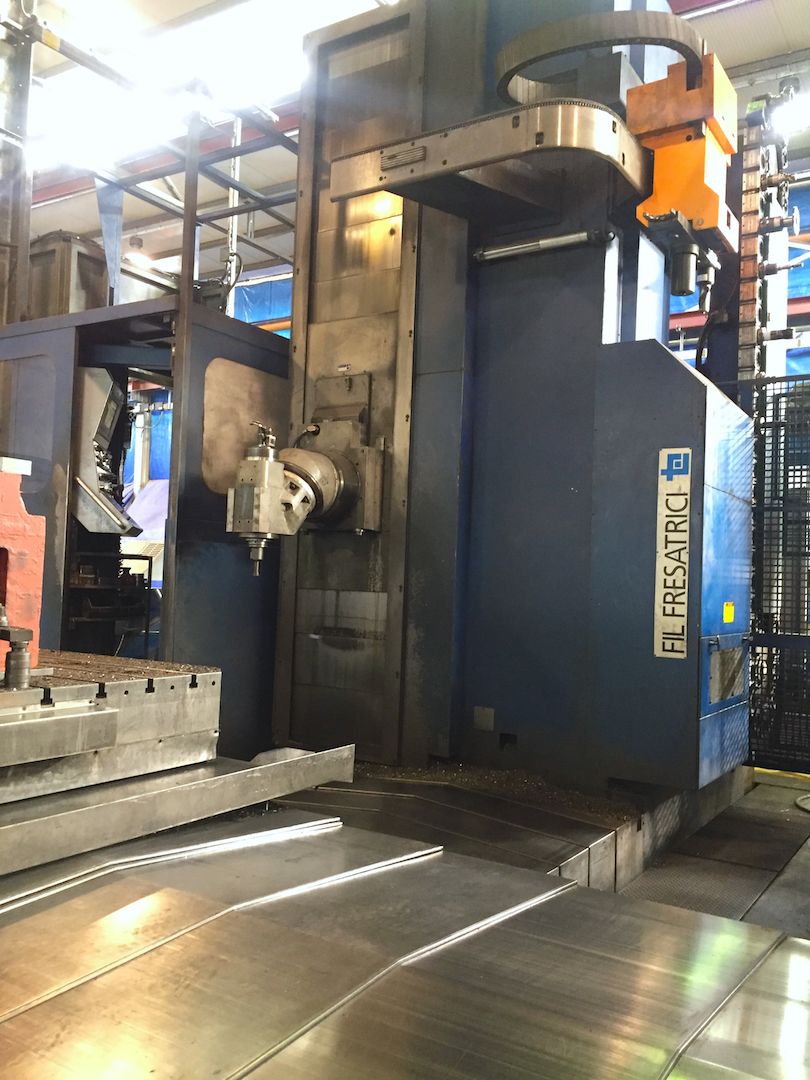

Category
Boring Machine
Type
T-Type
Made
Model
FCTG350
Capacity
3500x2500x2000+1200+550 mm137,80x98,43x78,74+47,24+21,65 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
3500 mm137,80 in
Vertical (Y)
2500 mm98,43 in
Cross column (Z)
2000 mm78,74 in
Quill (W)
550 mm21,65 in
Ram (V)
1200 mm47,24 in
CNC
CNC
Heidenhain TNC430M
SPINDLE
Quill diameter
130 mm5,12 in
Spindle power
30/42 Kw
Rotating speed
10-3000 Rpm
Taper
HSK100A
Gearbox
2: 10-200/200-3000 Rpm
FEEDS
Rapid X
12 m/min472,44 ipm
Rapid Y
12 m/min472,44 ipm
Rapid Z
12 m/min472,44 ipm
Rapid V
12 m/min472,44 ipm
Rapid W
10 m/min393,70 ipm

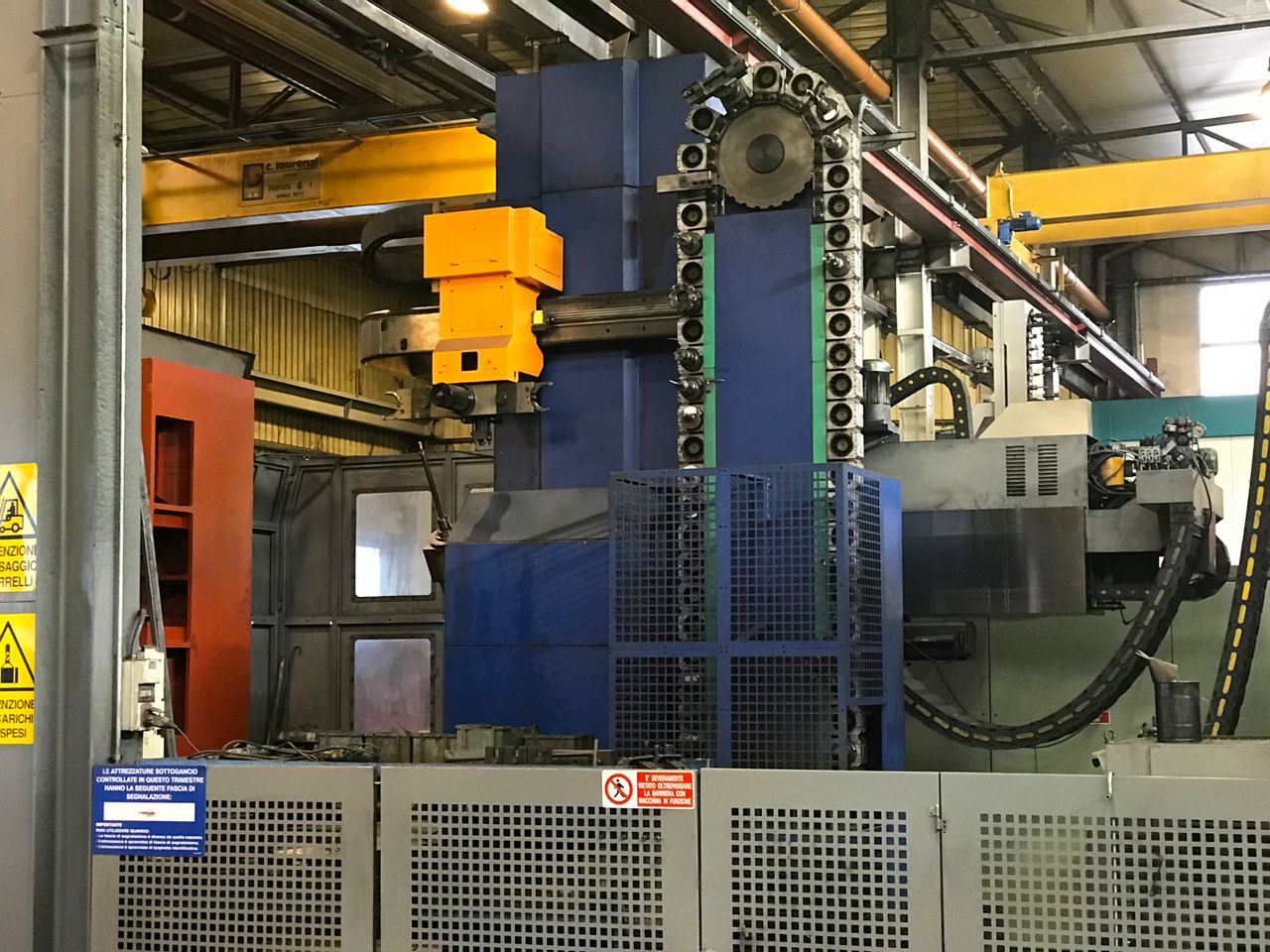

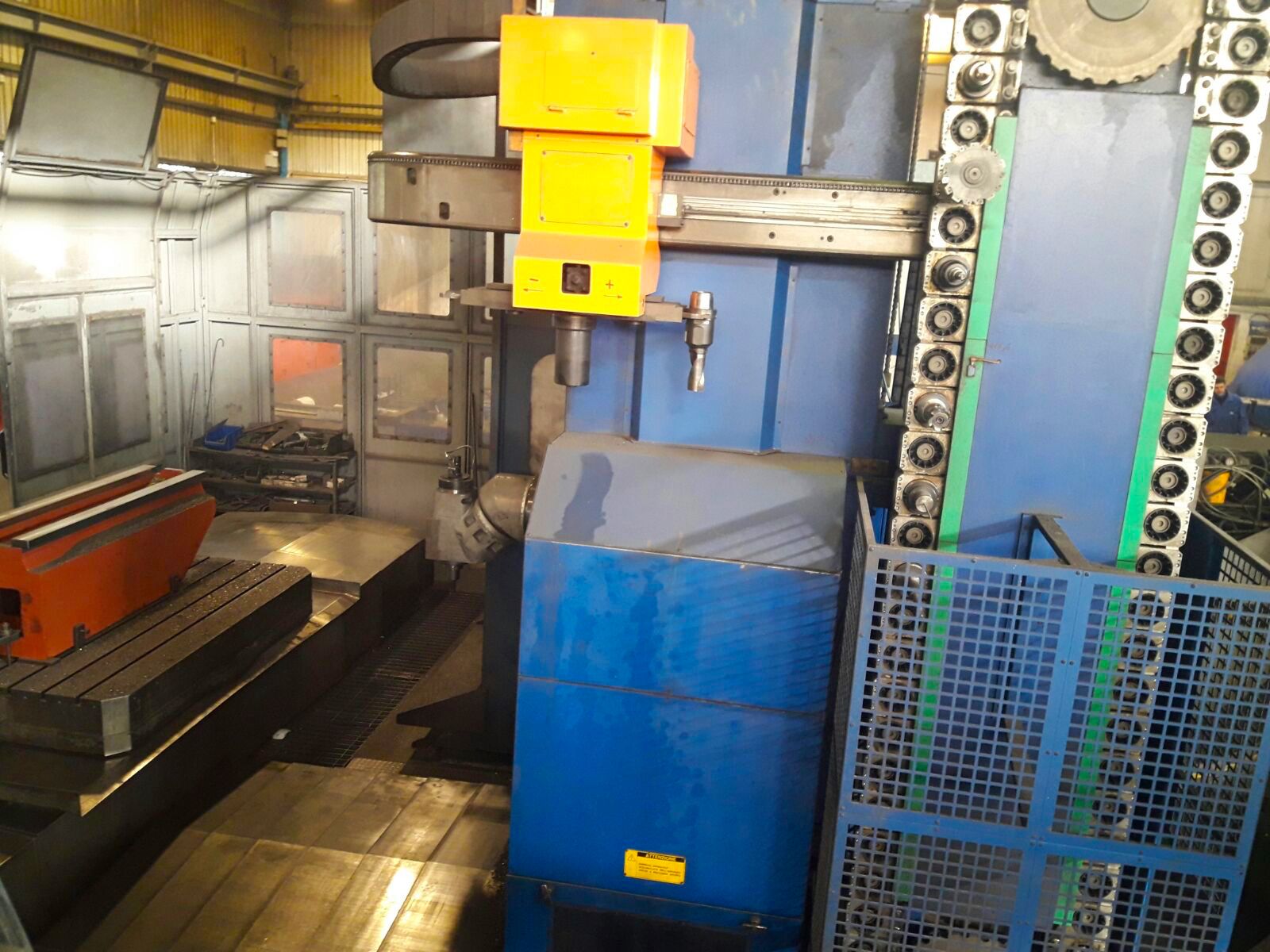

ATC
Positions
60
Tool taper
HSK100A

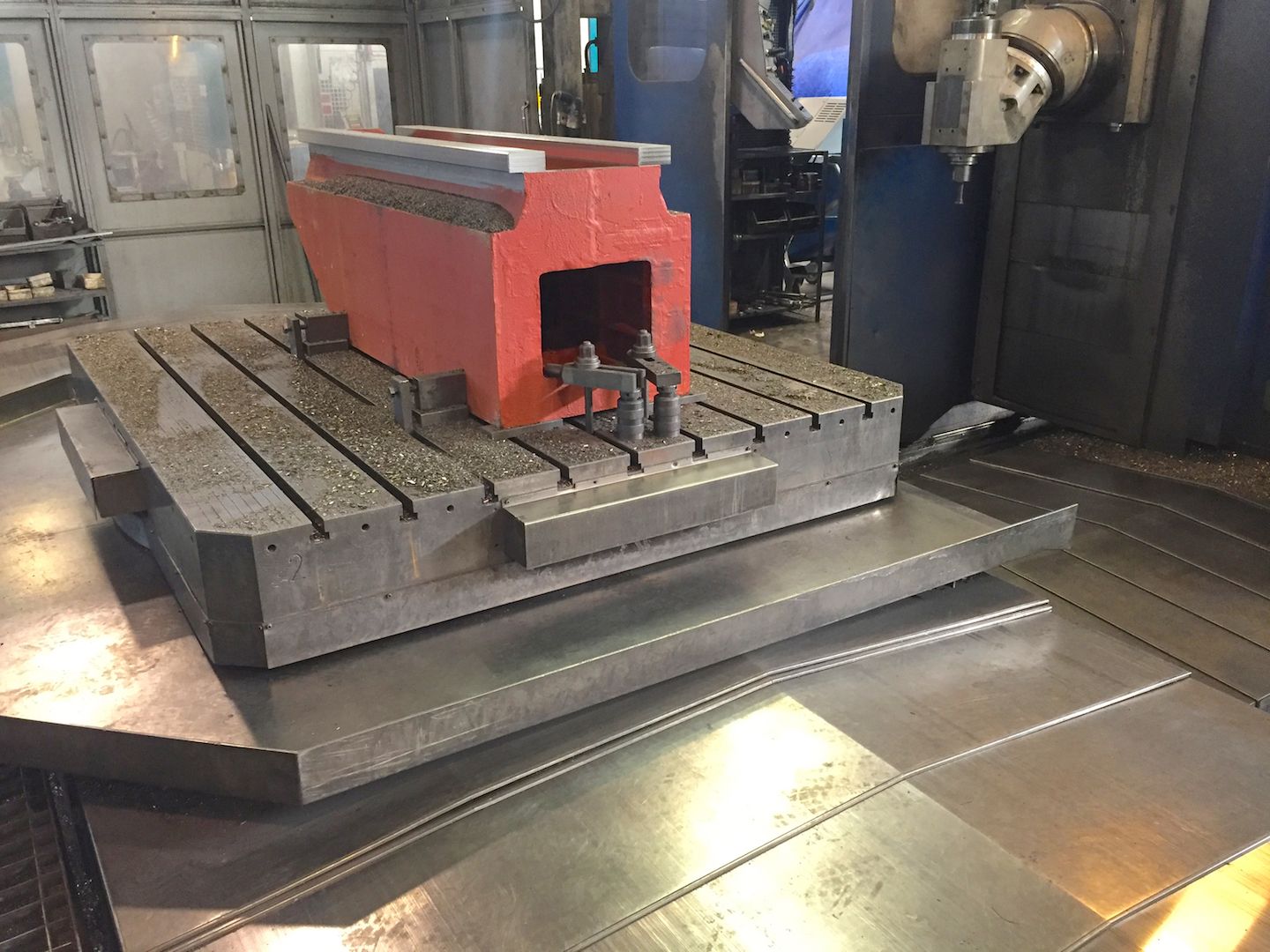

TABLE 1
Surface
2000x1800 mm78,74x70,87 in
Accuracy (B axis)
0,001 °
Capacity
12.000 Kg

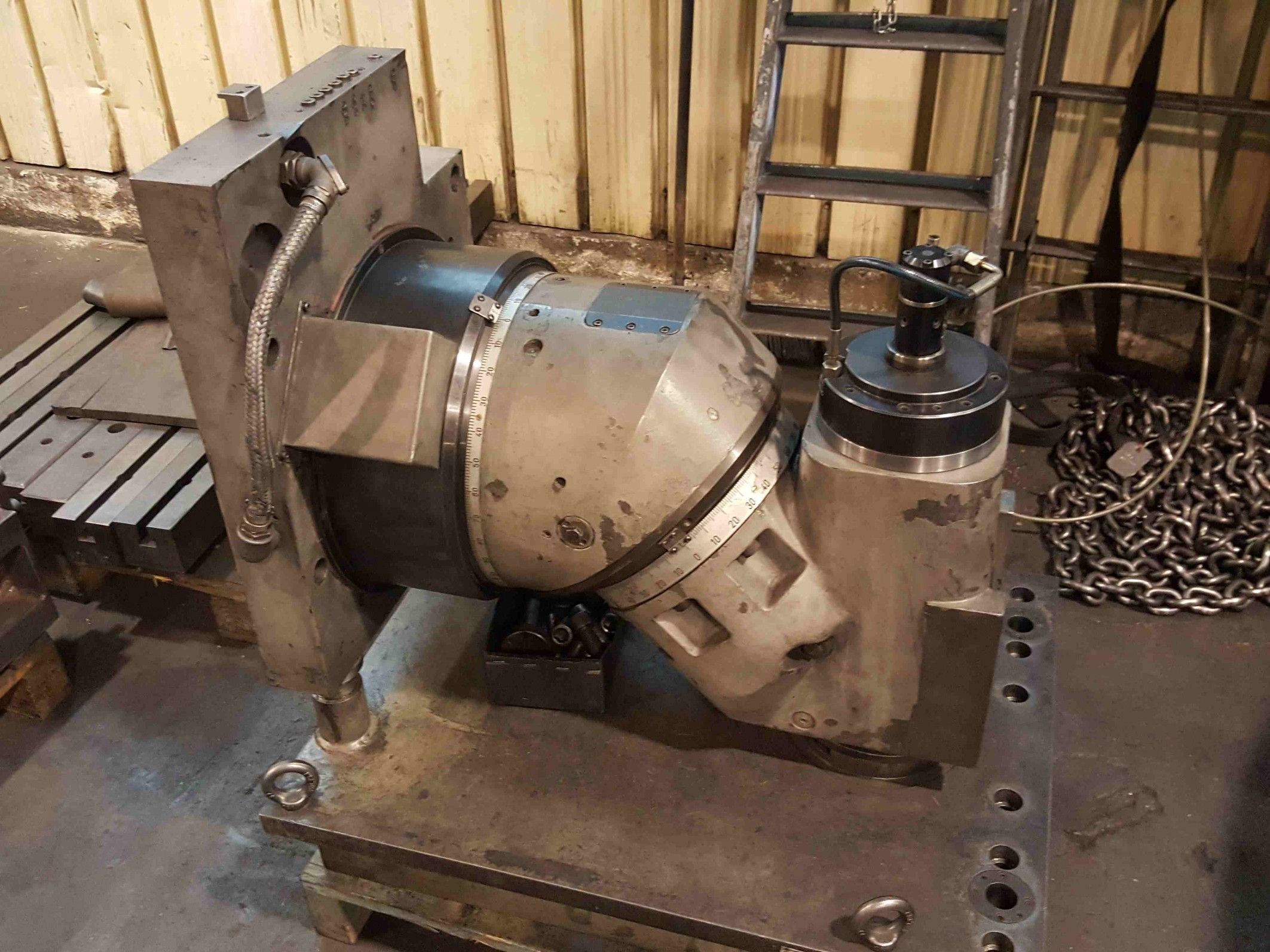

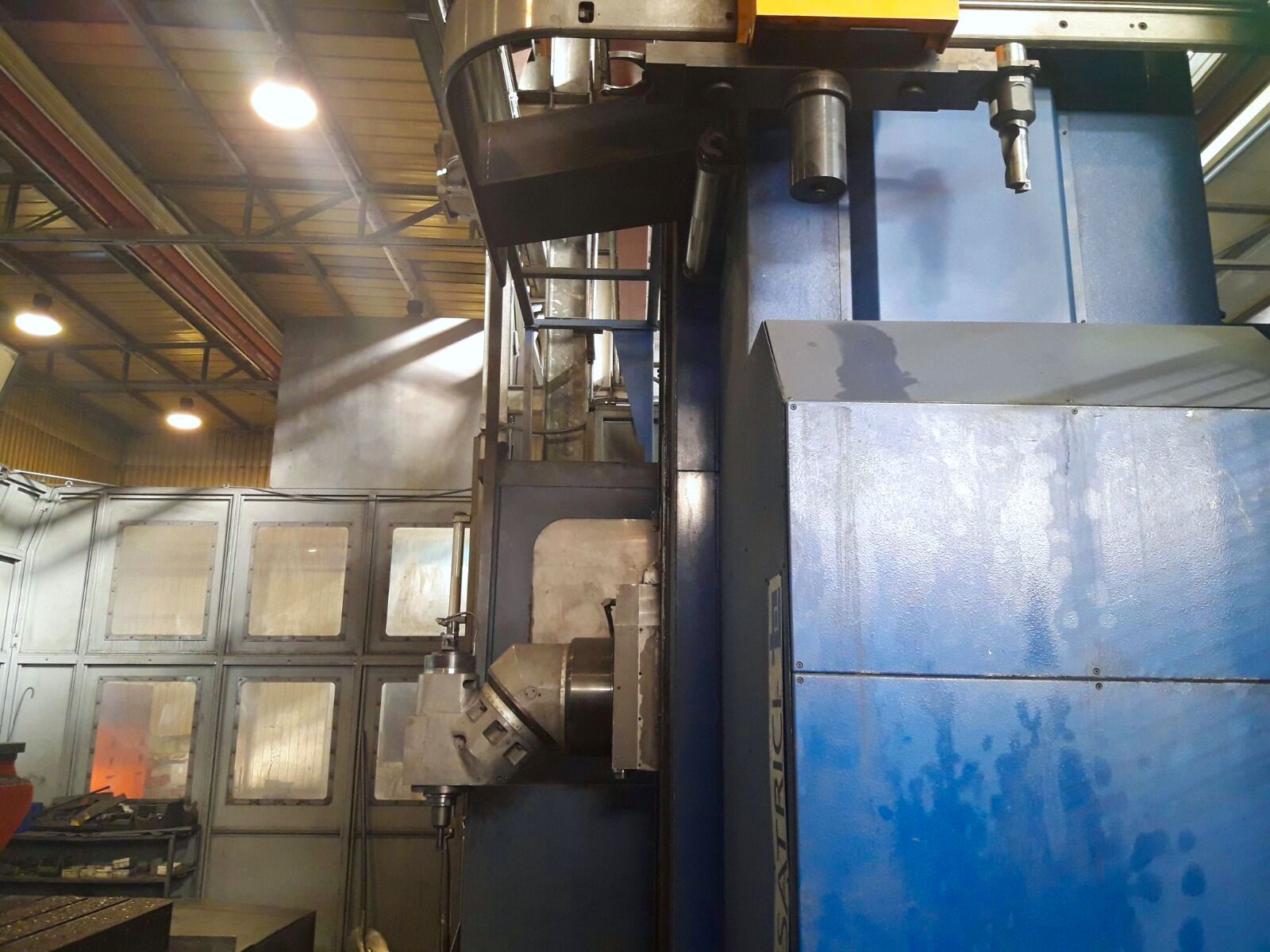

HEAD 1
Available upon request
Yes
Type
Birotativa Automatica 2,5x2,5°
Spindle taper
HSK100A
A axis
144x2,5 °
C axis
144x2,5 °
Coolant
interno
Max speed
3000 Rpm
EXTRA
Chip conveyor
si

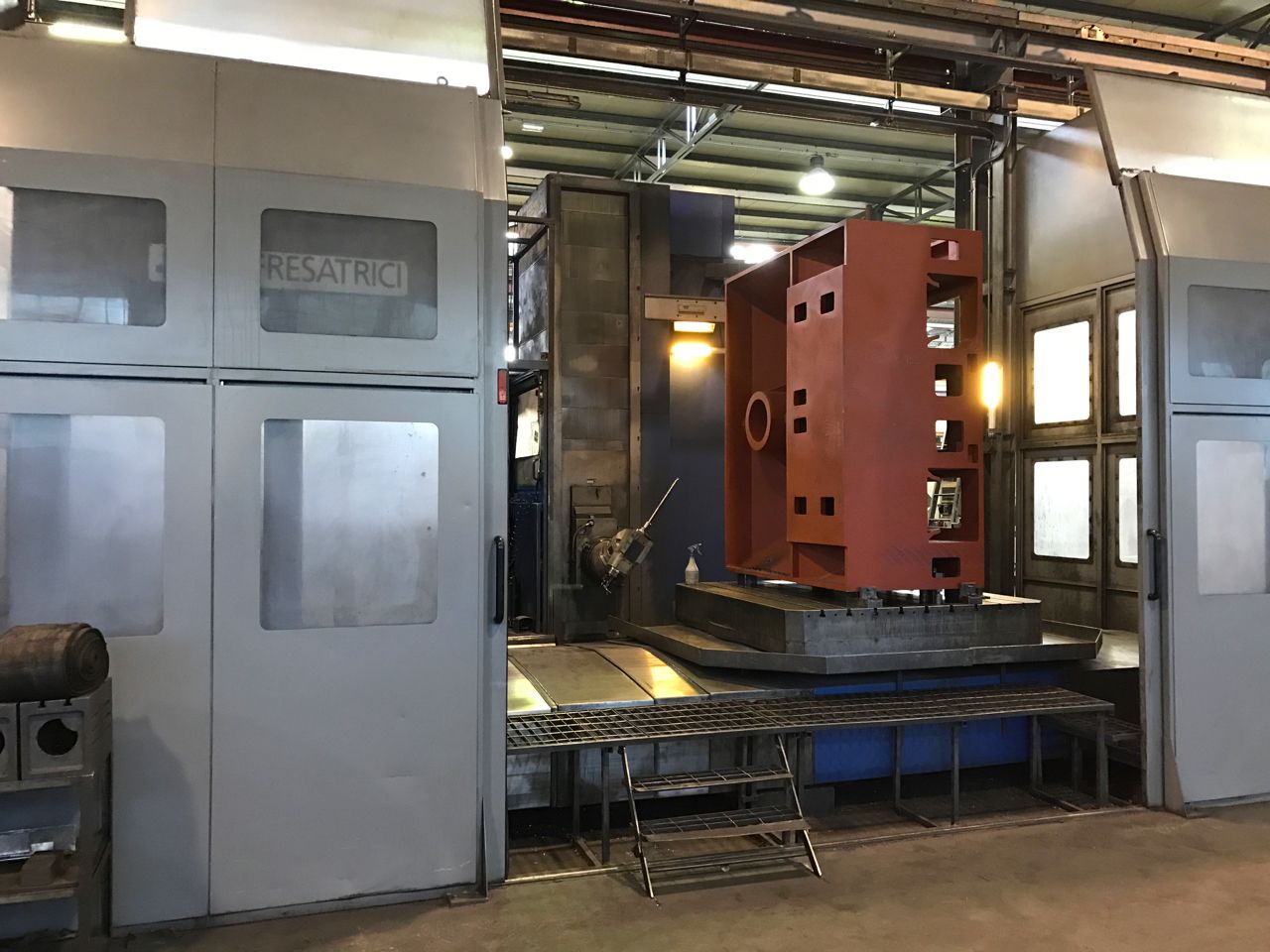

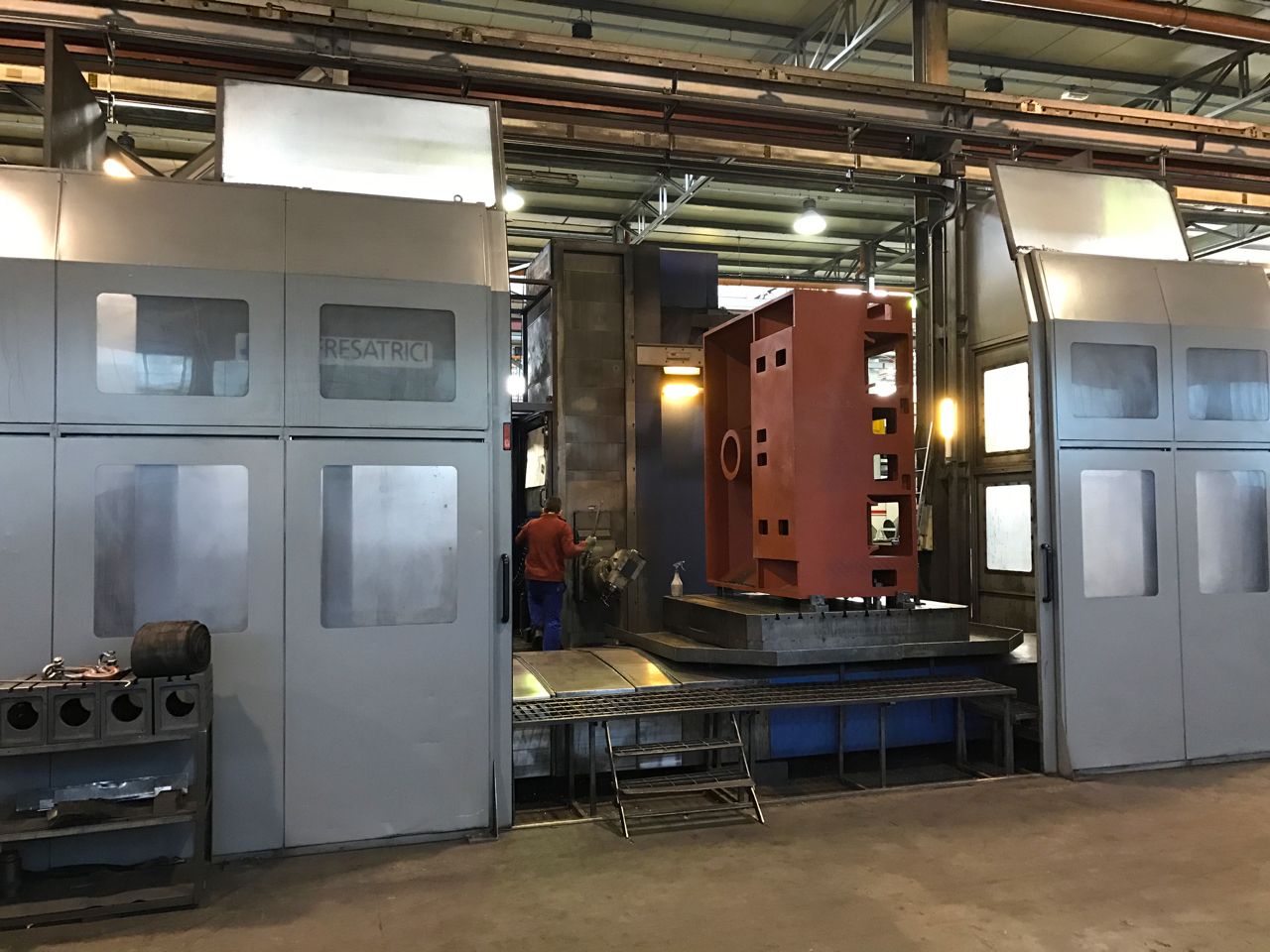

Housing
perimetrale
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
Tooling included
Monitoraggio sforzo utensile Montronix, predisposizione Renishaw
High Pressure
si
Filtration unit
si
Chiller
si
Availability
Febbraio 2017
Available under power
Si
Relevant updates made on the machine
Manutenzione ordinaria
