Category
Boring Machine
Type
T-Type
Made
Model
AT-CENTRE
Capacity
2600x2075x2100+500 mm102,36x81,69x82,68+19,69 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Longitudinal (X)
2600 mm102,36 in
Vertical (Y)
2075 mm81,69 in
Cross column (Z)
2100 mm82,68 in
Quill (W)
500 mm19,69 in
Axes support
idrostatico

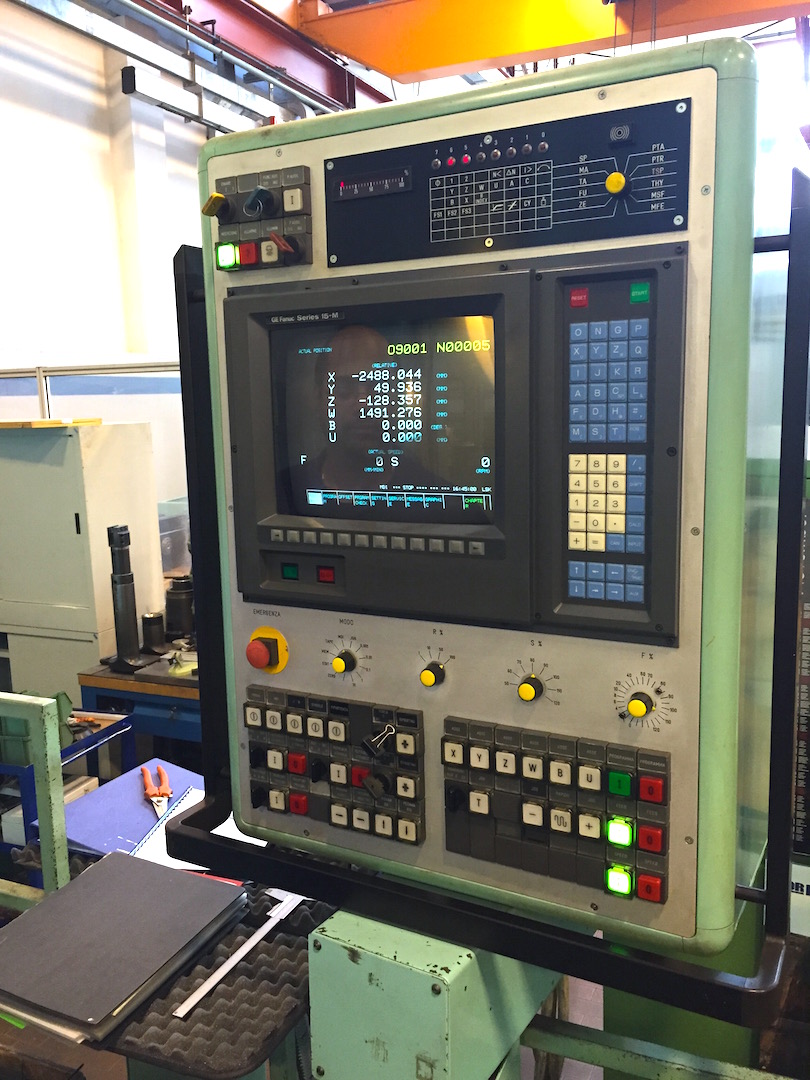

CNC
CNC
GE-Fanuc 15-M

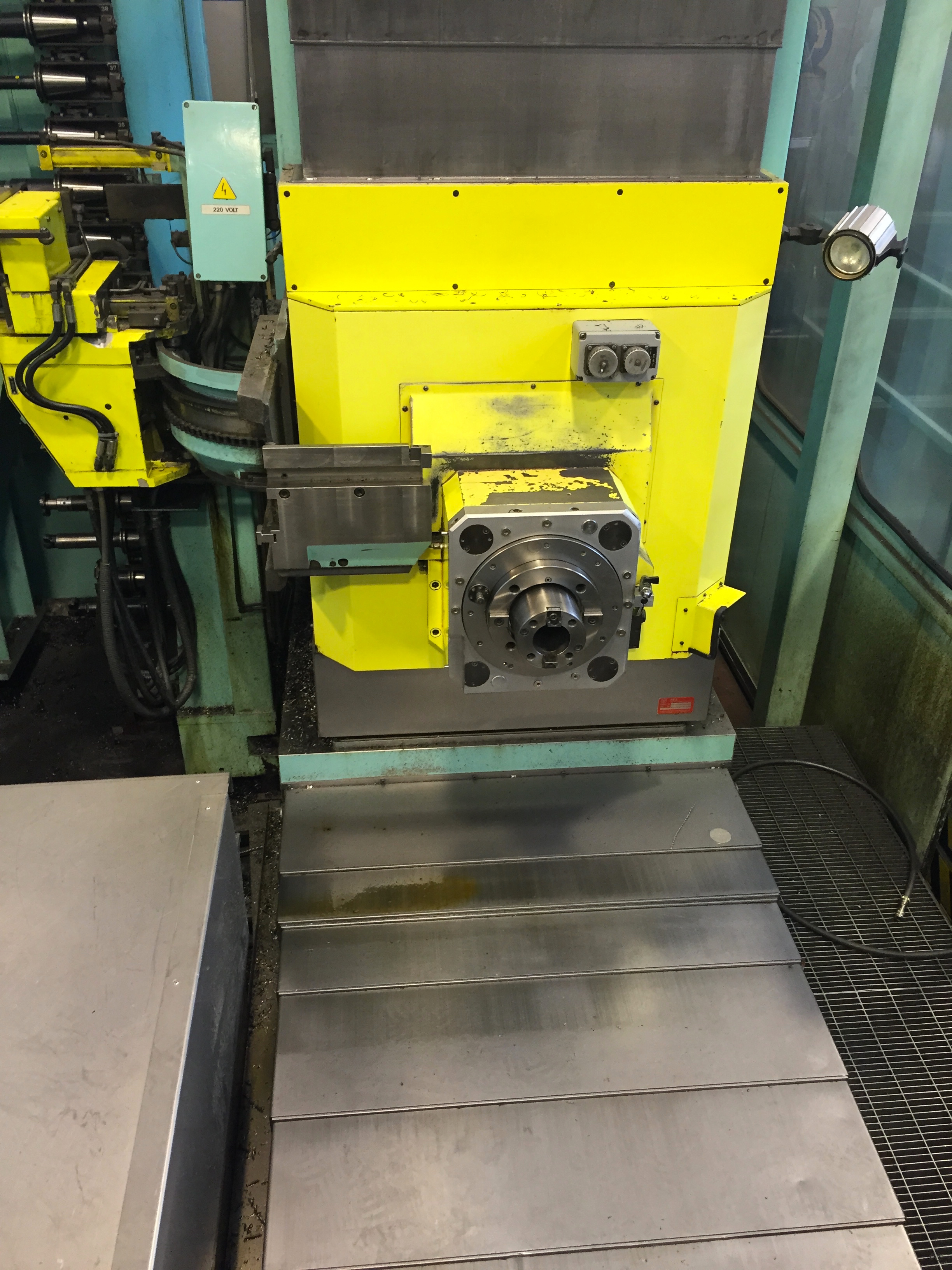

SPINDLE

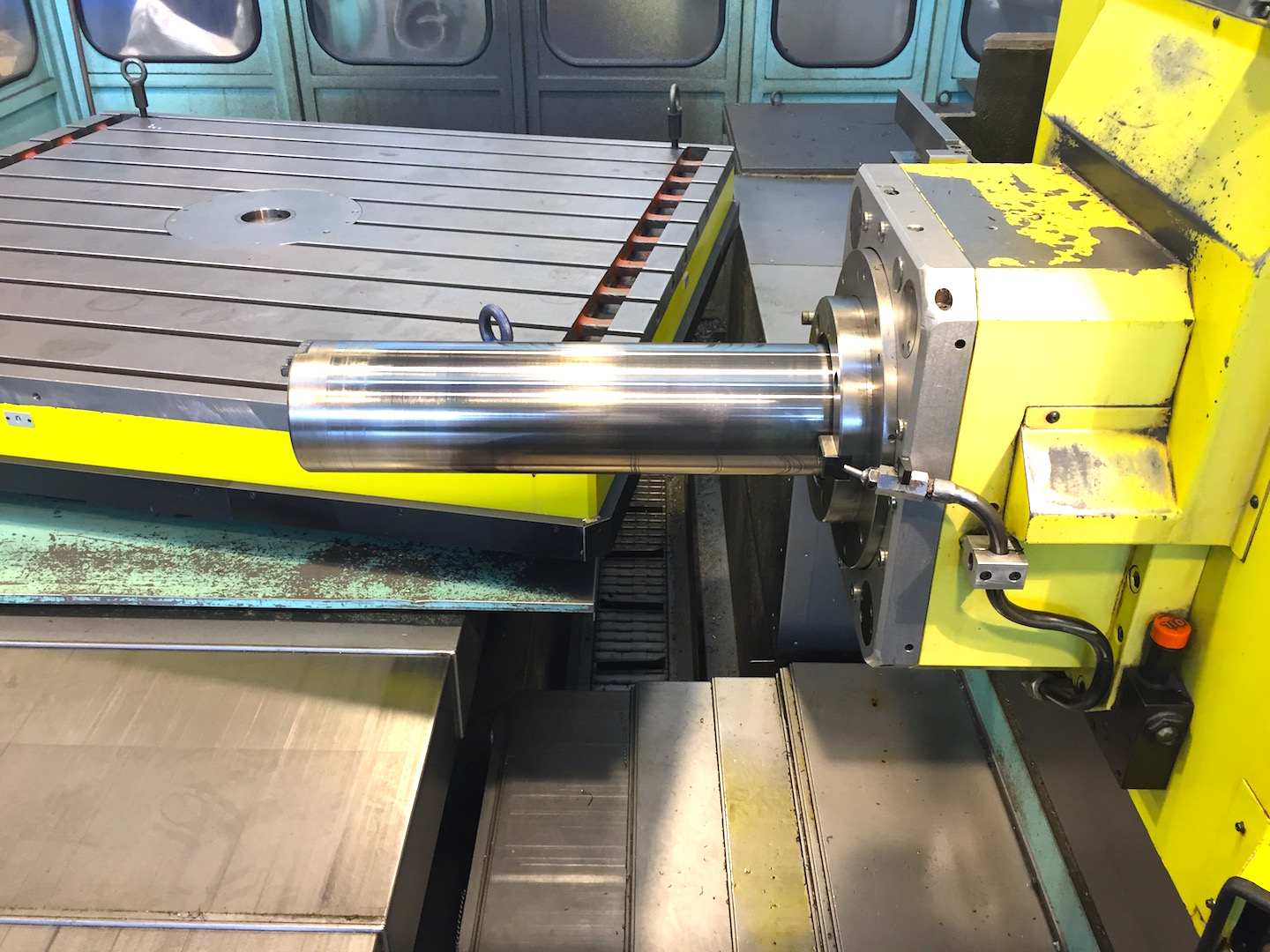

Quill diameter
130 mm5,12 in
Spindle power
41 Kw
Gearbox
meccanico
Rotating speed
10-3000 Rpm
Taper
ISO50
FEEDS
Rapid X
15 m/min590,55 ipm
Rapid Y
15 m/min590,55 ipm
Rapid Z
15 m/min590,55 ipm
Rapid W
15 m/min590,55 ipm
Rapid B
2,5 Rpm
X
6 m/min236,22 ipm
Y
6 m/min236,22 ipm
Z
6 m/min236,22 ipm
W
6 m/min236,22 ipm
B
0,002-2,5 Rpm

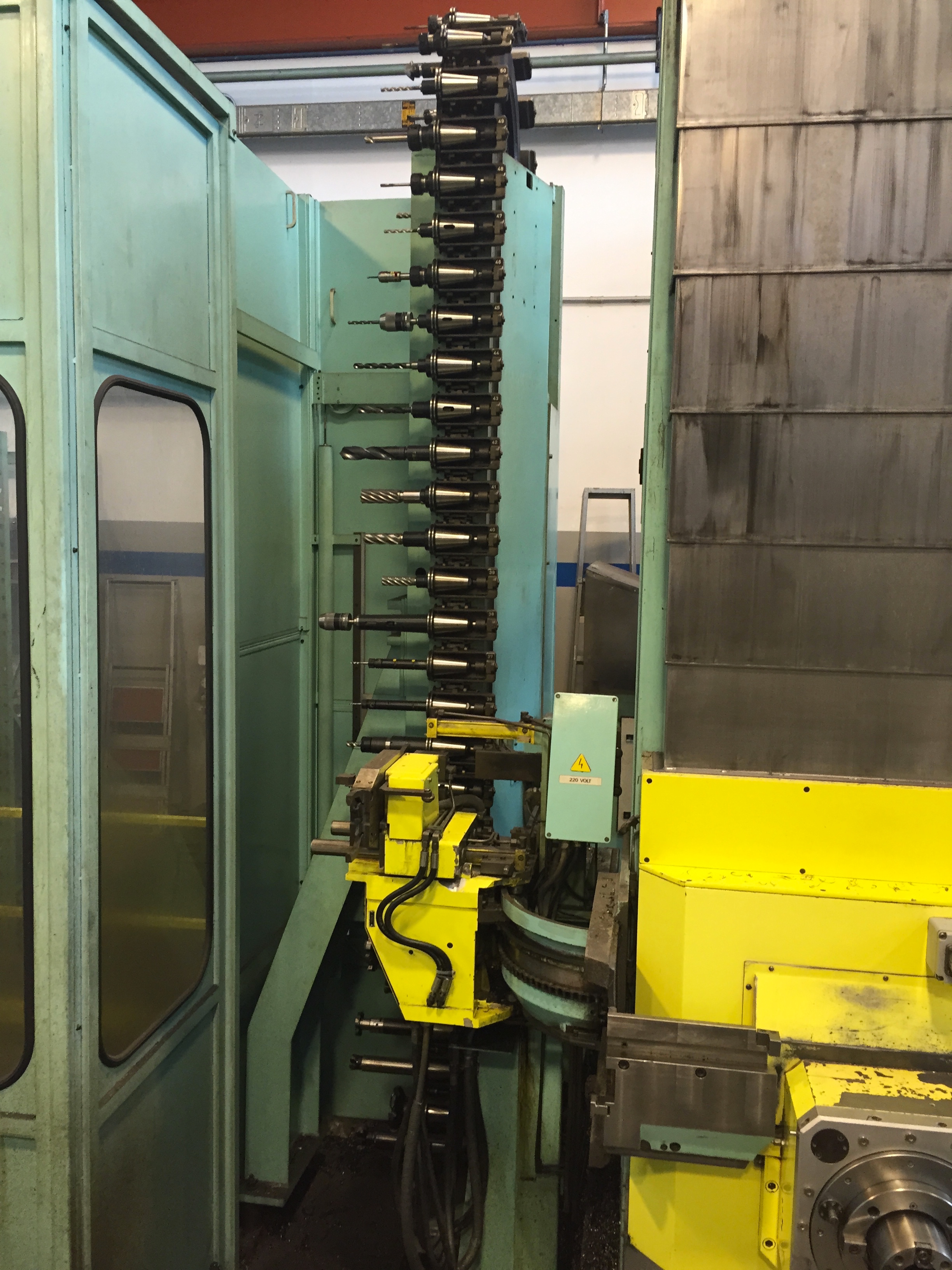

ATC
Positions
80
Max tool weight
25 Kg
Max tool diameter
380 mm14,96 in
Max diam with free adiacent space
380 mm14,96 in
Max tool lenght
515 mm20,28 in

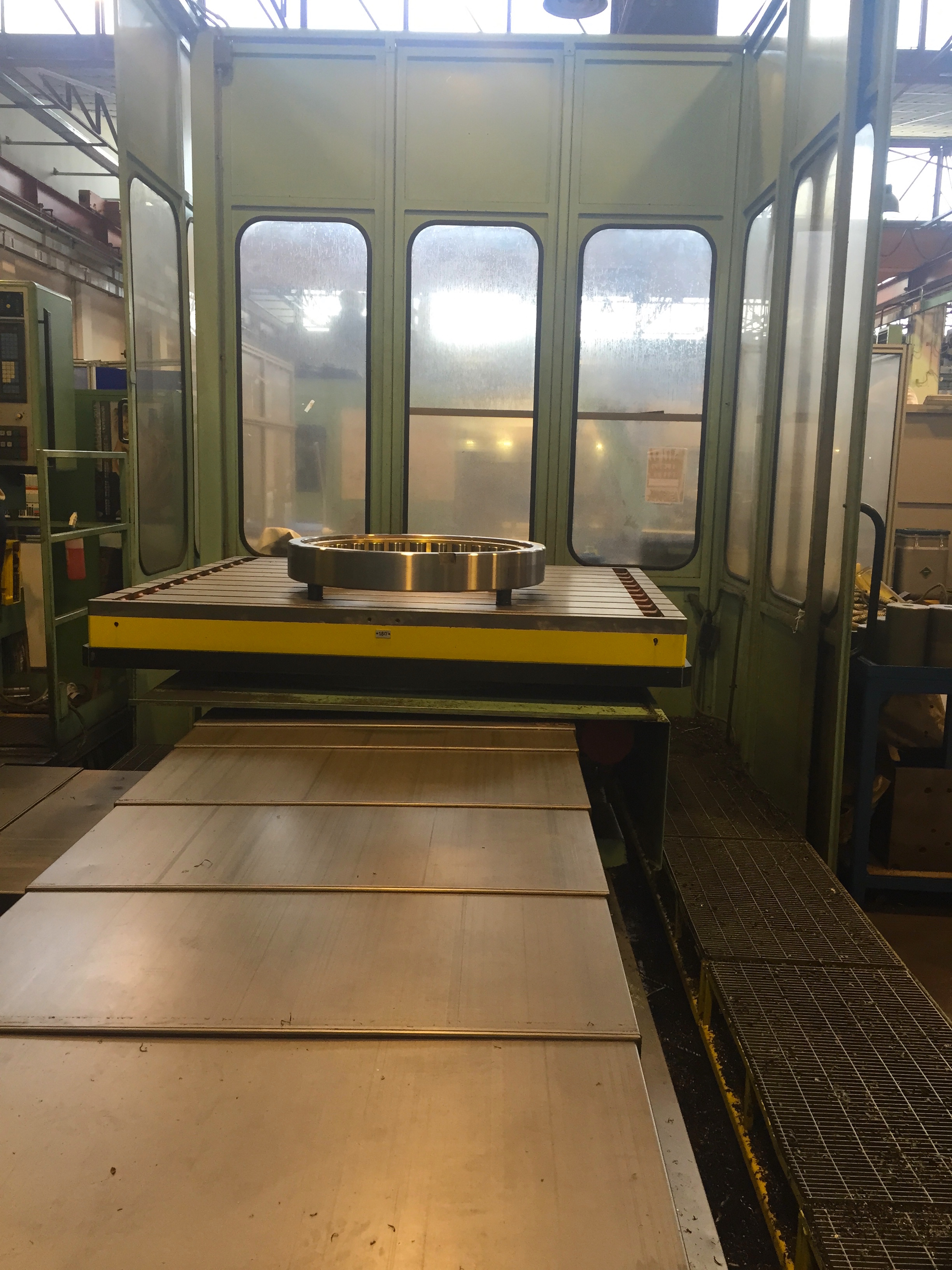

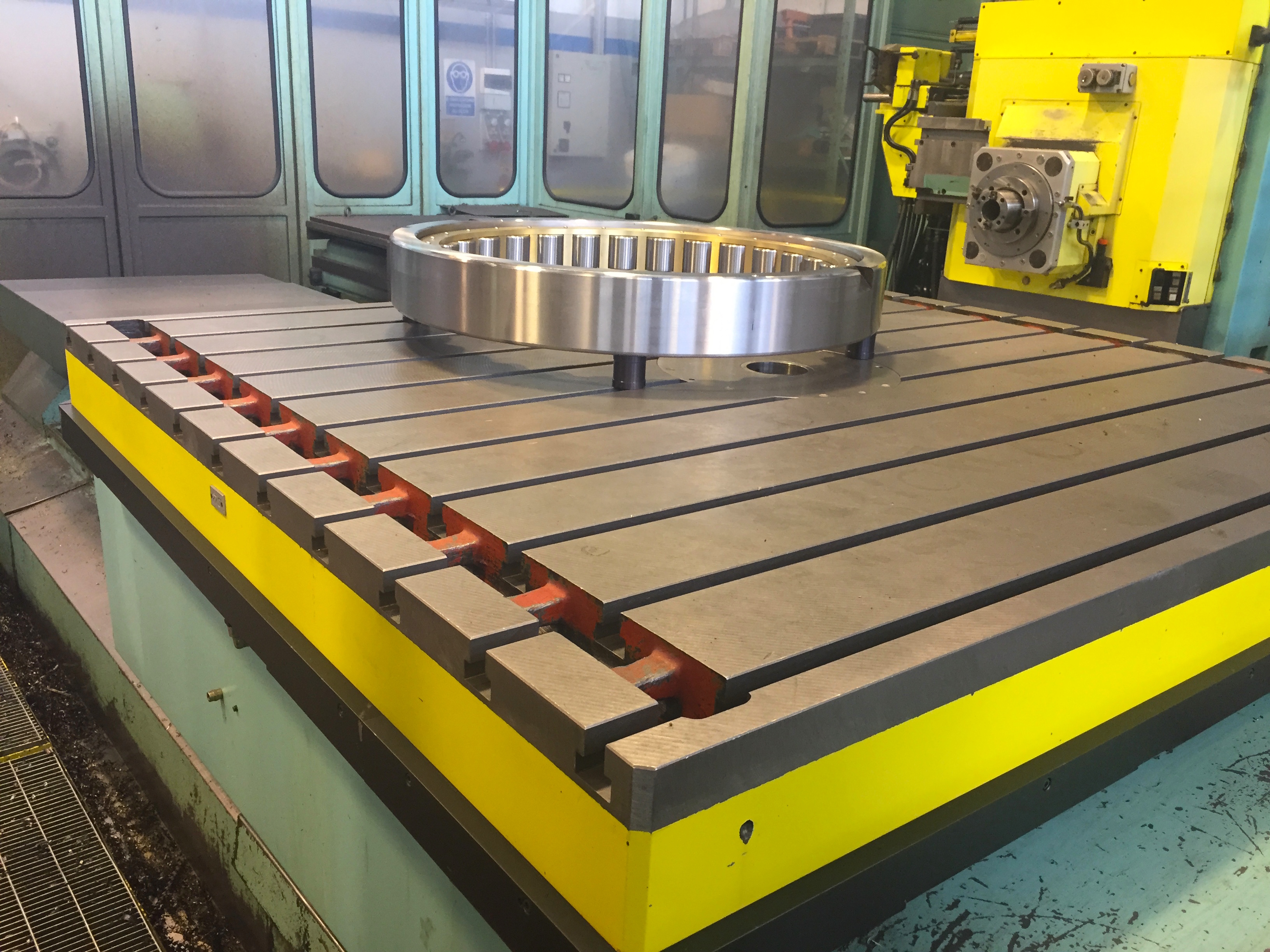

TABLE 1
Surface
1800x1800 mm70,87x70,87 in
Accuracy (B axis)
0,002 °
Capacity
10000 Kg
Support
idrostatico
Rotating speed
0,002-2,5 Rpm o °/min
PICK UP STATION FOR HEADS
Positions
2

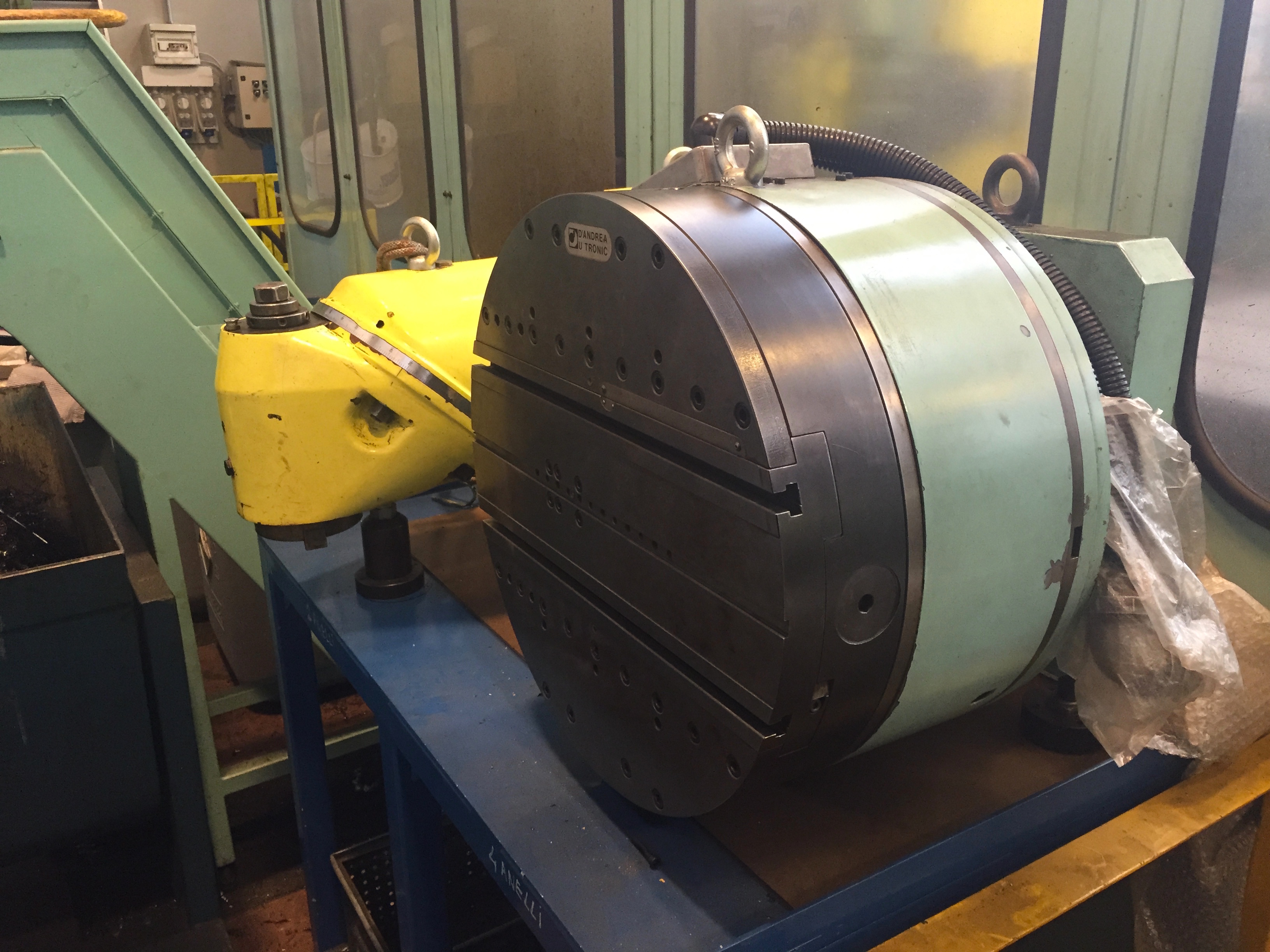

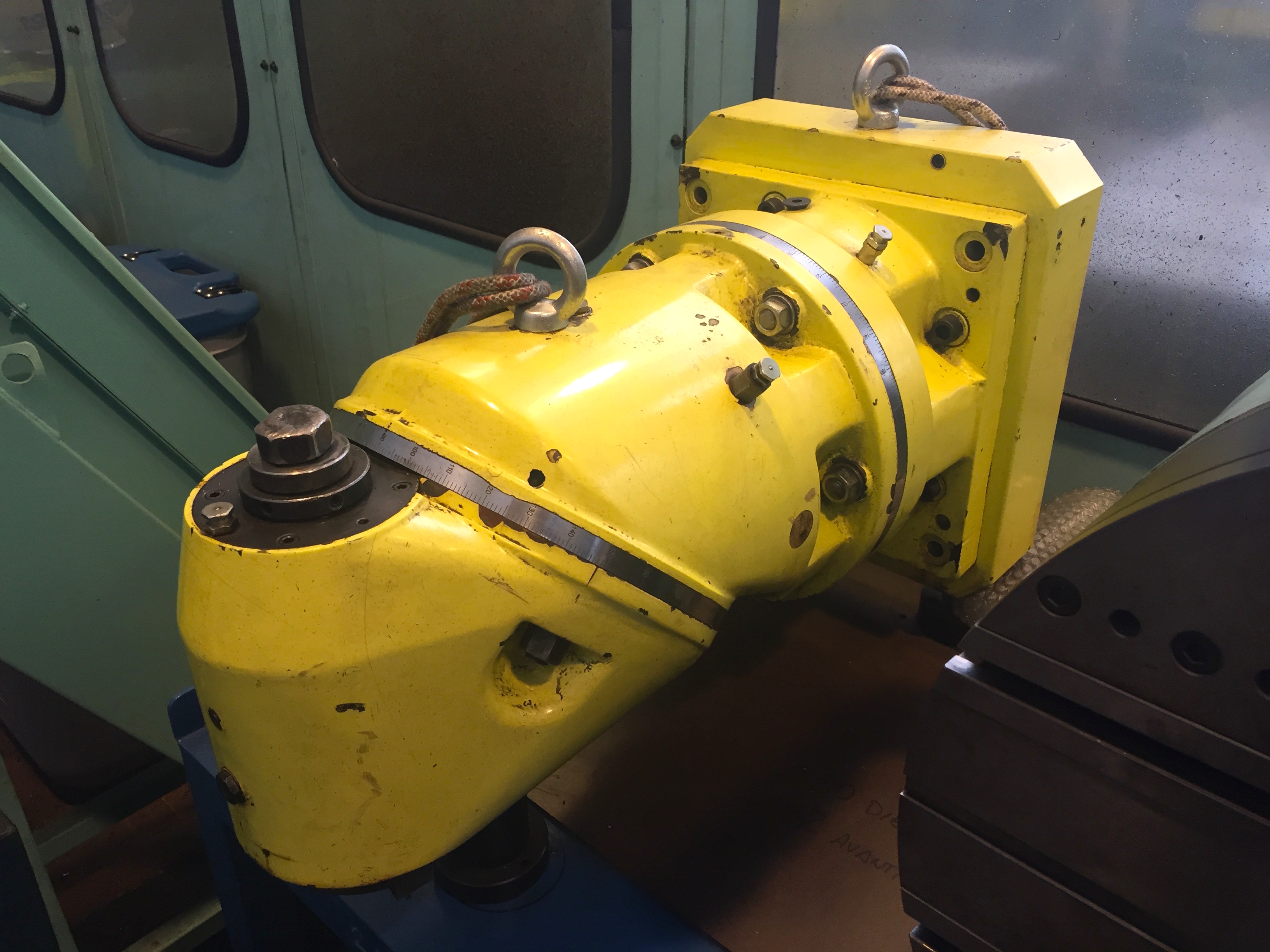

HEAD 1
Type
Birotativa manuale
Spindle taper
ISO50
EXTRA

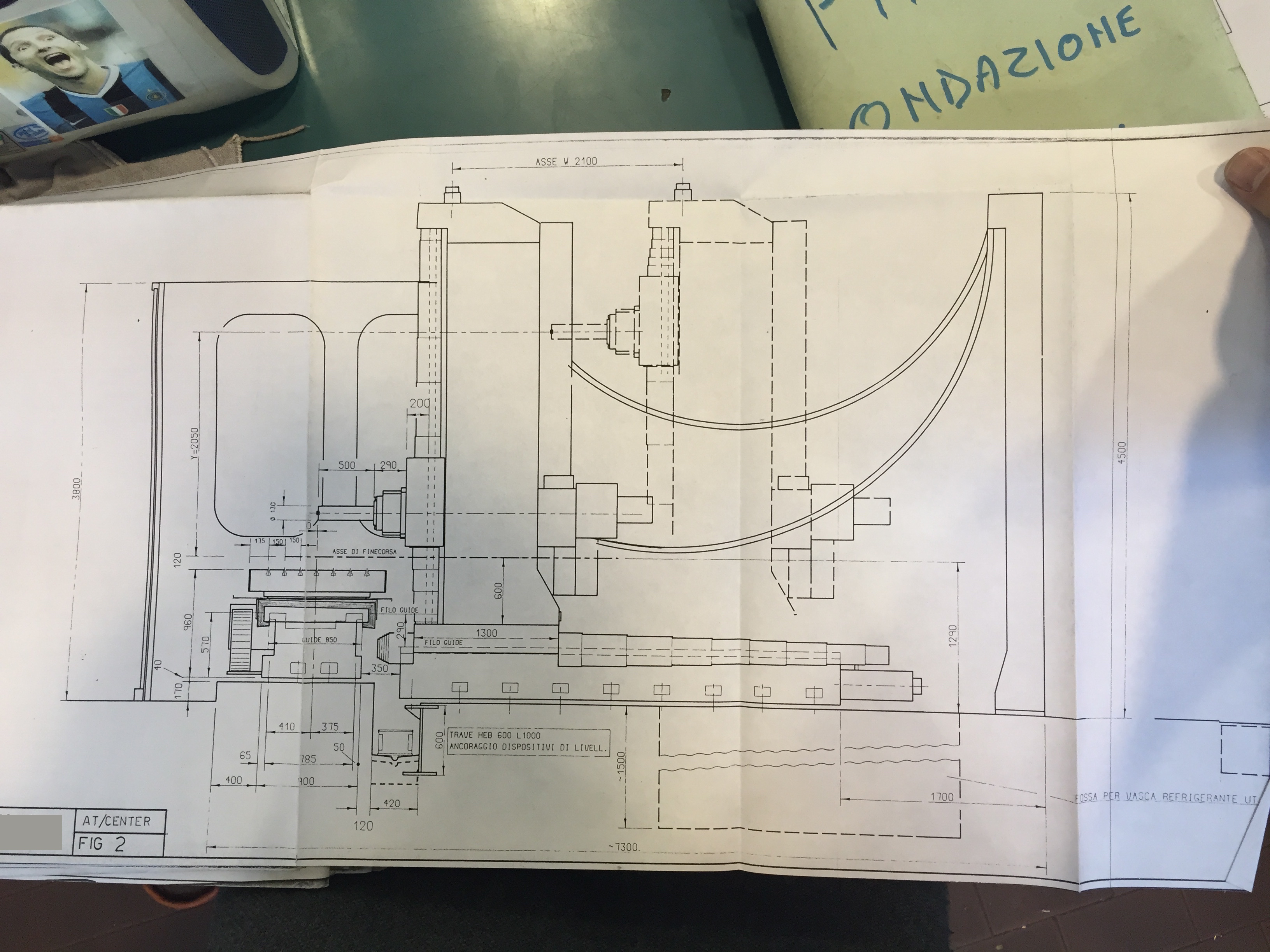

Floor space
9950x8600x4500 mm391,73x338,58x177,17 in

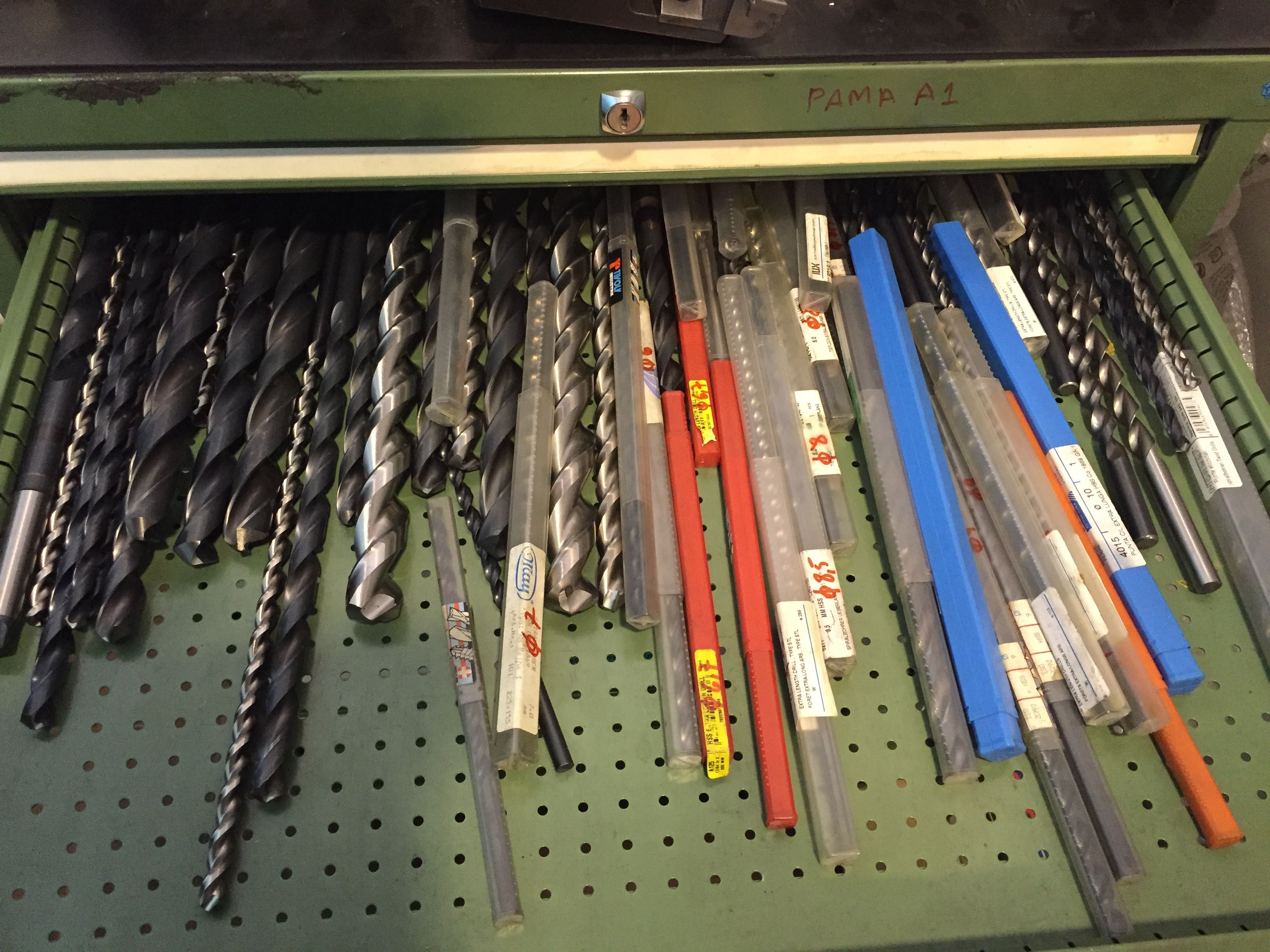

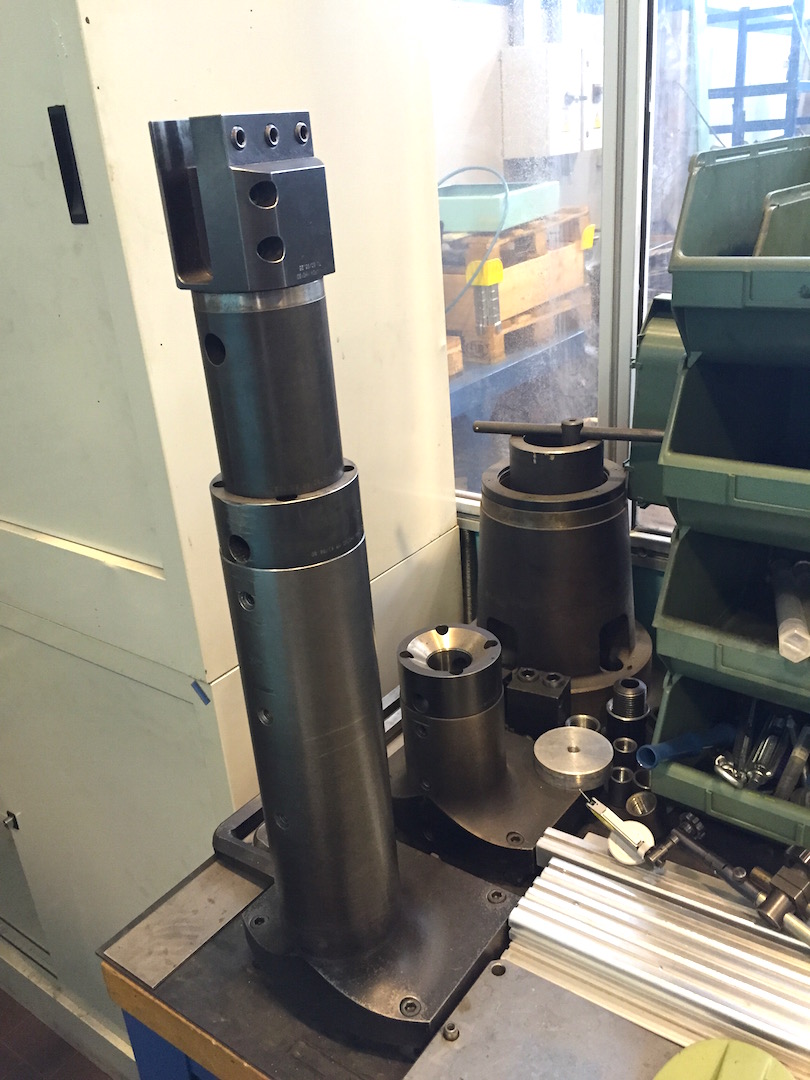

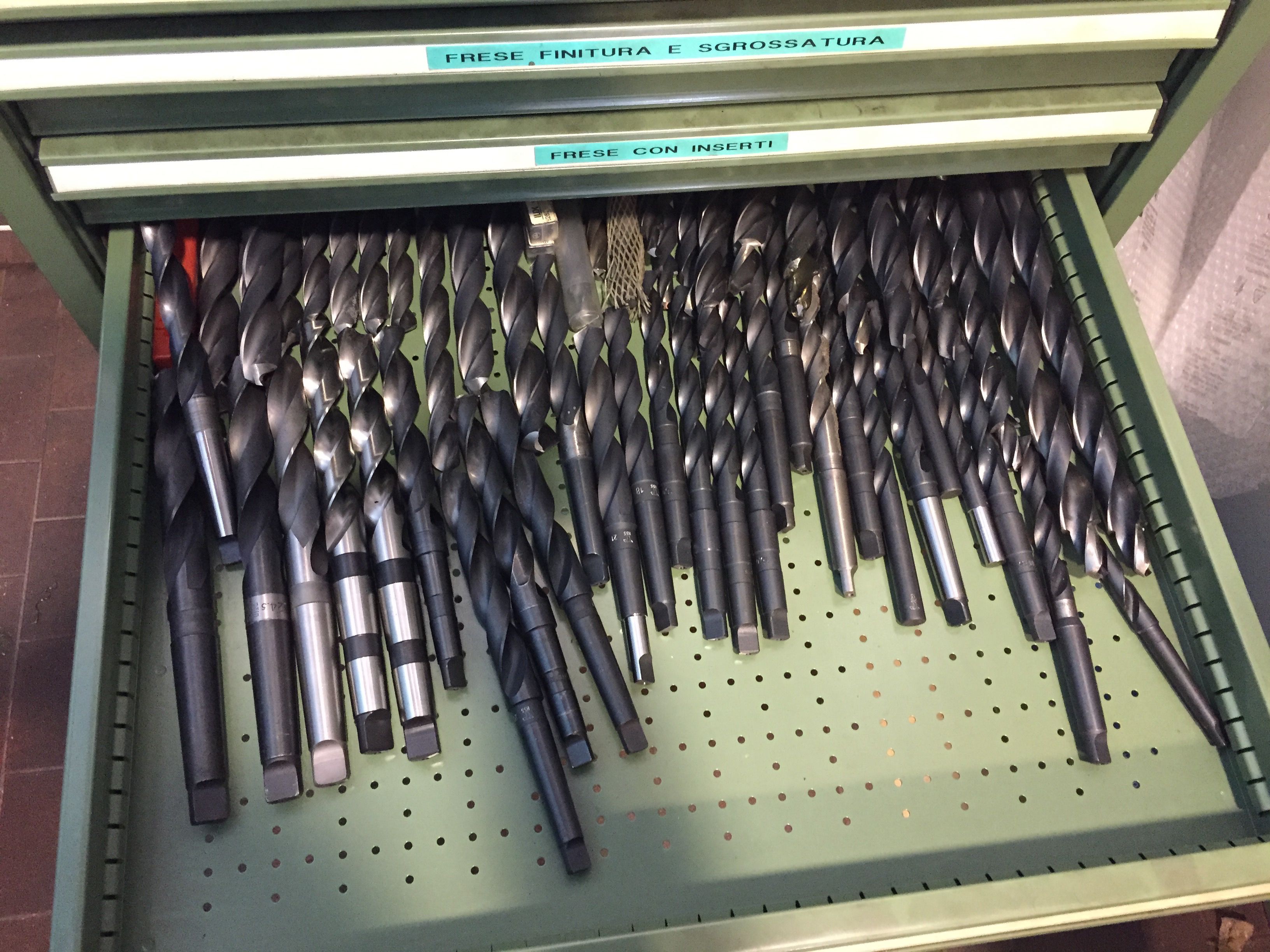

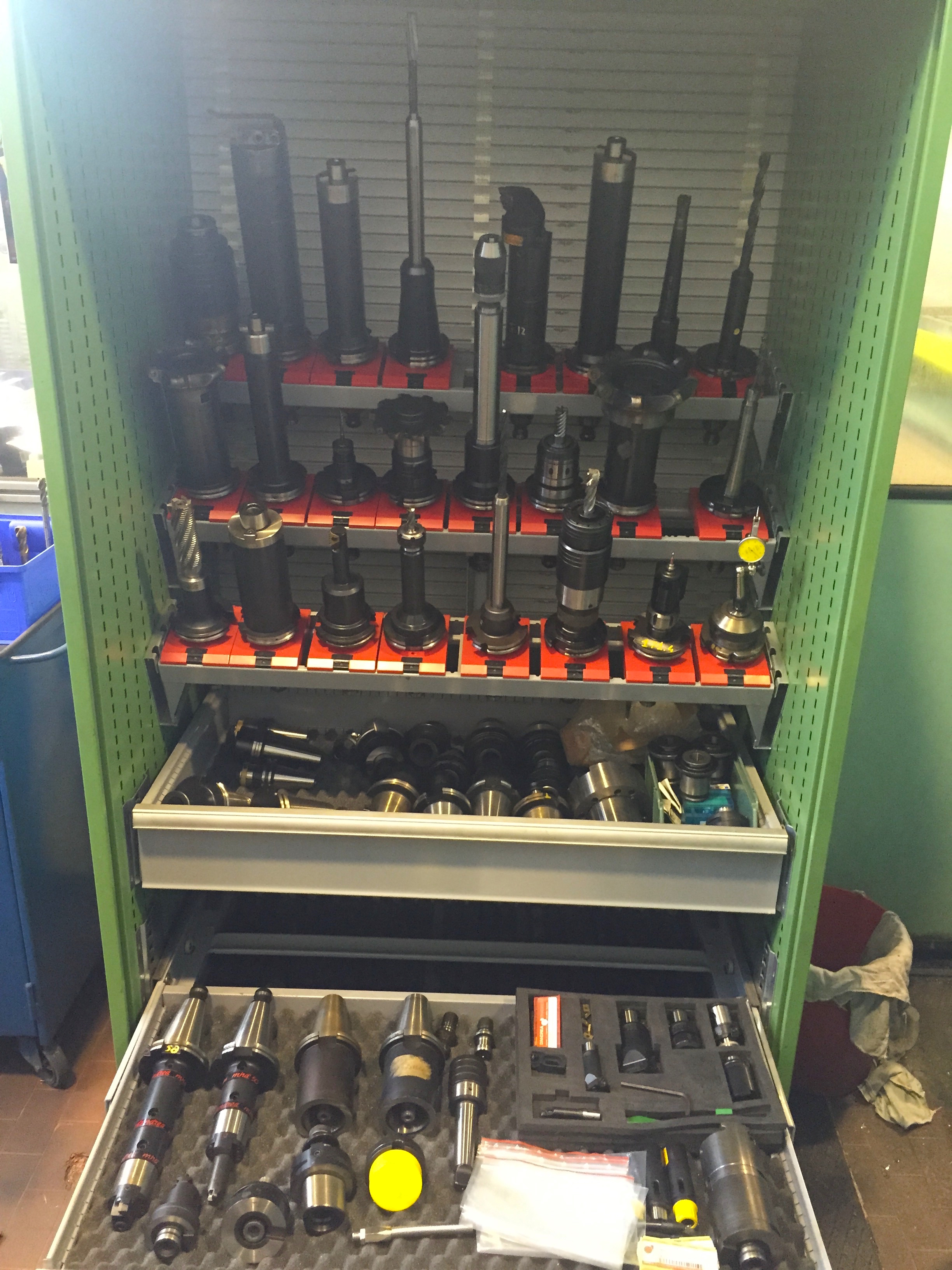

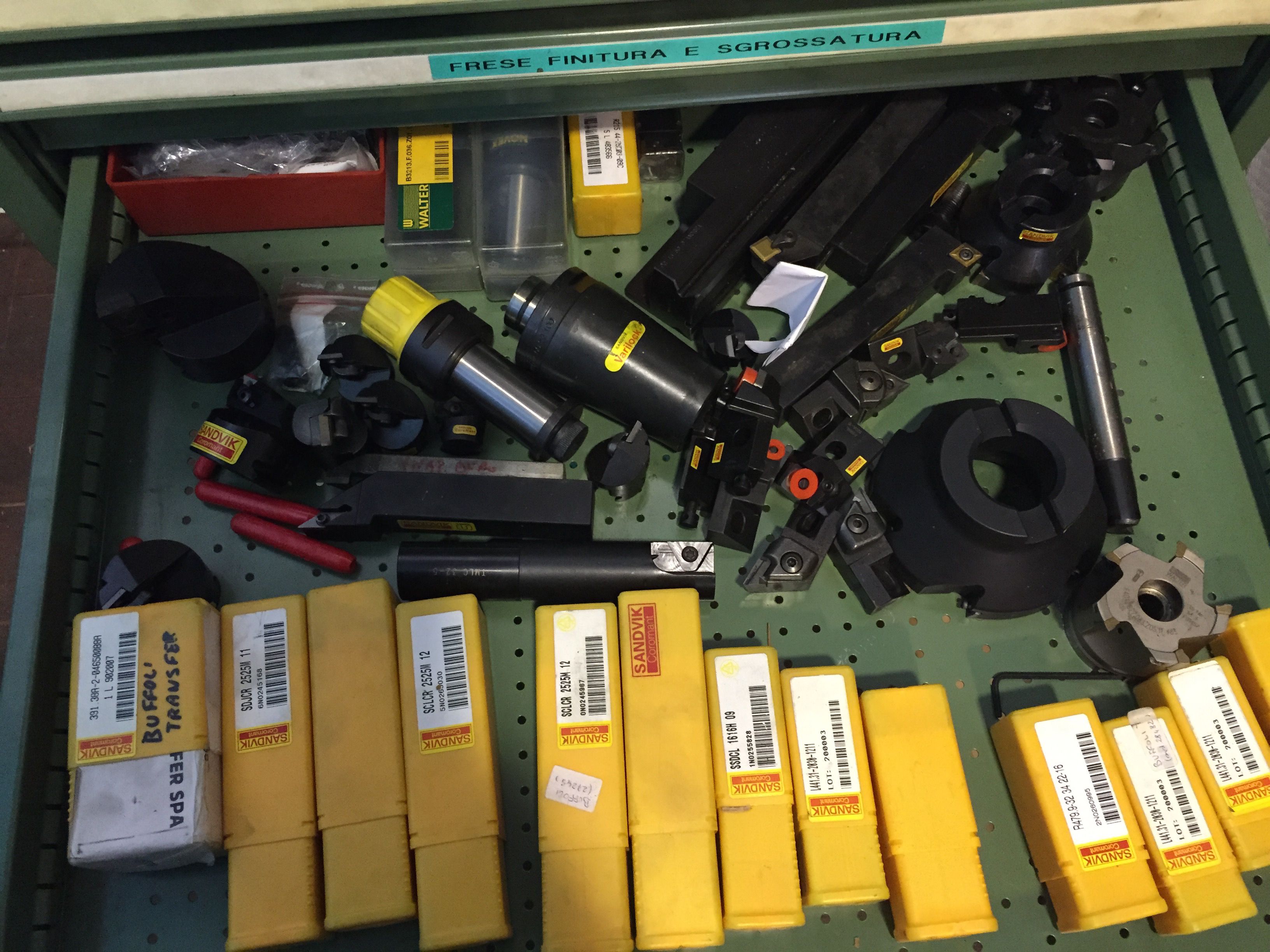

Tooling included

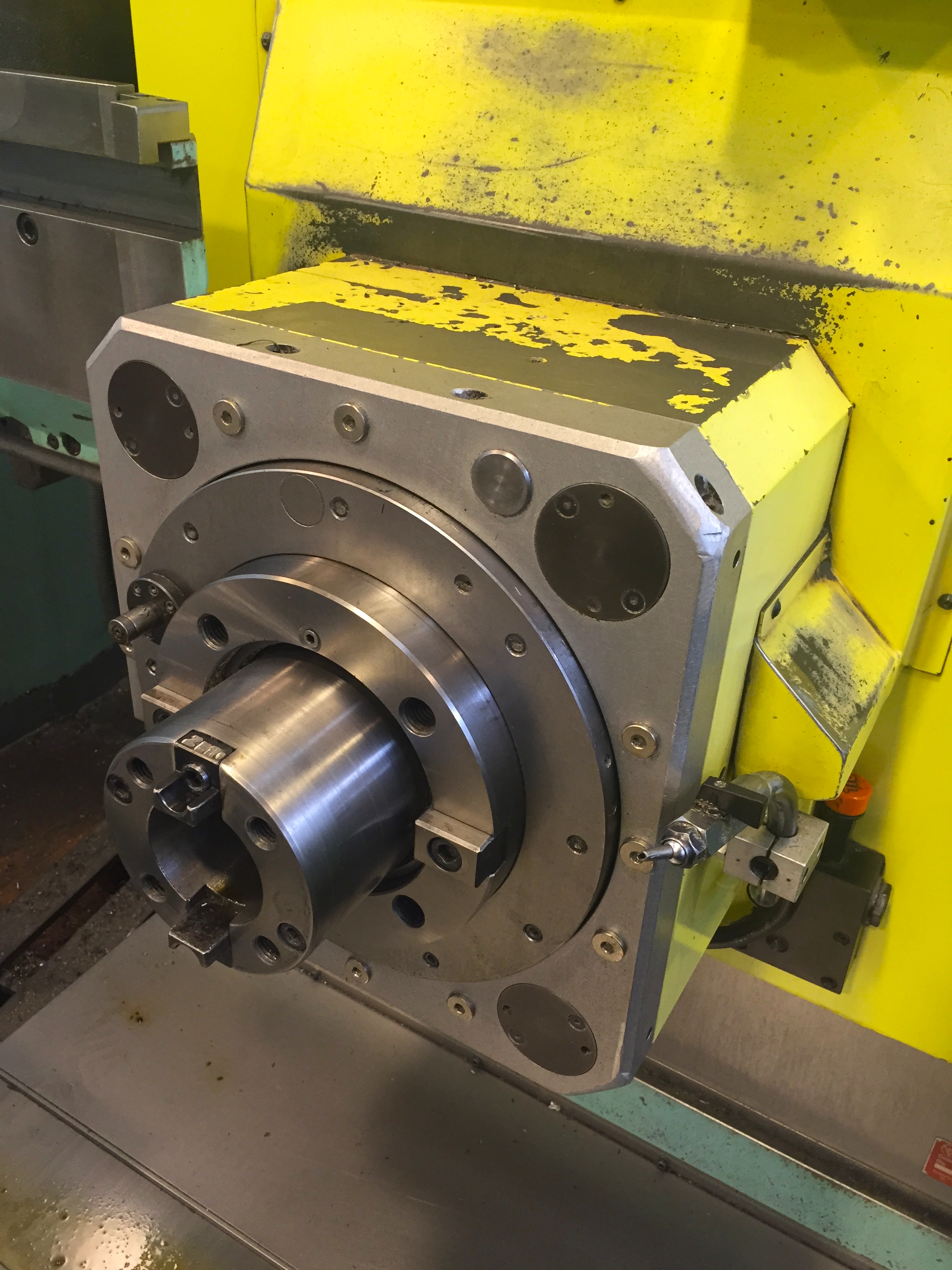

Testa D’Andrea U-Tronic 500, Testa birotativa manuale, squadre, supporti, svariata attrezzatura, coni, inserti, alesametri
High Pressure
refrigerante interno 18 Bar
Chiller
si
Operator platform
mobile
Workpiece touch probe
si
Maintenance & Use books
Yes

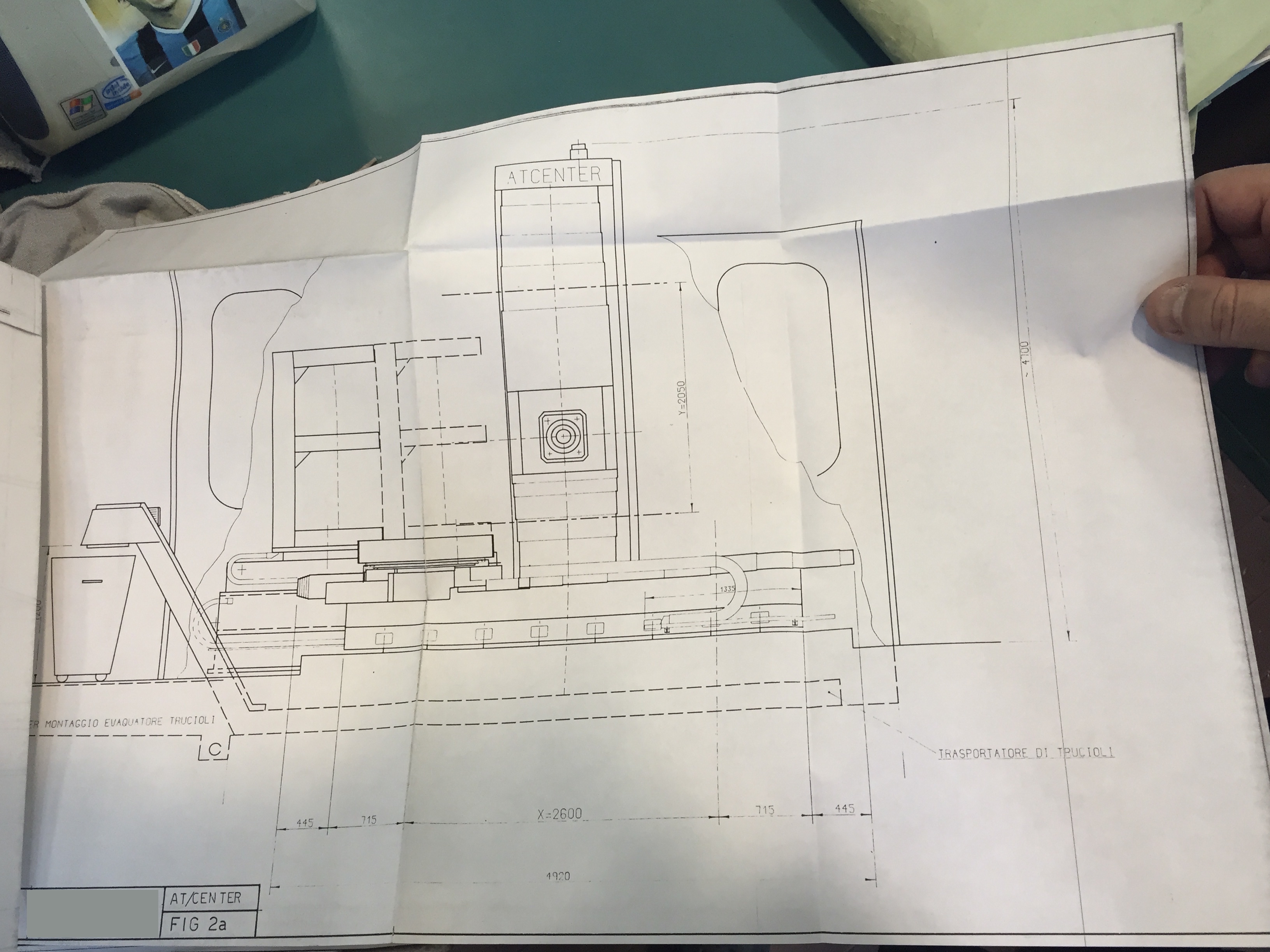

Electrical drawings
Yes

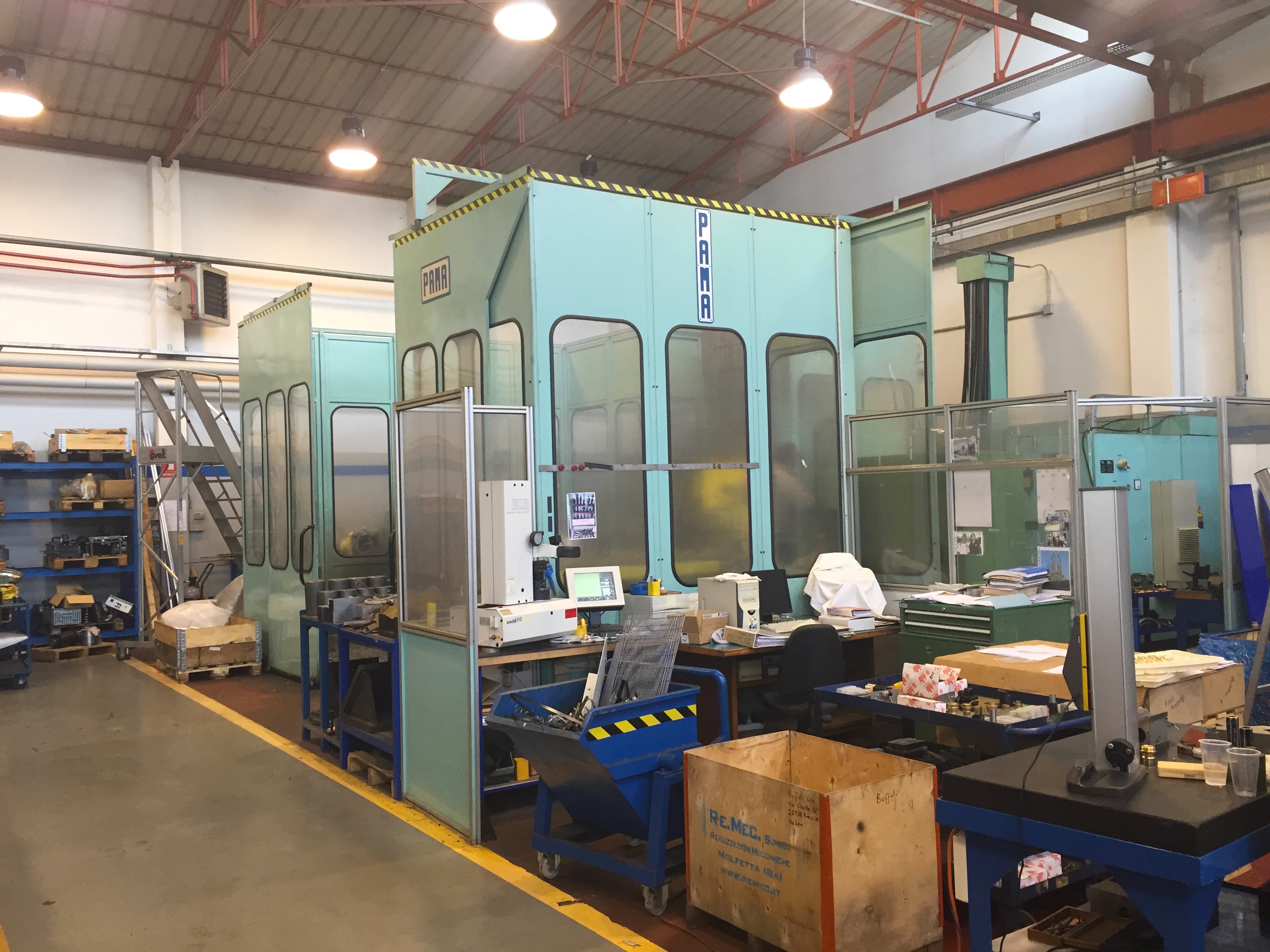

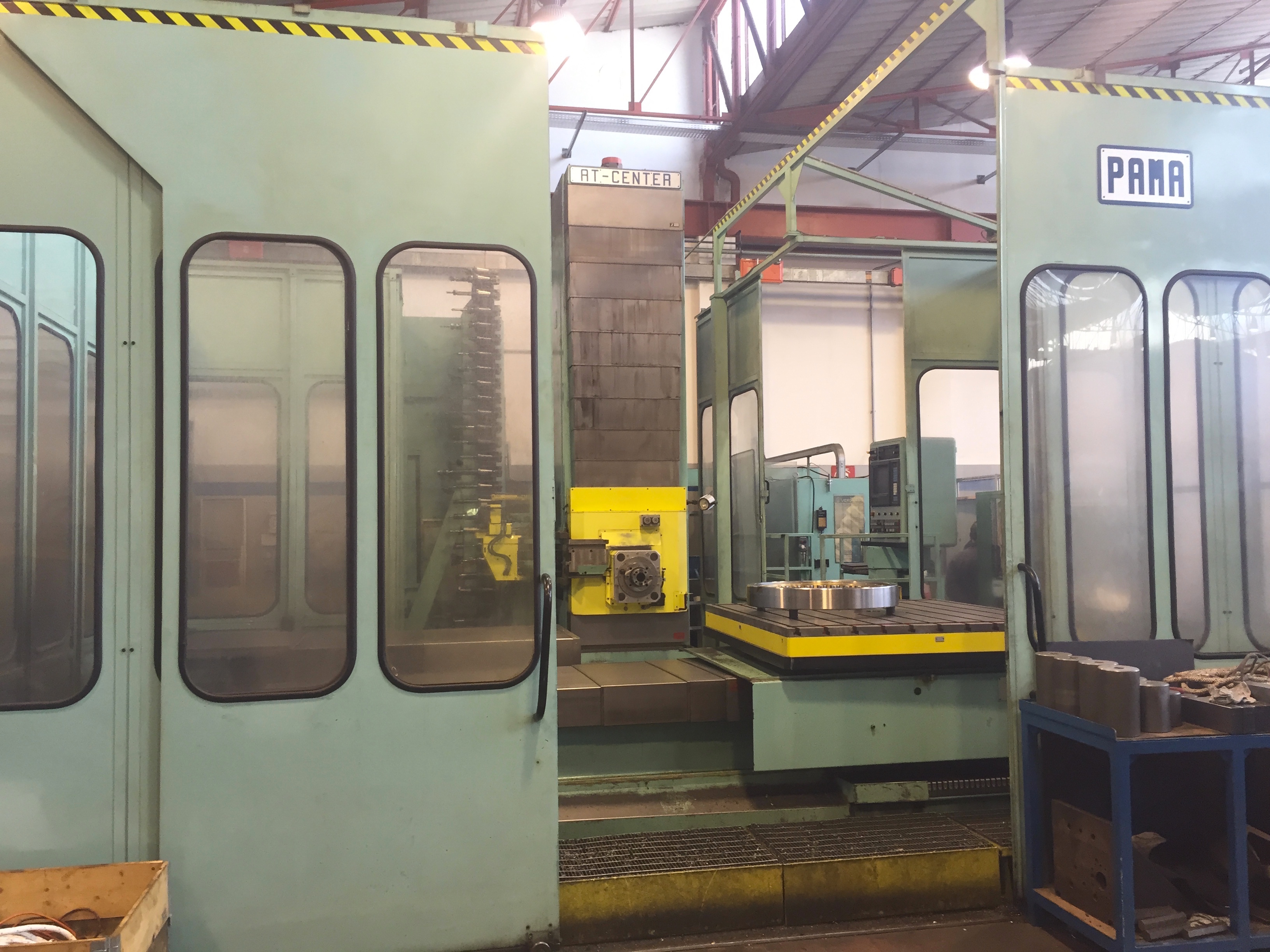

Housing
integrale

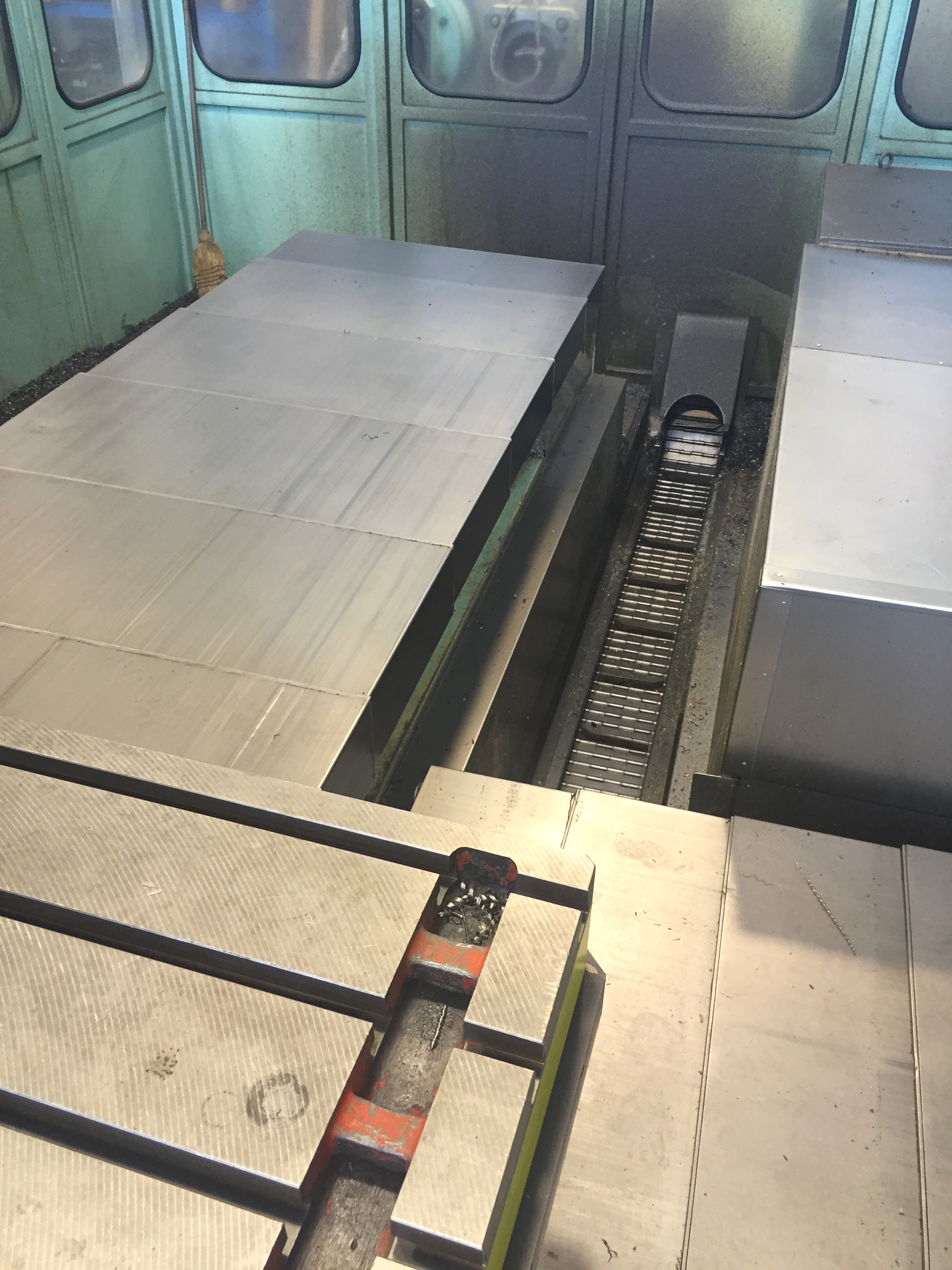

Chip conveyor
si
Availability
pronta consegna
Available in stock
si
Relevant updates made on the machine
macchina seminuova
Total power supply
115 Kw
