Category
Turning Machine
Type
Vertical
Made
Model
POWERTURN 1600CM APC2
Capacity
ø2000x1280 mmø78,74x50,39 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Platform diameter
1600 mm62,99 in
Max workpiece diameter
2000 mm78,74 in
Max tuning diameter
2000 mm78,74 in
Max workpiece weight
6000 Kg
CNC
CNC

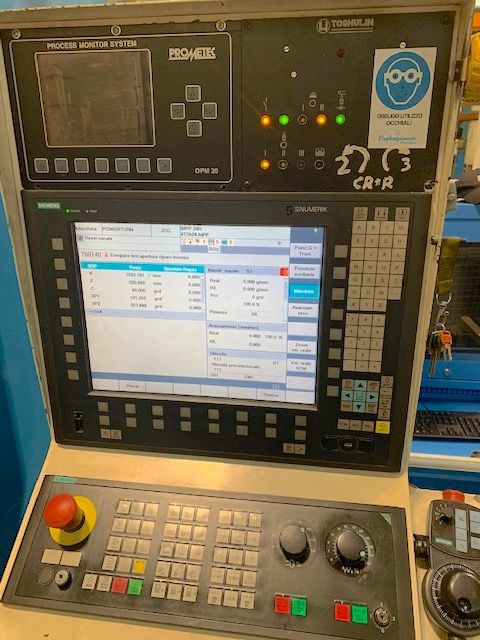

SIEMENS SINUMERIK 840DSL
Drives
Siemens
MAIN SPINDLE

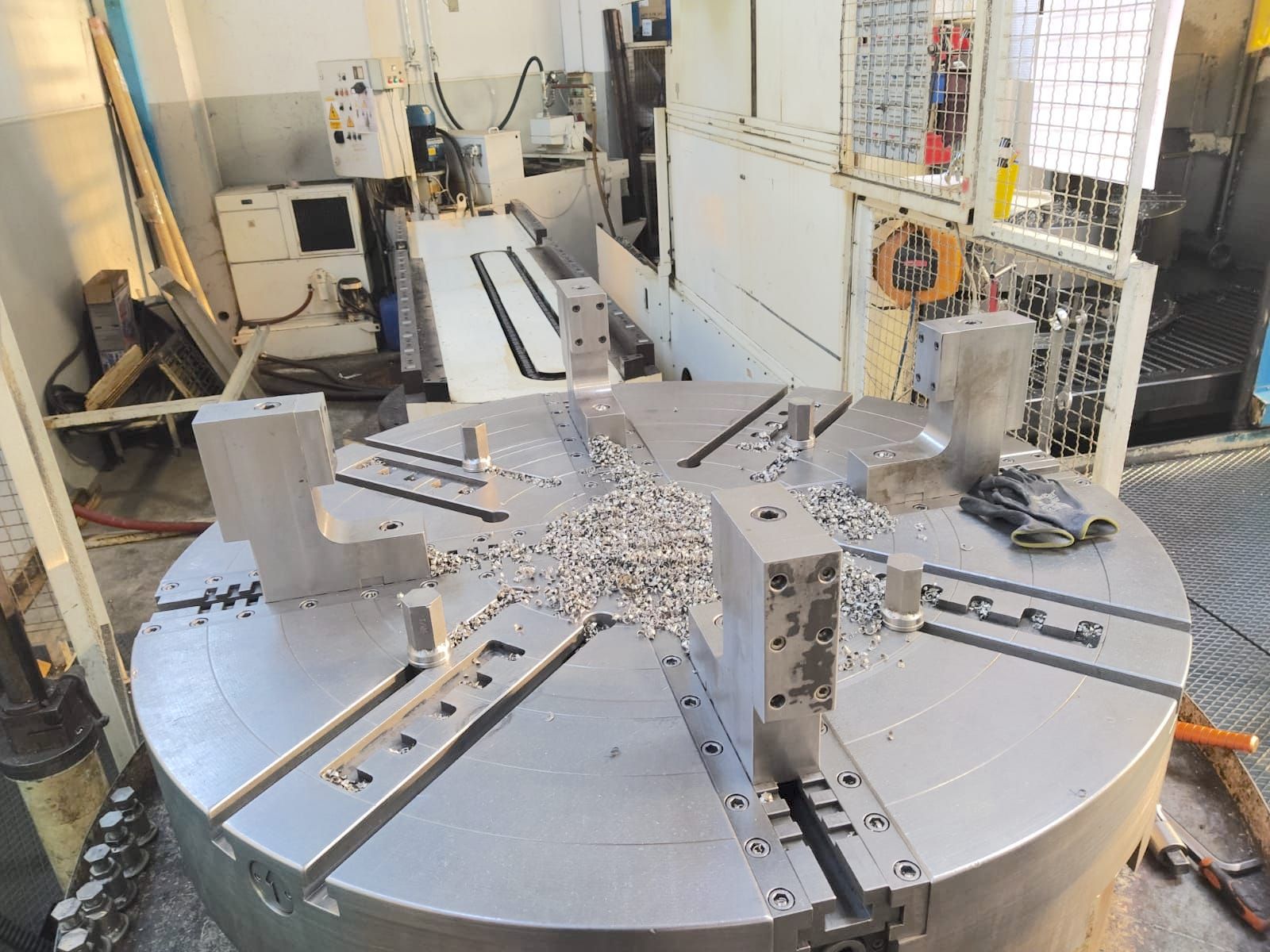

Platform diameter
1600 mm62,99 in
Max rotation speed
315 rpm
Capacity
6000 + Pallet 2500 Kg
Max power
60 Kw
Max torque
50.000 Nm
Accuracy (C axis)
0,001 °
CARRIAGE
Vertical stroke (Z)
1280 mm50,39 in
Cross stroke (X)
from the table center +2395/-1020 mmfrom the table center +94,29/-40,16 in
Milling spindle speed
3000 Rpm
Tool taper
ISO50
Working feeds (Z)
4 m/min157,48 ipm
Rapid feeds (Z)
12 m/min472,44 ipm
Working feeds (X)
4 m/min157,48 ipm
Rapid feeds (X)
12 m/min472,44 ipm
RAM section
240x240 mm9,45x9,45 in

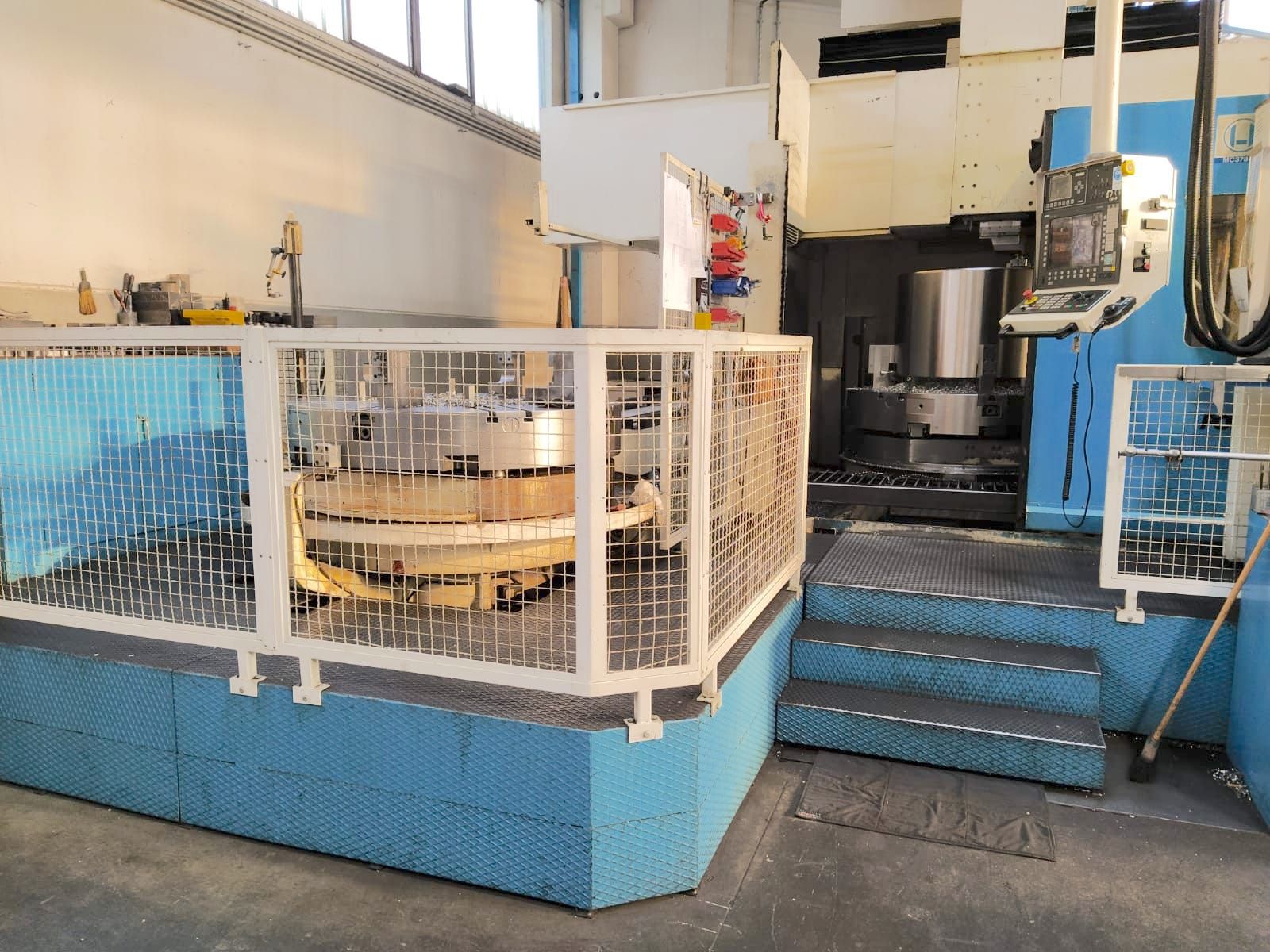

AUTO PALLET CHANGER (APC)
Max weight on pallet
6000 + 2500 Kg
Pallet number
2

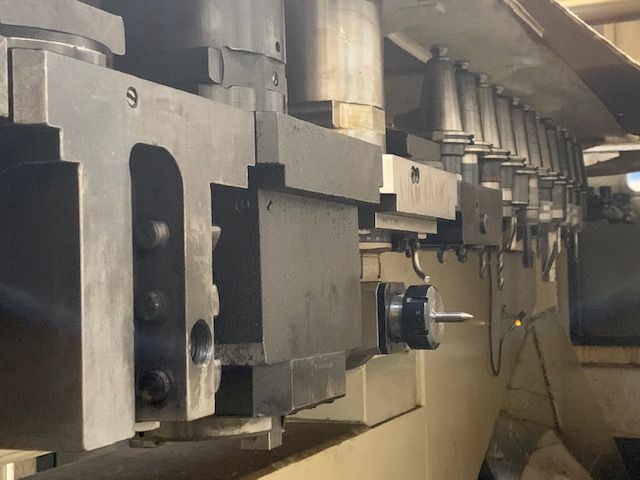

ATC
Positions
95
CROSSRAIL
Vertical stroke (W)
800 mm31,50 in
EXTRA
Floor space
10300x9100x5405 mm405,51x358,27x212,79 in
Chip conveyor
si
Tool presetter
Renishaw LP2H + MI12
Accessorires included

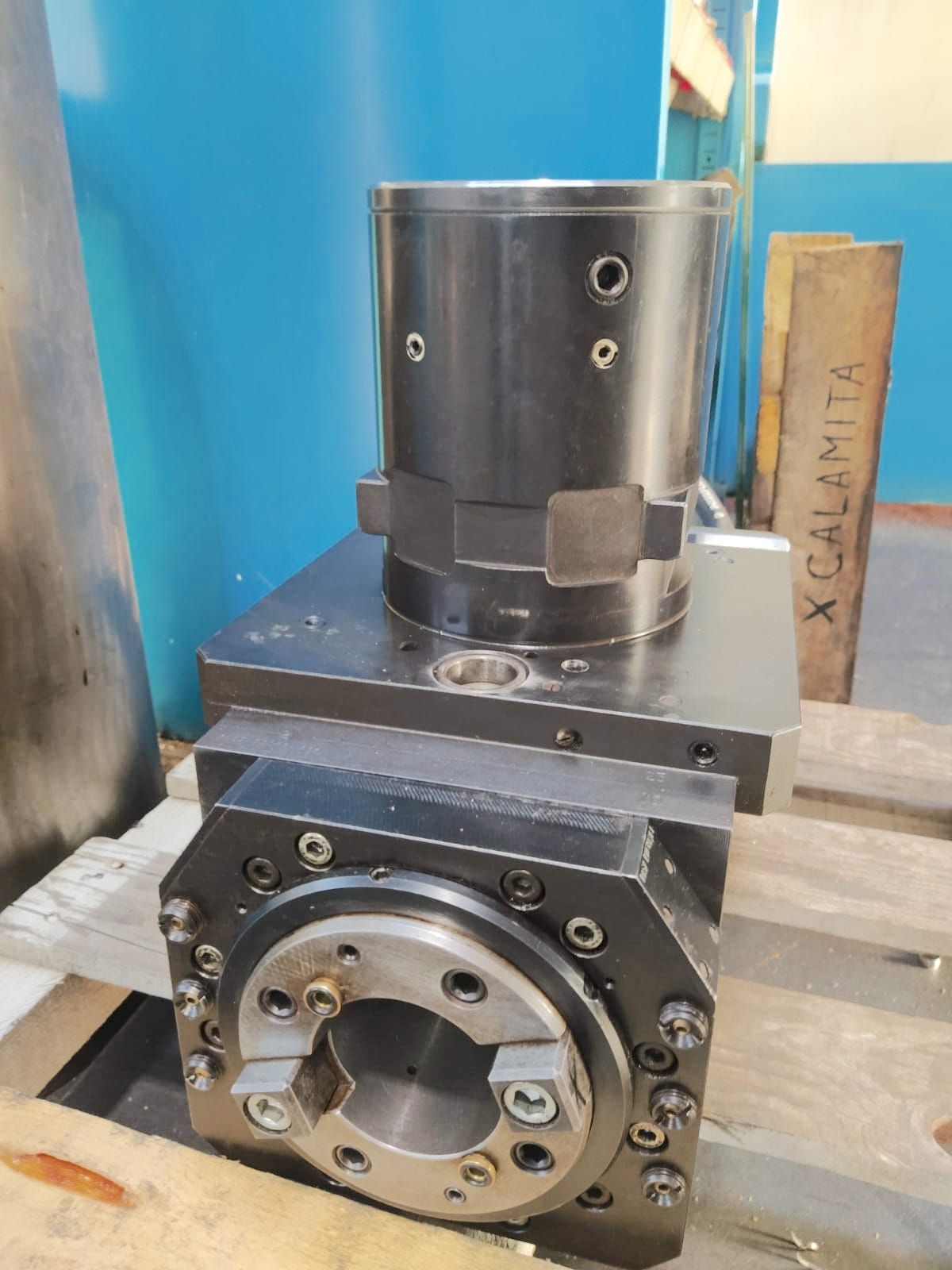

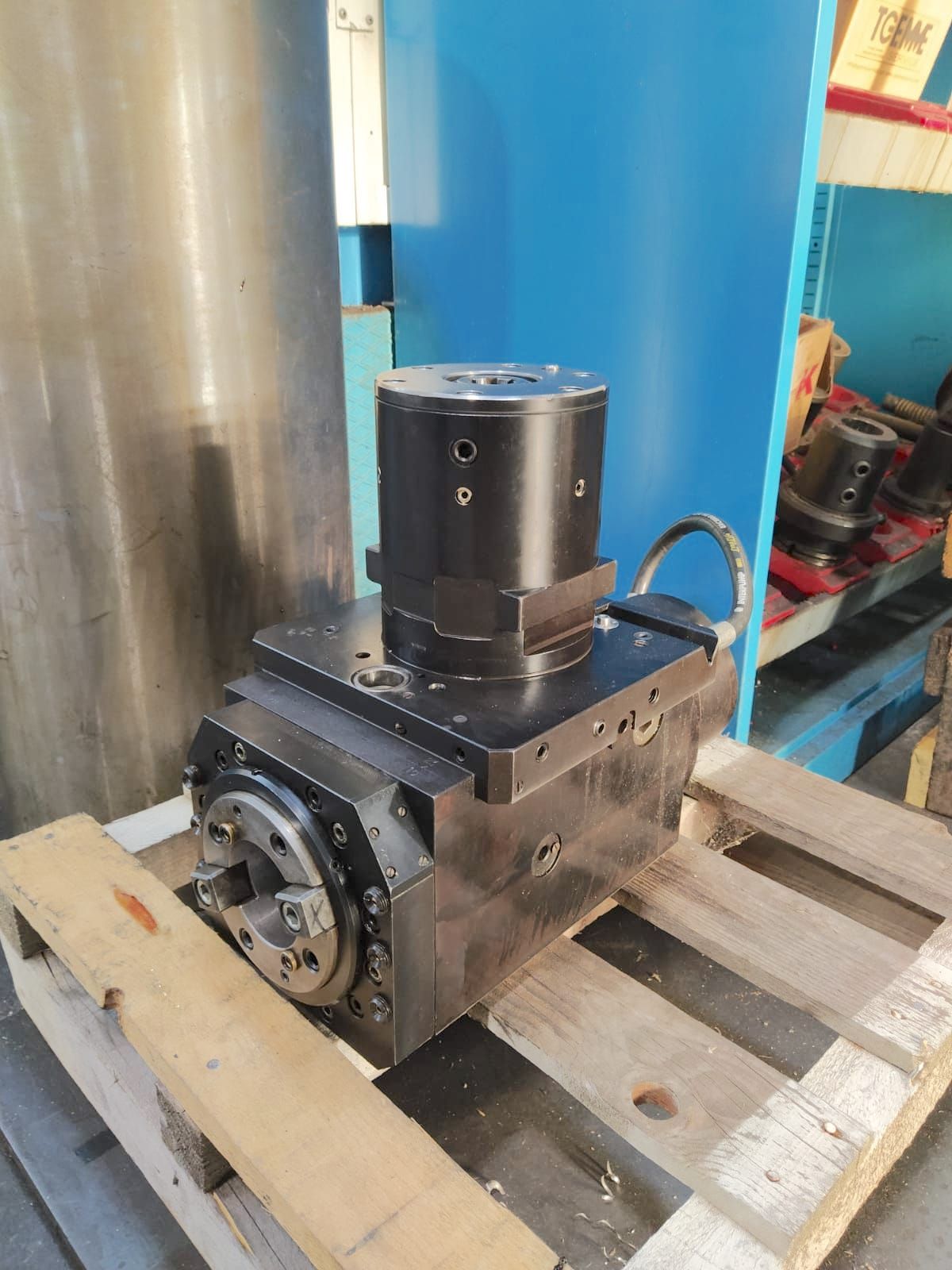

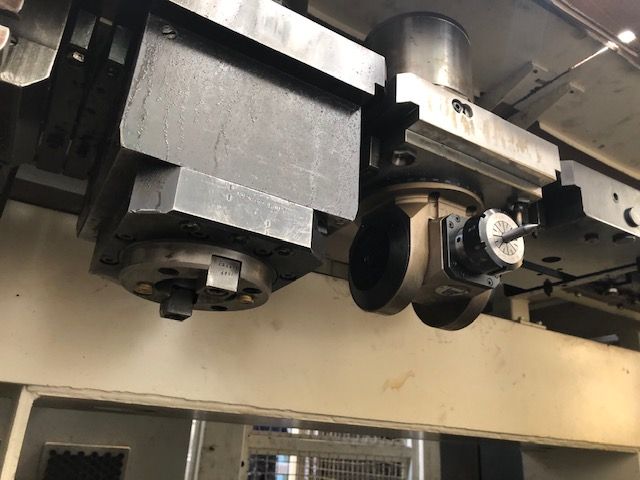

testa orizzontale ISO50, testa Verticale, Testa orientabile manuale, adattatori, portautensili, sistema filtraggio misto FX7000, chiller
Mobile traverse
Yes
Availability
Pronta
CE Certification
Yes
Maintenance & Use books
Yes
Electrical drawings
Yes

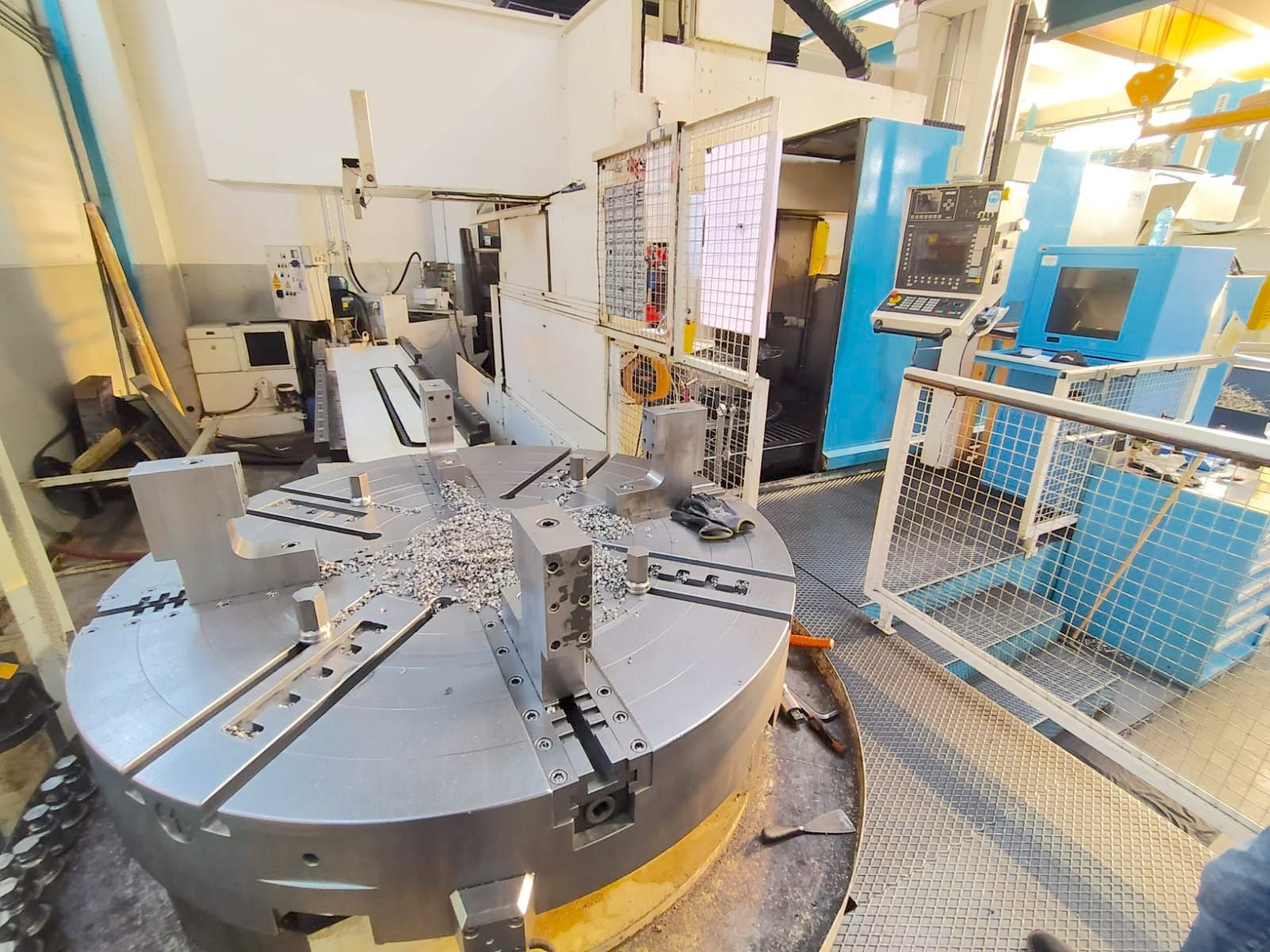

Platform
ø1600
Coolant pump
60Bar alta pressione
