Category

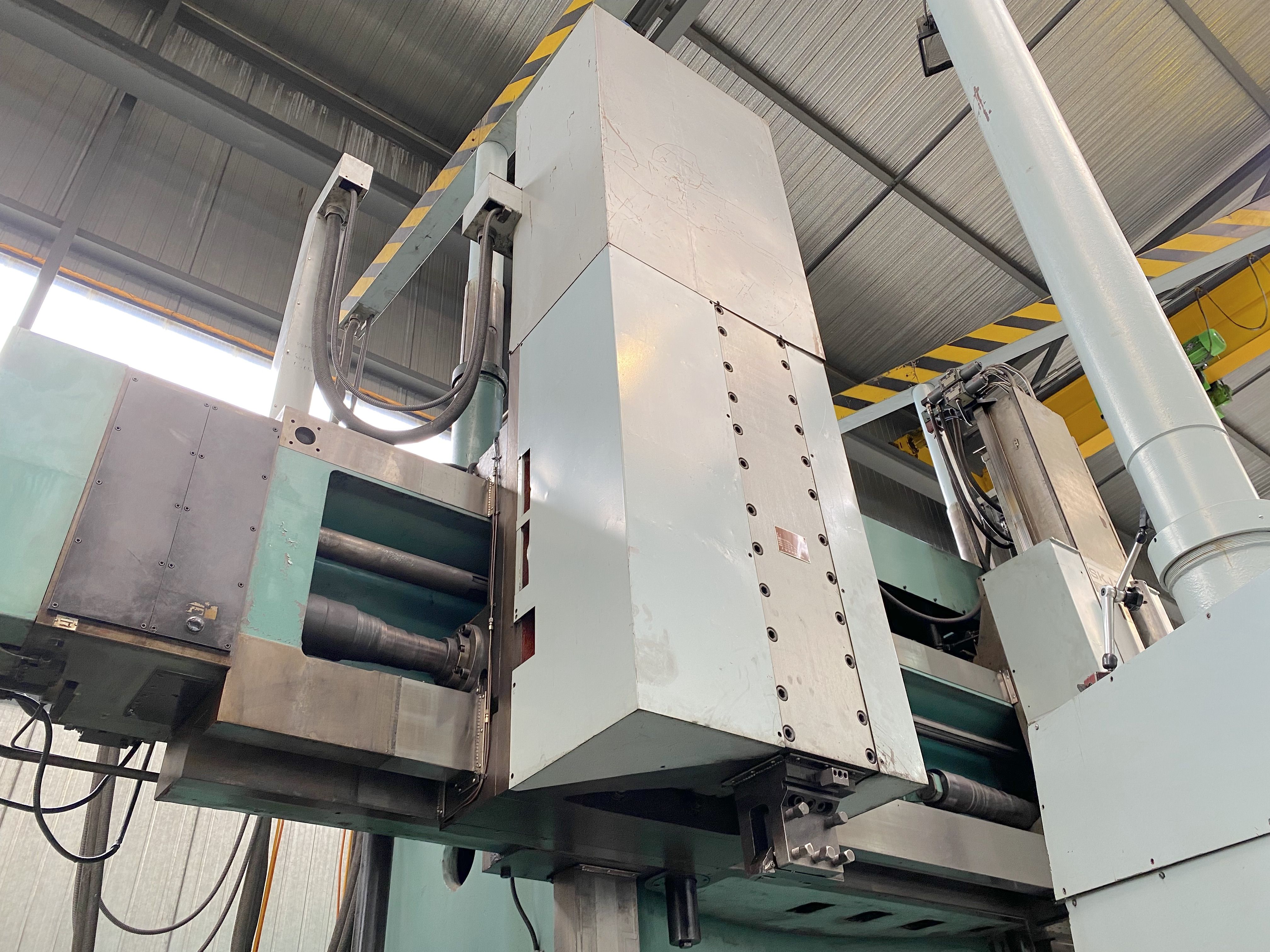

Turning Machine
Type
Vertical
Made
Model
SKJ20A
Capacity
ø2300x1500 mmø90,55x59,06 in

Technical specifications

Metric Imperial
WORKING CAPACITY

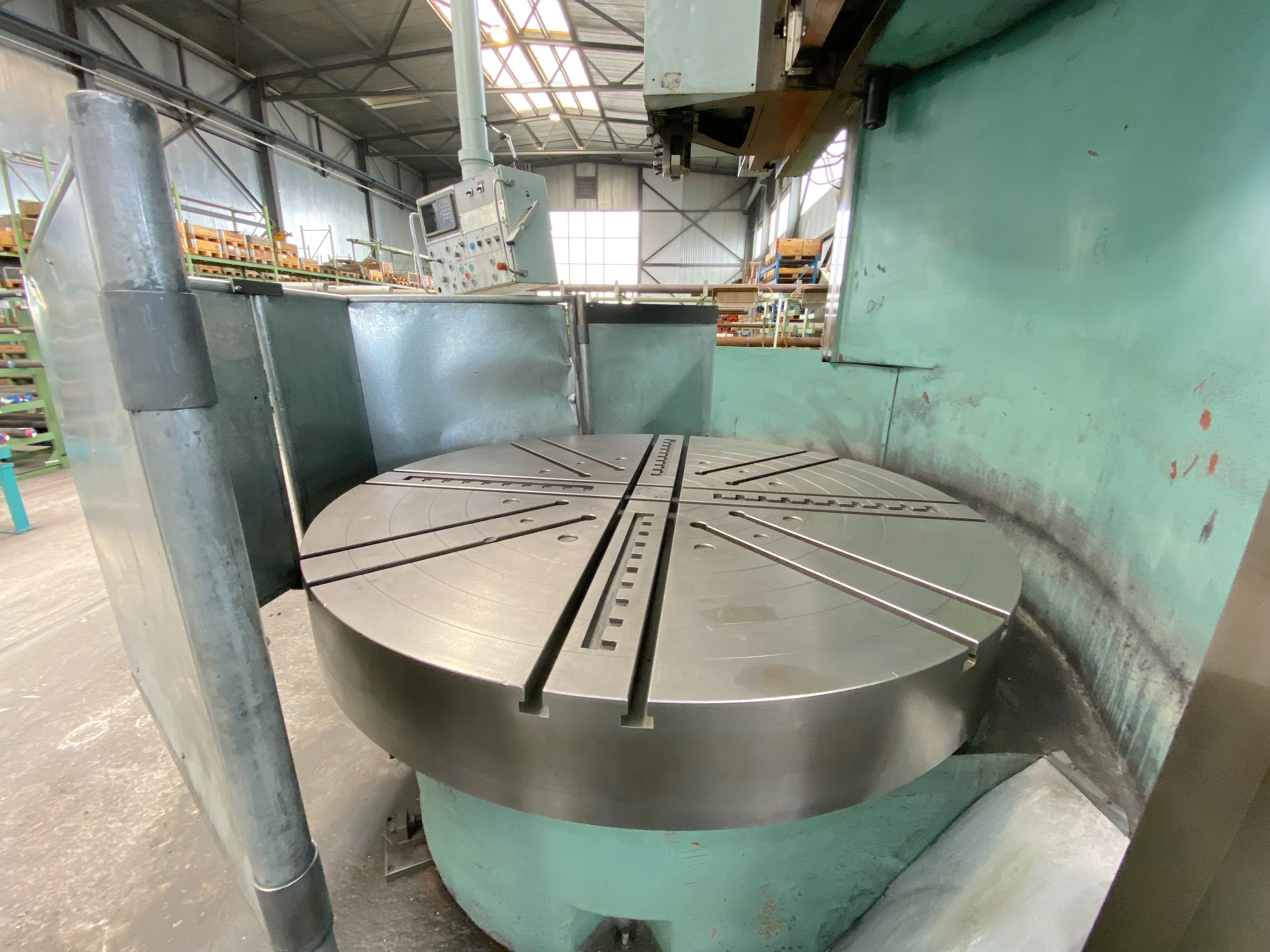

Platform diameter
2000 mm78,74 in
Max workpiece diameter
2300 mm90,55 in
Max tuning diameter
2200 mm86,61 in
Max turning height
1500 mm59,06 in
Max workpiece weight
15000 Kg
MAIN SPINDLE
Platform diameter
2000 mm78,74 in
Max rotation speed
160 rpm
Capacity
15000 Kg
Max power
70 Kw
Cross spindle stroke (Y)
1250 mm49,21 in

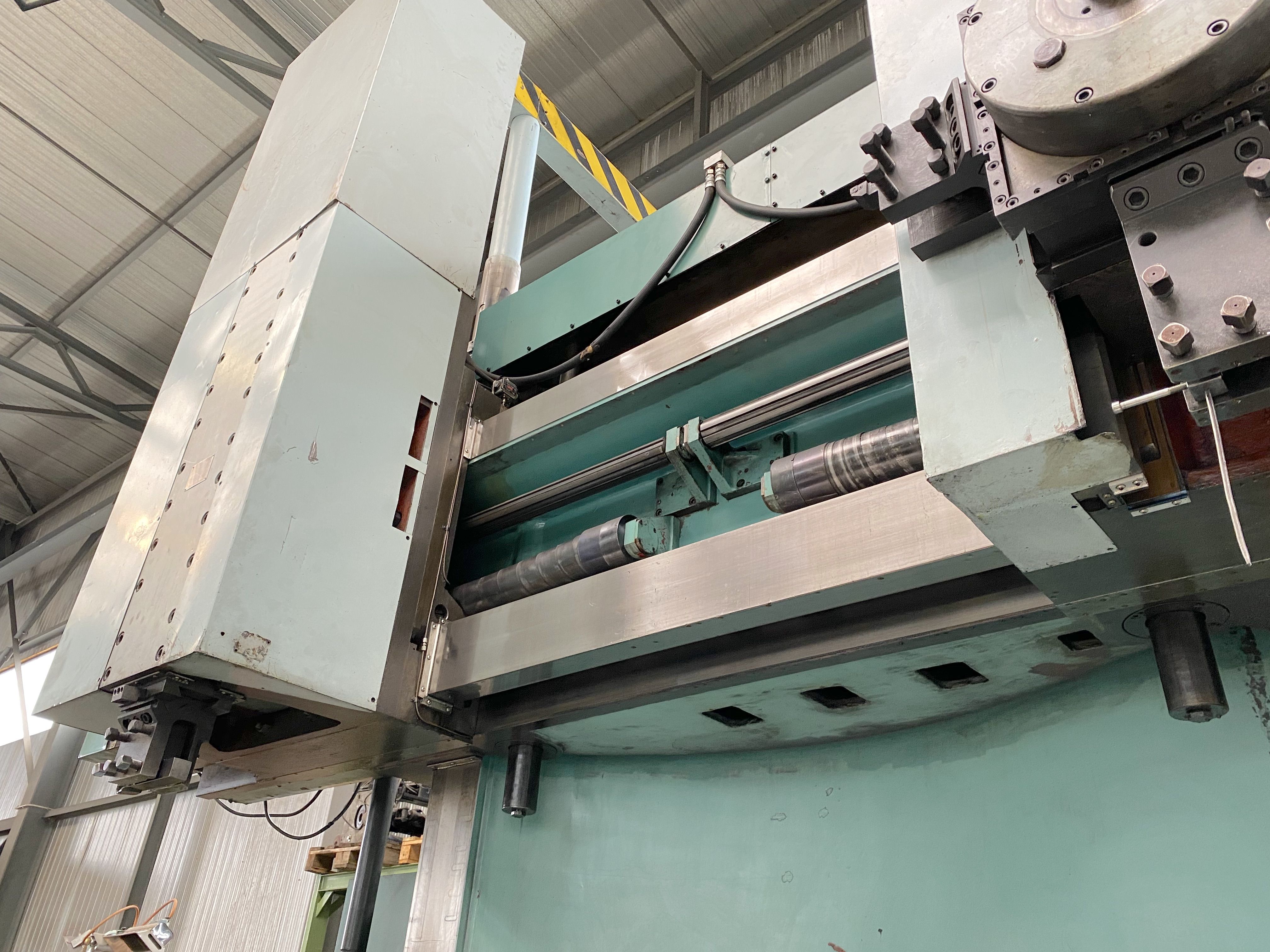

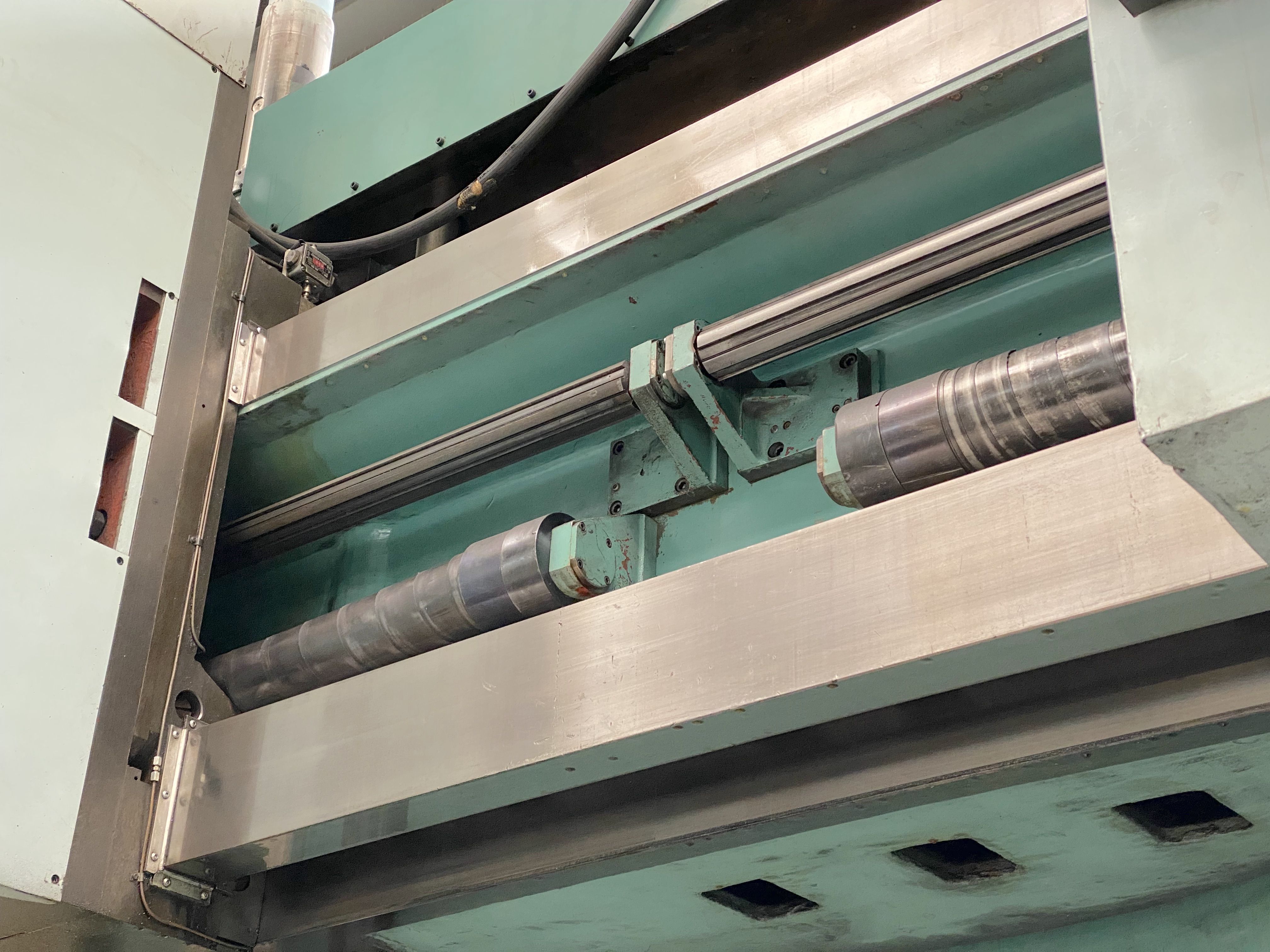

CROSSRAIL
Vertical stroke (W)
1000 mm39,37 in
CARRIAGE 2
Vertical stroke (Z2)
850 mm33,46 in
Turret positions
4
CARRIAGE
Vertical stroke (Z)
1000 mm39,37 in
Cross stroke (X)
1250 mm49,21 in
EXTRA
Mobile traverse
Yes
Machine total weight
40000 Kg
The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy cannot be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
