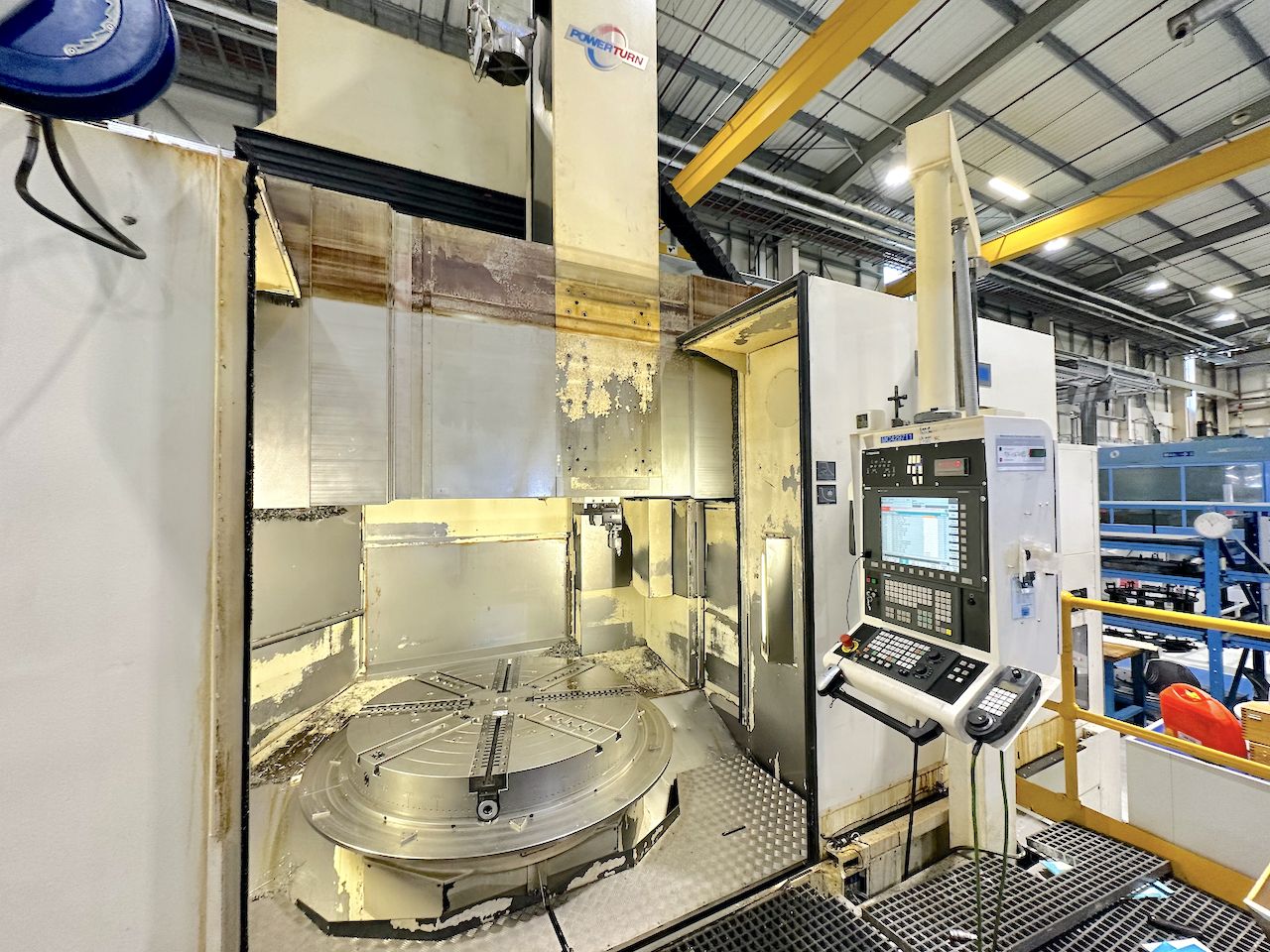

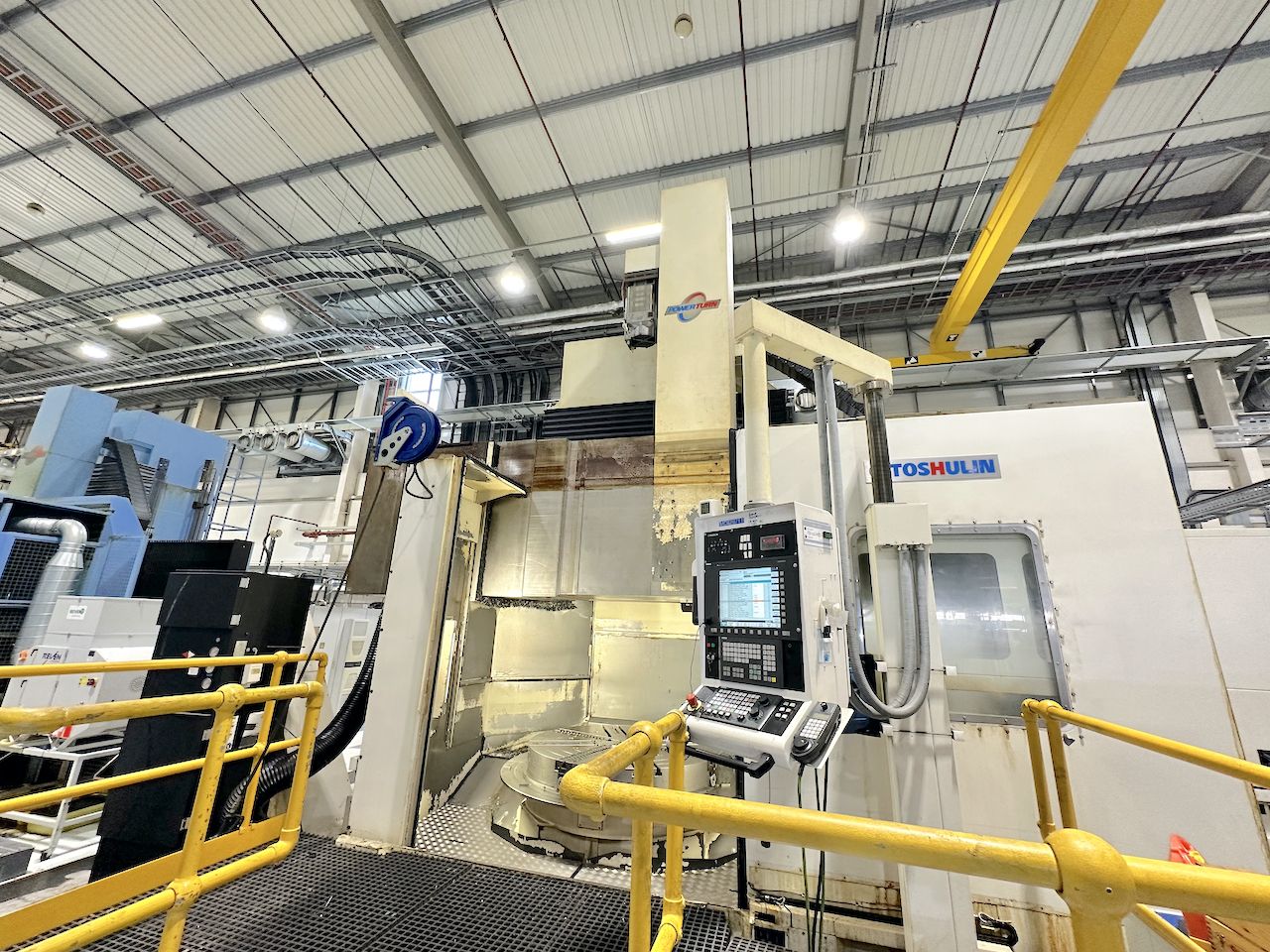

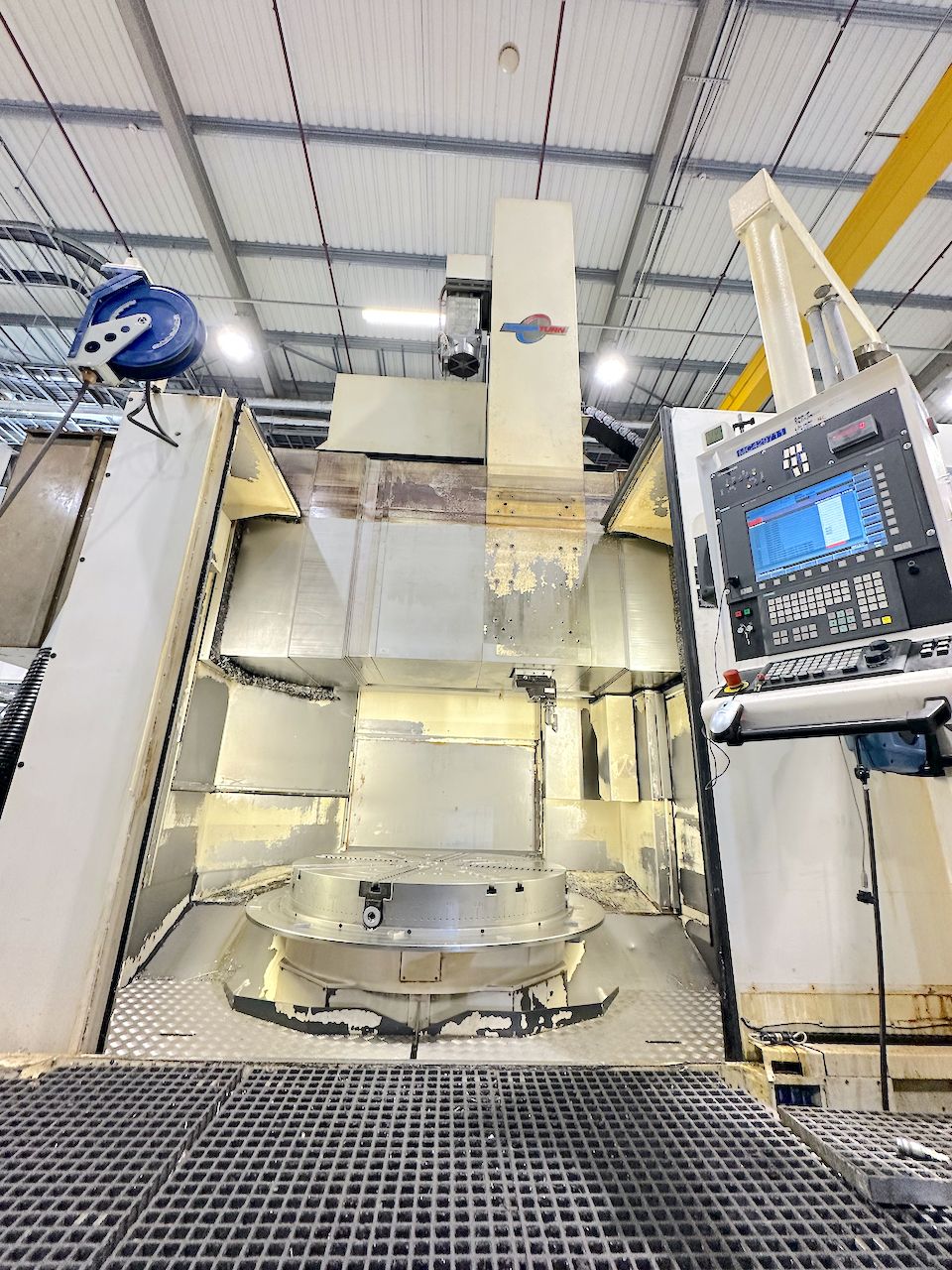

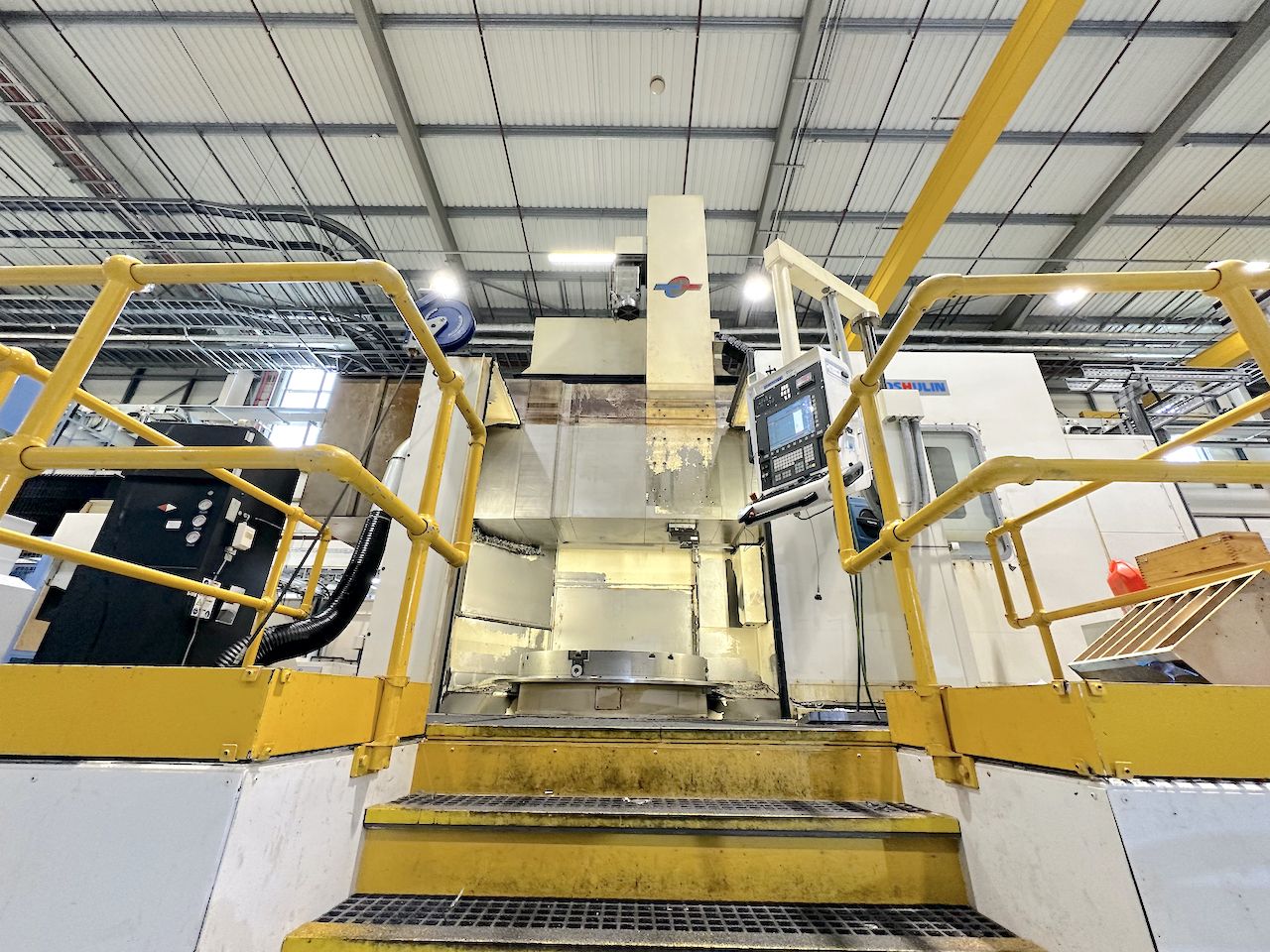

Category
Turning Machine
Type
Vertical
Made
Model
POWERTURN 1600 CM
Capacity
ø2000x1900mm mmø78,74x74,80mm in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Platform diameter
1600 mm62,99 in
Max tuning diameter
2000 mm78,74 in
Max turning height
1900 (sotto traversa 2100mm) mm74,80 (sotto traversa 82,68mm) in
Max workpiece weight
12000 Kg
Max workpiece diameter
2000 mm78,74 in

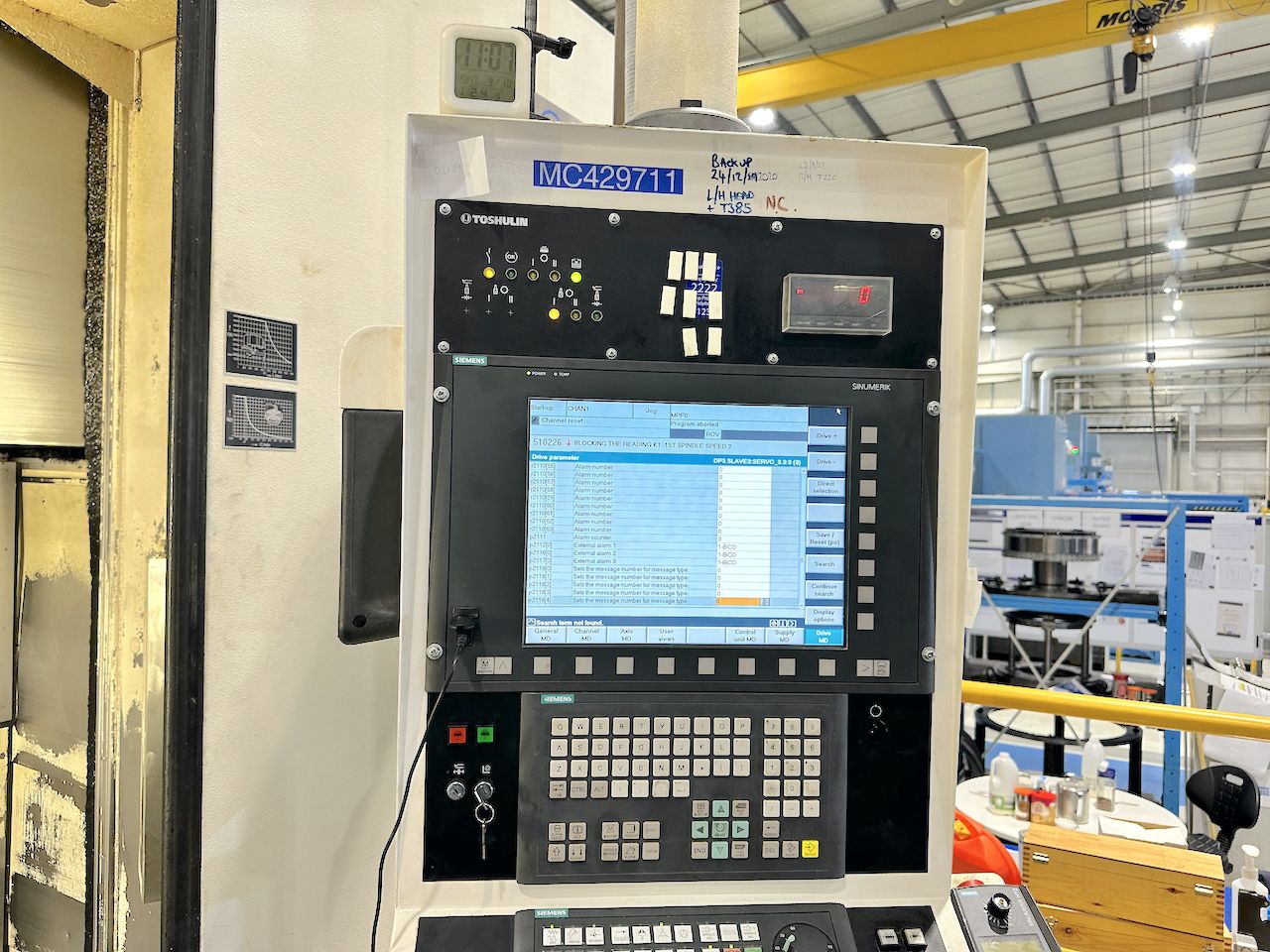

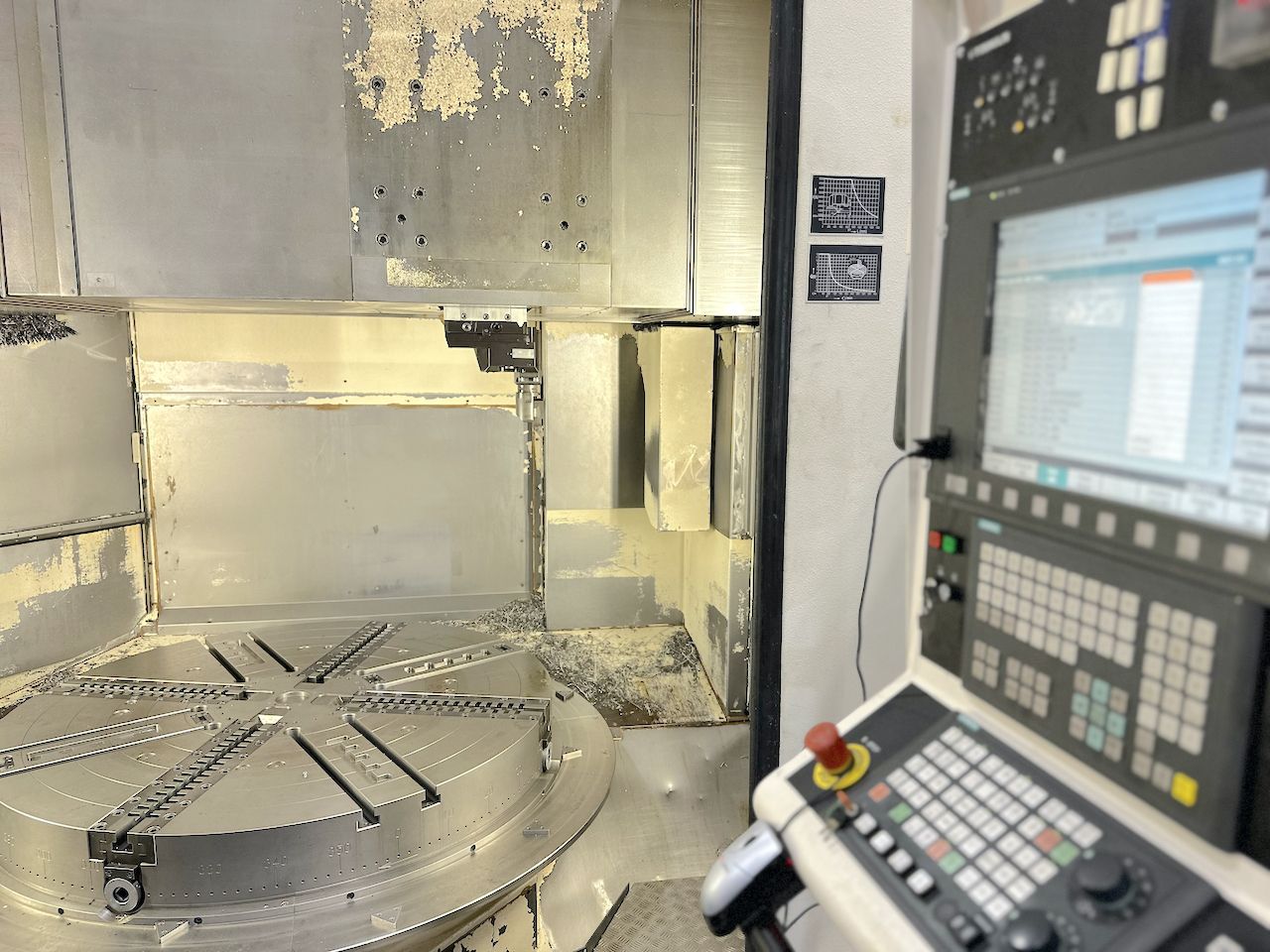

CNC
CNC
SIEMENS 840D Solution Line

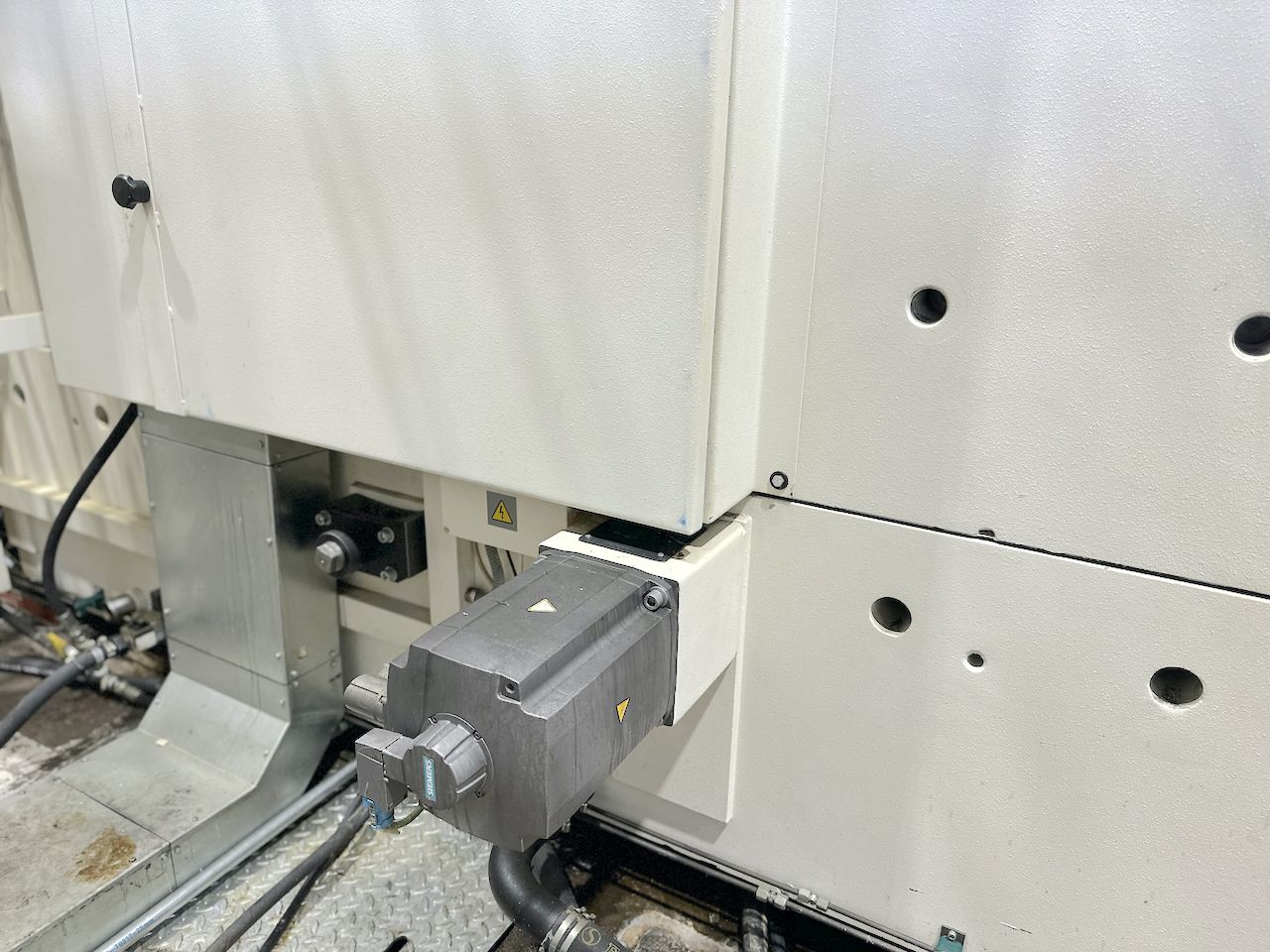

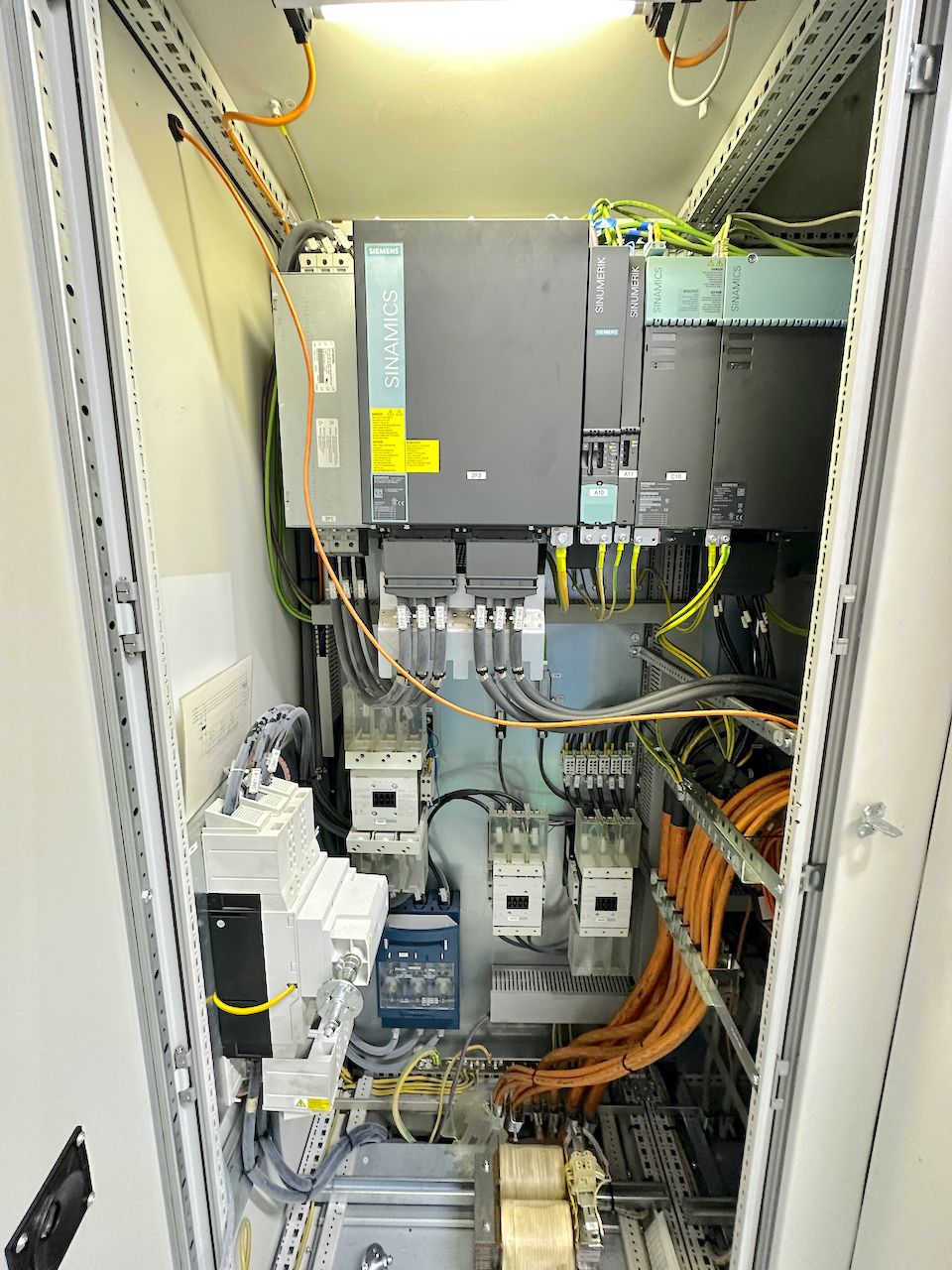

Drives
Siemens

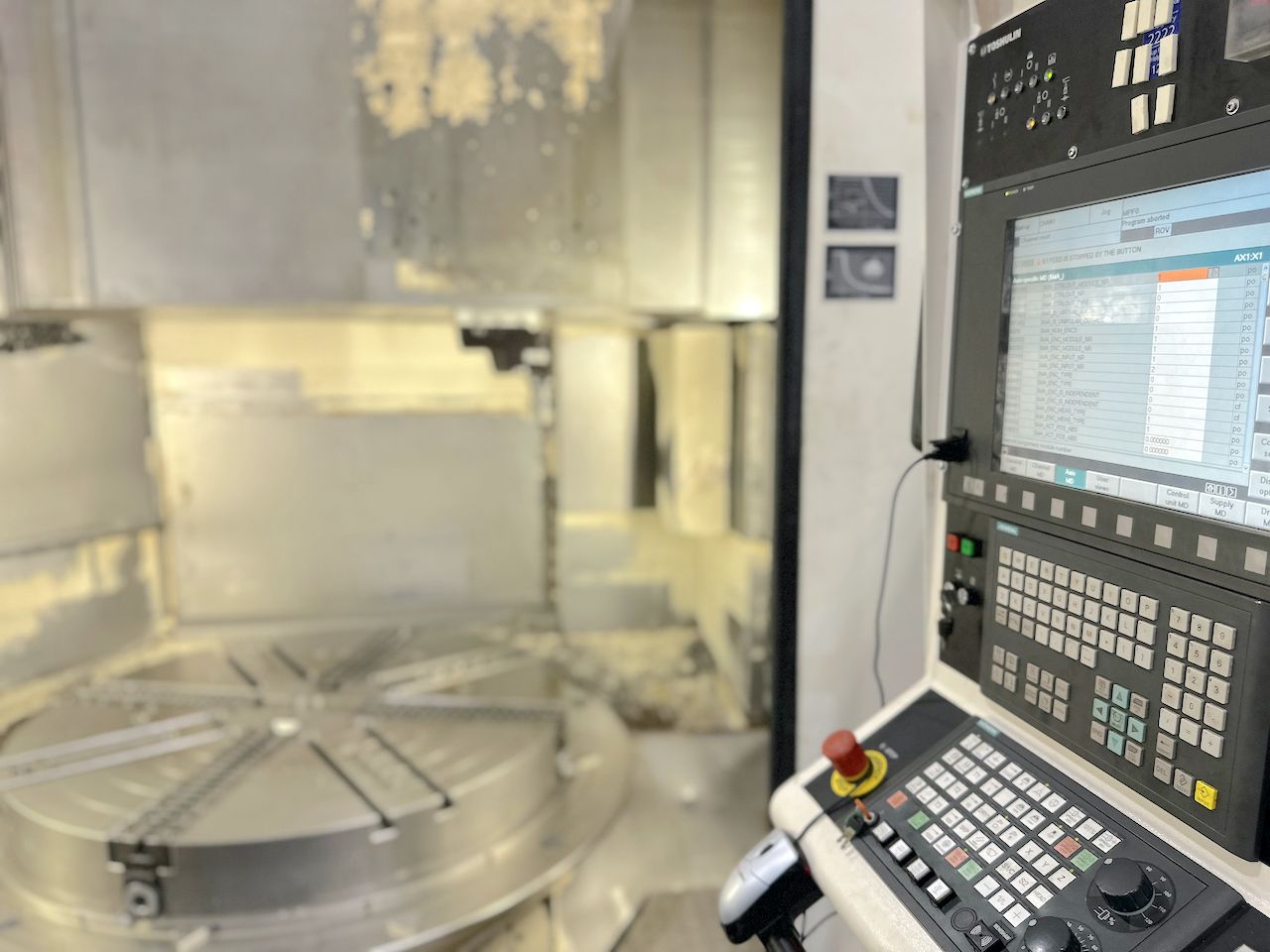

MAIN SPINDLE
Platform diameter
1600 mm62,99 in
Max rotation speed
400 rpm
Capacity
12000 Kg
Accuracy (C axis)
0,001 °
Max power
60 Kw
C axis speed
0,01-6,2 Rpm
Max torque
50000 Nm
Platform type
Idraulica
CARRIAGE

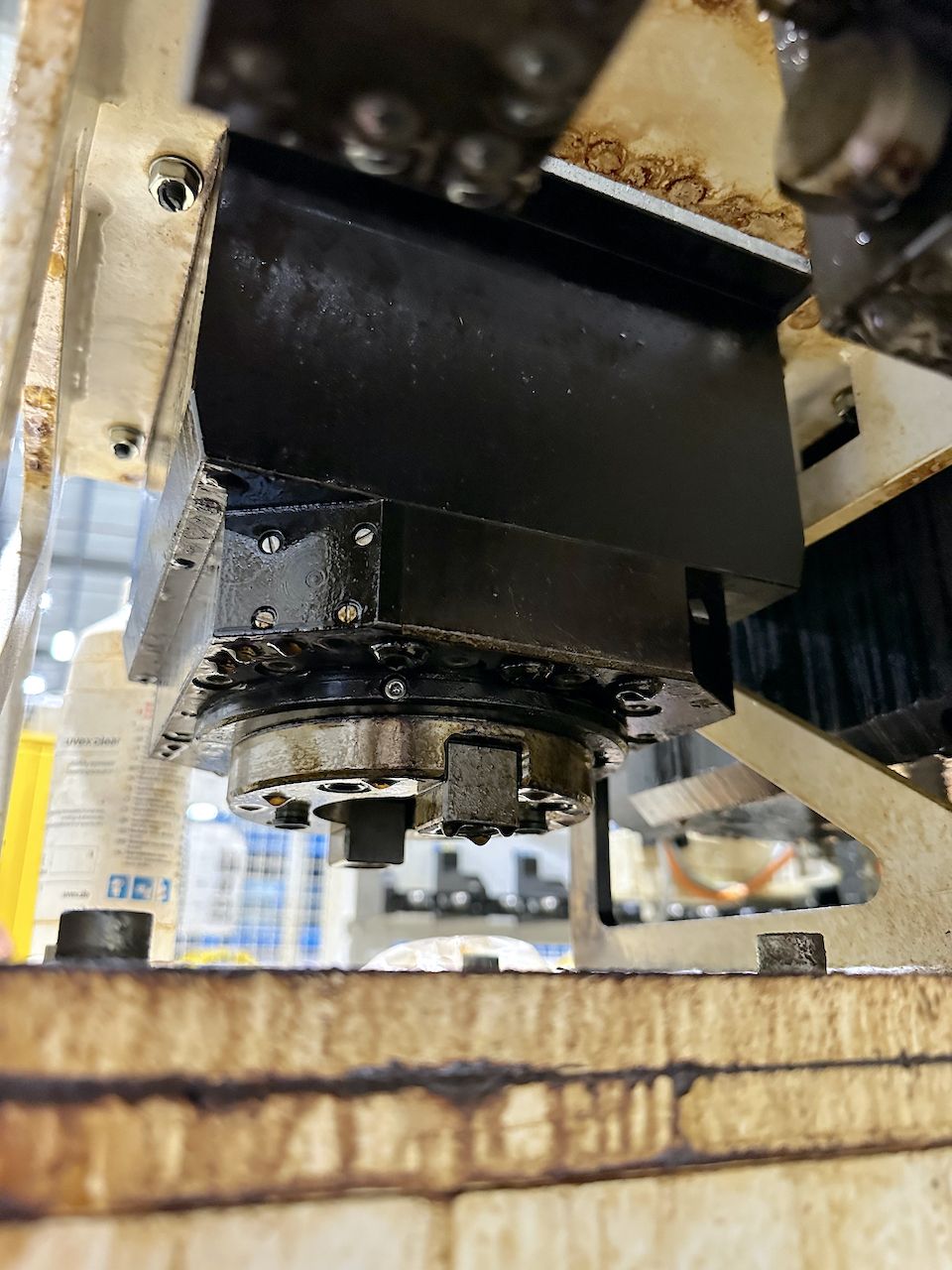

RAM section
240x240 mm9,45x9,45 in

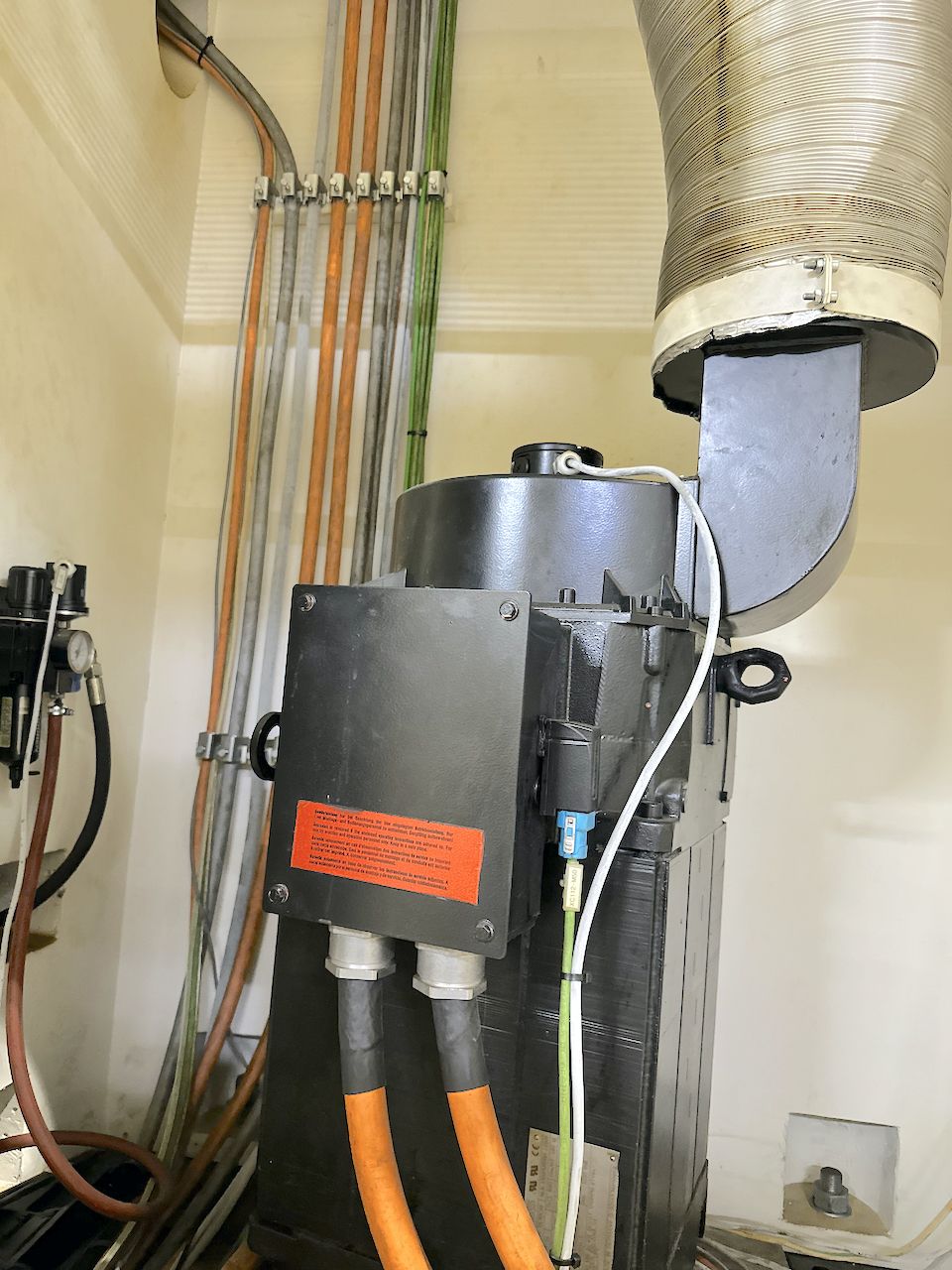

Milling spindle power
37 Kw
Milling spindle speed
4500 Rpm
Vertical stroke (Z)
1800 mm70,87 in
Milling spindle torque
859 Nm
Cross stroke (X)
2470 mm97,24 in
Working feeds (Z)
4 m/min157,48 ipm
Rapid feeds (Z)
15 m/min590,55 ipm
Working feeds (X)
4 m/min157,48 ipm
Rapid feeds (X)
15 m/min590,55 ipm
Support
Ram & Crossbeam are Hydrostatic
CROSSRAIL
Vertical stroke (W)
(13x100mm) 1300 mm(0,51x3,94mm) 51,18 in
Rapid feeds (W)
0,287 m/min11,30 ipm

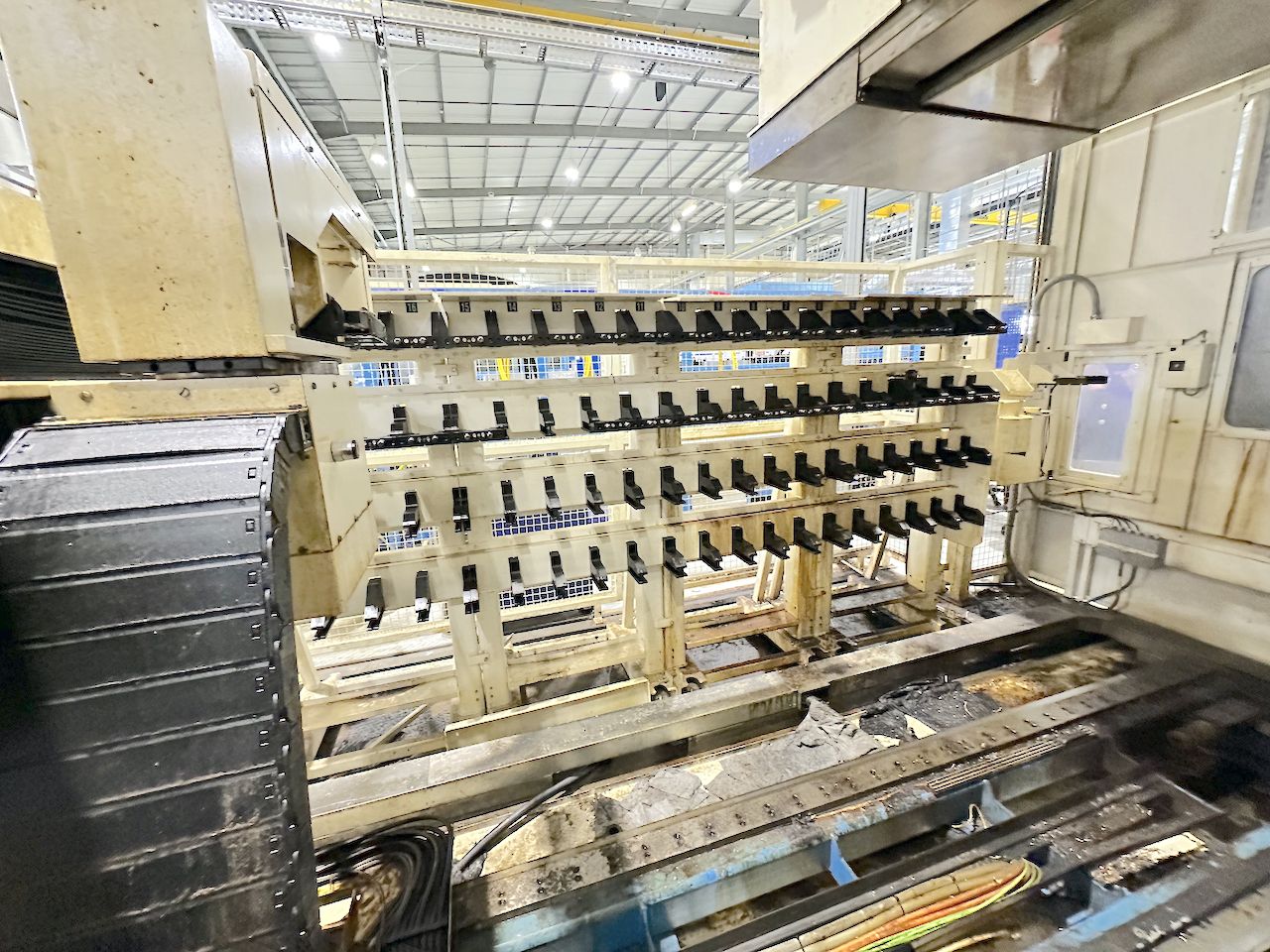

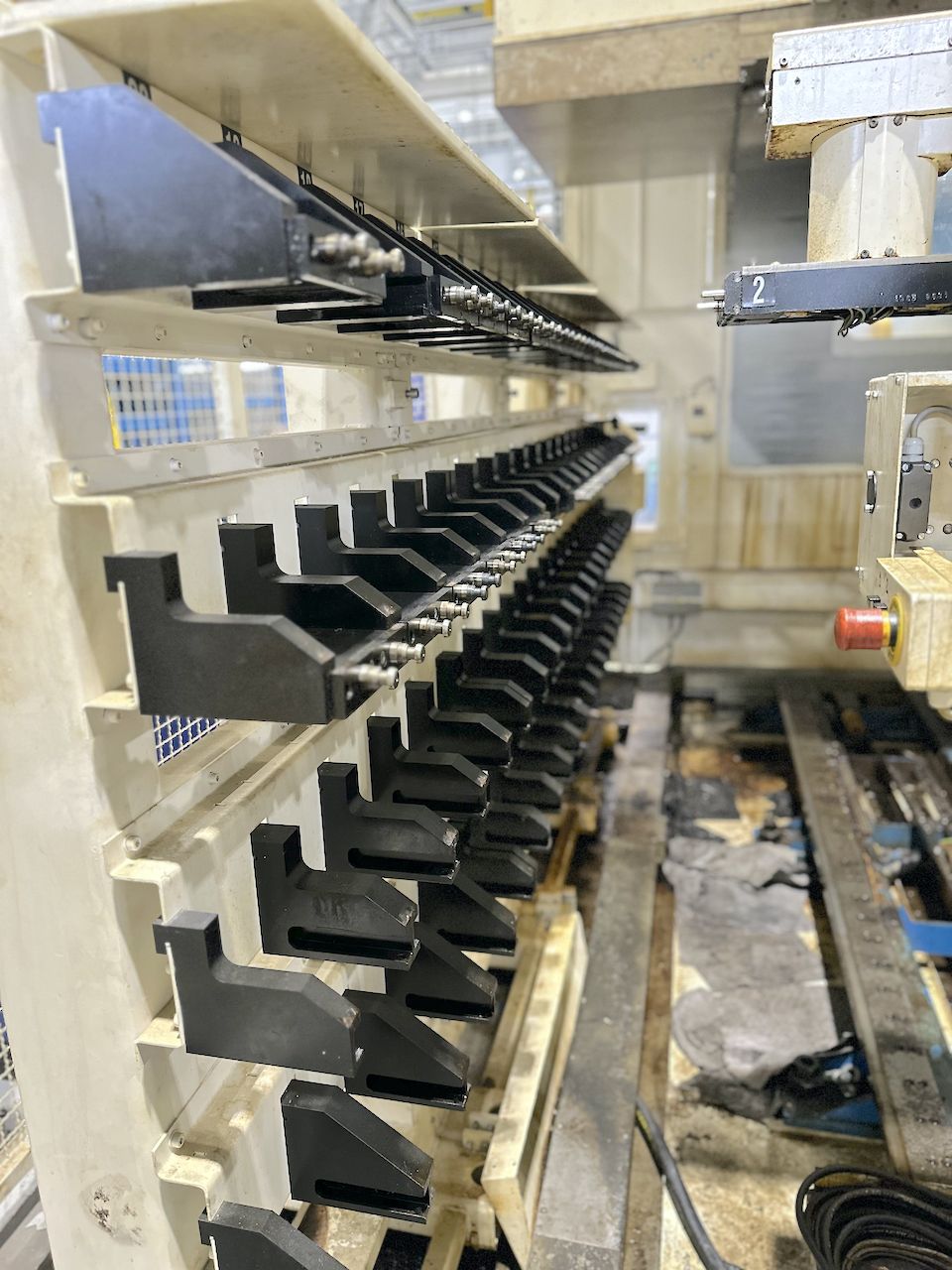

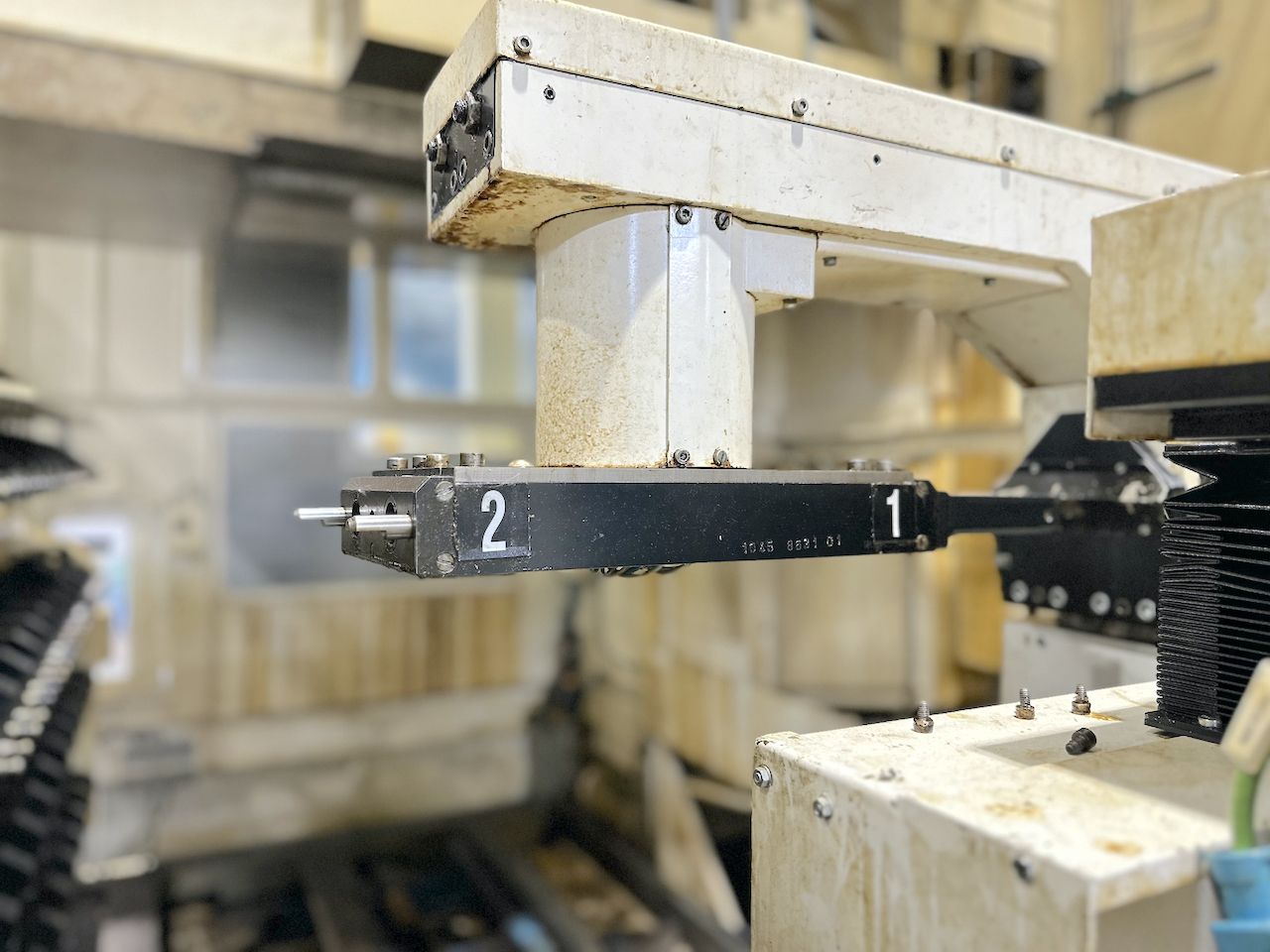

ATC
Positions
80

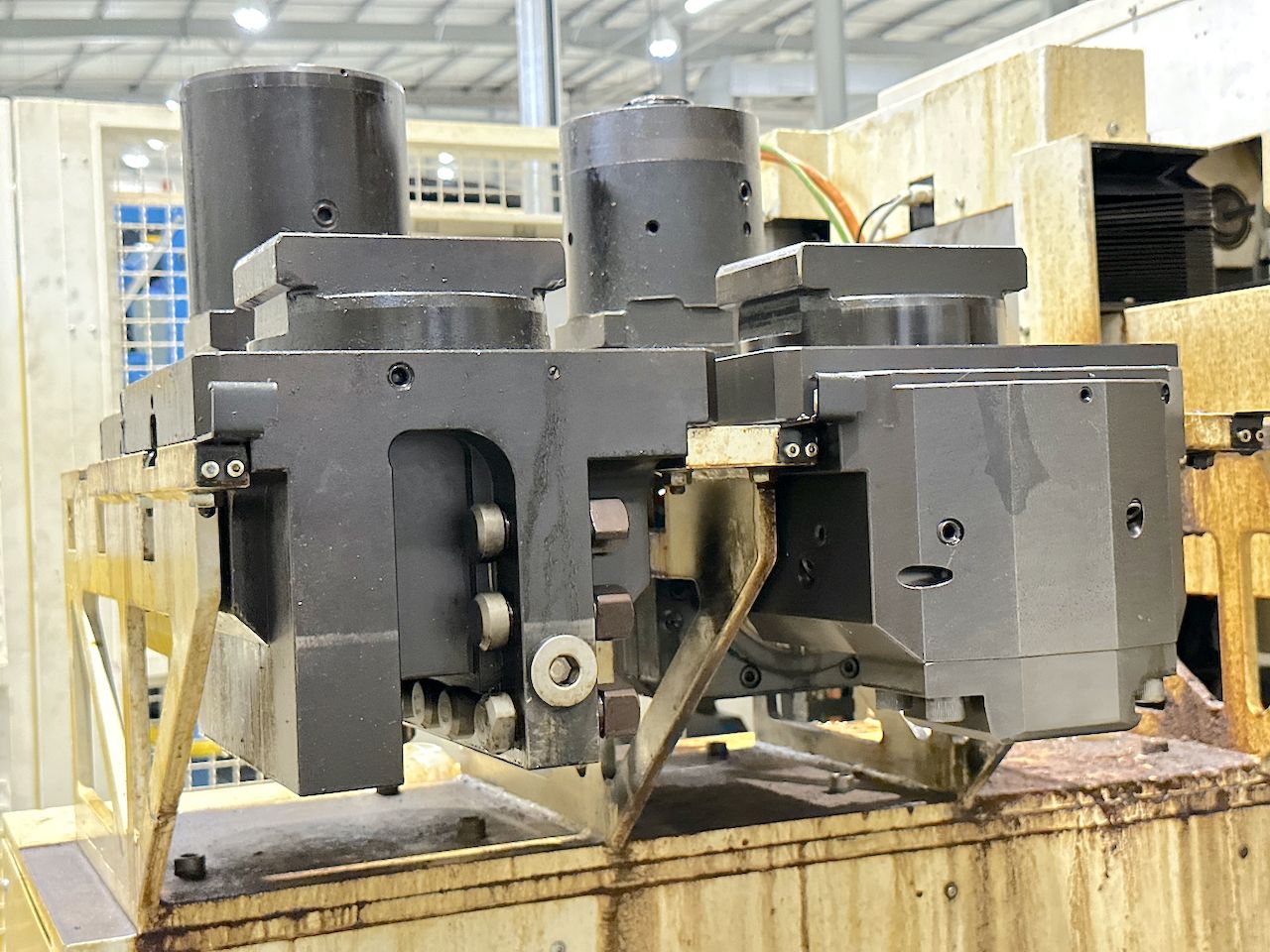

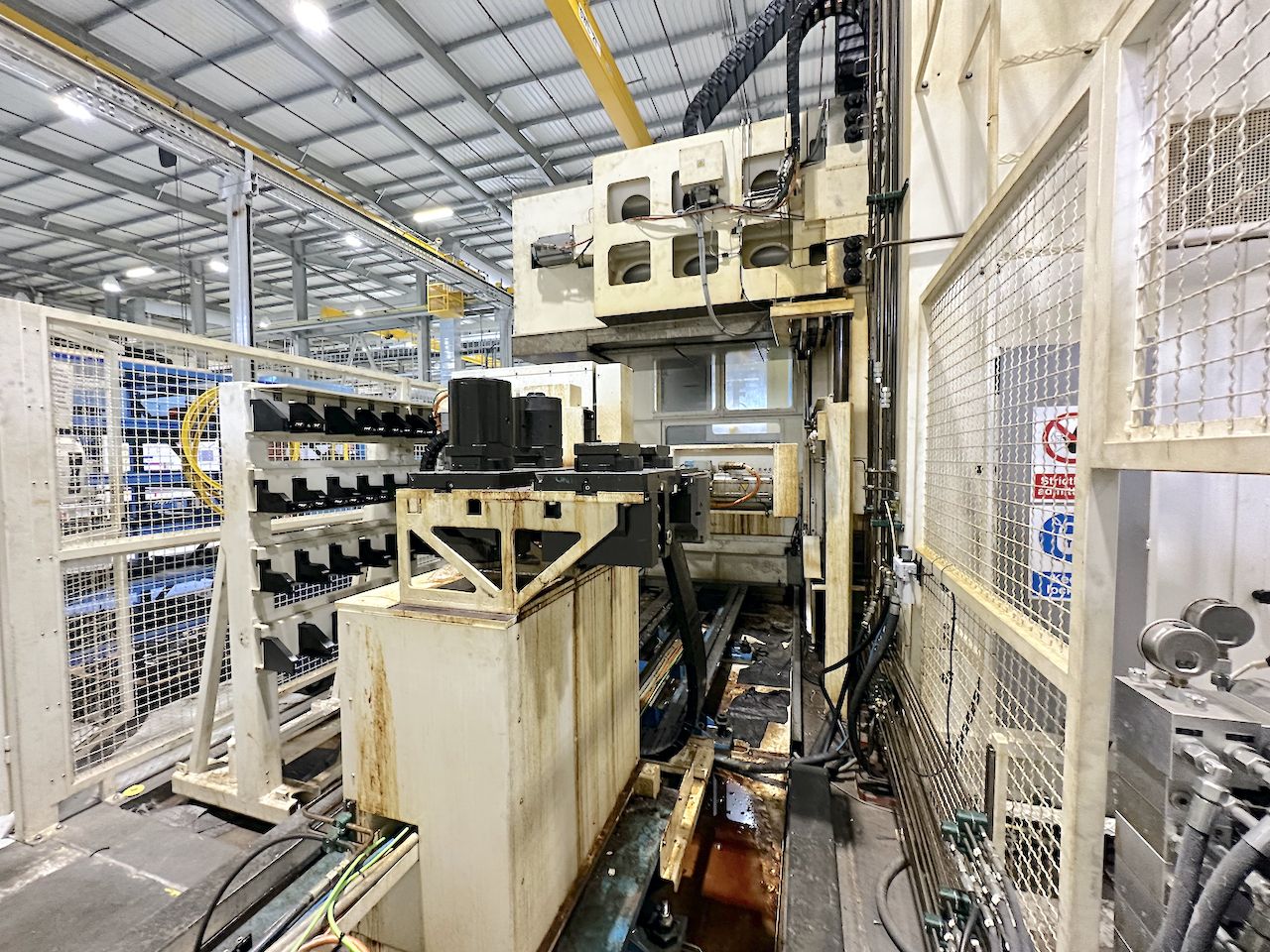

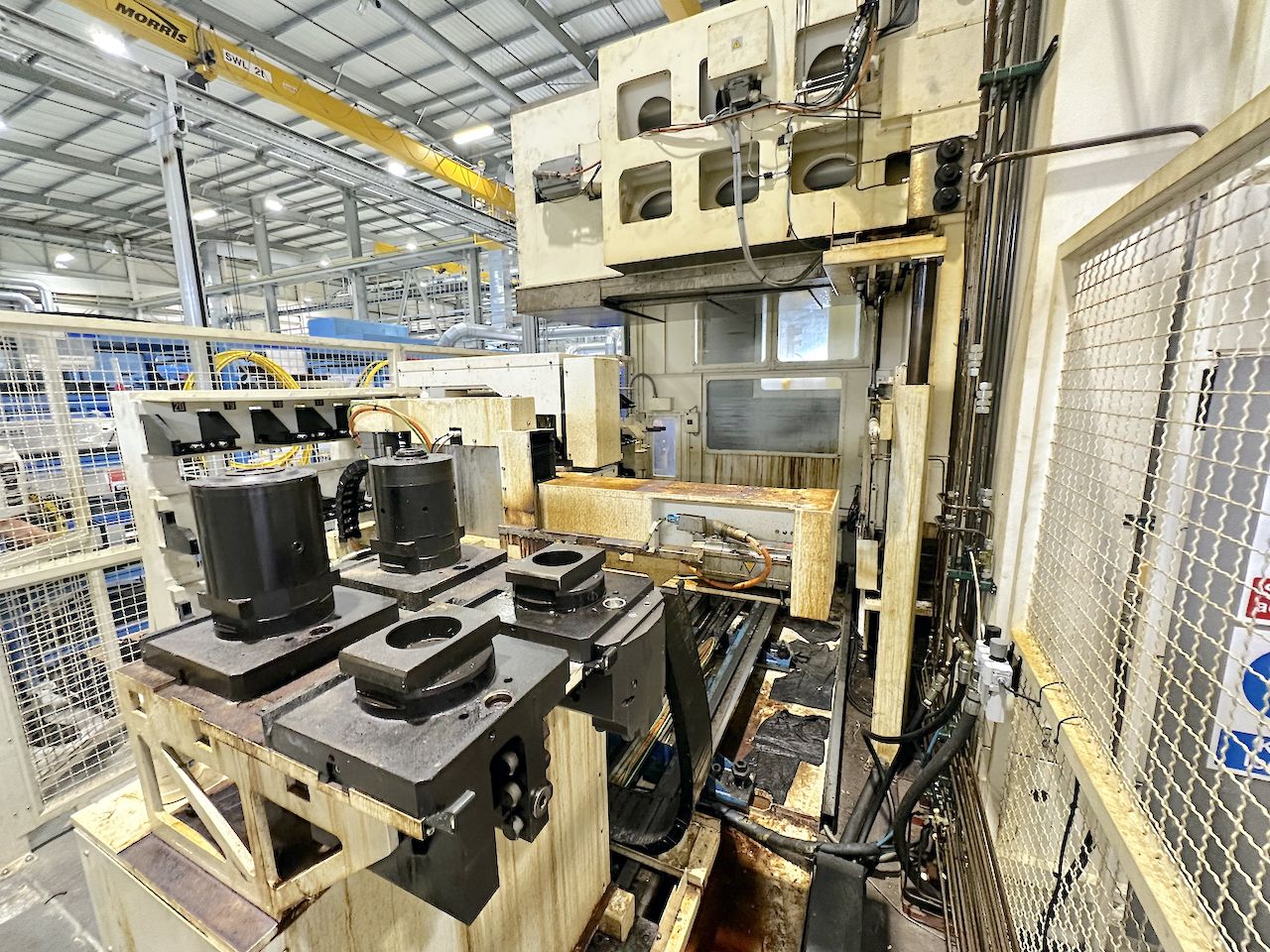

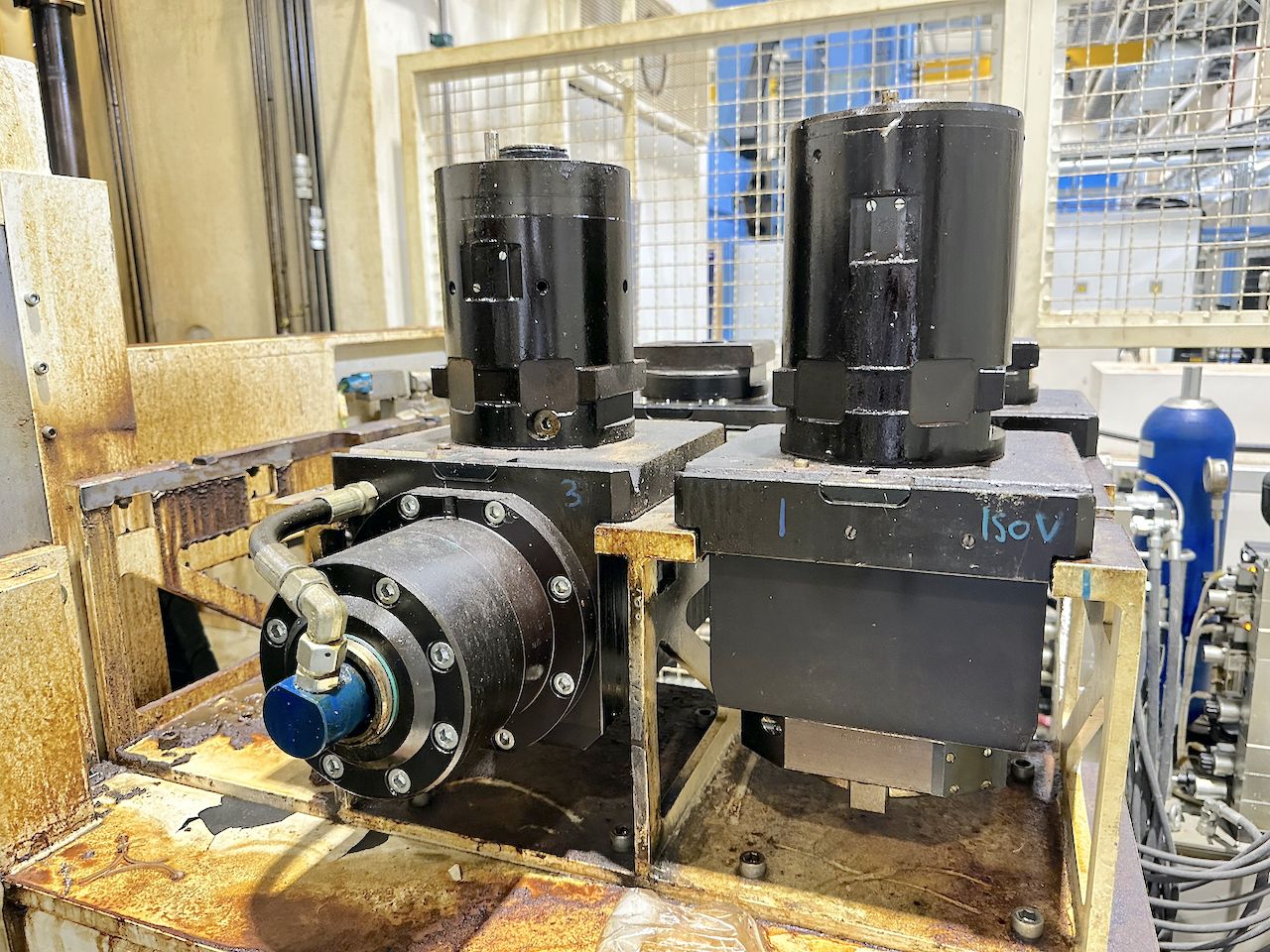

PICK-UP STATION FOR HEAD CHANGE
Stations number
6
EXTRA
Mobile traverse
Yes
Accessorires included

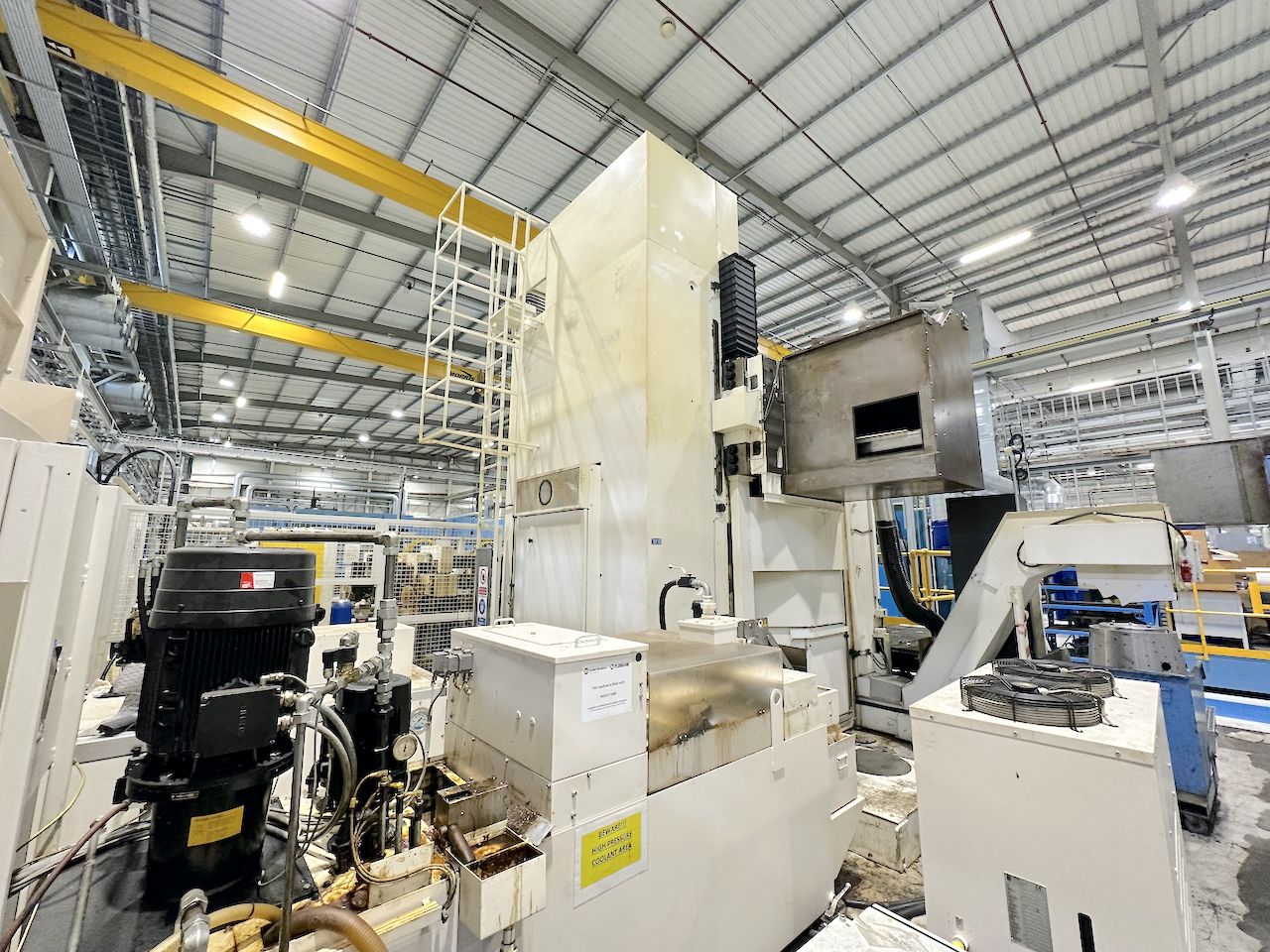

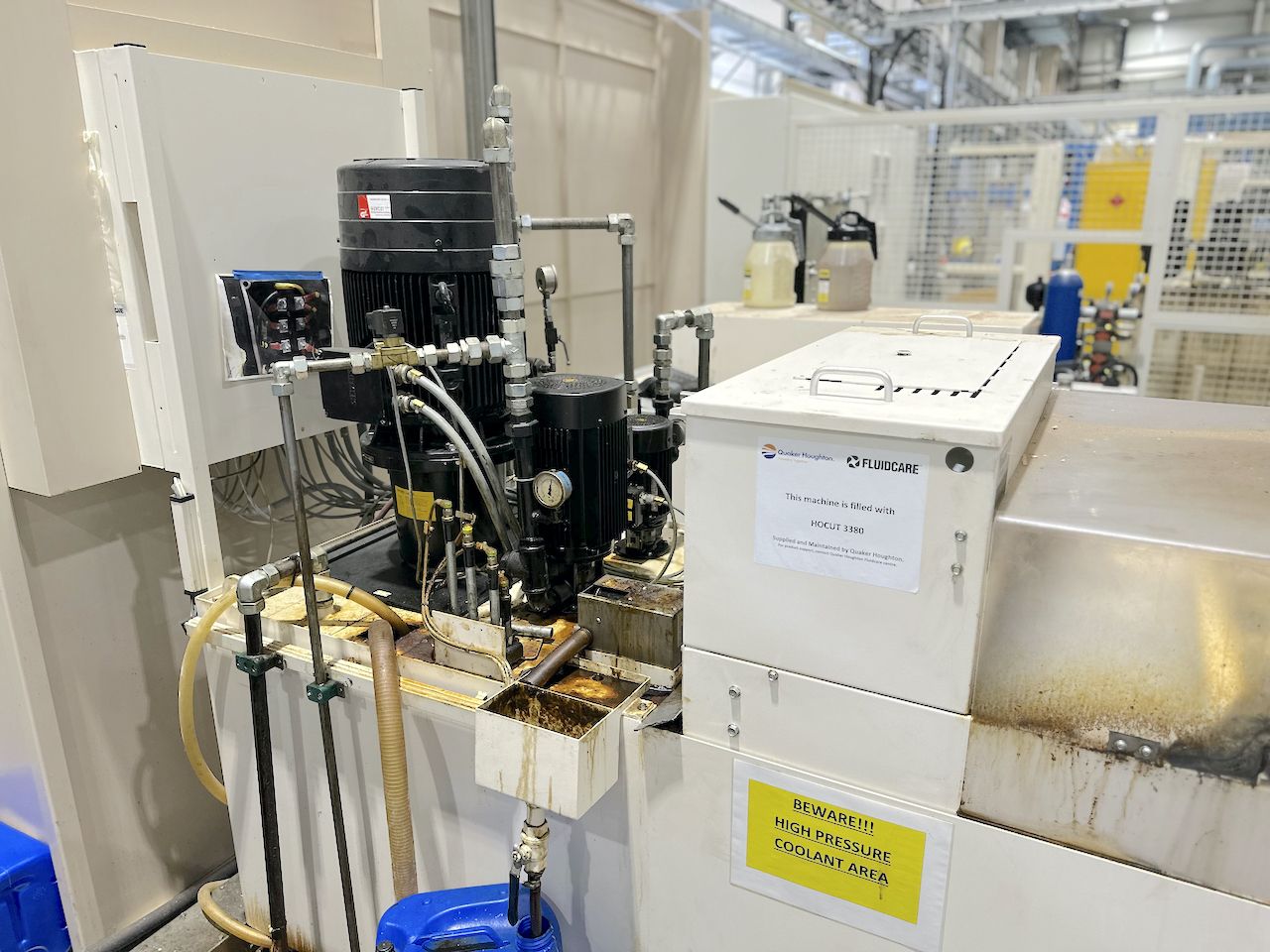

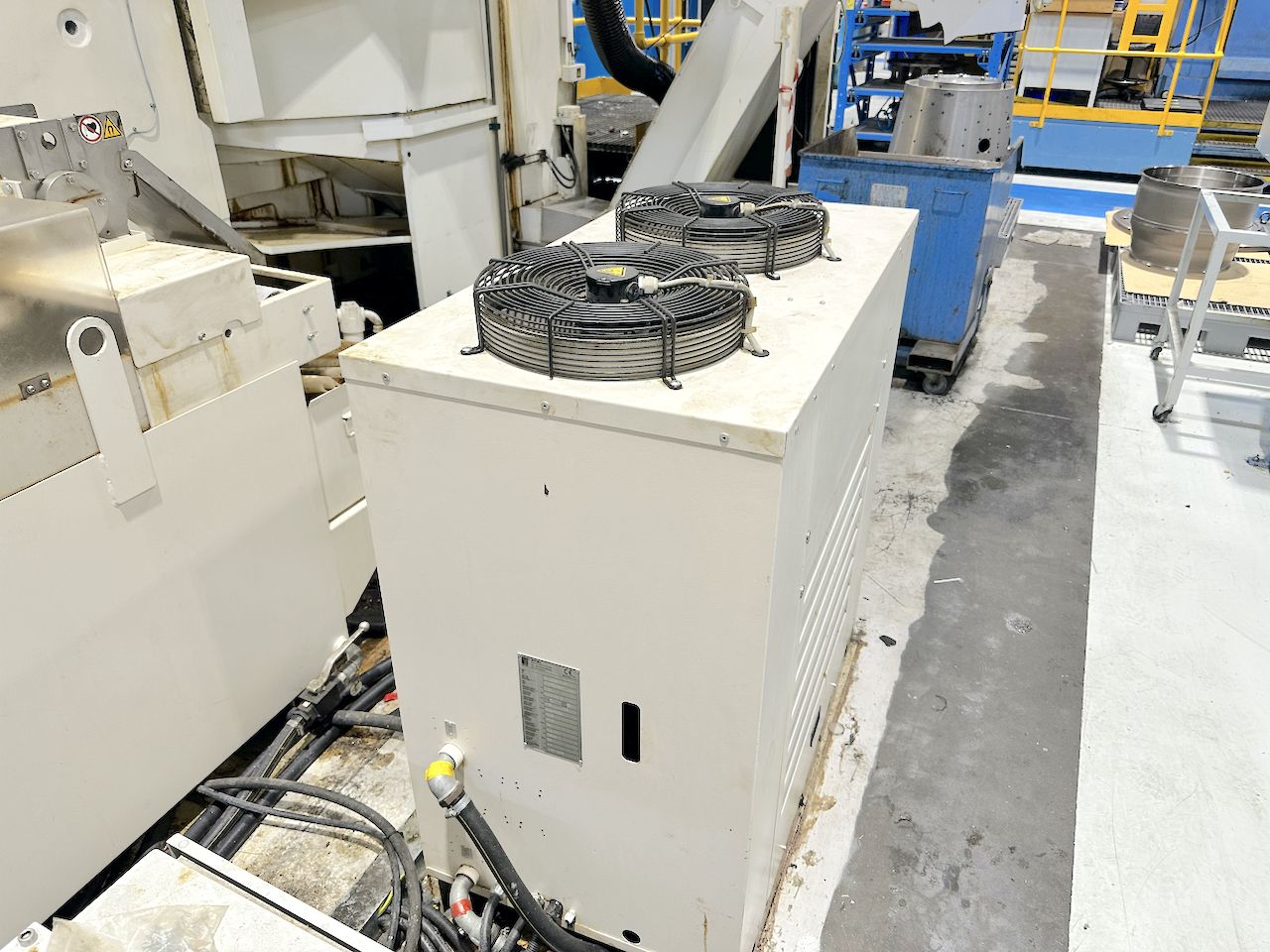

Knoll High Pressure Paper Filtration Coolant System, Rittal Chiller, Handwheel & Manuals
Coolant pump
Knoll alta pressione e filtro a carta 1500lt

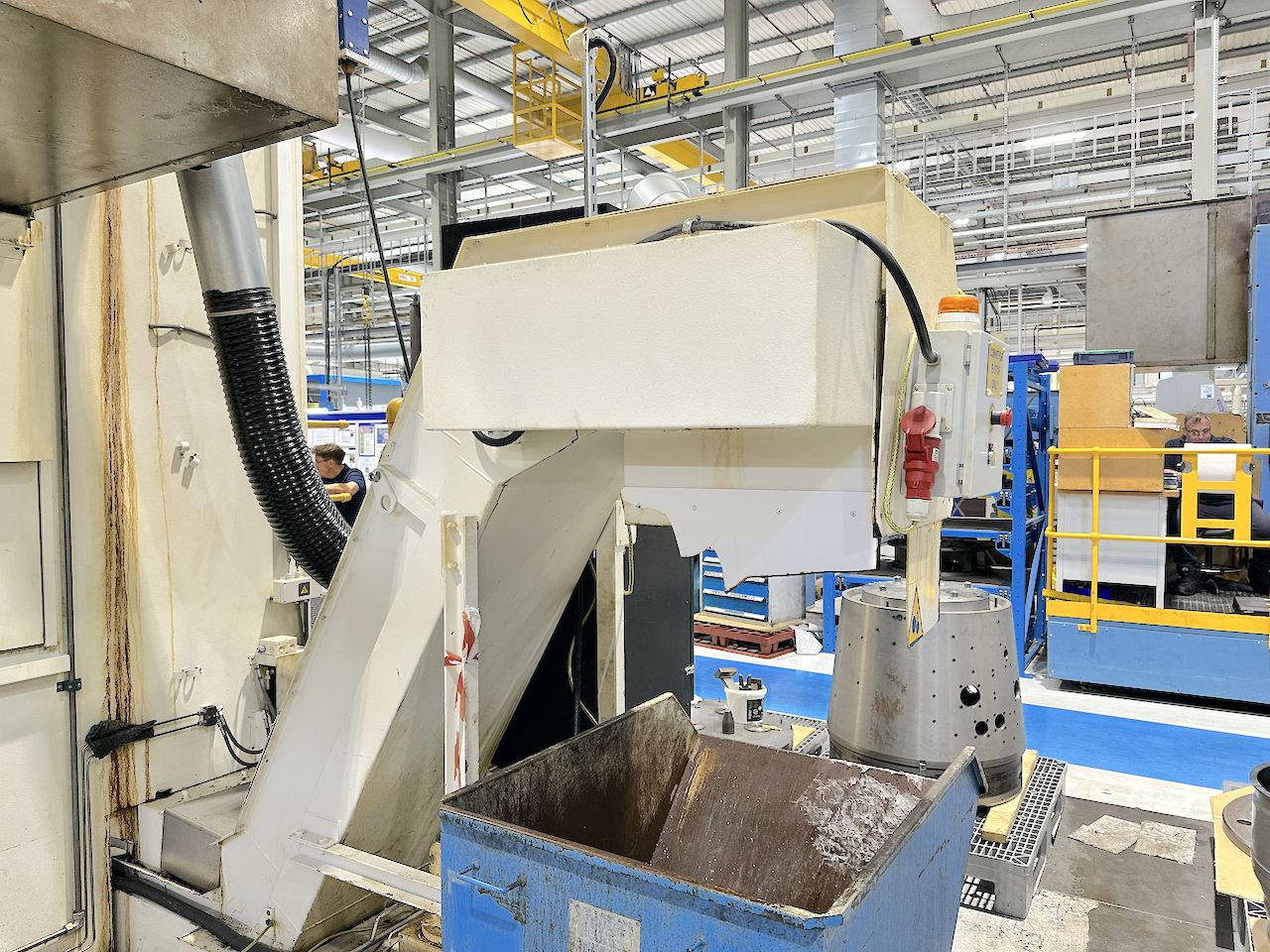

Chip conveyor
si
Maintenance & Use books
Yes

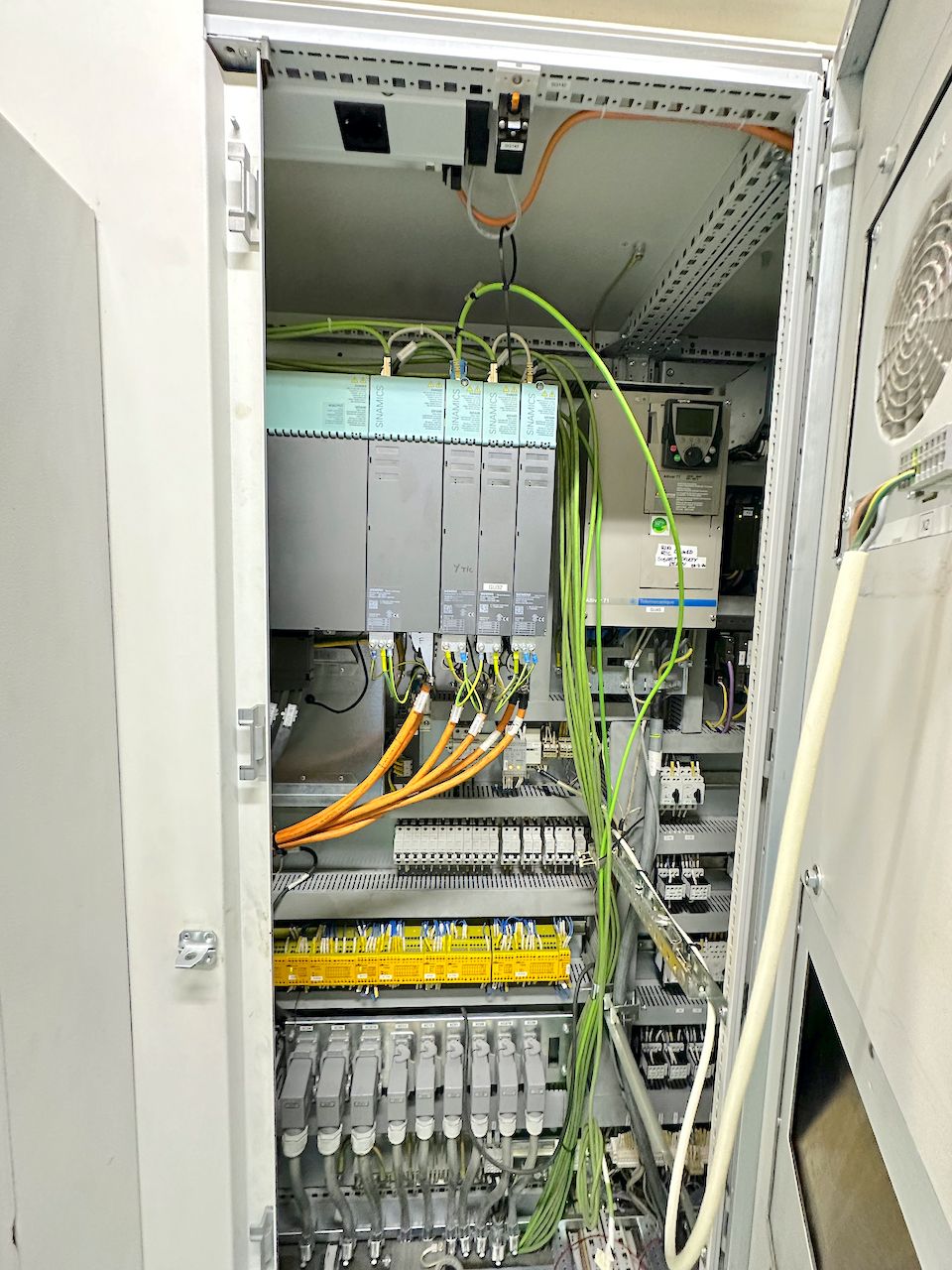

Electrical drawings
Yes
Protections
integrali
Machine total weight
62000 Kg
Total power supply
220KVA Kw
Floor space
8460x10455x7550(max height) mm333,07x411,61x297,24(max height) in
Platform
Idraulica 4 griffe
