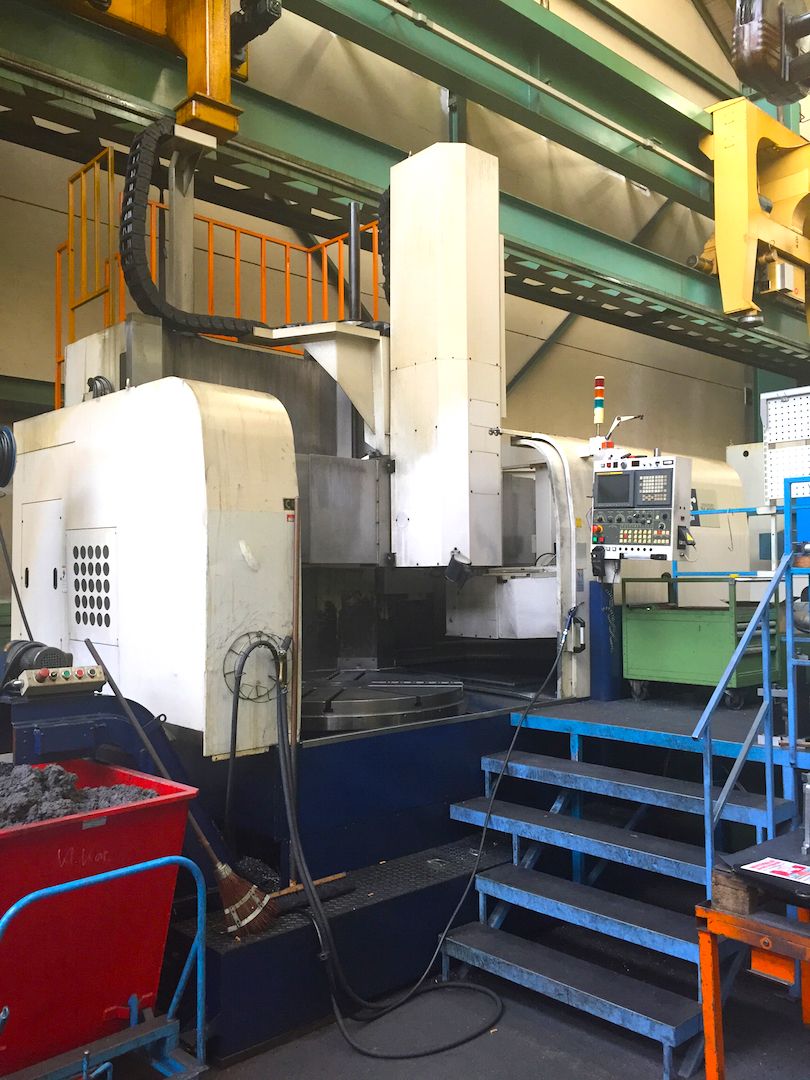

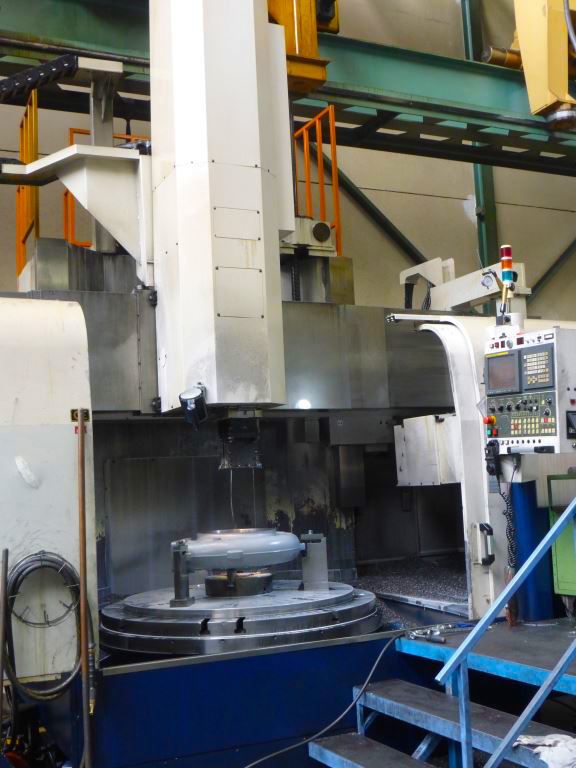

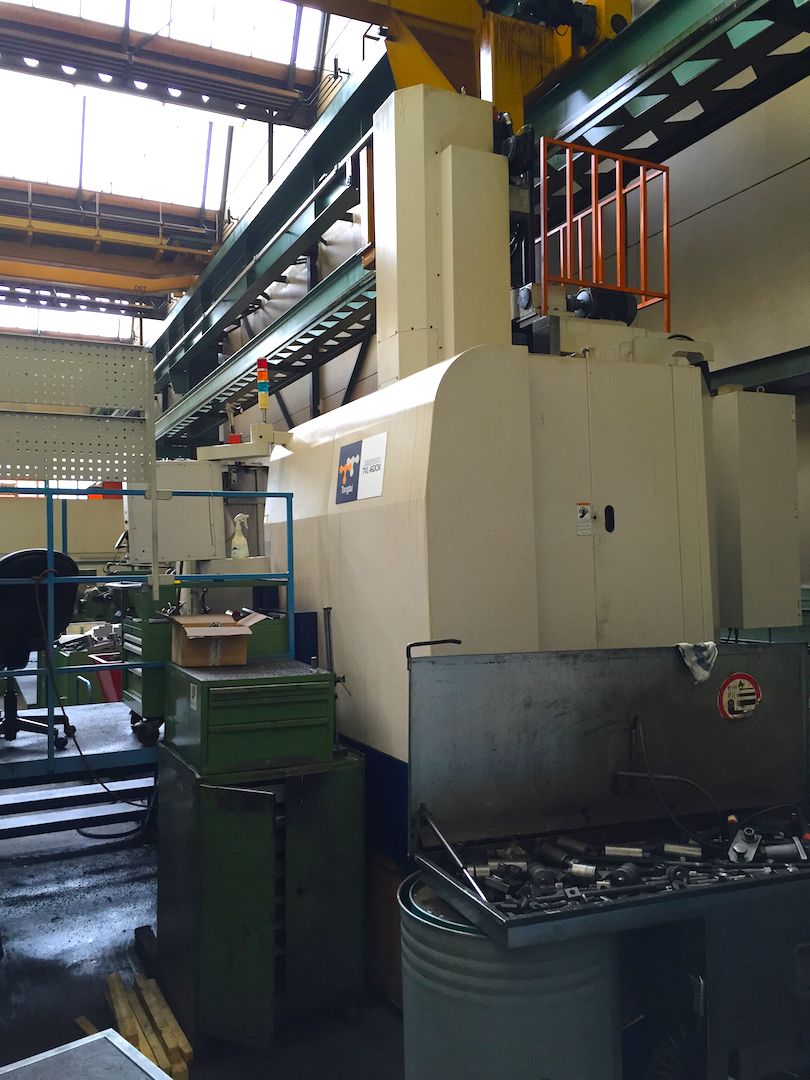

Category
Turning Machine
Type
Vertical
Made

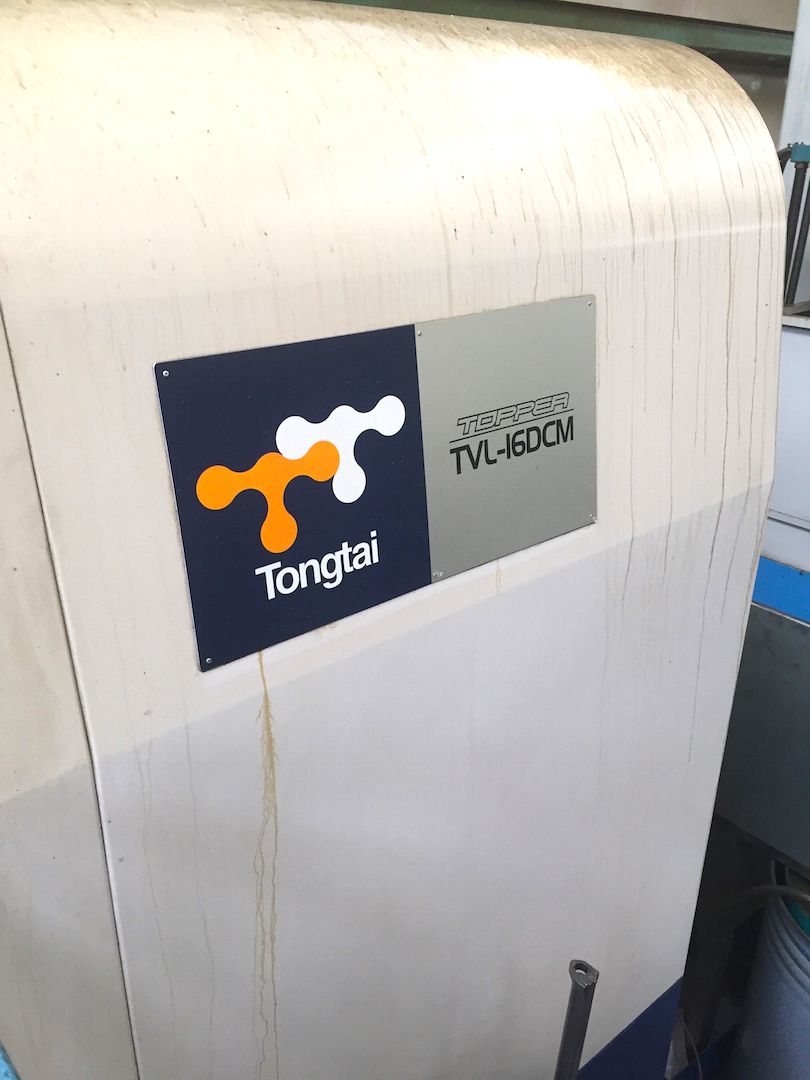

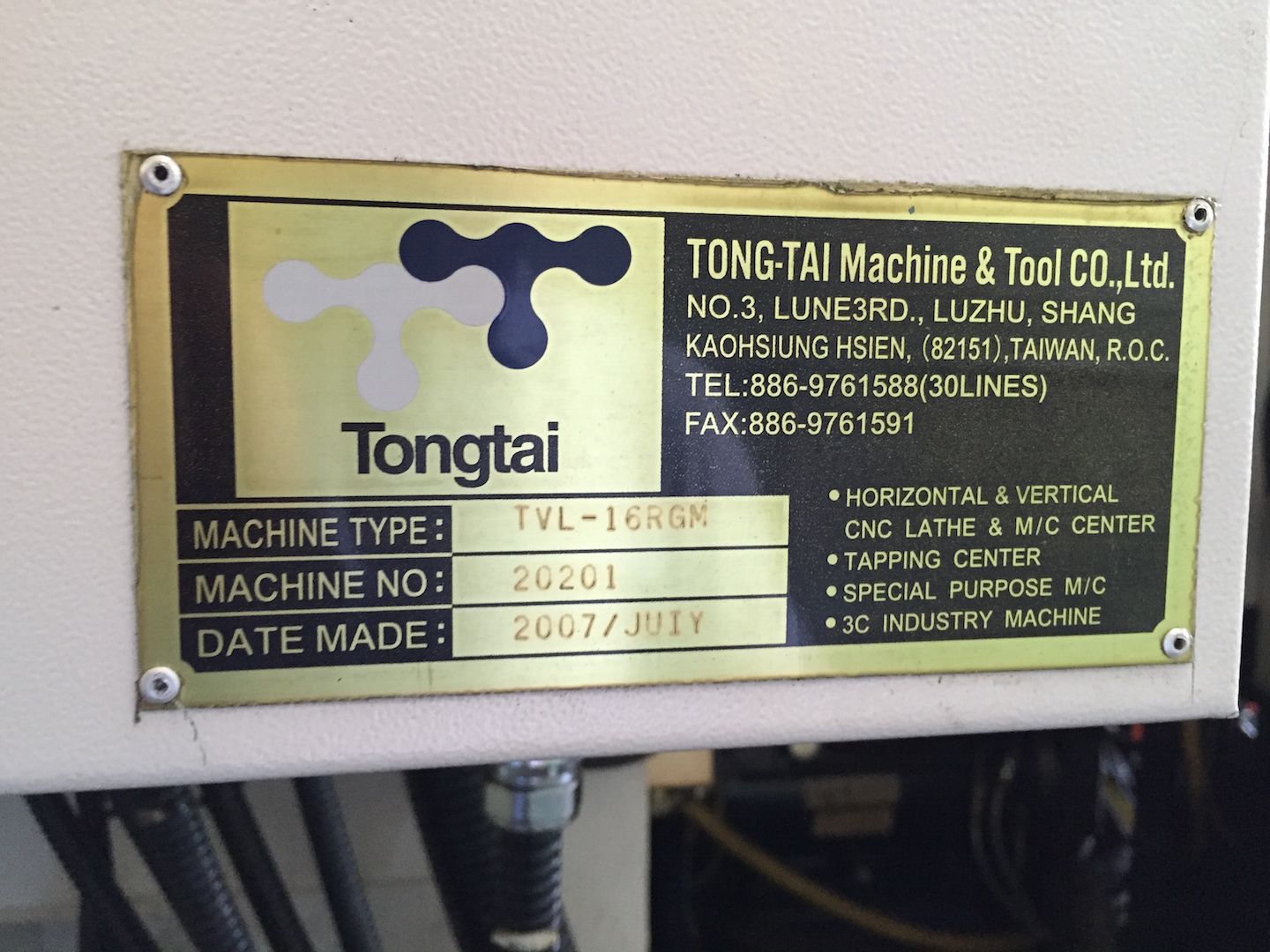

Model
TVL16 DCN
Capacity
ø2000x1500 mmø78,74x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Platform diameter
1600 mm62,99 in
Max workpiece diameter
2000 mm78,74 in
Max tuning diameter
2000 mm78,74 in
Max turning height
1500 mm59,06 in
Max workpiece weight
6000 Kg

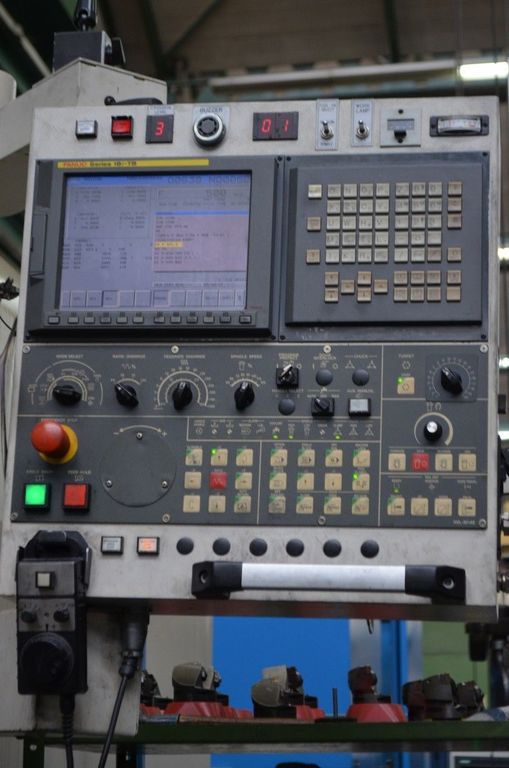

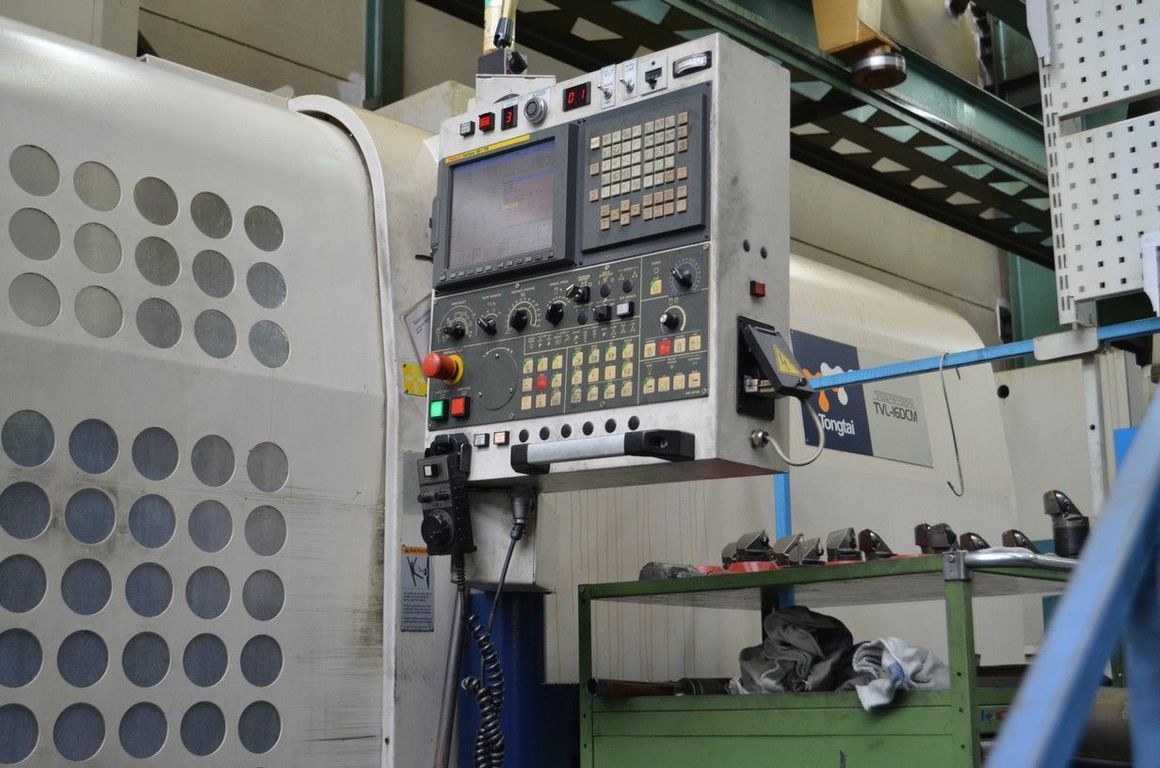

CNC
CNC

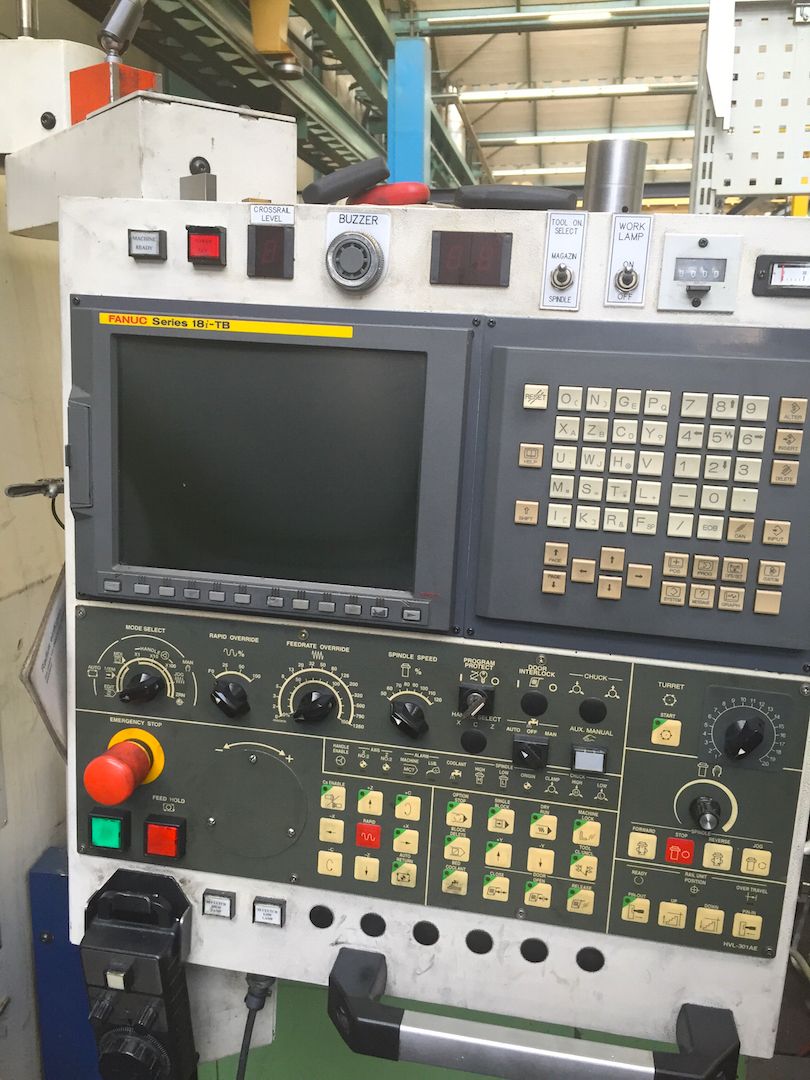

FANUC 18i-T

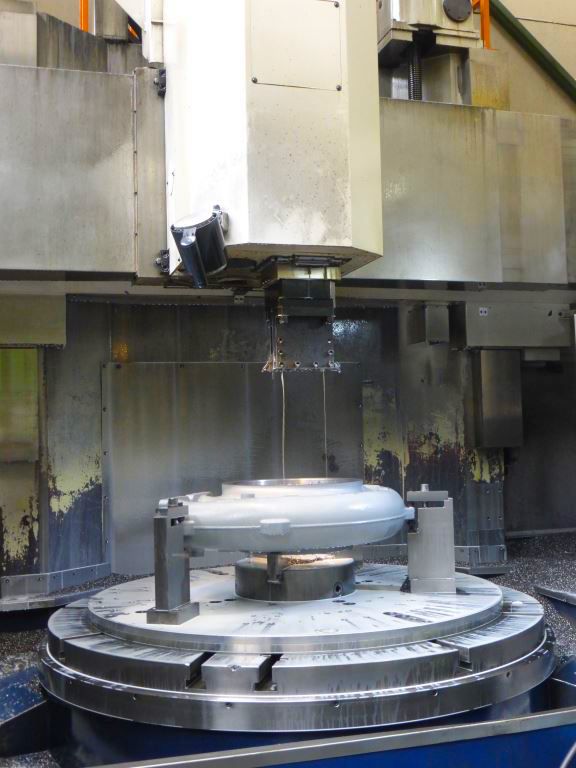

MAIN SPINDLE

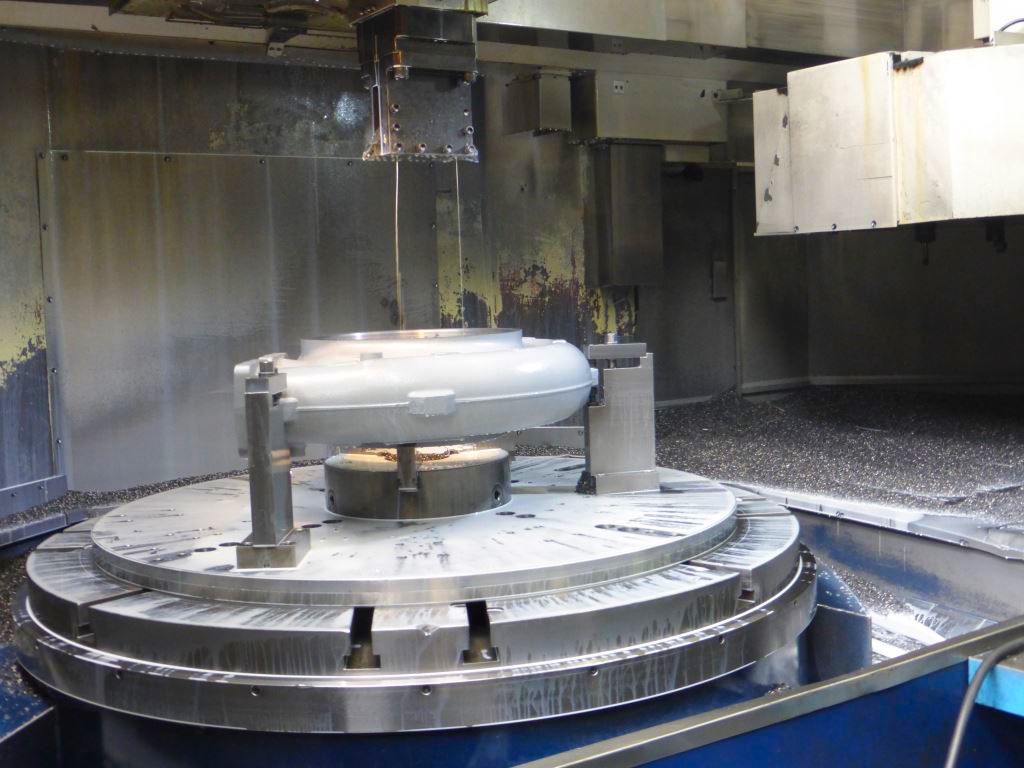

Platform diameter
1600 mm62,99 in
Spindle bearing diameter
685
Platform type
4-griffe, manuale
Max rotation speed
3-250 rpm
Capacity
6000 Kg
Max power
37/45 Kw
Max torque
15670 Nm
Accuracy (C axis)
0,001 °

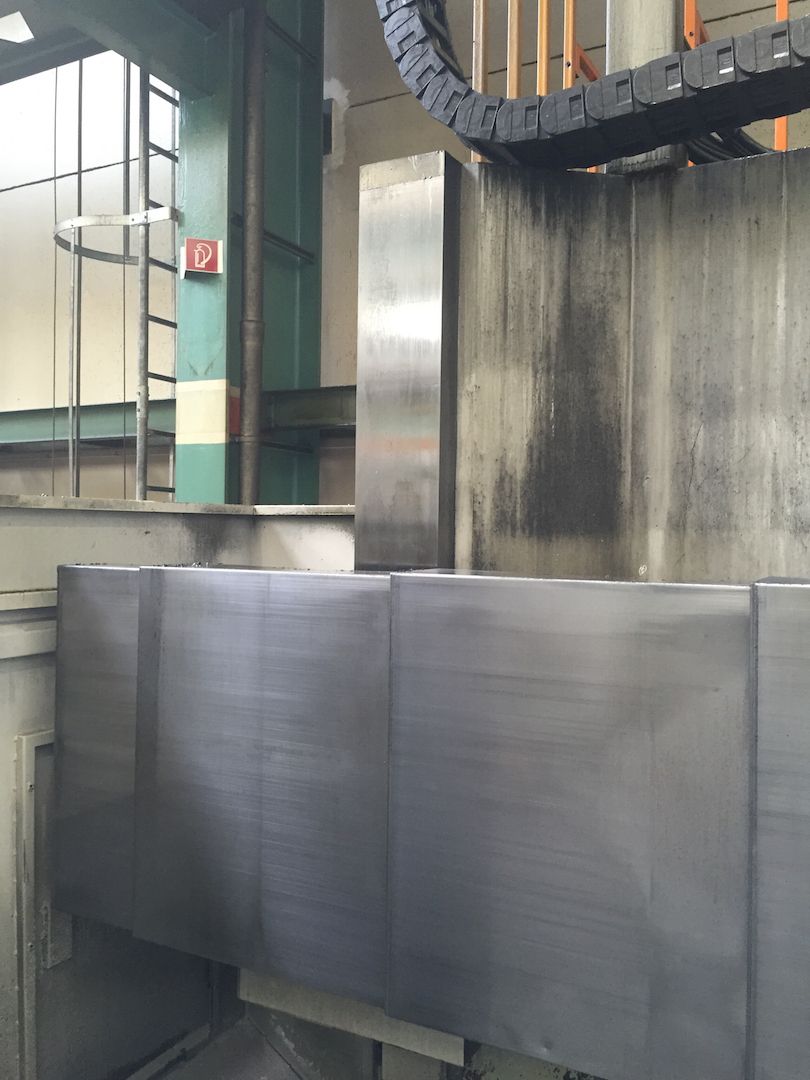

CROSSRAIL
Vertical stroke (W)
800 (2x400 steps) mm31,50 (0,08x15,75 steps) in

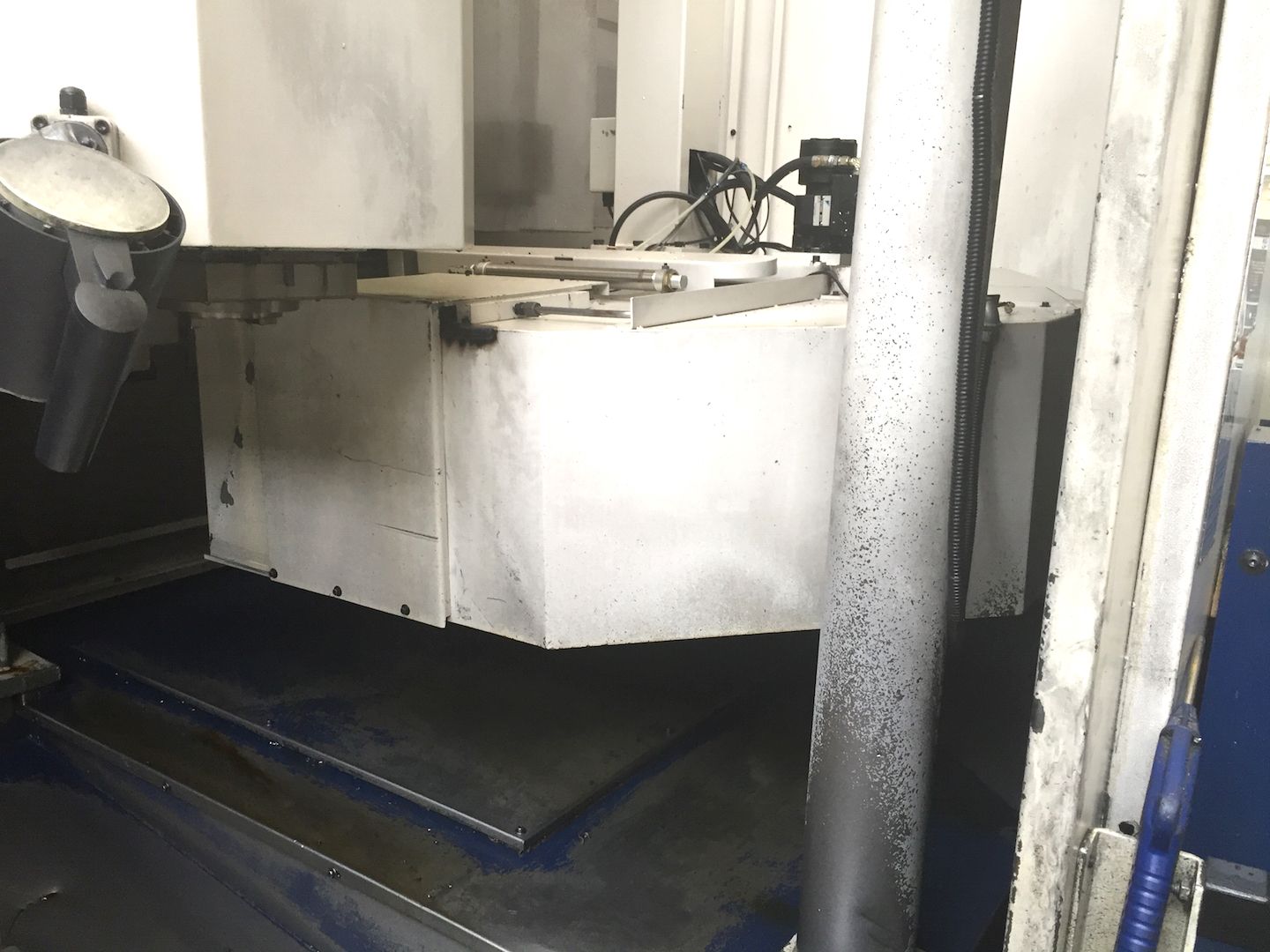

CARRIAGE
Vertical stroke (Z)
900 mm35,43 in
Cross stroke (X)
-200/+1150 mm-7,87/+45,28 in
Milling spindle power
11/15 Kw
Milling spindle speed
50-2250 Rpm
Milling spindle torque
133 Nm
Tool taper
ISO50
Working feeds (Z)
0,00001-0,5 m/min0,00-19,69 ipm
Rapid feeds (Z)
10 m/min393,70 ipm
Rapid feeds (X)
10 m/min393,70 ipm
RAM section
220x220 mm8,66x8,66 in
Working feeds (X)
0,00001-0,5 m/min0,00-19,69 ipm
Support
guide piane / turcite
ATC
Positions
12
Max tool weight
50 Kg
Tool taper
ISO50

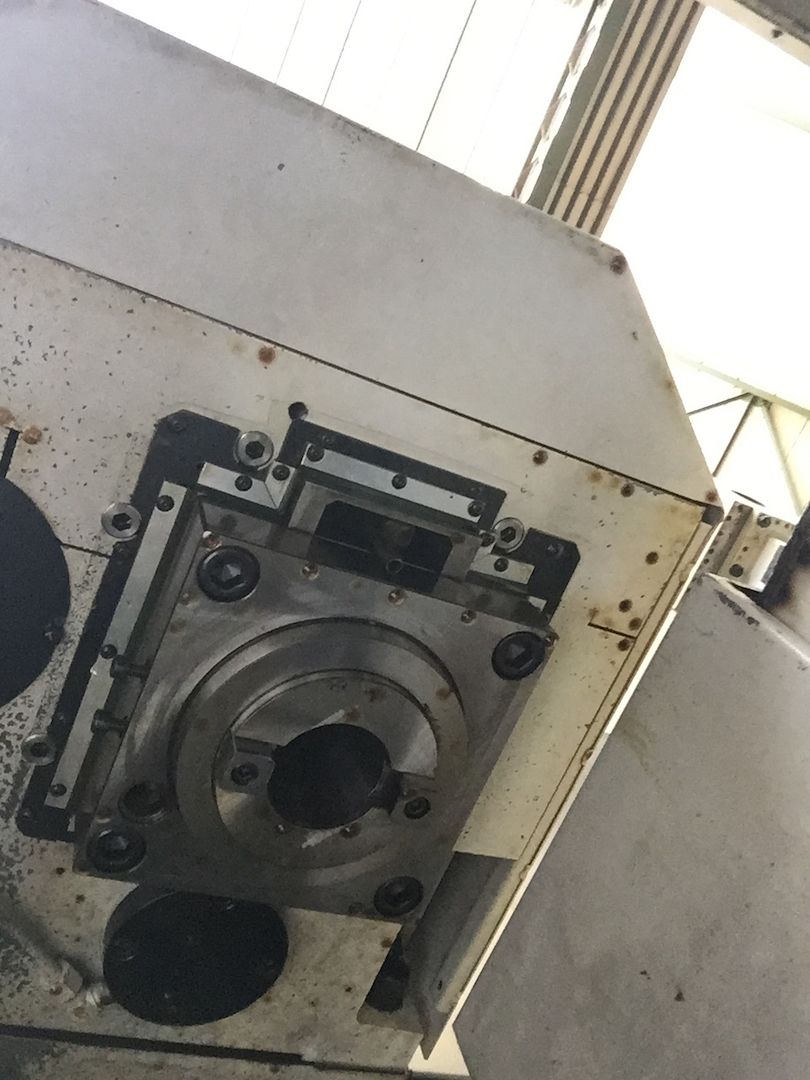

PICK-UP STATION FOR HEAD CHANGE

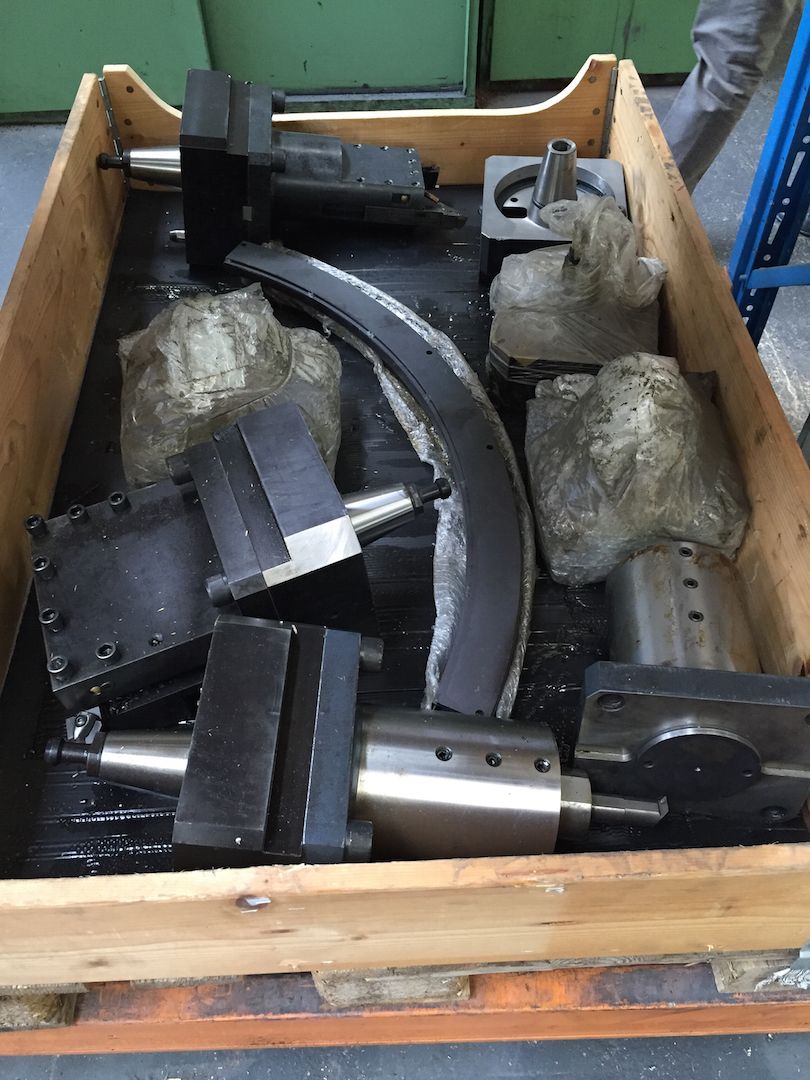

Milling head attachments included
5
EXTRA
Mobile traverse
Yes
Total power supply
90 Kw
Machine total weight
28200 Kg
Floor space
5805x3680x5500 mm228,54x144,88x216,54 in
Platform
manuale 4 griffe 1600mm
Chip conveyor
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Coolant pump
si
Protections

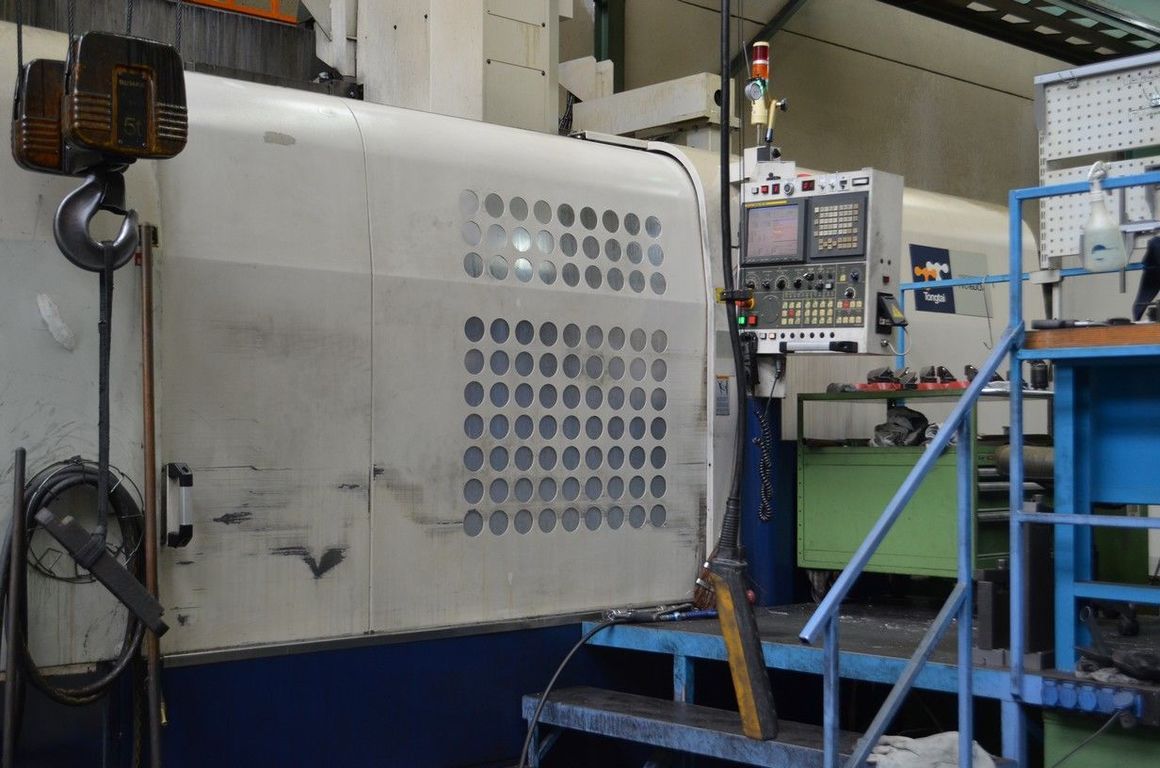

carenatura integrale
Availability
pronta
Available under power
si
