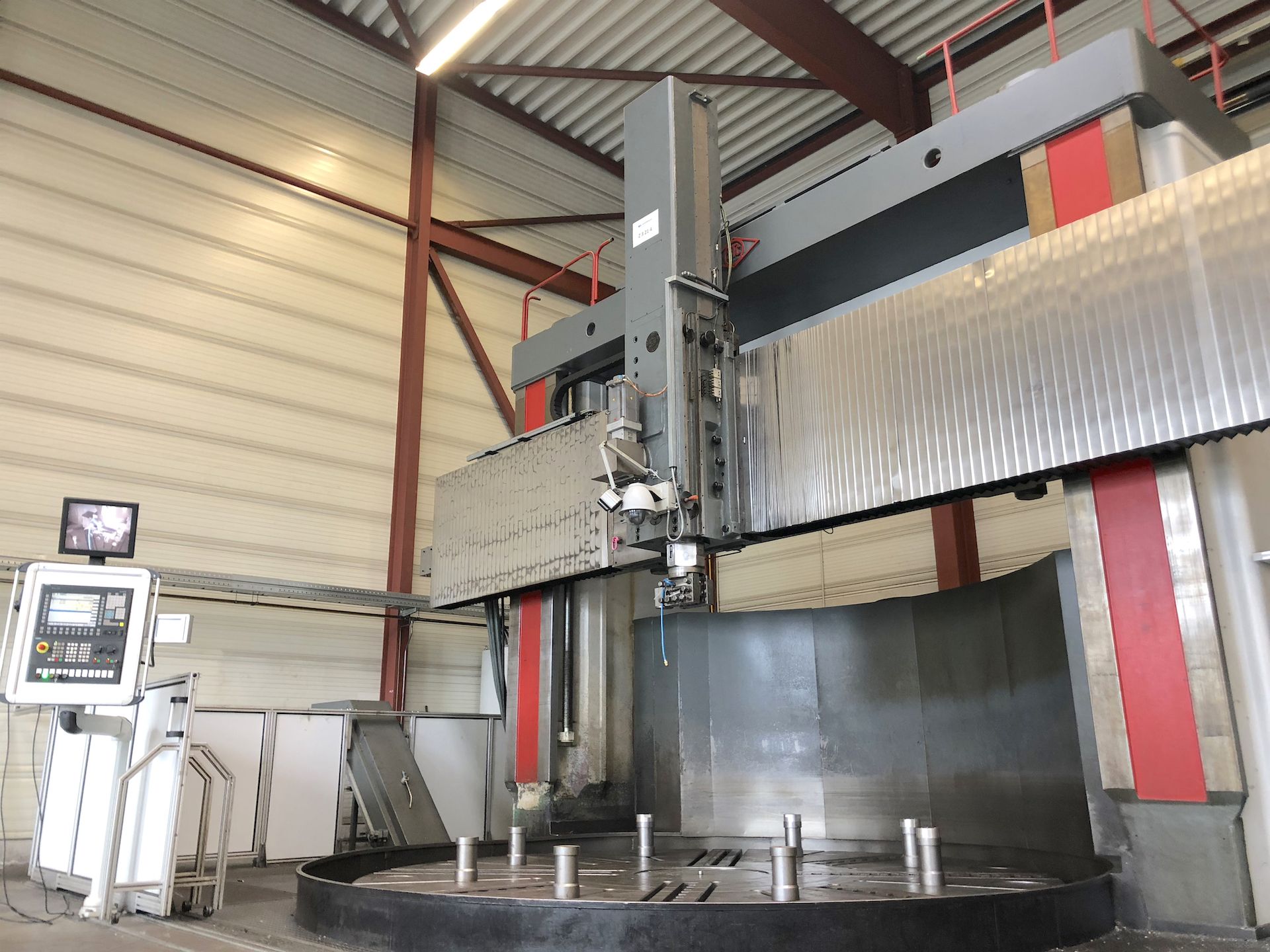

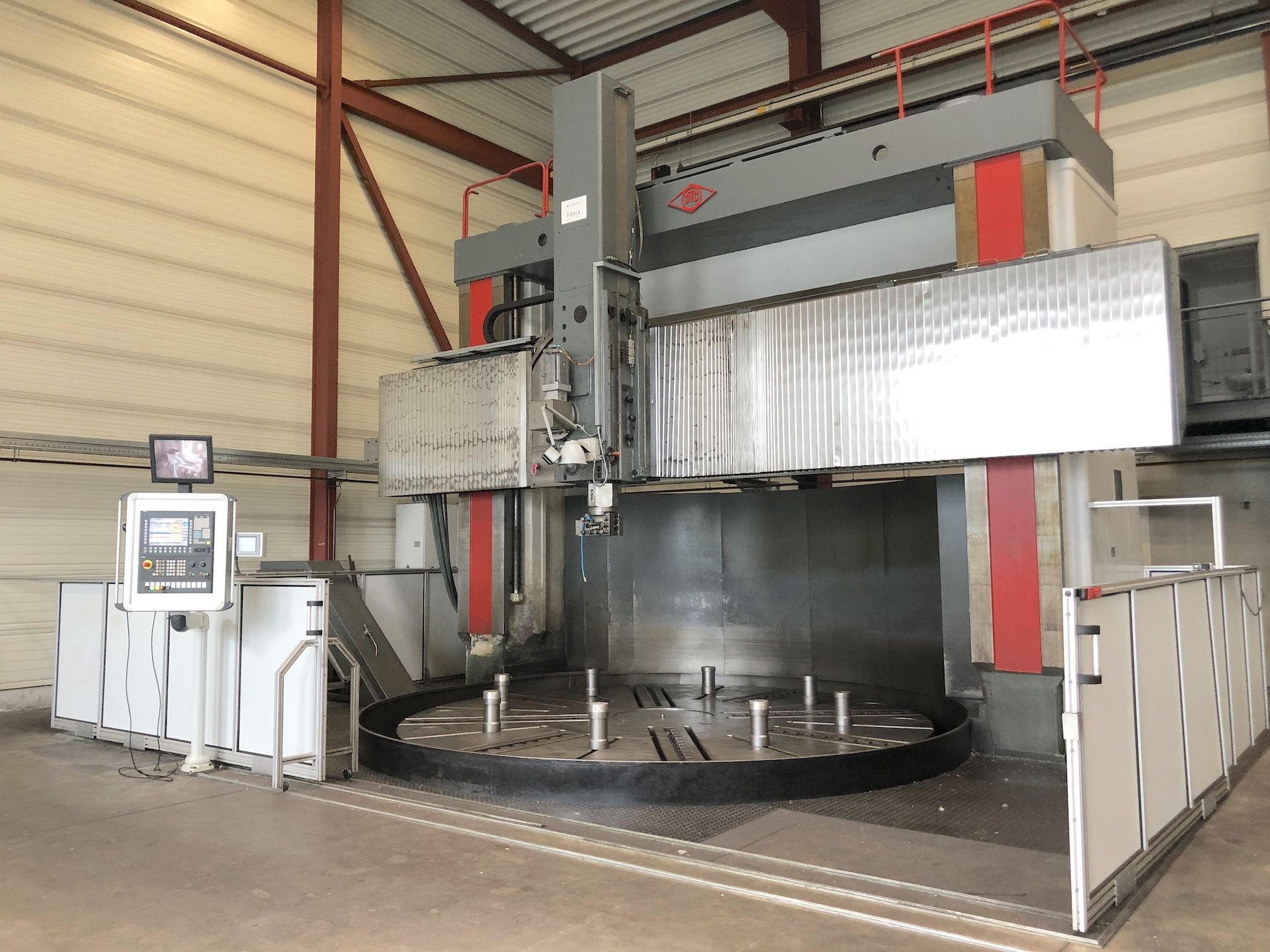

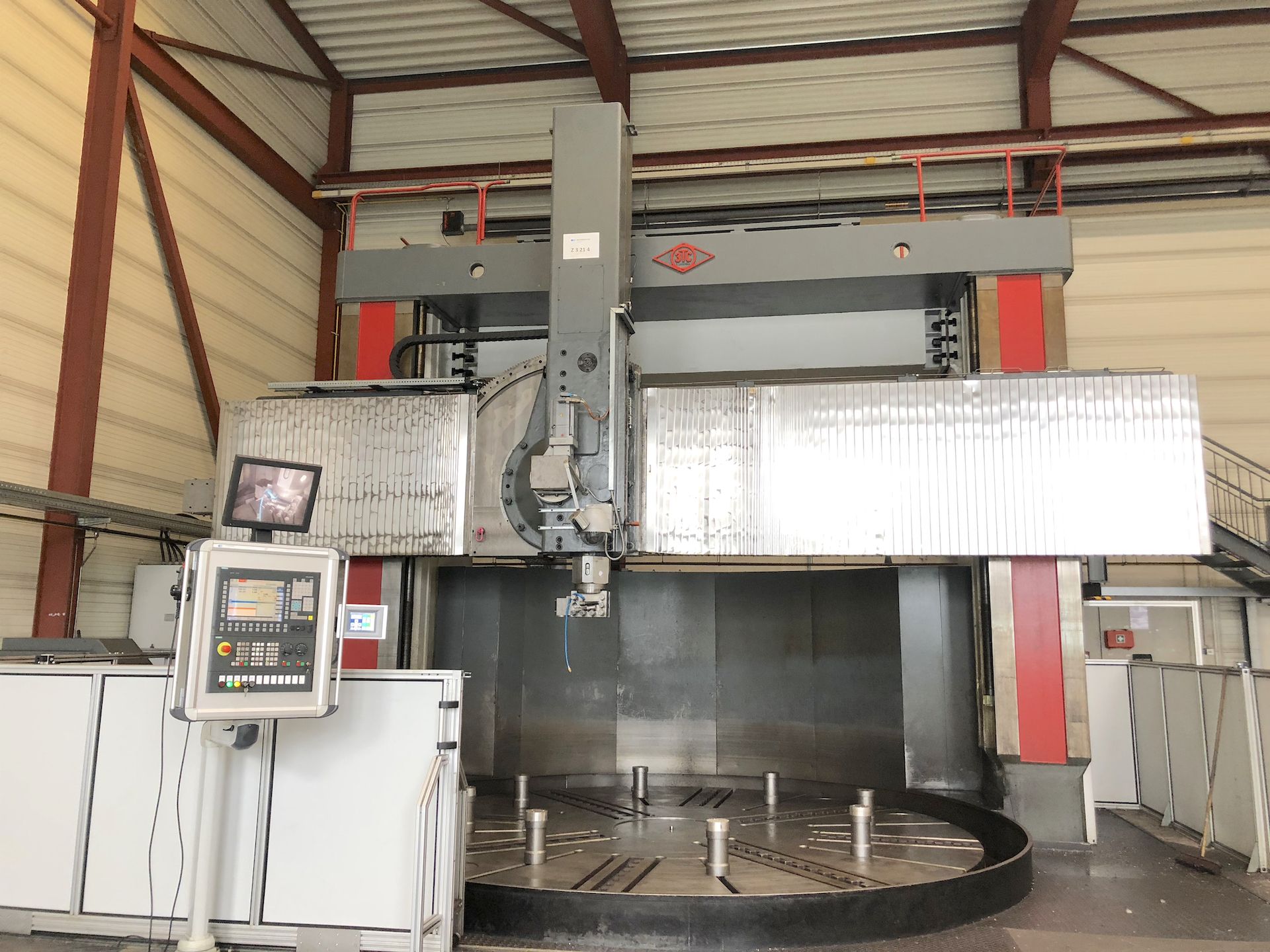

Category
Turning Machine
Type
Vertical
Made
Model
1550 CNC
Capacity
ø5000x2770 mmø196,85x109,05 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Platform diameter
4500 mm177,17 in
Max workpiece diameter
5000 mm196,85 in
Max turning height
2500 mm98,43 in
Max workpiece weight
100.000 Kg

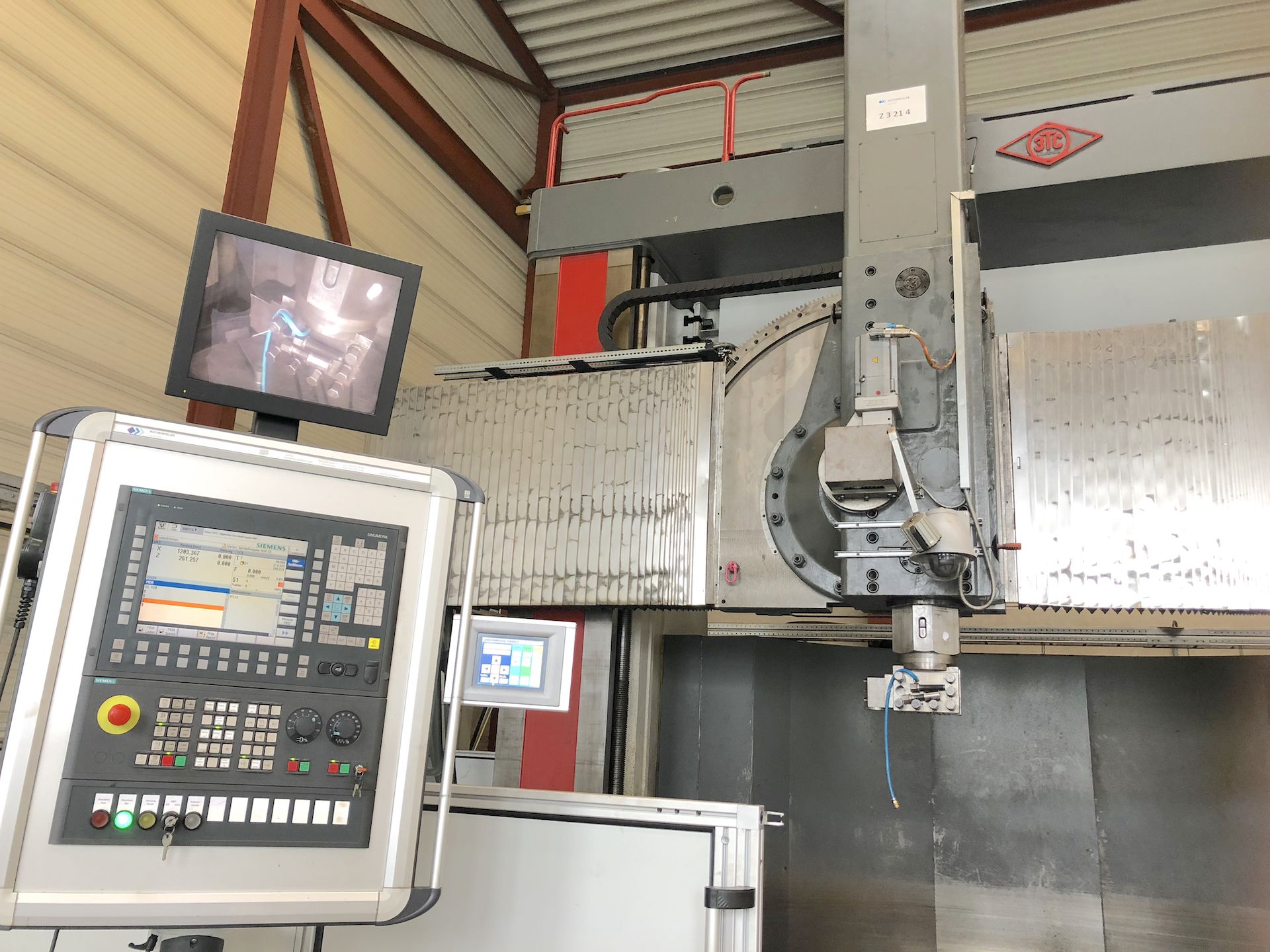

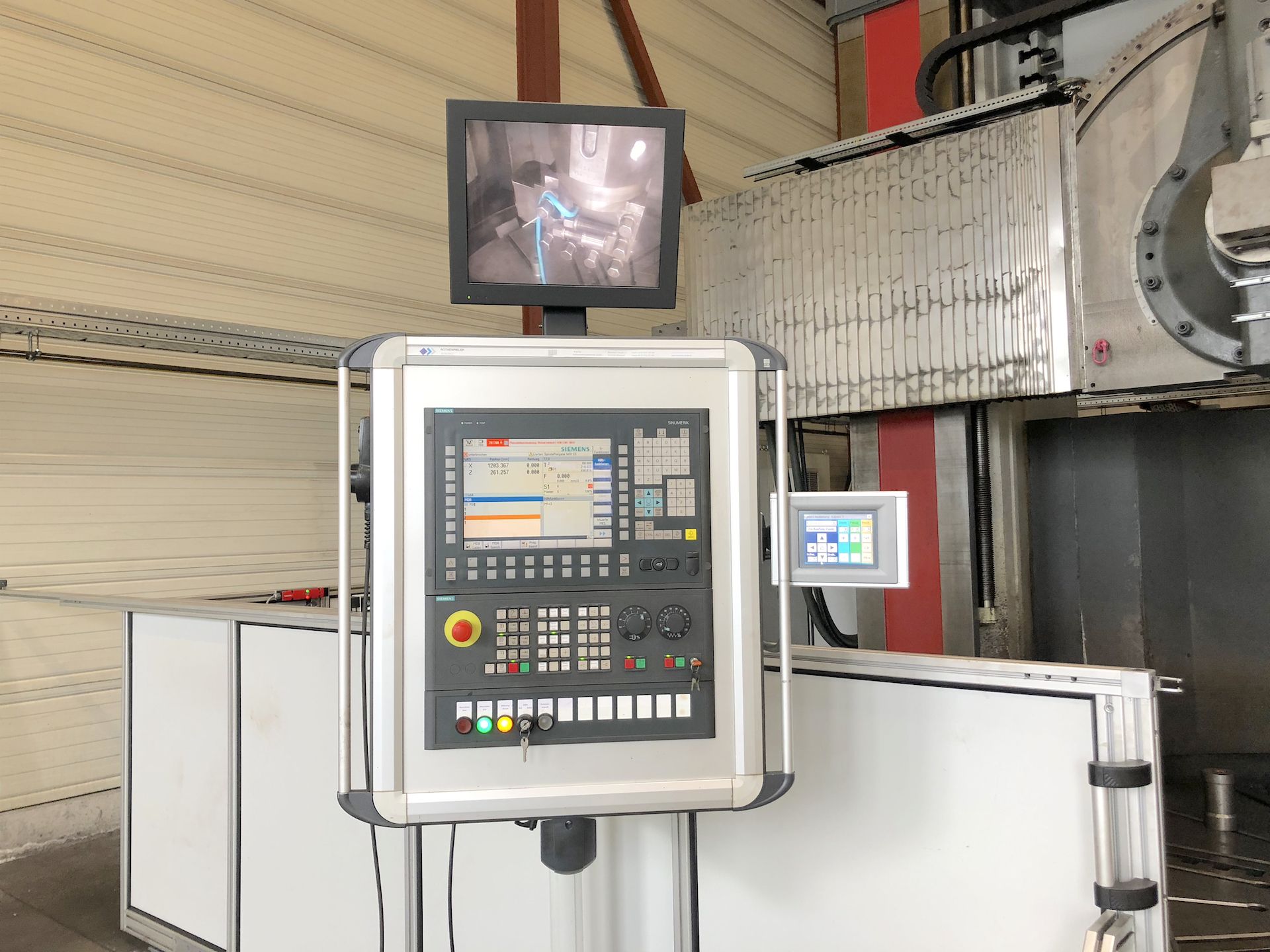

CNC
CNC
SIEMENS 840DSL

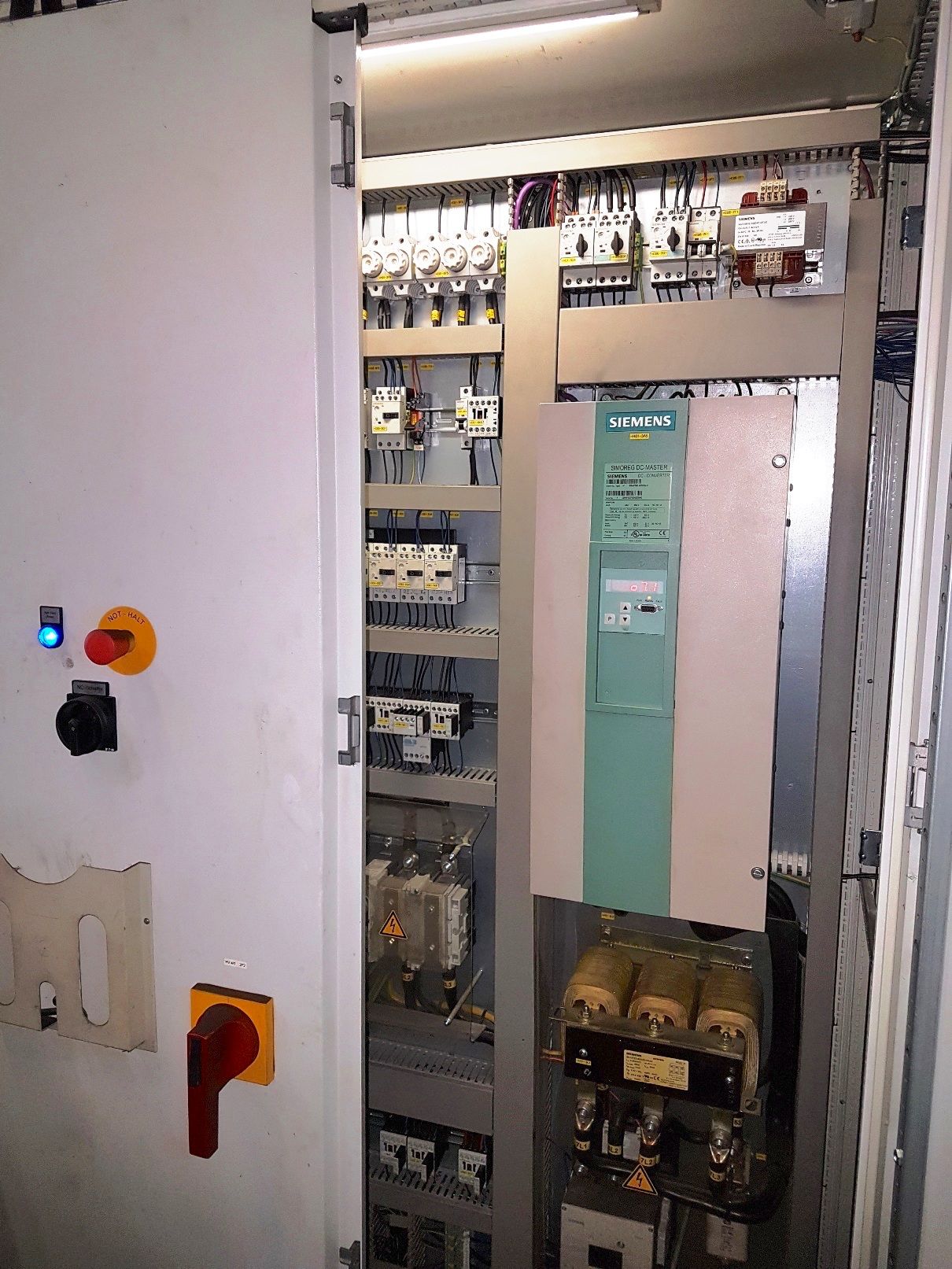

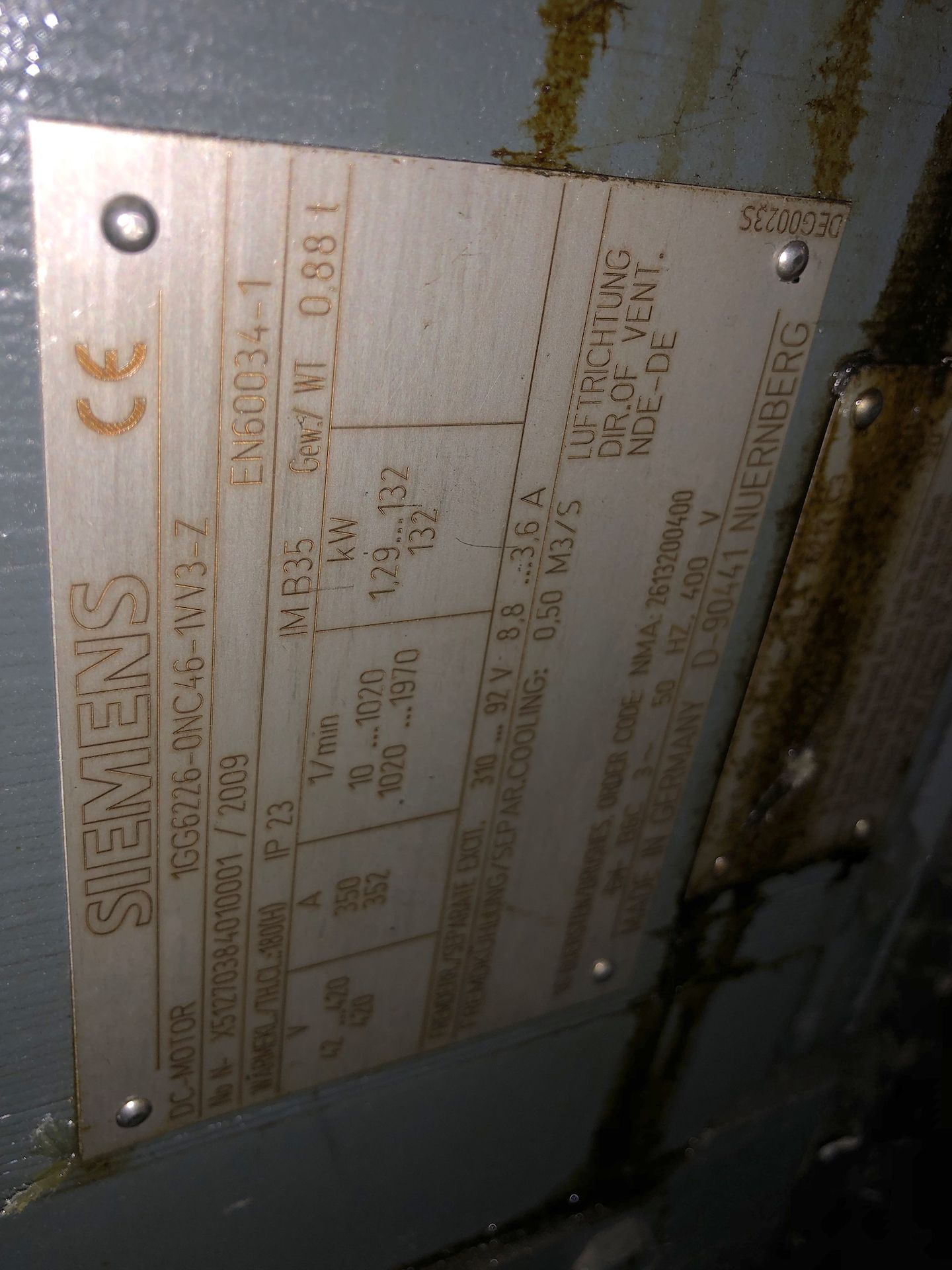

Drives
SIEMENS
Notes
pacchetto Shopturn
MAIN SPINDLE
Platform diameter
4500 mm177,17 in
Max rotation speed
0,34 - 31,2 rpm
Capacity
100.000 Kg
Support
hydrostatic
Max power
132 Kw
Max torque
250.000 Nm
CROSSRAIL
Vertical stroke (W)
1325 mm52,17 in

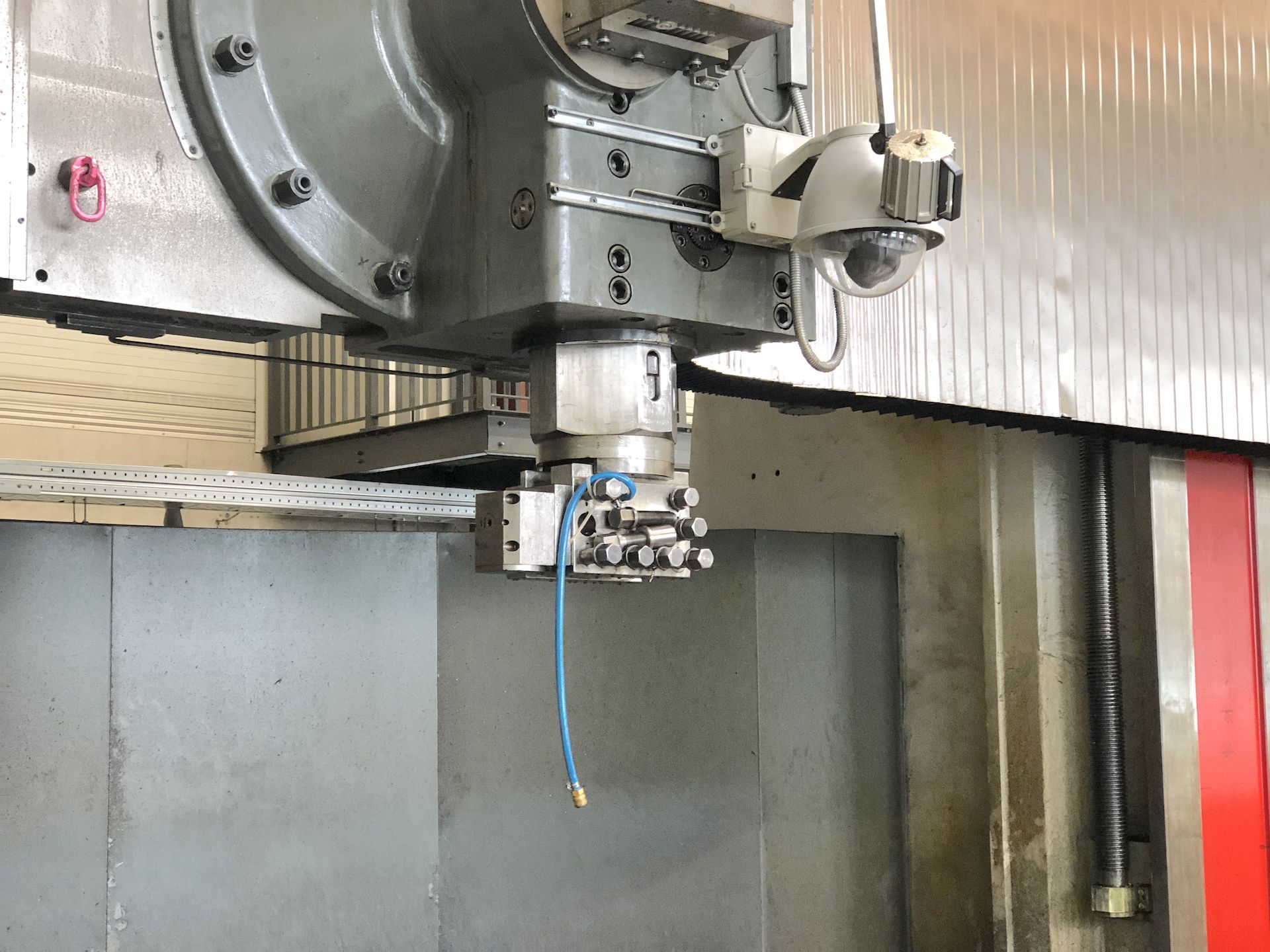

CARRIAGE
Vertical stroke (Z)
1600 mm62,99 in
Cross stroke (X)
2800 mm110,24 in
Tool taper
CAPTO C8
Working feeds (Z)
5 m/min196,85 ipm
Working feeds (X)
4 m/min157,48 ipm
RAM section
ottagonale 300x300 mmottagonale 11,81x11,81 in
EXTRA
Double column
Yes
Mobile traverse
Yes
Accessorires included

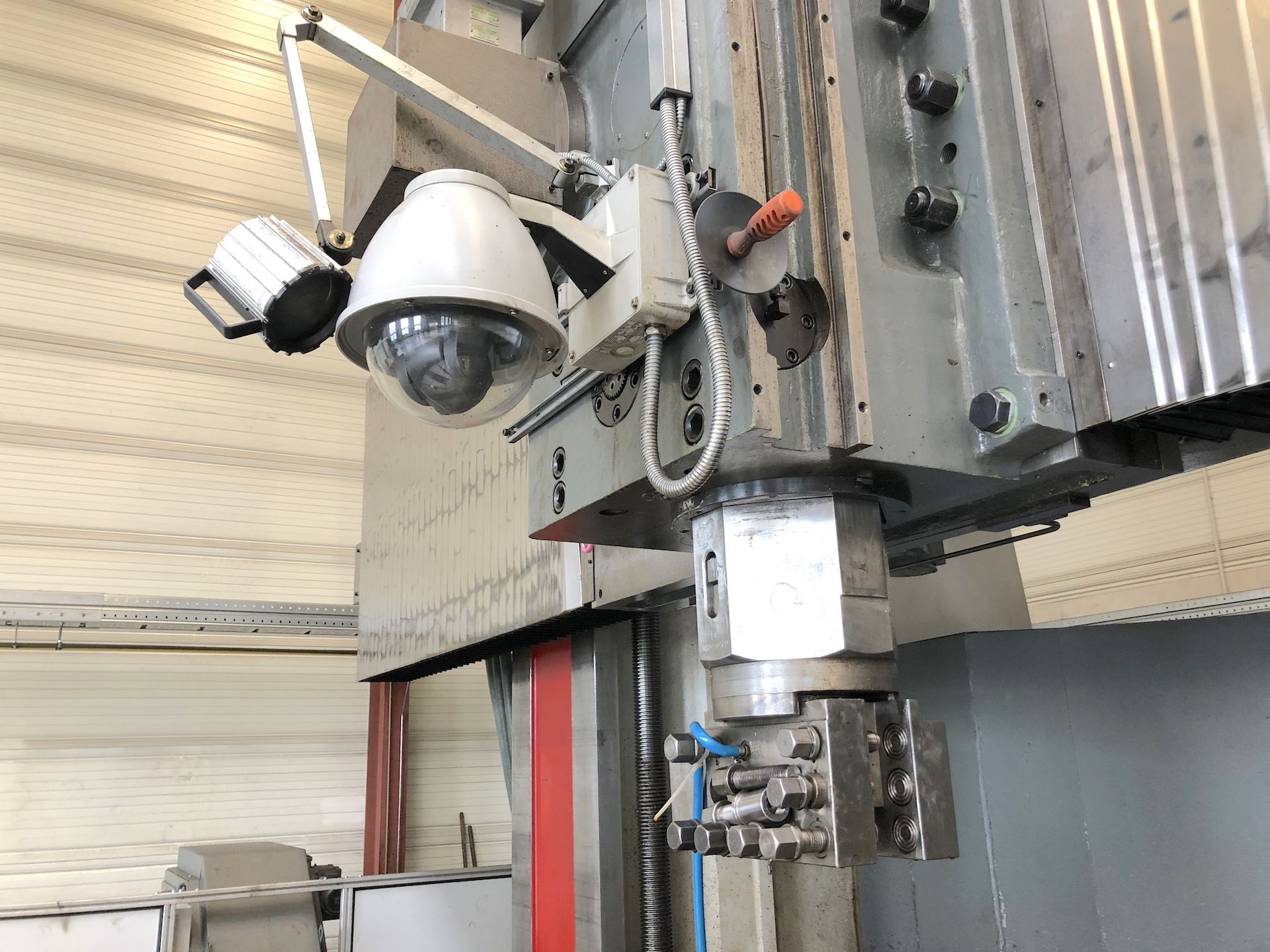

Telecamera Dome orientabile per supervisione lavorazione
Machine total weight
145.500 Kg
Floor space
11400x6600x8400 mm448,82x259,84x330,71 in

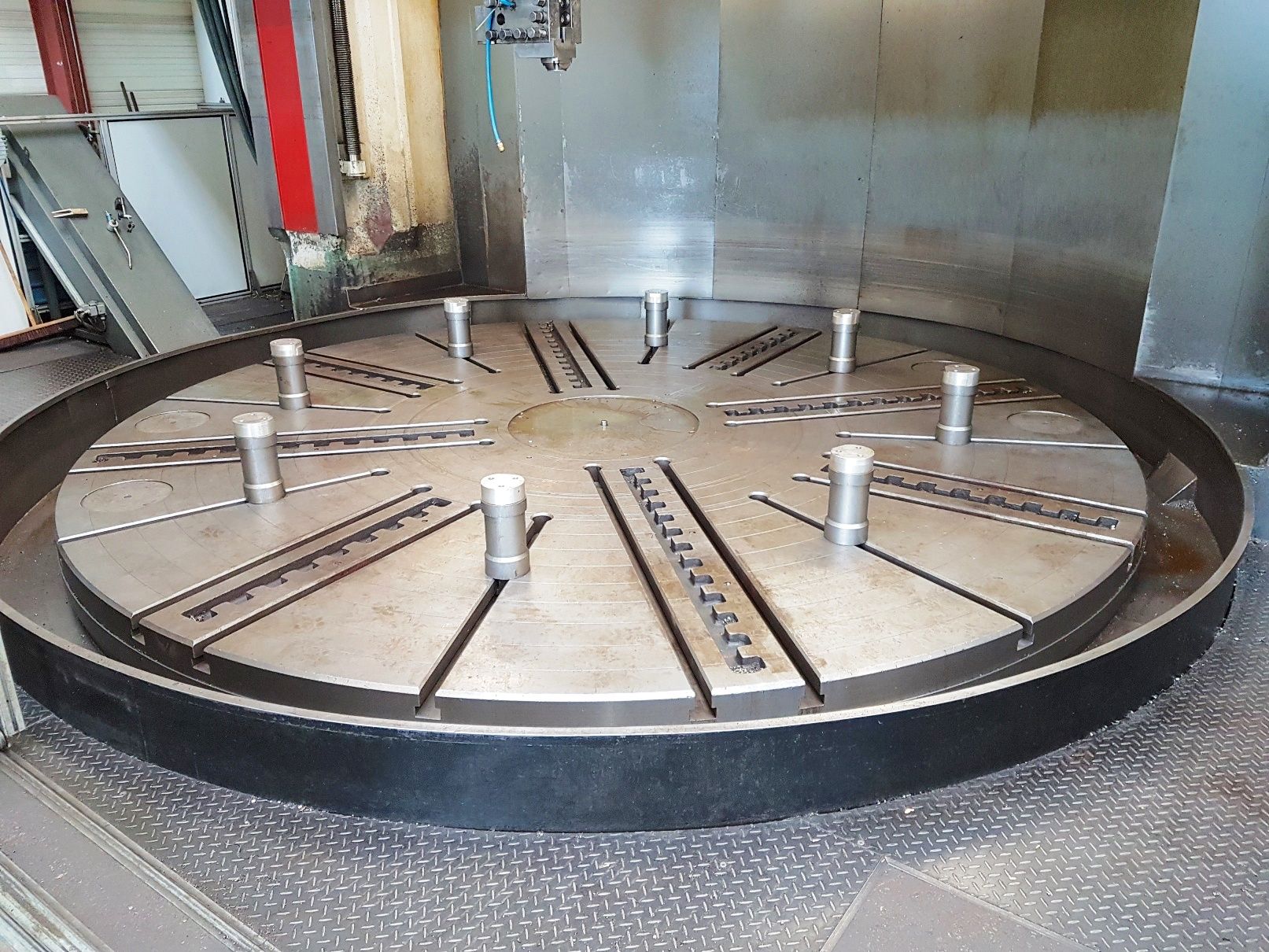

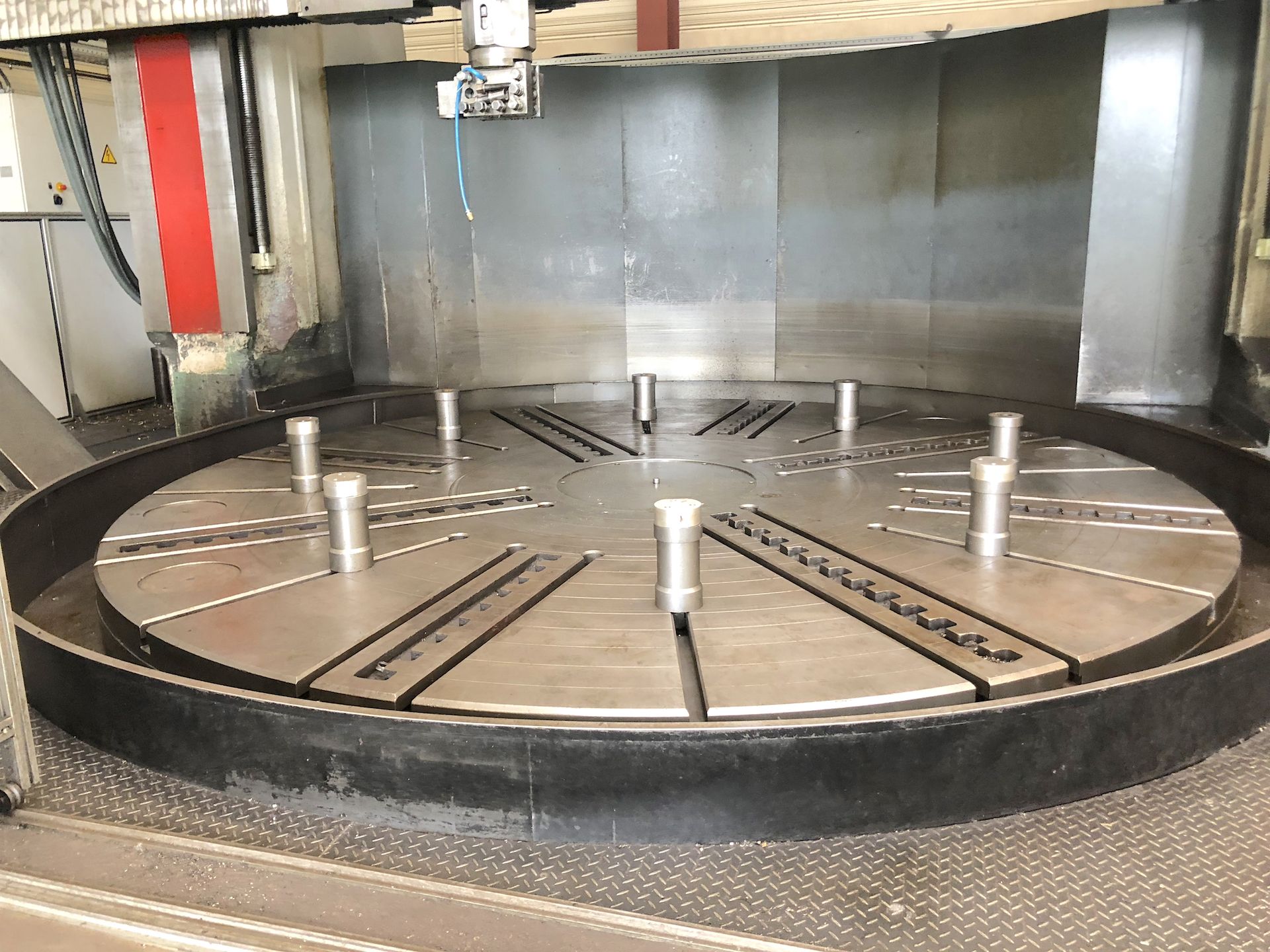

Platform
ø4500

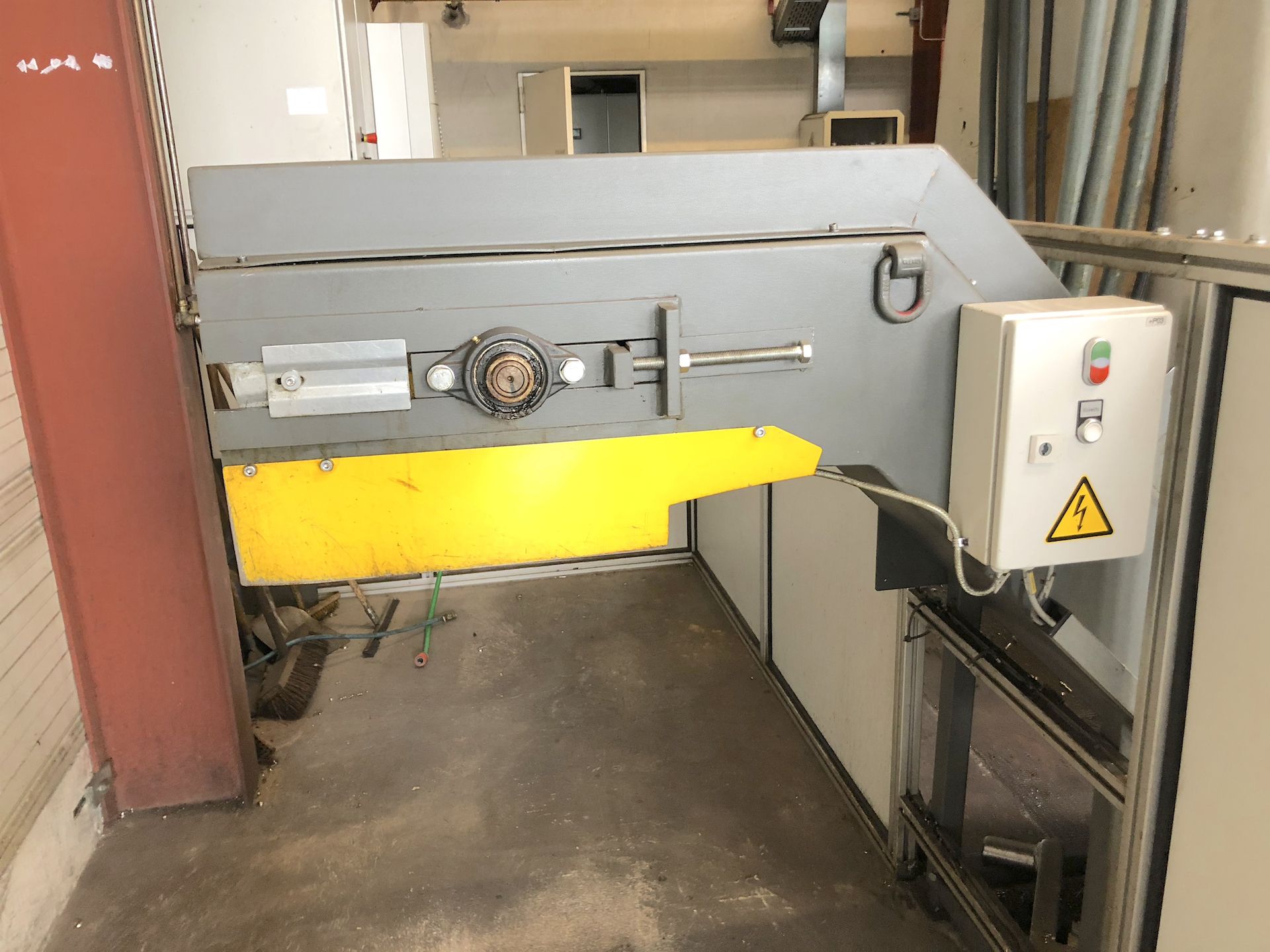

Chip conveyor
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes

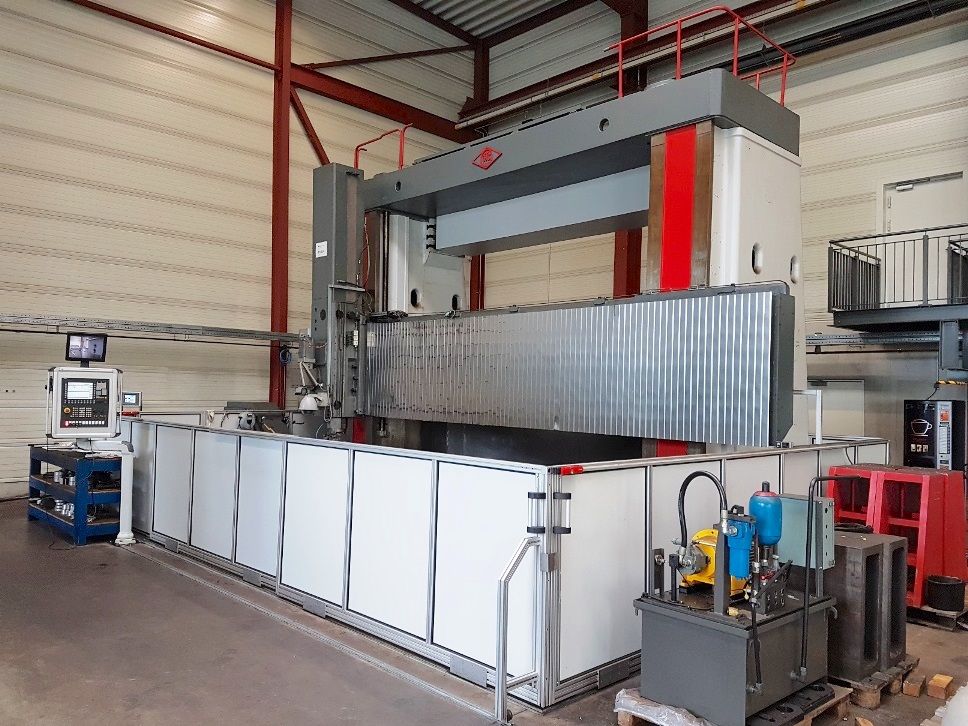

Protections
perimetrali
Relevant updates made on the machine
Revisione completa 2009, retrofitting completo 2009
Availability
pronta
