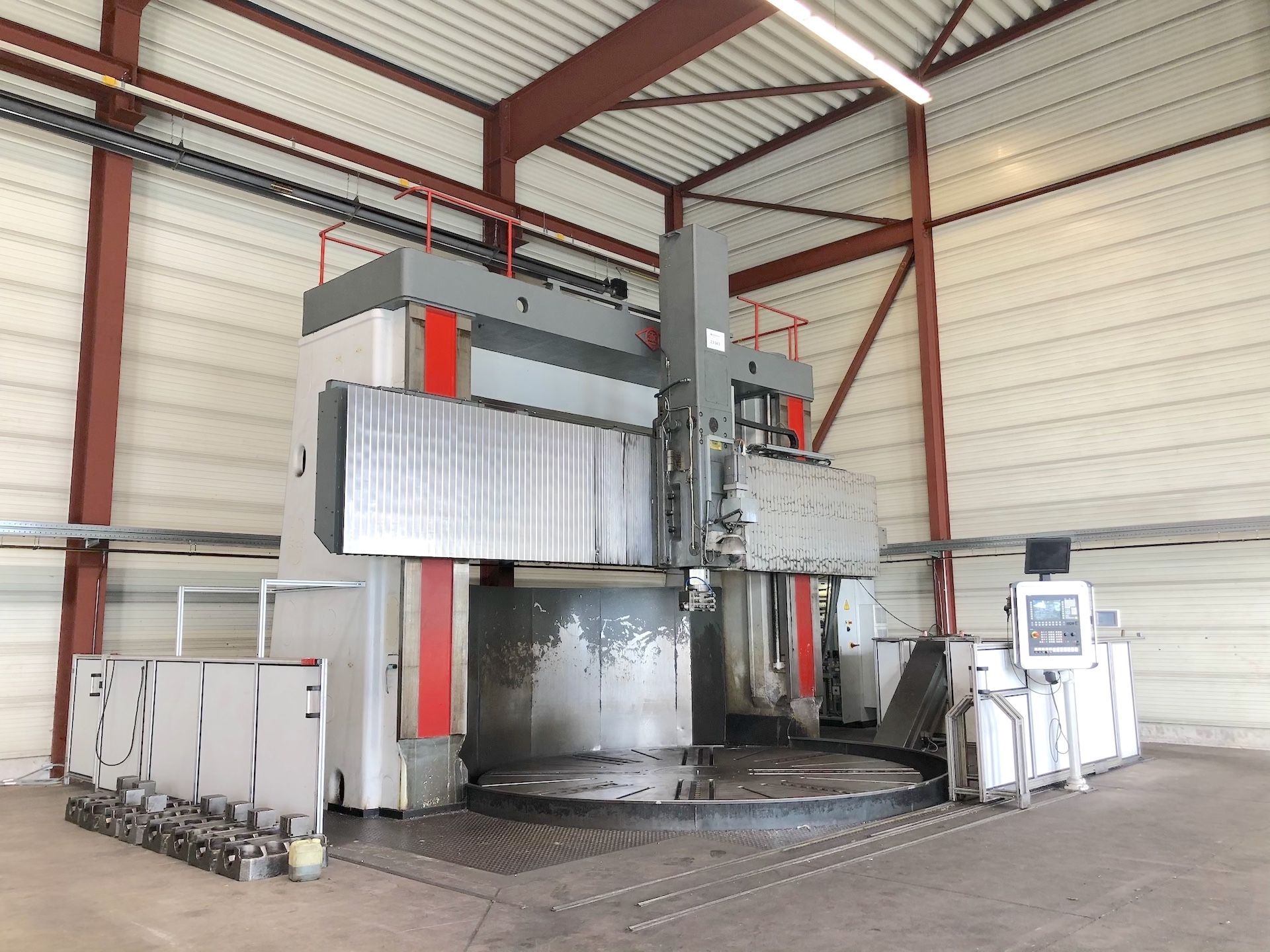

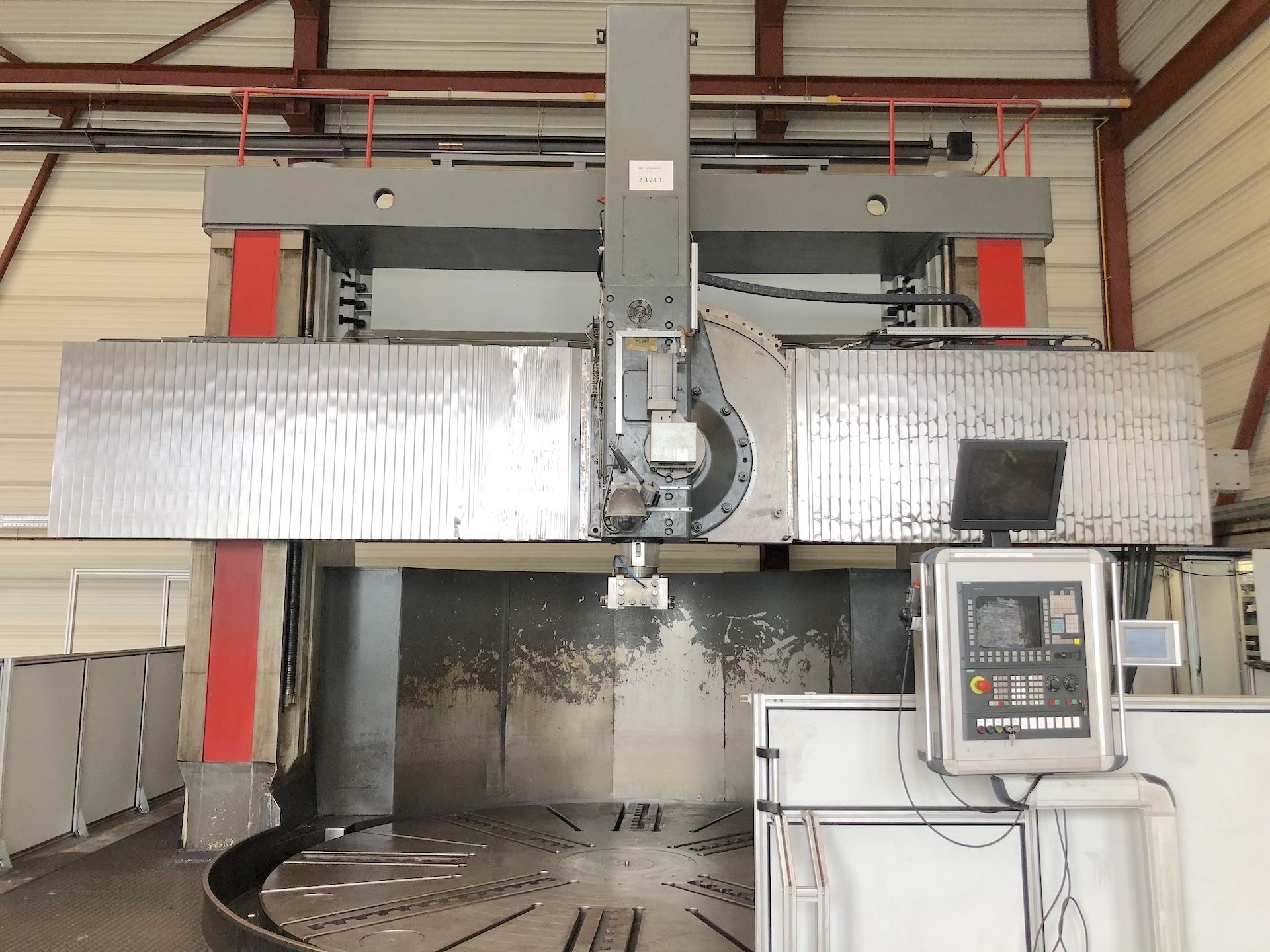

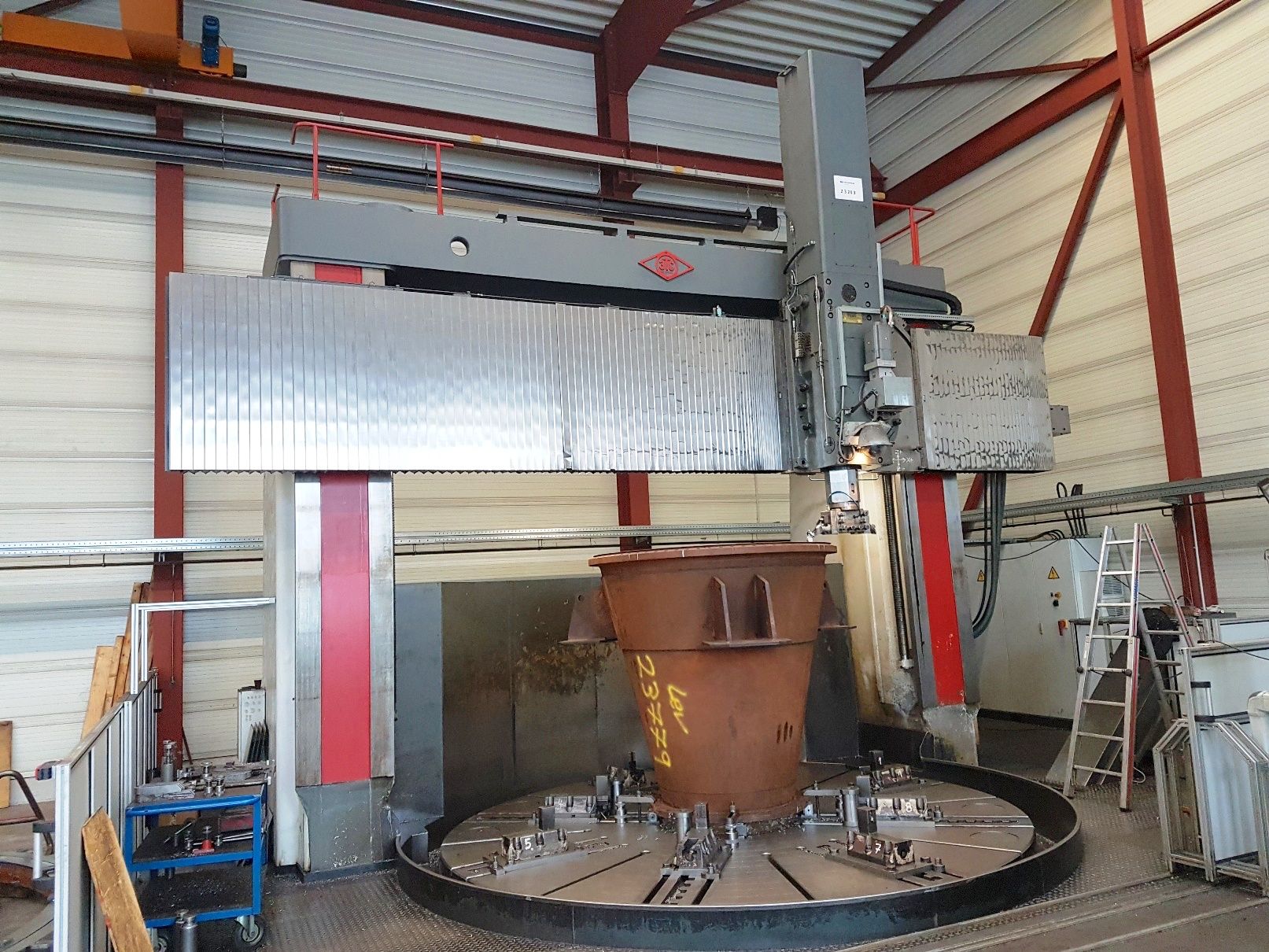

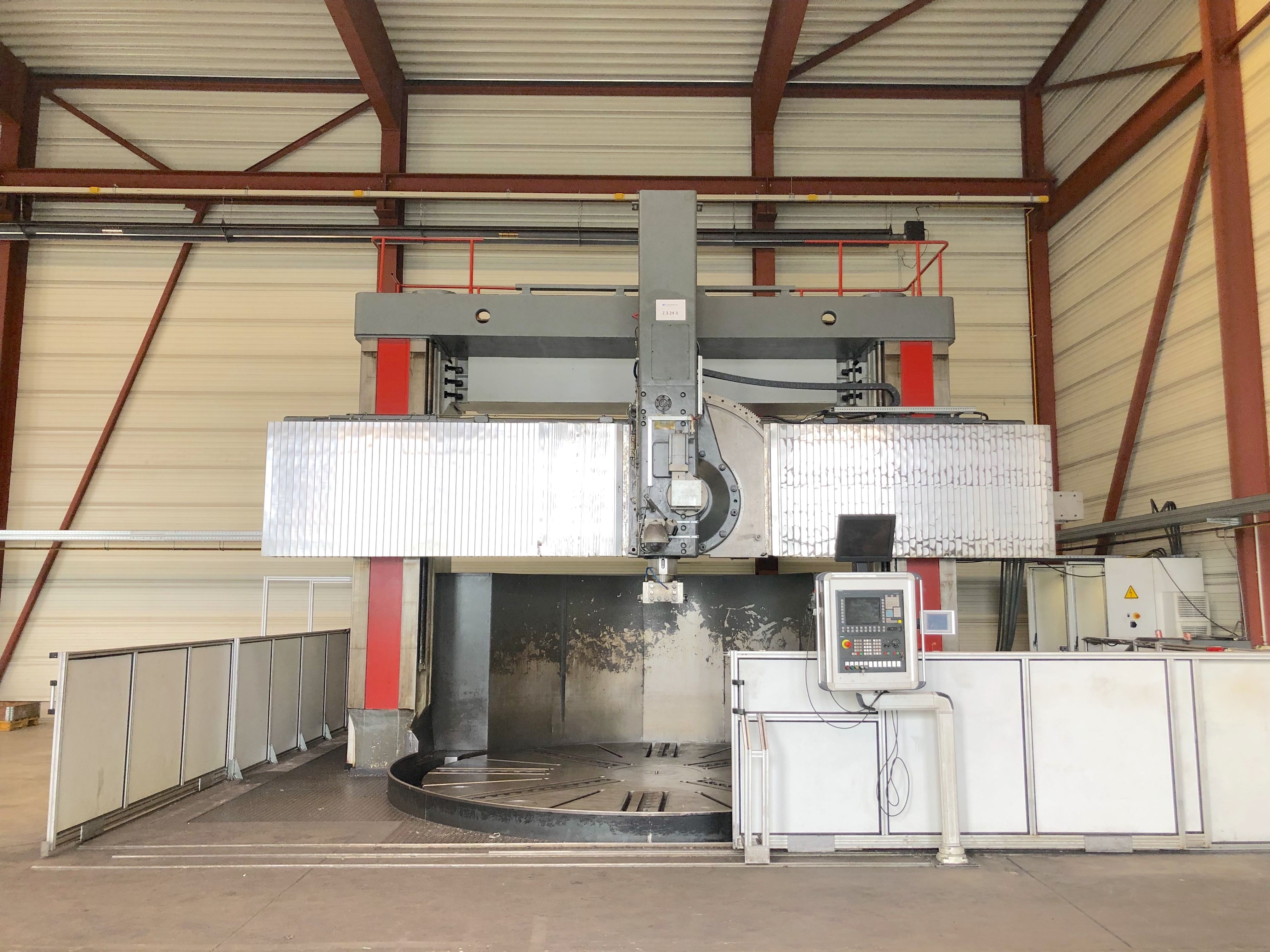

Category
Turning Machine
Type
Vertical
Made
Model
1550 CNC
Capacity
ø5000x2500 mmø196,85x98,43 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Platform diameter
4500 mm177,17 in
Max workpiece weight
100.000 Kg
Max turning height
2500 mm98,43 in
Max workpiece diameter
5000 mm196,85 in
CNC
CNC

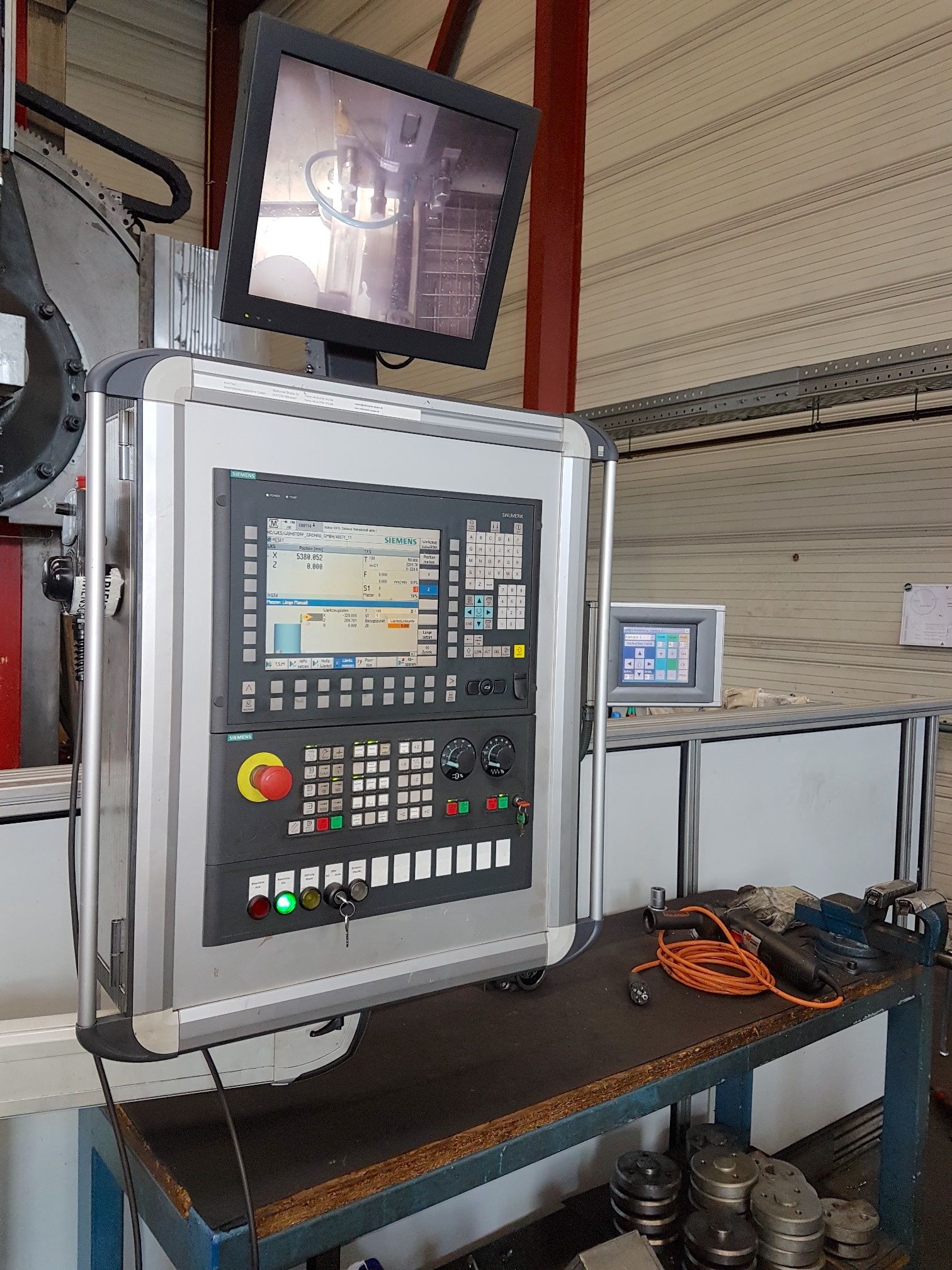

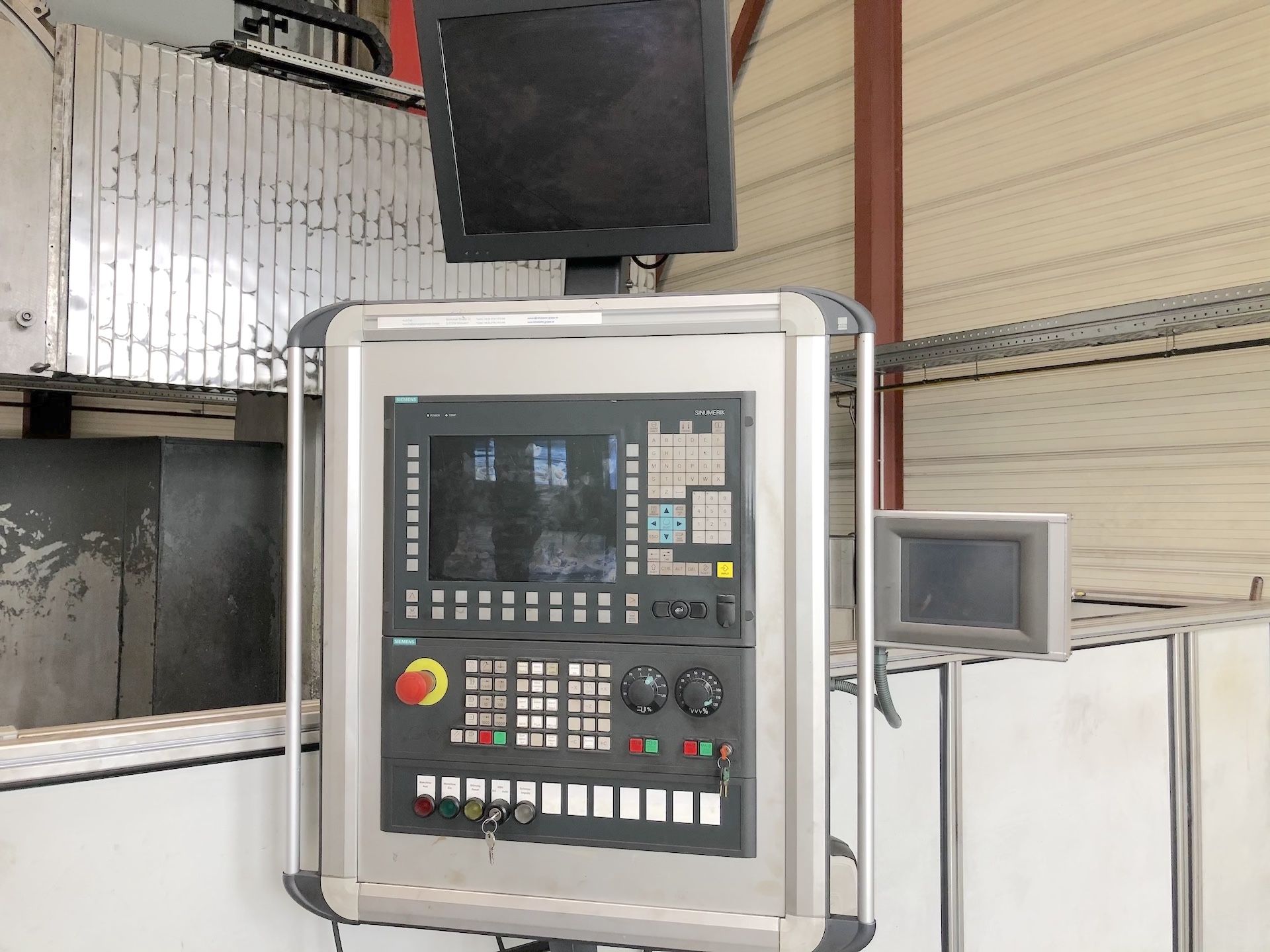

SIEMENS 840DSL
Drives
SIEMENS
Notes
pacchetto Shopturn
MAIN SPINDLE

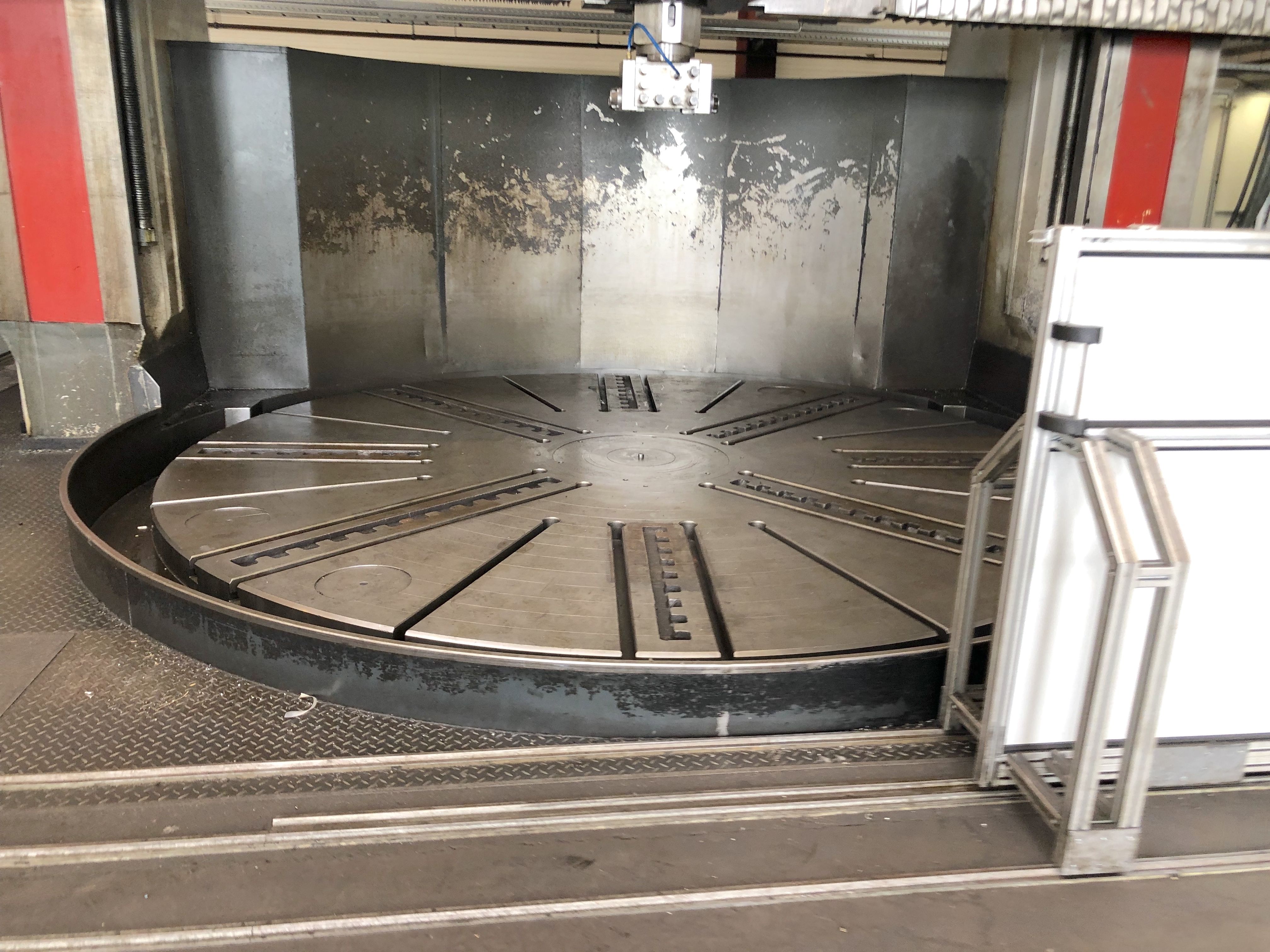

Platform diameter
4500 mm177,17 in
Capacity
100.000 Kg
Support
hydrostatic
Max torque
250.000 Nm
Max rotation speed
0,34 - 31,2 rpm
Max power
132 Kw
CARRIAGE
Working feeds (Z)
5 m/min196,85 ipm
Working feeds (X)
4 m/min157,48 ipm
Cross stroke (X)
2800 mm110,24 in
Vertical stroke (Z)
1600 mm62,99 in

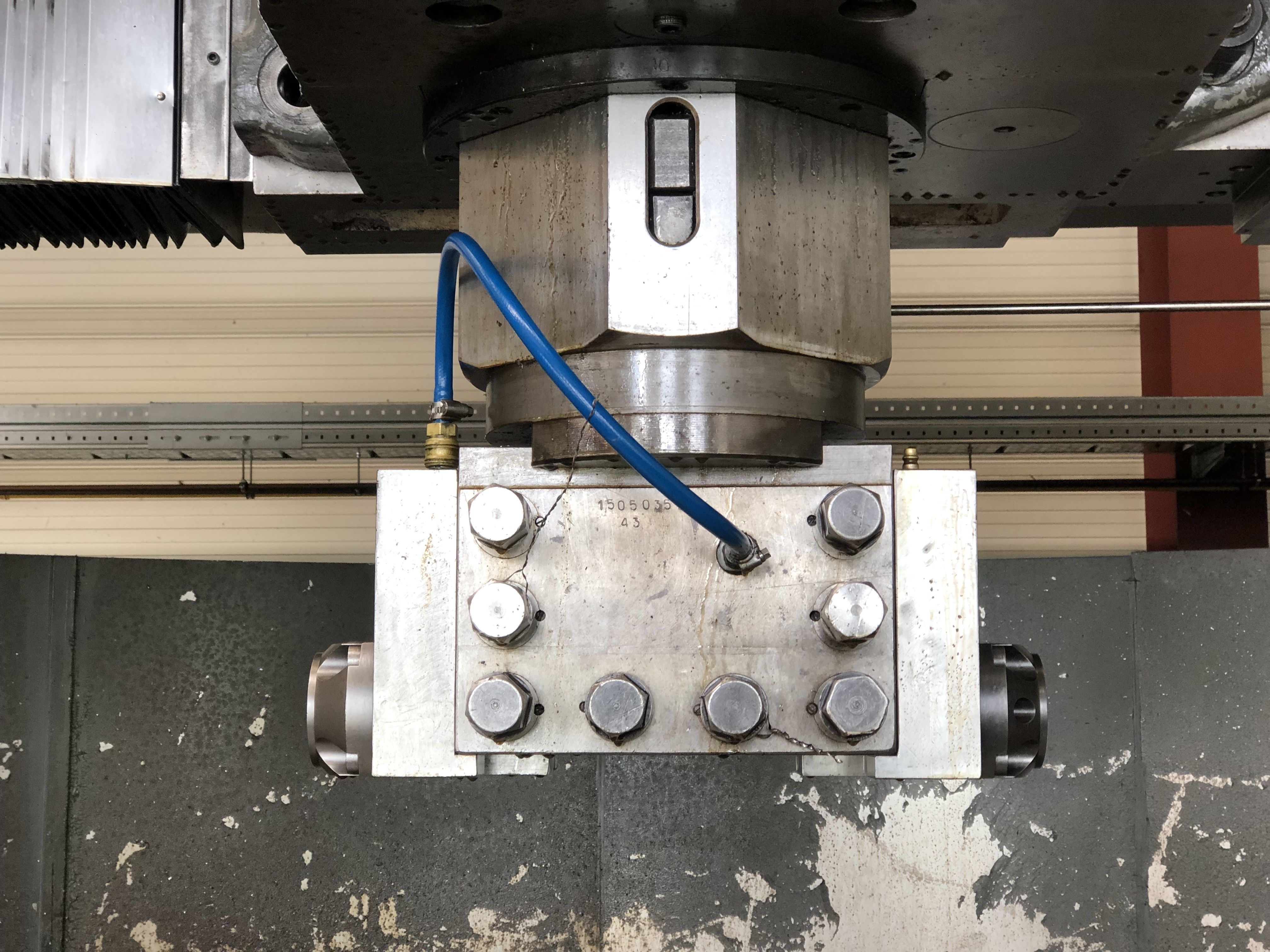

Tool taper
CAPTO C8

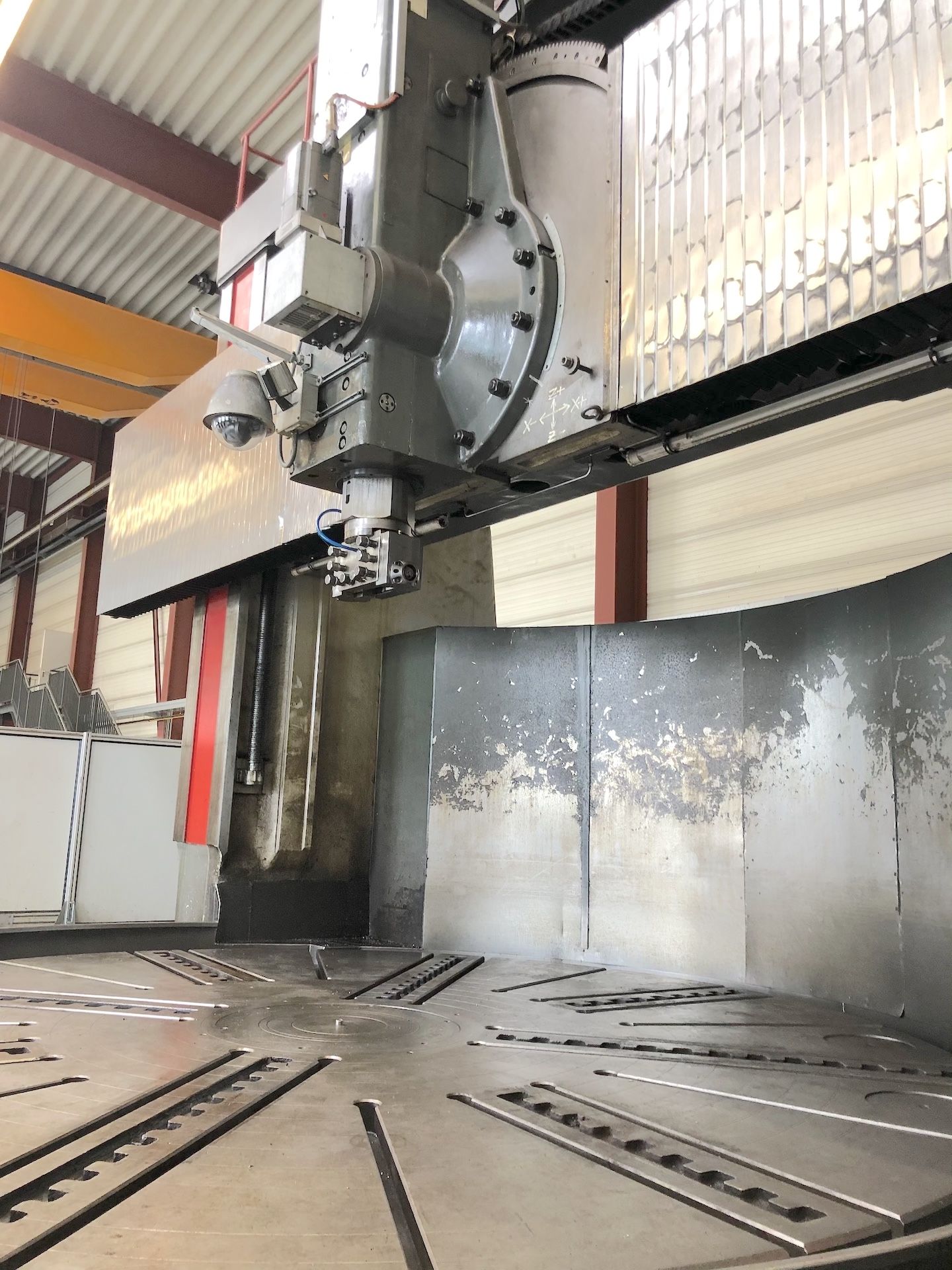

RAM section
ottagonale 300x300 mmottagonale 11,81x11,81 in
CROSSRAIL
Vertical stroke (W)
1325 mm52,17 in
EXTRA

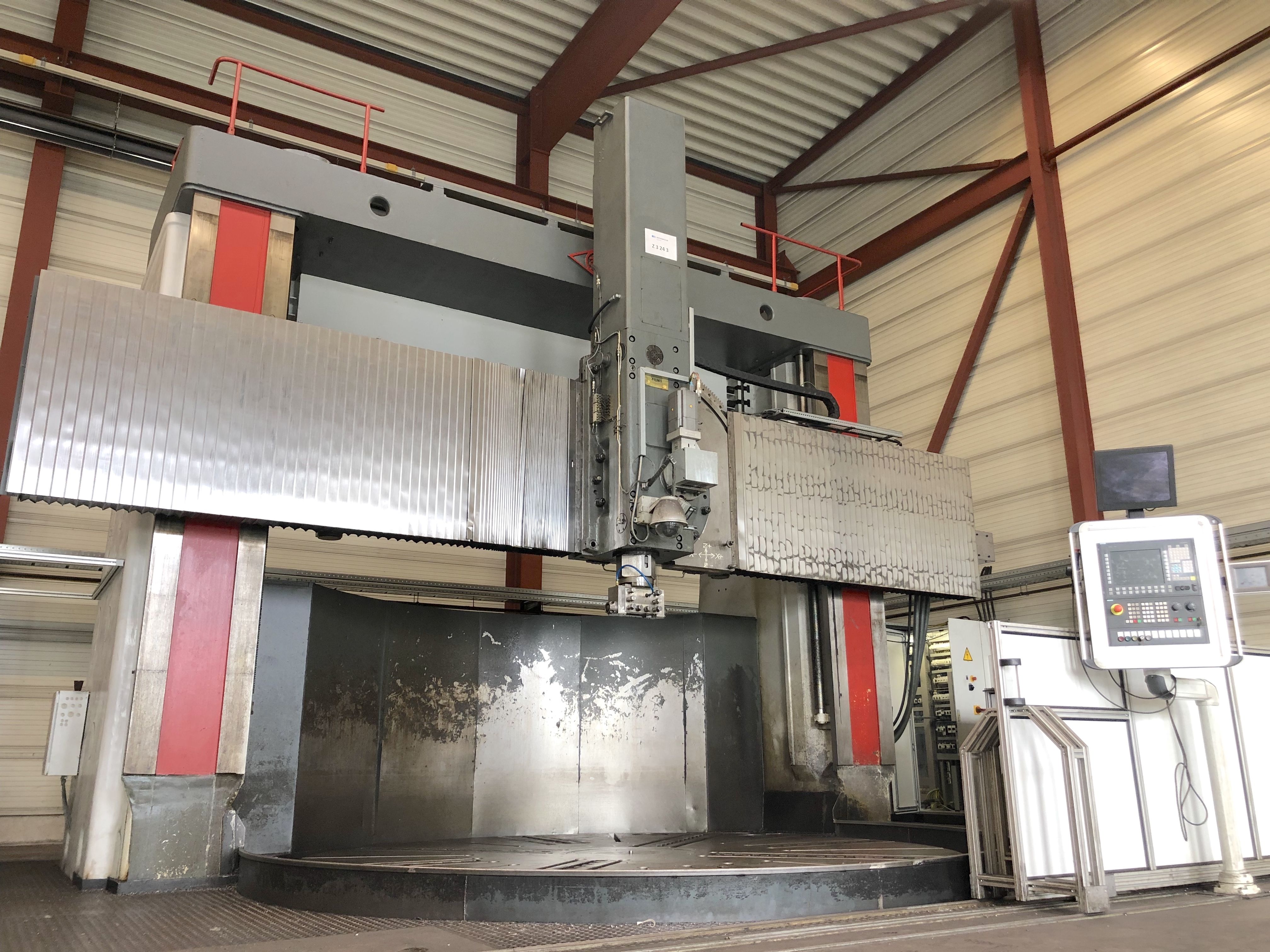

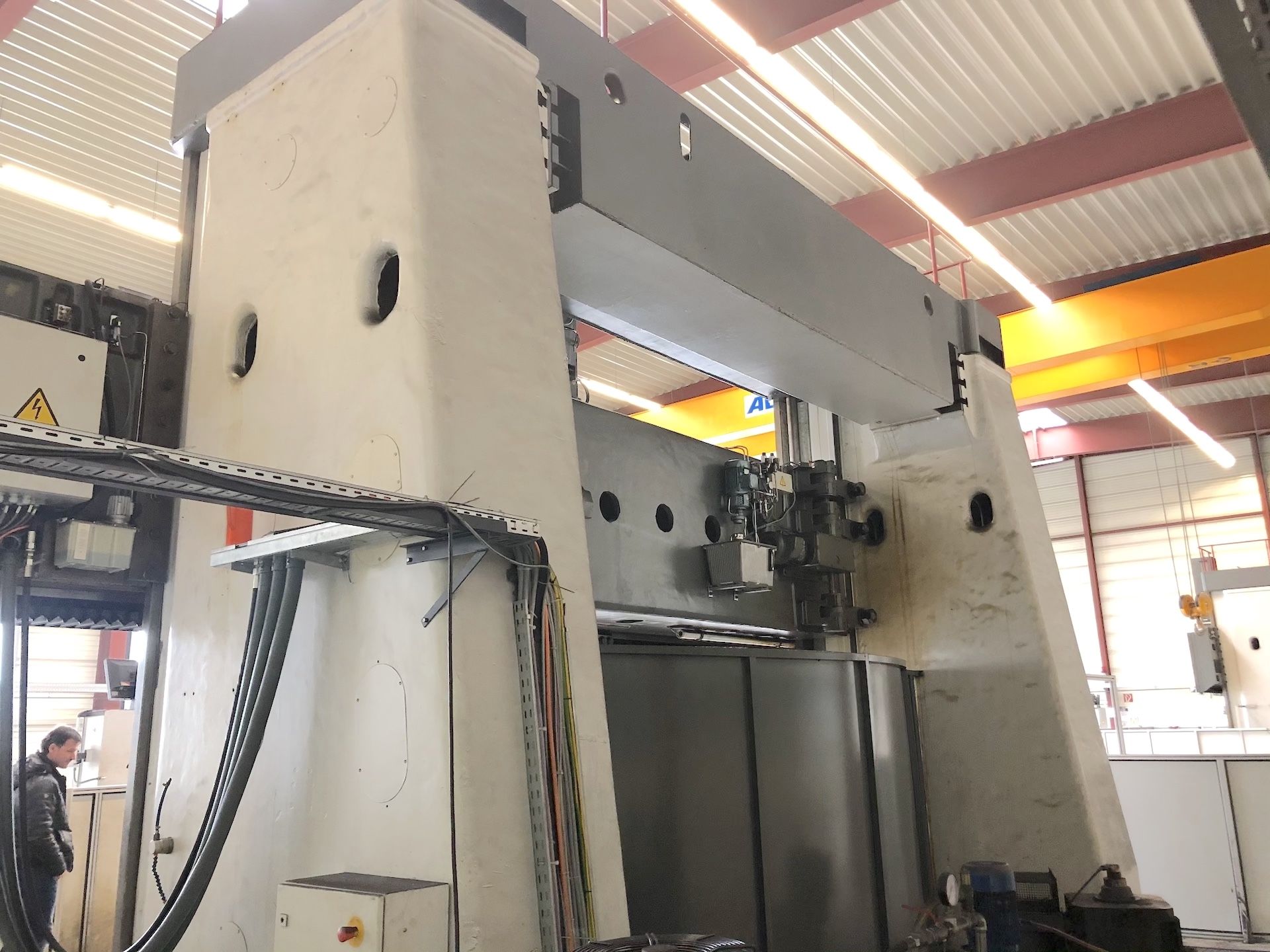

Double column
Yes
Mobile traverse
Yes
Machine total weight
145.500 Kg
Floor space
11400x6600x8400 mm448,82x259,84x330,71 in
Platform
ø4500
Chip conveyor
si

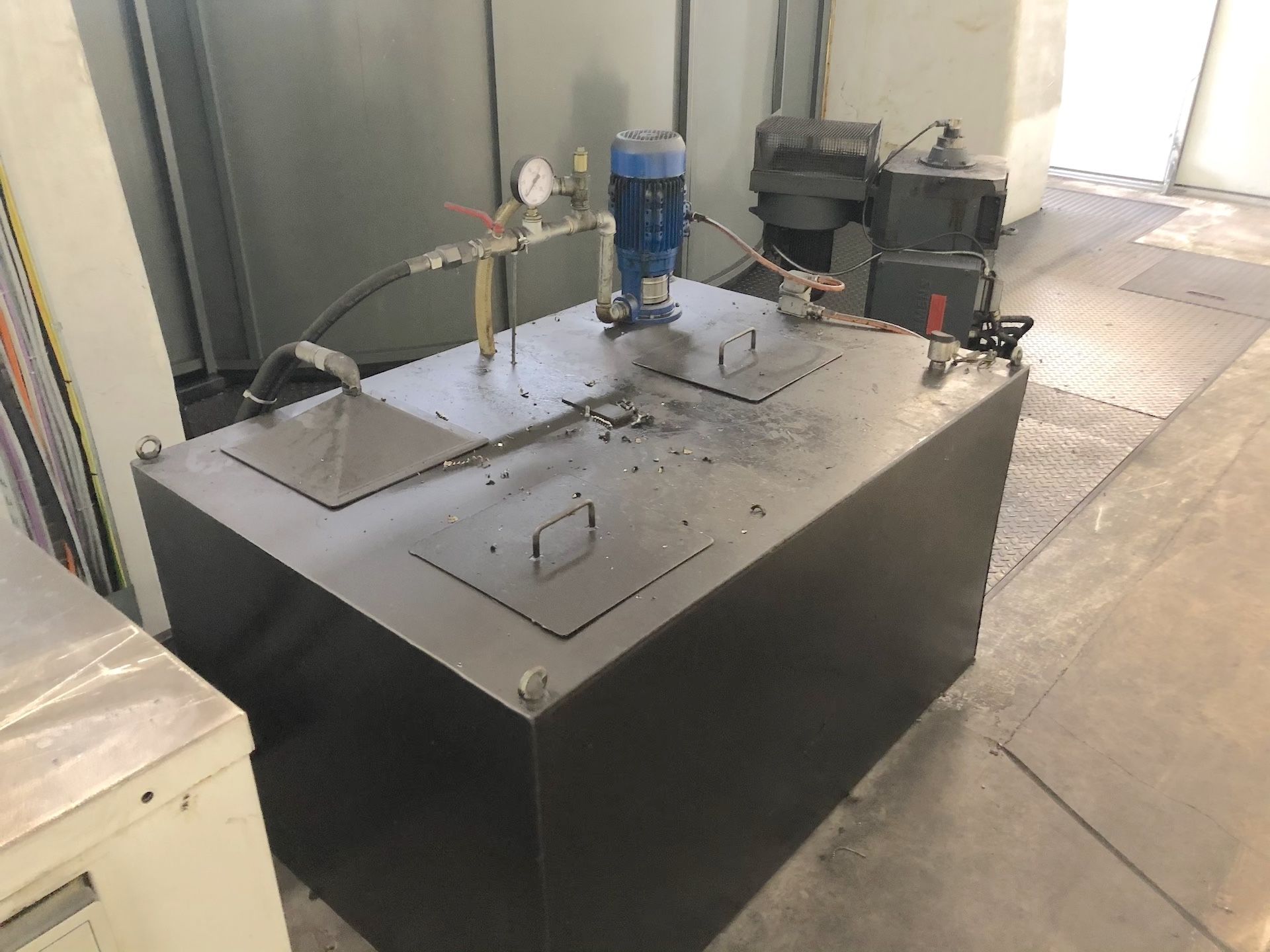

Coolant pump
si
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Protections
perimetrali
Accessorires included

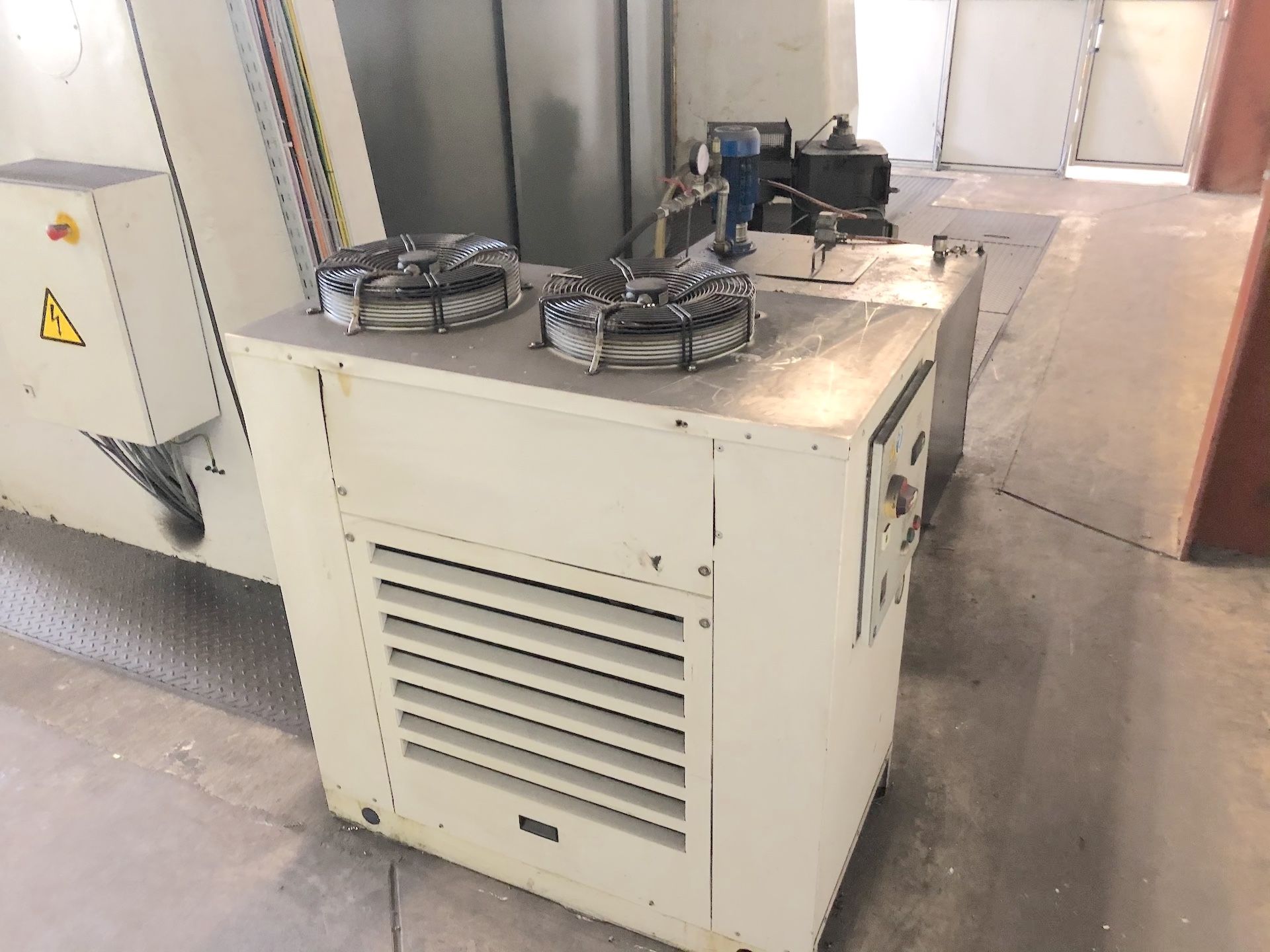

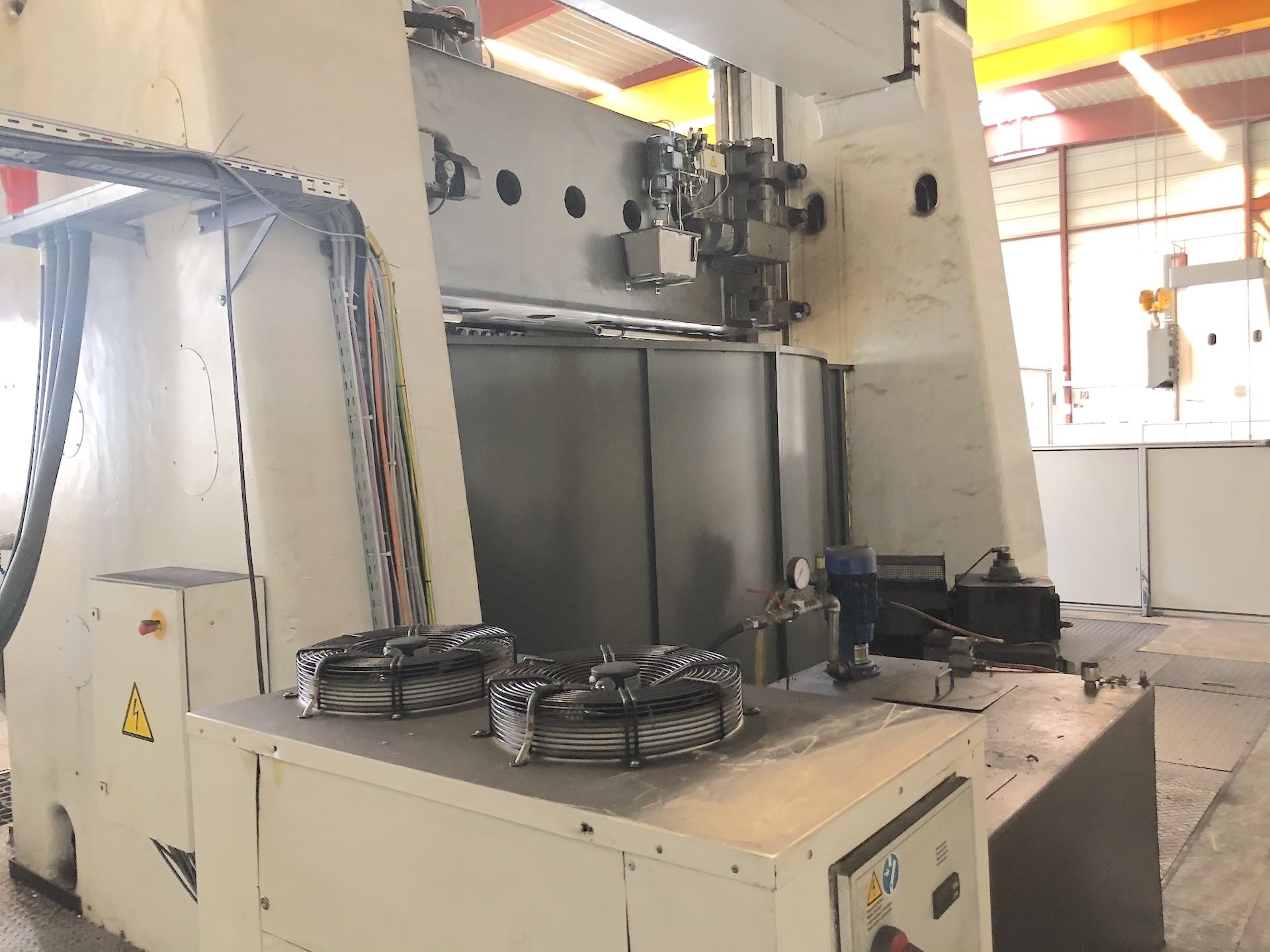

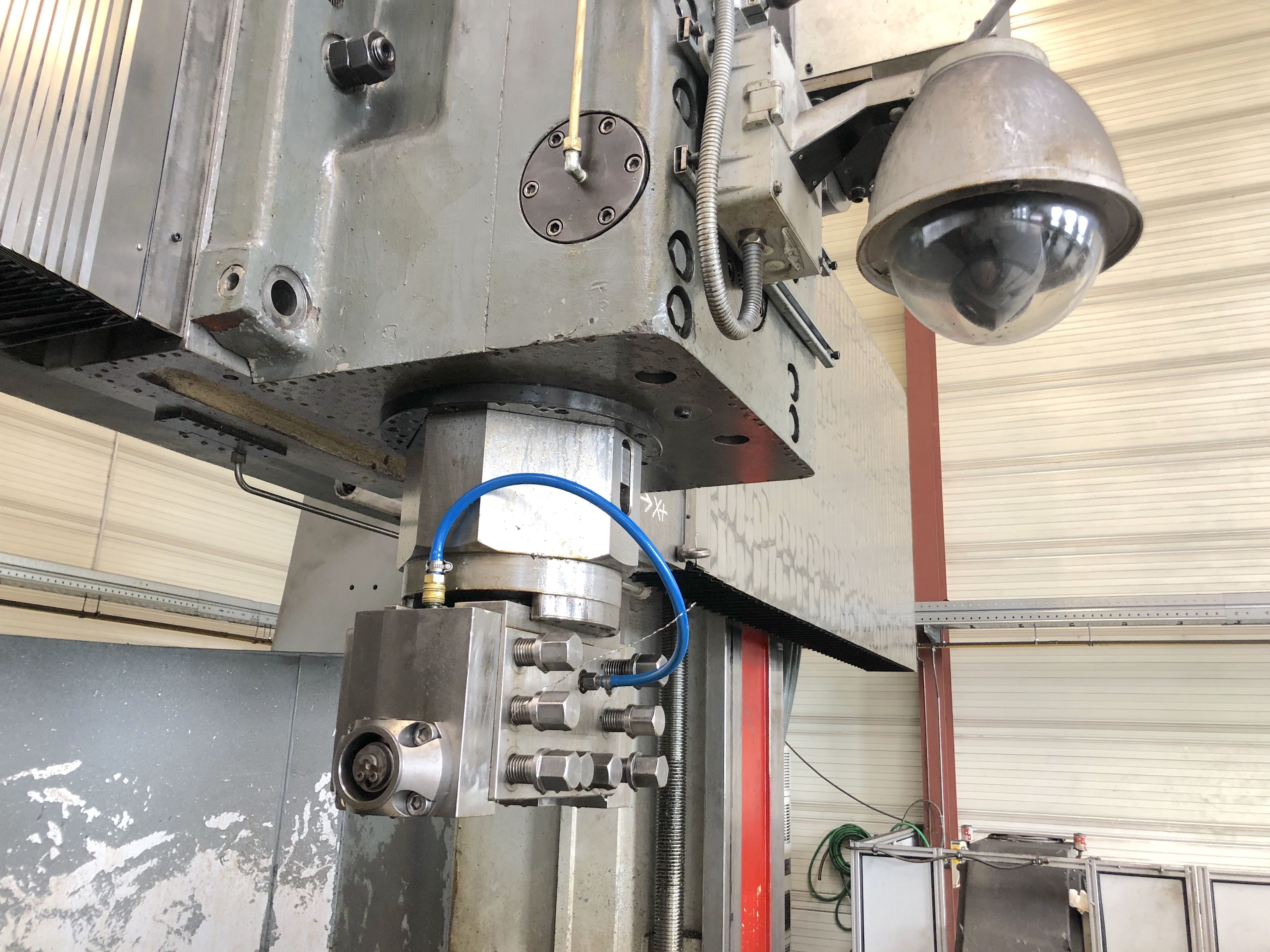

Frigorifero raffreddamento olio mandrino, Telecamera Dome per supervisione lavorazione
Relevant updates made on the machine
Revisione completa 2012, retrofitting completo 2012
Availability
pronta
