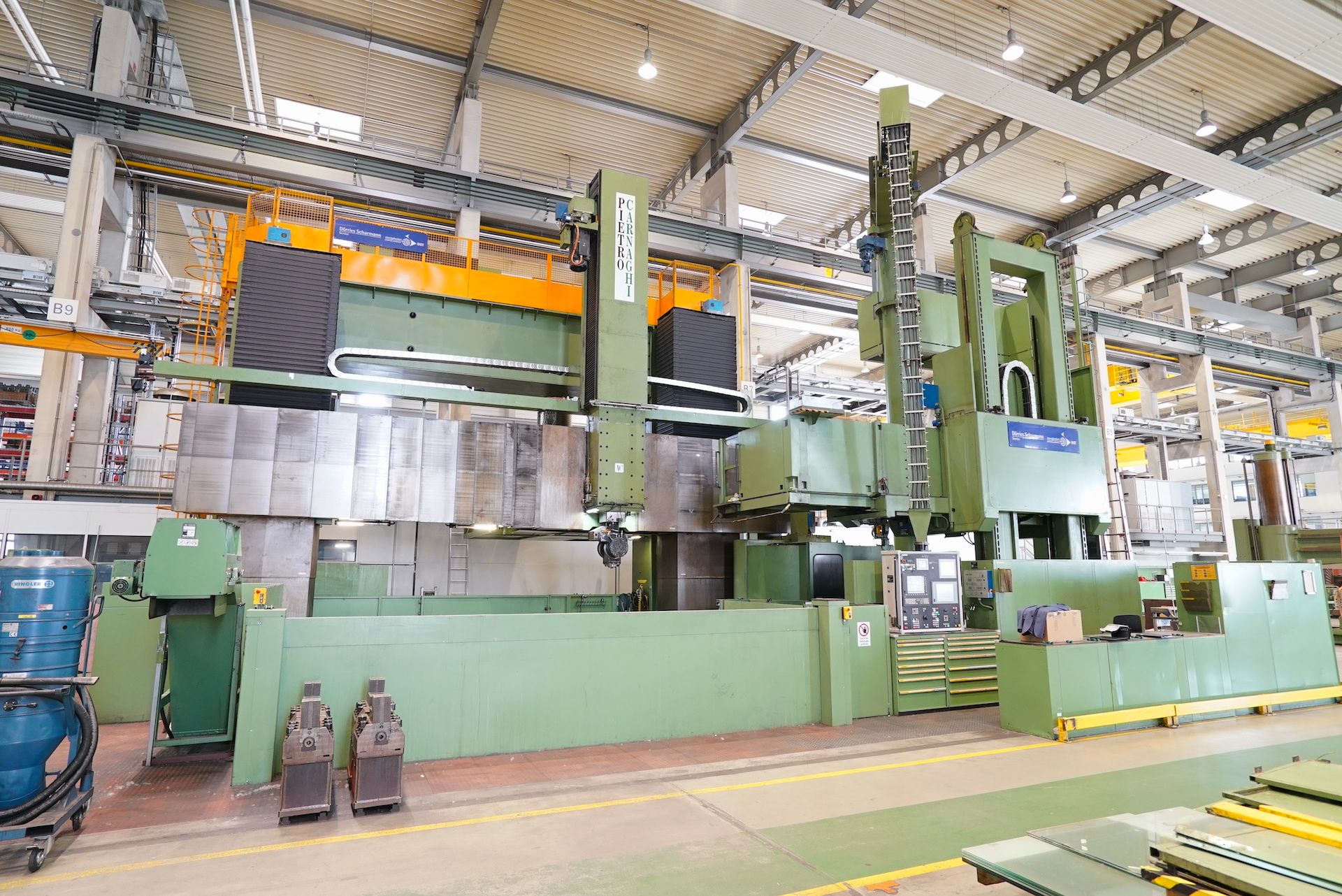

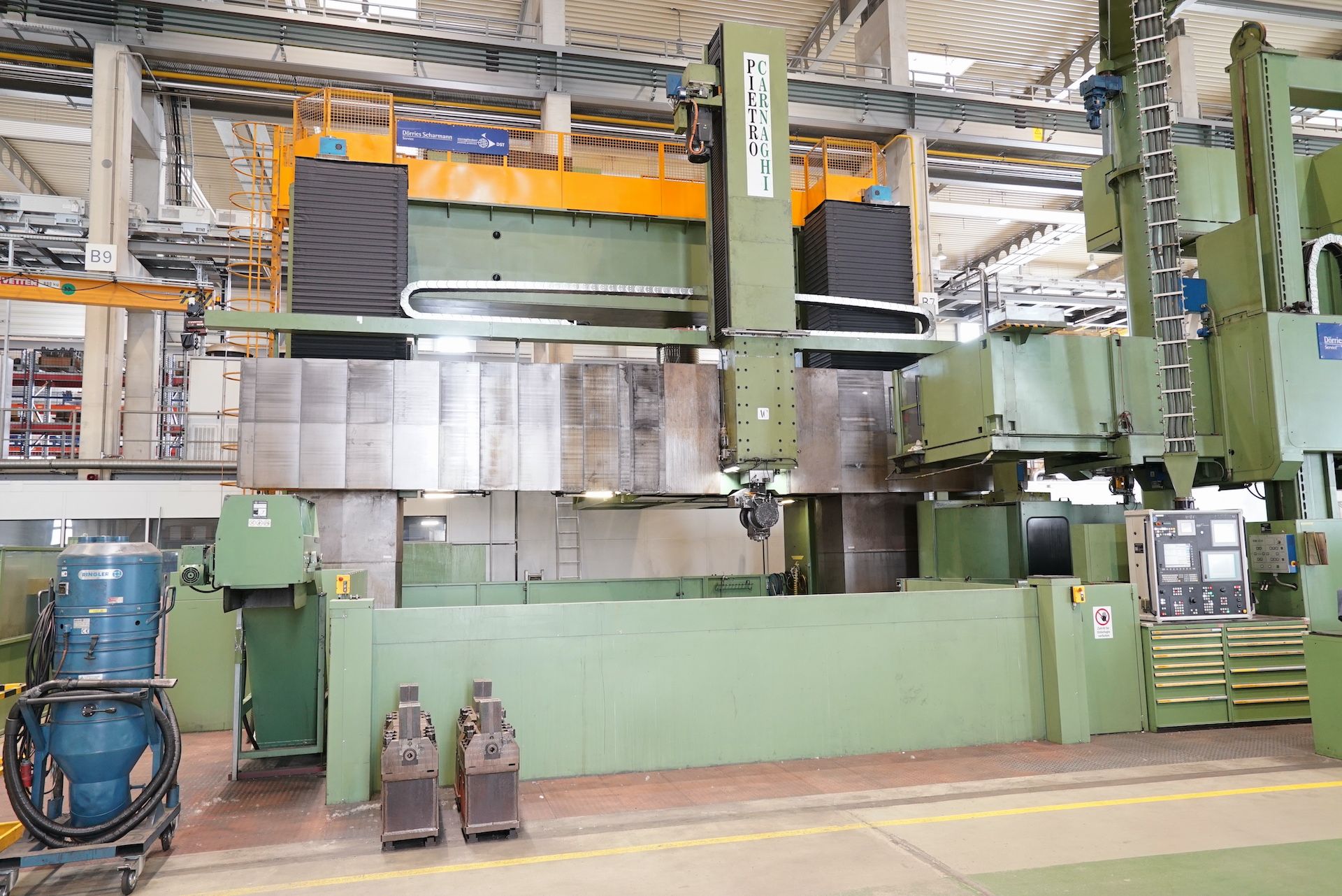

Category
Turning Machine
Type
Vertical
Made
Model
AC57TM
Capacity
ø5800x5000 mmø228,35x196,85 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Platform diameter
5000 mm196,85 in
Max workpiece diameter
5800 mm228,35 in
Max tuning diameter
5800 mm228,35 in
Max turning height
5000 mm196,85 in
Max workpiece weight
100 Kg

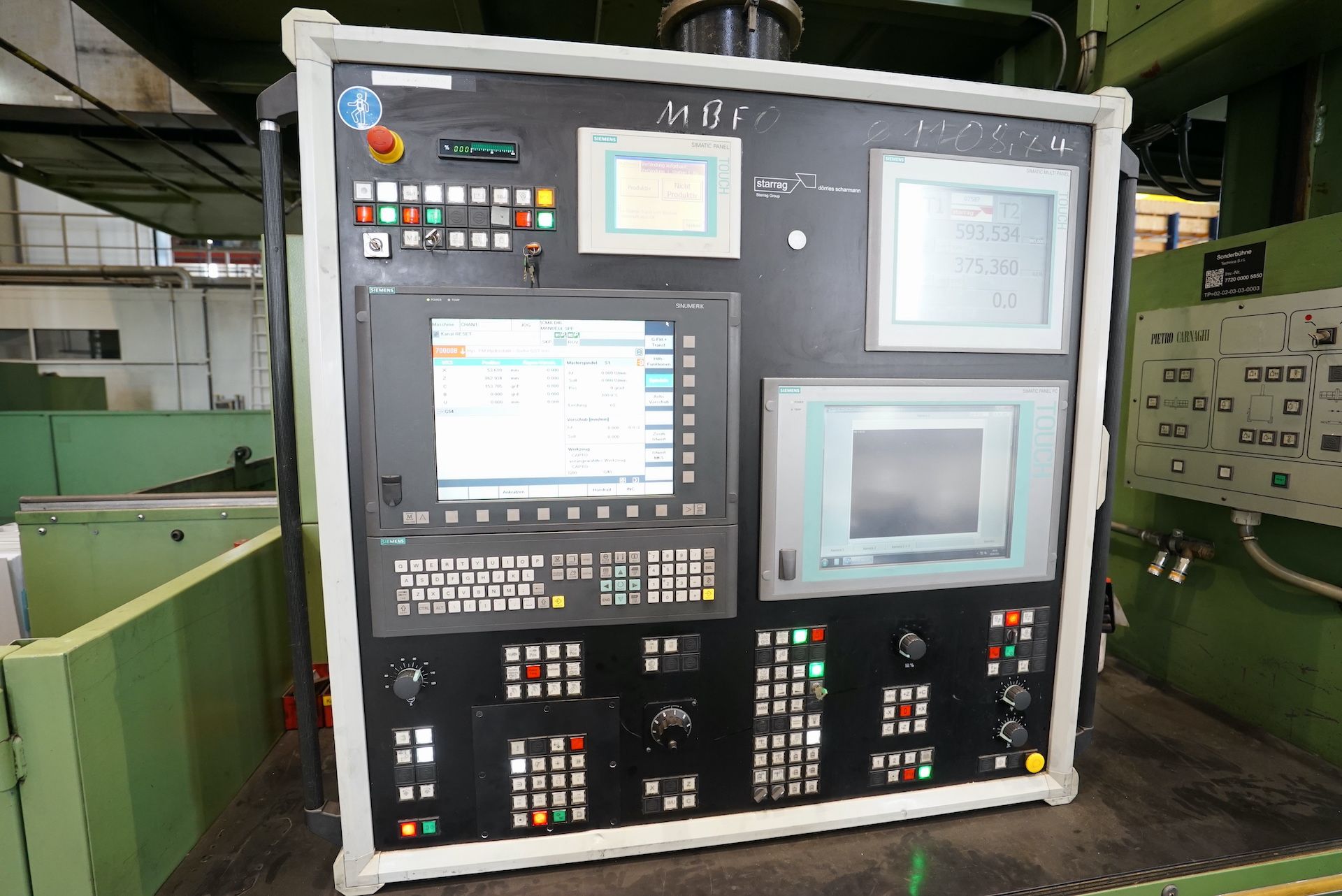

CNC
CNC
SIEMENS 840DSL
MAIN SPINDLE

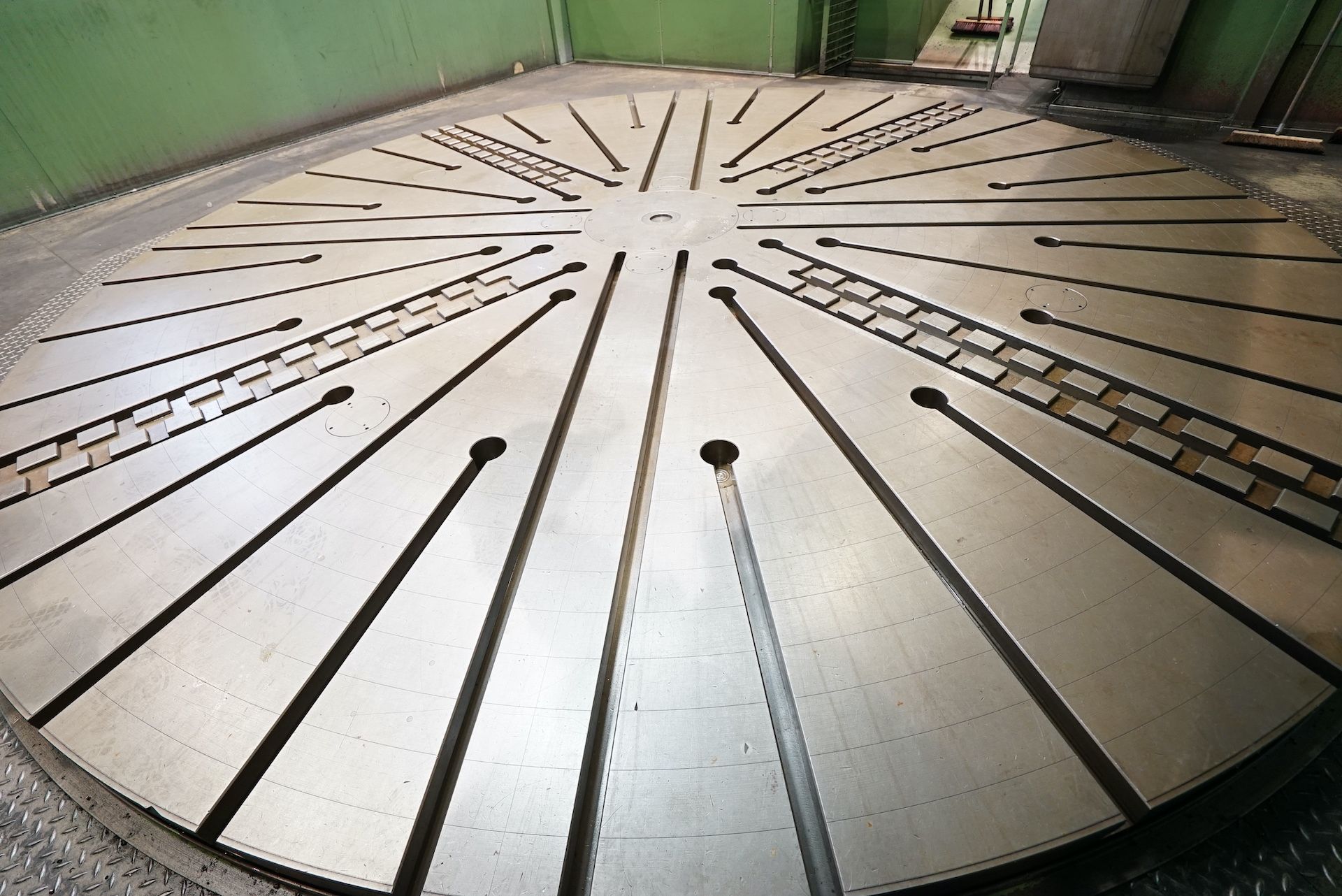

Platform diameter
5000 mm196,85 in
Max rotation speed
0,2-76 rpm
Capacity
100.000 Kg
Max power
100 Kw
Max torque
95000 Nm
Accuracy (C axis)
0,001 °
C axis speed
0,1-11 Rpm
CROSSRAIL
Vertical stroke (W)
3600 mm141,73 in
CARRIAGE
Vertical stroke (Z)
2500 mm98,43 in
Cross stroke (X)
6120 (+/- 3060) mm240,94 (+/- 120,47) in
Milling spindle power
37 Kw
Milling spindle speed
2000 Rpm
Milling spindle torque
1220 Nm
Tool taper
SK50

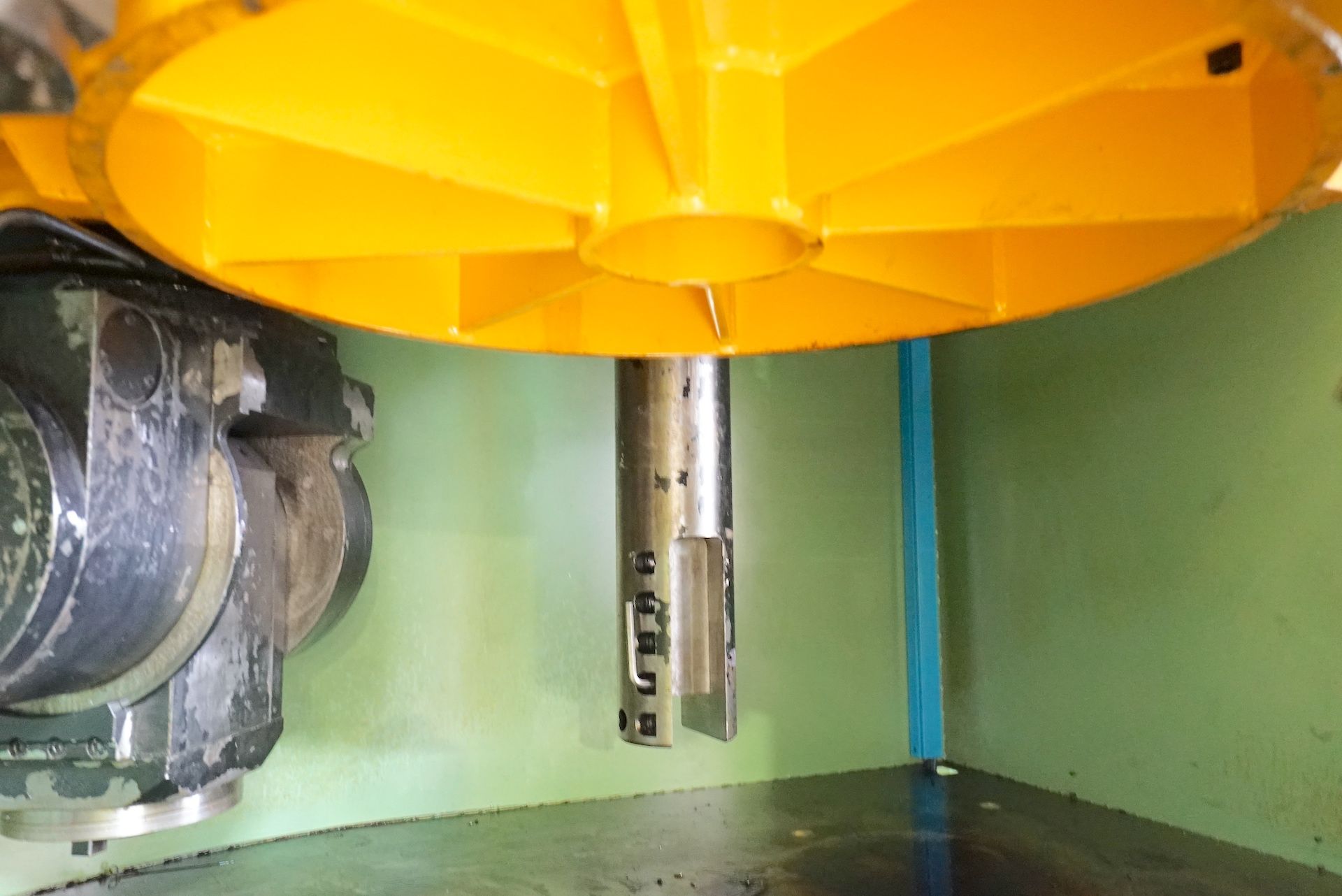

ATC
Positions
12
Max tool lenght
700 mm27,56 in
Max tool weight
150 Kg
PICK-UP STATION FOR HEAD CHANGE
Stations number
2

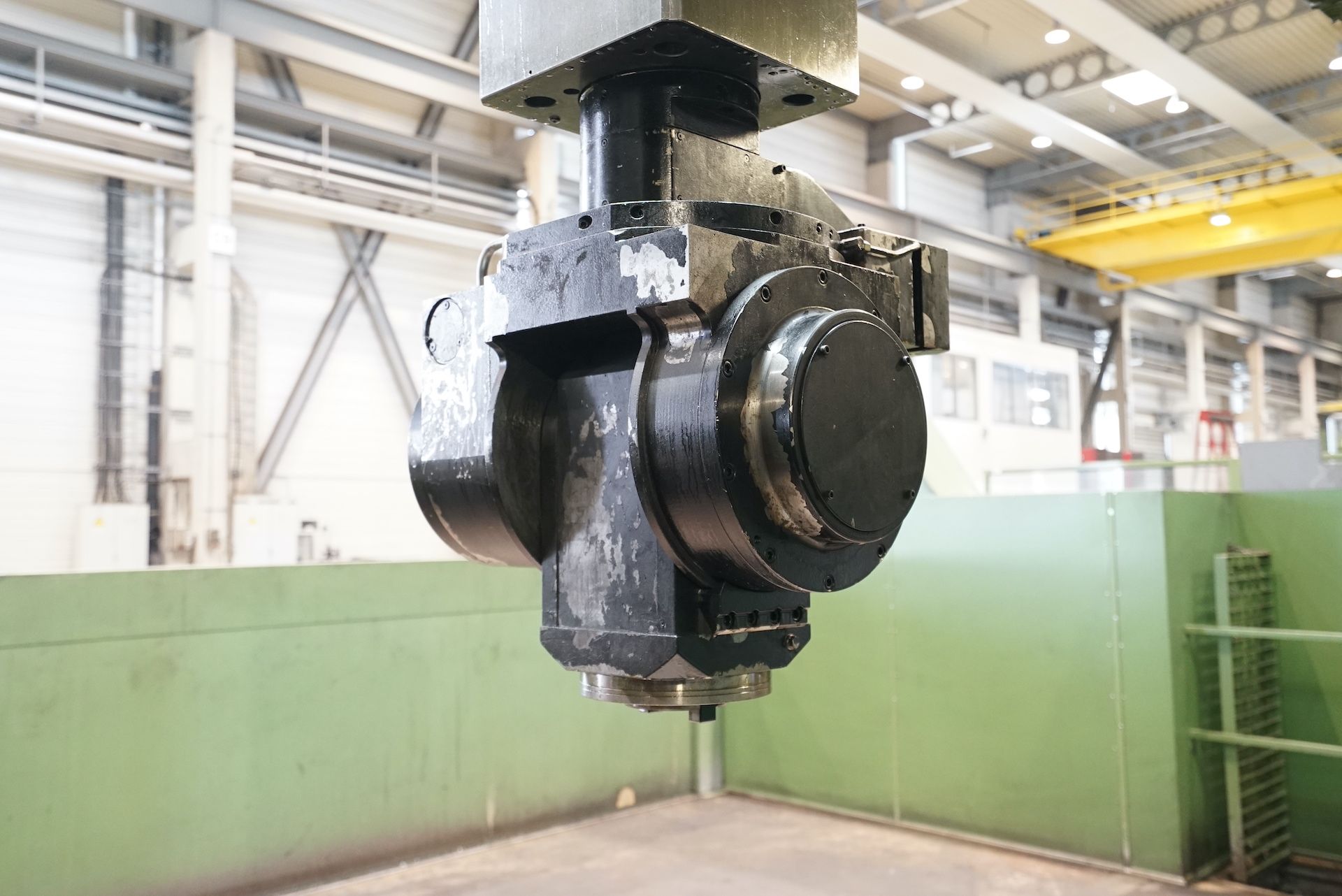

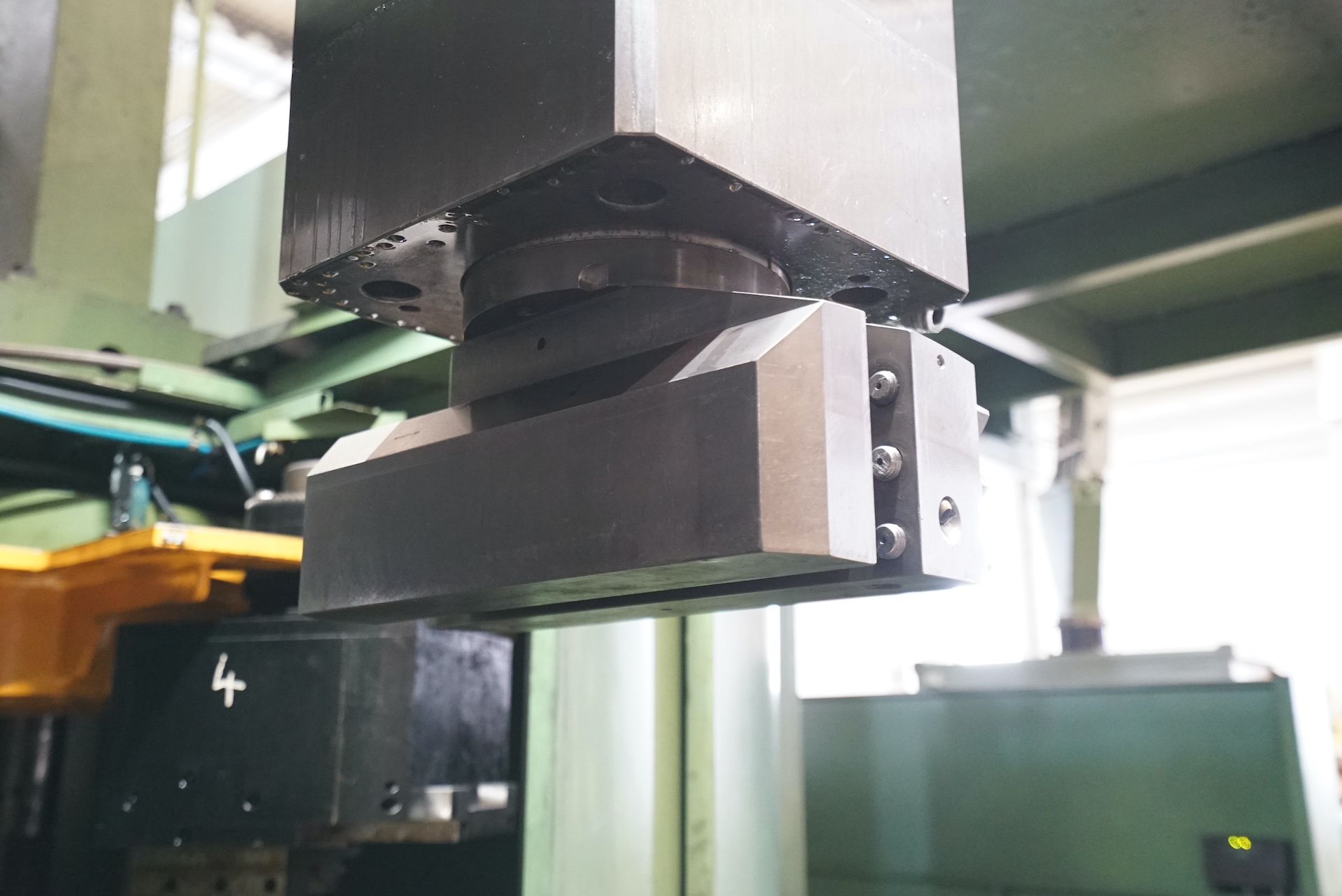

Milling head attachments included

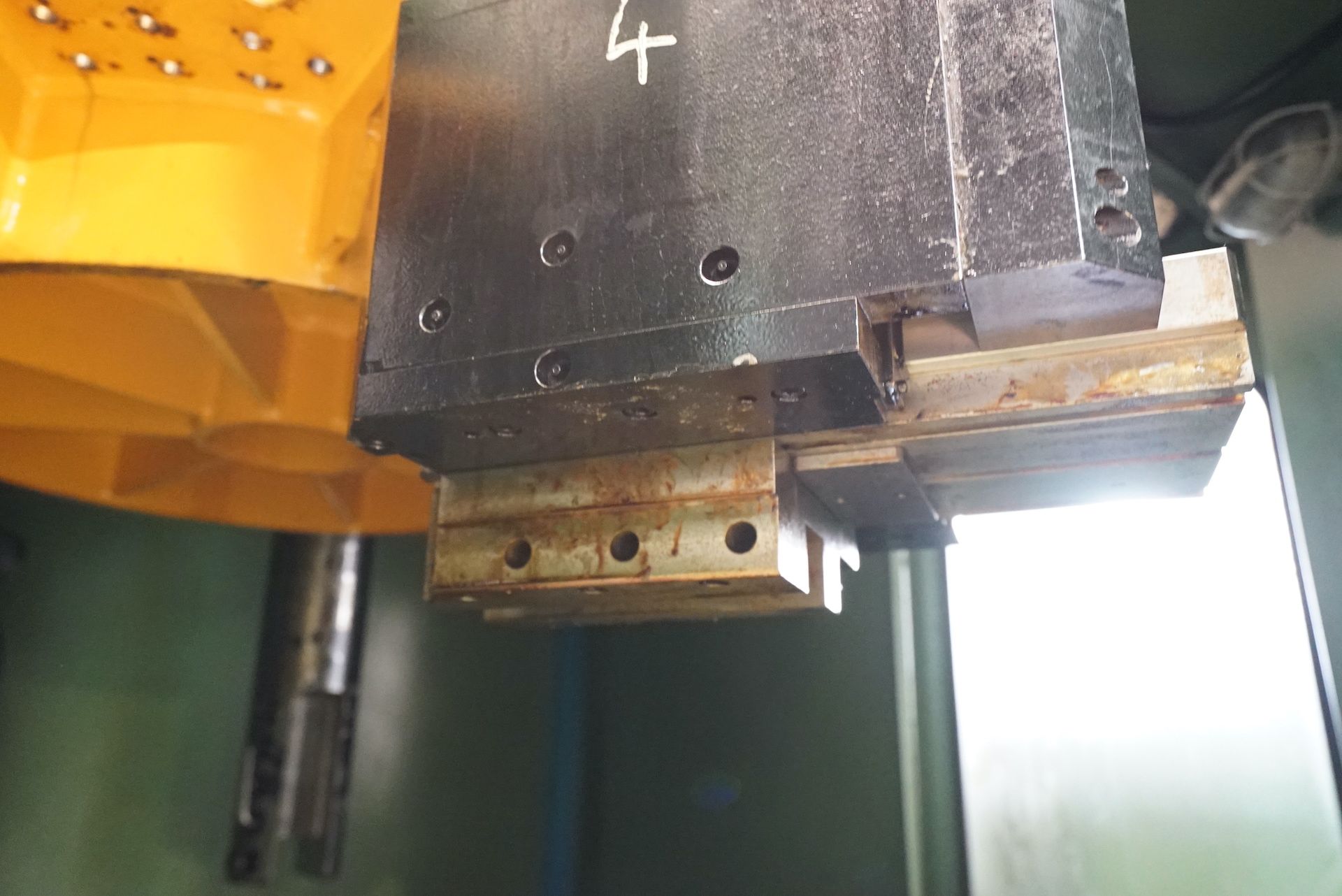

Testa universale M158
EXTRA

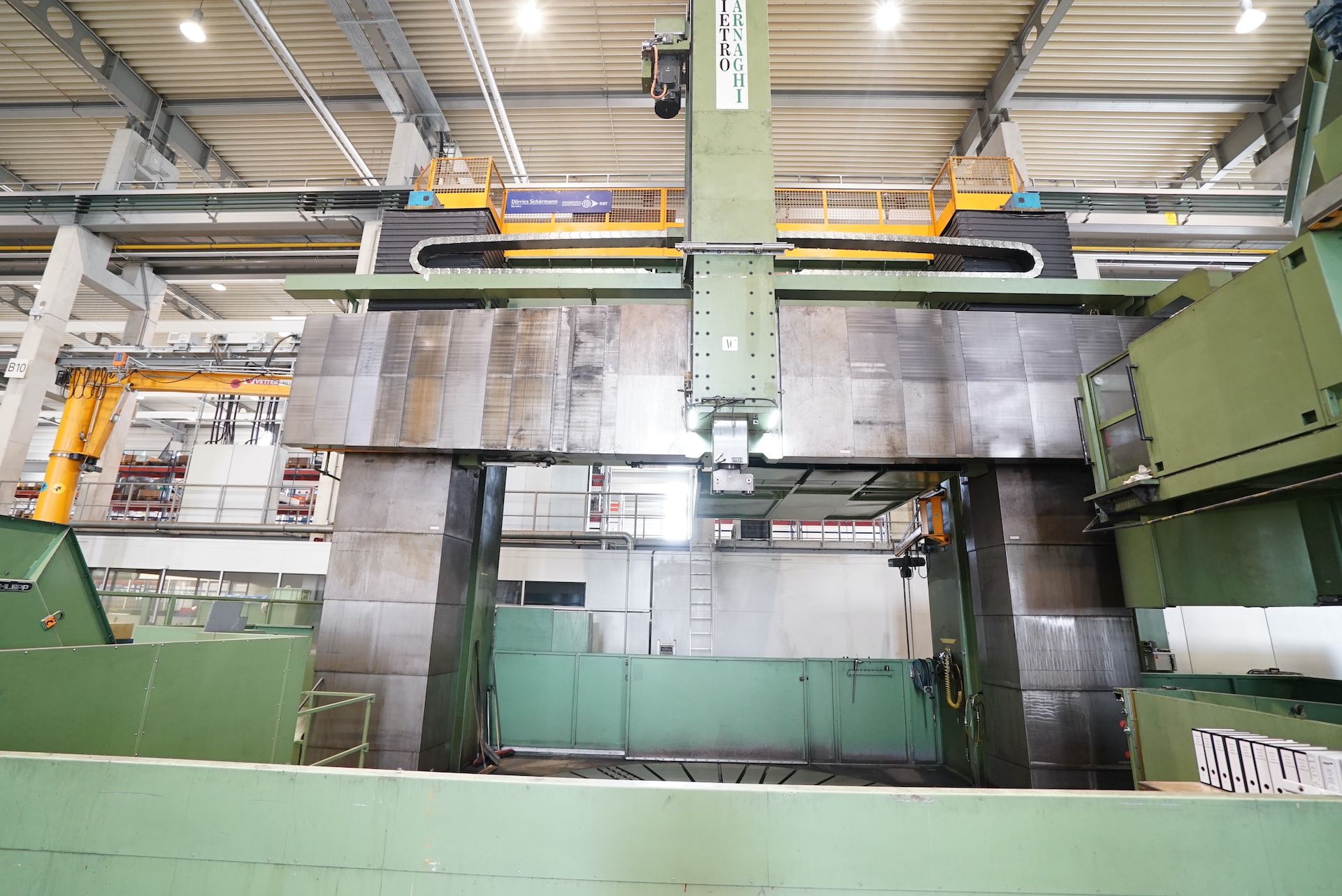

Double column
Yes
Mobile traverse
Yes
Machine total weight
120.000 Kg
