Category
Turning Machine
Type
Vertical
Made
Model
AC20 TM/P
Capacity
ø2000x1900 mmø78,74x74,80 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Platform diameter
1800 mm70,87 in
Max workpiece diameter
2250 mm88,58 in
Max tuning diameter
2000 mm78,74 in
Max turning height
1900 mm74,80 in
Max workpiece weight
8000 Kg
CNC
CNC

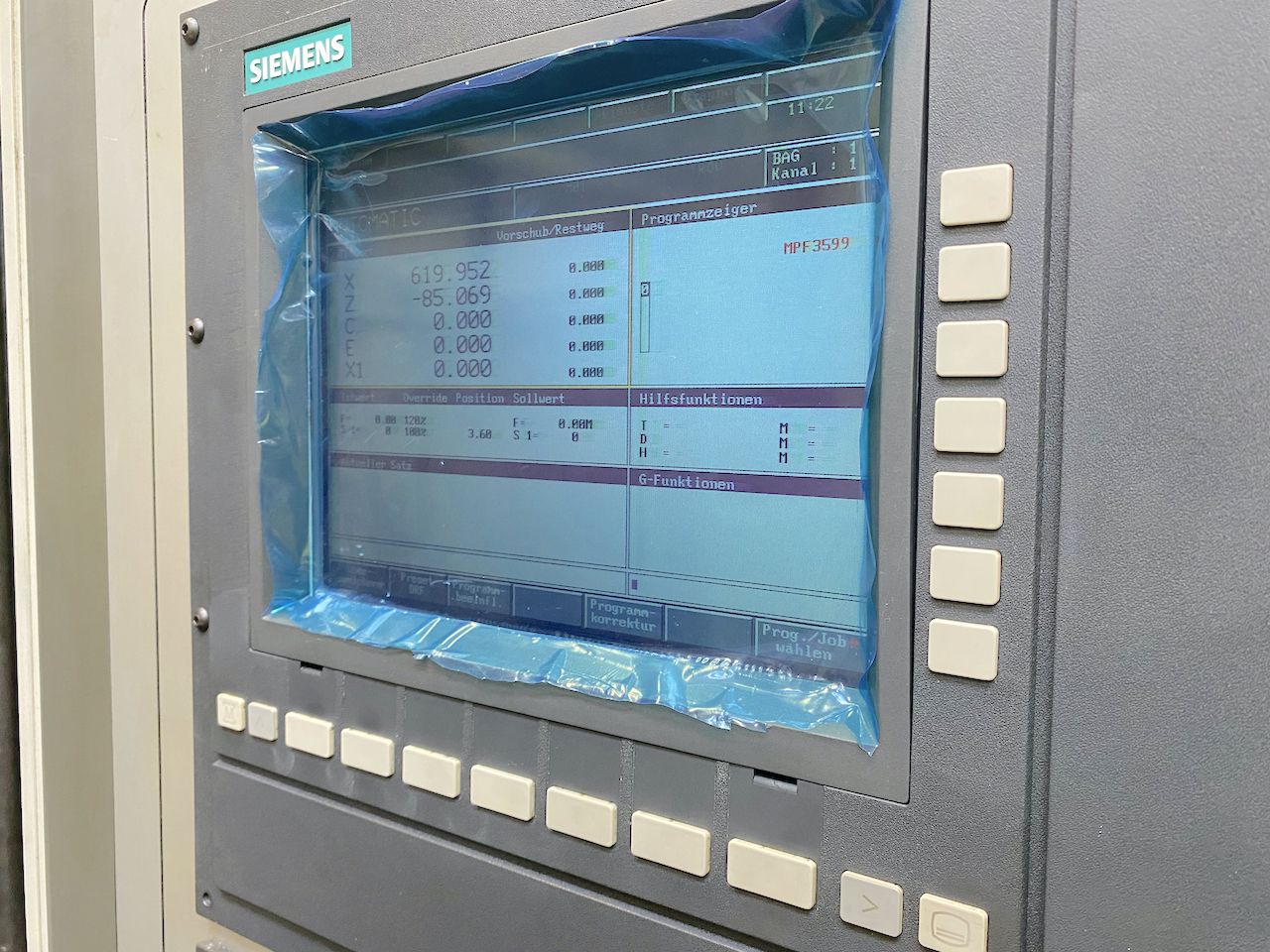

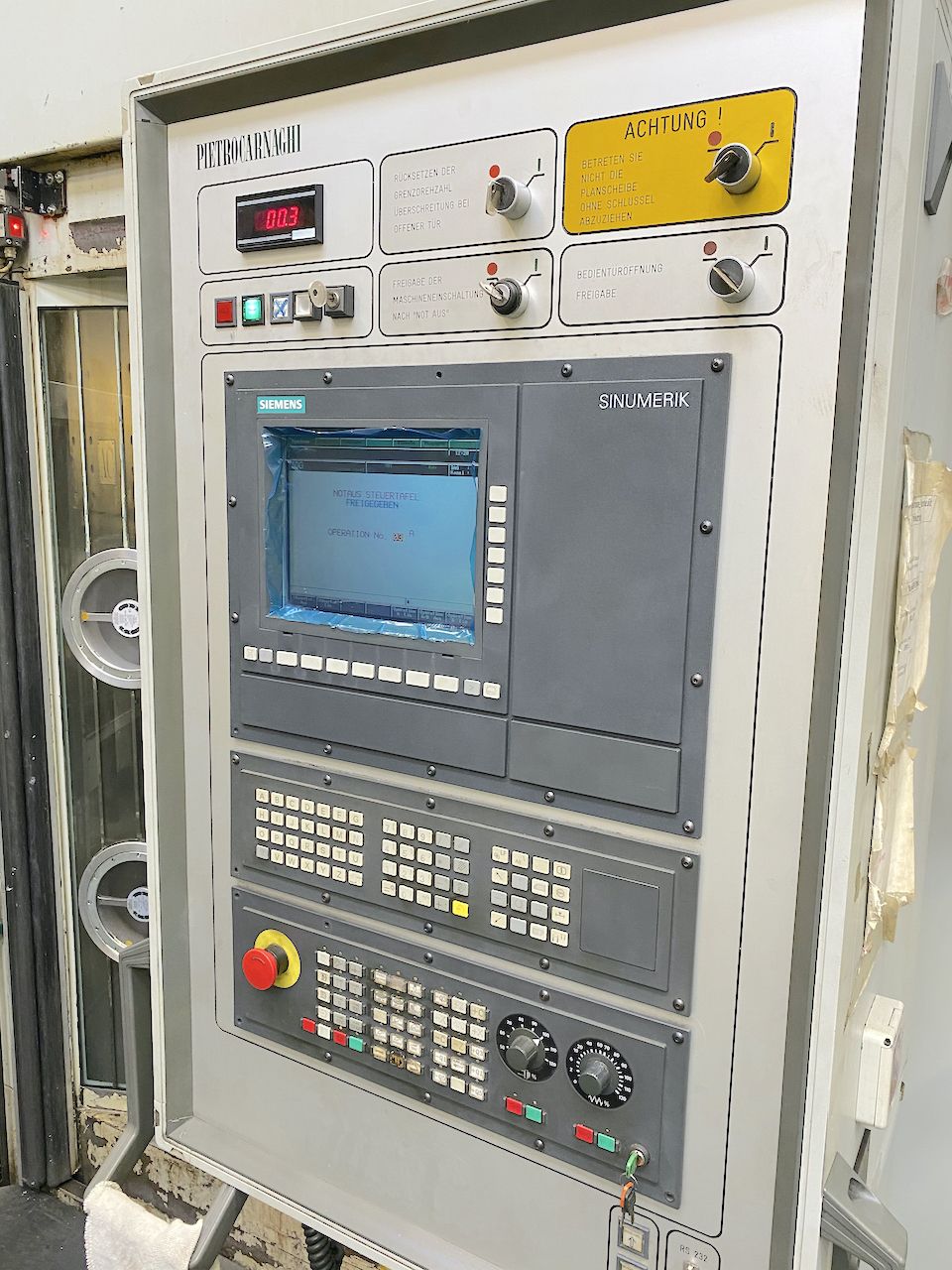

Siemens 840
MAIN SPINDLE

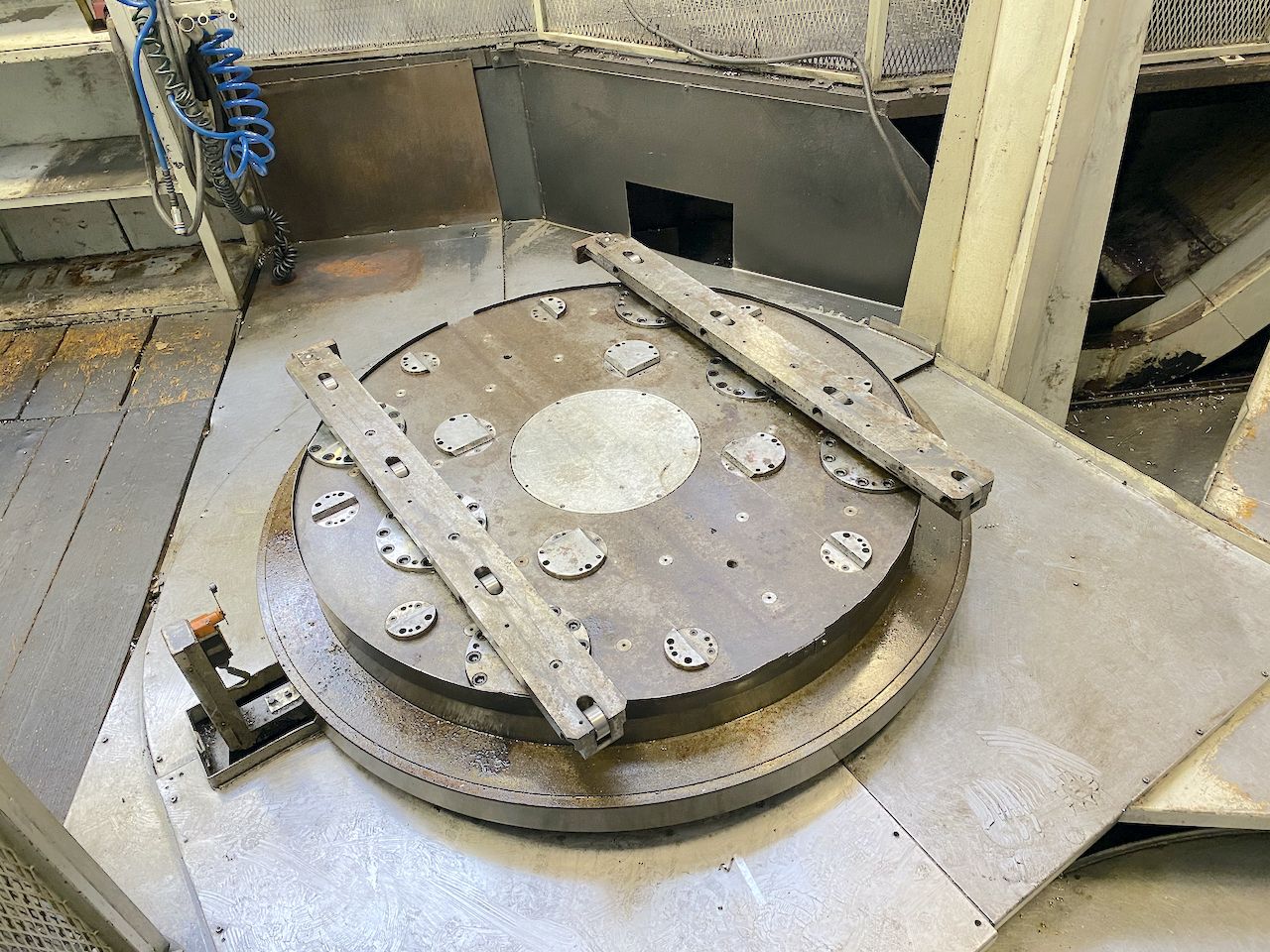

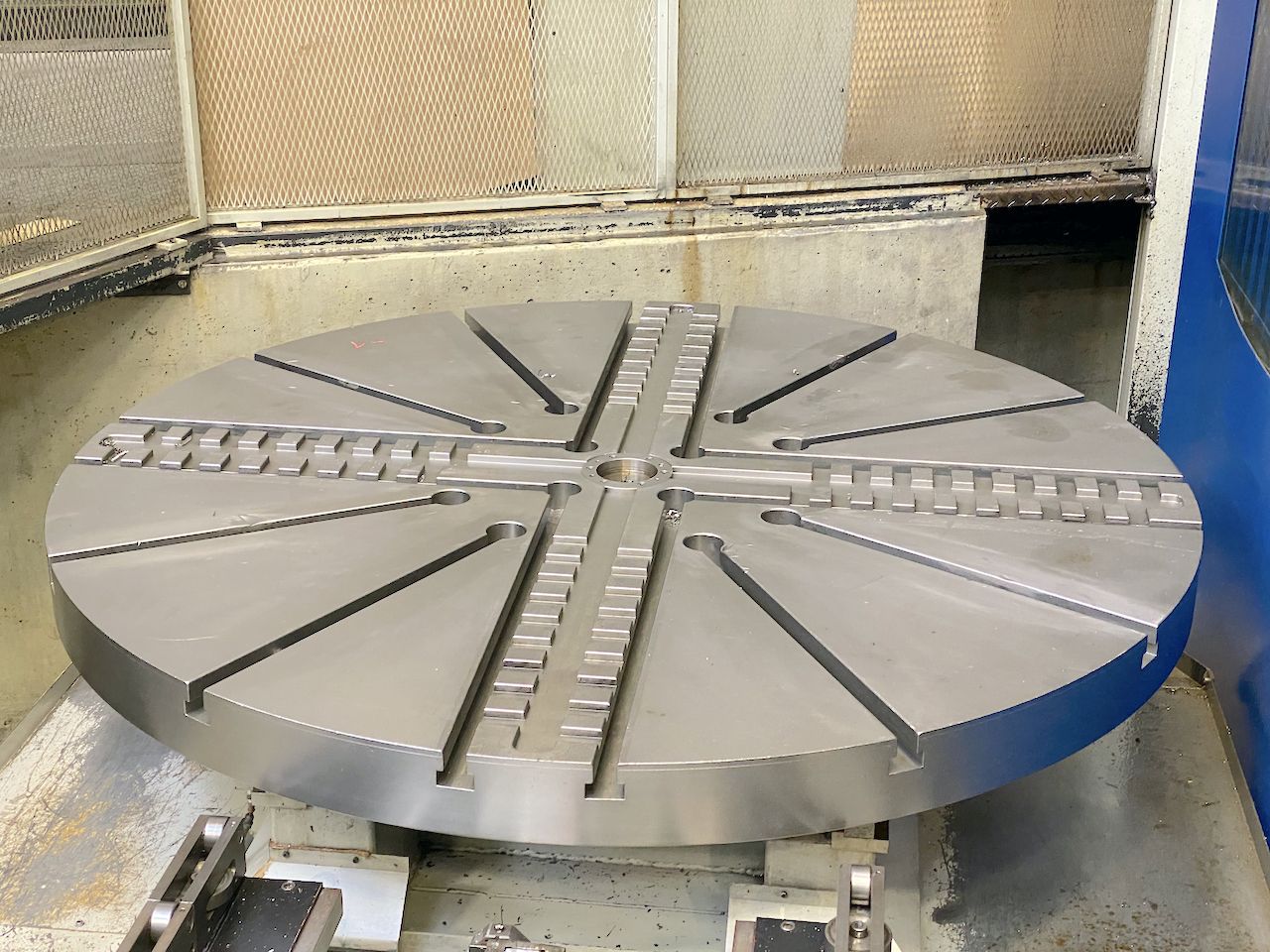

Platform diameter
1800 mm70,87 in
Max rotation speed
(Pallet 1600mm) 2-440 rpm
Max power
74/100 Kw
Max torque
34750 Nm
Accuracy (C axis)
0,001 °
Capacity
20000 (Pallet 8000Kg) Kg

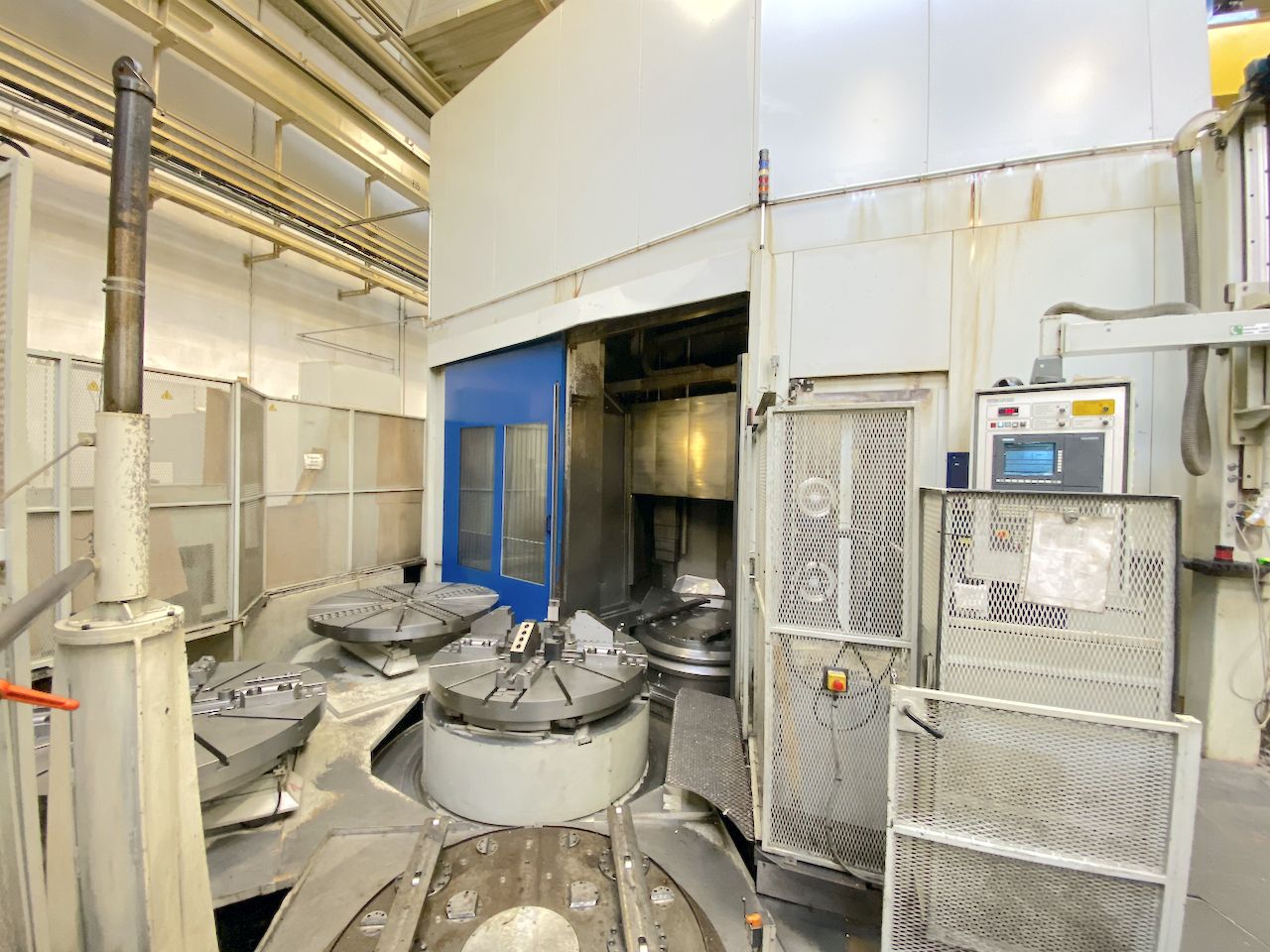

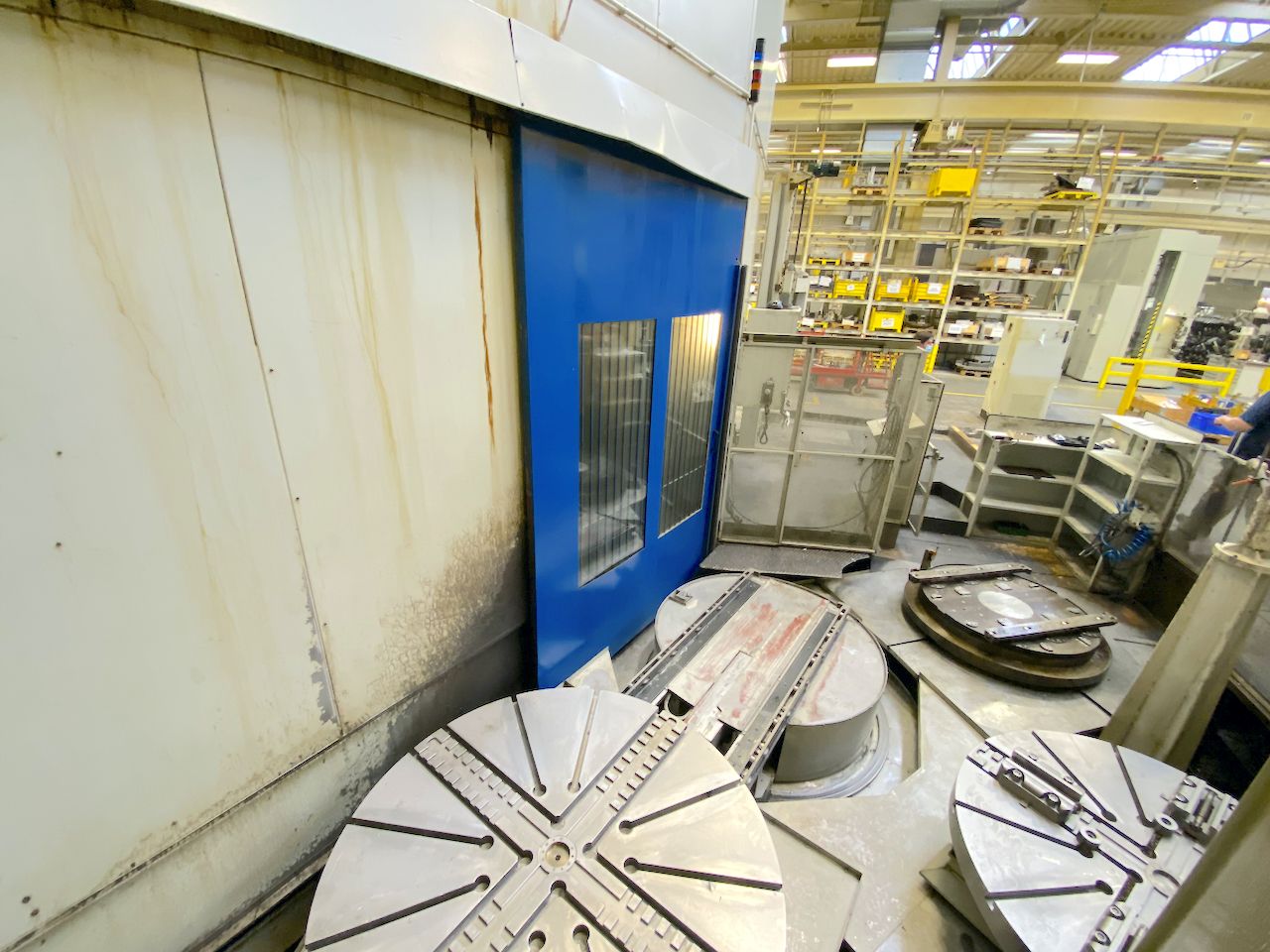

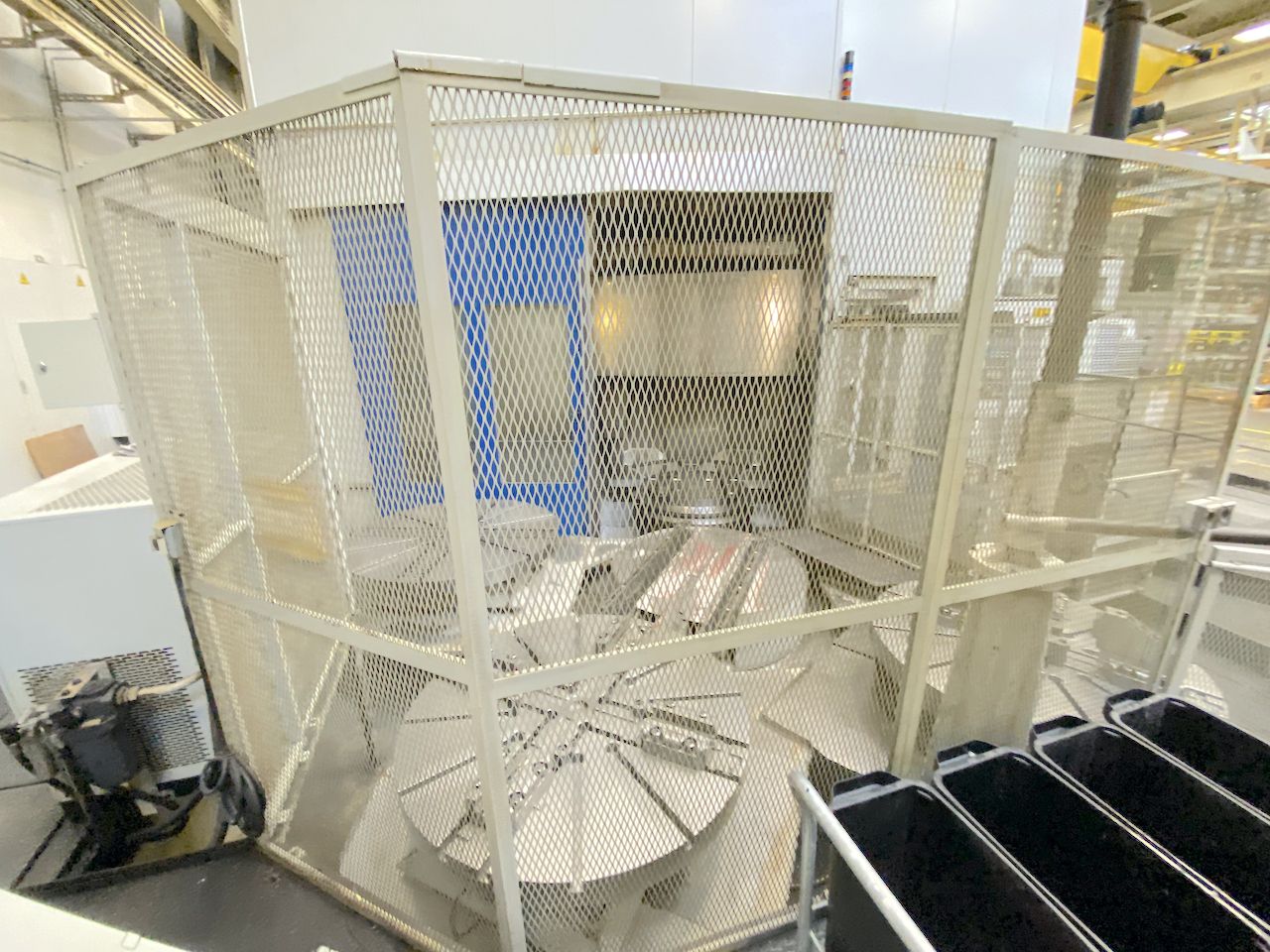

AUTO PALLET CHANGER (APC)
Pallet number
3 (1x1800mm + 2x1600mm)
Max weight on pallet
8000 Kg
CROSSRAIL
Vertical stroke (W)
(12x100mm)1200 mm(0,47x3,94mm)47,24 in
CARRIAGE
Vertical stroke (Z)
1500 mm59,06 in
Cross stroke (X)
-1400/+2045 mm-55,12/+80,51 in
Milling spindle power
31 Kw
Milling spindle speed
3000 Rpm
Milling spindle torque
1000 Nm
RAM section
250x250 mm9,84x9,84 in
Support
Hydrostatic
Working feeds (Z)
16 m/min629,92 ipm
Working feeds (X)
16 m/min629,92 ipm

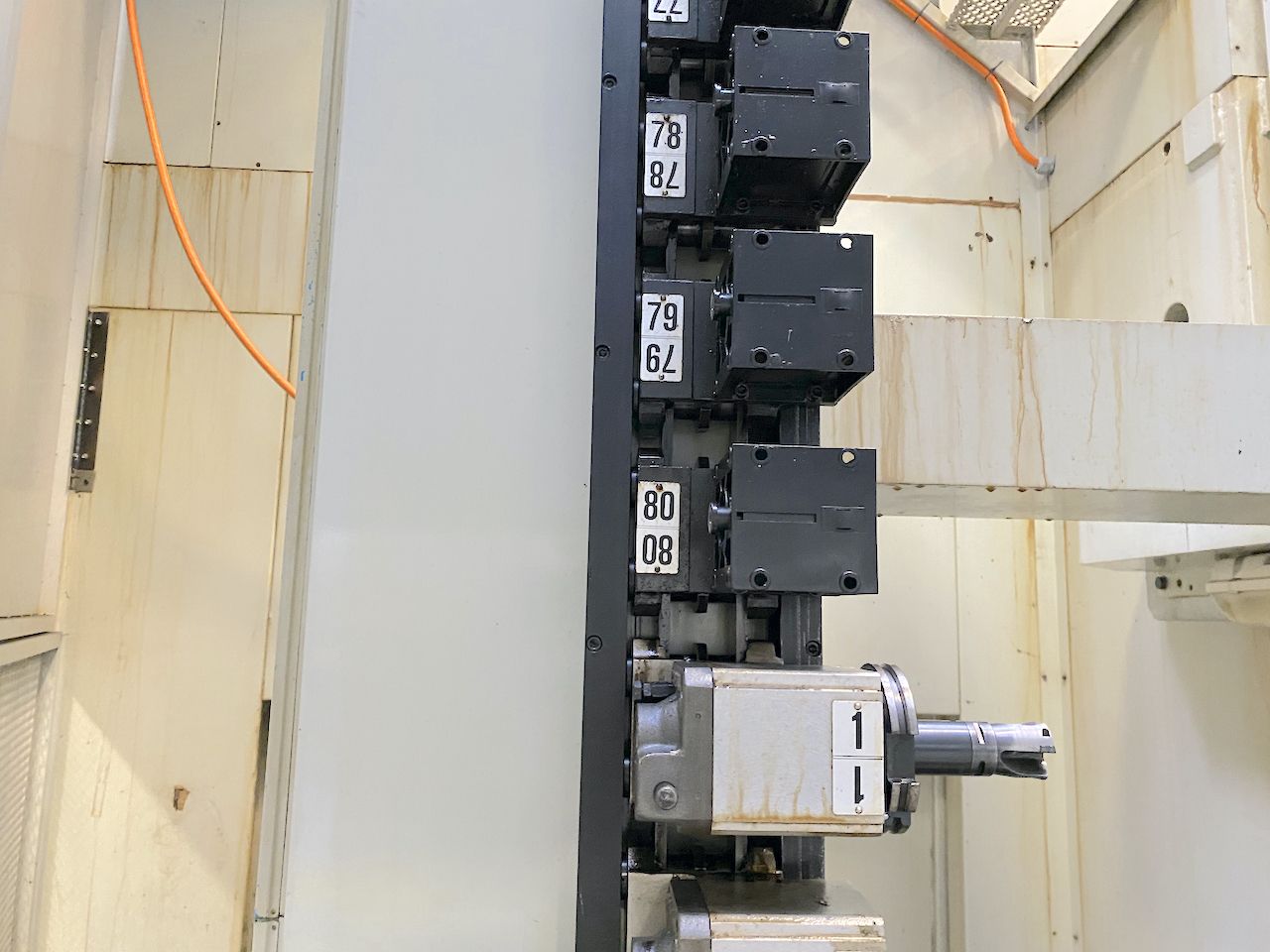

ATC
Positions
80
Max tool lenght
500 mm19,69 in
Max tool weight
30 Kg
Tool taper
30x SK50 + 50x Capto C6

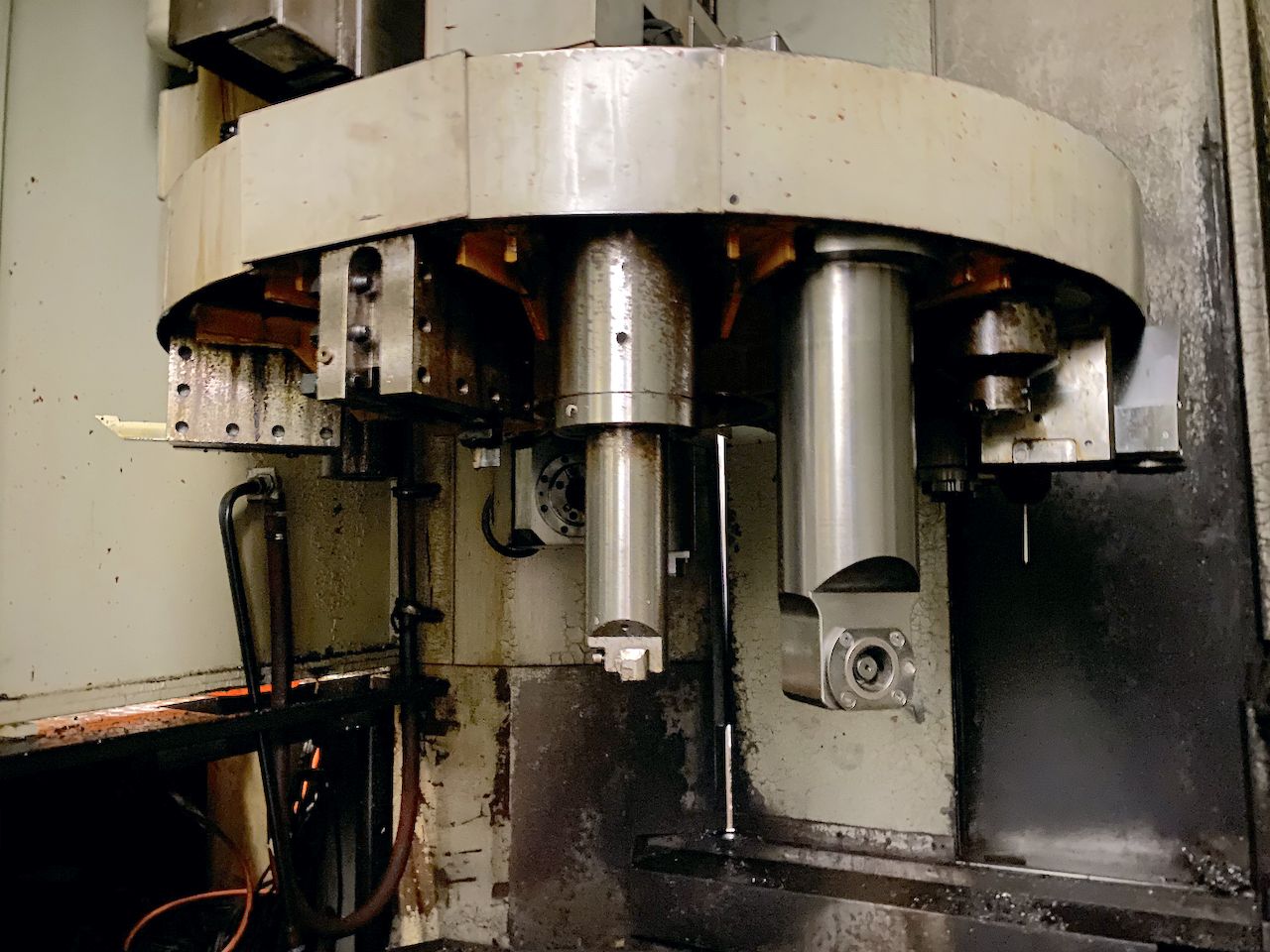

PICK-UP STATION FOR HEAD CHANGE
Stations number
12
Turning head attachments included
2
Milling head attachments included
2
Touch probe
1
EXTRA
Mobile traverse
Yes
Machine total weight
51000 Kg

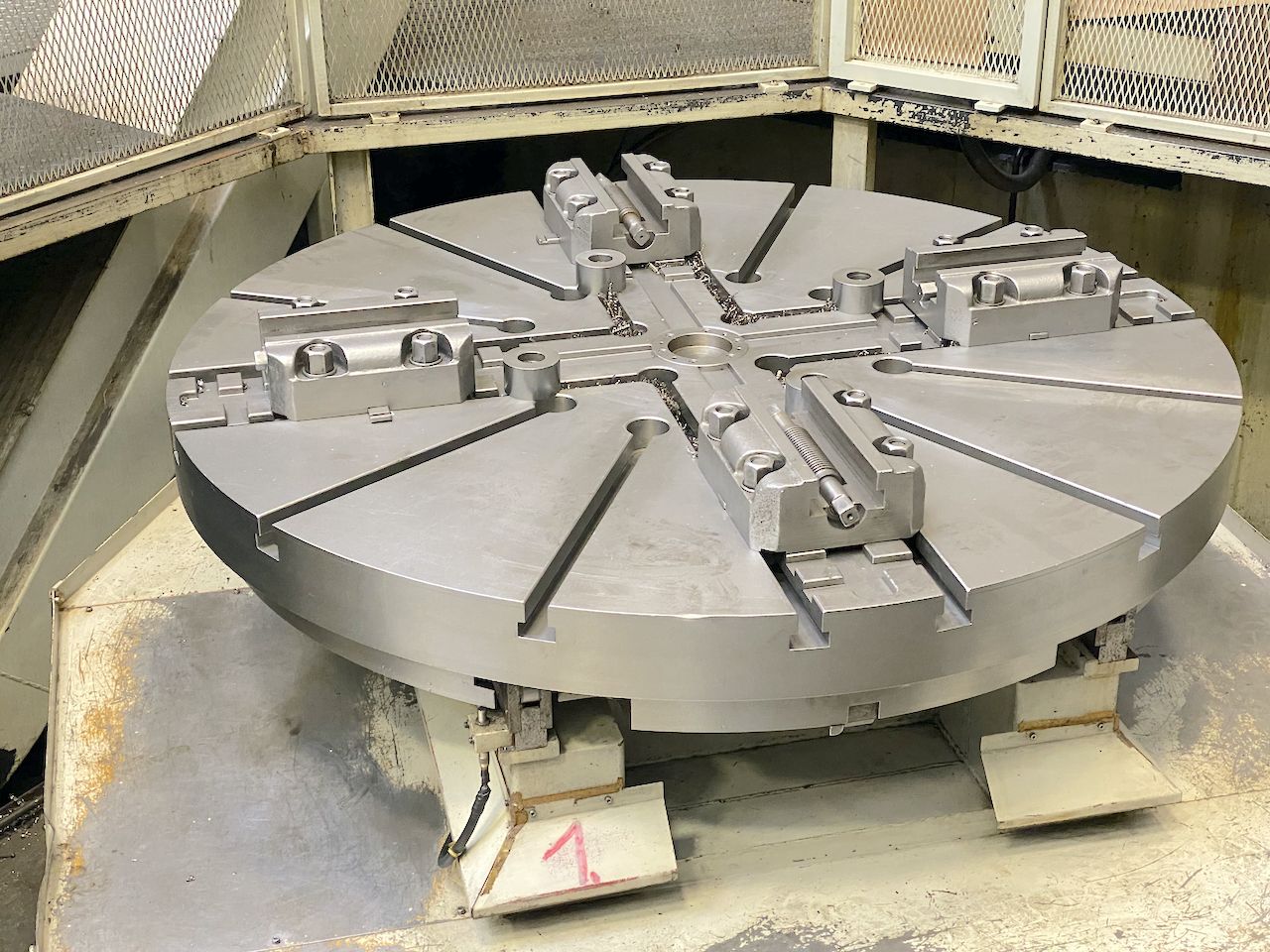

Platform
2x1600m, 1x1800mm

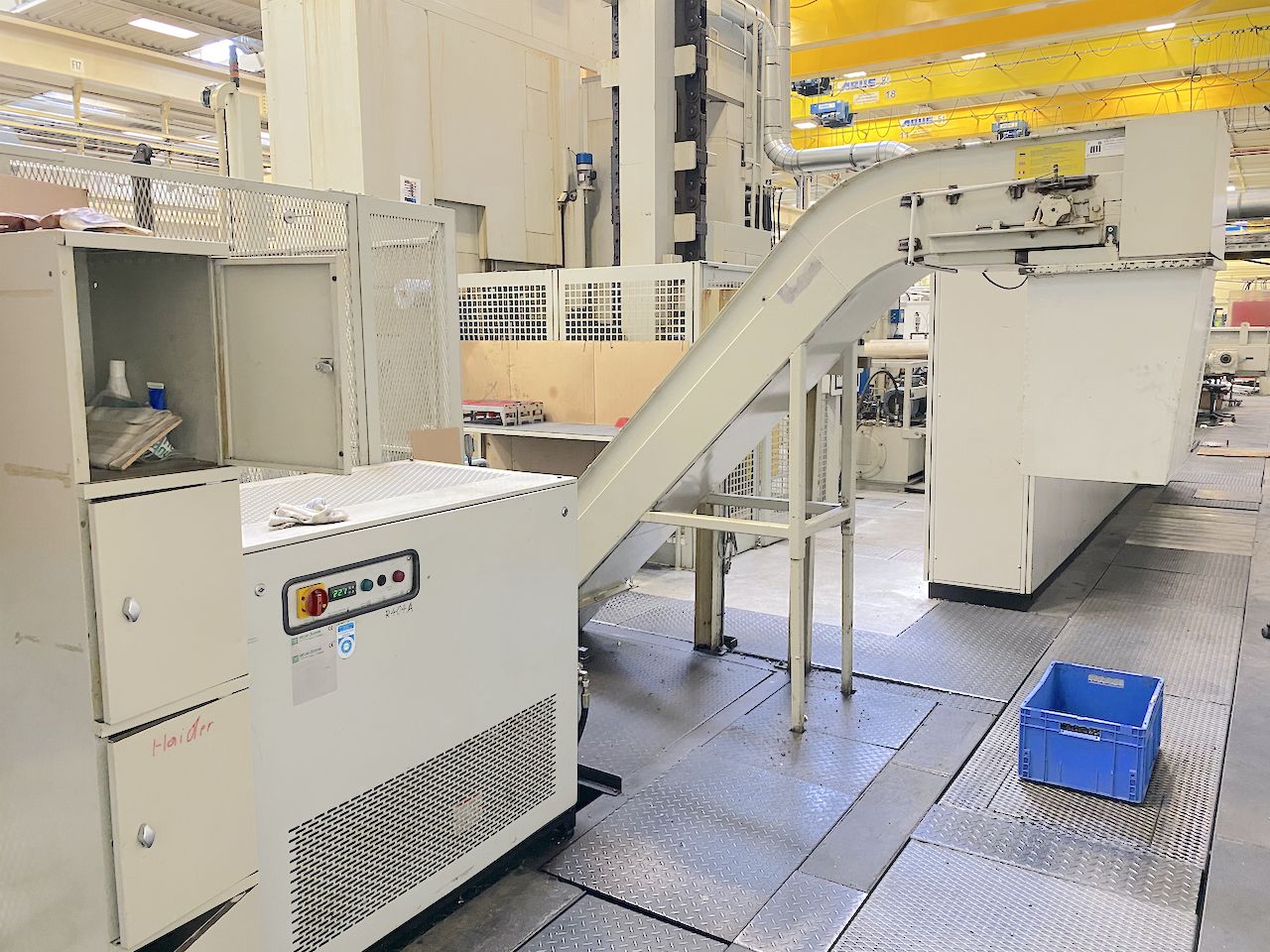

Chip conveyor
Doppio evacuatore truciolo
Workpiece touch probe
si
Coolant pump
si
Maintenance & Use books
Yes
Electrical drawings
Yes
Protections
integrali
Mist extractor
si
Availability
pronta
