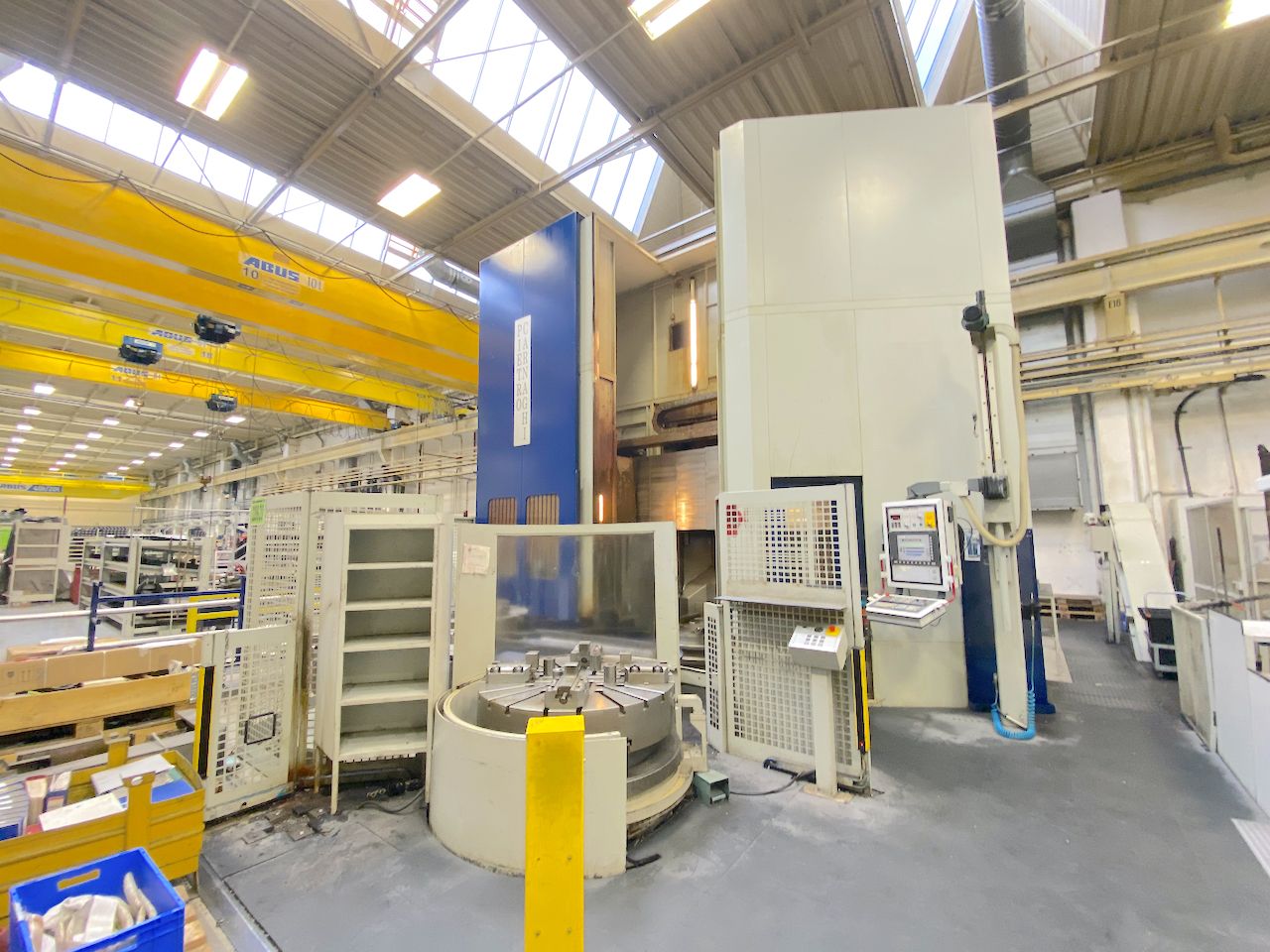

Category
Turning Machine
Type
Vertical
Made
Model
AC16 TMP
Capacity
ø1600x1500 mmø62,99x59,06 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Platform diameter
1250 mm49,21 in
Max workpiece diameter
1600 mm62,99 in
Max workpiece weight
12000/10000 Kg
Max tuning diameter
1600 mm62,99 in
CNC
CNC

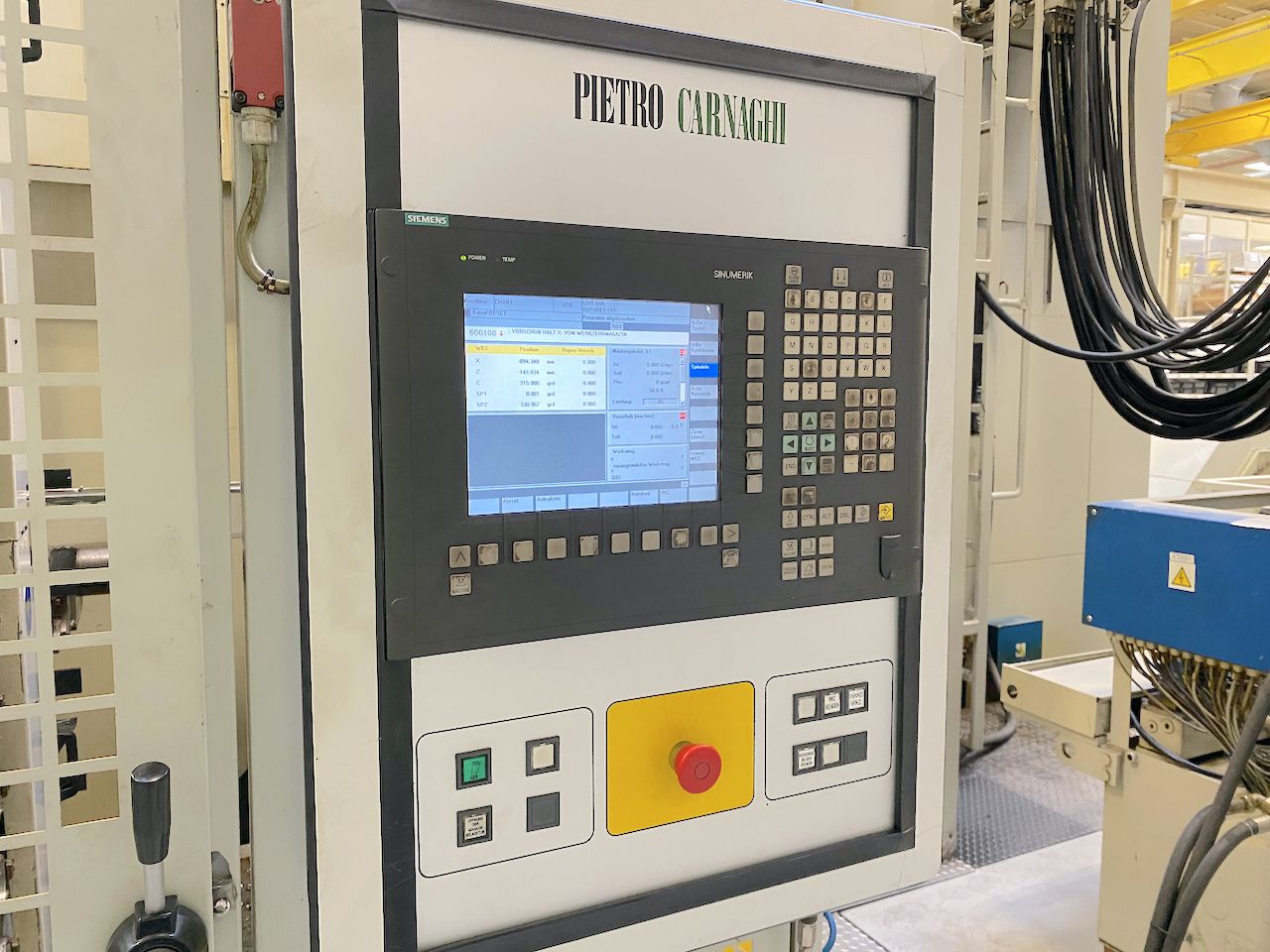

Siemens 840D
MAIN SPINDLE
Platform diameter
1250 mm49,21 in
Max rotation speed
440 rpm
Capacity
12000/10000 Kg
Max power
60 Kw
Max torque
20793 Nm
Accuracy (C axis)
0,001 °

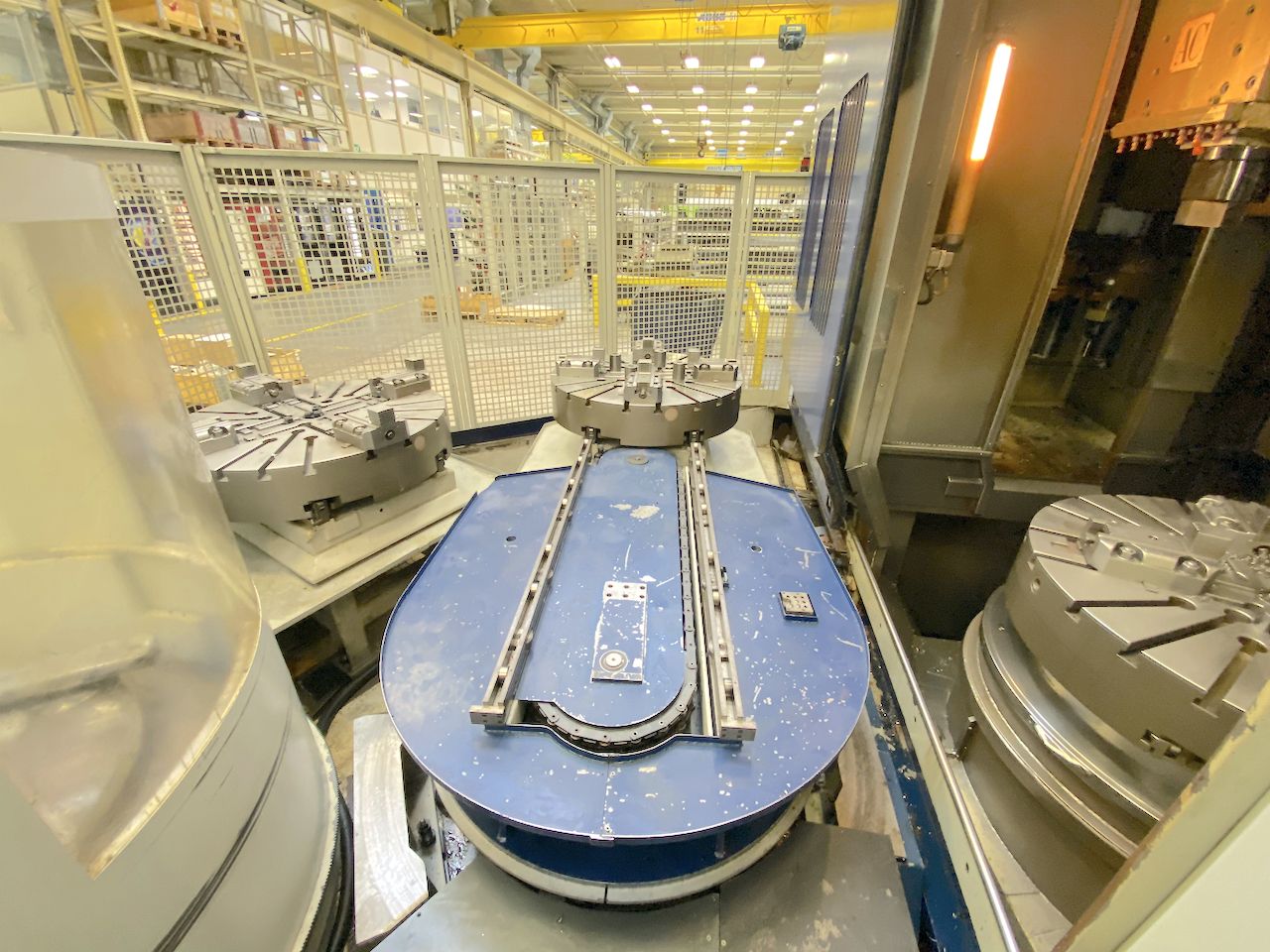

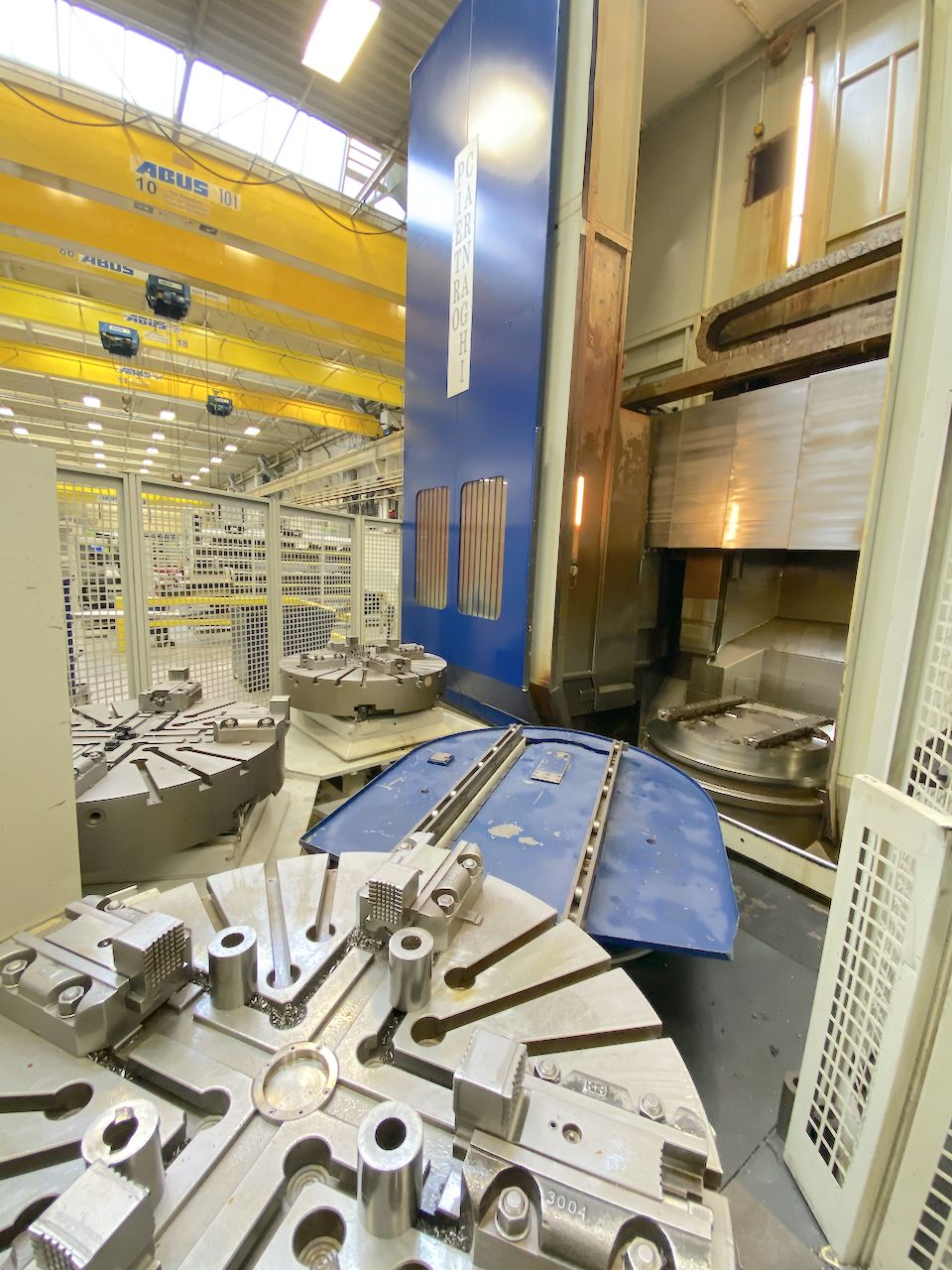

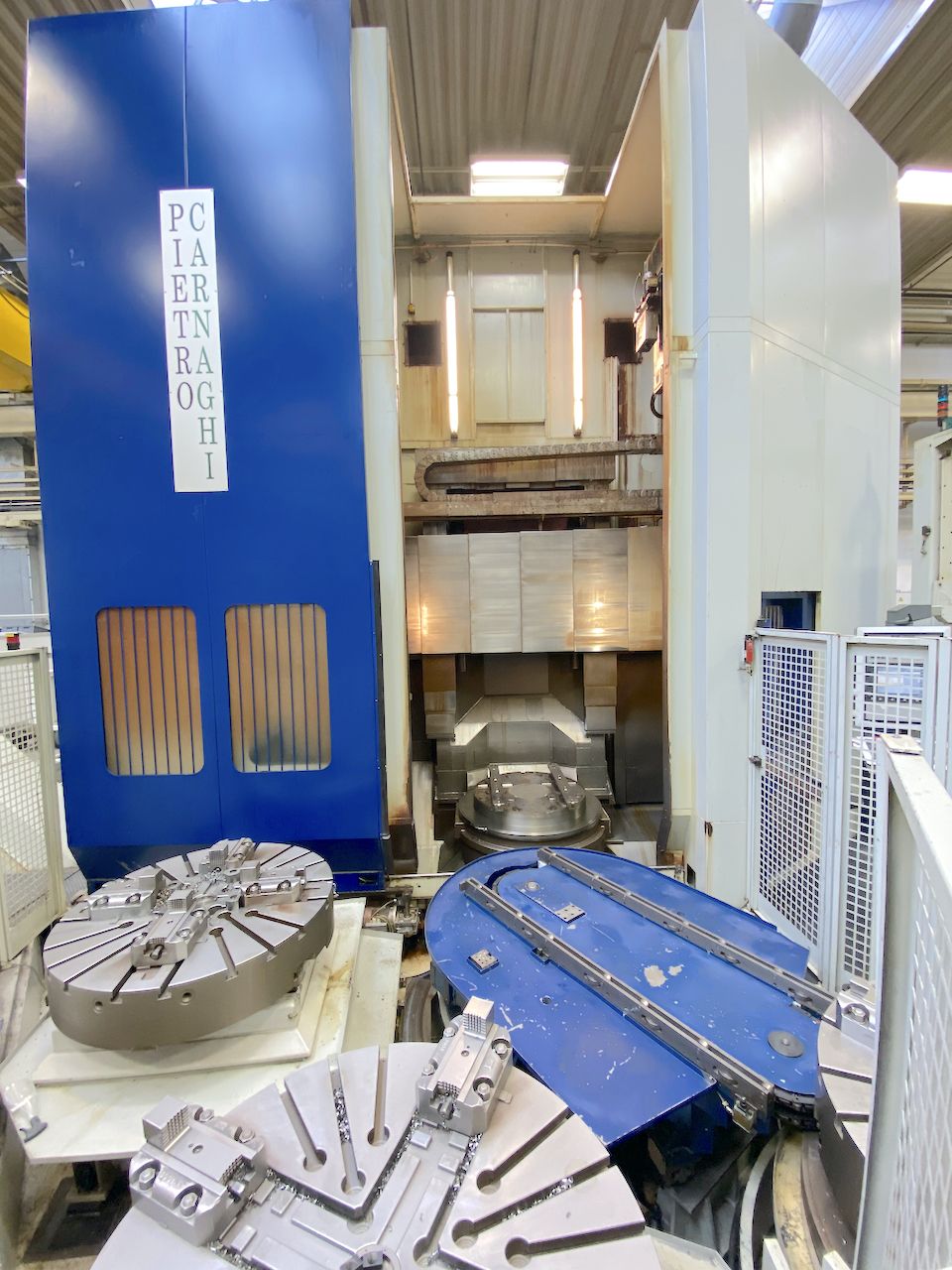

AUTO PALLET CHANGER (APC)
Pallet number
3
Max weight on pallet
12000/10000 Kg
CROSSRAIL
Vertical stroke (W)
6x200mm - 1200 mm0,24x7,87mm - 47,24 in
CARRIAGE
Cross stroke (X)
+1010/-1010 mm+39,76/-39,76 in
Milling spindle power
37 Kw
Milling spindle speed
3000 Rpm
Milling spindle torque
1220 Nm
Tool taper
ISO50
Working feeds (Z)
15 m/min590,55 ipm
Working feeds (X)
15 m/min590,55 ipm
RAM section
250x250 mm9,84x9,84 in
Support
Idrostatico
Vertical stroke (Z)
1250 mm49,21 in

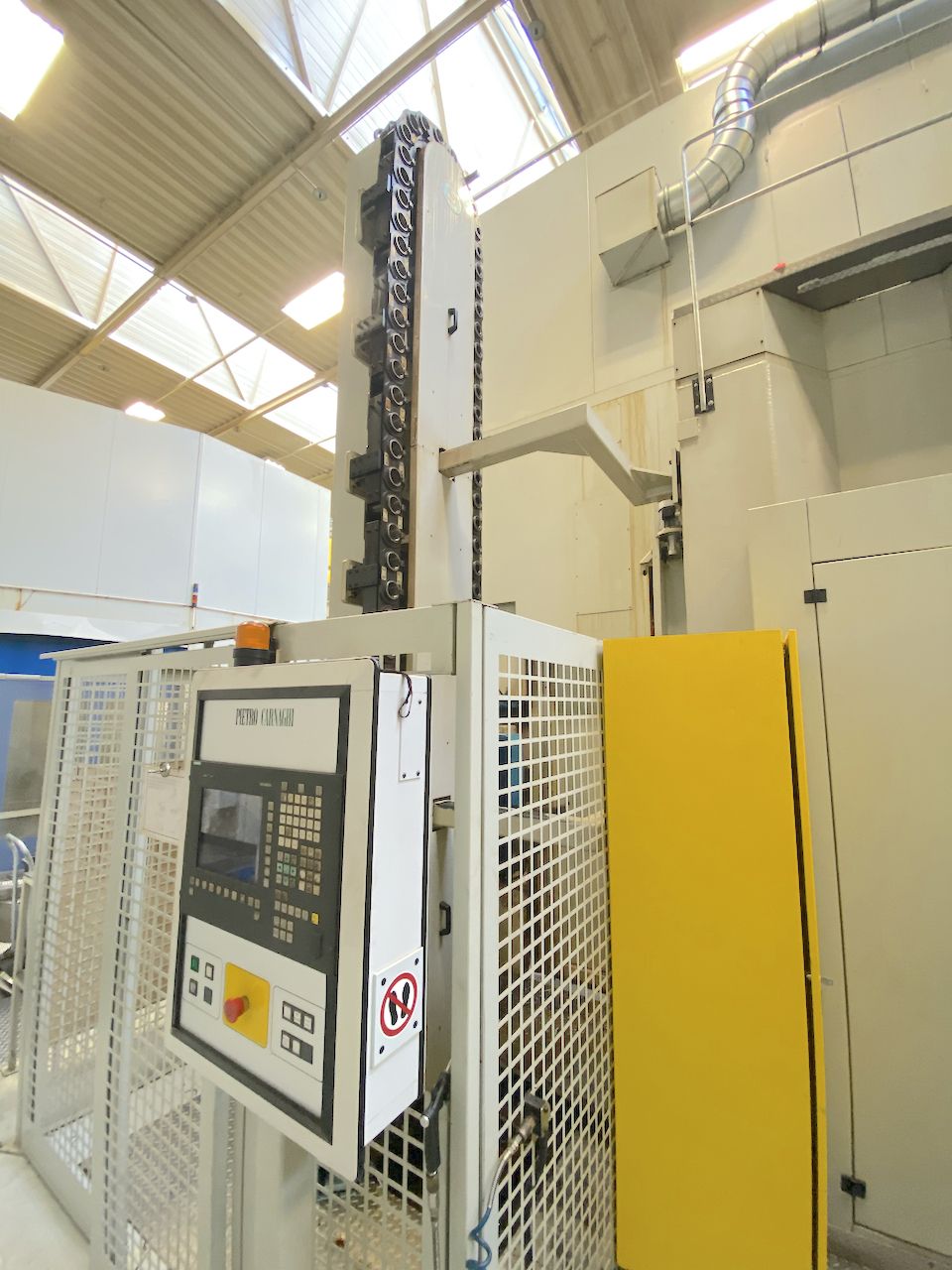

ATC
Positions
80

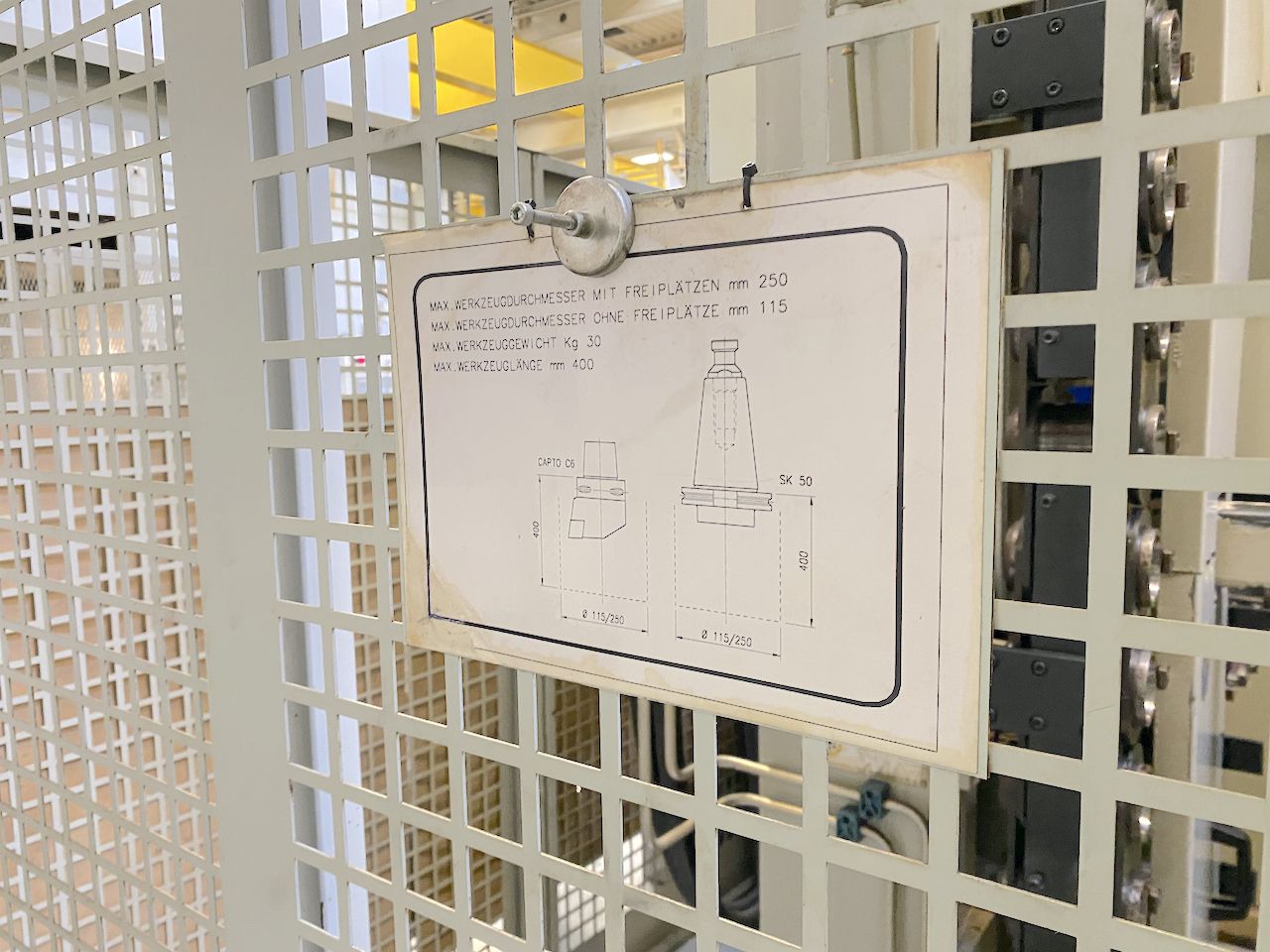

Max tool lenght
400 mm15,75 in
Max tool weight
30 Kg
Max diam with free adiacent space
250 mm9,84 in
Max tool diameter
115 mm4,53 in
Tool taper
50x Capto C6 + 30x ISO50

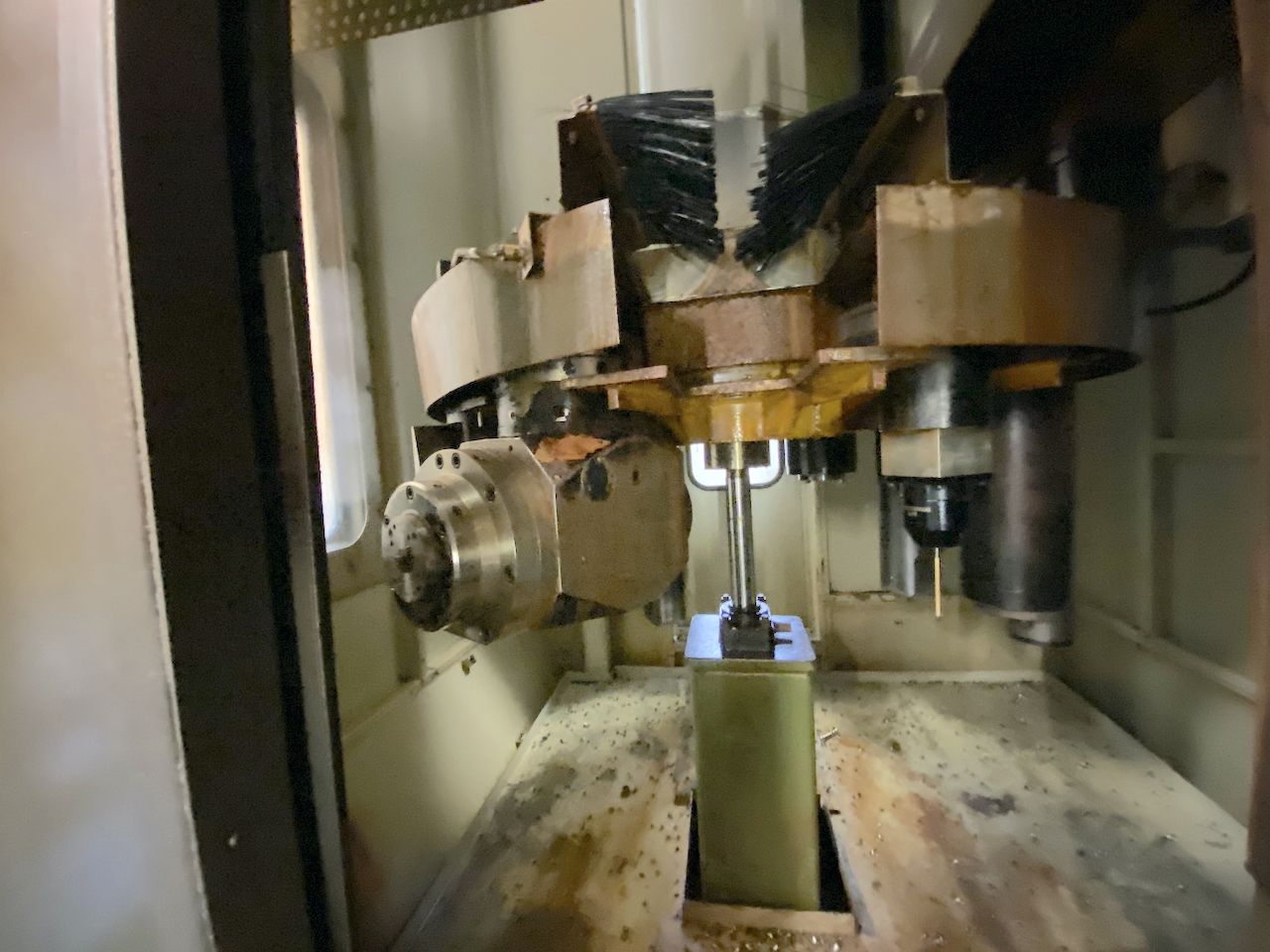

PICK-UP STATION FOR HEAD CHANGE
Stations number
12
Touch probe
1
Milling head attachments included
4
Turning head attachments included
3
EXTRA
Accessorires included
alta pressione 80Bar, doppio evacuatore truciolo, 3 pallet, CTS, Testa fresatura orizzontale, doppio cambia utensile
CE Certification
Yes
Electrical drawings
Yes
Maintenance & Use books
Yes
Machine total weight
51000 Kg
Mobile traverse
Yes

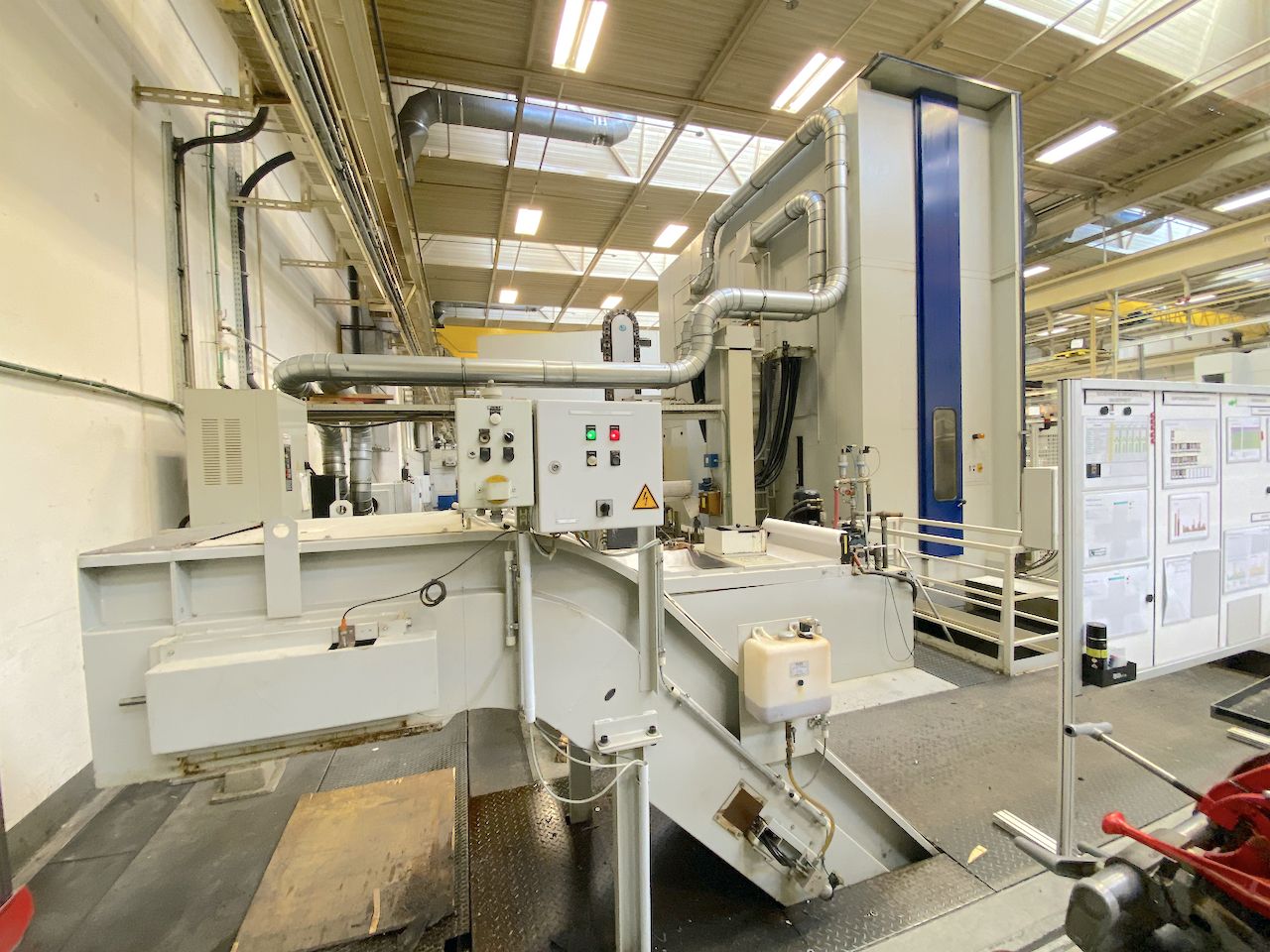

Chip conveyor
doppio evacuatore
Workpiece touch probe
si

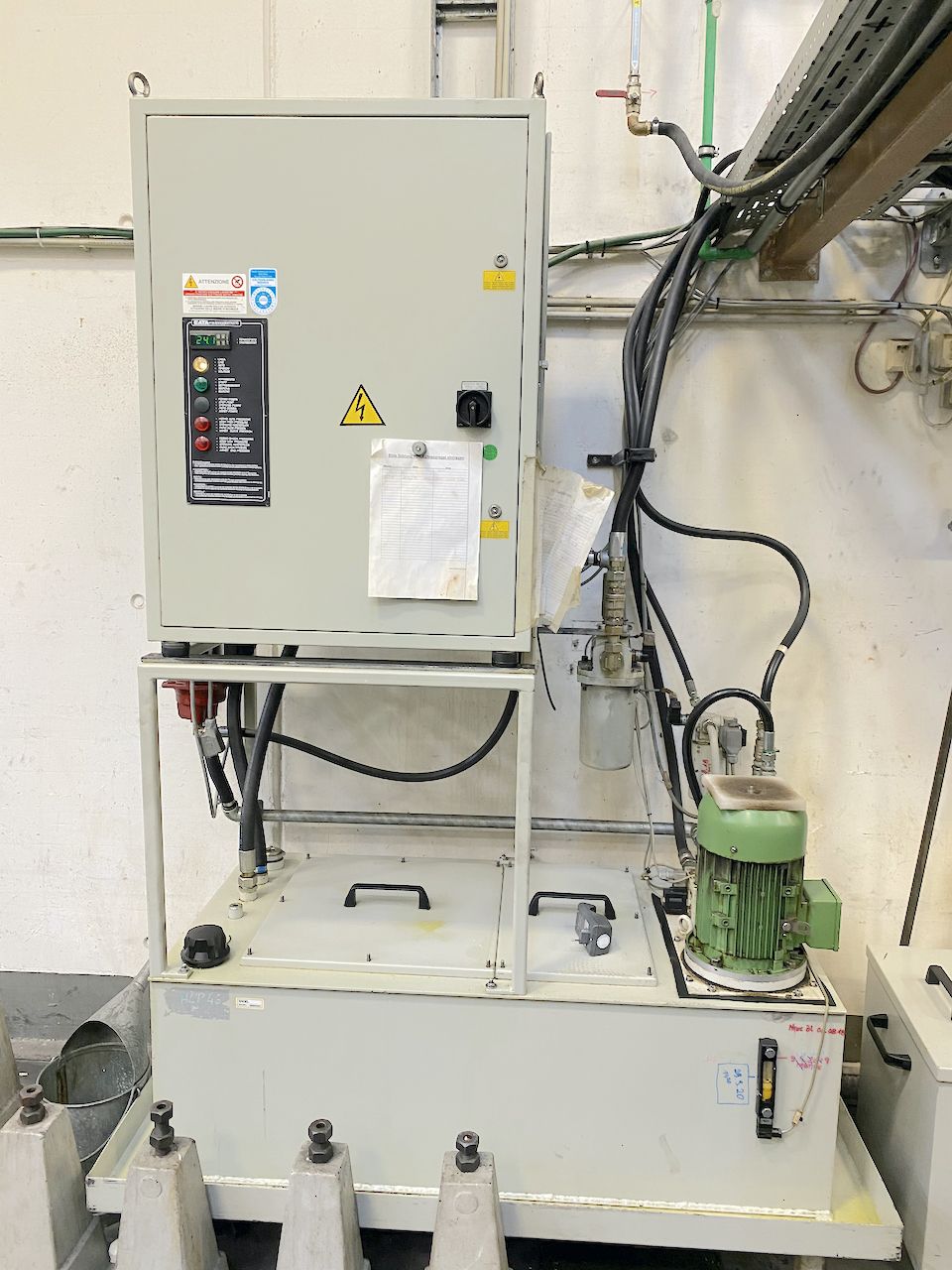

Coolant pump
80 Bar
Protections
integrali

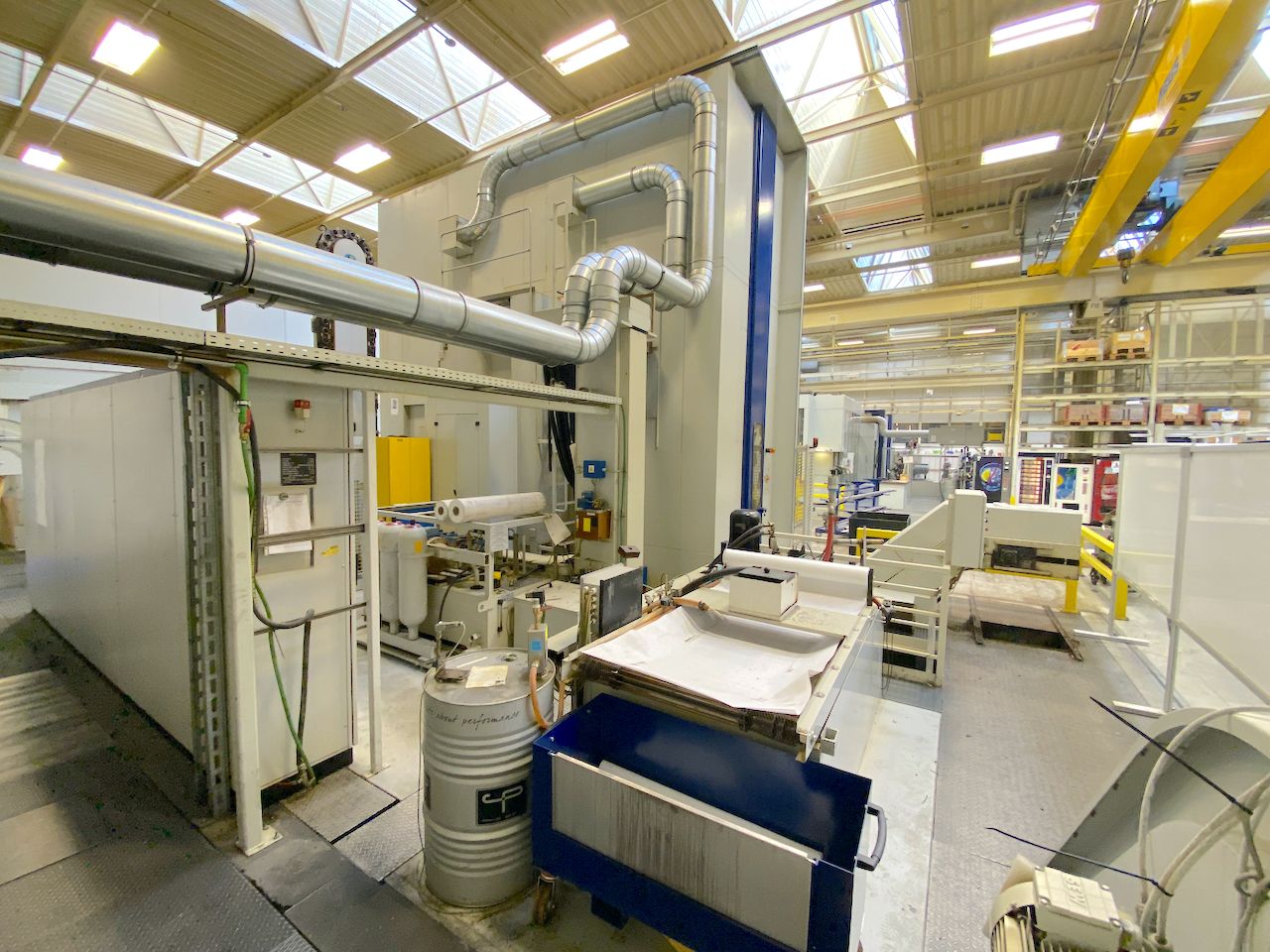

Mist extractor
si
Availability
pronta
