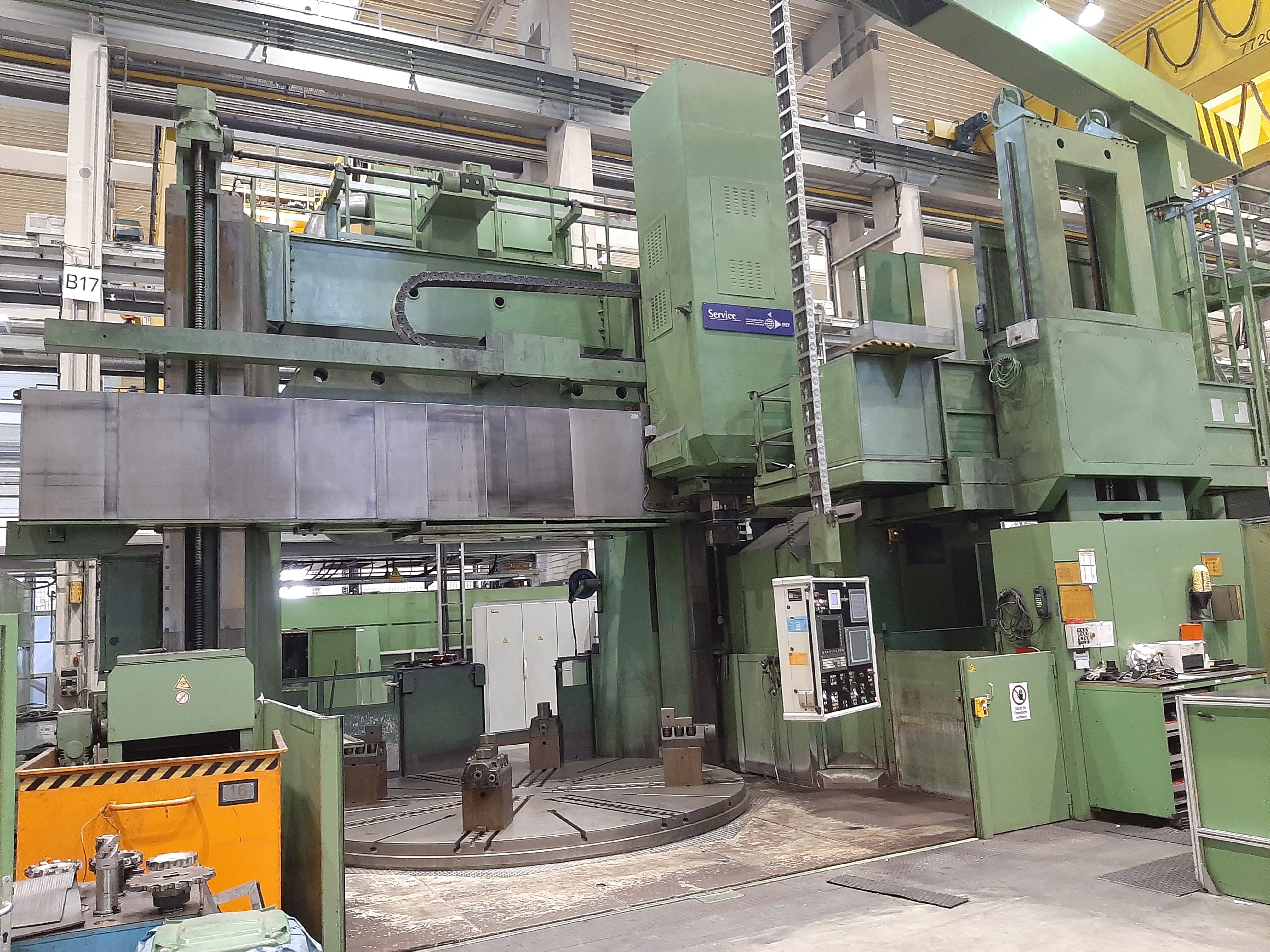

Category
Turning Machine
Type
Vertical
Made
Model
VC4600-450
Capacity
ø4600x4500 mmø181,10x177,17 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Platform diameter
4500 mm177,17 in
Max workpiece diameter
4600 mm181,10 in
Max tuning diameter
4600 mm181,10 in
Max turning height
4500 mm177,17 in
Max workpiece weight
100000 Kg

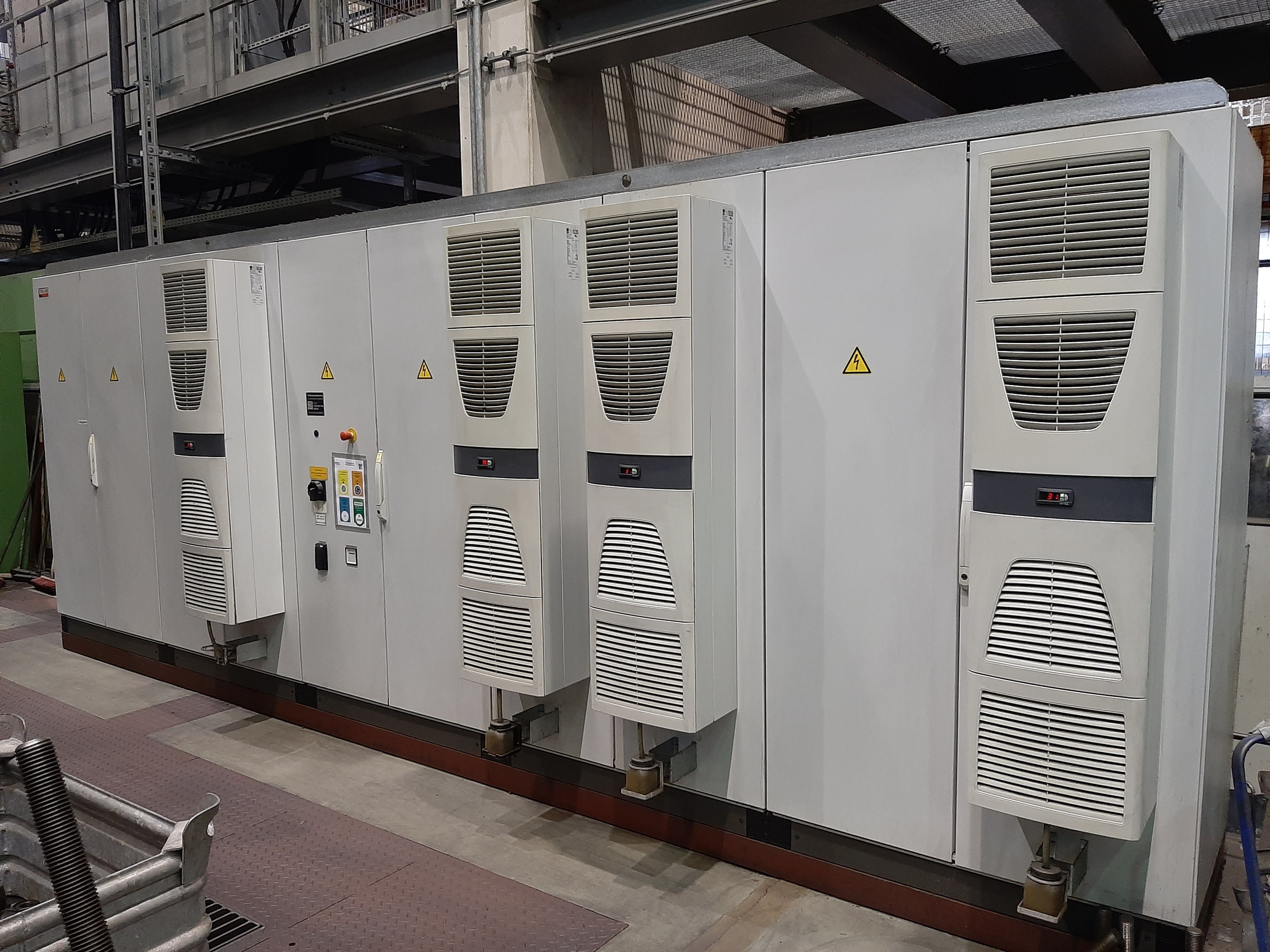

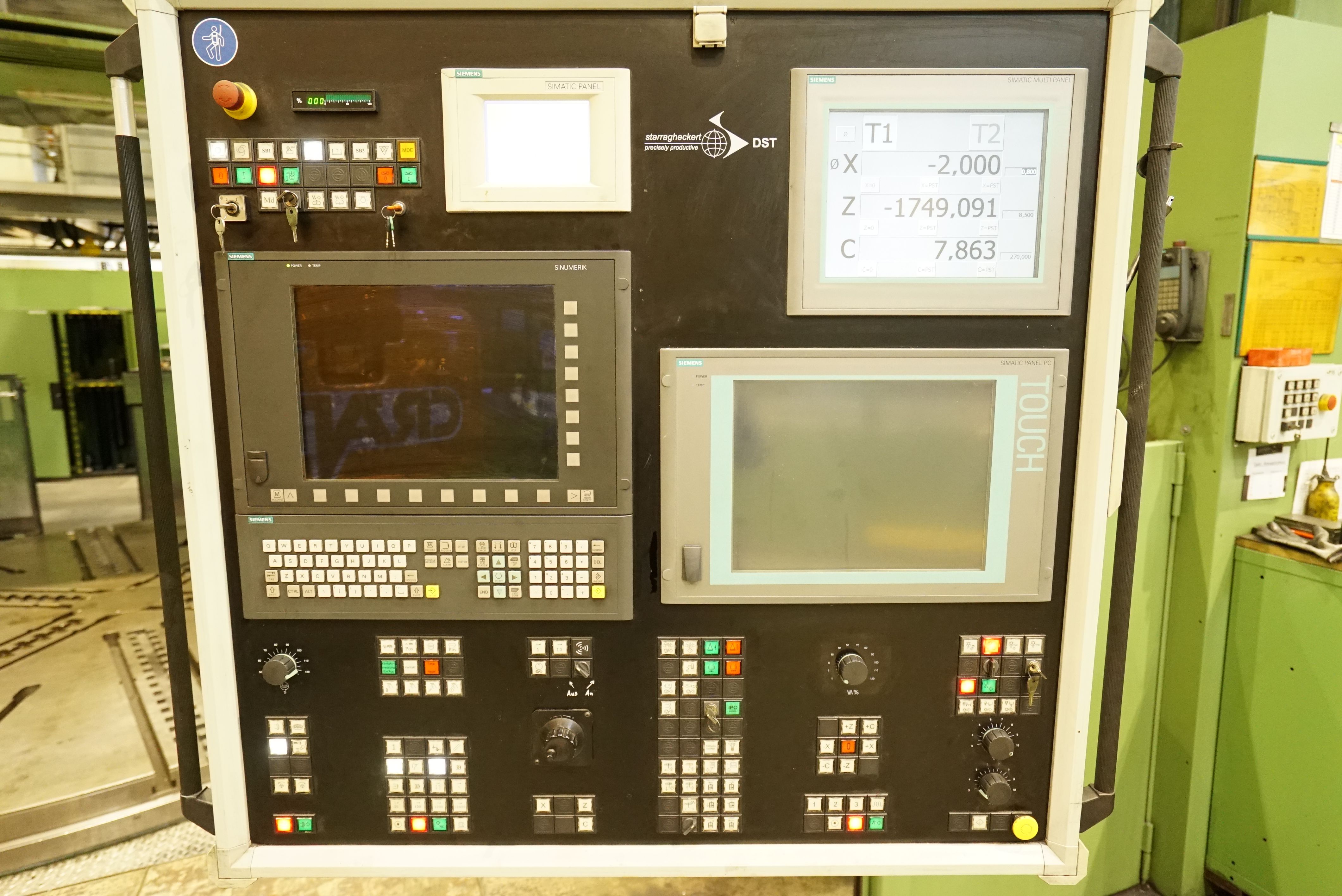

CNC
CNC
SIEMENS 840DSL
MAIN SPINDLE

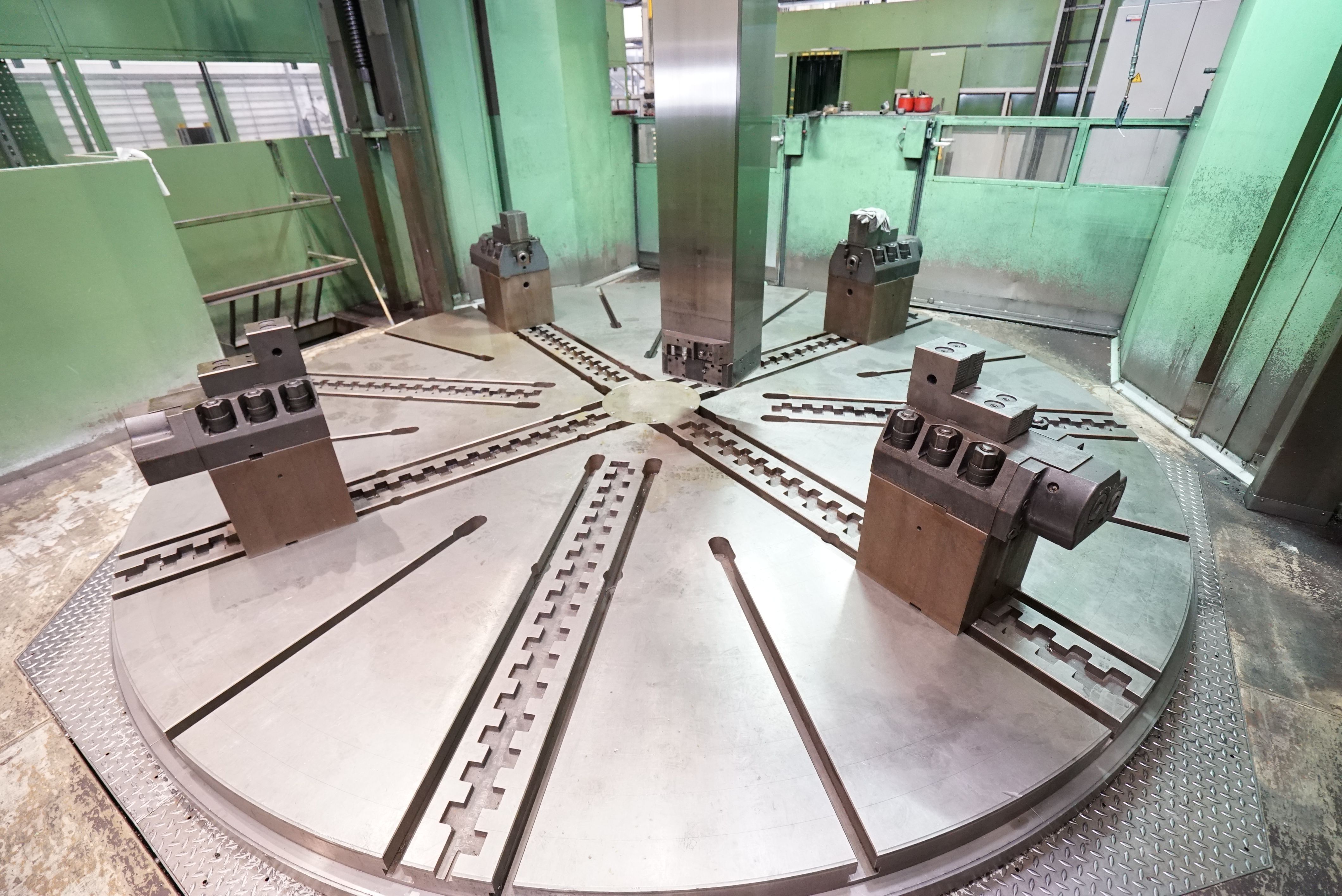

Platform diameter
4500 mm177,17 in
Max rotation speed
0,45-80 rpm
Capacity
100.000 Kg
Max torque
125000 Nm
Accuracy (C axis)
0,001 °

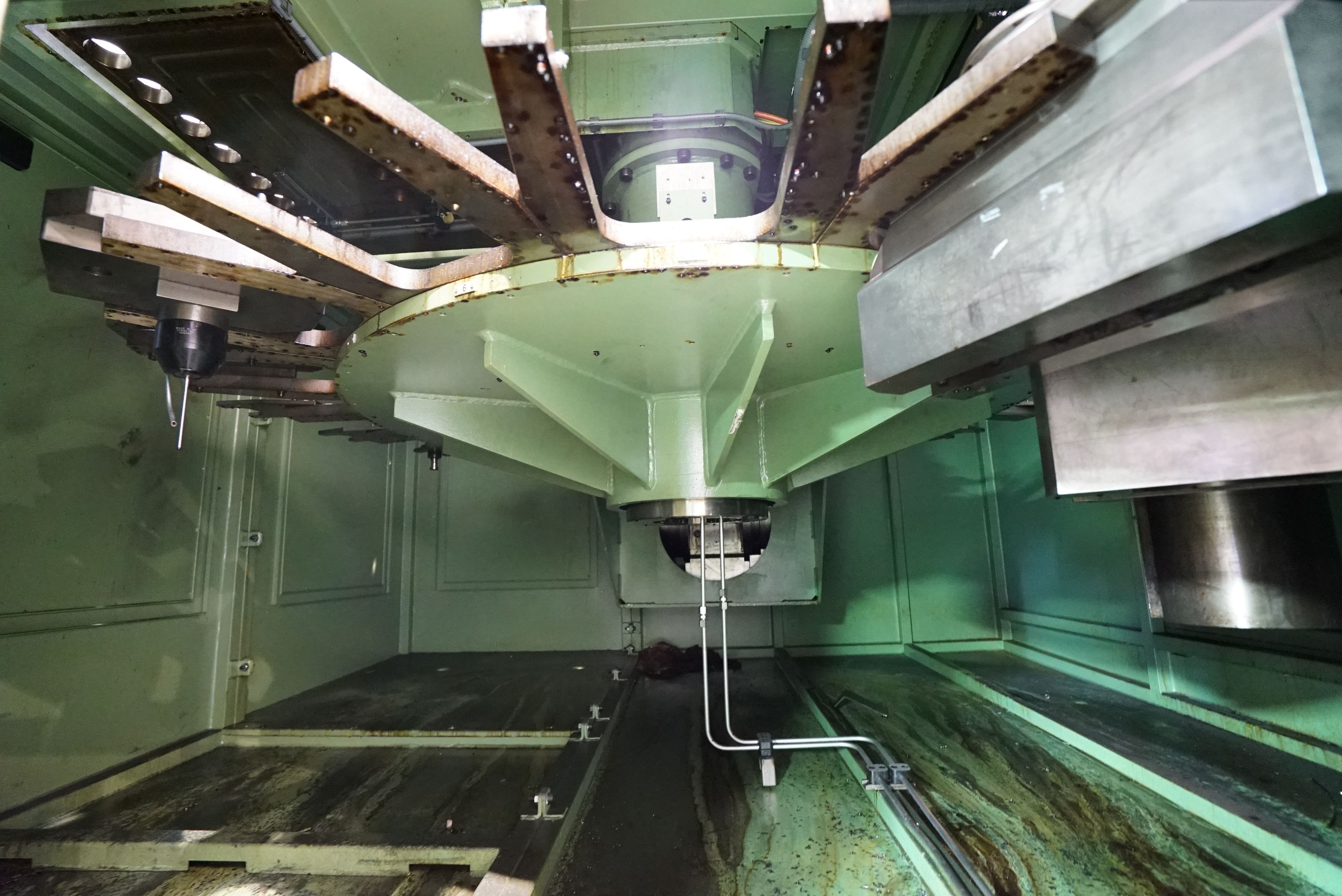

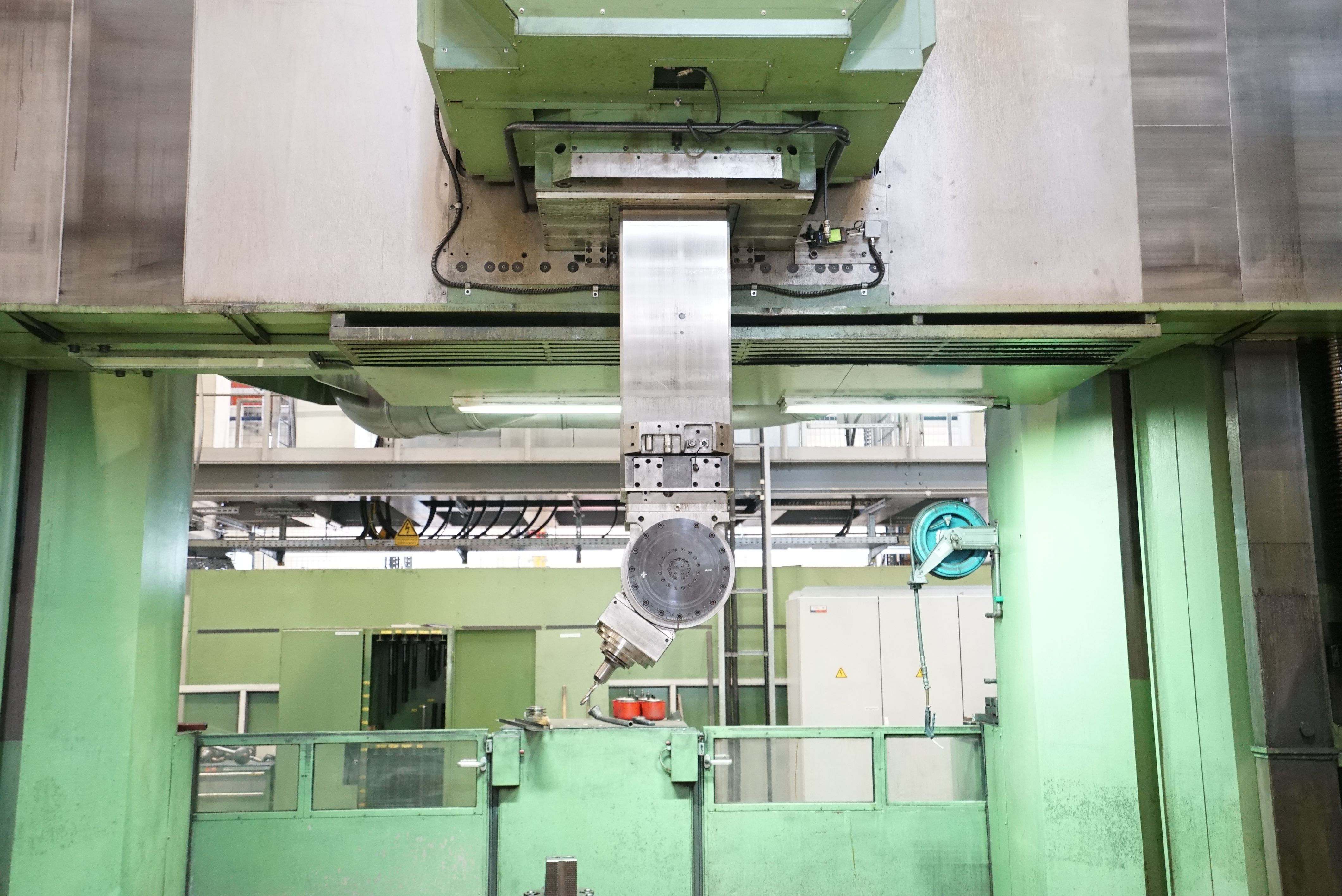

CROSSRAIL
Vertical stroke (W)
3200 mm125,98 in
CARRIAGE
Vertical stroke (Z)
2500 mm98,43 in
Cross stroke (X)
5000 (+/-2500) mm196,85 (+/-98,43) in
ATC
Positions
12
PICK-UP STATION FOR HEAD CHANGE
Turning head attachments included
2
Milling head attachments included
1
Touch probe
1
EXTRA

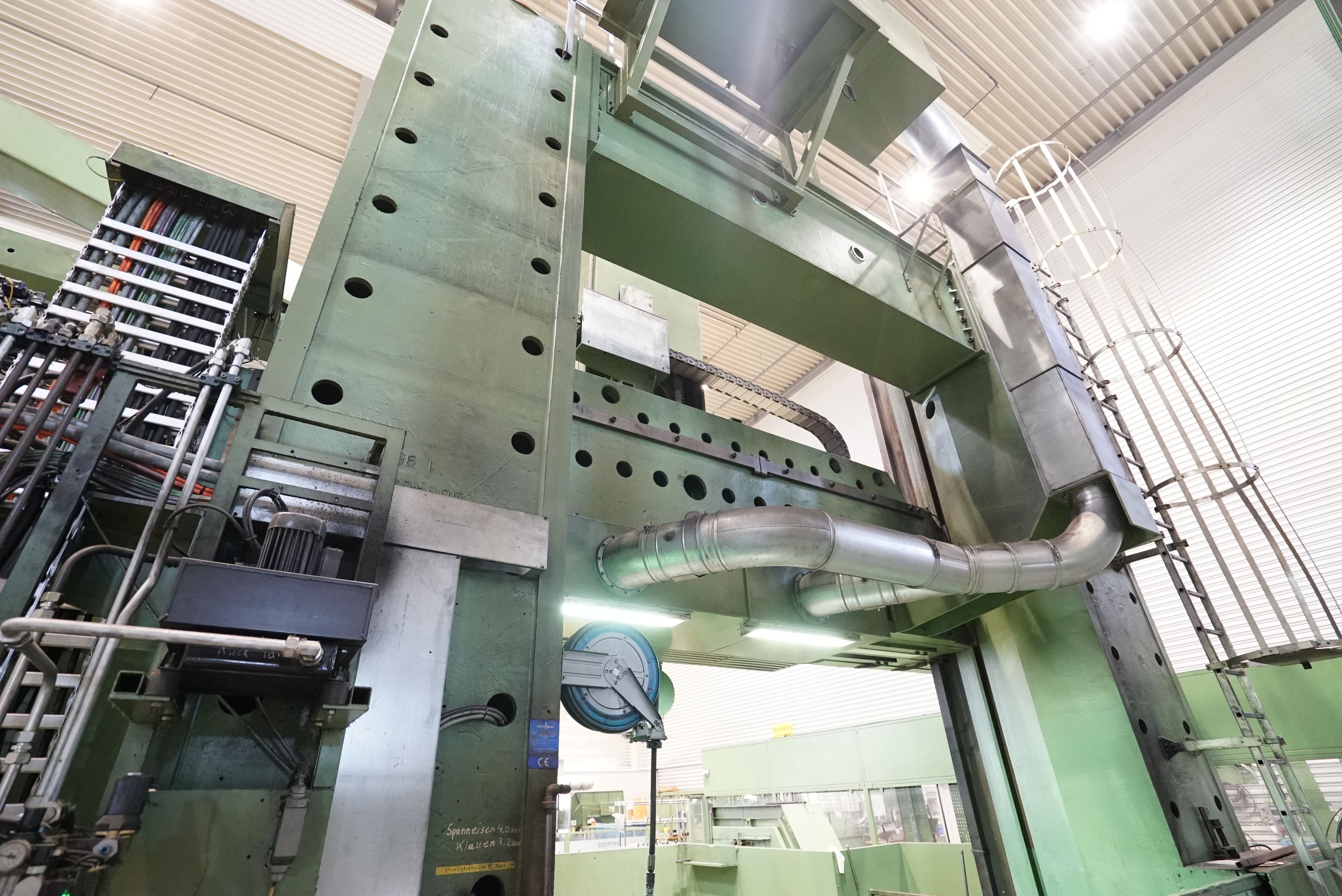

Double column
Yes
Mobile traverse
Yes
Machine total weight
190000 Kg
Total power supply
257KVA Kw
Floor space
10200x16800x11300 mm401,57x661,42x444,88 in
Chip conveyor
si
Workpiece touch probe
si
