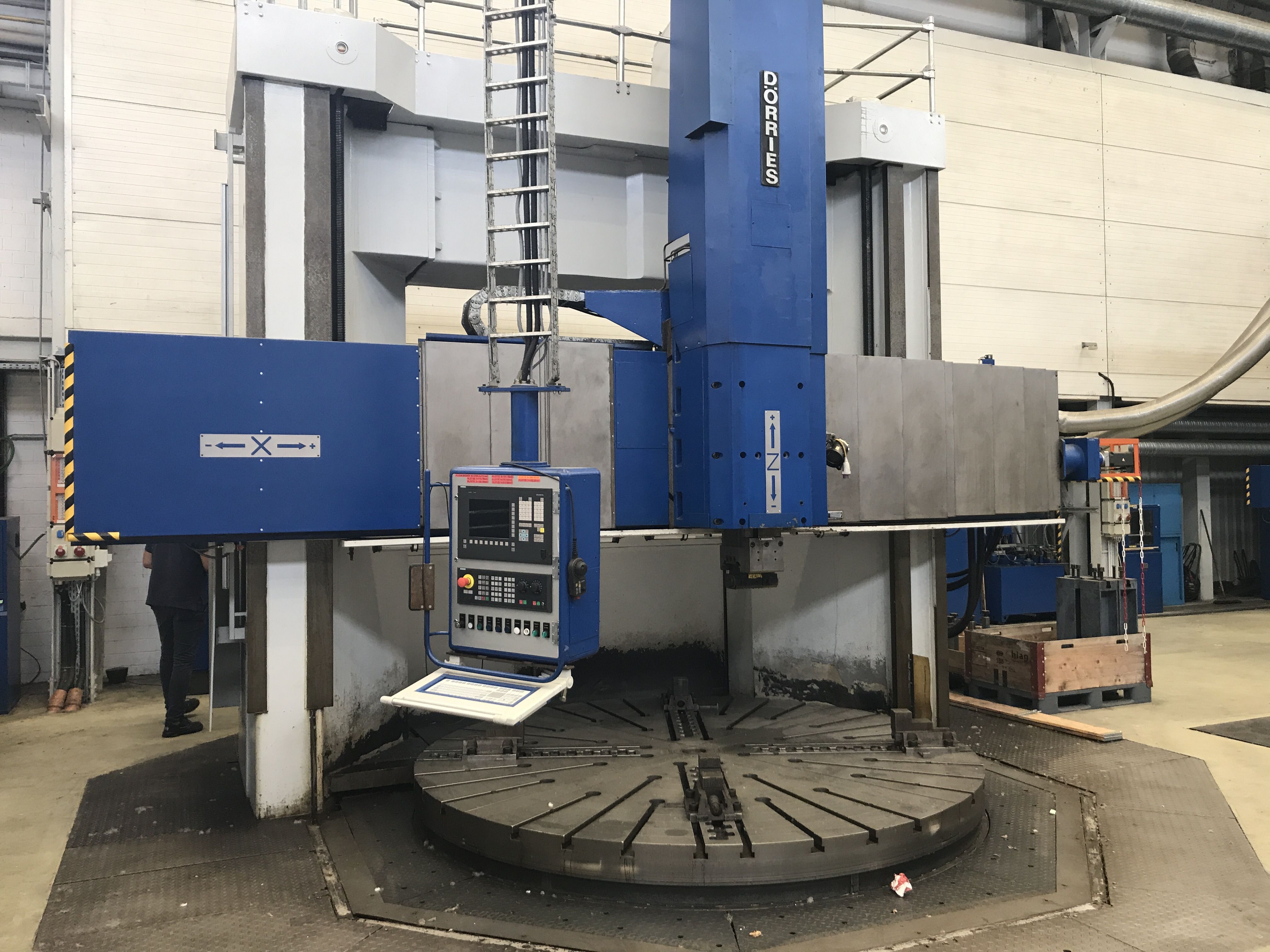

Category
Turning Machine
Type
Vertical
Made
Model
CT320 CNC
Capacity
ø4080x2600 mmø160,63x102,36 in
Technical specifications
Metric
Imperial
WORKING CAPACITY

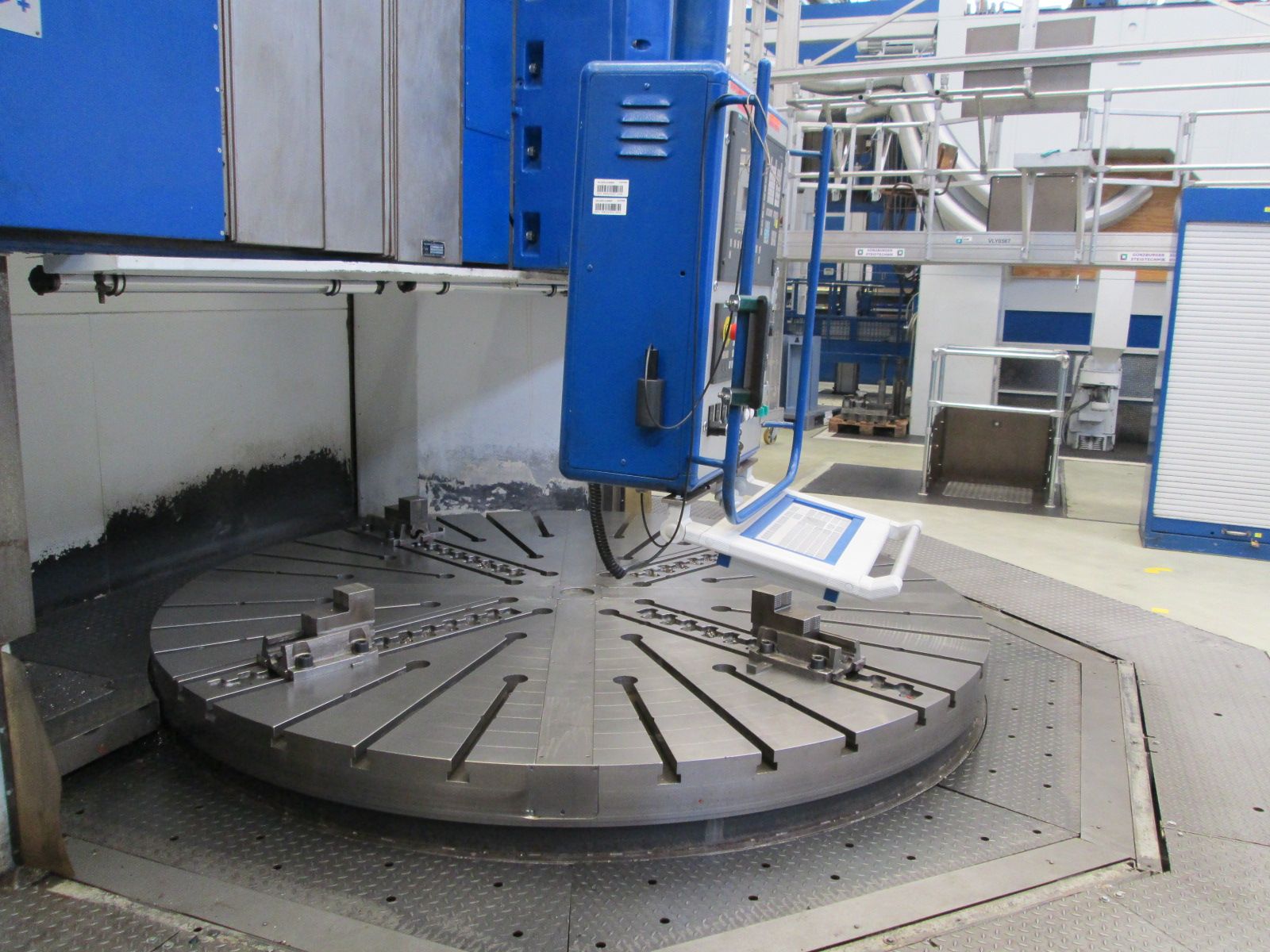

Platform diameter
3200 mm125,98 in
Max workpiece diameter
4080 mm160,63 in
Max turning height
2600 mm102,36 in
Max workpiece weight
10 Rpm: 135.000Kg / 80Rpm: 60.000Kg / 120 Rpm: 50.000 Kg
CNC
CNC

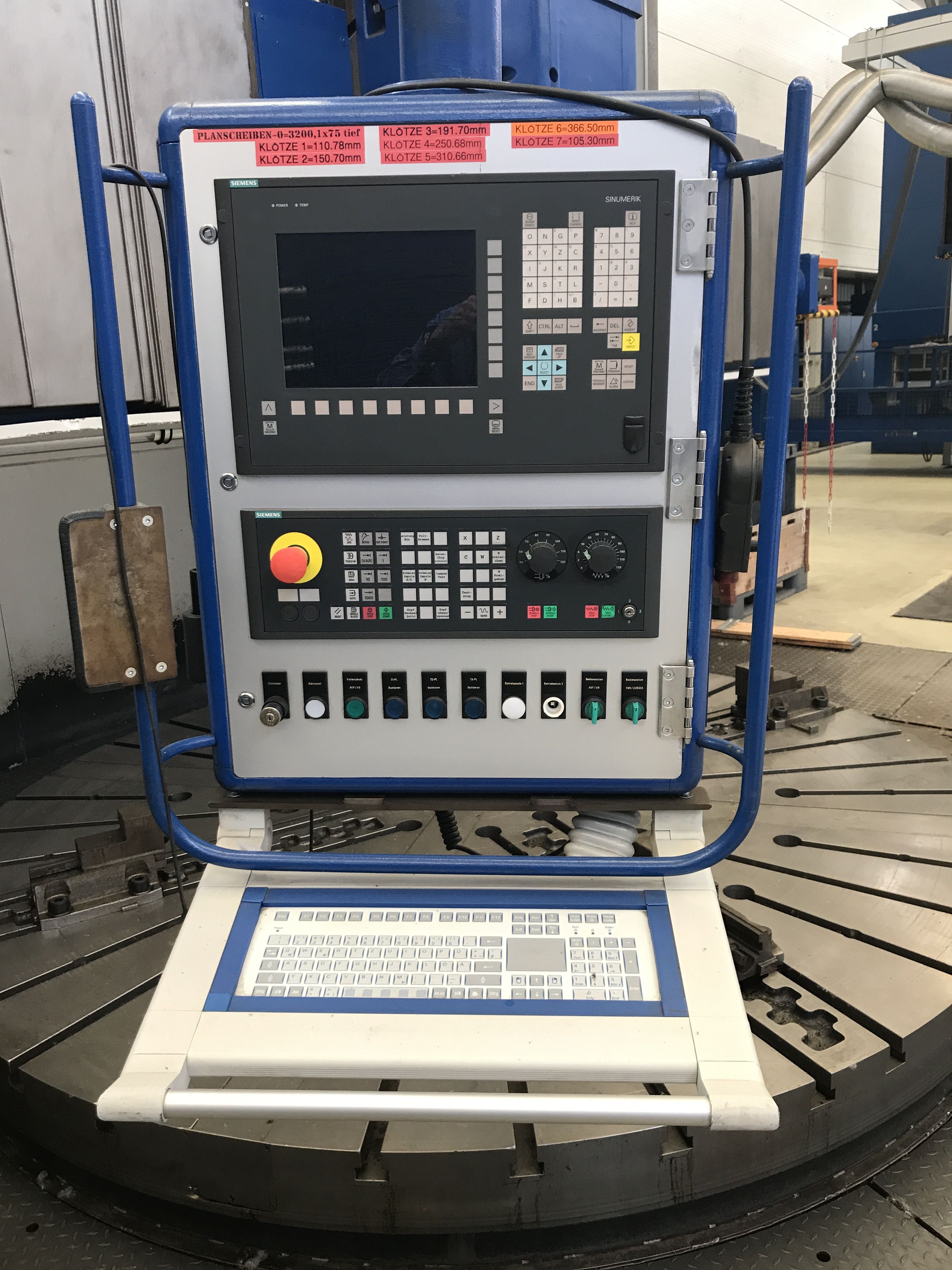

SIEMENS 840DSL
Measuring system

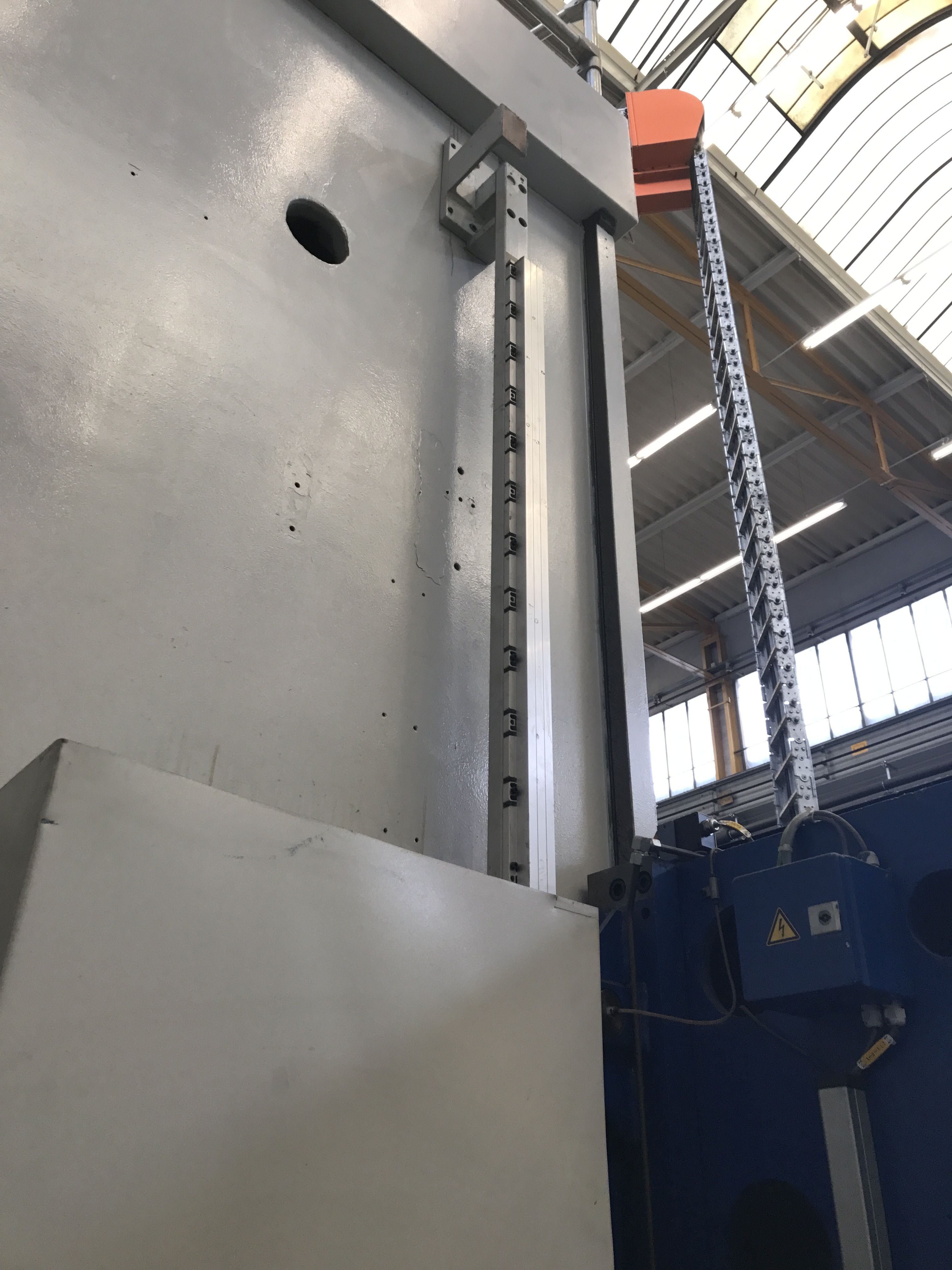

Heidenhain linear scale - Righe ottiche
Drives
Siemens
Notes
100% retrofitted by DORRIES
MAIN SPINDLE
Platform diameter
3200 mm125,98 in
Platform type
4 griffe
Max rotation speed
0,5-120 rpm
Capacity
10 Rpm: 135.000Kg / 80Rpm: 60.000Kg / 120 Rpm: 50.000 Kg

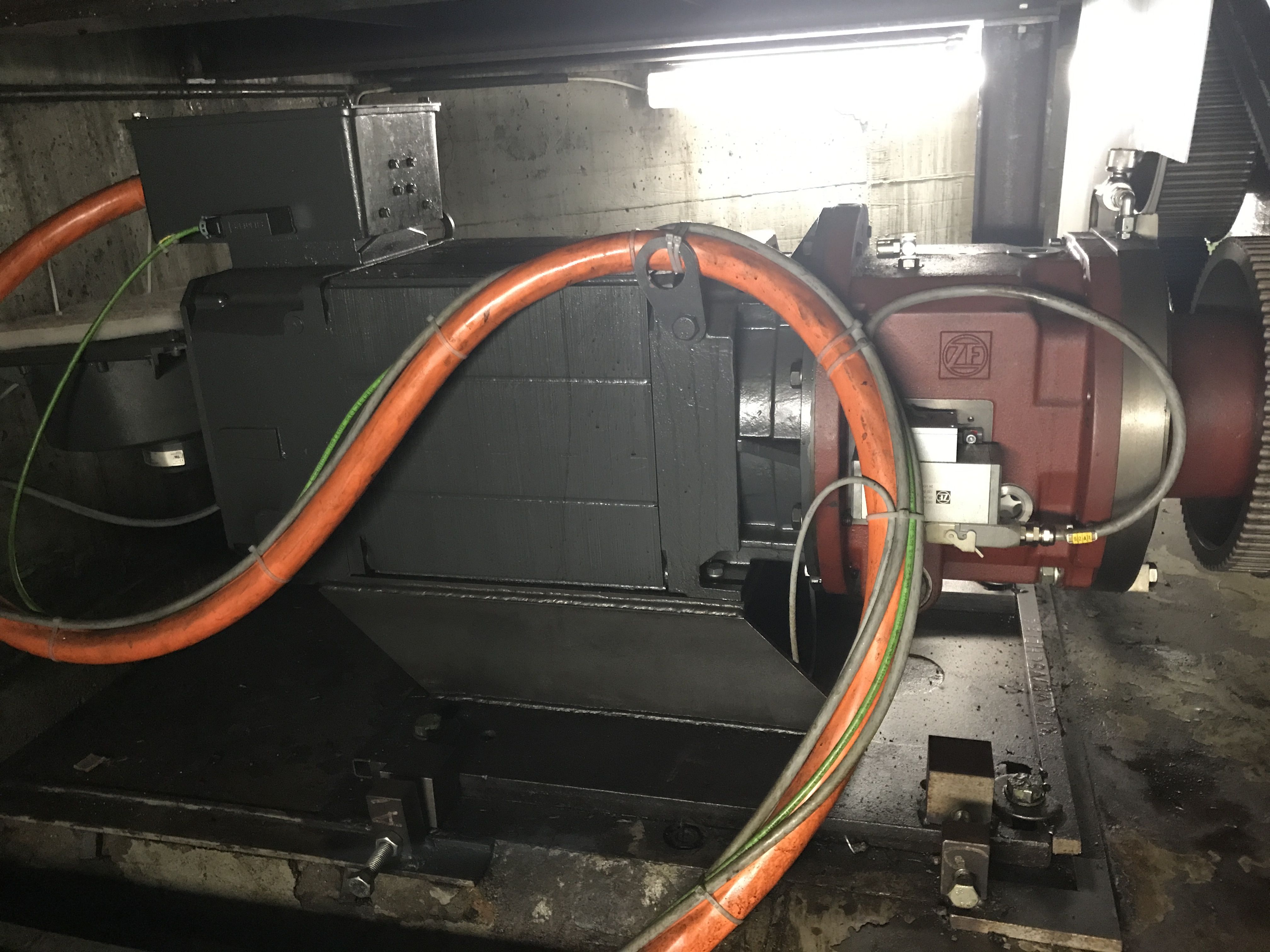

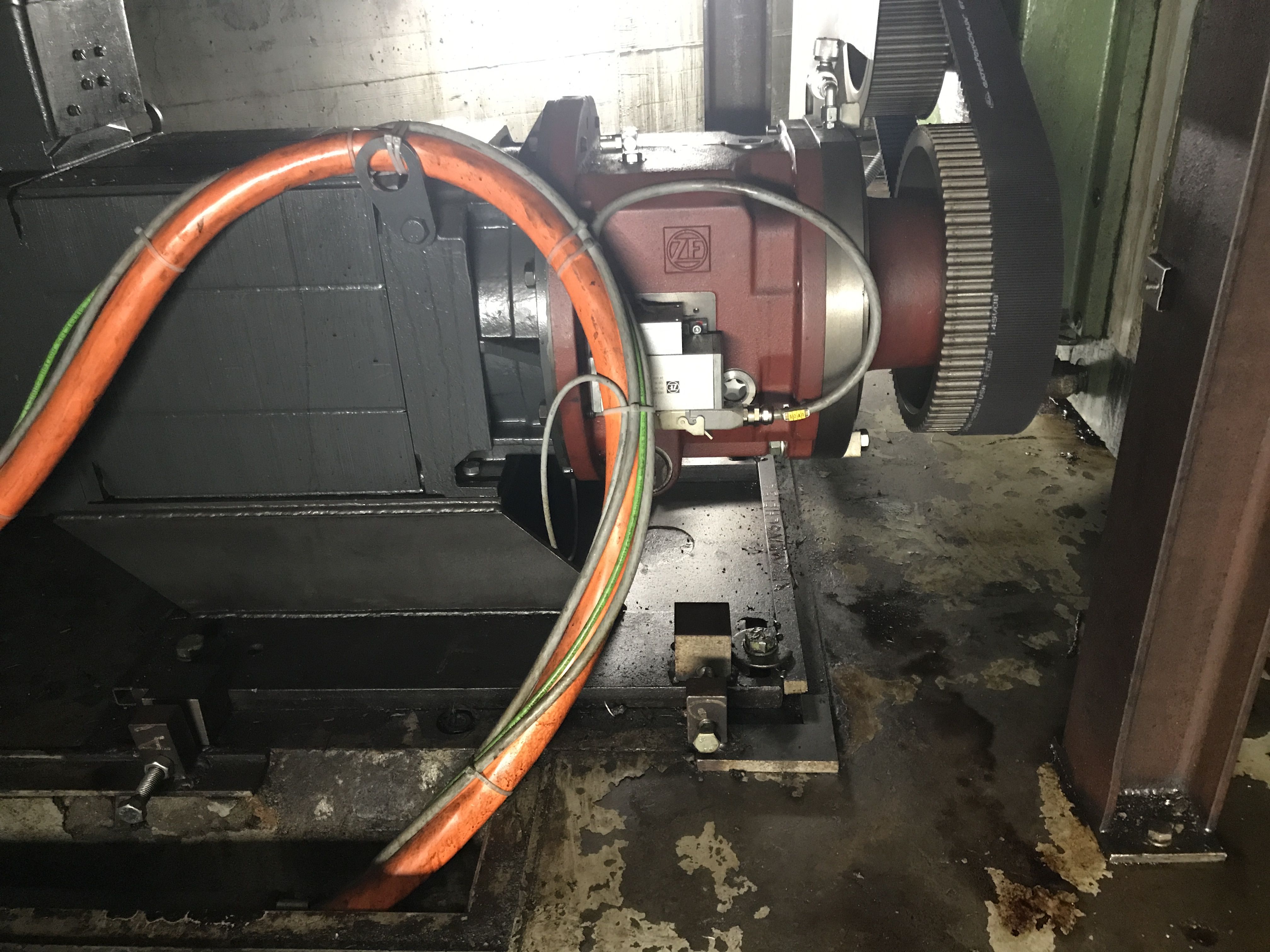

Max power
74 Kw
Max torque
90000 Nm
CROSSRAIL
Vertical stroke (W)
2250 mm88,58 in
Rapid feeds (W)
3 m/min118,11 ipm
CARRIAGE
Vertical stroke (Z)
1500 mm59,06 in
Cross stroke (X)
2480 mm97,64 in
Tool taper
CAPTO C8
Rapid feeds (Z)
3 m/min118,11 ipm
Rapid feeds (X)
3 m/min118,11 ipm
RAM section
280x280 mm11,02x11,02 in
EXTRA

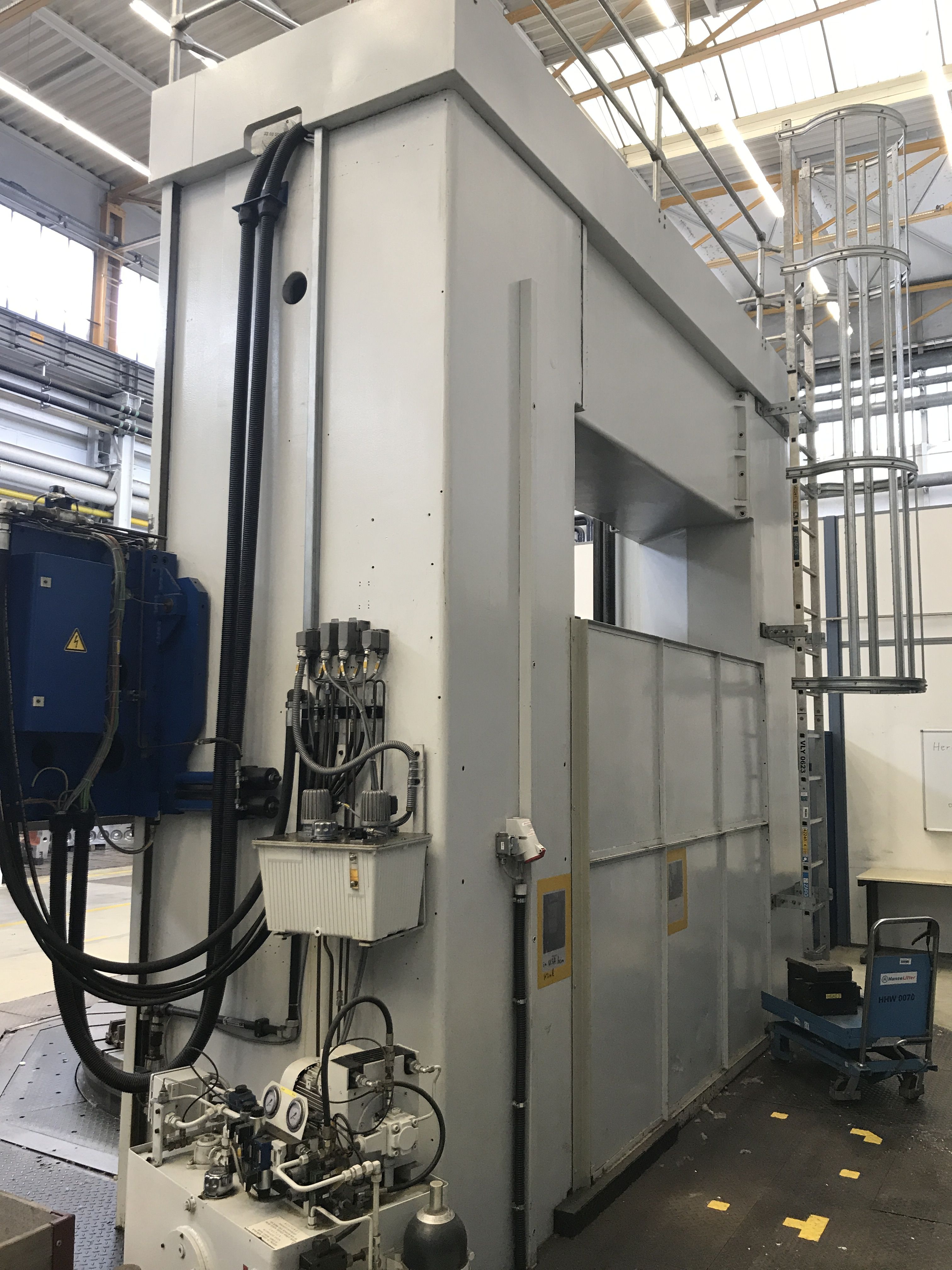

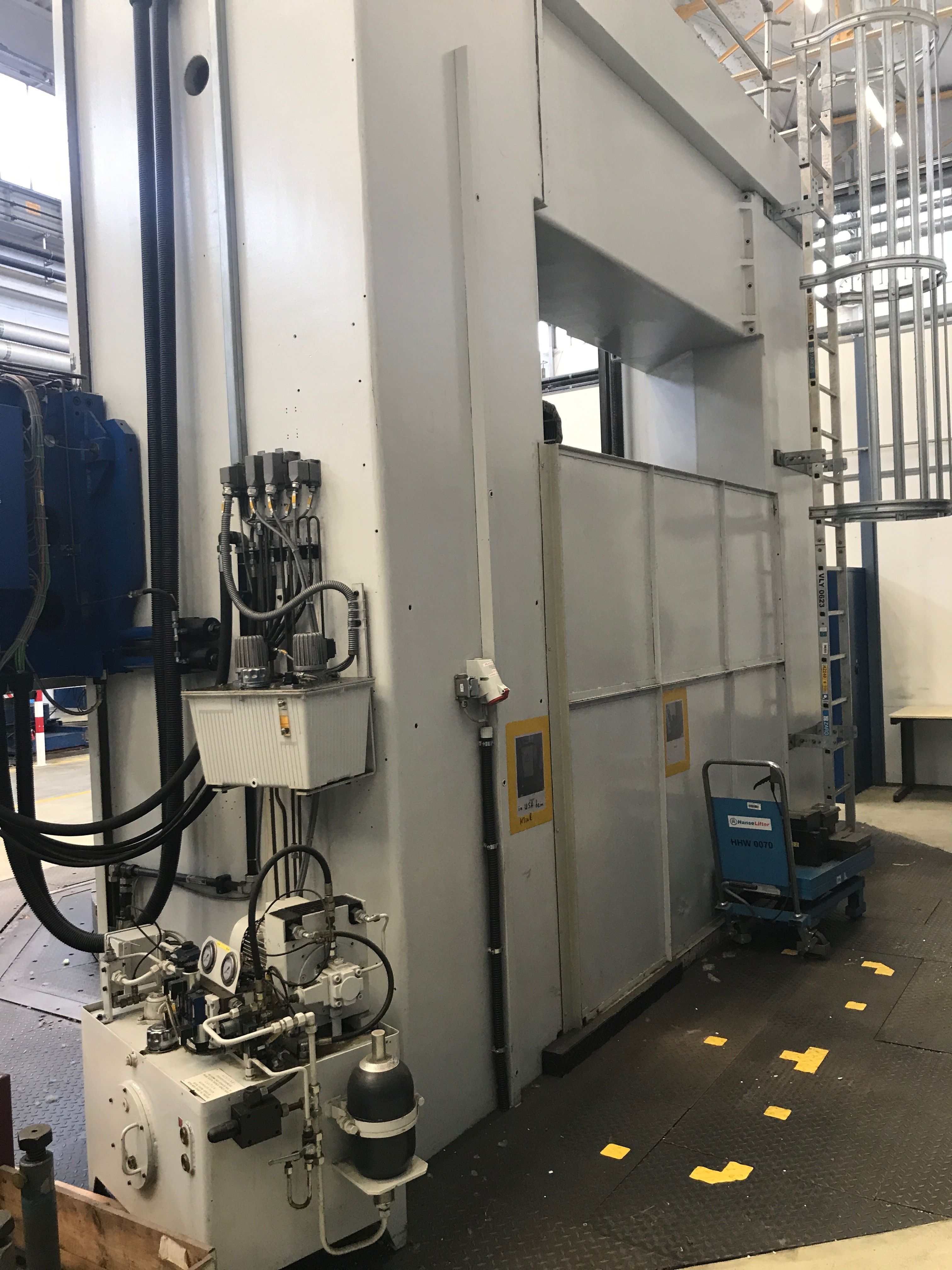

Double column
Yes
Mobile traverse
Yes
Maintenance & Use books
Yes
Electrical drawings
Yes
Protections
perimetrali tavola
Availability
Pronta
Available under power
Si
Relevant updates made on the machine

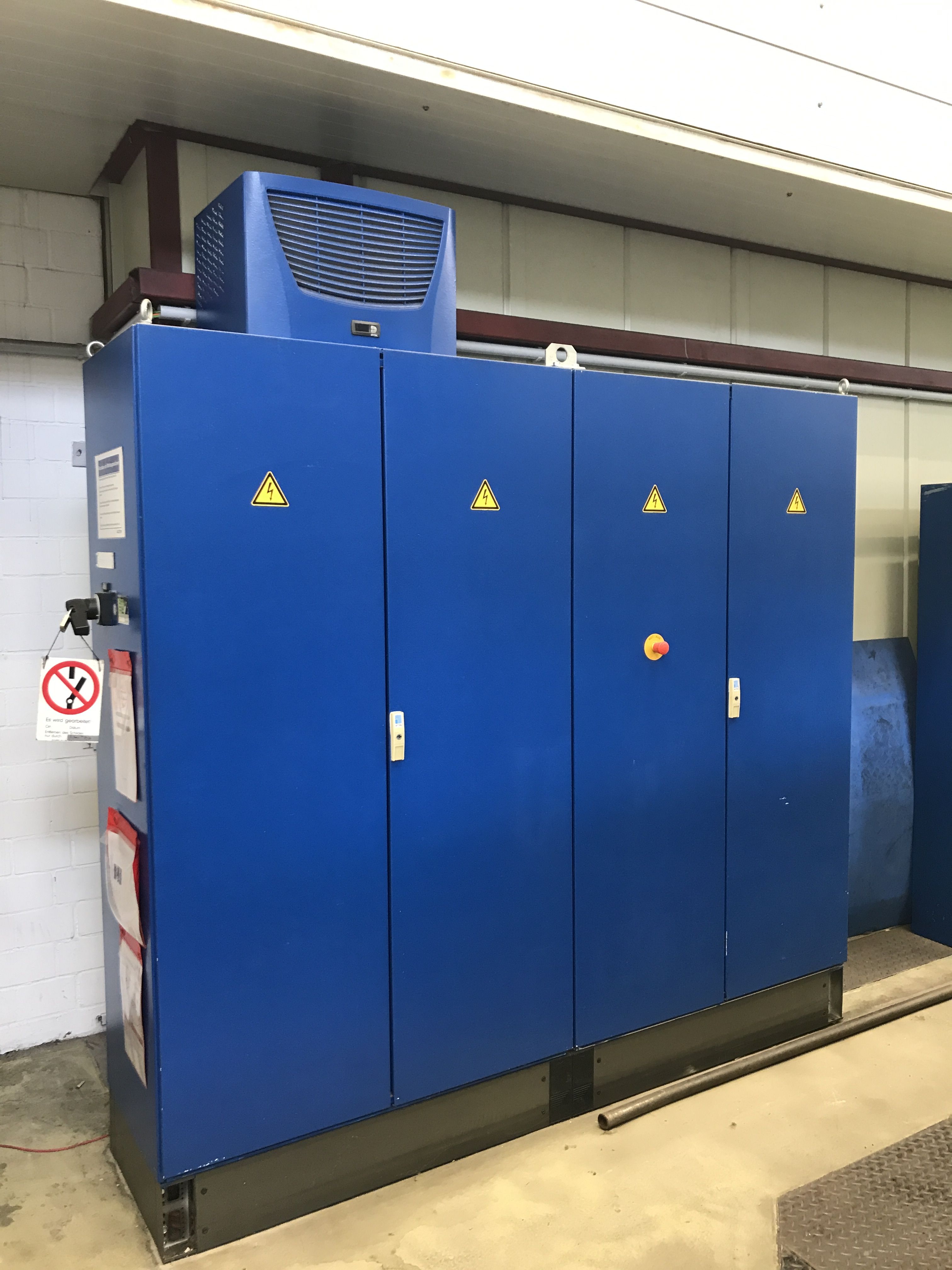

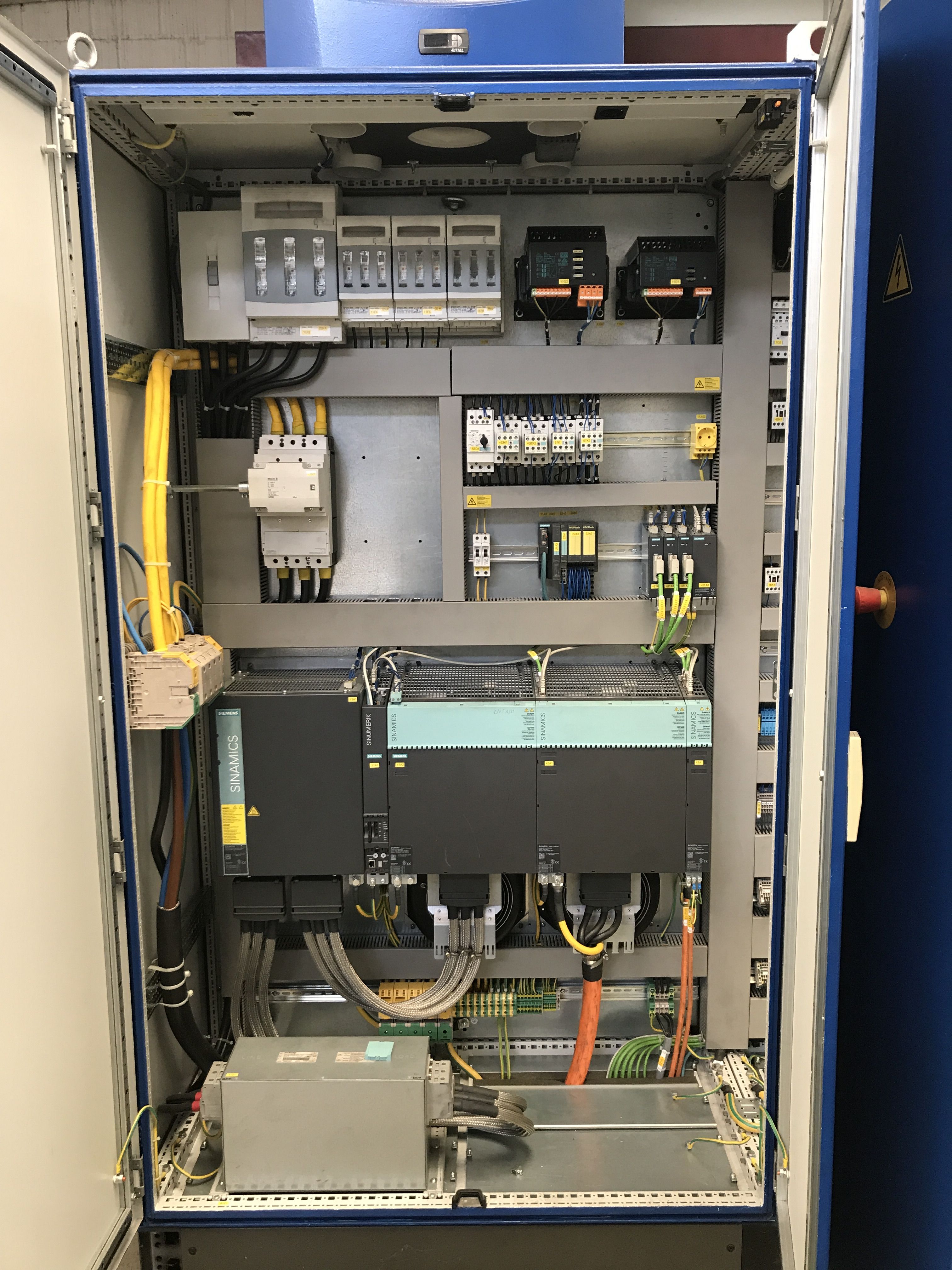

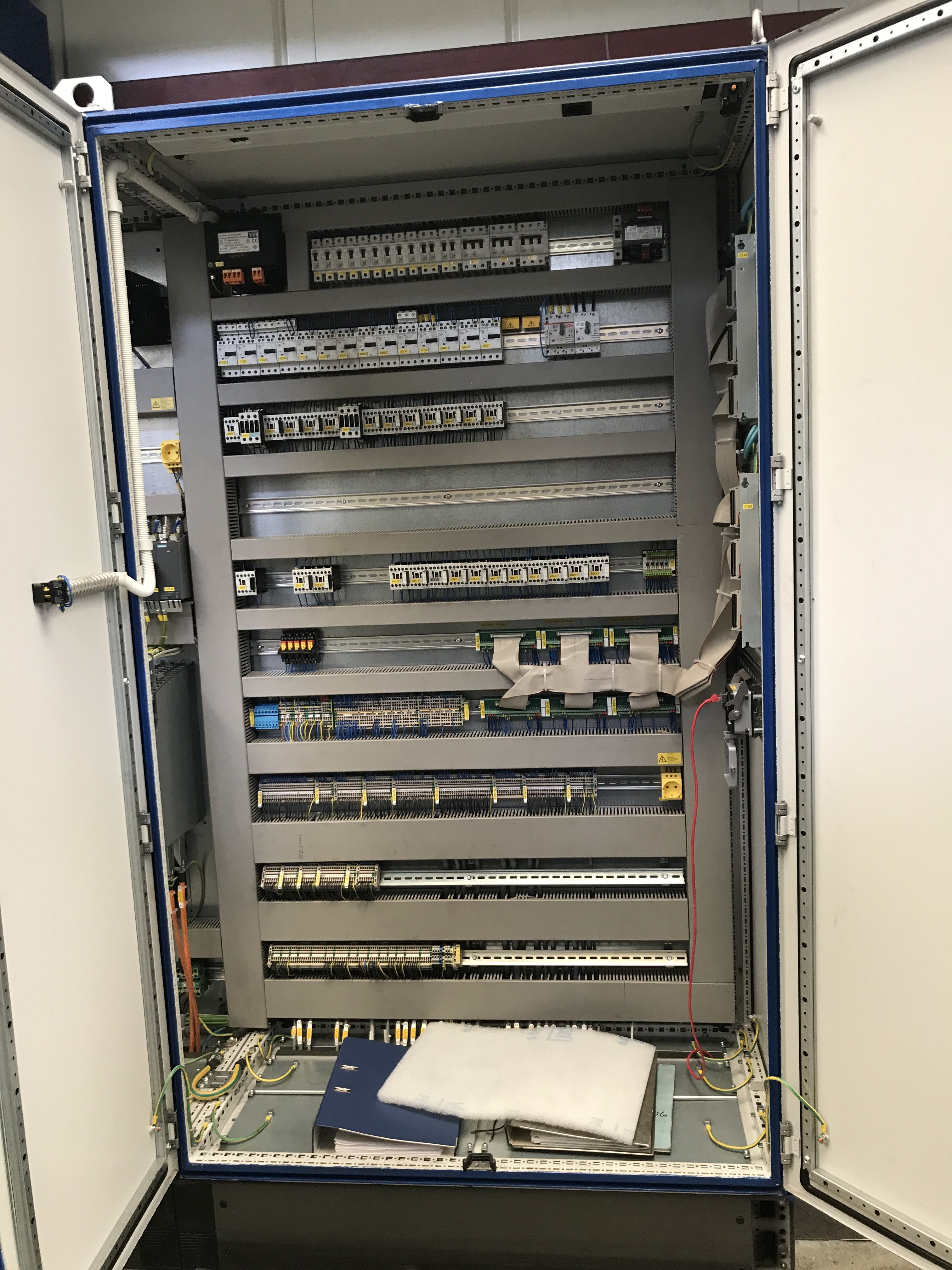

Revisione meccanica completa del costruttore nel 2009, Retrofitting 100% (nuovo CNC SIEMENS 840DSL, motori assi, motore mandrino, azionamenti, armadi elettrici, condizionatori, componentistica ecc... tutto SIEMENS digitale)
Platform
€3200
