Category
Turning Machine
Type
Teach in
Made
Model

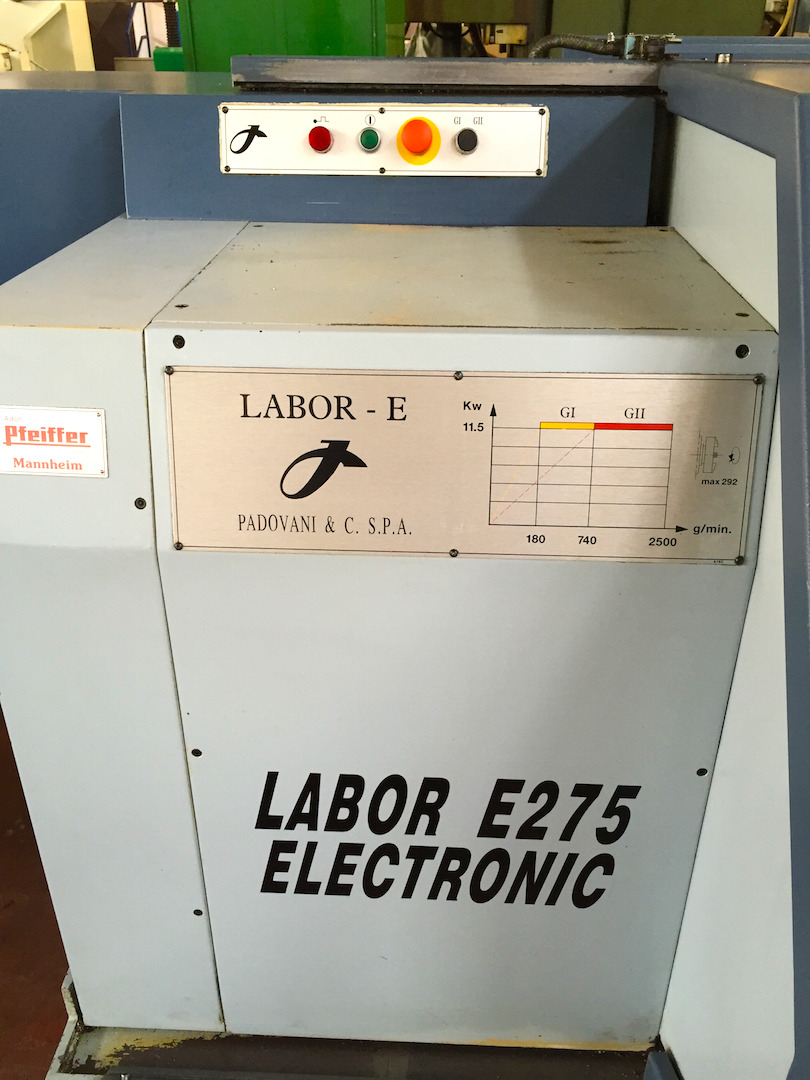

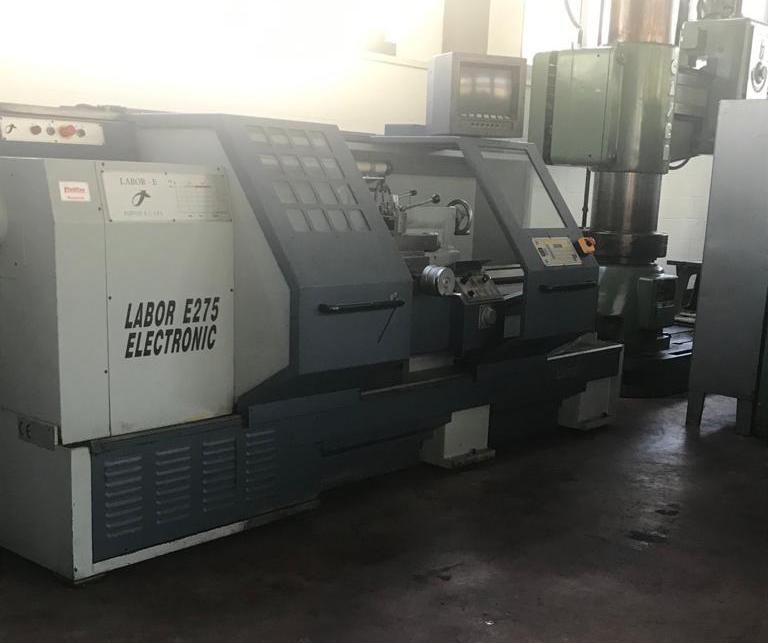

LABOR E275
Capacity
560x2000x108 mm22,05x78,74x4,25 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Max bar working diameter
108 mm4,25 in
Max swing on the bed
560 mm22,05 in
Max swing on saddle
360 mm14,17 in
Max working lenght
2000 mm78,74 in
Guide-ways number
2
CNC
CNC

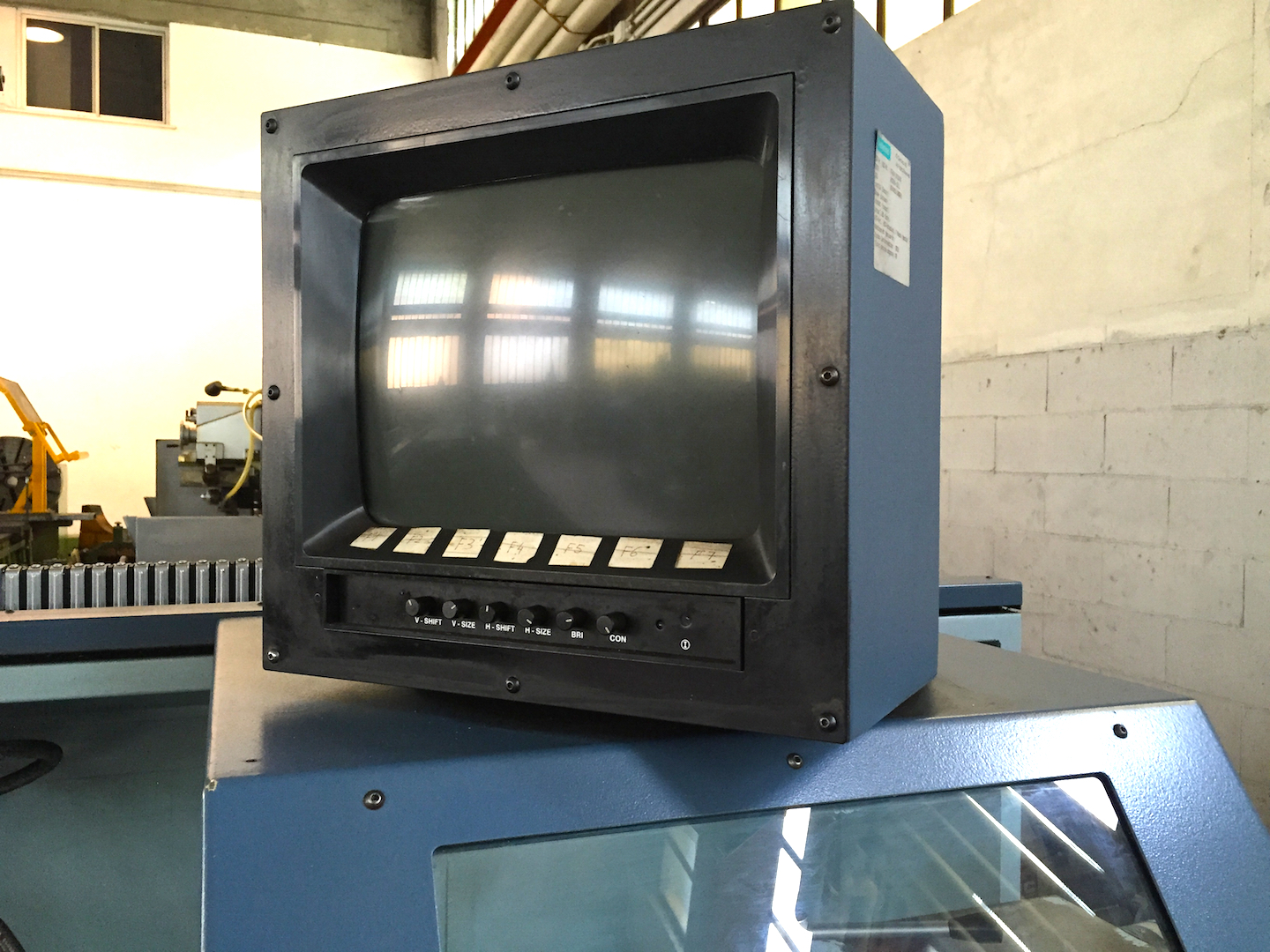

SIEMENS SINUMERIK 805
SADDLE
Max swing on saddle
360 mm14,17 in
MAIN SPINDLE
Max rotation speed
2500 rpm
Spindle nose
CL8”

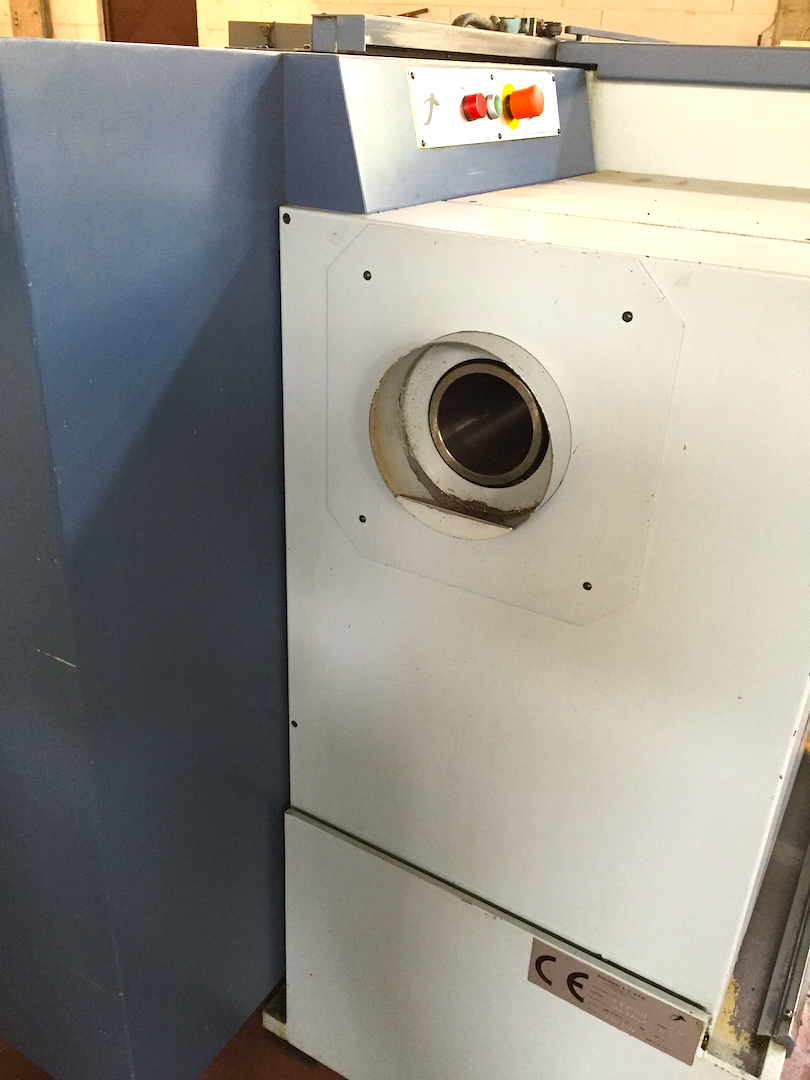

Spindle hole
108 mm4,25 in
Max power
11,5 Kw

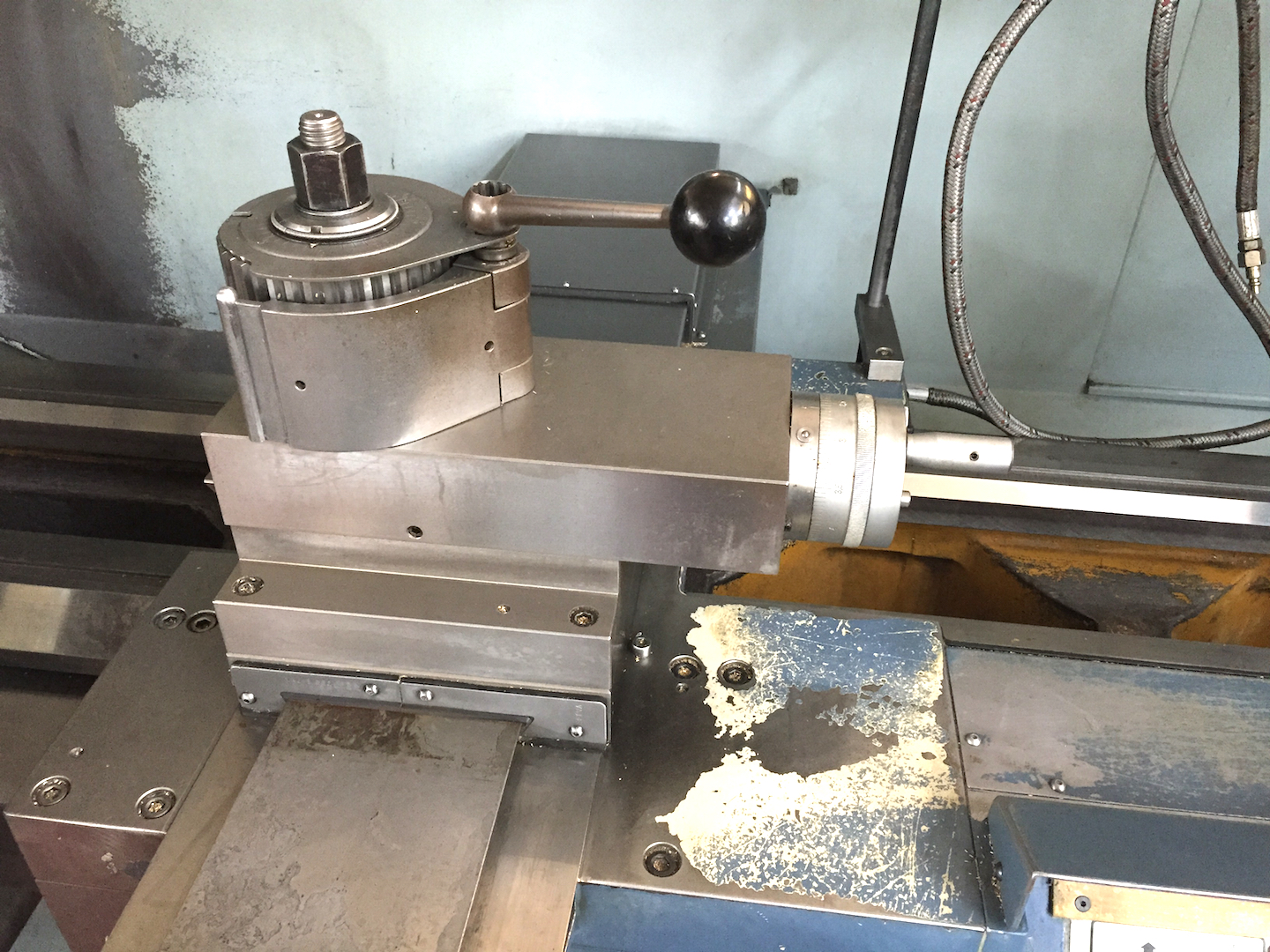

TURRET
Positions number
1
EXTRA
Total power supply
17,5 Kw
Machine total weight
4000 Kg
Floor space
4000x1500x1900 mm157,48x59,06x74,80 in
Closed steadies
2
Open steadies
1
Maintenance & Use books
Yes
Electrical drawings
Yes
CE Certification
Yes
Autocentering chuck
3 griffe 315mm
Protections
carenatura scorrevole
Availability
pronta
Available in stock
Yes
Available under power
Yes
