Category
Turning Machine
Type
Center
Made
Model
T500 500x5000mm
Capacity
ø1050x5000x150 mmø41,34x196,85x5,91 in
Technical specifications
Metric
Imperial
WORKING CAPACITY
Centres distance
5000 mm196,85 in
Centres height
500 mm19,69 in
Longitudinal (Z)
5000 mm196,85 in
Axes movement
RAPIDI
Max turning lenght
5000 mm196,85 in
Max diameter on the bed
1050 mm41,34 in
Max swing on saddle
690 mm27,17 in
Max swing in the gap
1300 mm51,18 in

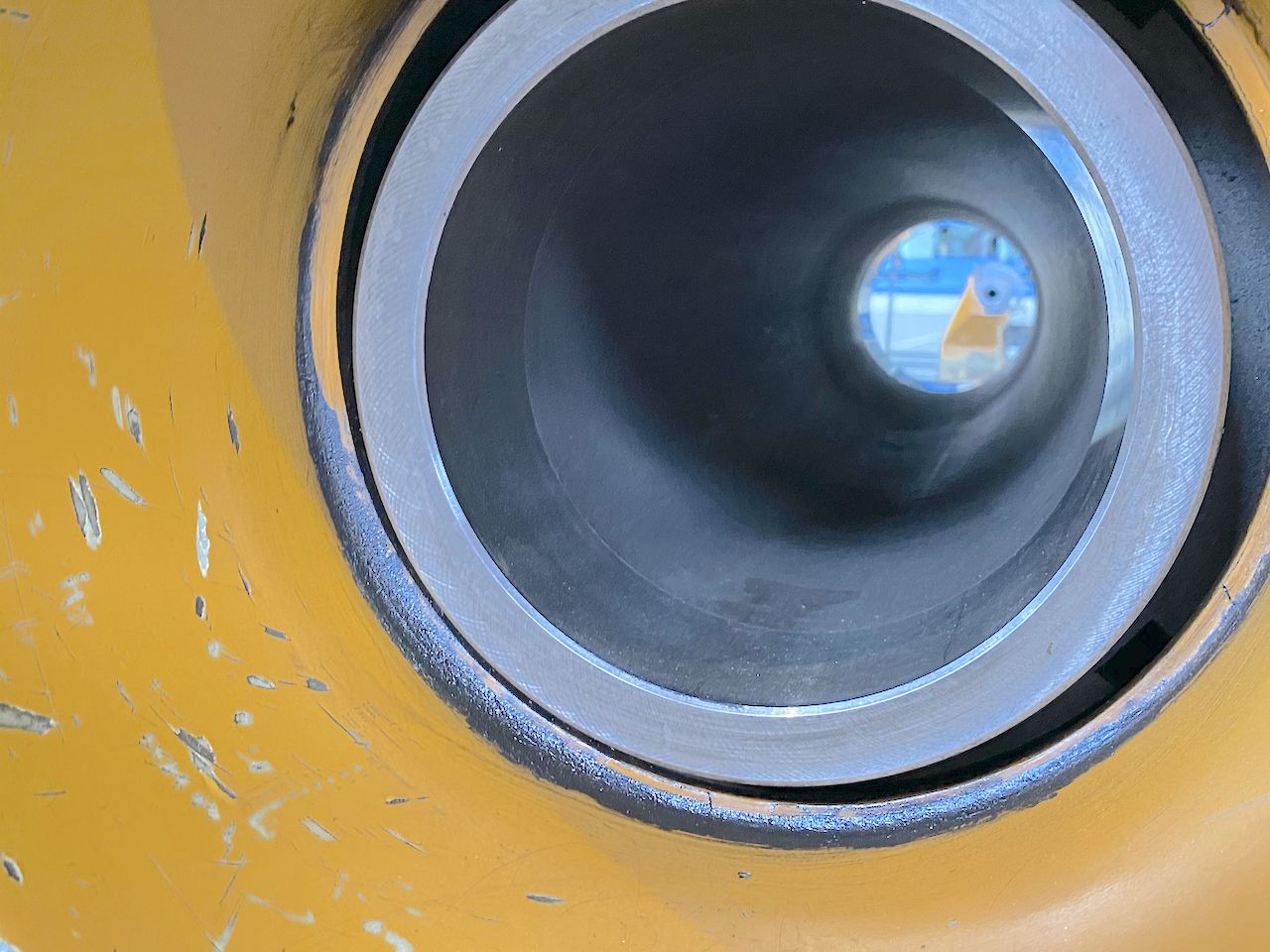

Bar passage
150 mm5,91 in
Notes
rapidi

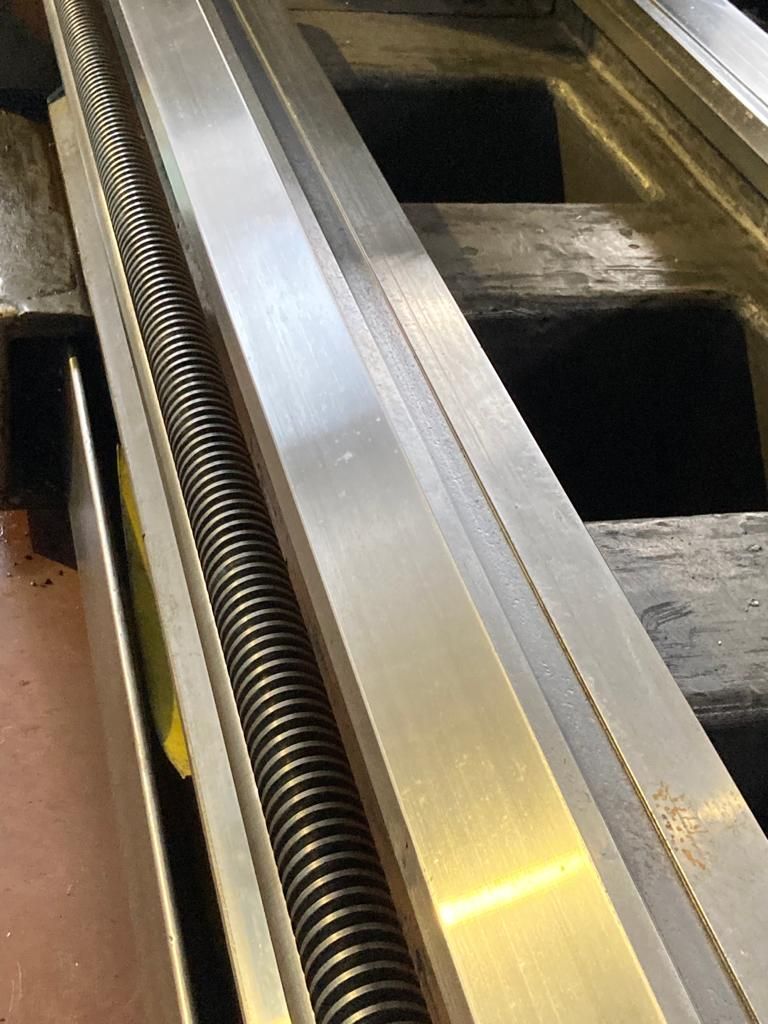

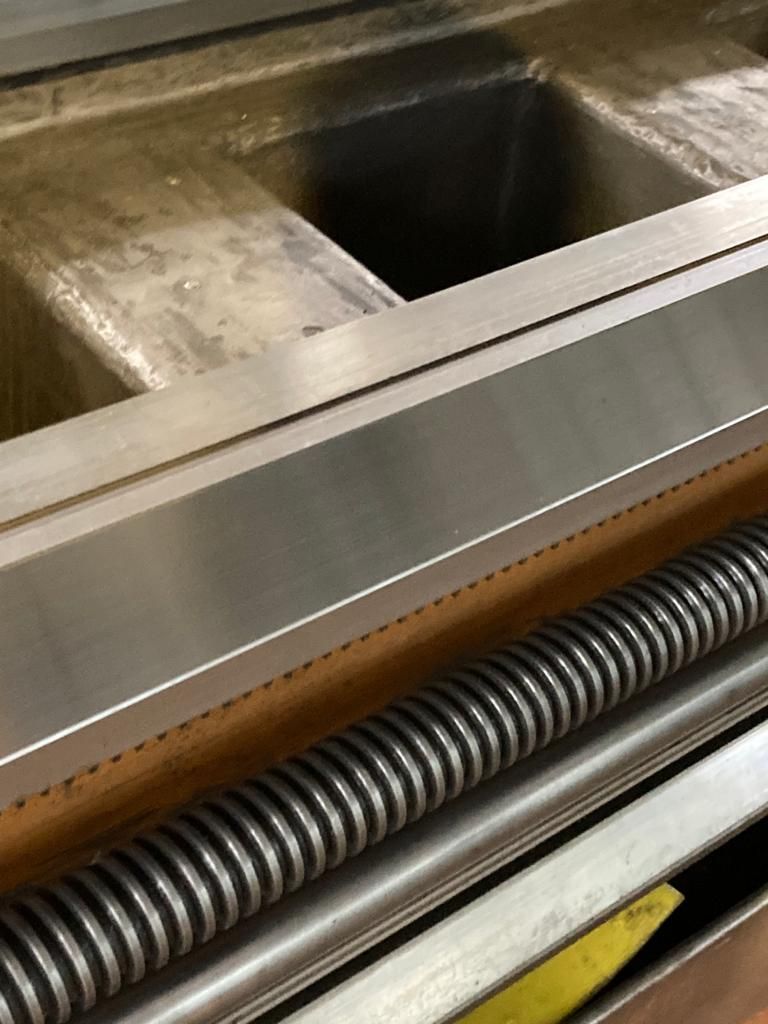

BED
Max weight between centres
6000 Kg

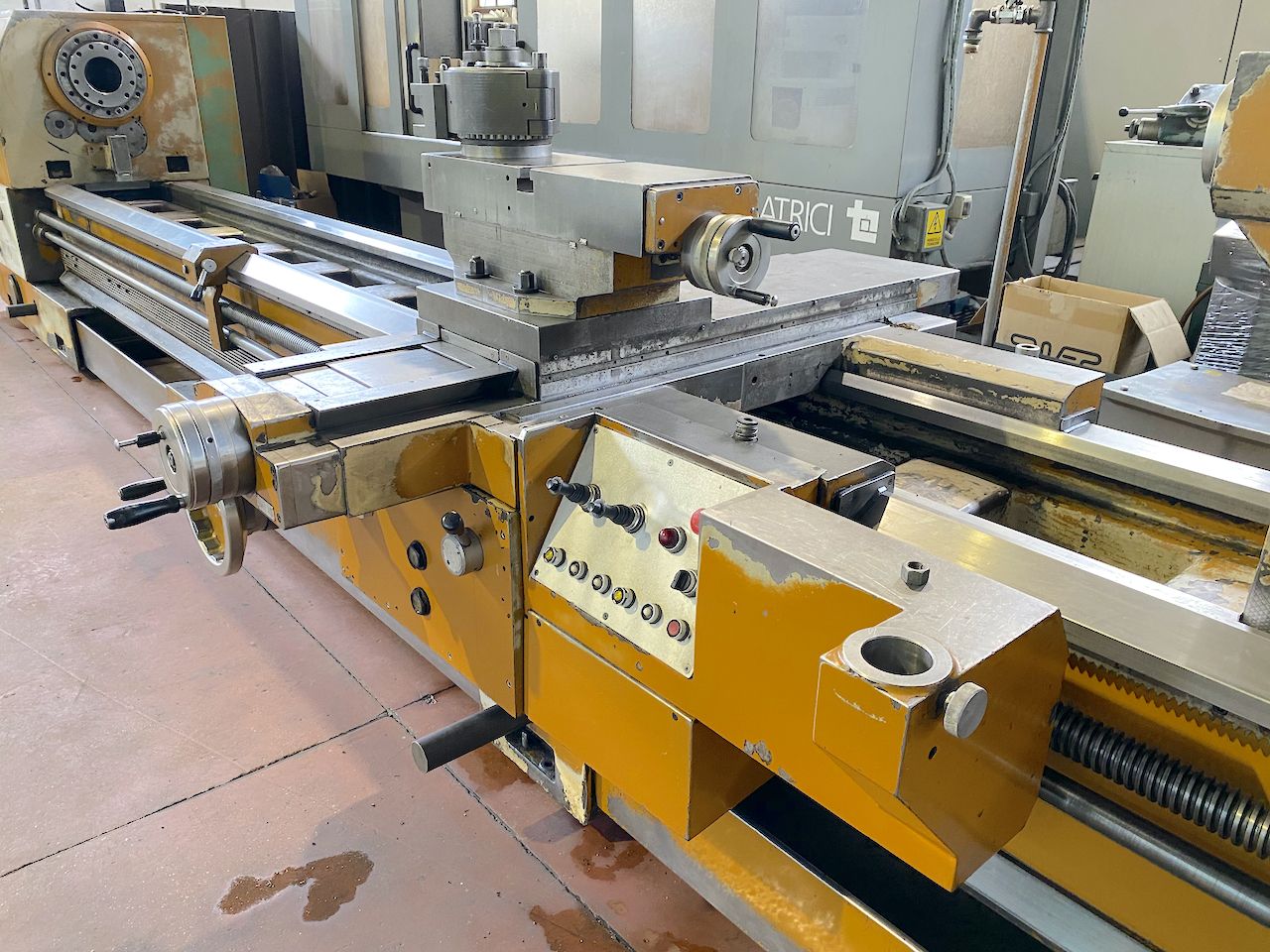

SADDLE
Saddle Width
1020 mm40,16 in
X stroke
640 mm25,20 in
Z rapid feed
5000 mm/min196,8500 ipm
X rapid feed
2500 mm/min98,4250 ipm
HEAD
Spindle power
22 Kw
Spindle speed
4-800 Rpm
Spindle taper
ASA15”
Spindle torque
8000 Nm

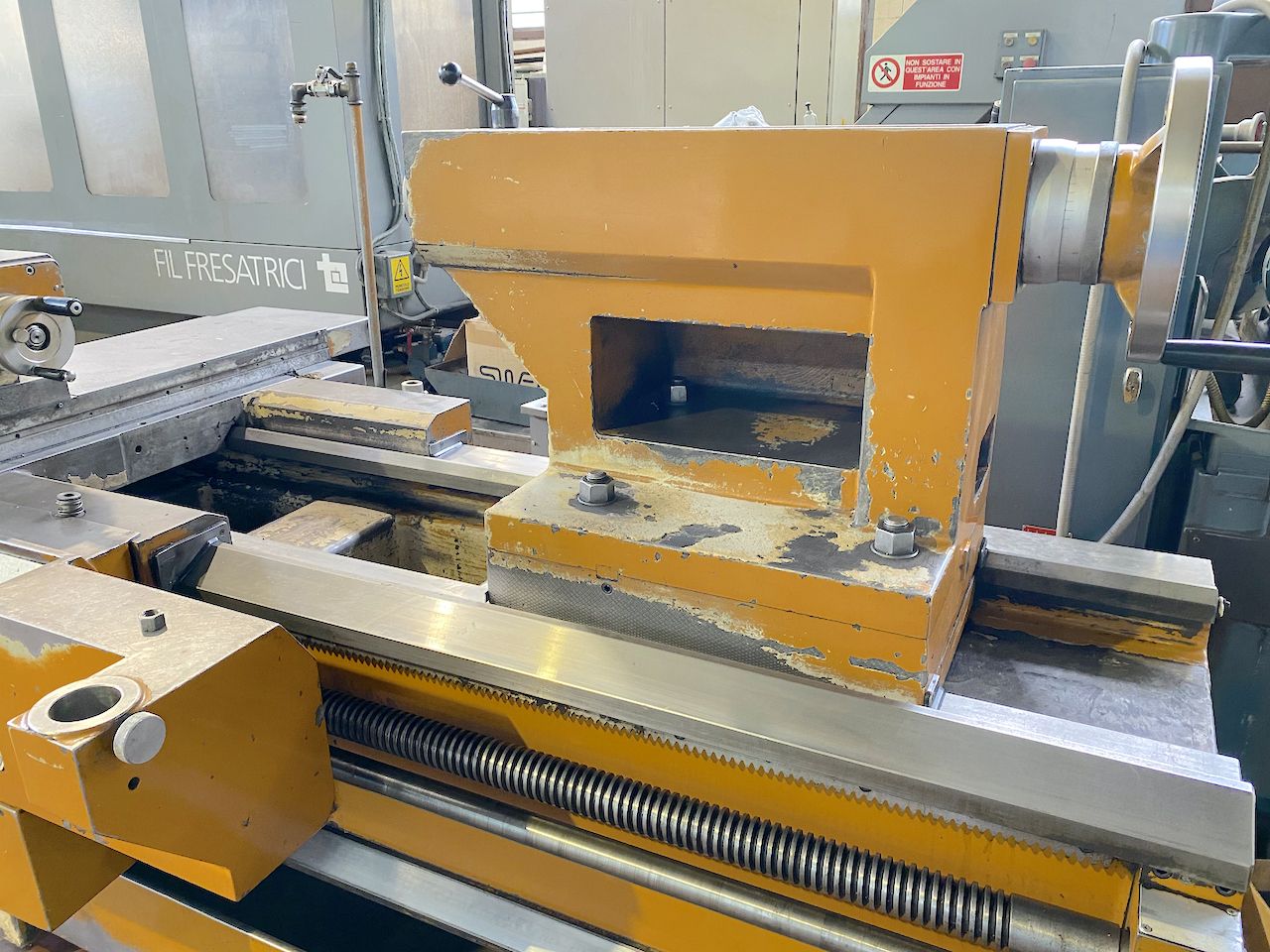

TAILSTOCK
Taper
M.K.6
EXTRA
Machine total weight
10000 Kg
Floor space
7470x1720x1560 mm294,09x67,72x61,42 in

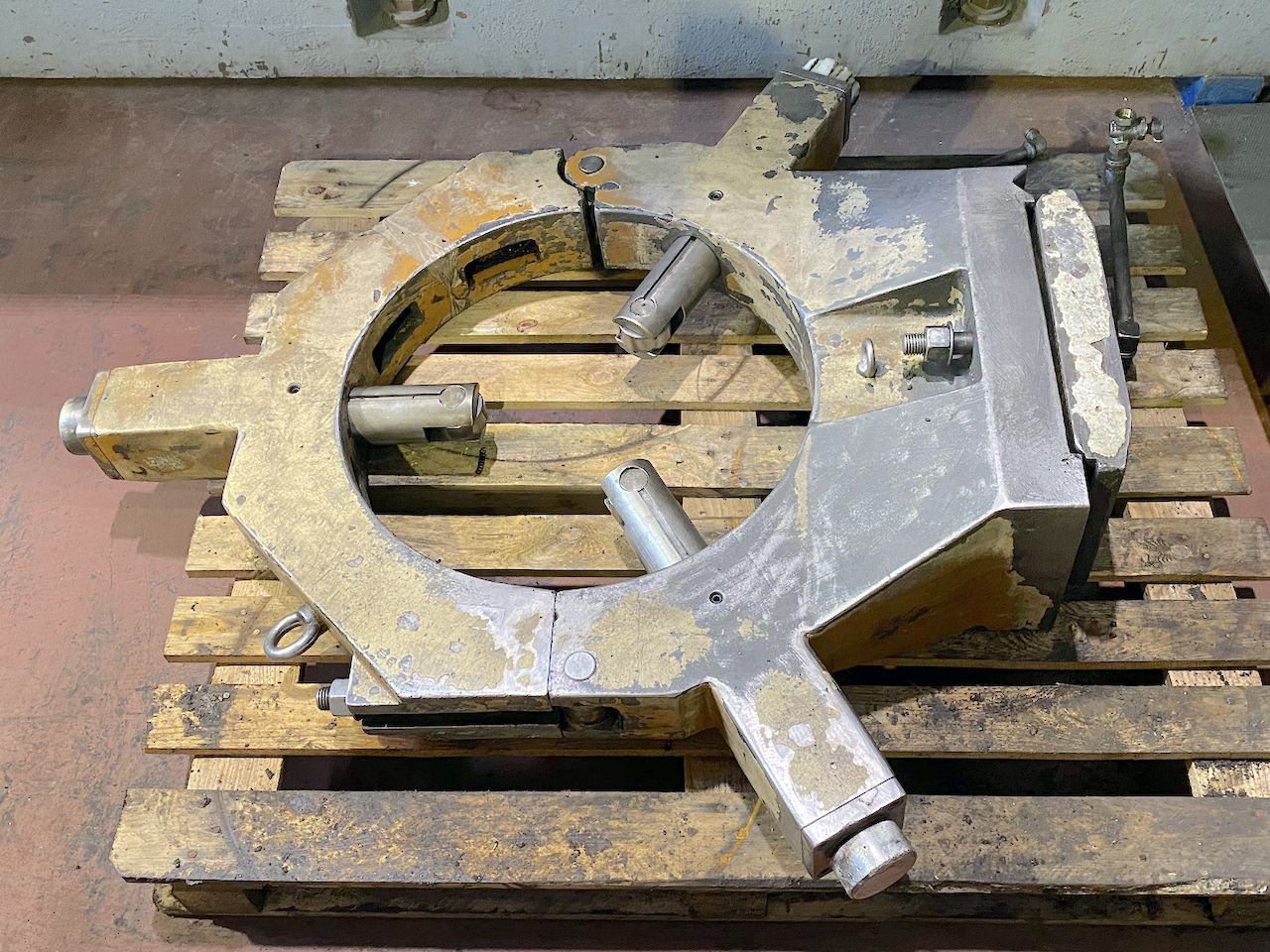

Open steadies
si
Closed steadies
si
Platform
SI - 900mm
Maintenance & Use books
Yes
Electrical drawings
Yes
